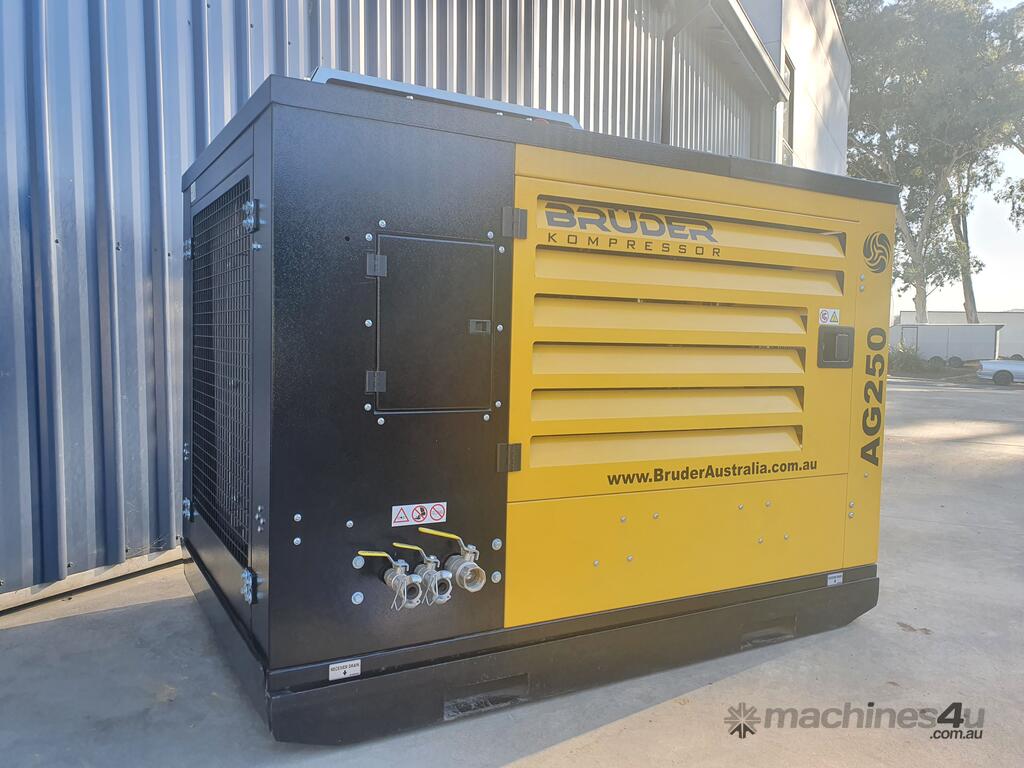

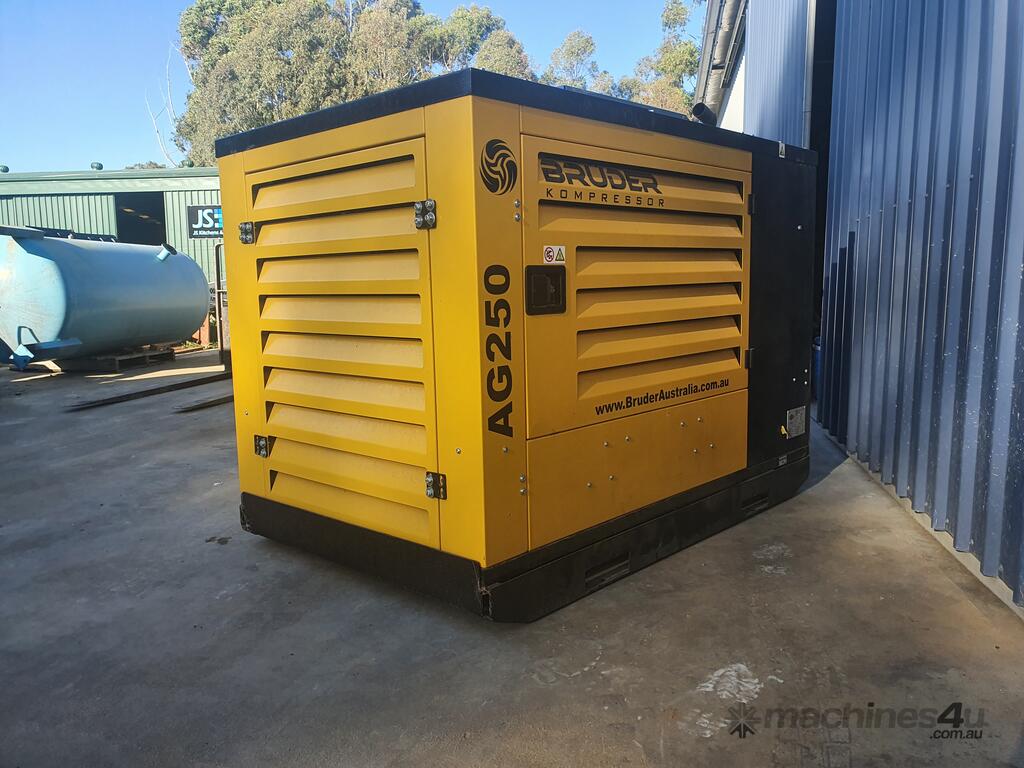

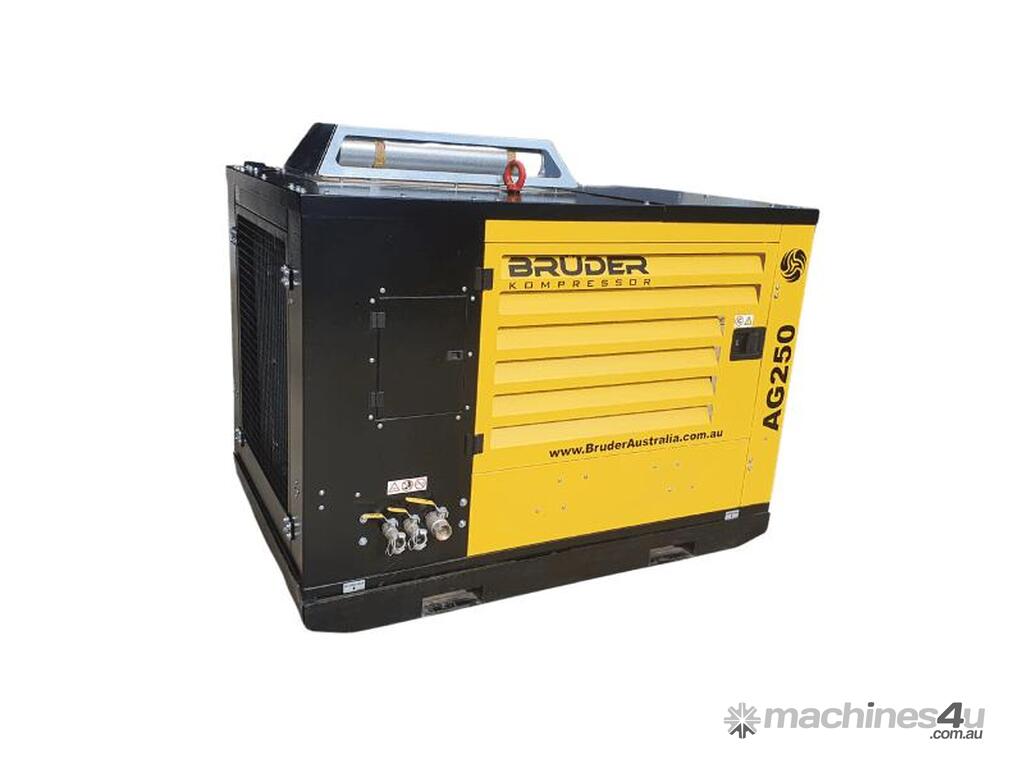

AG250 - 250cfm Rotary Screw Compressor: Diesel Driven, Mounted on a Transport Skid

MASSIVE SALE! WHILE STOCKS LAST ONLY!

The Brüder AG250 is a popular choice for large-scale broadacre farming enterprises with multiple sets of machines operating at once. With it’s higher capacity and reliability, the AG250 can be used with 2 Force 5 Megablaster blow guns simultaneously to best minimise downtime during harvest.

With a smaller footprint and better designed layout than many other compressors in it’s class, the Brüder AG250 can be supplied either on a heavy duty braked trailer (unbraked option not available) on mounted to a forkliftable steel skid for portability, or (permanently) mounted to a service/comb trailer, ute, or truck tray.

The layout also means that the AG250 is capable of great performance and high volume air output even in extreme weather conditions with heat and dust. The IntelliDrive engine management system, while being intuitive and very user-friendly, offers good control over standard engine parameters and helps to maintain the engine at peak performance.

Free Air Delivery: 247cfm (7m3/min)
Working Pressure: 7 bar (101 PSI)
Engine: Kubota V3300DI 4-Cylinder Diesel
Engine Rated Power at 2600RPM: 59.1HP (44kW)

Superior harvest compressor features
Steel canopy with large wide-opening doors – for easy access to servicable parts
Vertical top exit exhaust – reduces fire risk when standing in dry crop
Extra long drawbar, heavy duty jockey wheel – easier to manoeuvre
Unique airflow design and firewall – provides optimal cooling in high ambient temperatures
Side mounted valves and outlets – for operator safety and ease of access
Kubota turbo diesel – lightweight, compact, reliable, and powerful with established service network

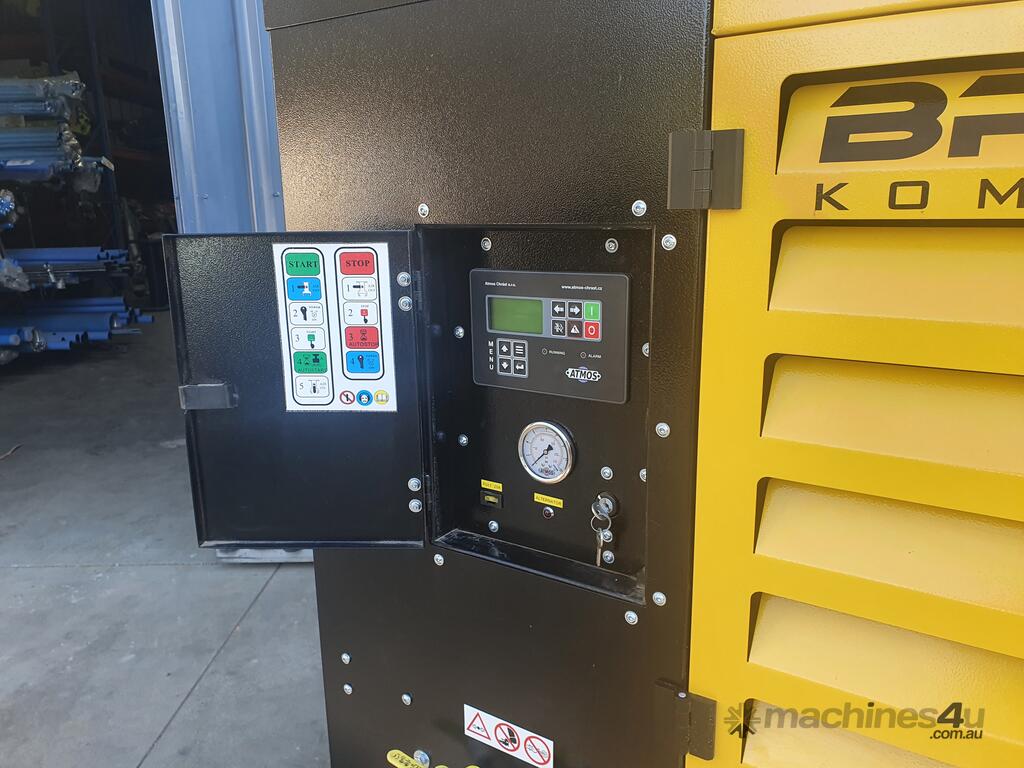

IntelliDrive Nano – user friendly digital control system to protect and regulate compressor
115 litre steel fuel tank – longer running hours
Spin-on filters – easy servicing and replacement
Steel forkliftable transport skid with integrated tiedown eyes for easy lifting/moving and transport.

TECHNICAL PARAMETERS:
AG250 (7 bar)
Air end: EVO9G
Nominal capacity [m3/min]: 7
Nominal overpressure [bar]: 7
Safety valve setting [bar]: 15
Ambient temperature [C]: -10 to +46
Max outlet temperature [C]: 110
Cooling system: Oil injection
Compressor oil filling volume [Litres]: 19
Max oil system temperature [C]: 110
Max oil system pressure [bar]: 8.5
Outlet valves : 2 x G3/4" BSP, 1 x 1 1/4"

ENGINE PARAMETERS:
Type/Model: Kubota V3300DI
Cylinders: 4
Load speed [rpm]: 2600
Idle speed (Eco mode) [rpm]: 1500
Oil filling volume [Litres]: 9
Fuel tank volume [Litres]: 115
Coolant filling volume [Litres]: 4
Battery [V/Ah]: 12/135

NOISE EMISSIONS:
Sound power level LWA [dB(A)/pW]: 102

MOUNTING OPTIONS:
The AG250 chassis has 3 foot pads which are integral to the design of the machine, placed in a manner to facilitate even load distribution when lifting from the top. As such, the compressor is best fitted to a skid or a trailer for portability. However, the skid can be omitted for permanent installation to a truck tray, service trailer or similar.

SKID DETAILS:
Total mass [kg]: 900
Total length [mm]: 1770
Total width [mm]: 1100
Total height (includes lift eye and exhaust) [mm]: 1450
