AGMA A-10 Vertical Machining Centre

•Headstock, Body, Saddle, Base, and Work Table all use superior grade of cast iron. All are
stress relieved to ensure maximum accuracy and absolute rigidity.
•Spindle Headstock Design utilizes box shape design, internally ribbed reinforcement for
highest rigidity maximum stability, ideal for heavy-duty machining.
•Two Guide Way base along with wide stance column design greatly increase contact surface
between Column and Machine Base, which reinforce greater head support. Column is heavily
ribbed with cell shaped structure internally to minimize twisting deformation during machining.

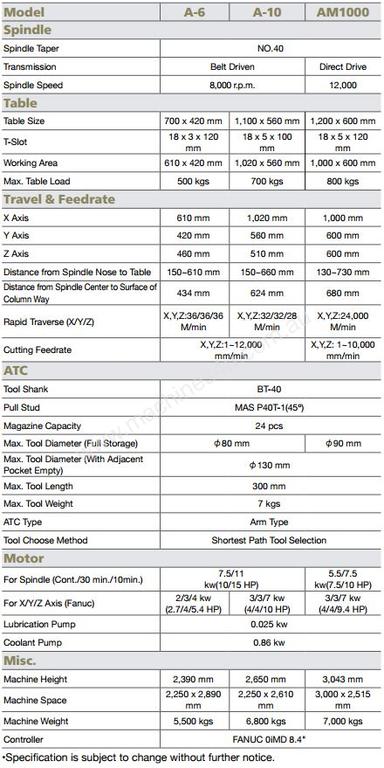

X/Y/Z :
1020/560/510mm (40.16"/ 22.05"/ 20.08" )
24 Tool Magazines (BT-40/CAT-40)
8,000 RPM(Belt Driven)
