AGMA AM-1000 Vertical Machining Centre

Adopt synchronization with European and Japanese design – strong structure of large
span column.
• Adopt Japan made SHOWA brand off- pressure lubricant oil discharge and durable
aluminum tubing to ensure the accuracy and stability.
• The ultra wide door design -opening width of 1360mm - to facilitate the operator to up
and down the fixture and workpiece.
• Large ball screw design - ?45 mm double nut precision fine ball screws
• High texture upright fully enclosed splash guard, good looks and neat appearance.
• Switzerland Schneeberger oversized 45mm Roller-Rail Linear Guideway.
• Extra large Z-axis motor 7.0KW (no counterweight design)
• Large processing range-Y travel 600mm
• Precision double nut ball screw - rigidity, large torque, and good accuracy.
• Precision high-speed spindle - high-speed direct drive spindle supplied by MIRL

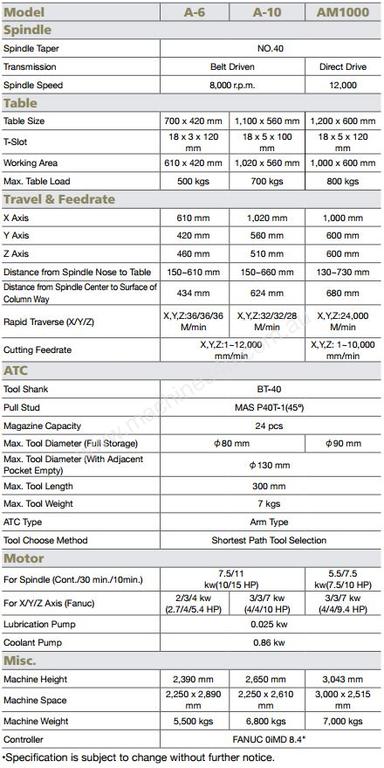

AM-1000
X/Y/Z : 1,000/600/600mm
Arm type 24 tools ATC
BT40 Direct Driven
12,000rpm(15,000rpm option)
