New agma CNC Machining Centre for sale - AGMA VMC-127H

Most Suitable for Needing High Speed, High Cutting Rate, High Rigidity Mold Making Industry
X & Y axes has a hardened box-way design, Z Axis with SCHNEEBERGER roller-rail linear guide way, MRA45 rollers.
Hollow ball-screw (Ø50-P16) with air cooling system for X-, Y-, and Z- axis drive. Design with shock absorber
Rapid traverse rate 30000 mm/min, cutting feedrate 1-12000 mm/ min.
Design of C-type column with hydraulic weight-balance system instead of using conventional chain-linked balance weight (To prevent the unexpected vibration from fast z-axis drive)
Direct connection using a coupling for Z-axis motor.
Chip disposal system (3 screws and chip flush system on two sides)
Design of fully support for X and Y-axes to gain the high stability and low vibration.
Most suitable for needing high speed, high cutting rate, high rigidity mold making industry. Without the shortcomings of high heat, high noise and high vibration when spindle speed running more than 8000rpm.
Shorten the Distance Between Work Piece and Operator ?
An indented foot space allows operators to get closer to the table and workpiece.
The location of the Y-axis servomotor is at the back of the machine to shorten the distance between the operator and table for greater work area access.

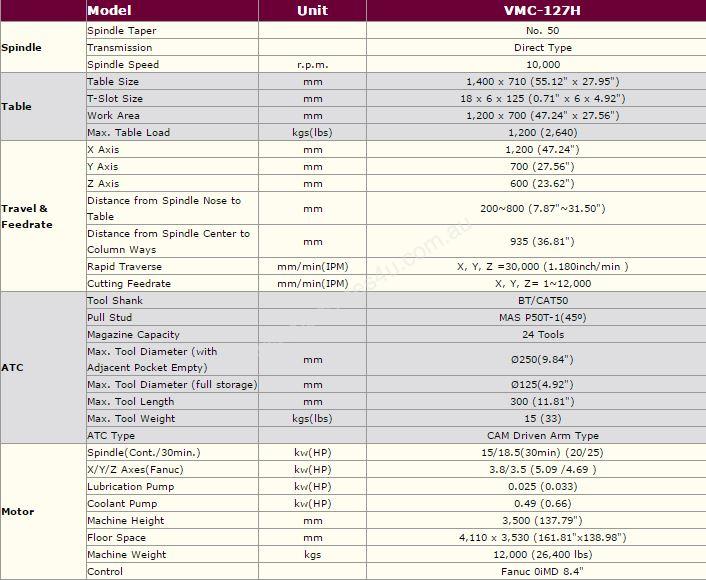

Model Unit VMC-127H
Spindle Spindle Taper No. 50
Transmission Direct Type
Spindle Speed r.p.m. 10,000
Table Table Size mm
1,400 x 710 (55.12" x 27.95")
T-Slot Size mm 18 x 6 x 125 (0.71" x 6 x 4.92")
Work Area mm 1,200 x 700 (47.24" x 27.56")
Max. Table Load kgs(lbs) 1,200 (2,640)
Travel & Feedrate X Axis mm 1,200 (47.24")
Y Axis mm 700 (27.56")
Z Axis mm 600 (23.62")
Distance from Spindle Nose to Table mm 200~800 (7.87"~31.50")
Distance from Spindle Center to Column Ways mm 935 (36.81")
Rapid Traverse mm/min(IPM) X, Y, Z =30,000 (1.180inch/min )
Cutting Feedrate mm/min(IPM) X, Y, Z= 1~12,000
ATC Tool Shank BT/CAT50
Pull Stud MAS P50T-1(45º)
Magazine Capacity 24 Tools
Max. Tool Diameter (with Adjacent Pocket Empty) mm Ø250(9.84")
Max. Tool Diameter (full storage) mm Ø125(4.92")
Max. Tool Length mm 300 (11.81")
Max. Tool Weight kgs(lbs) 15 (33)
ATC Type CAM Driven Arm Type
Motor Spindle(Cont./30min.) kw(HP) 15/18.5(30min) (20/25)
X/Y/Z Axes(Fanuc) kw(HP) 3.8/3.5 (5.09 /4.69 )
Lubrication Pump kw(HP) 0.025 (0.033)
Coolant Pump kw(HP) 0.49 (0.66)
Machine Height mm 3,500 (137.79")
Floor Space mm 4,110 x 3,530 (161.81"x138.98")
Machine Weight kgs 12,000 (26,400 lbs)
Control Fanuc 0iMD 8.4"

Standard Accessories
1. Fanuc 0iMD 8.4"
2. Heat Exchanger for Electrical
3. Quartz Work Lamp
4. Spindle Air Blast
5. RS-232 Interface
6. 24 Tools Arm Type (ATC)
7. 10,000 RPM Direct Driven Spindle
8. Oil Circulating Cooling System for Spindle
9. Spindle Air Blast
10. Automatic Lubrication System
11. Fully Enclosed Splash Guard
12. Rigid Tapping
13. Automatic Power Off
14. Temperature Control System for Each Ball Screw
15. Tool Box W/Leveling Bolts & Pads
16. Operation Manual & Maintenance Manual
17. X+Y Axis Screw Type Chip Auger (3 pcs)
18. Transformer (Exclude India, USA and Canada)
19. CE/CSA Electrical System (For European/Canada Country Only)

Optional Accessories
1. Fanuc 31iMB Controller
2. 32 Tools Arm Type (ATC)
3. 12,000 RPM Direct Driven Spindle
4. Chip Conveyor
5. Coolant Through Tool
6. Heidenhain Optical Linear Scales for all axes
7. Coolant Through Spindle (20/70 Bars-Closed Hole) A Type
8. Automatic Tool Length Measurement System
9. Rotary Table(4thAxis)
10. Electrical Box Air Conditioner Device
