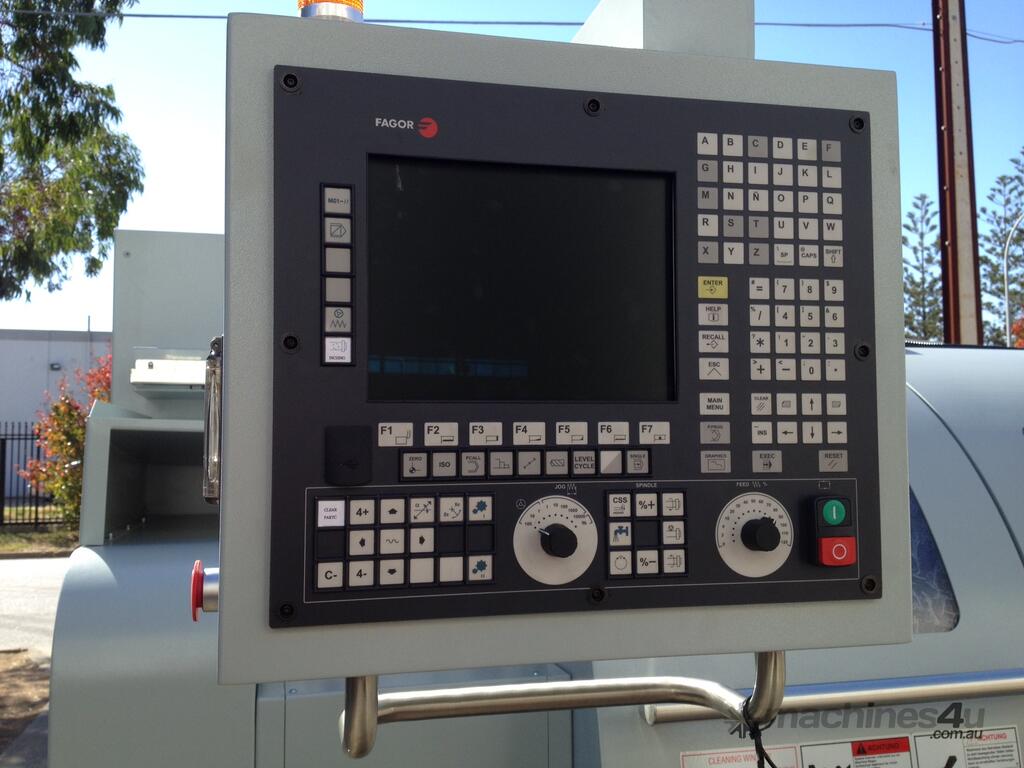

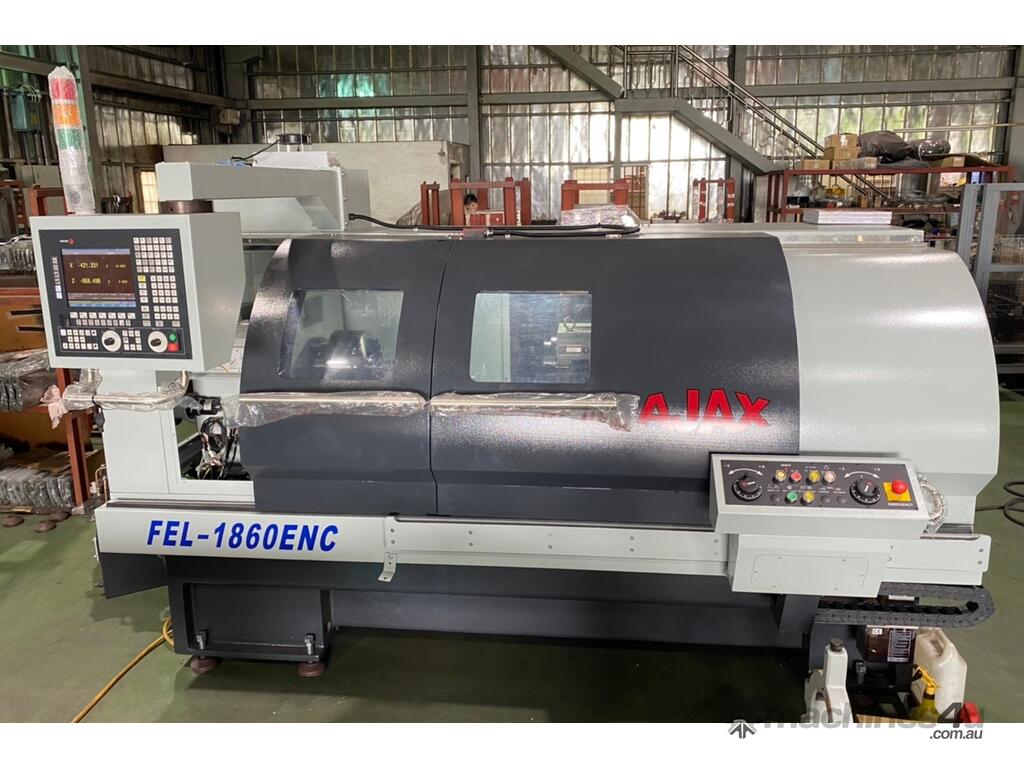

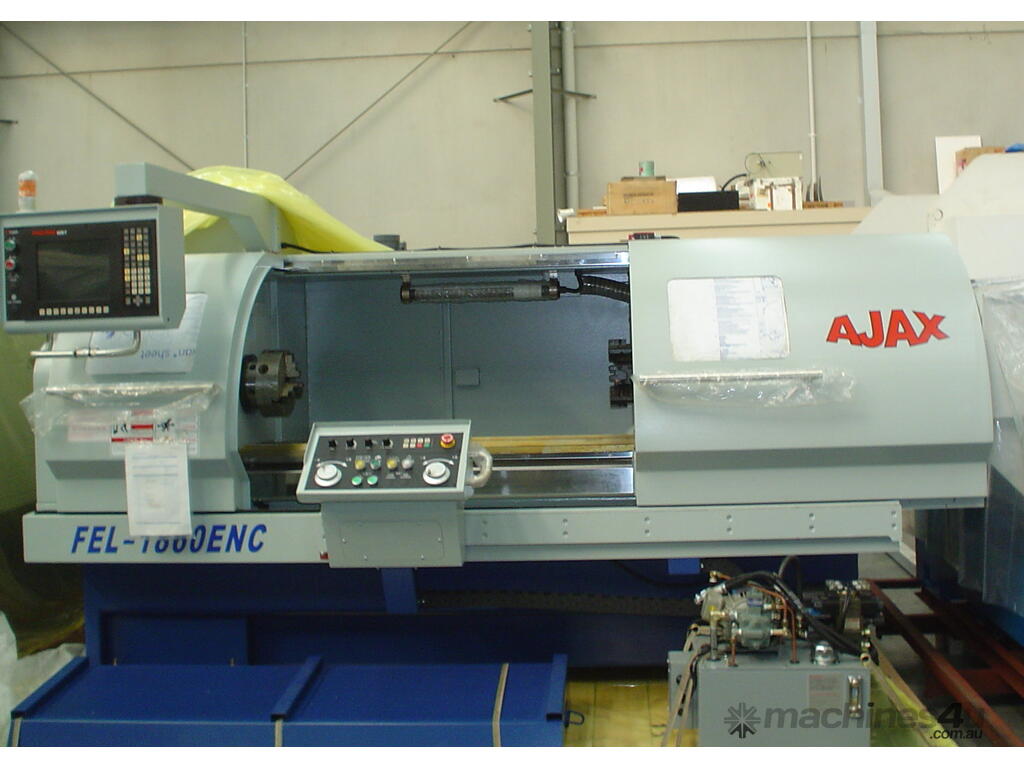

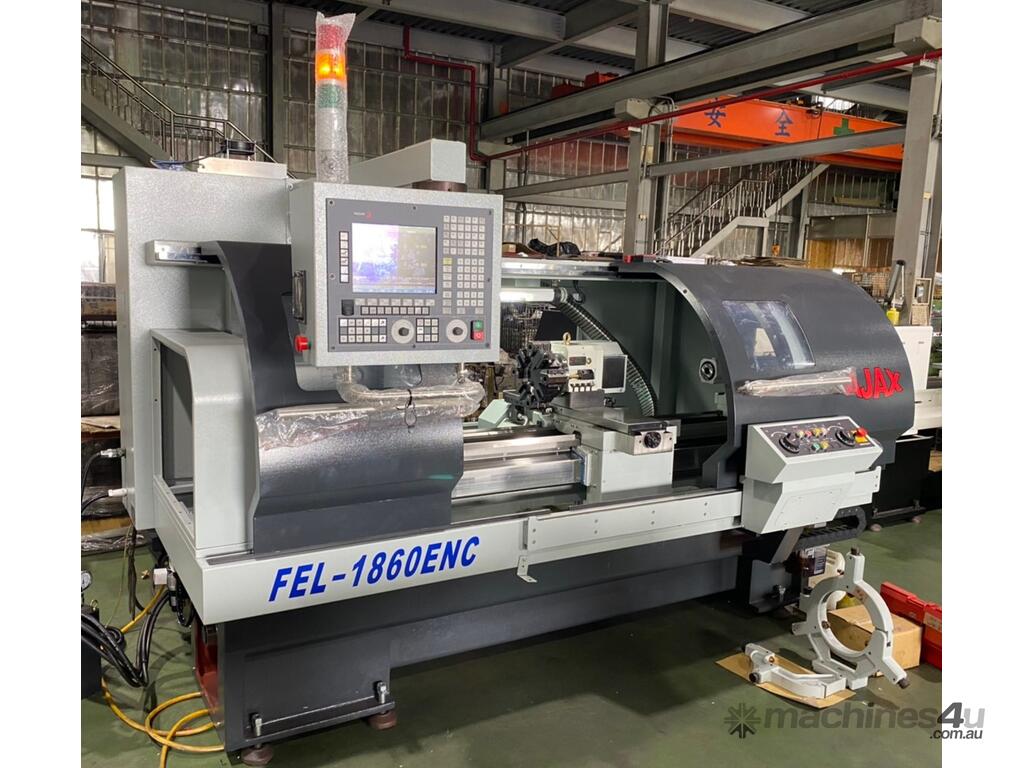

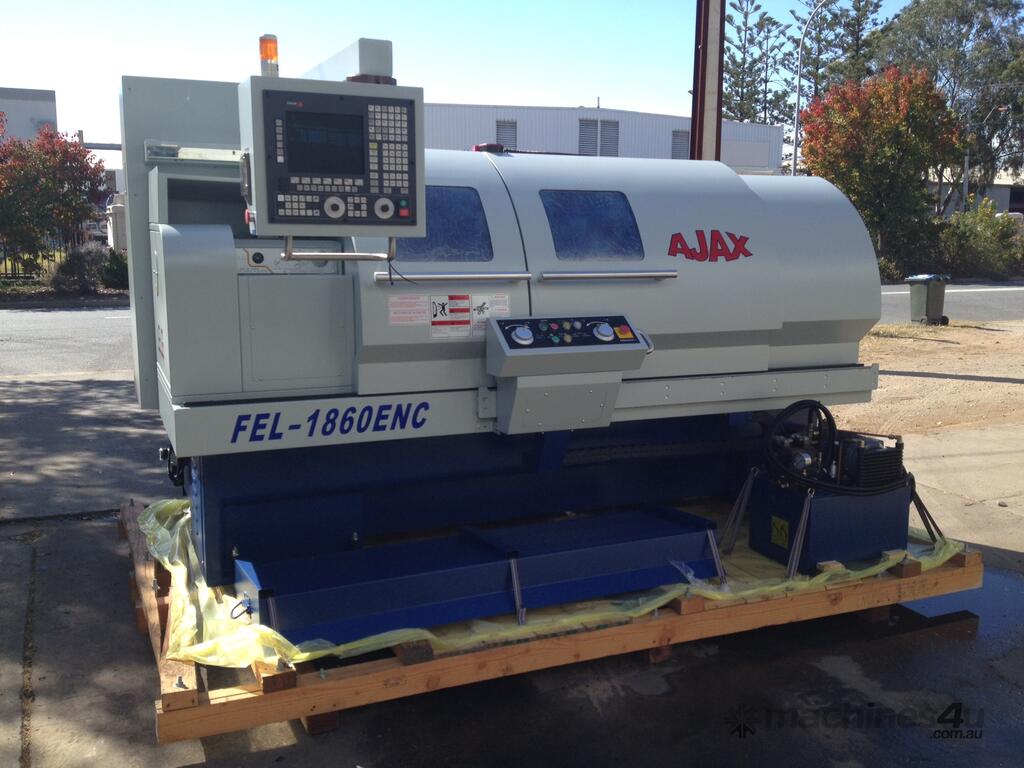

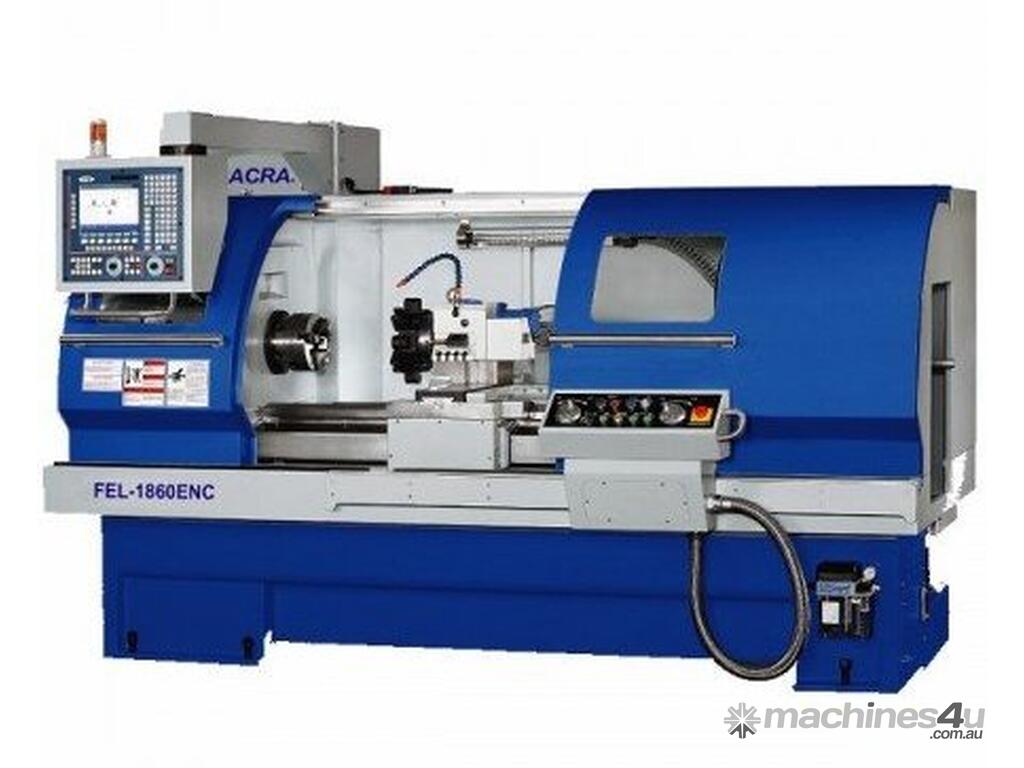

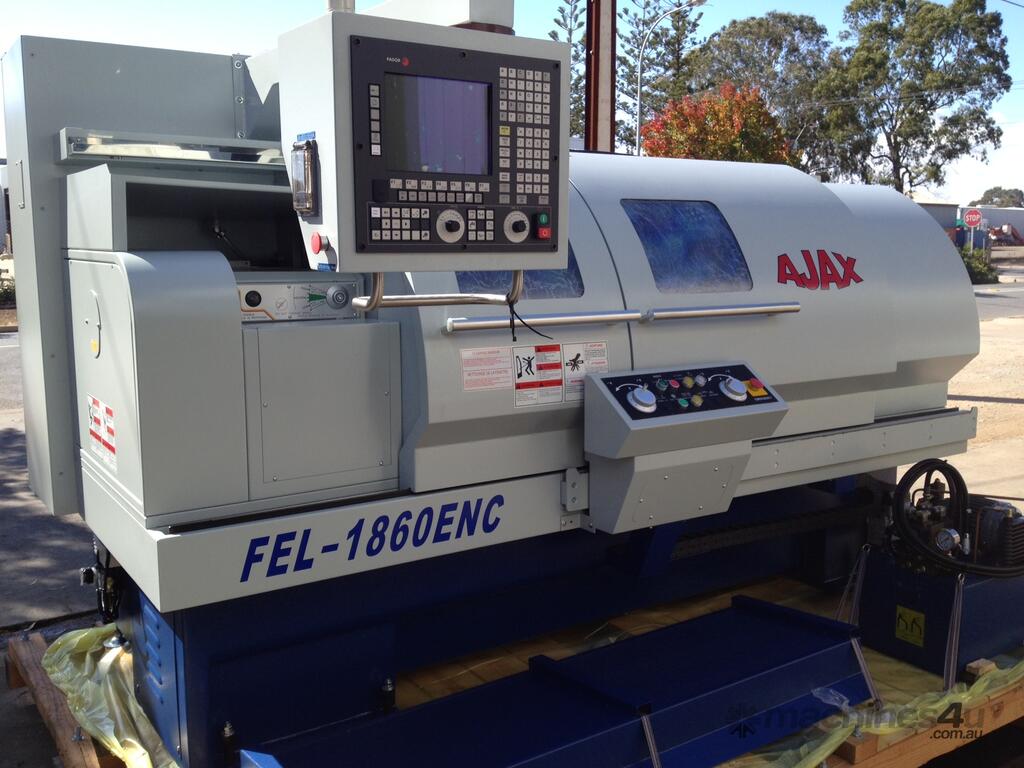

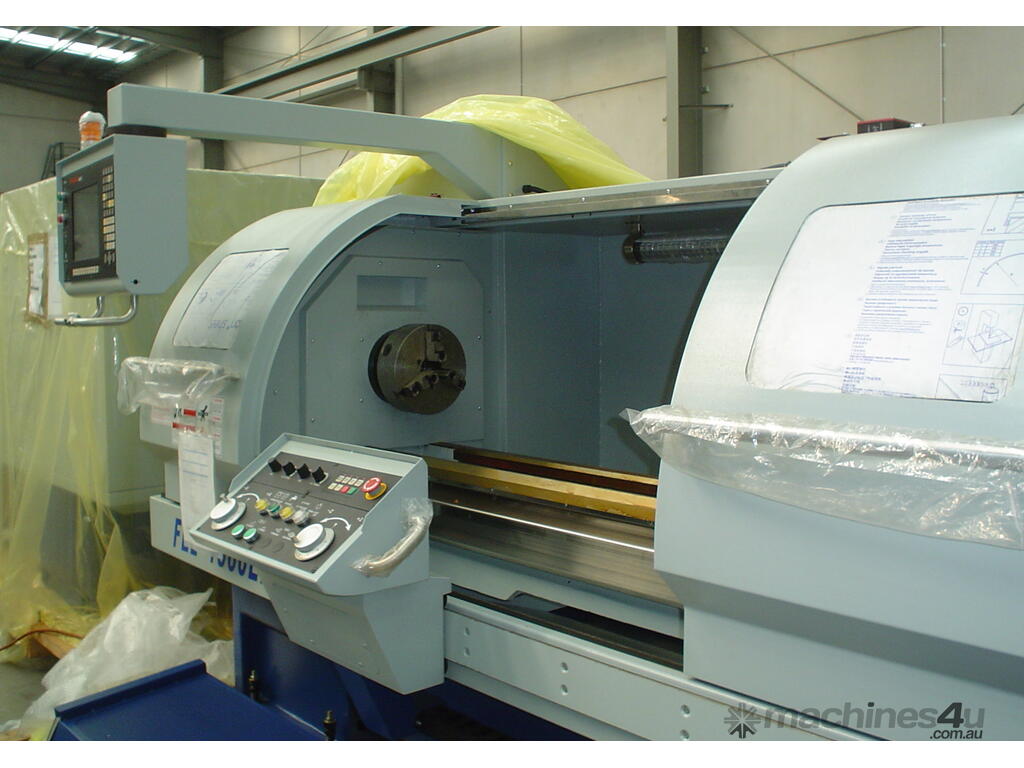

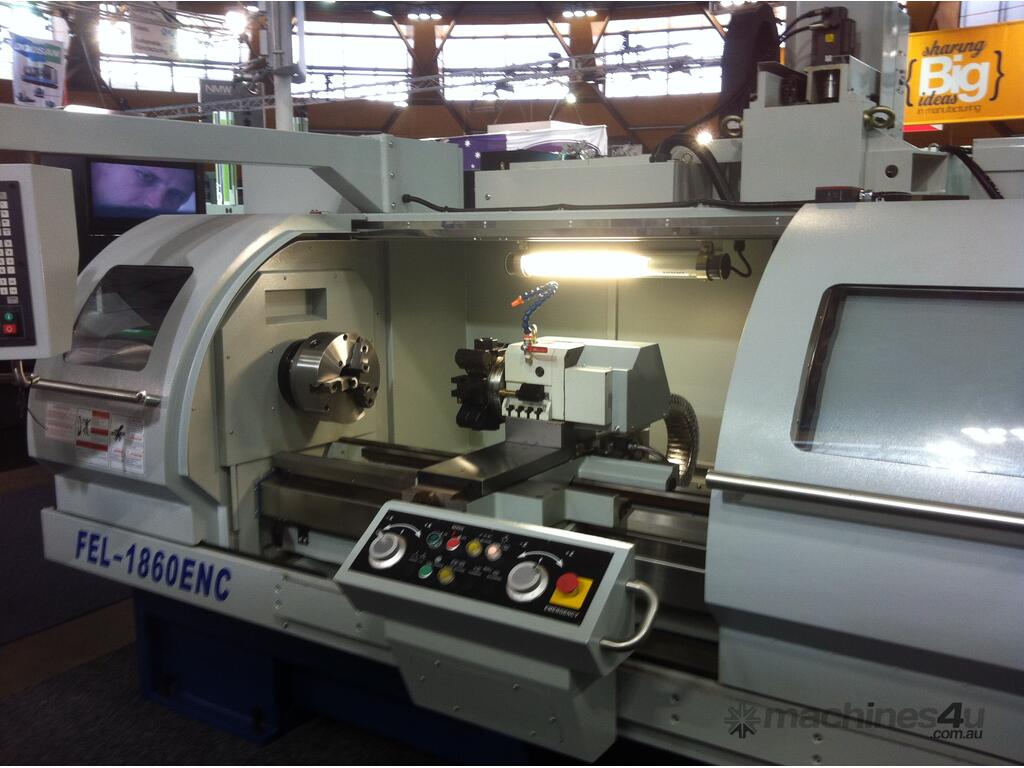

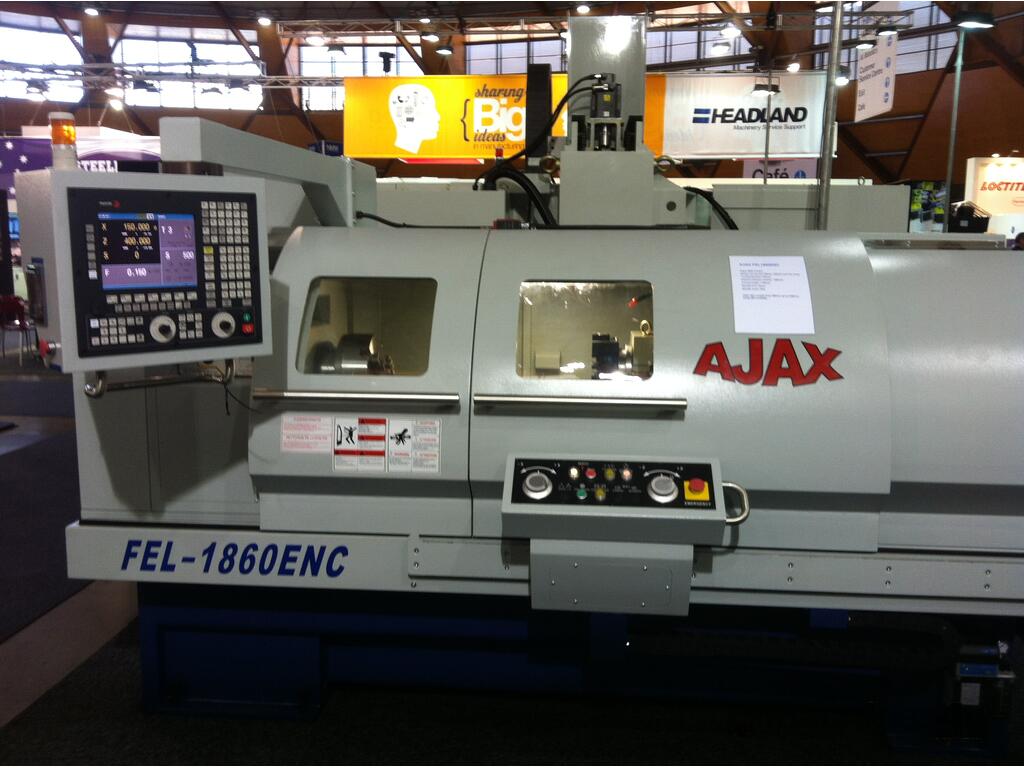

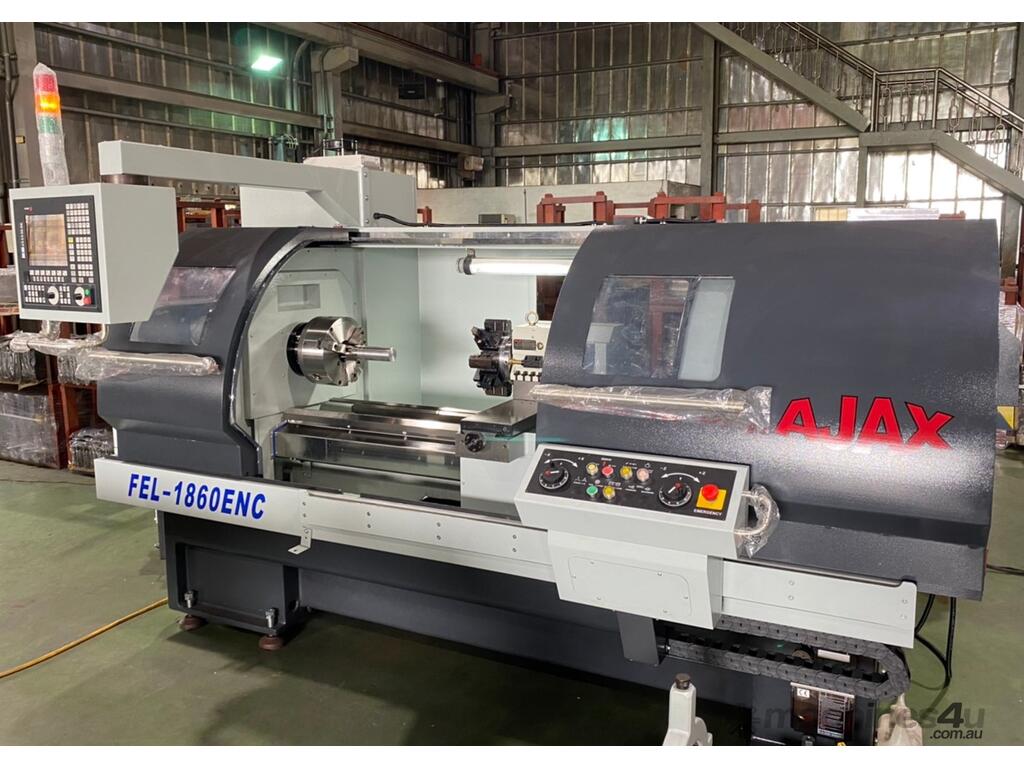

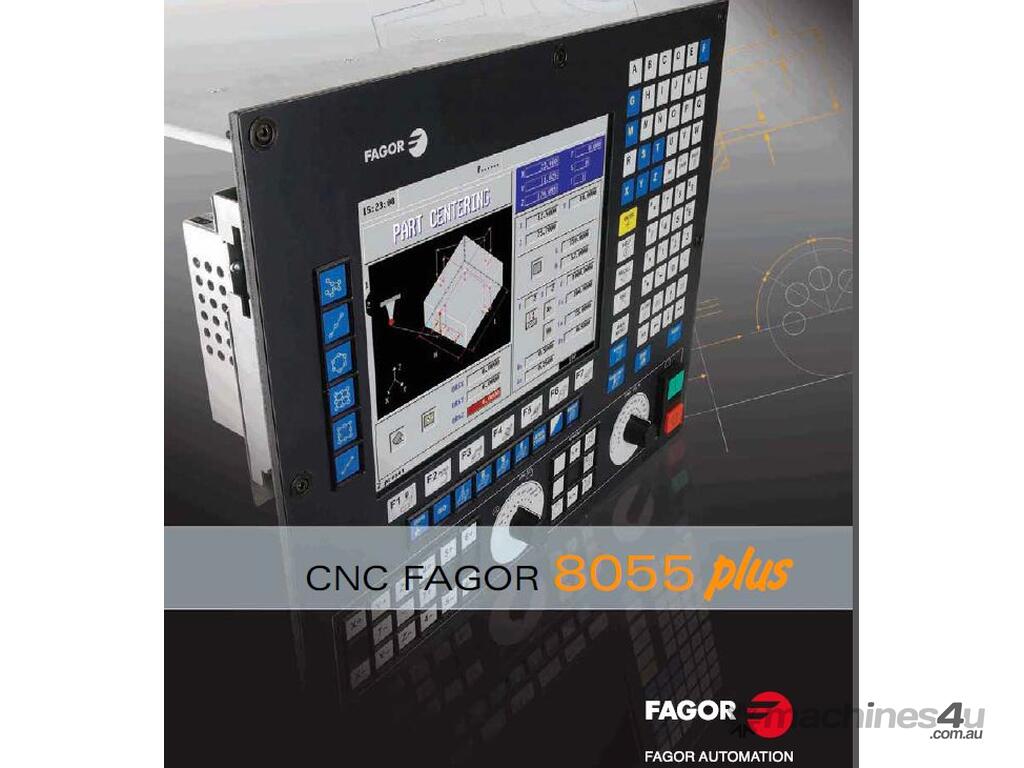

CNC MACHINERY SALES AUSTRALIA PRESENTS - AJAX 460mm swing ``Teach In`` style CNC lathes offers the very best combination of the powerful and user friendly Fagor or Fanuc control system in a solid and compact lathe package.
Standard with a very usable 60mm D1-6 or 65mm A2-6 spindle bore, hydraulic V8 tool turret and programmable change 2 speed gearbox, the AJAX CNC is the perfect solution for jobbing work, small production runs and for those making the move from manual to CNC turning for the first time.
Specifications:
Swing over the bed: 460mm
Distance between centres: 900mm or 1400mm
X & Z ballscrews : 20mm & 40mm
Width of bed: 305mm
Spindle speeds: 270~830rpm / 831~2500rpm
Speed ranges: 2 with programmable range change
Spindle bore 60mm D1-6 or 65mm A2-6
Spindle motor: 7.5kw / 11kw

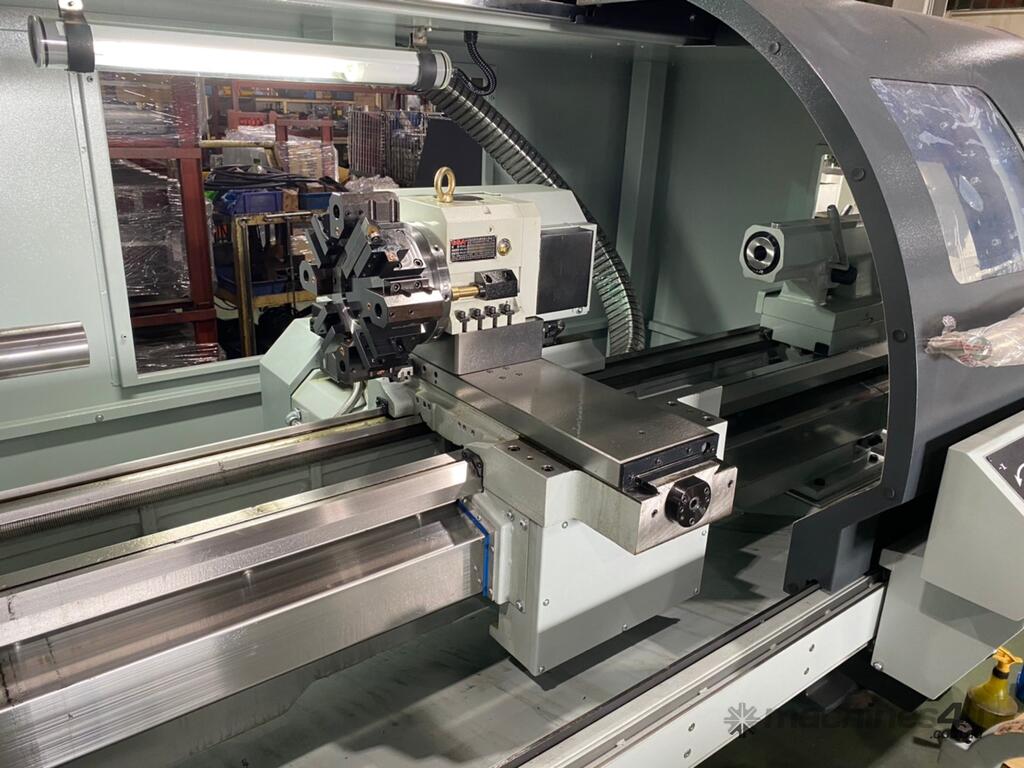

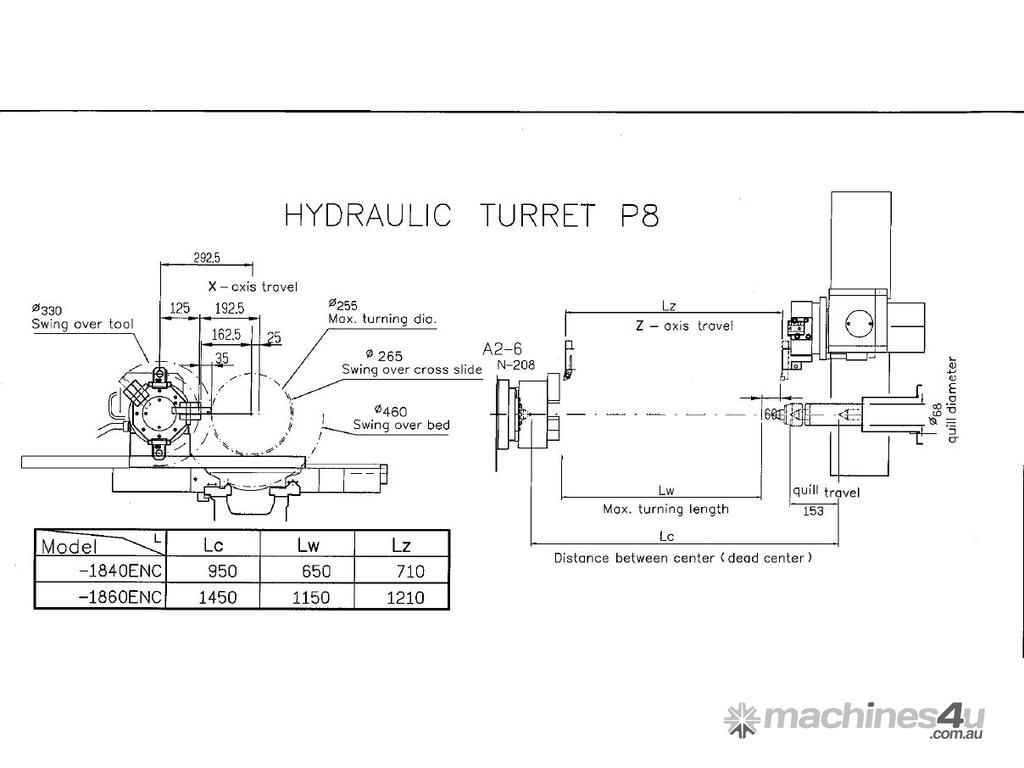

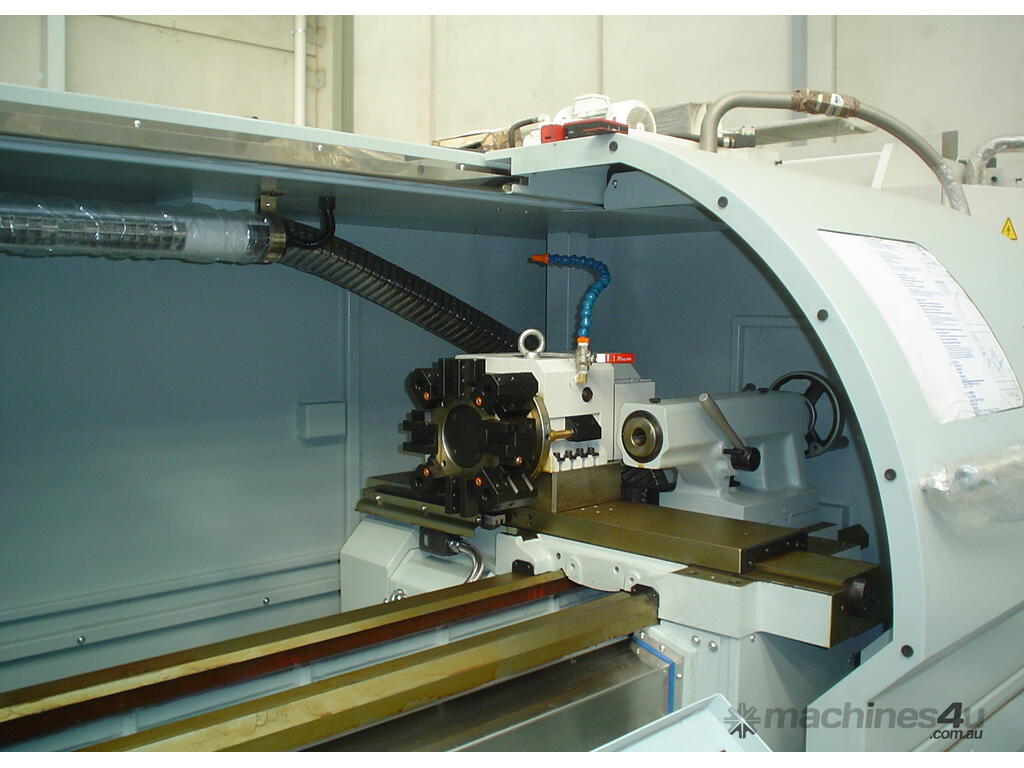

Standard Turret: V8 hydraulic (also available with electric 4 way or QCTP)
V8 Turret Tool size: 20mm OD tool, 20mm x 20mm Square tool
X-axis travel: 230mm
Z-axis travel:1350mm
Rapid traverse X / Z: 10M/min
Tailstock Quill diameter: 68mm
Tailstock Quill travel: 153mm
Taper of centre: MT 4
Length (packing size): 3360mm
Width (packing size): 2115mm
Height (packing size): 2340mm
Machine weight net: 2600kg
Delivery, commissioning, training and ongoing support Australia wide.
Since 1989, CNC Machinery Sales Australia's commitment has extended beyond the sale. We prioritize seamless service and support to all of our clients, large and small. Our in-house service engineers and network of industry professionals ensure swift response to any machine issue at any location across Australia.
Go to the CNC Machinery Sales showroom on Machines4u to see the rest of our range, send us a message about the product you are interested in, or give CNC Machinery Sales a call, we are happy to answer any of your questions and provide professional advice.
*CLICK ON THE PDF SPEC SHEET FOR MORE DETAILED INFORMATION *
