AJAX 460mm swing Flat Bed Teach-In CNC Lathes

CNC MACHINERY SALES AUSTRALIA PRESENTS - AJAX Conversational CNC Lathes with:
460mm swing x 900mm or 1400mm between centres, 60mm (D1-6) or 65mm (A2-6) spindle bore, programmable speed range change and Fagor 8055 control. Available with optional hydraulic chuck, hydraulic tailstock, swarf conveyor and optional Live Tooling with C axis to take productivity to the next level.

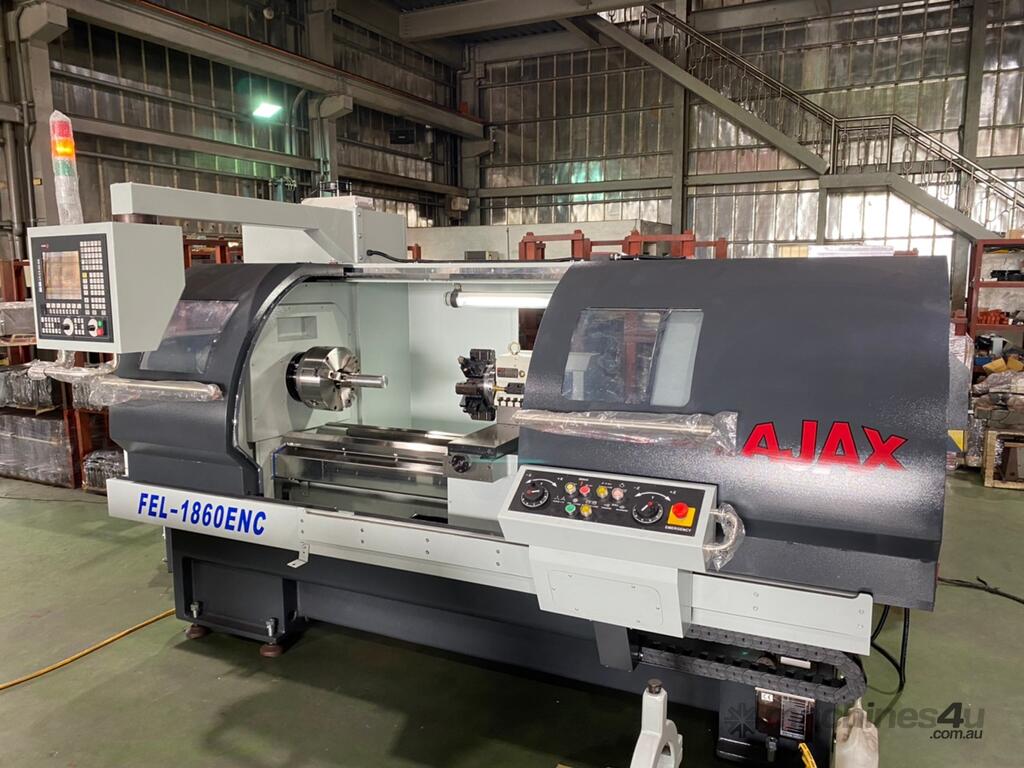

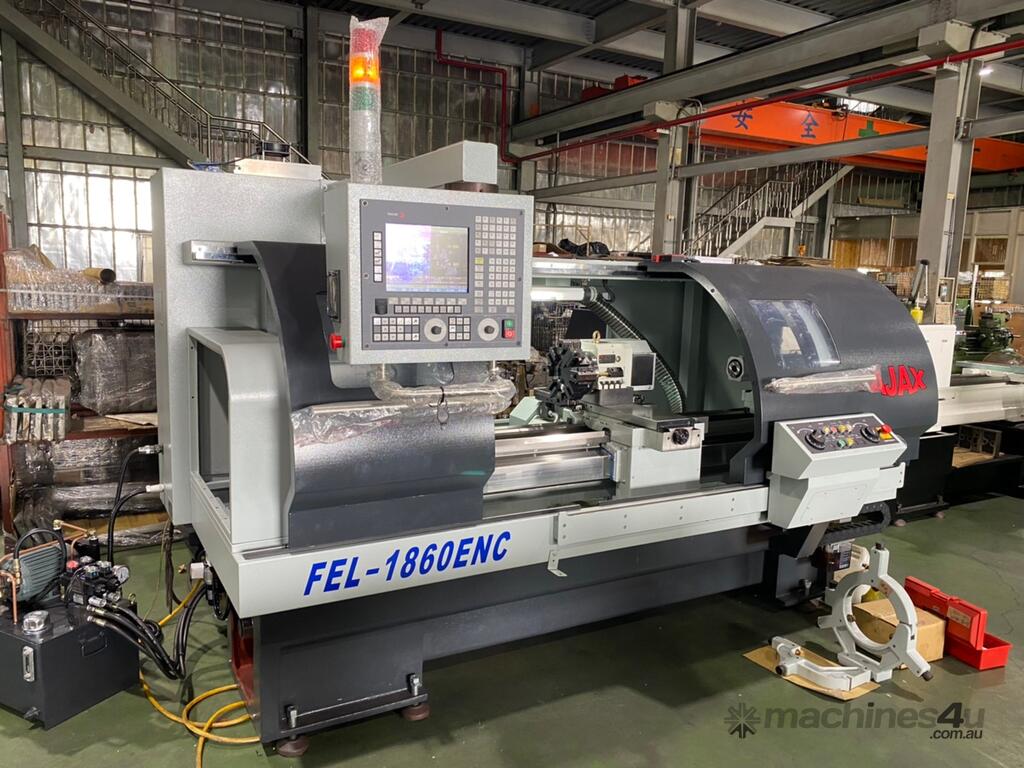

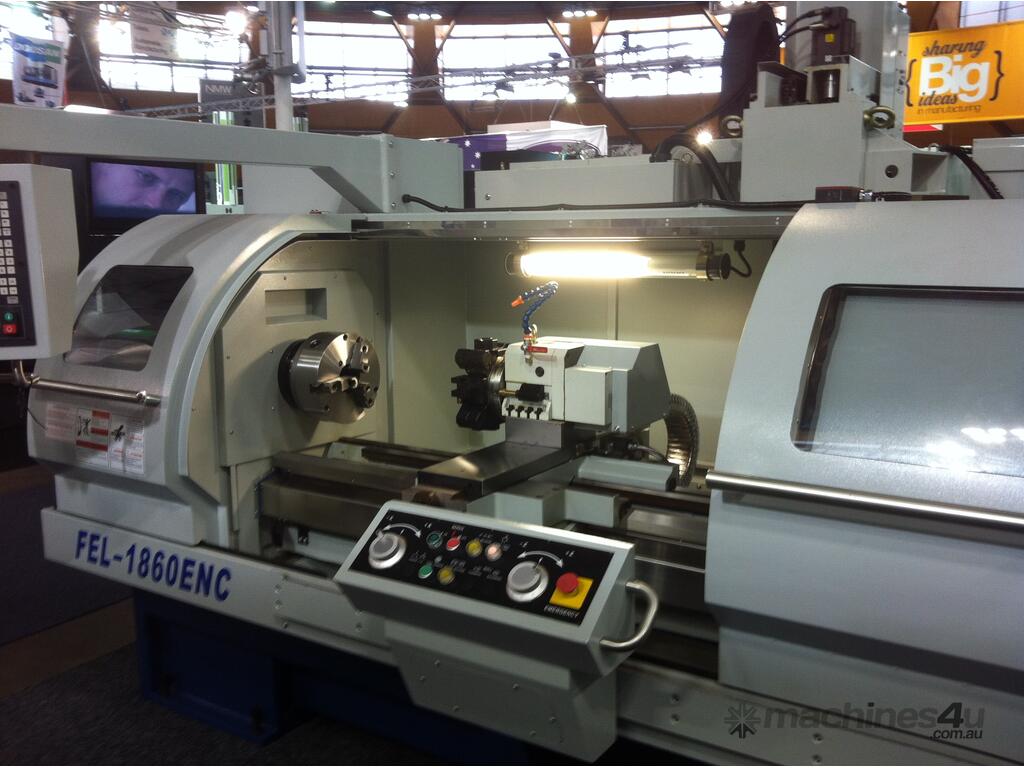

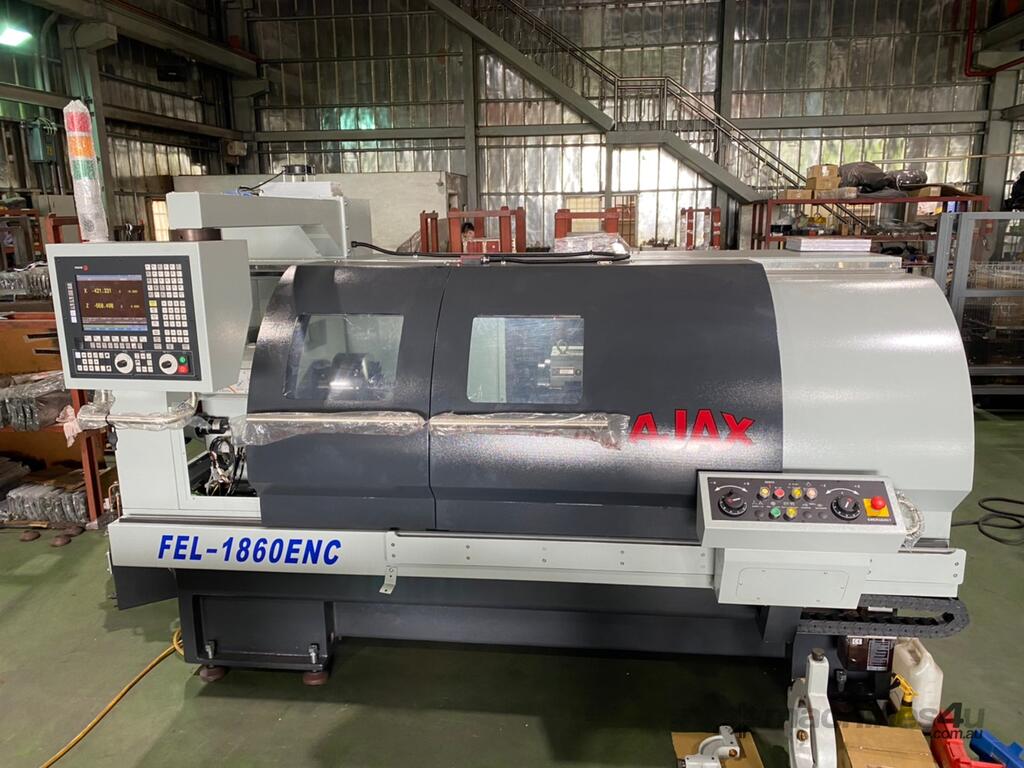

New AJAX FEL1860ENC Teach In CNC lathes offer the very best combination of powerful and user friendly Fagor control system in a solid and compact lathe package.

The Ajax CNC is the perfect solution for jobbing work, small production runs and for those making the move from manual to CNC turning for the first time.

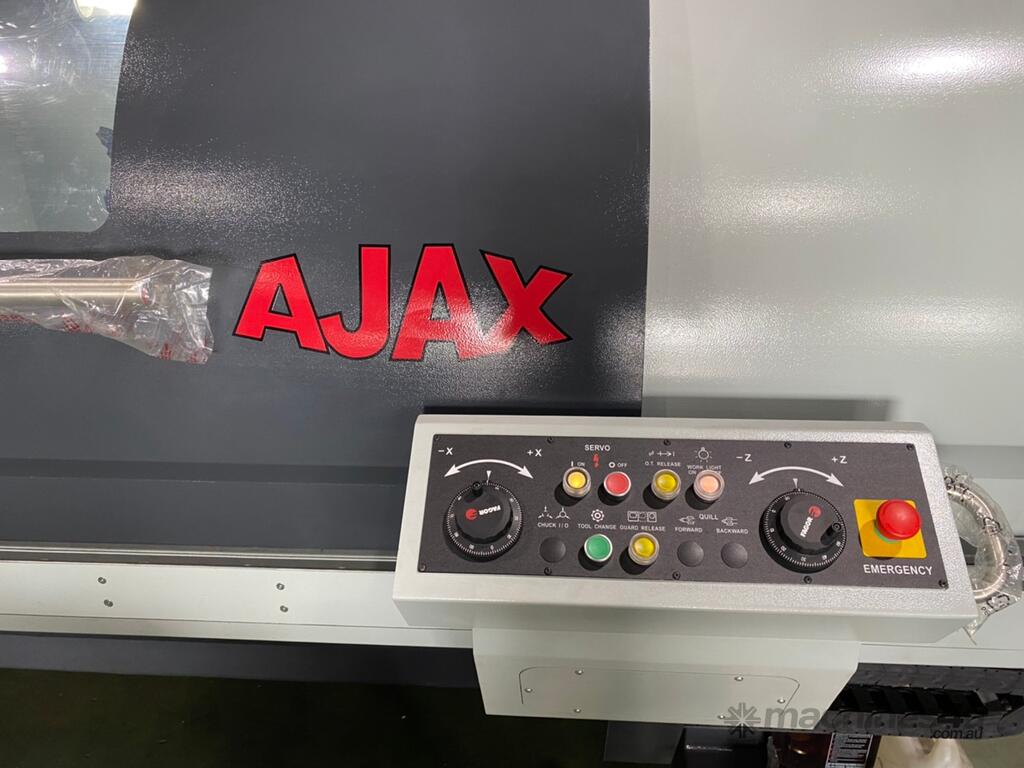

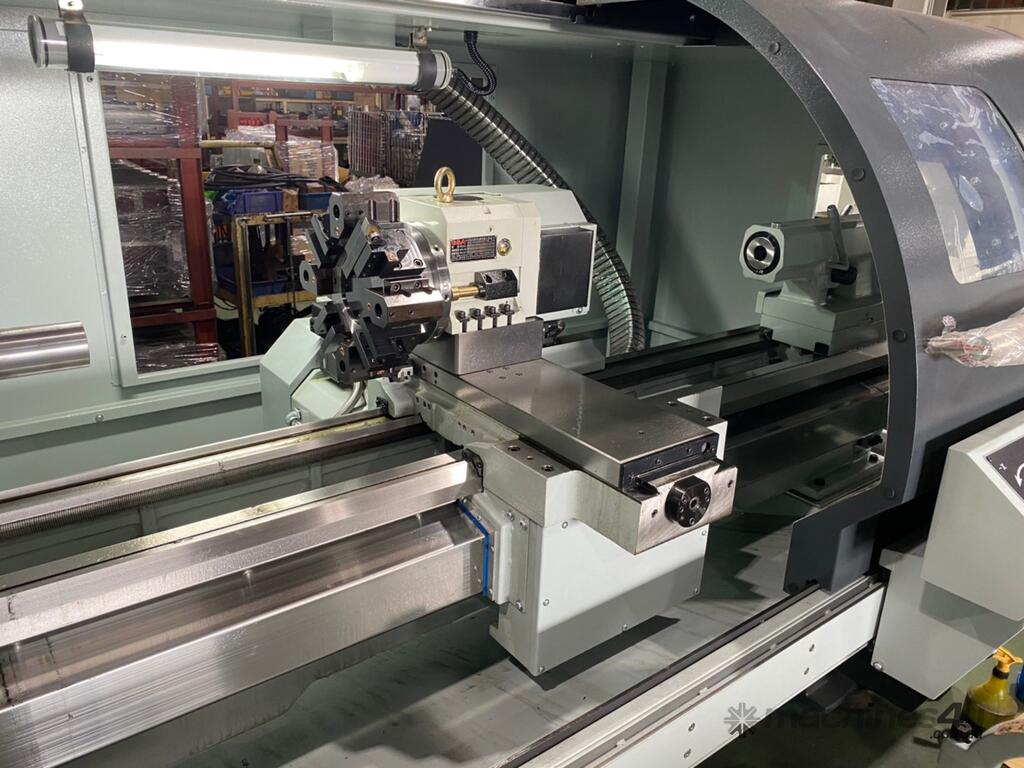

Standard Features such as V8 hydraulic tool turret, programmable speed range change and X&Z axis hand-wheels make the AJAX a very productive machine for one offs or short production runs.

SPECIFICATIONS:
Capacity
Swing over the bed 460mm
Distance between centres 900mm or 1400mm
Max working diameter:
V 8 Turret 250mm
X & Z ballscrews 20mm & 40mm
Width of bed 305mm
Spindle
Spindle speeds 270~830rpm / 831~2500rpm
Speed ranges: 2 with programmable change
Spindle motor 7.5kw / 11kw
Turret

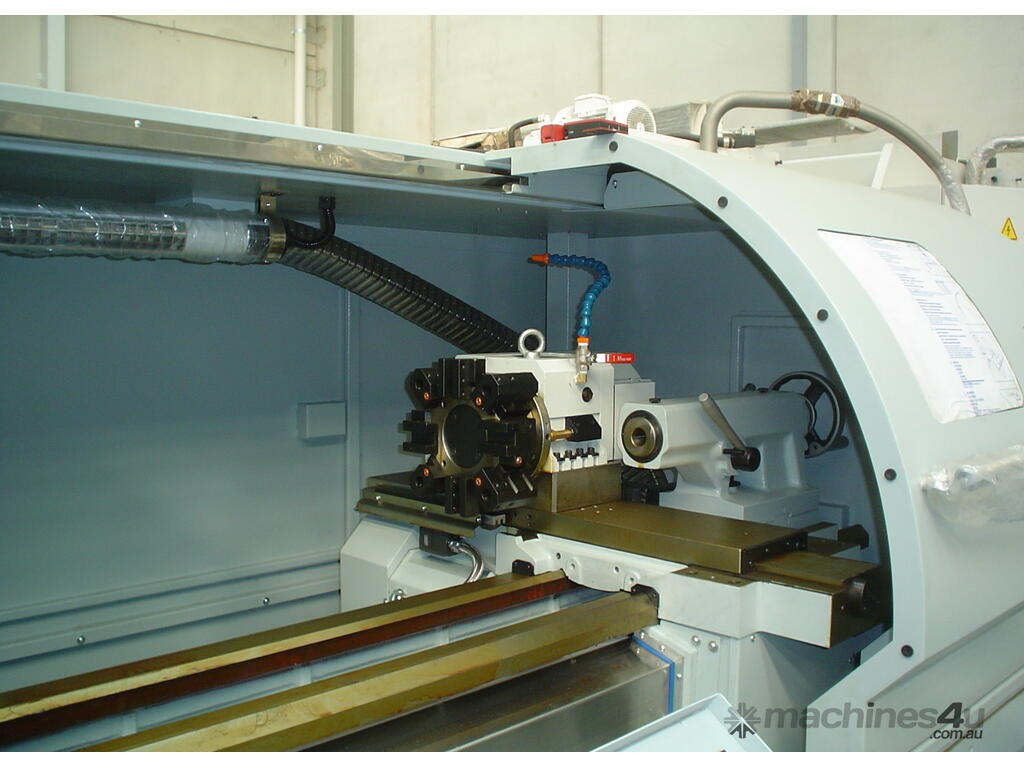

Standard Turret V8 hydraulic
Tool size 20mm OD tool, 20mm x 20mm Square tool
Rapid traverse X / Z 10M/min
Tailstock
Tailstock Quill diameter 68mm
Tailstock Quill travel 153mm
Taper of centre MT 4

Delivery, commissioning, training and ongoing support Australia wide.

Since 1989, CNC Machinery Sales Australia's commitment has extended beyond the sale. We prioritize seamless service and support to all of our clients, large and small. Our in-house service engineers and network of industry professionals ensure swift response to any machine issue at any location across Australia.

Go to the CNC Machinery Sales showroom on Machines4u to see the rest of our range, send us a message about the product you are interested in, or give CNC Machinery Sales a call, we are happy to answer any of your questions and provide professional advice.

*CLICK ON THE PDF SPEC SHEET FOR MORE DETAILED INFORMATION *
