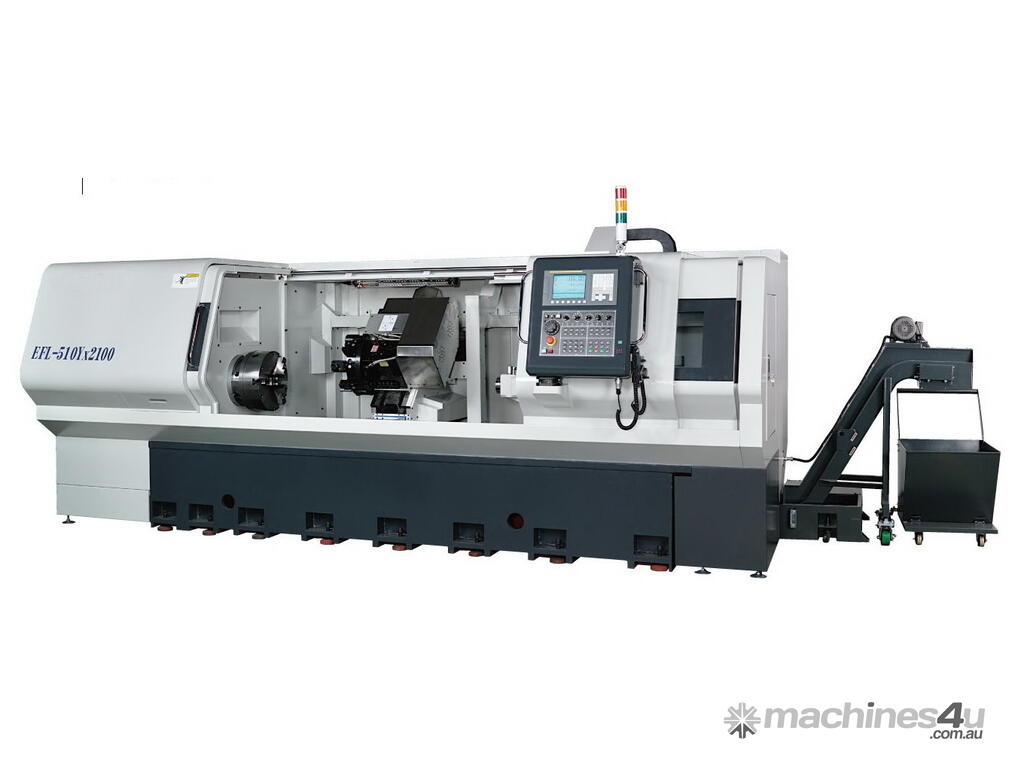

AJAX 510Y, Y Axis CNC Lathes

CNC MACHINERY SALES AUSTRALIA PRESENTS - AJAX 510Y Y Axis CNC Lathes
710mm swing over the bed
510mm over the carriage
1000, 1500, 2000, 2500 or 3000mm turning lengths
Spindle bores 83, 105, 130 or 160mm
Headstock 3 range, Automatic
15/22Kw (optional 22/26kw) Spindle motor
Spindle oil cooler

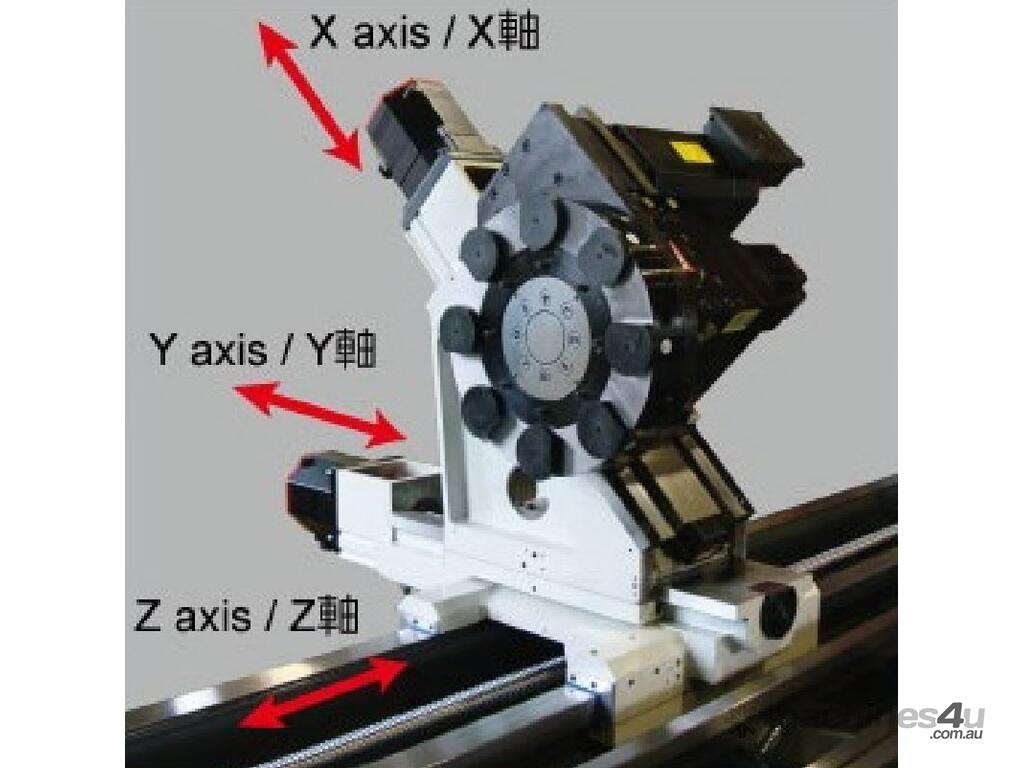

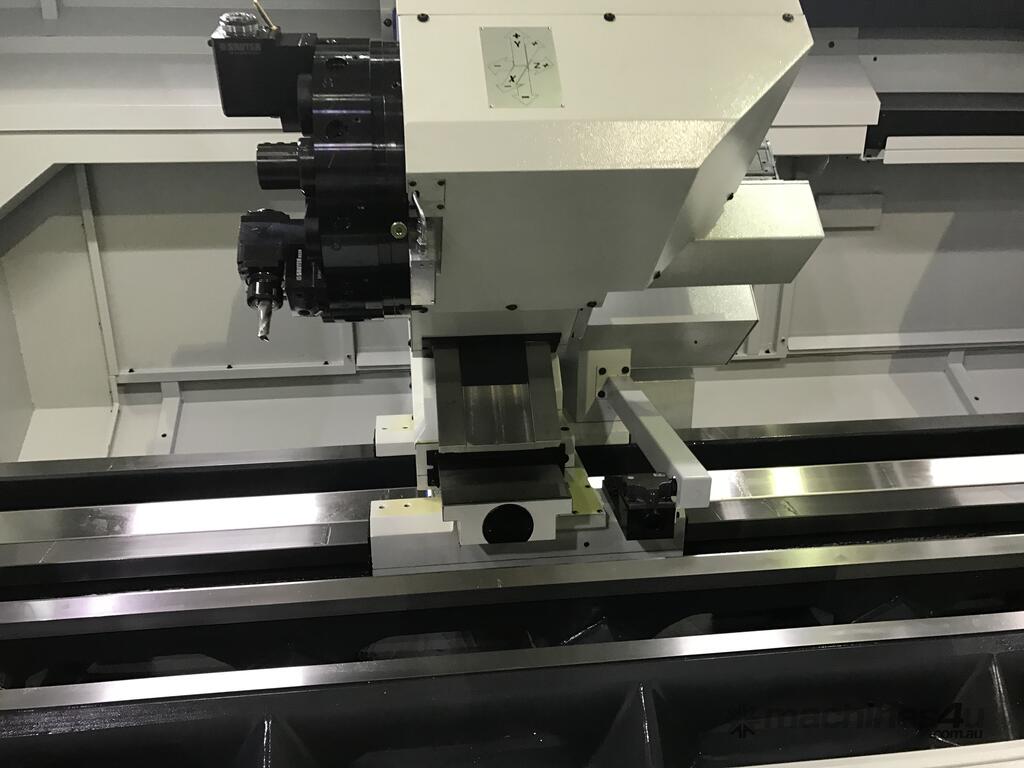

SAUTER servo live turret (0.5.436.220/12 type) VDI40/V12 (DIN5480) rear mount (without tool holders)
Live motor FM7-A037 type (3.7/5.5KW) Main axis is CS
Tailstock Manual two steps, Quill Diameter 105mm, MT5#

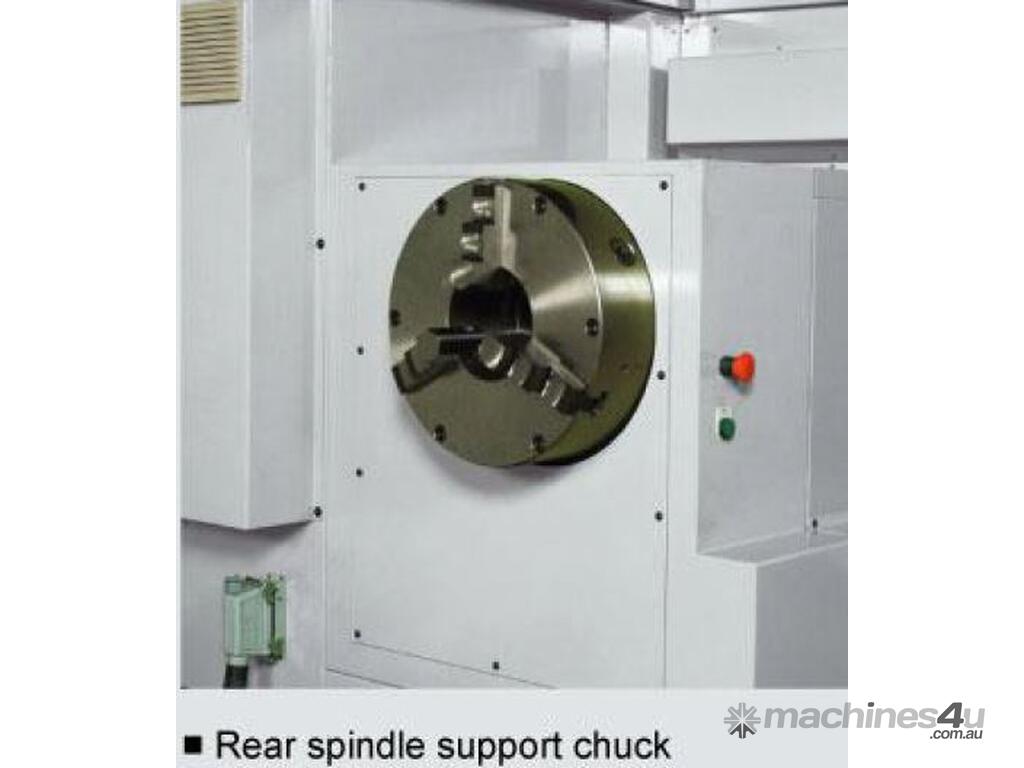

15`` 3-jaw Hydraulic Chuck with hard jaws (through hole dia. 117.5mm)
Standard Accessories
Automatic lubrication x 2 sets
Coolant device 3 Bar
Work lamp
Alarm lamp
Remote MPG
Heat exchange for control cabinet
RS-232 interface
Flush pump
Chain type chip conveyor with cart
Auto power off
Full splash guard
Oil Skimmer (disk type)
Tools & tool box
CE approval specification without safety module and filter

Delivery, commissioning, training and ongoing support Australia wide.
