AL-1000D Centre Lathe Ø360 x 1000mm Turning Capacity - Ø40mm Spindle Bore Includes Digital Readout S

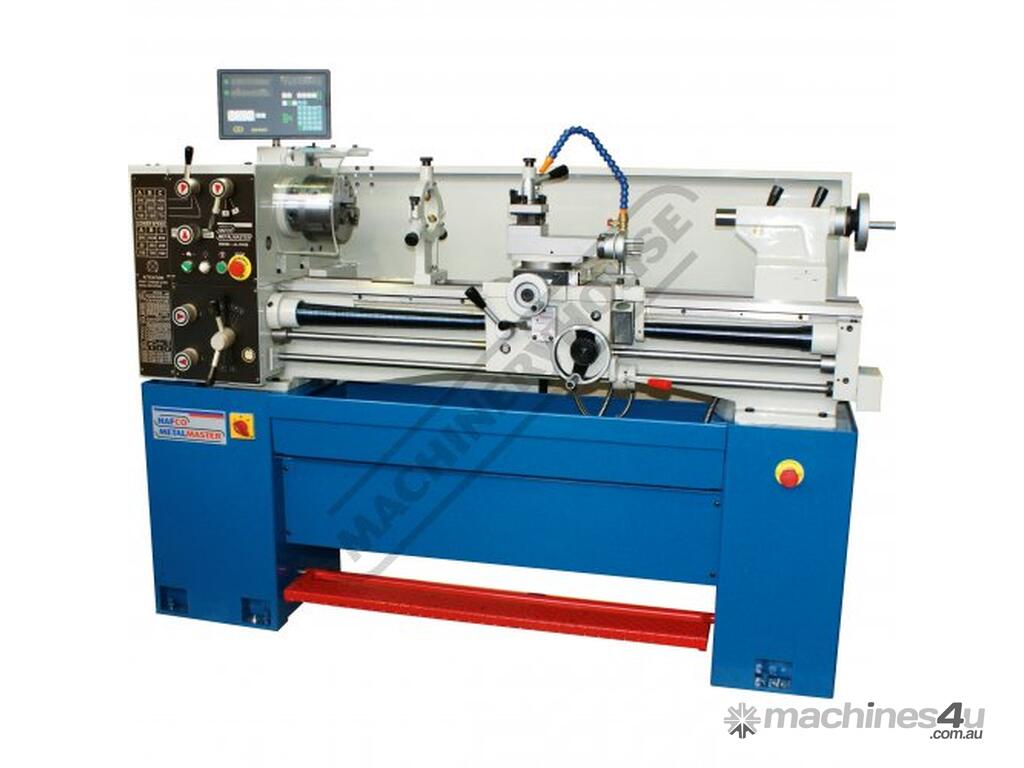

HAFCO-METALMASTER AL-1000D Centre Lathe Ø360 x 1000mm Turning Capacity - Ø40mm Spindle Bore Includes Digital Readout System
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: L242D

Manufactured in Taiwan

Tool room quality precision lathe and have been sold for over 20 years

Features:

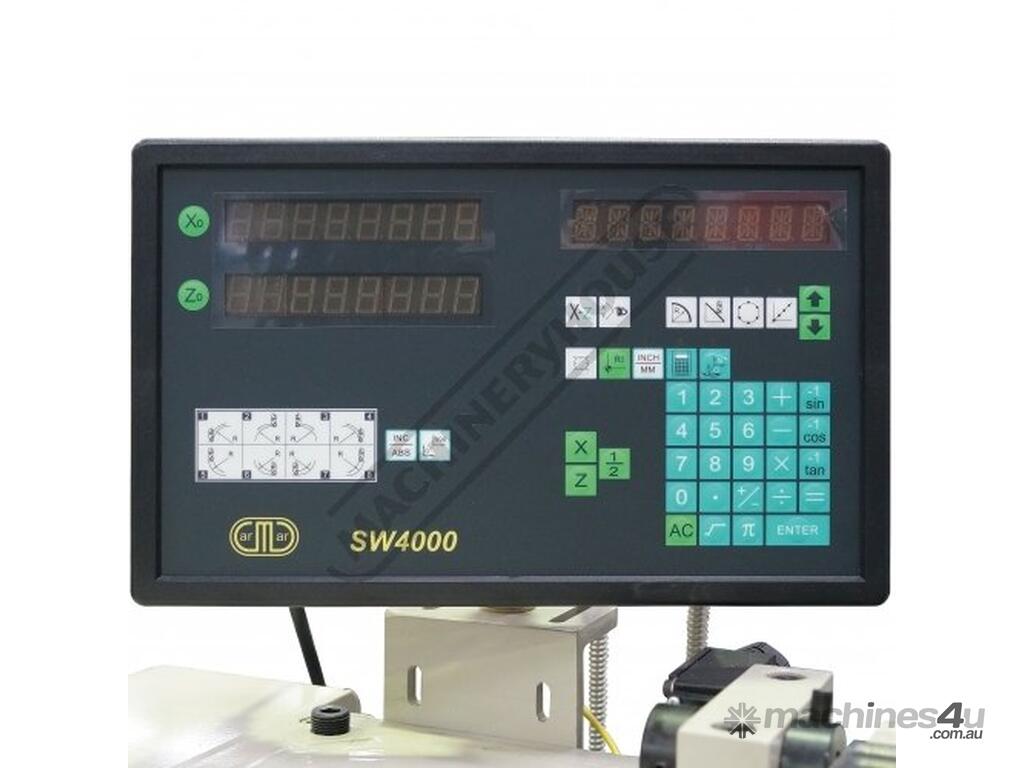

2 axis digital readout system
Gear drive headstock for quick change of spindle speeds
Stand increasing rigidity and reducing vibration
Precision 'V'-beds are hardened and ground incorporating a rigid webbed casting
Foot operated spindle brake with safety cut out switch
Slide out front swarf tray for easy cleaning
Change gears for metric and imperial thread cutting
Oil sight glass for head stock and gearbox
Adjustable taper roller bearings support the spindle
Overload clutch mechanism on auto power feed
Overload protection on drive motor and coolant system
3hp 415V motor 18-speed (50 - 2000rpm)

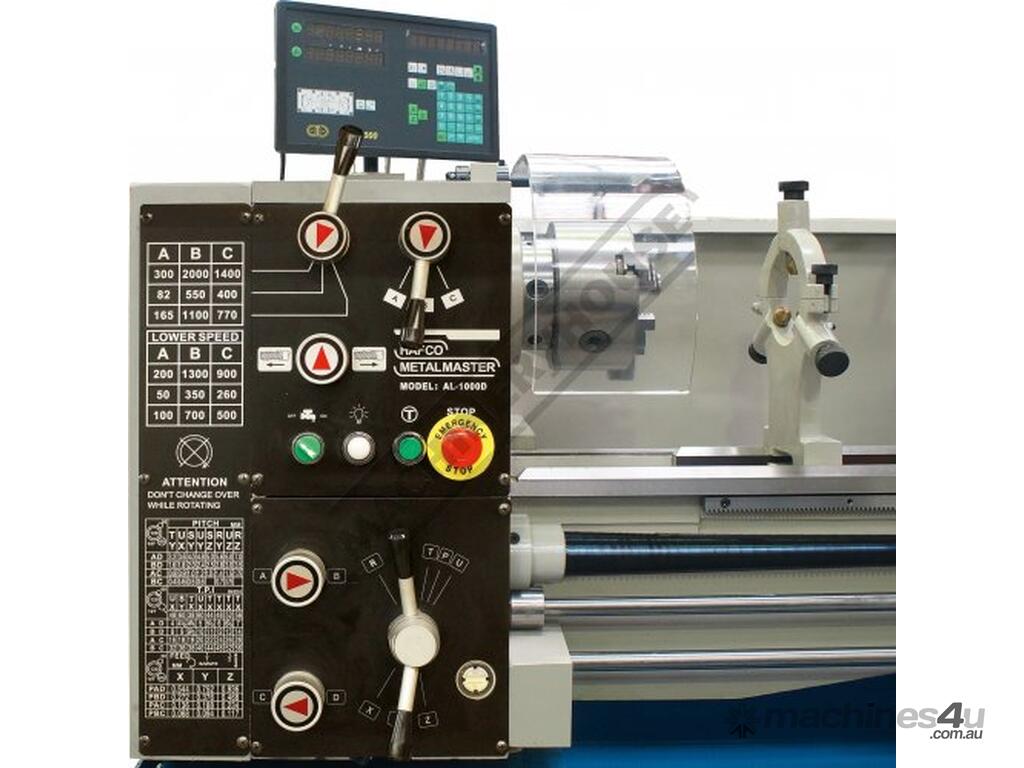

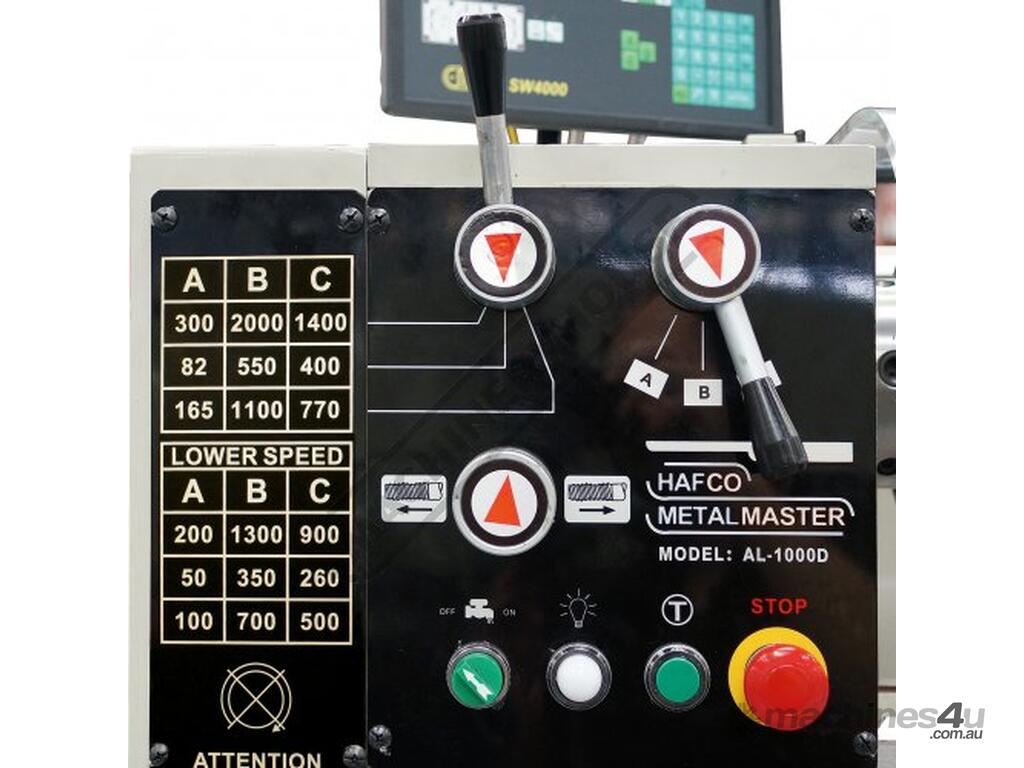

Inching button is incorporated on the control panel for convenient spindle speed selection

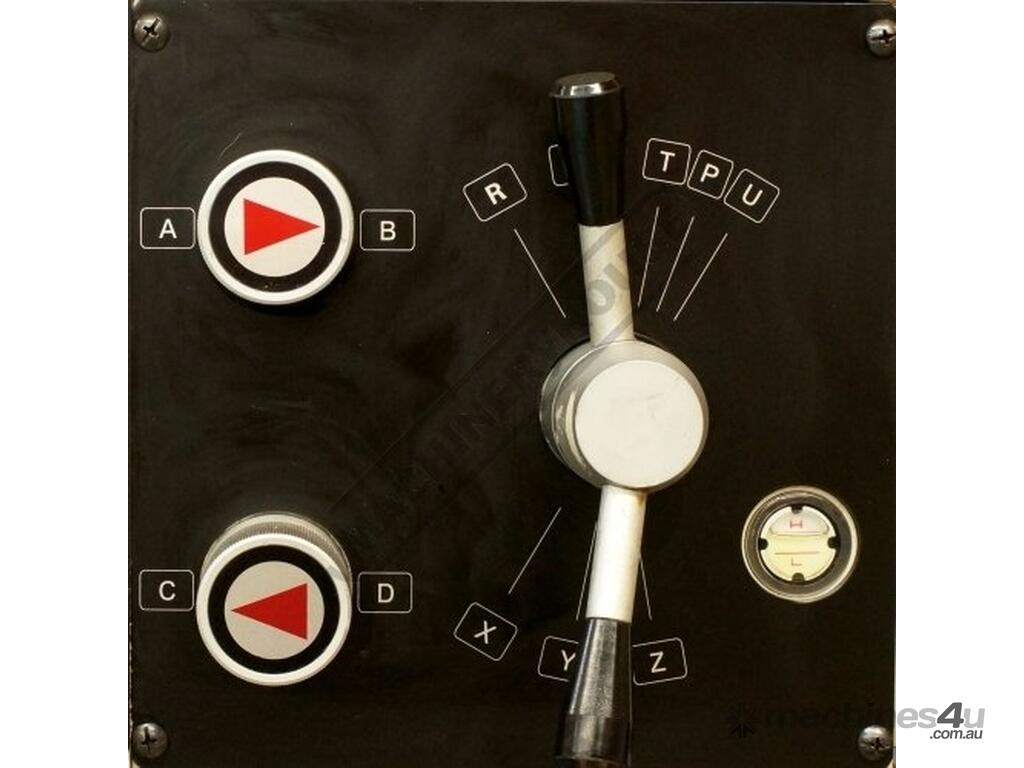

Enclosed quick action gearbox for thread cutting and auto feeding

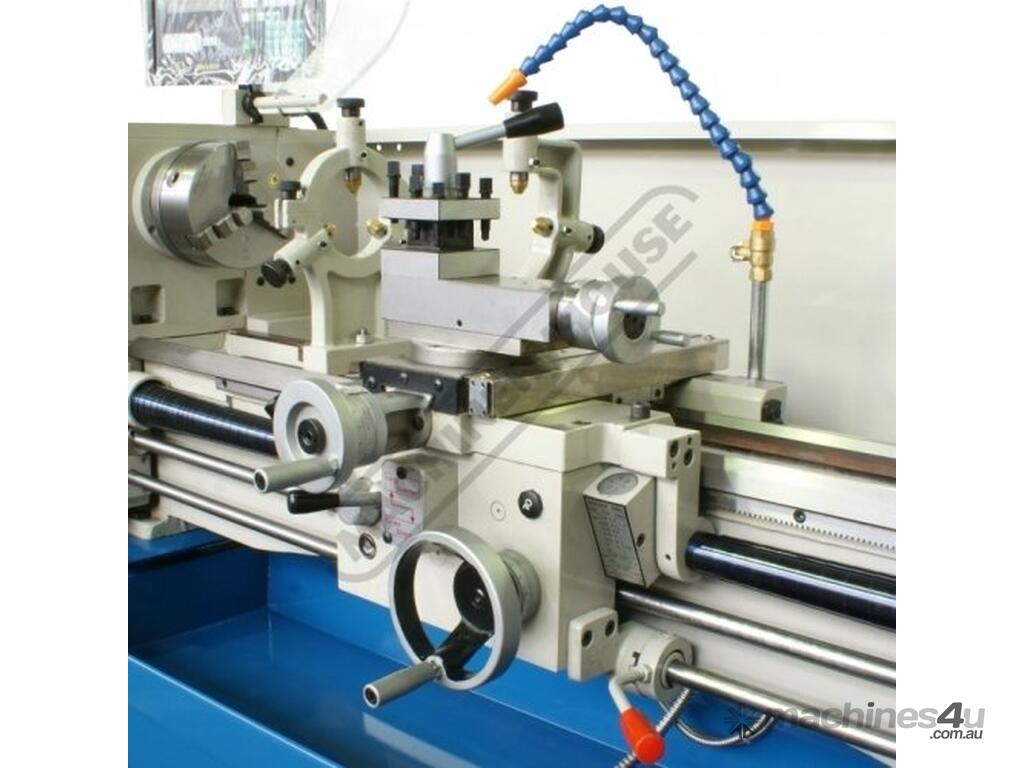

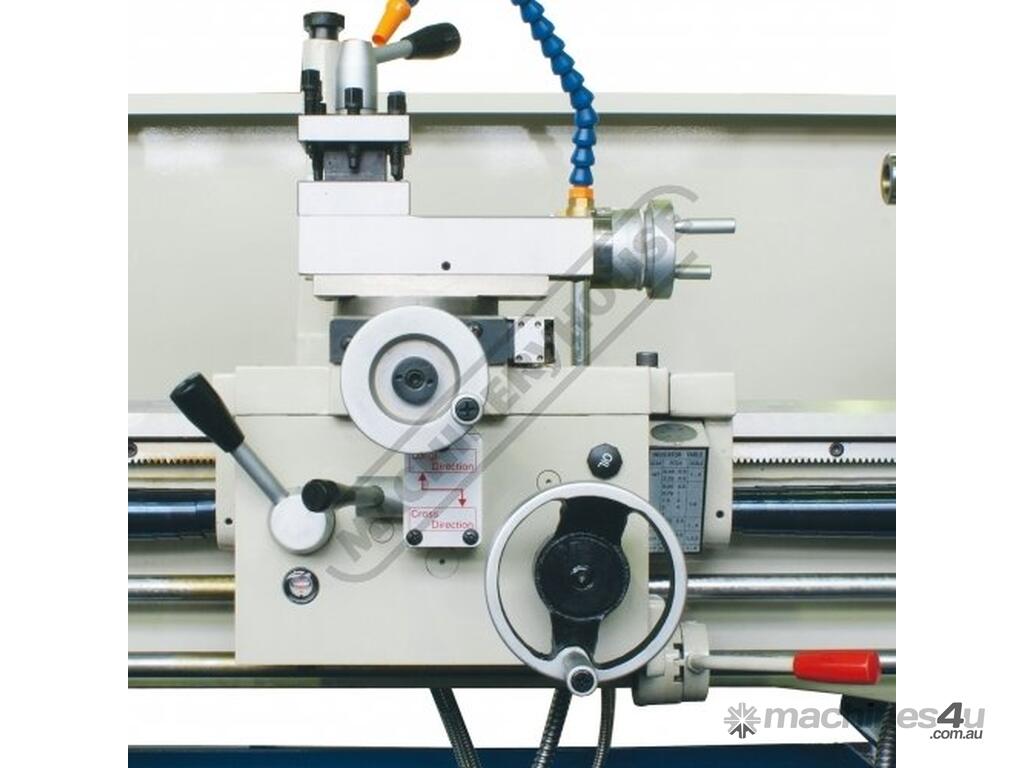

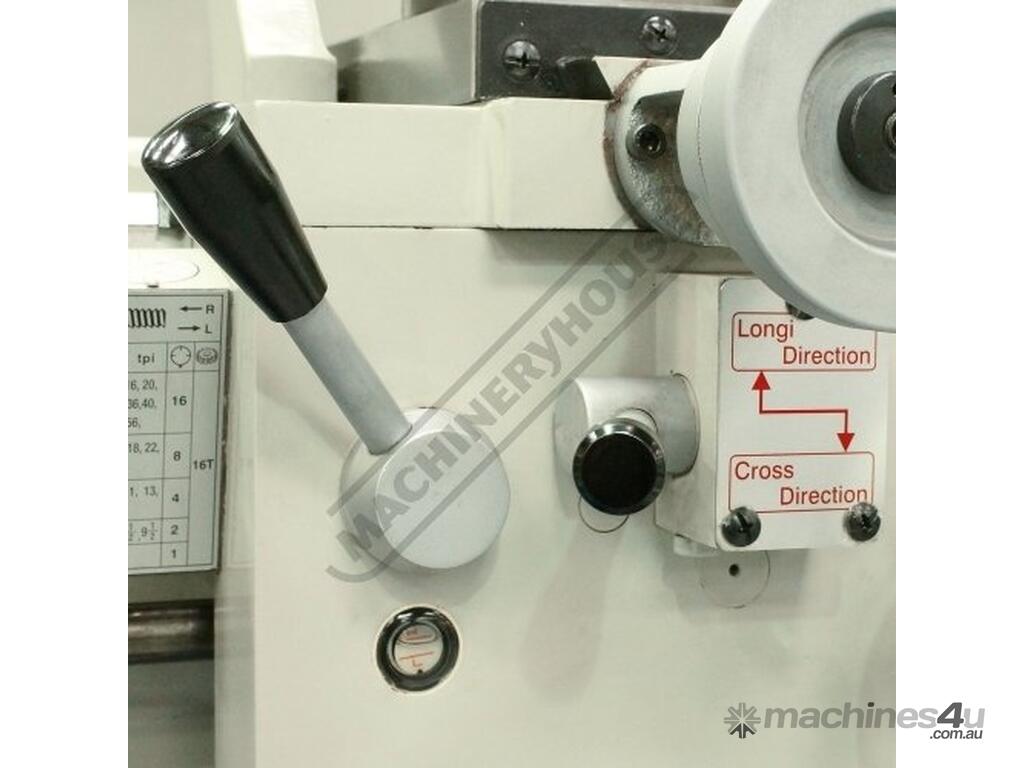

Powered longitudinal and cross feeds
D1-4 camlock spindle for quick chuck changes and safe reverse-direction turning. ISO standard
Removable gap bed-way for larger diameter jobs

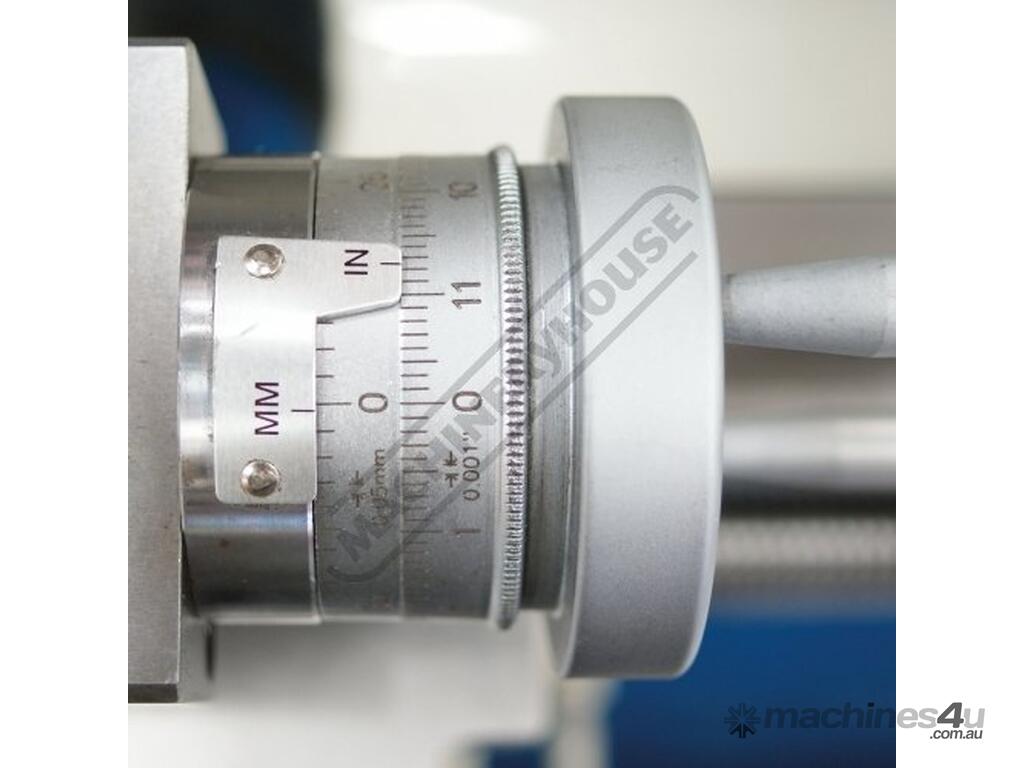

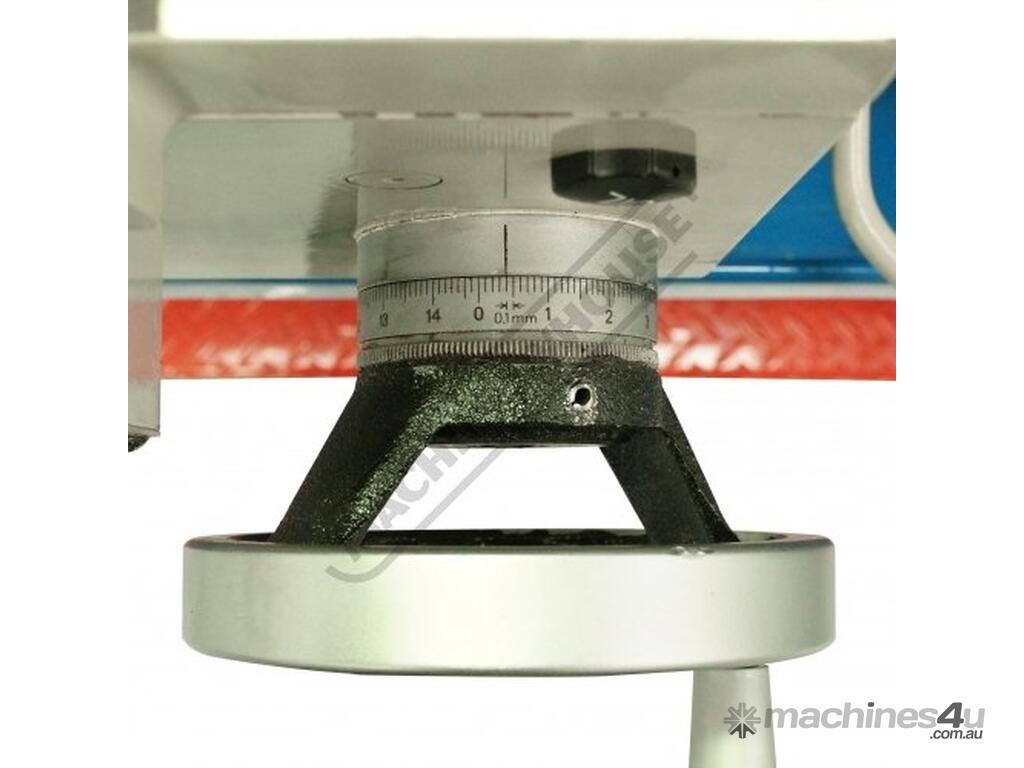

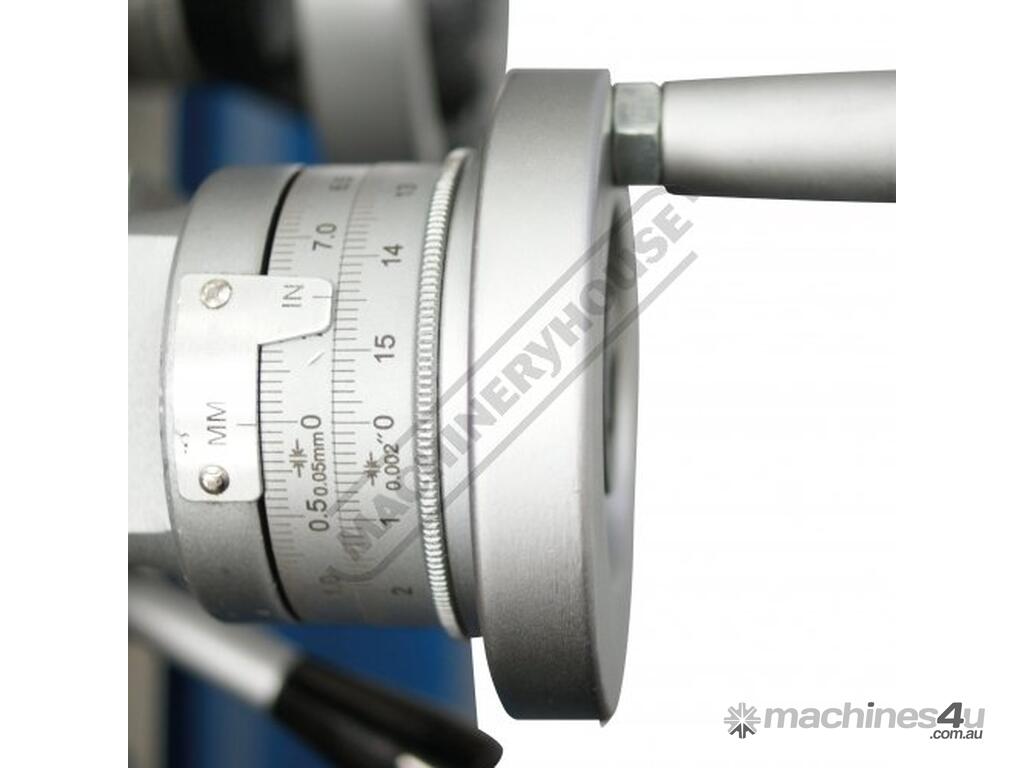

Dual calibrated dials (except for saddle hand wheel)

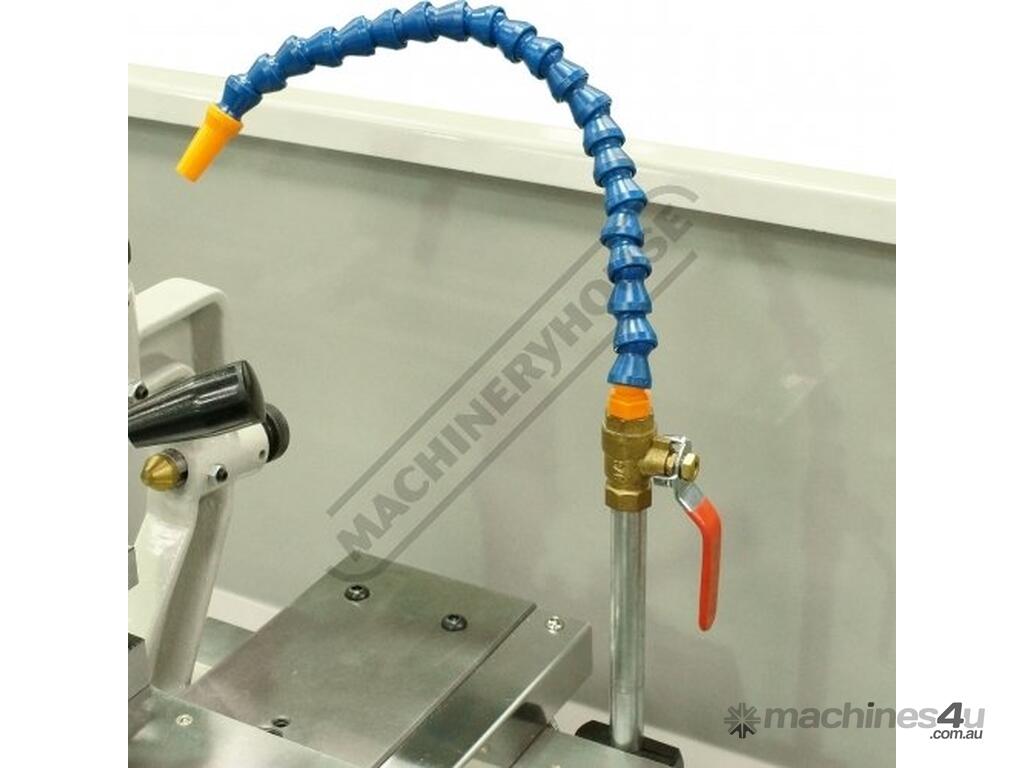

Coolant system with flexible hose
Slide out swarf tray

Includes:
- 2 axis digital readout system
- Concertina leadscrew cover
- Slide out front swarf tray
- 160mm 3-jaw chuck with reverse jaws
- 200mm 4-jaw chuck
- Face plate

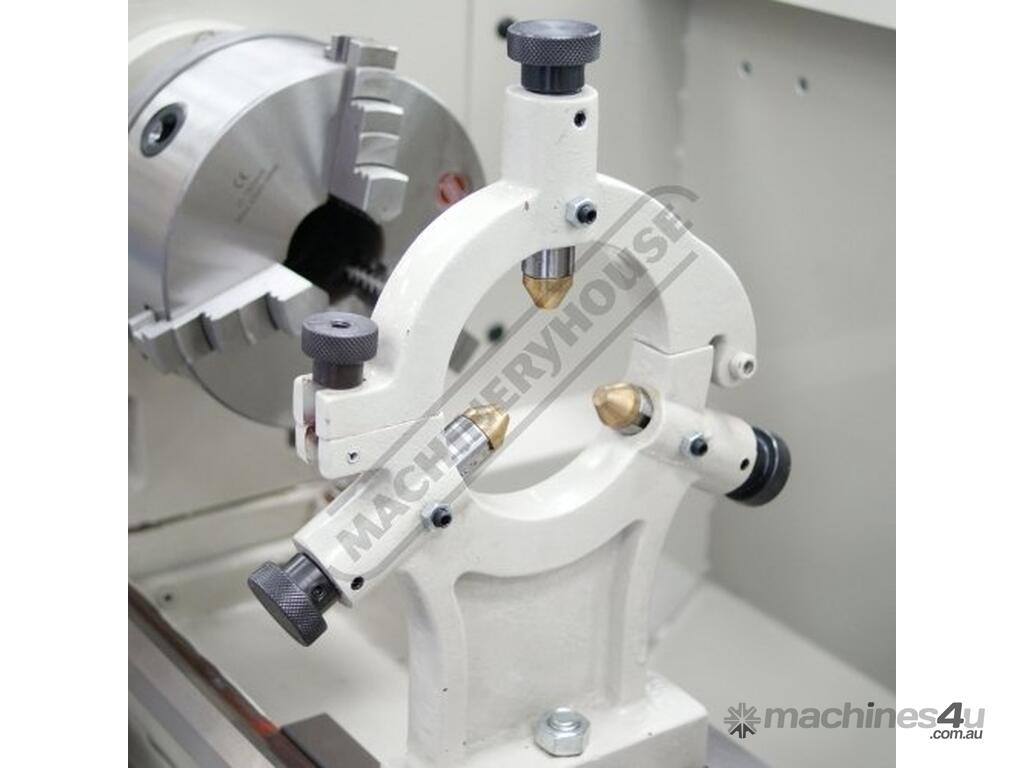

- Fixed steady

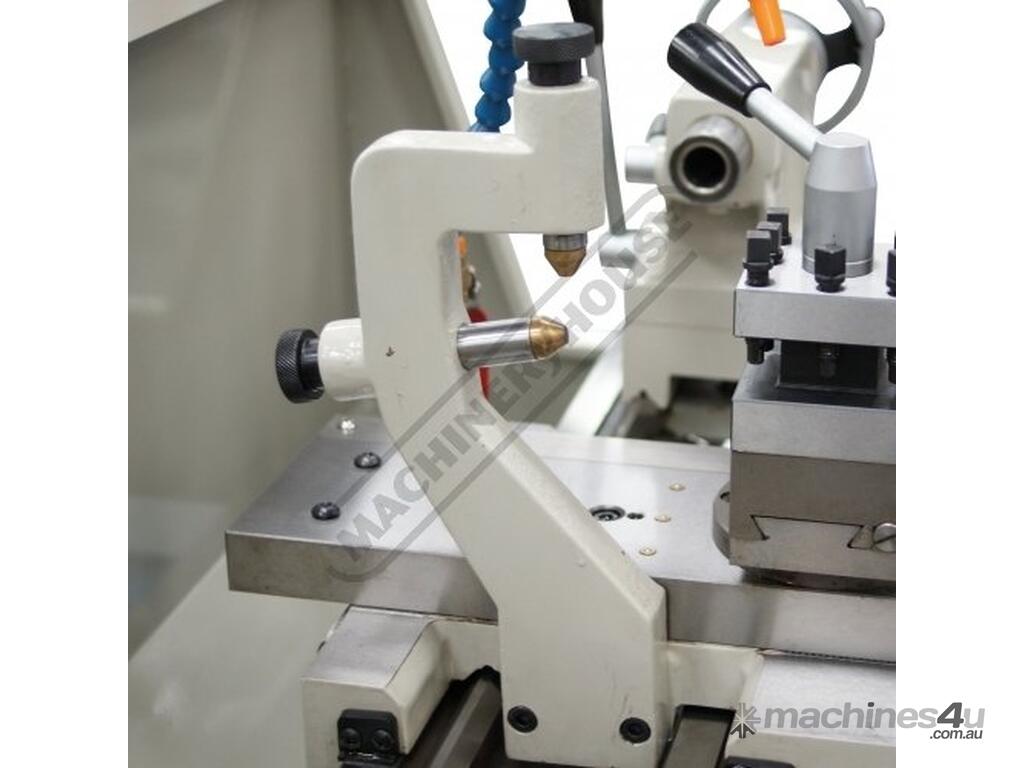

- Travelling steady
- Change gears
- Dead centres

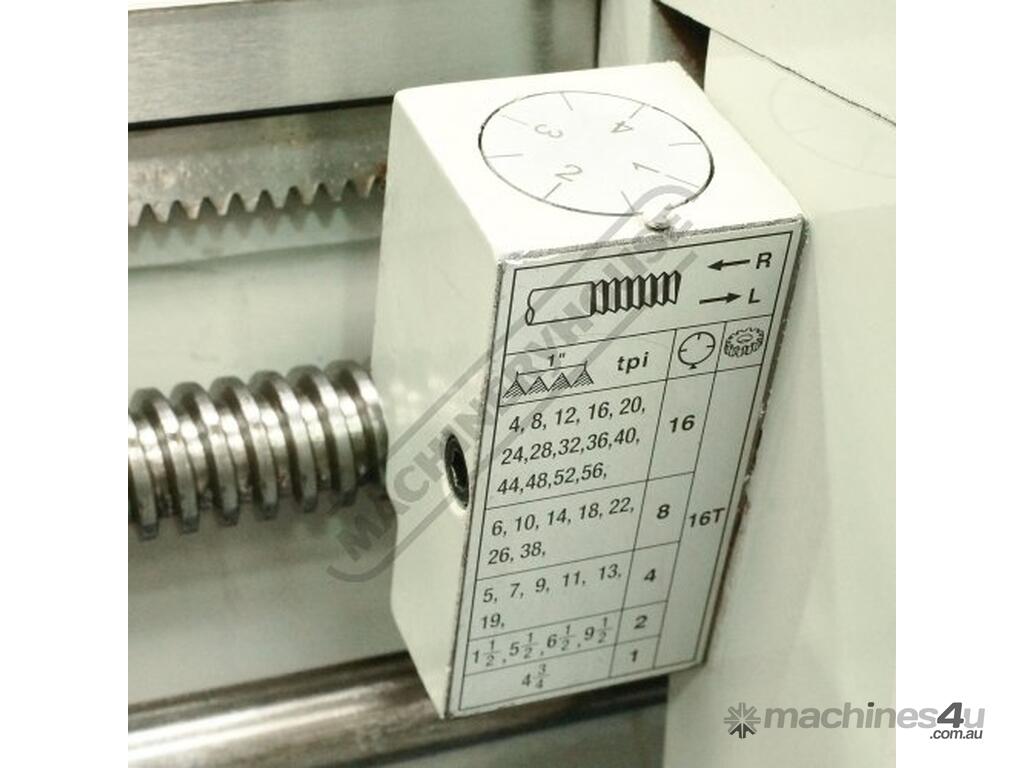

- Thread-chasing dial
- Safety chuck guard
- Stand
- Foot brake
- Rear splash guard & swarf tray
- Tool box
- Instruction booklet



Specifications:
ORDER CODE: L242D
MODEL: AL-1000D
Swing Over Bed (mm): 360
Distance Between Centres (mm): 1000
Spindle Bore (mm): 40
Swing In Gap (mm): 516
Swing Over Cross-slide (mm): 225
Digital Readout System Fitted: Yes
Quick Change Toolpost Fitted: Optional
Leadscrew Covers Fitted: Yes
Taper Turning Attachment: Optional
Coolant System: Yes
Tool Height To Suit (mm): 16
Centre Height (mm): 178
Spindle Nose Size or Type: D1-4 Camlock
Bed Width (mm): 190
Headstock Spindle Taper (MT): 5
Tailstock Taper (MT): 3
Cross Slide Travel (mm): 175
Compound Slide Travel (mm): 100
Leadscrew Type: Metric
Metric Cross Feed (X-Axis) (mm/rev): 0.034 - 0.468
Imperial Cross Feed (X-Axis) (inch/rev): ~
Metric Longitudinal Feed (Z-Axis) (mm/rev): 0.068 - 0.936
Imperial Longitudinal Feed (Z-Axis) (inch/rev): ~

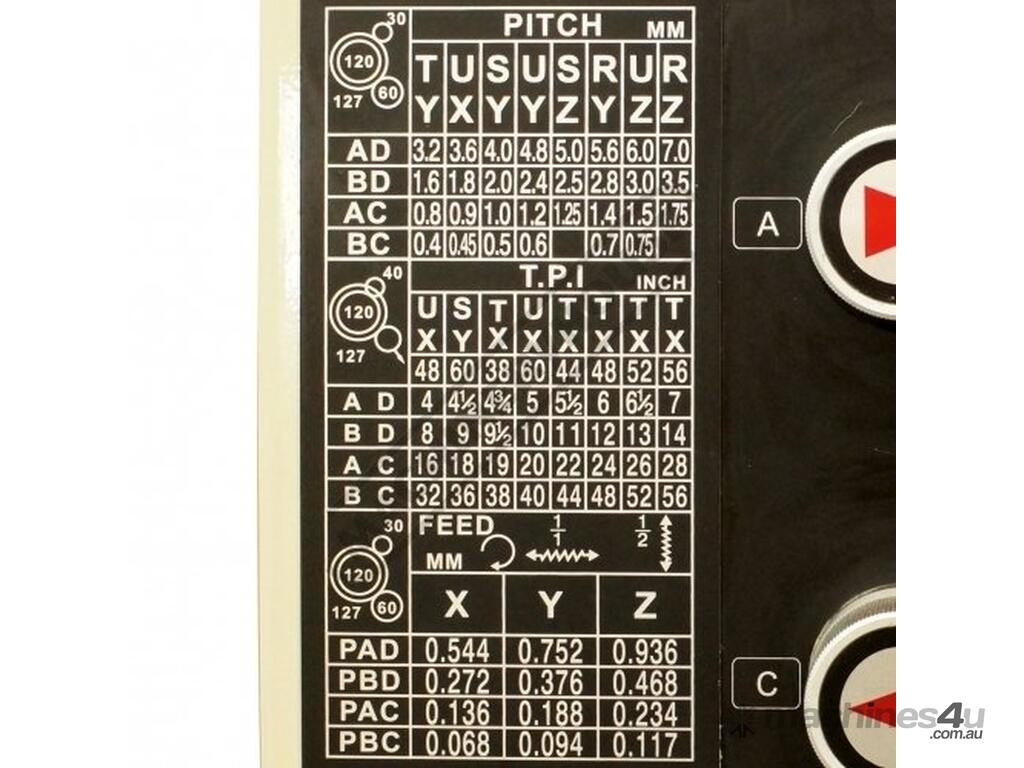

Metric Thread Steps & Pitch (No. / mm): 30 (0.4 - 7.0)
Imperial Thread Steps & TPI (No. / TPI): 32 (4 - 56)
3 Jaw Chuck Diameter (mm): 160
4 Jaw Chuck Diameter (mm): 200

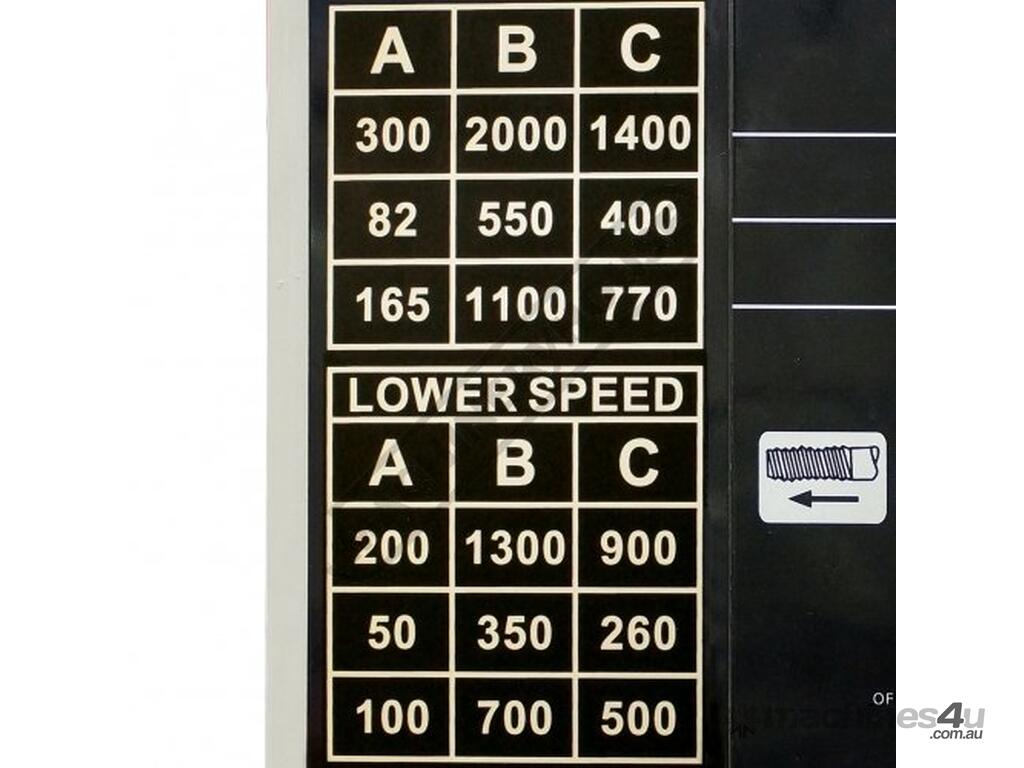

Spindle Steps / Speeds (No. / rpm): 18 (50 - 2000)
Motor Power (kW / hp): 2.25 / 3
Voltage / Amperage (V / amp): 415
Nett Weight (kg): 700
