AL-1324 Centre Lathe Ø330 x 600mm Turning Capacity - Ø40mm Spindle Bore Includes Digital Readout S

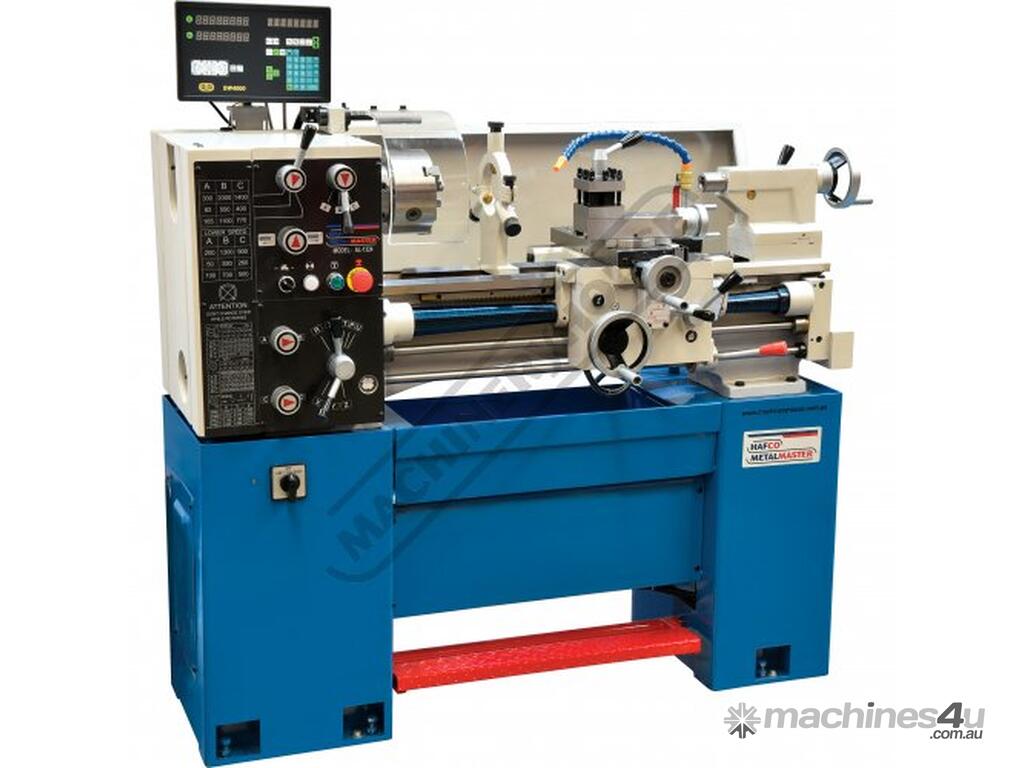

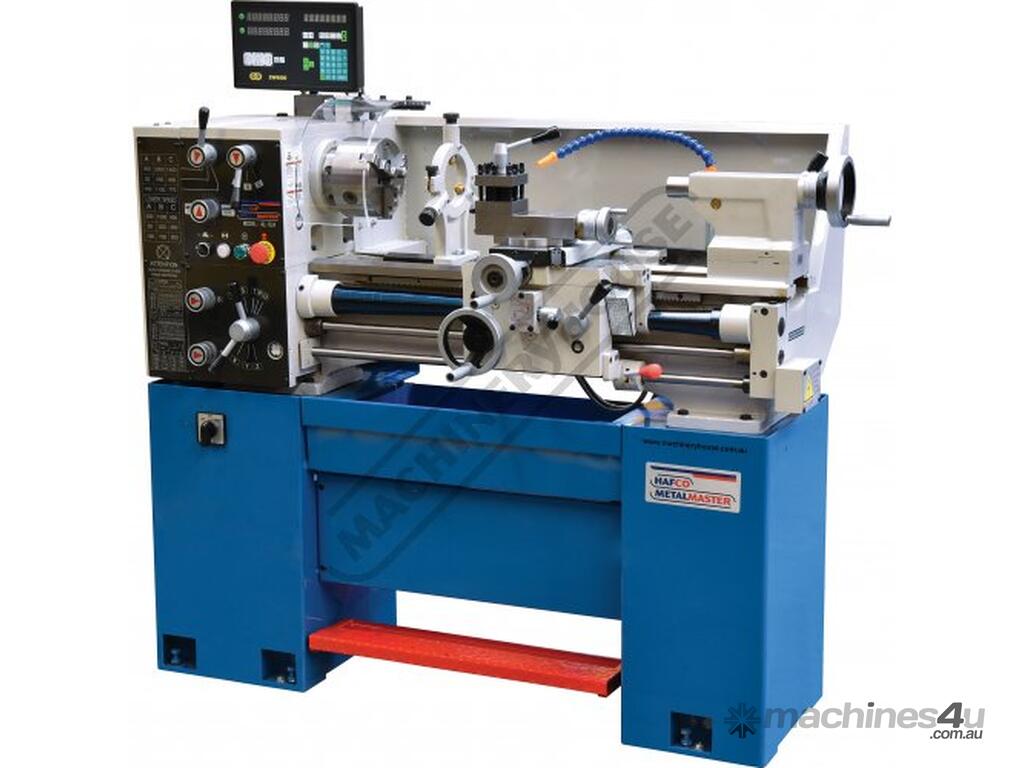

HAFCO-METALMASTER AL-1324 Centre Lathe Ø330 x 600mm Turning Capacity - Ø40mm Spindle Bore Includes Digital Readout System
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: L201D

Manufactured in Taiwan

Features:
Tool room quality precision lathe Made in Taiwan and have been sold for over 20 years

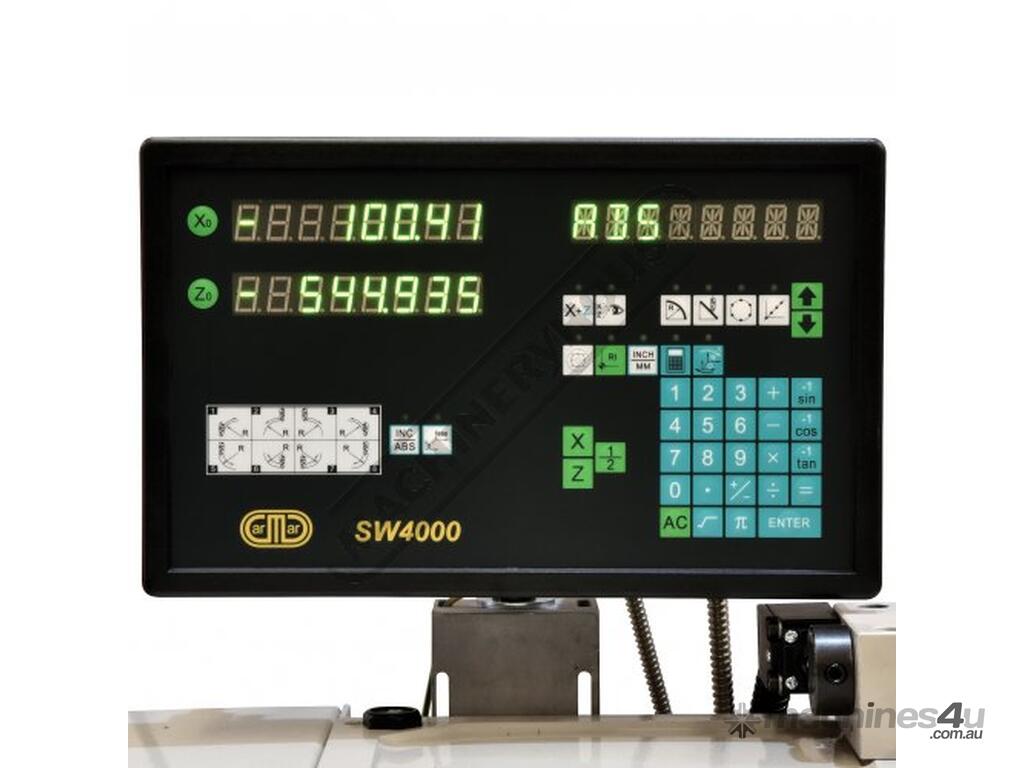

2-Axis digital readout system fitted

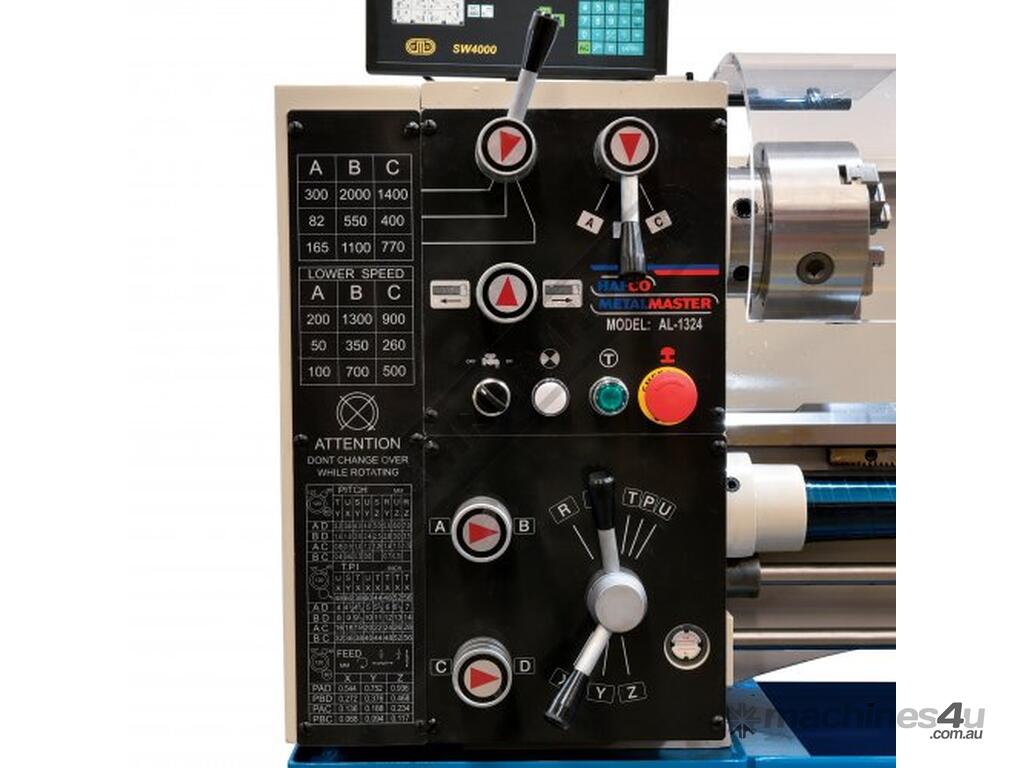

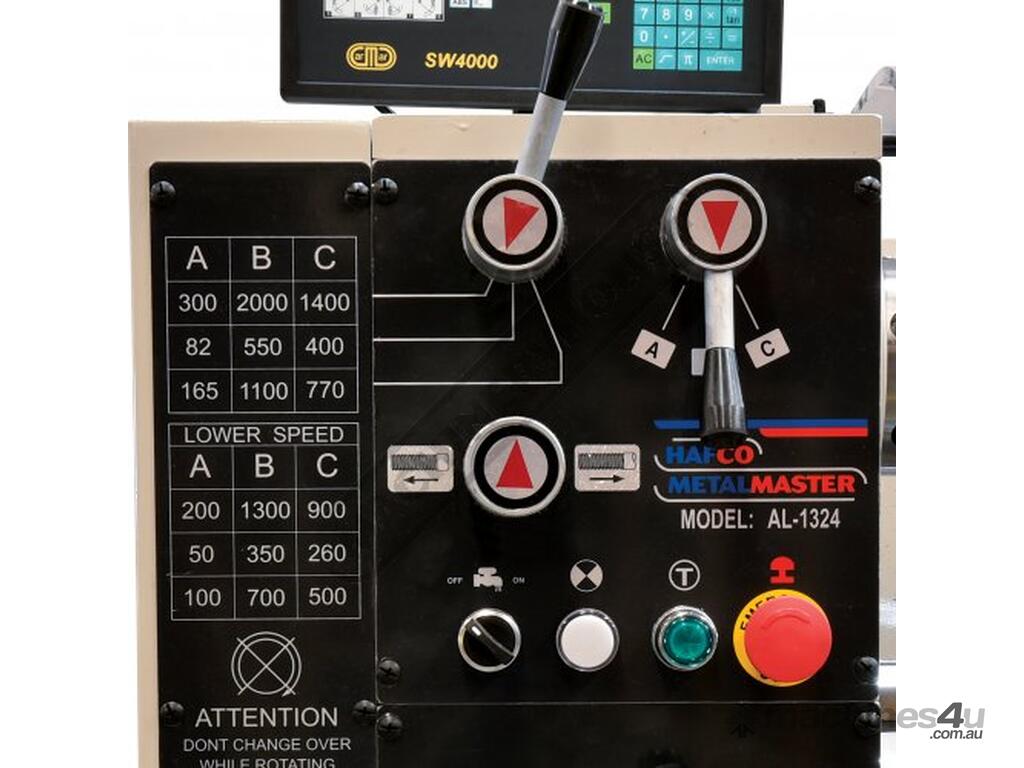

Gear drive headstock for quick change of spindle speeds
Stand increasing rigidity and reducing vibration
Precision 'V'-beds are hardened and ground incorporating a rigid webbed casting

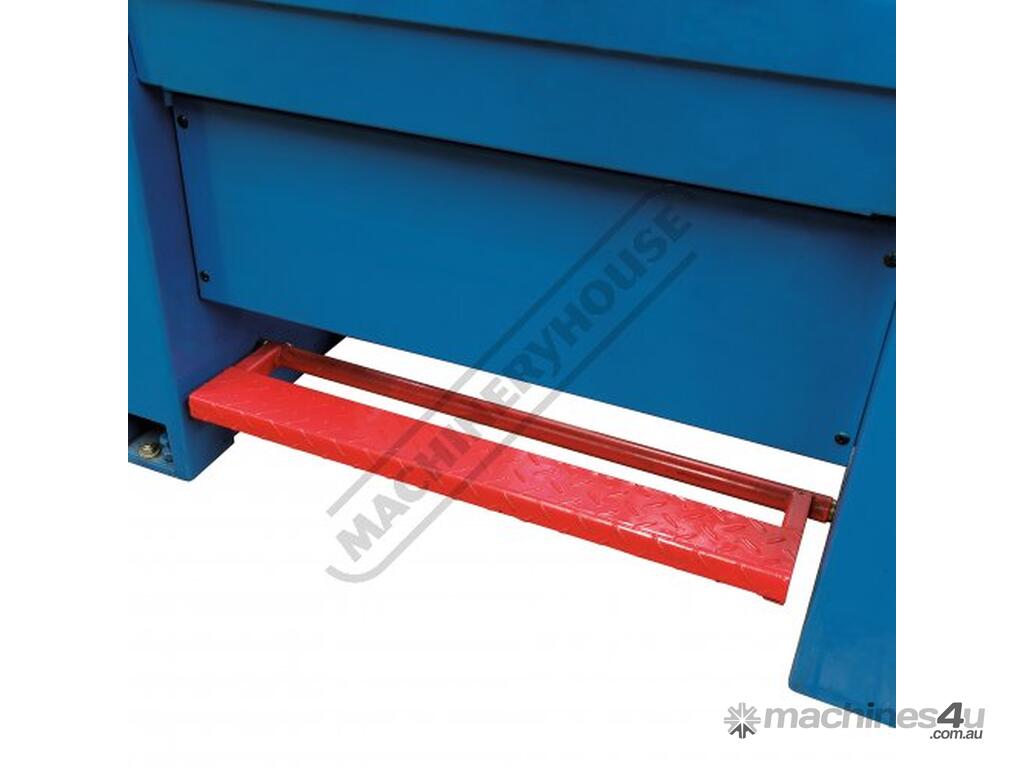

Foot operated spindle brake with safety cut out switch

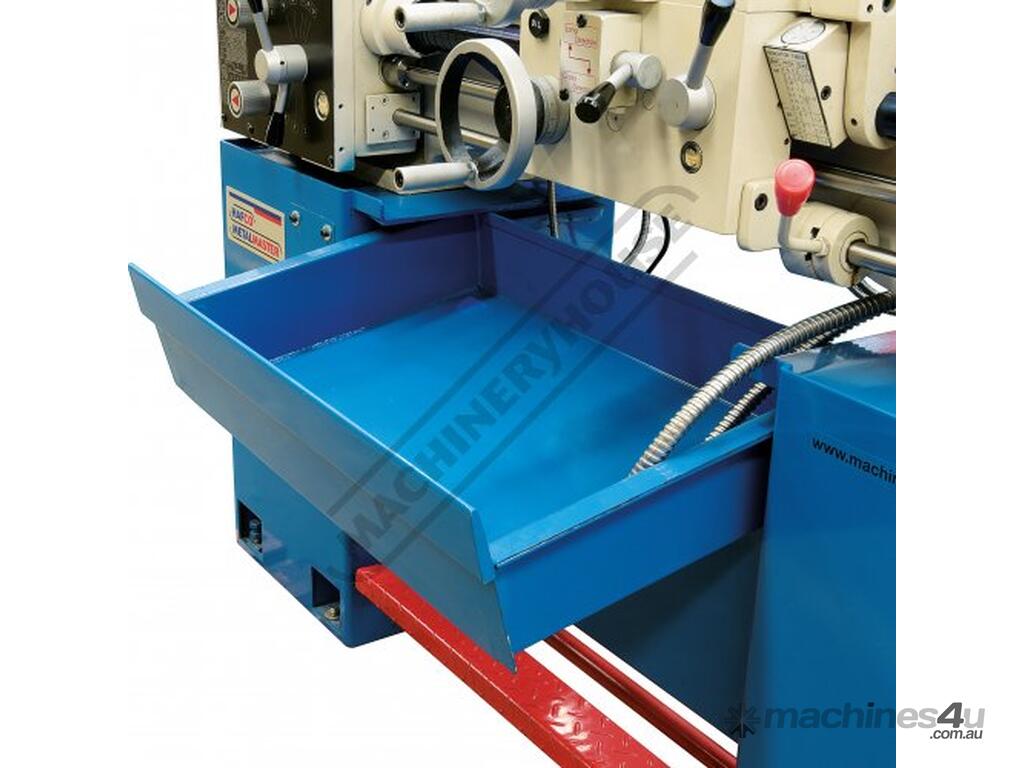

Slide out front swarf tray for easy cleaning

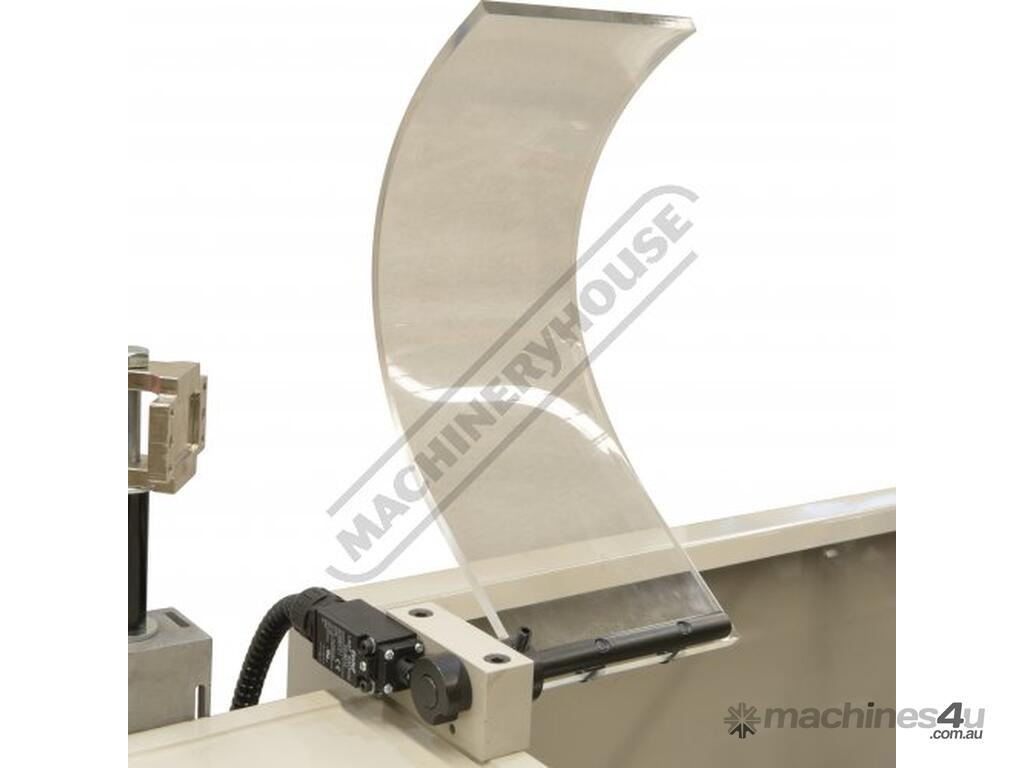

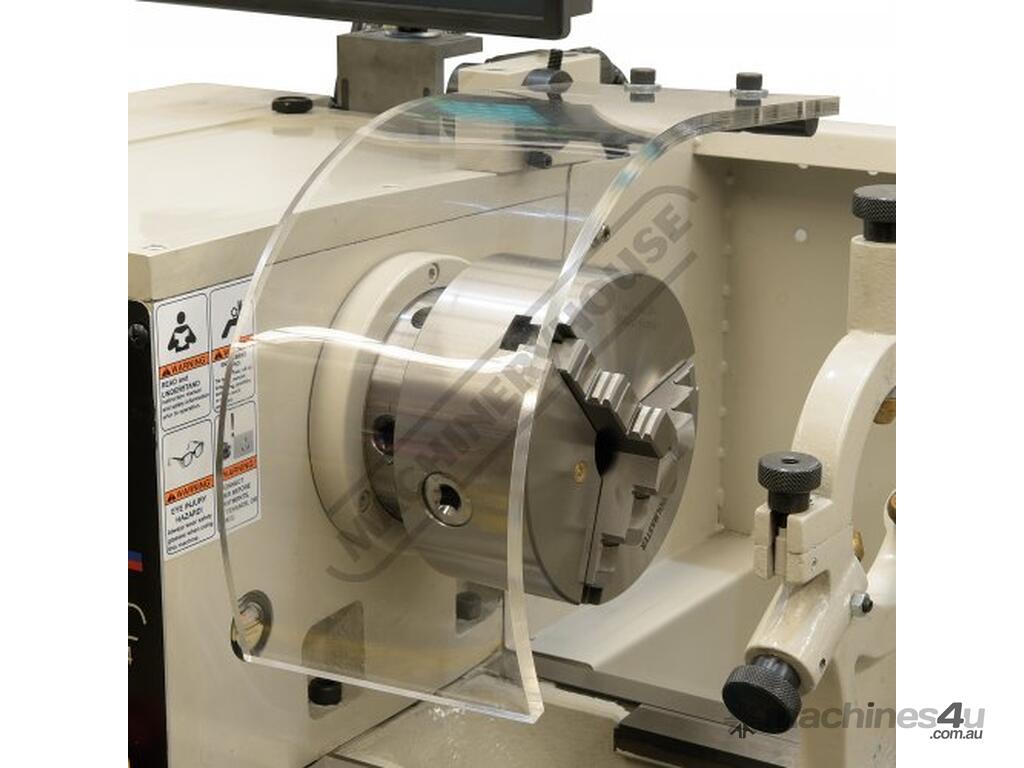

Chuck guard fitted fitted with micro switch

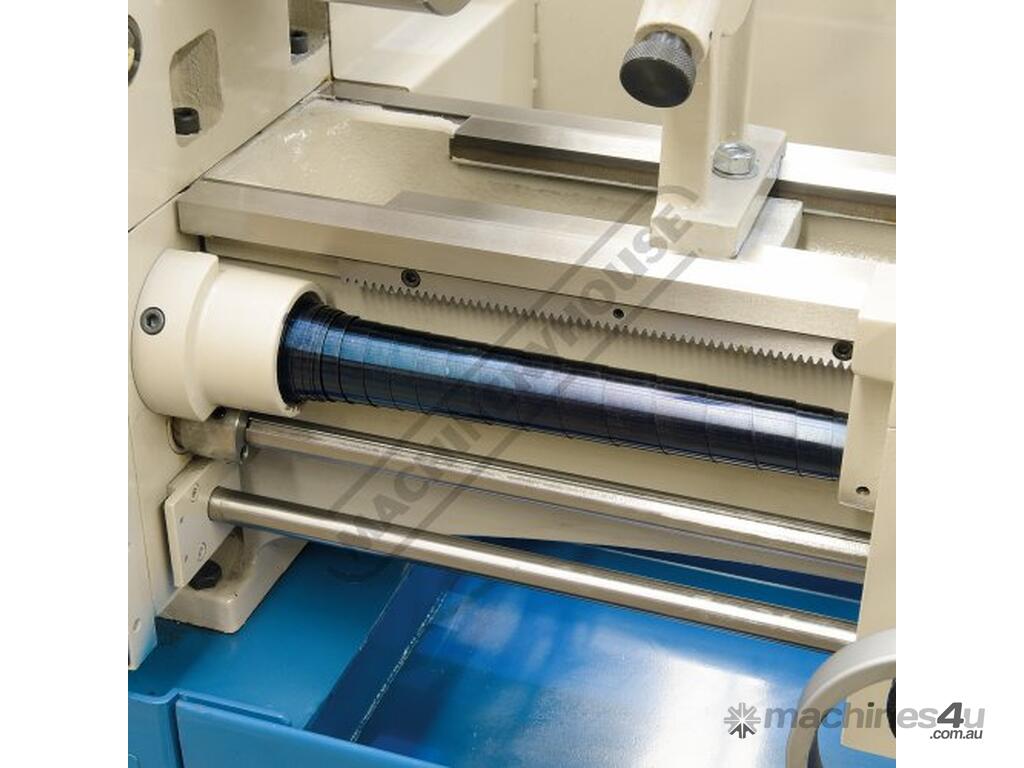

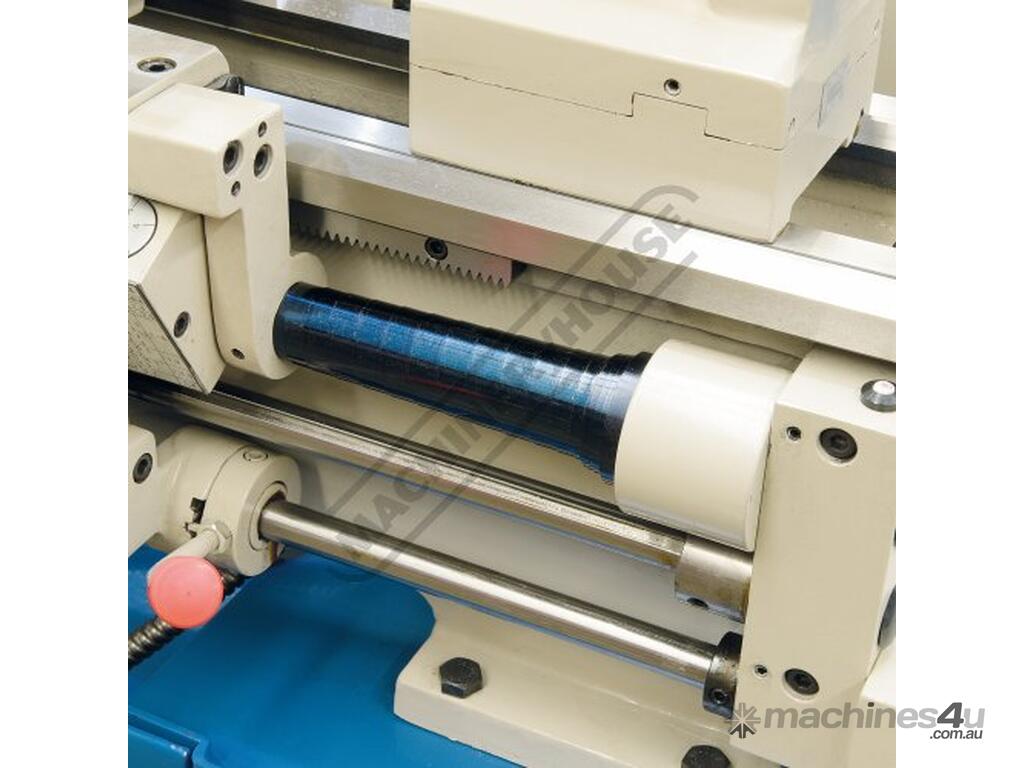

Leadscrew cover ensures swarf not reaching clasp nut

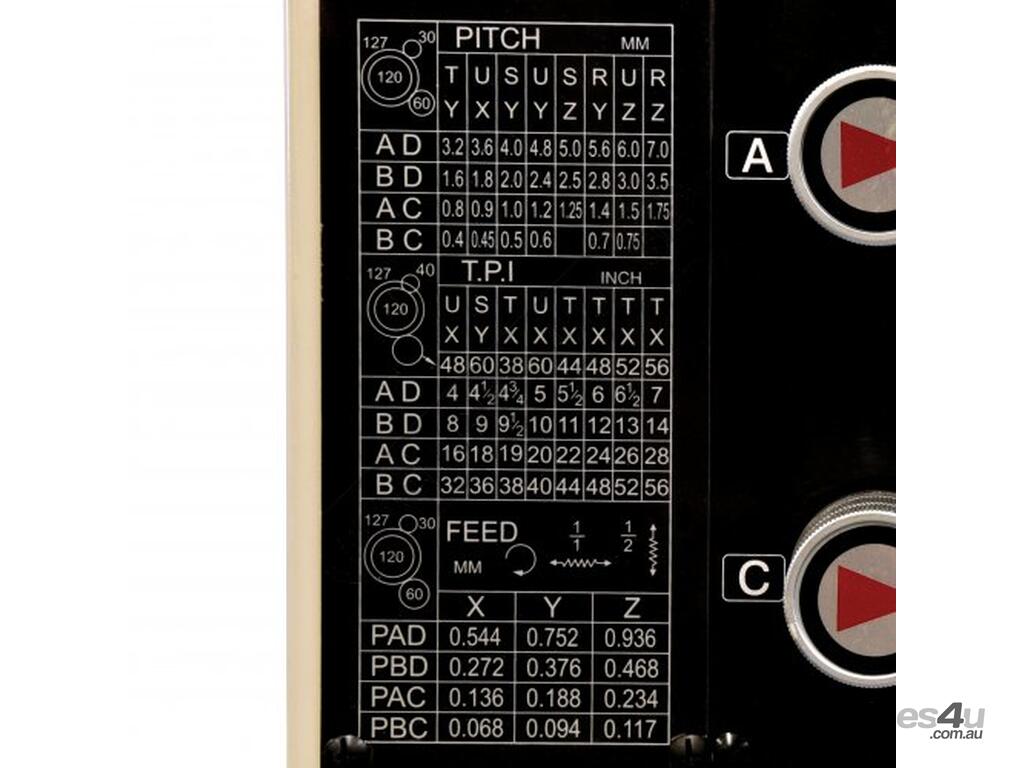

Change gears for metric and imperial thread cutting
Oil sight glass for head stock and gearbox
Adjustable taper roller bearings support the spindle
Overload clutch mechanism on auto power feed
Overload protection on drive motor and coolant system
3HP/415V motor 18-speed (50 - 2000rpm)

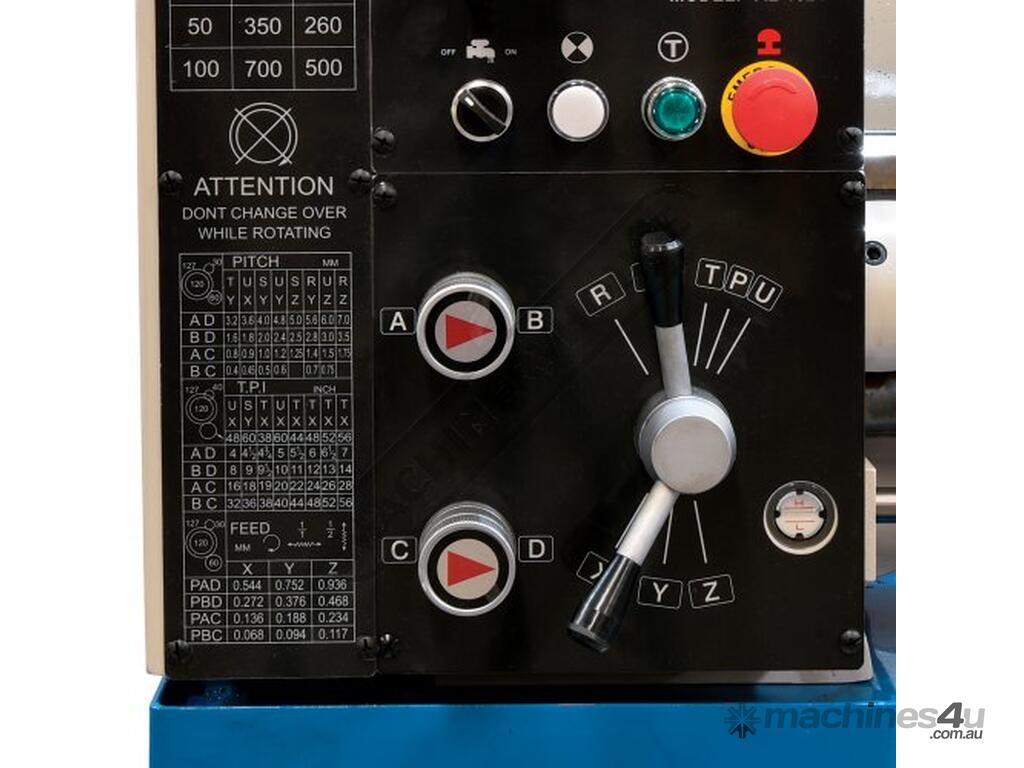

Enclosed quick action gearbox for thread cutting and auto feeding

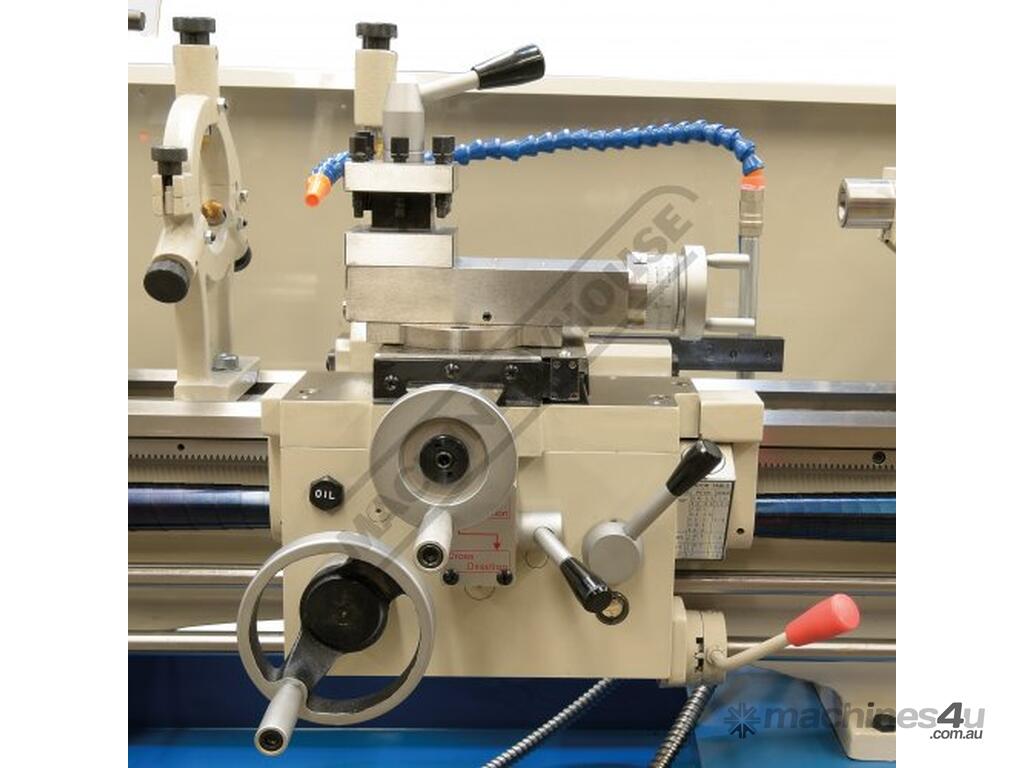

Powered longitudinal and cross feeds
D1-4 camlock spindle for quick chuck changes and safe reverse-direction turning. ISO standard
Dual calibrated dials

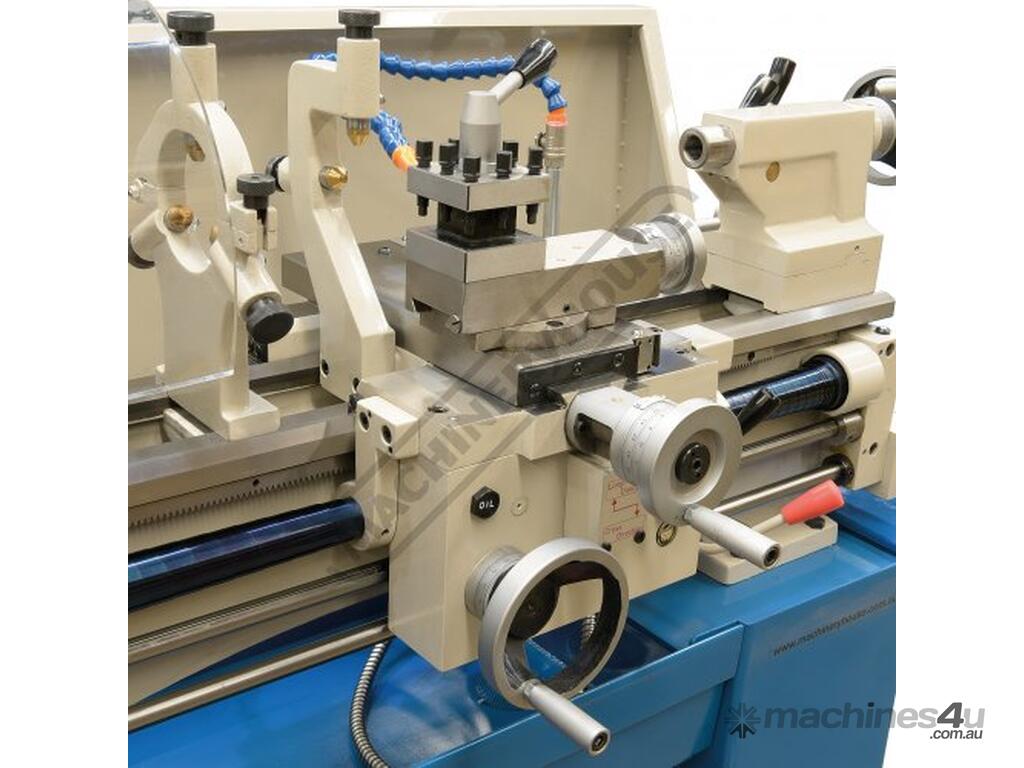

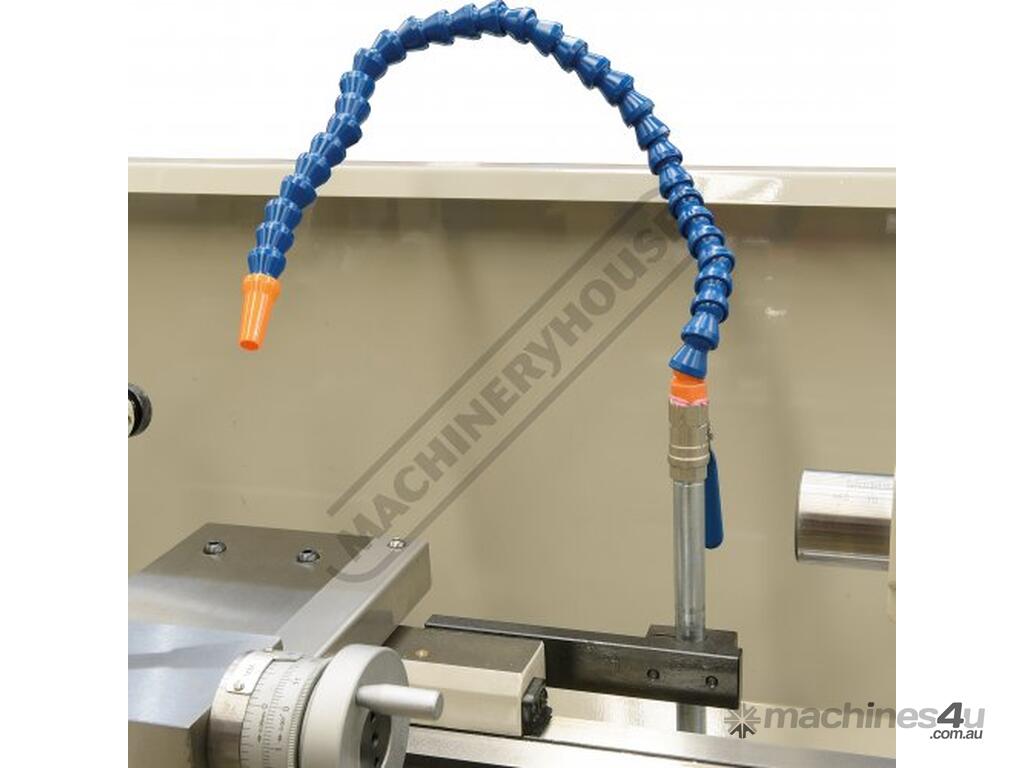

Coolant system with flexible hose
Slide out swarf tray

Includes:
- 2-Axis digital readout system fitted

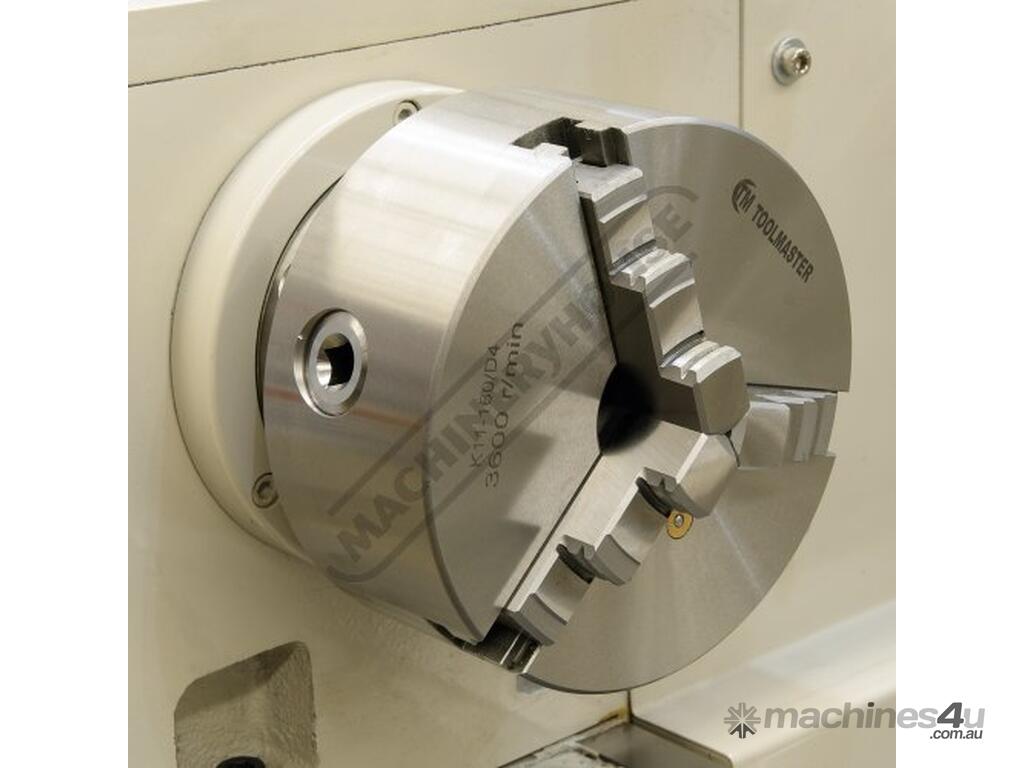

- 3-jaw chuck with reverse jaws
- 4-jaw chuck
- Faceplate

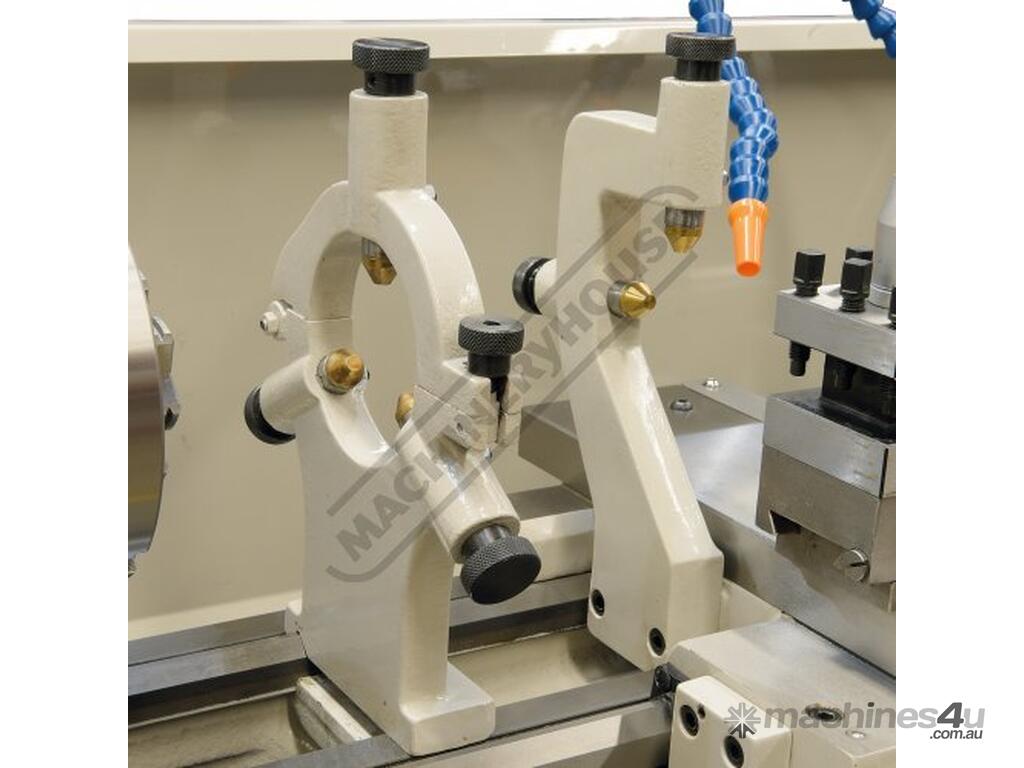

- Fixed Steady
- Travelling steady
- Chuck guard
- Concertina leadscrew covers
- Slide out front swarf tray
- Dead centre
- Thread chasing dial
- Foot brake
- Coolant system
- Rear splash guard
- Instruction booklet



Specifications:
ORDER CODE: L201D
MODEL: AL-1324
Swing Over Bed (mm): 330
Distance Between Centres (mm): 600
Spindle Bore (mm): 40
Swing In Gap (mm): ~
Swing Over Cross-slide (mm): 200
Digital Readout System Fitted: Yes
Quick Change Toolpost Fitted: Optional
Leadscrew Covers Fitted: Yes
Taper Turning Attachment: Optional
Coolant System: Yes
Tool Height To Suit (mm): 16
Centre Height (mm): 165
Spindle Nose Size or Type: D1-4 Camlock
Bed Width (mm): 190
Headstock Spindle Taper (MT): 5
Tailstock Taper (MT): 3
Cross Slide Travel (mm): 175
Compound Slide Travel (mm): 100
Leadscrew Type: Metric
Metric Cross Feed (X-Axis) (mm/rev): 0.034 - 0.468
Imperial Cross Feed (X-Axis) (inch/rev): ~
Metric Longitudinal Feed (Z-Axis) (mm/rev): 0.068 - 0.936
Imperial Longitudinal Feed (Z-Axis) (inch/rev): ~
Metric Thread Steps & Pitch (No. / mm): 30(0.4 - 7.0)
Imperial Thread Steps & TPI (No. / TPI): 32(4 - 56)
3 Jaw Chuck Diameter (mm): 160
4 Jaw Chuck Diameter (mm): 200

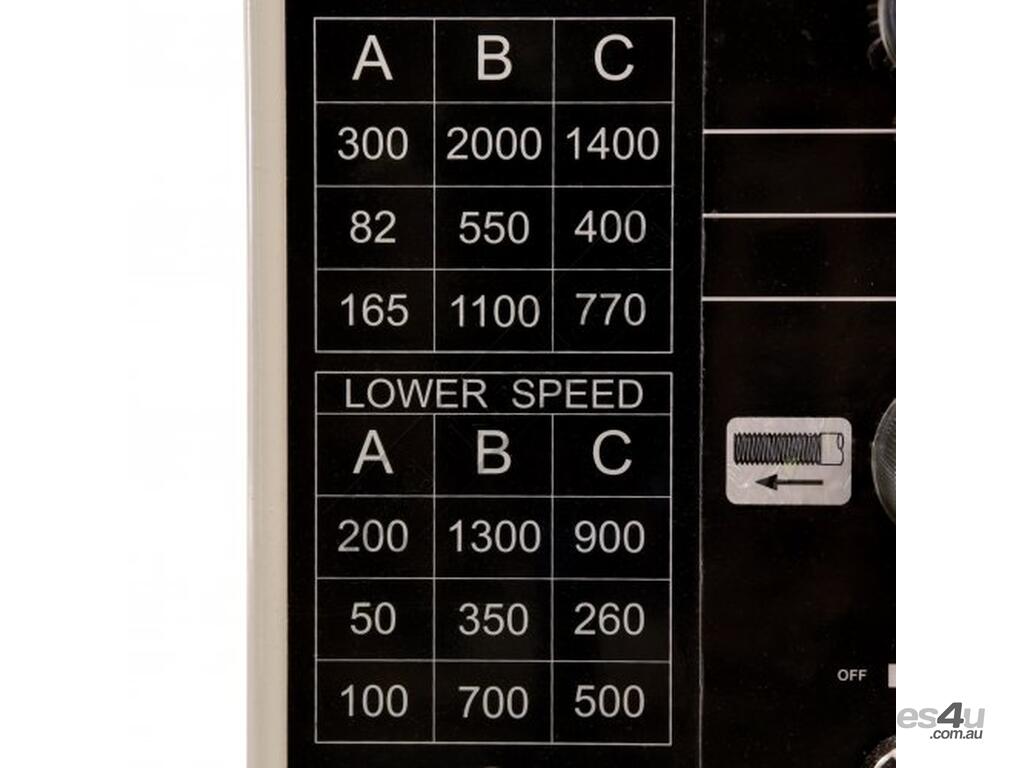

Spindle Steps / Speeds (No. / rpm): 18 (50 - 2000)
Motor Power (kW / hp): 2.25 / 3
Voltage / Amperage (V / amp): 415
Nett Weight (kg): 580
