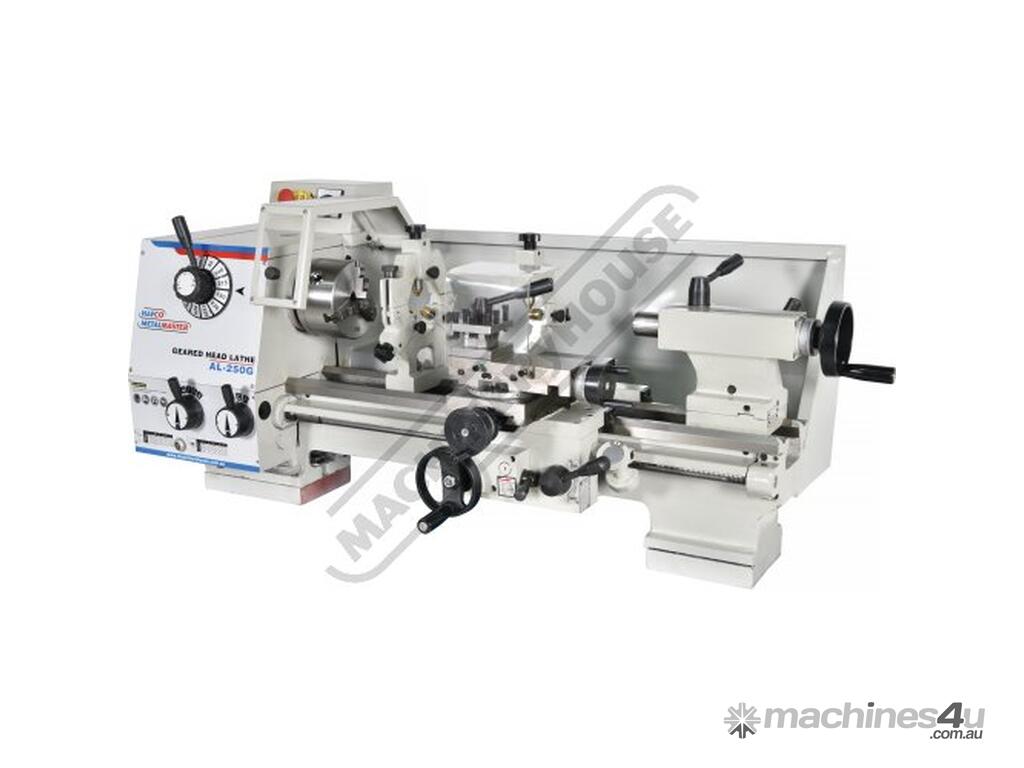

AL-250G Bench Lathe, Stand & Tooling Package Deal Ø250 x 500mm Turning Capacity - Ø26mm Spindle Bore

HAFCO-METALMASTER AL-250G Bench Lathe, Stand & Tooling Package Deal Ø250 x 500mm Turning Capacity - Ø26mm Spindle Bore 12 Geared Head Speeds 80 ~ 1600rpm & Includes Stand & Turning Kit
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: K001

Features:

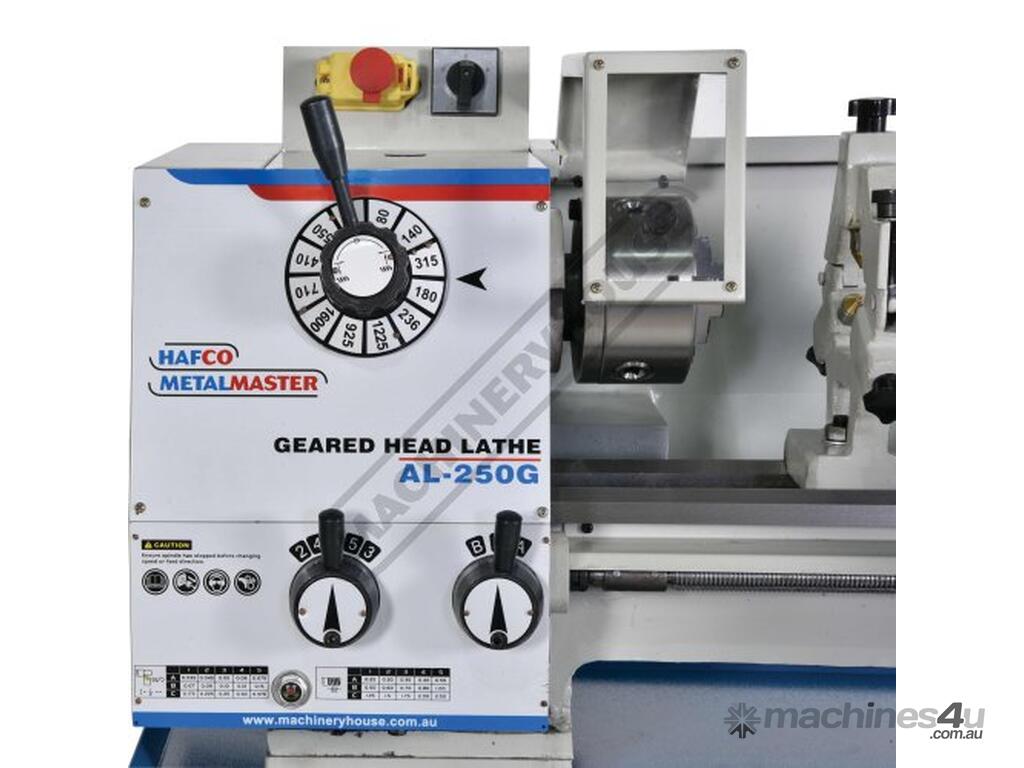

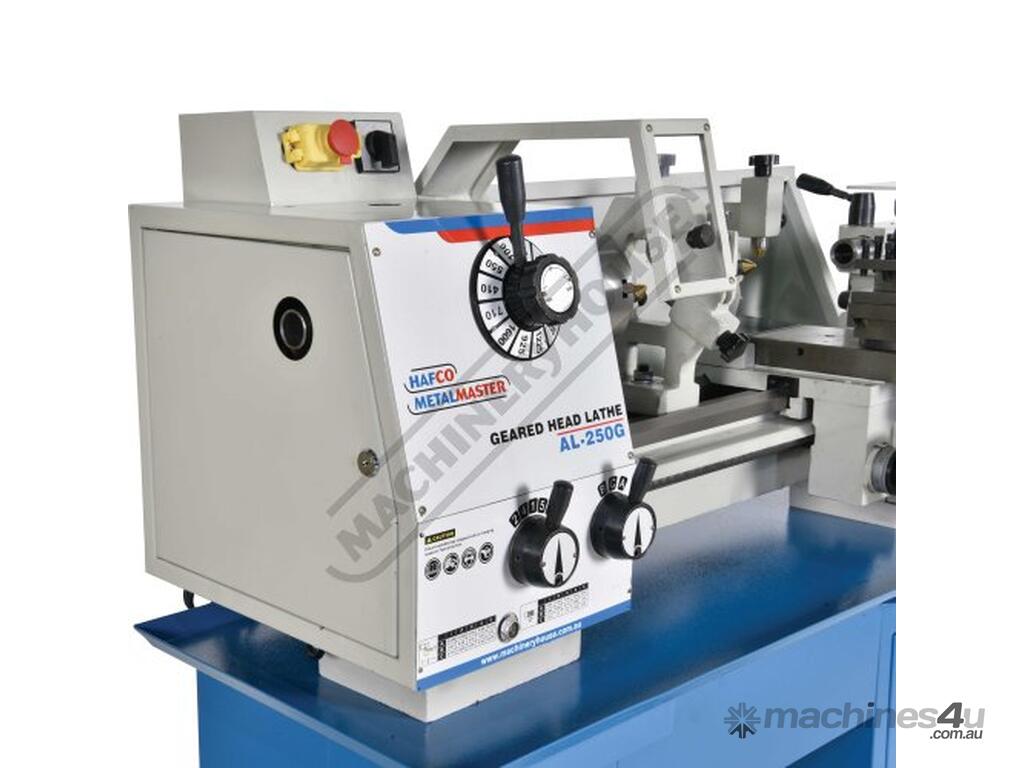

12 spindle speed geared headstock incorporates a single progression dial
26mm spindle bore
Hardened and ground bed

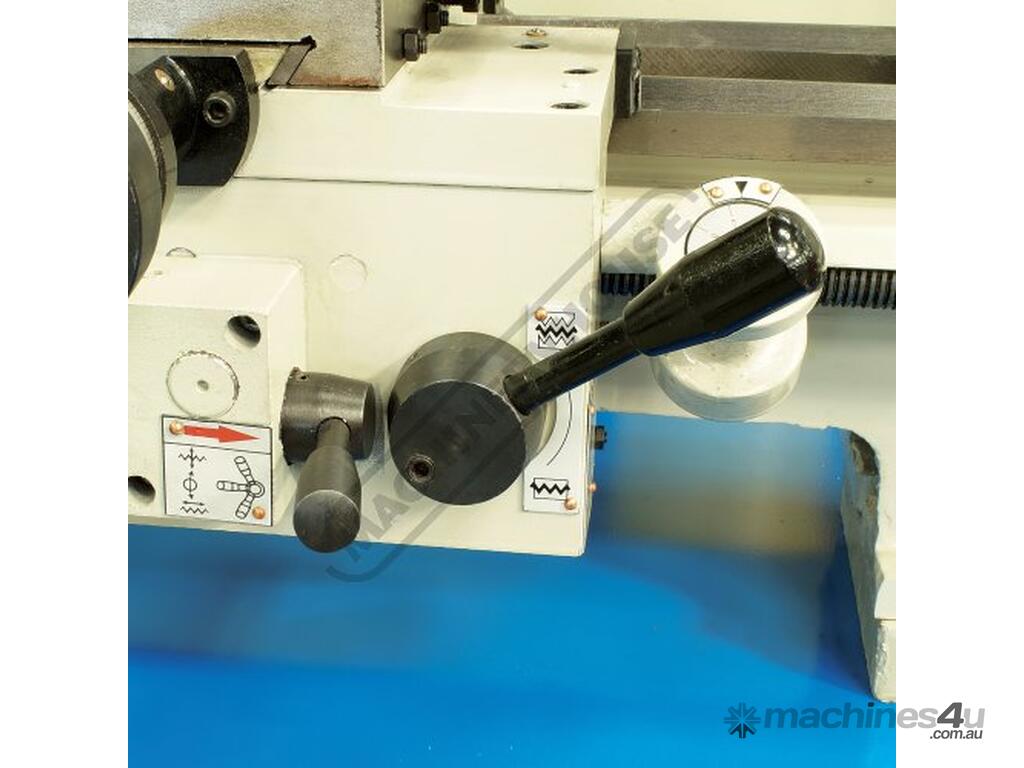

Enclosed quick action gearbox for thread cutting & auto feeding
Adjustable taper roller spindle bearings
Metric thread cutting

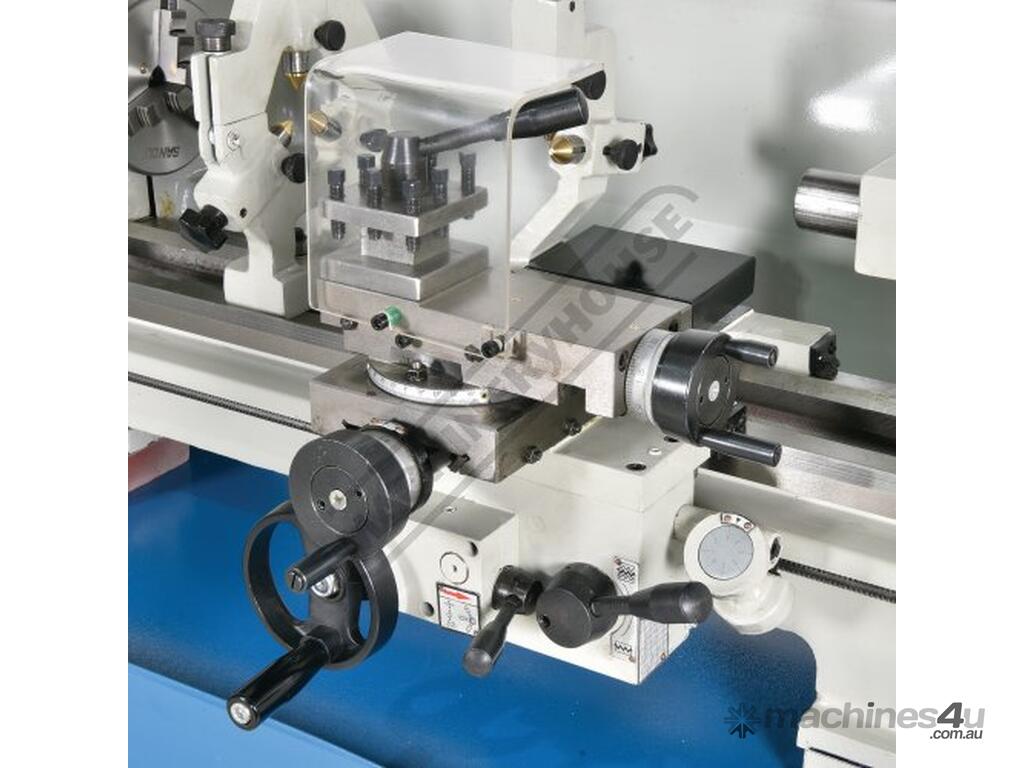

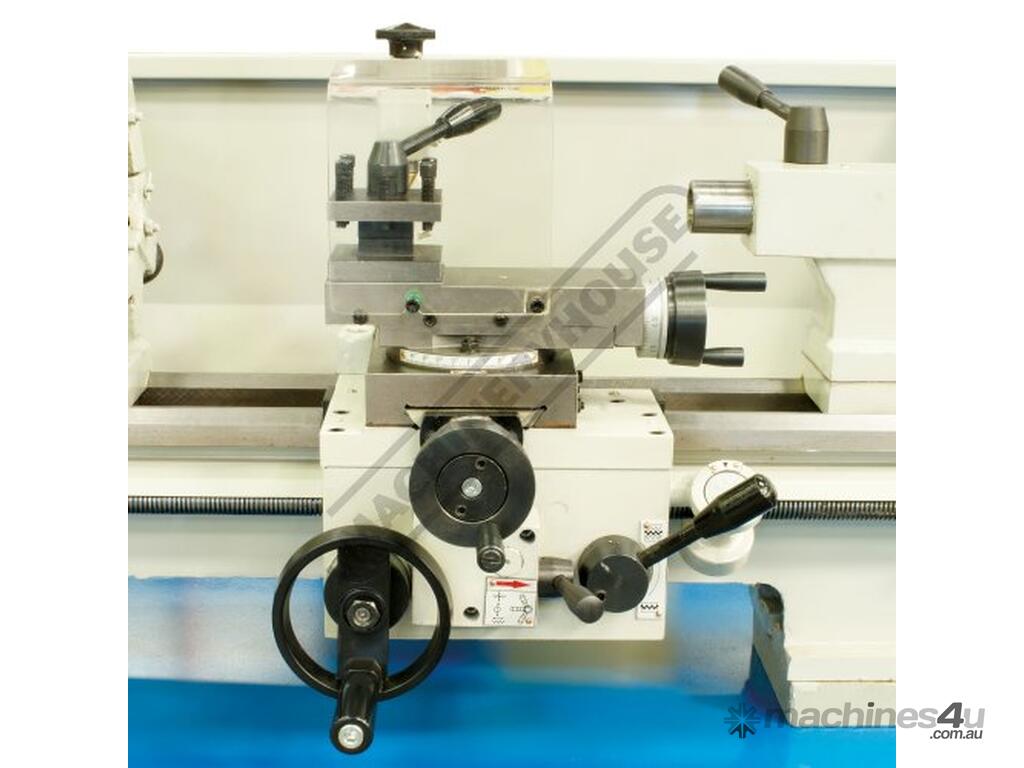

Powered longitudinal and cross feeds
Headstock and gearbox oil sight glass

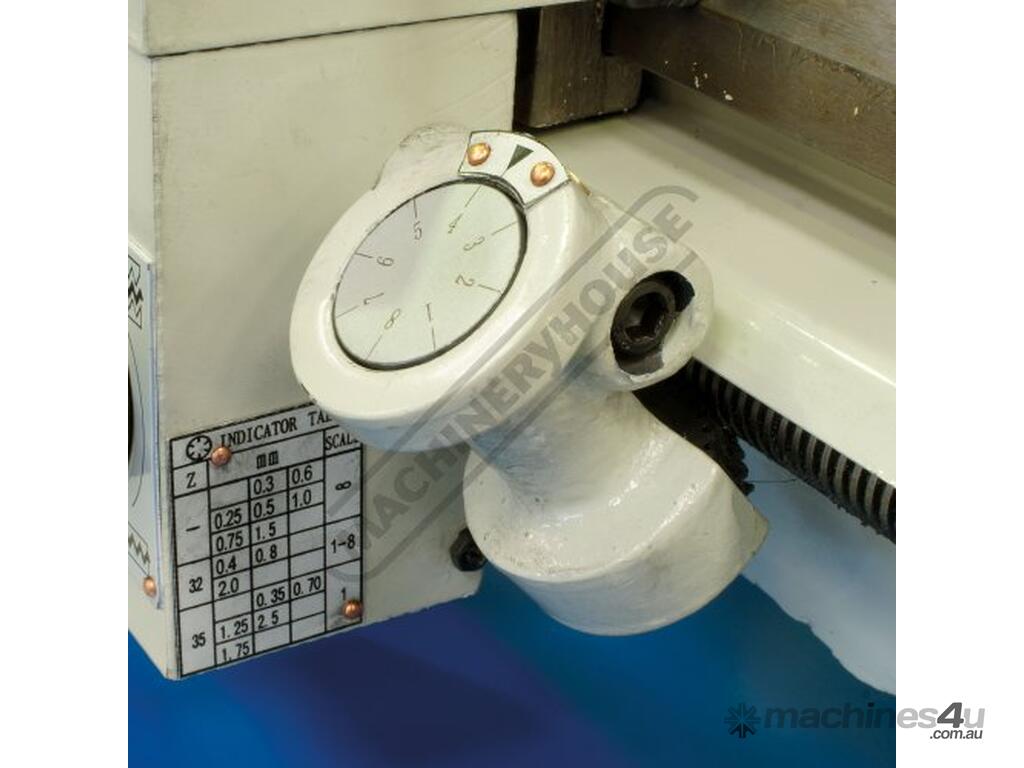

Metric thread chasing dial

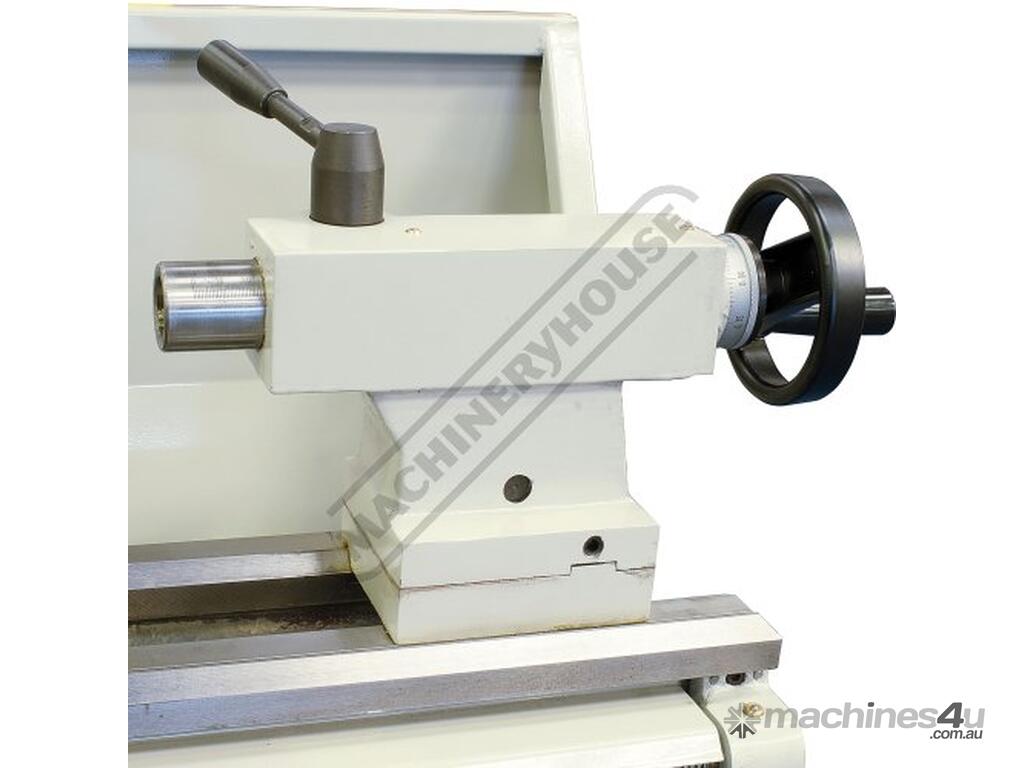

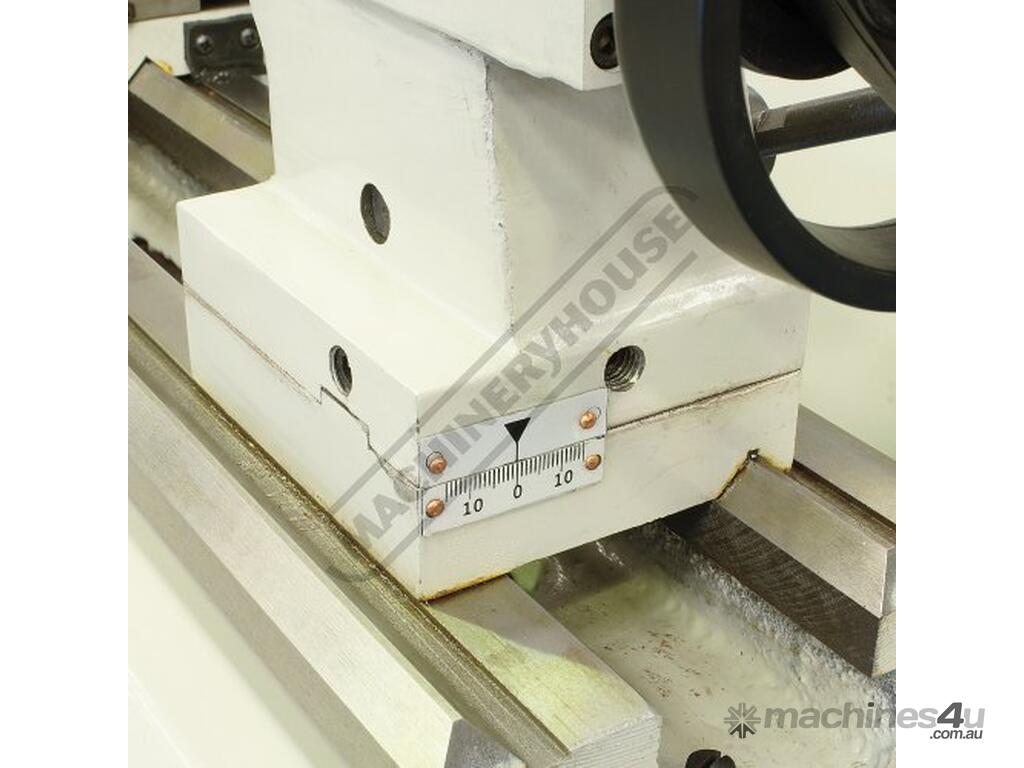

Quick action tailstock locking lever
Forward/reverse spindle switch
0.75kW / 1hp 240V motor

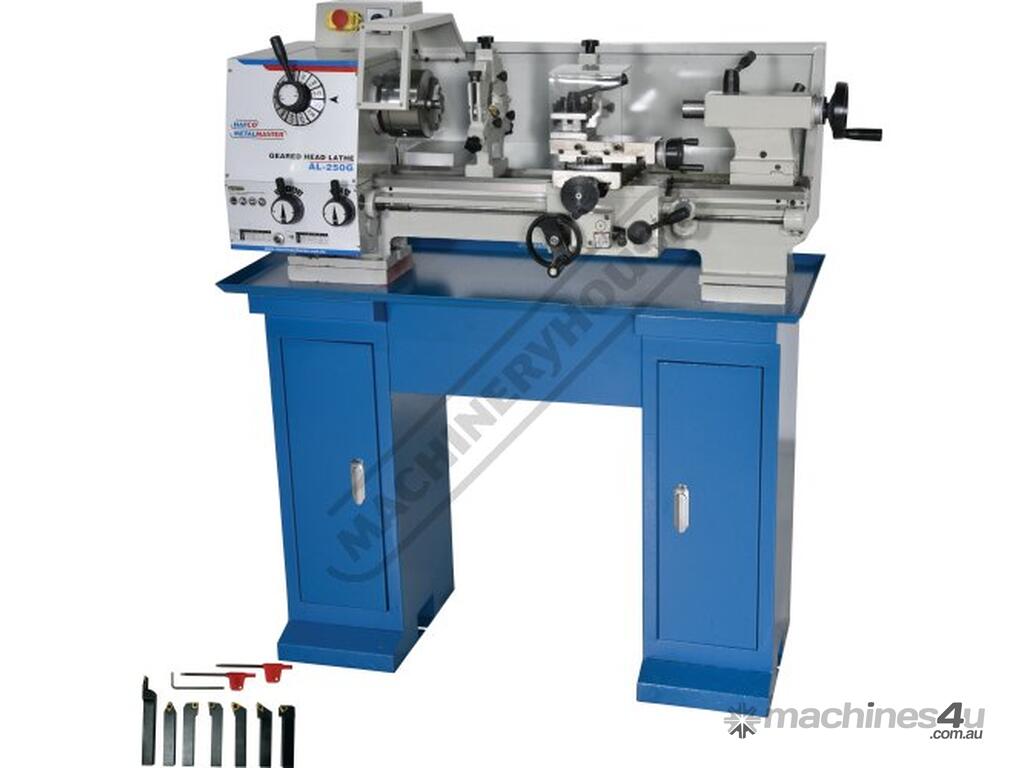

Includes:
- AL-250G Lathe (L149)
- Lathe stand to suit (L150)
- 12mm turning tool set (L0099)
- 130mm 3-jaw chuck with reverse jaws
- Face plate

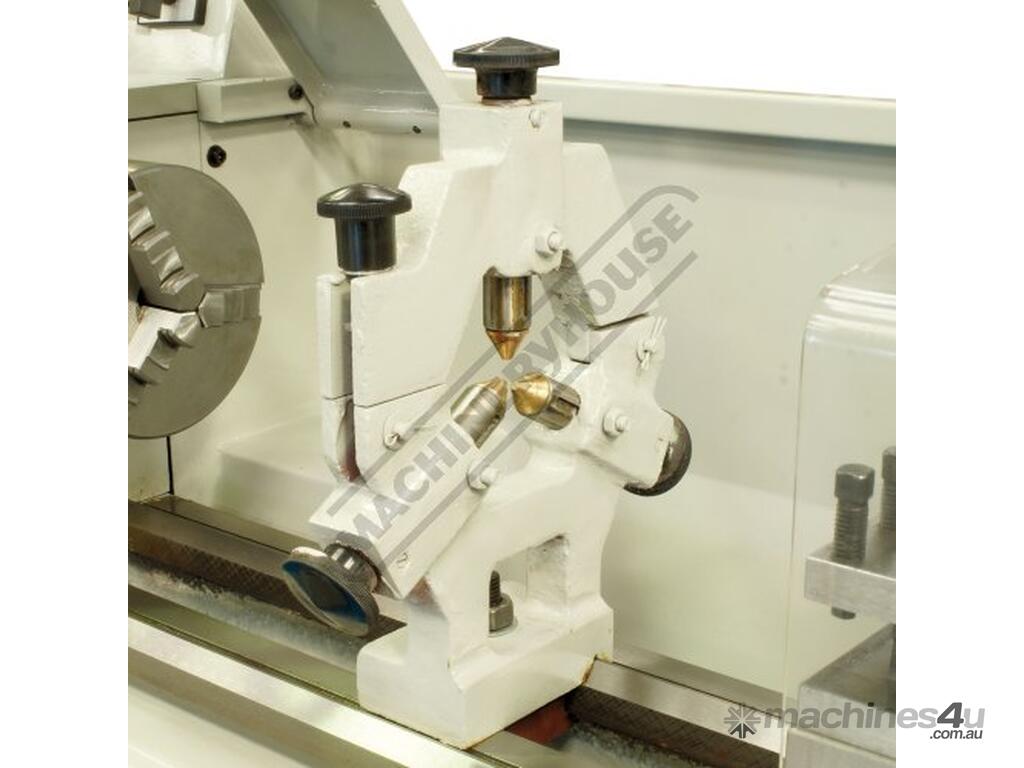

- Fixed steady

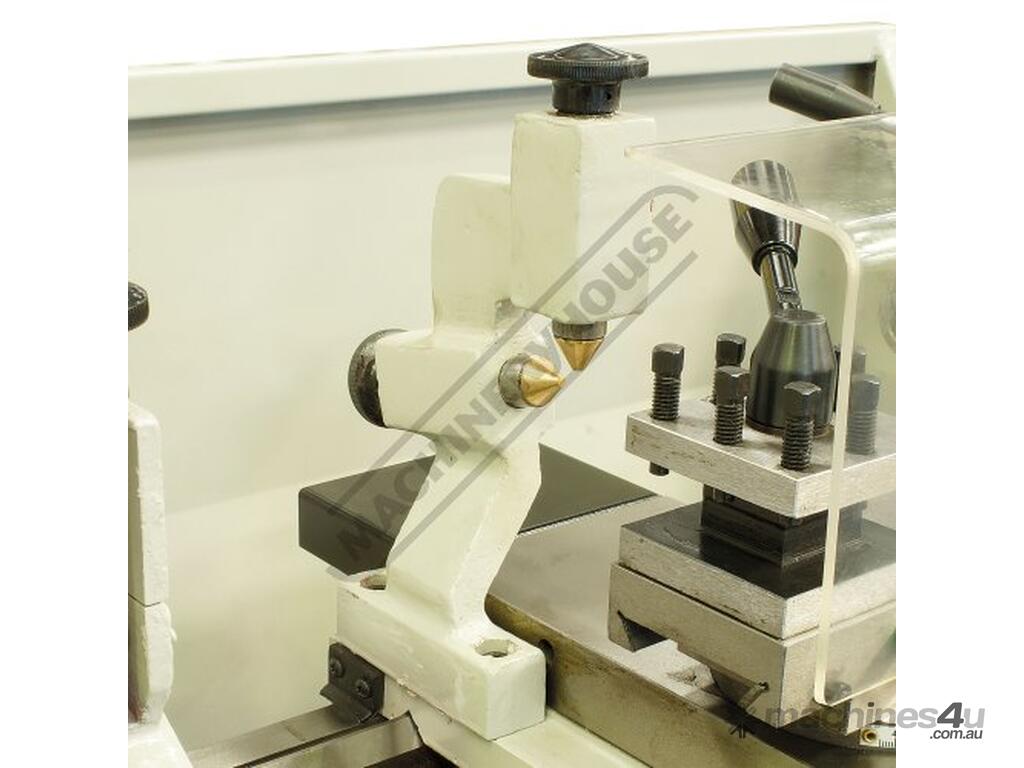

- Travelling steady
- Dead centre
- Rear splash guard & swarf tray

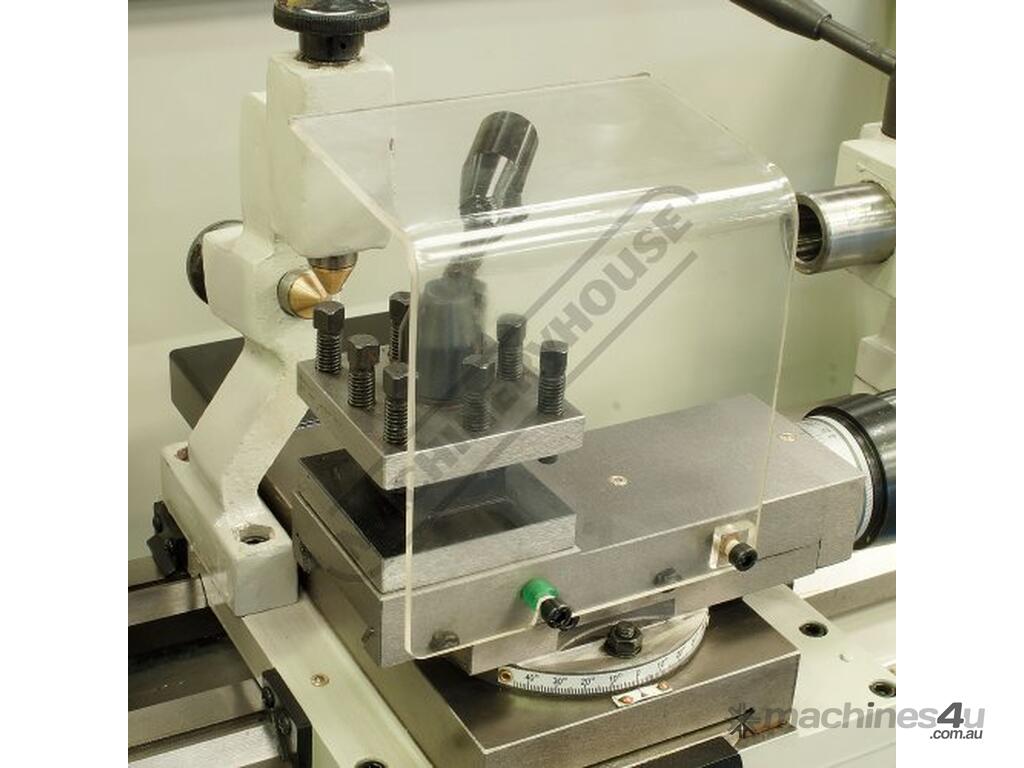

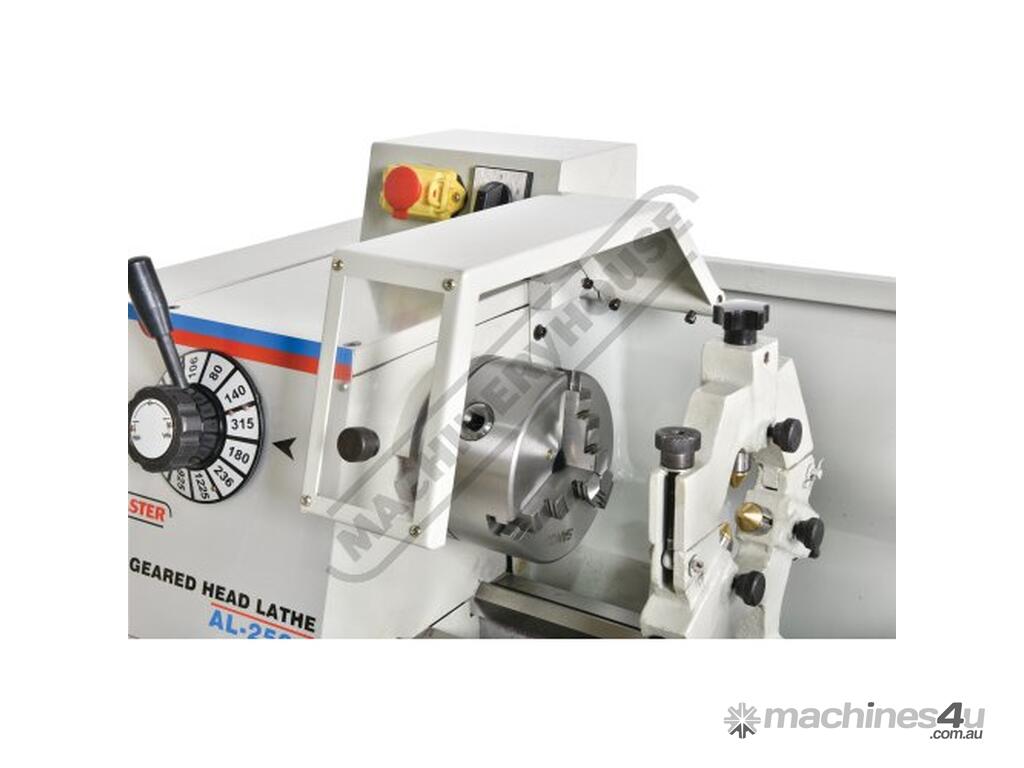

- Safety chuck guard

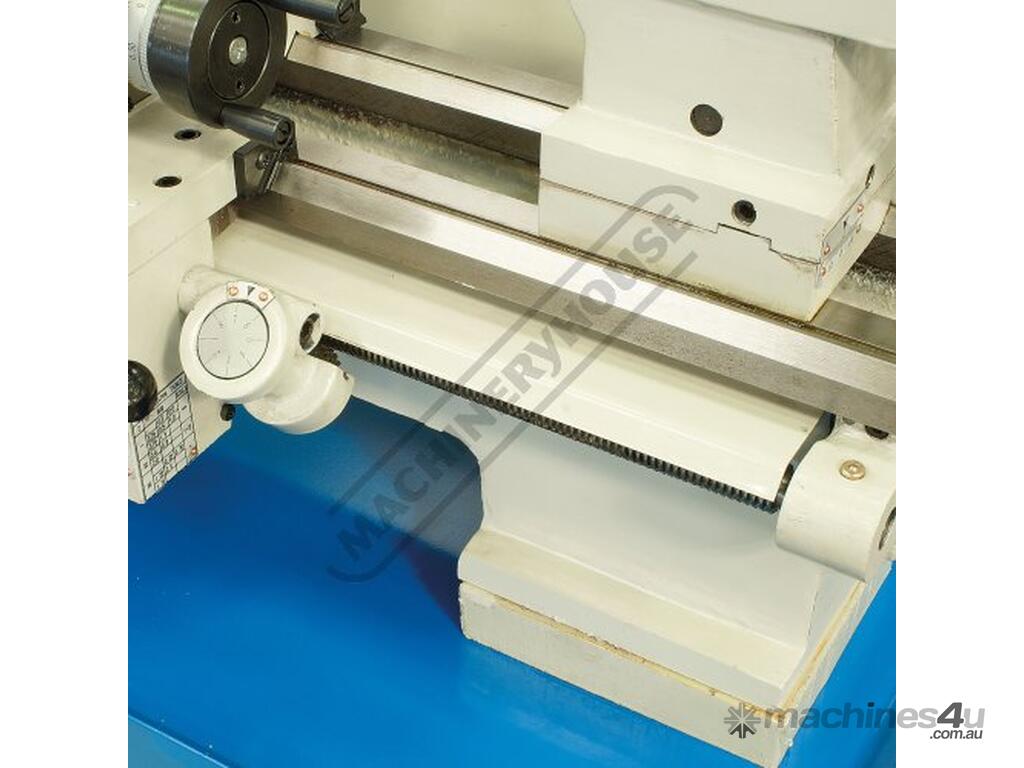

- Leadscrew Cover
- Instruction booklet



Specifications:
ORDER CODE: K001
MODEL: AL-250G Package Deal
Swing Over Bed (mm): 250
Distance Between Centres (mm): 500
Spindle Bore (mm): 26
Swing In Gap (mm): ~
Swing Over Cross-slide (mm): 150
Digital Readout System Fitted: Optional
Quick Change Toolpost Fitted: Optional
Leadscrew Covers Fitted: Yes
Taper Turning Attachment: ~
Coolant System: ~
Tool Height To Suit (mm): 12
Centre Height (mm): 125
Spindle Nose Size or Type: Fixed
Bed Width (mm): 140
Headstock Spindle Taper (MT): 4
Tailstock Taper (MT): 3
Cross Slide Travel (mm): 145

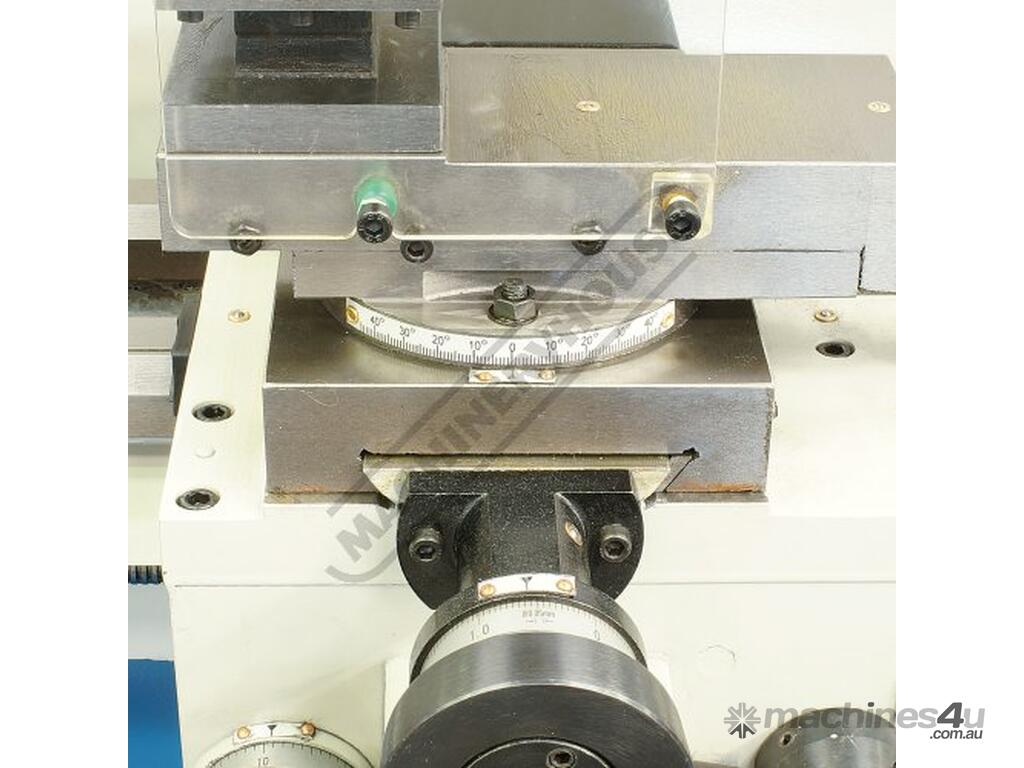

Compound Slide Travel (mm): 75
Leadscrew Type: Metric
Metric Cross Feed (X-Axis) (mm/rev): 0.017 - 0.187
Imperial Cross Feed (X-Axis) (inch/rev): ~
Metric Longitudinal Feed (Z-Axis) (mm/rev): 0.035 - 0.375
Imperial Longitudinal Feed (Z-Axis) (inch/rev): ~
Metric Thread Steps & Pitch (No. / mm): 15 (0.25 - 2.5)
Imperial Thread Steps & TPI (No. / TPI): ~
3 Jaw Chuck Diameter (mm): 130
4 Jaw Chuck Diameter (mm): Optional
Spindle Steps / Speeds (No. / rpm): 12 (80 - 1600)
Motor Power (kW / hp): 0.75 / 1
Voltage / Amperage (V / amp): 240 / 10
Nett Weight (kg): 185
