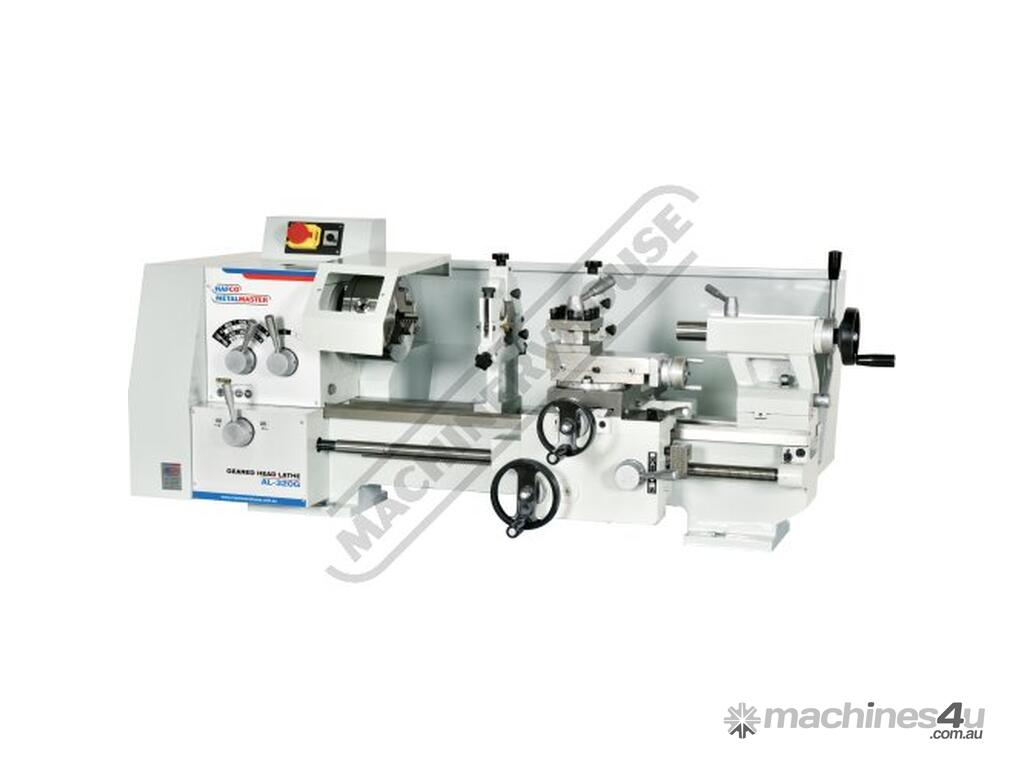

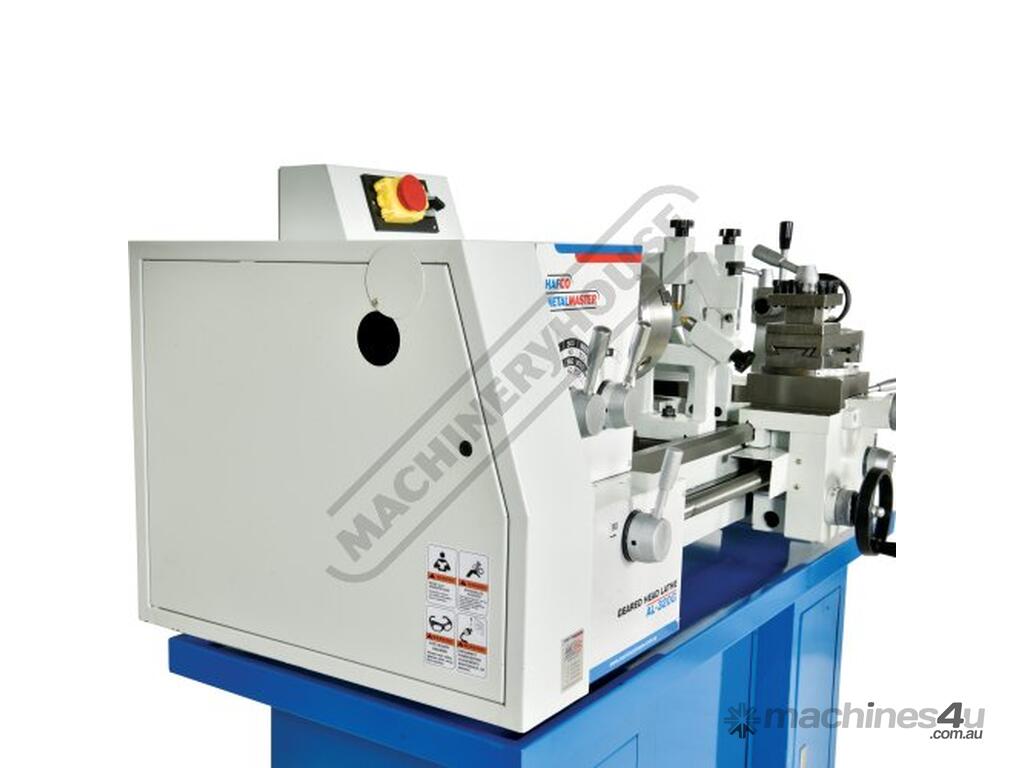

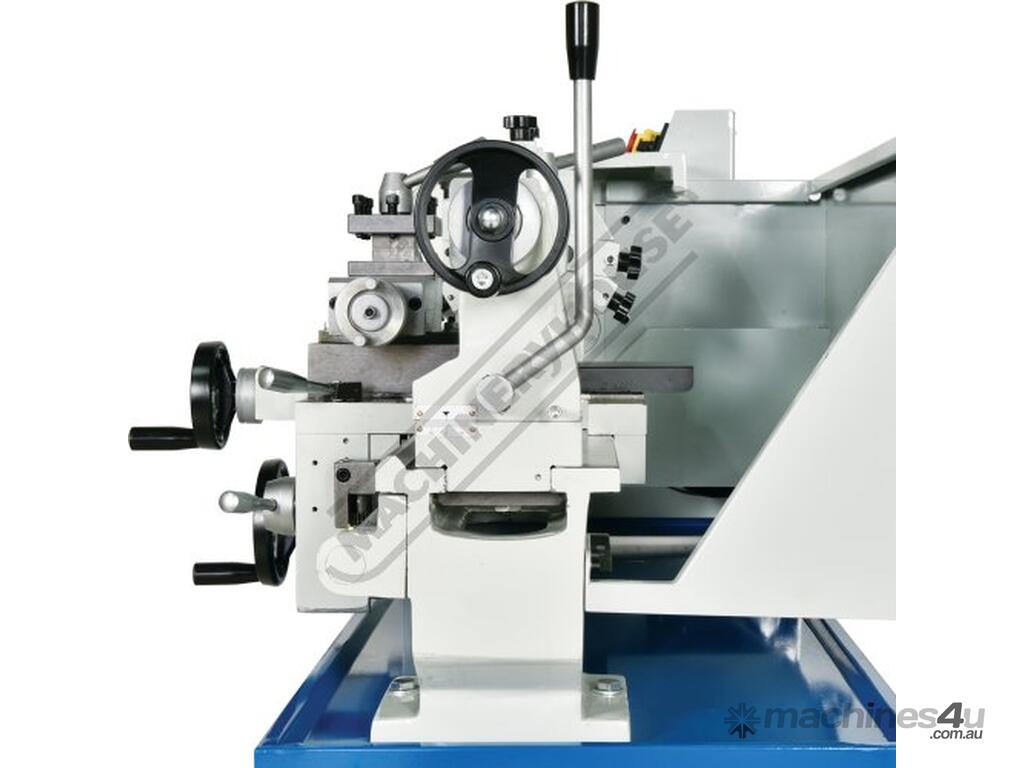

AL-320G Bench Lathe, Stand & Tooling Package Deal Ø320 x 600mm Turning Capacity - Ø38mm Spindle Bore

HAFCO-METALMASTER AL-320G Bench Lathe, Stand & Tooling Package Deal Ø320 x 600mm Turning Capacity - Ø38mm Spindle Bore 12 Geared Head Speeds 60 ~ 1600rpm & Includes Stand & Turning Kit
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: K007A

Features:

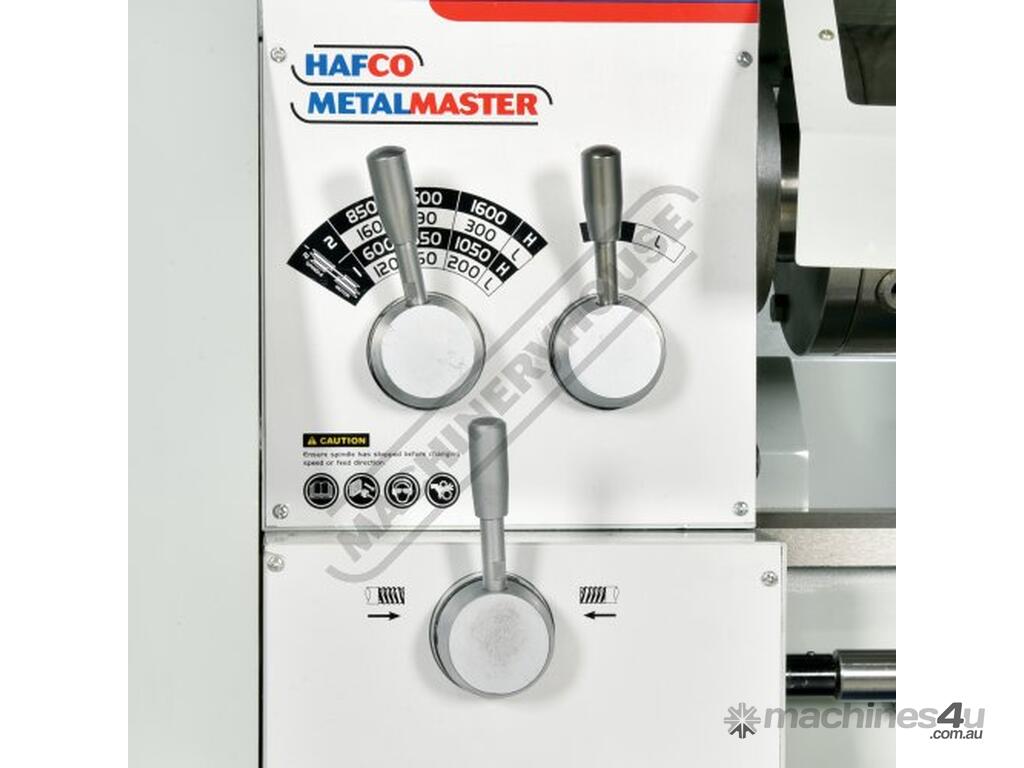

Geared headstock for quick change of spindle speeds
38mm spindle bore

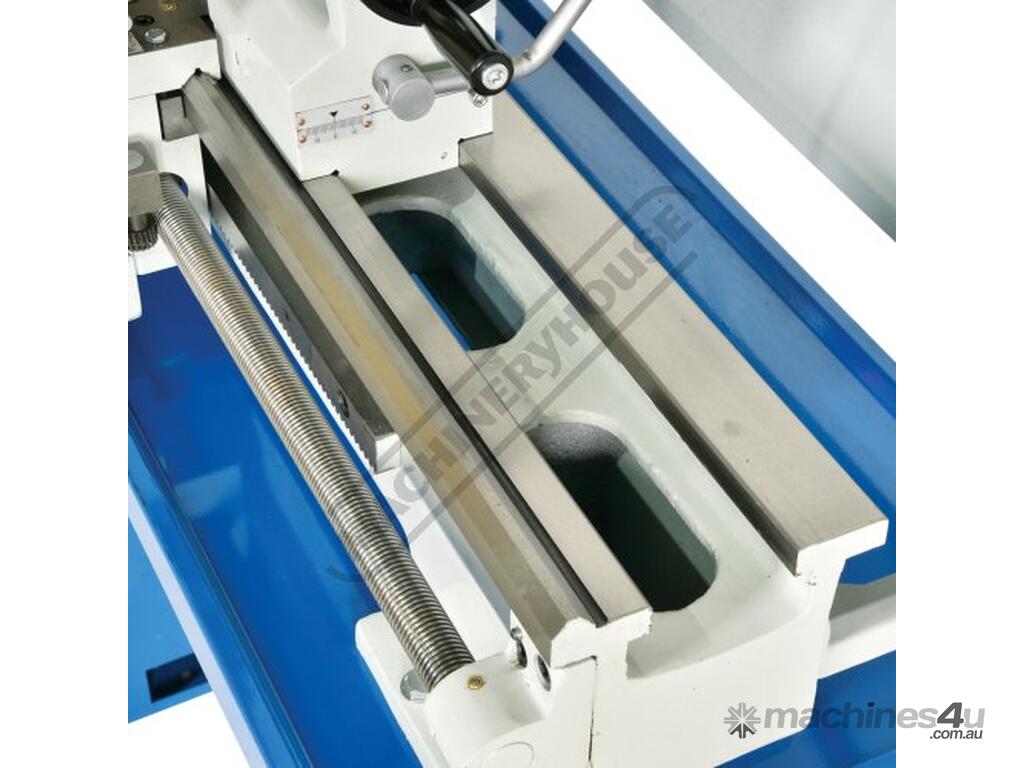

Hardened and ground bed
Adjustable taper roller spindle bearings
Metric & imperial thread cutting

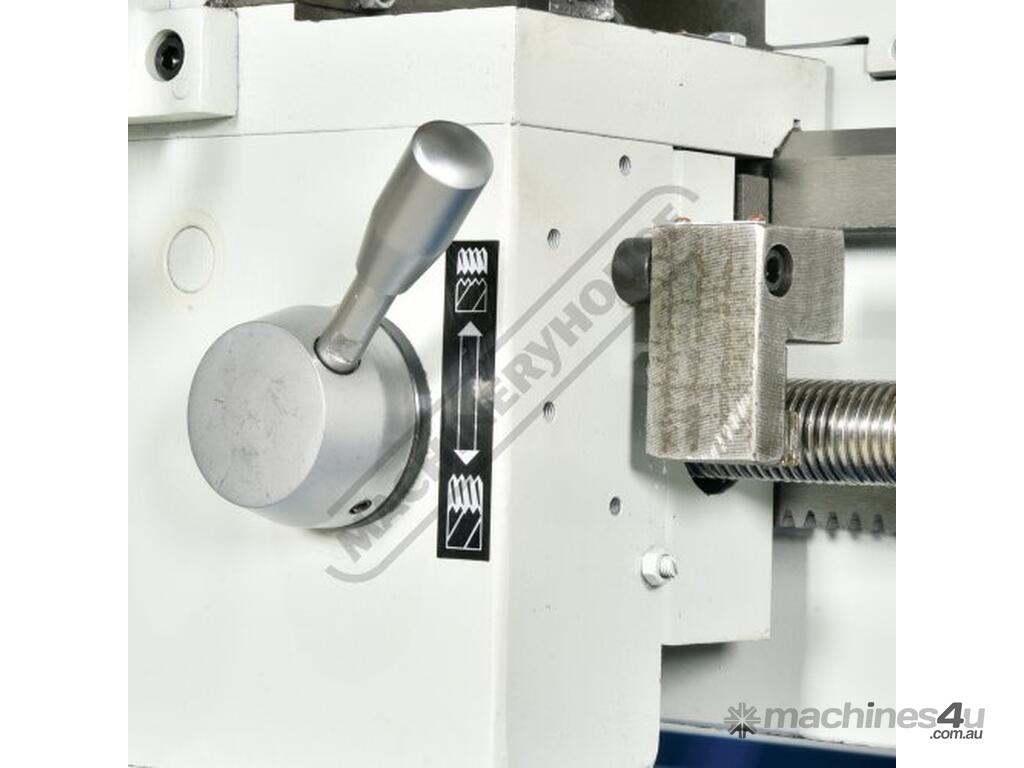

Powered longitudinal and cross feed
Head stock oil sight glass

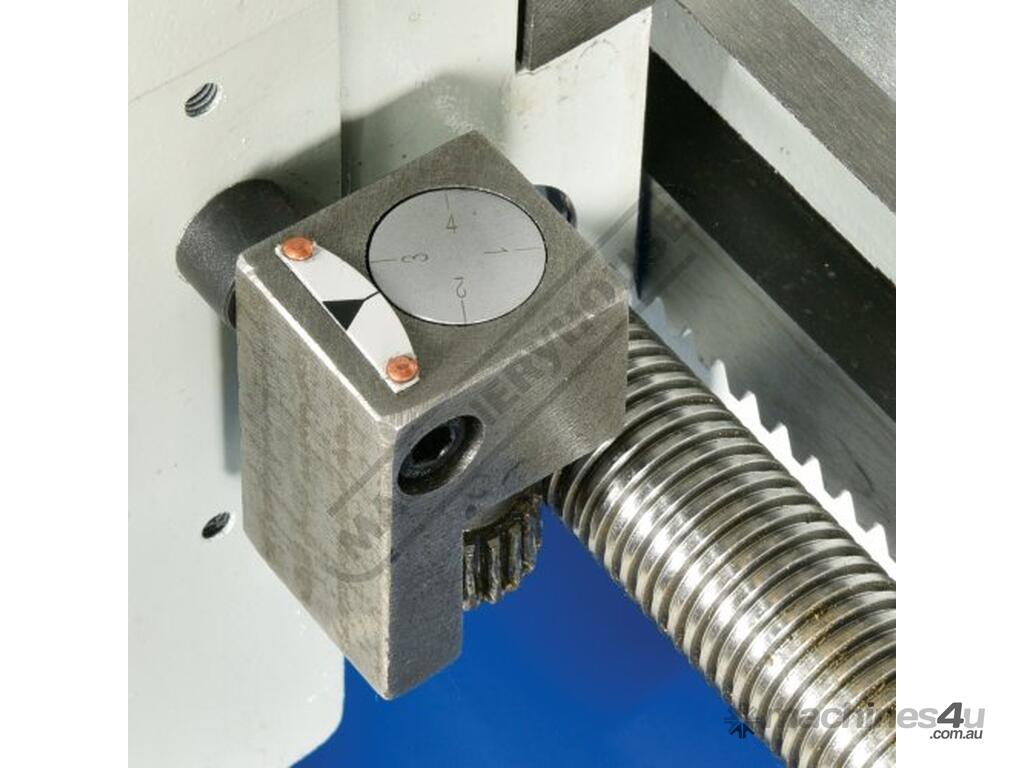

Thread chasing dial

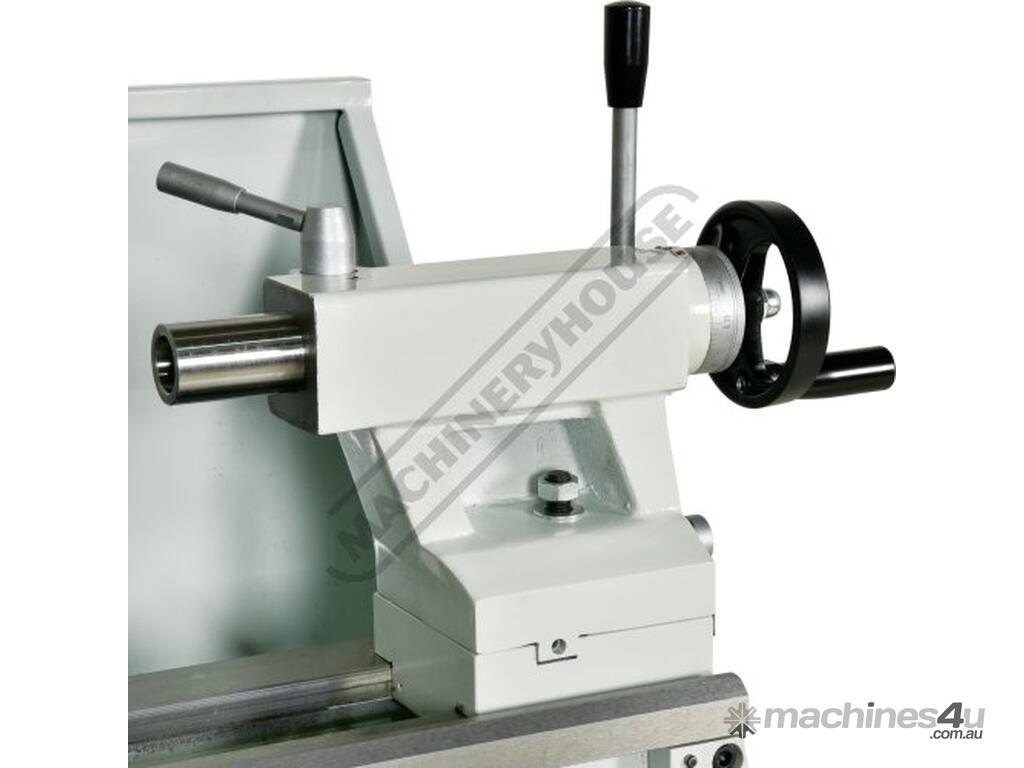

Quick action tailstock locking lever
Forward/reverse spindle switch

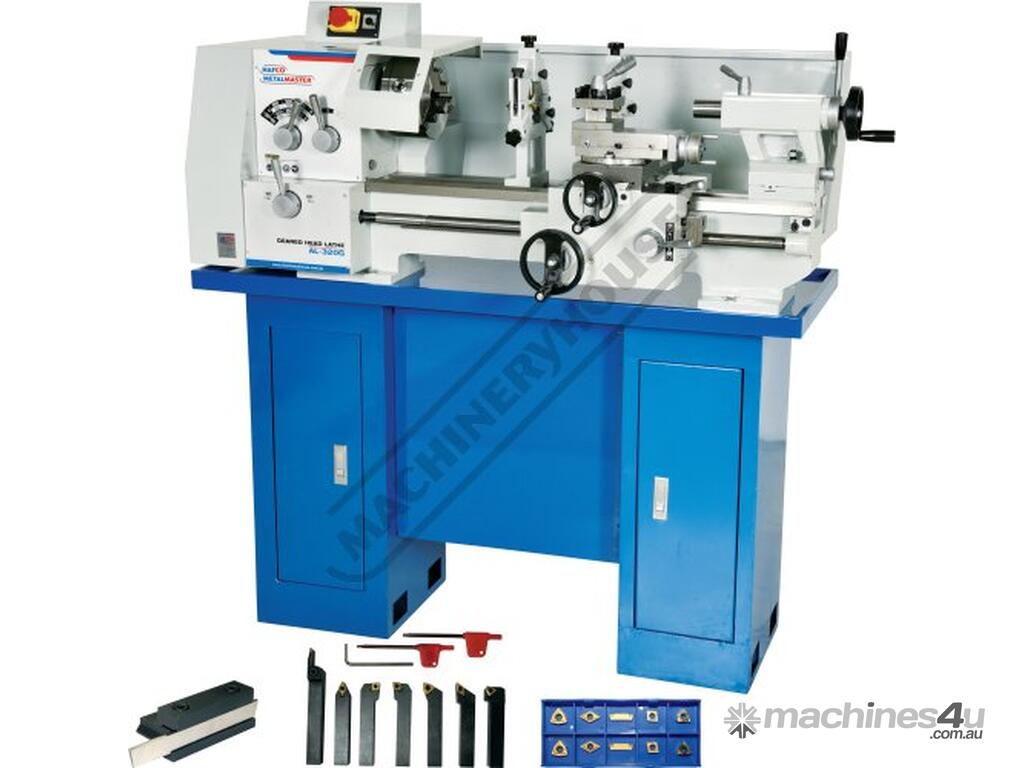

Includes:
- Al-320G Lathe (L141)
- Lathe stand (L142)
- Parting block (L074)
- Parting blade (L0007)
- 12mm turning tool kit (L0099)
- Replacement carbide inserts (L0098)

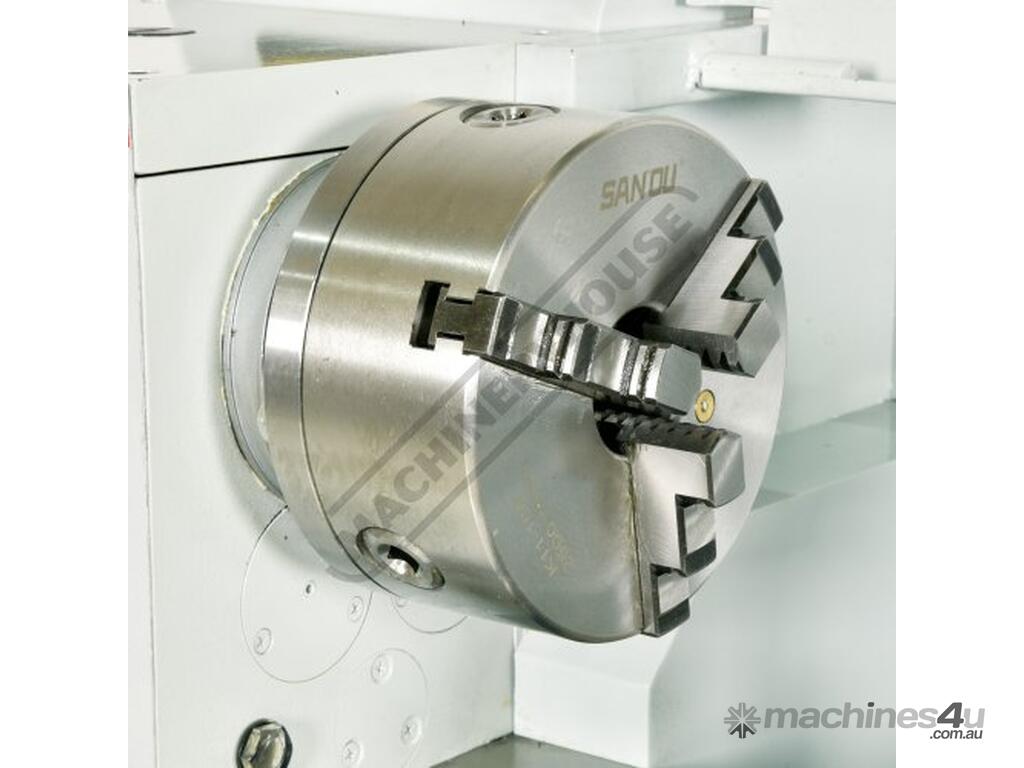

- 160mm 3-jaw chuck with reverse jaws
- 200mm 4-jaw chuck
- Face plate

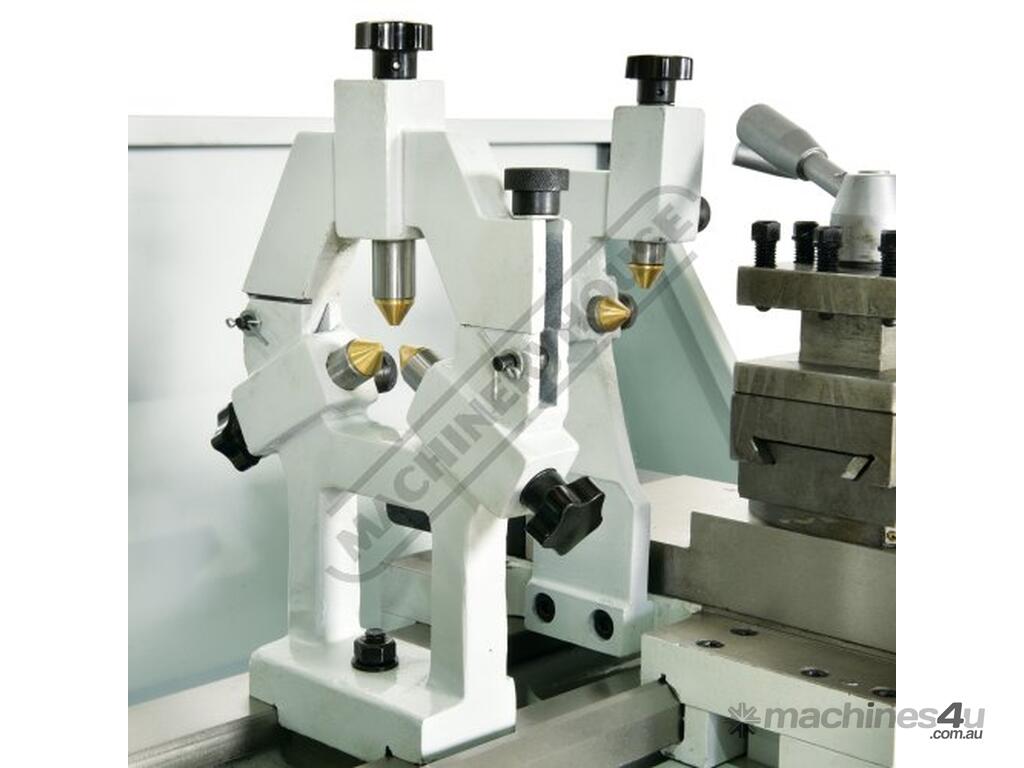

- Fixed steady
- Travelling steady
- Change gears
- Dead centre
- Rear splash guard & swarf tray
- Spanners
- Tool box

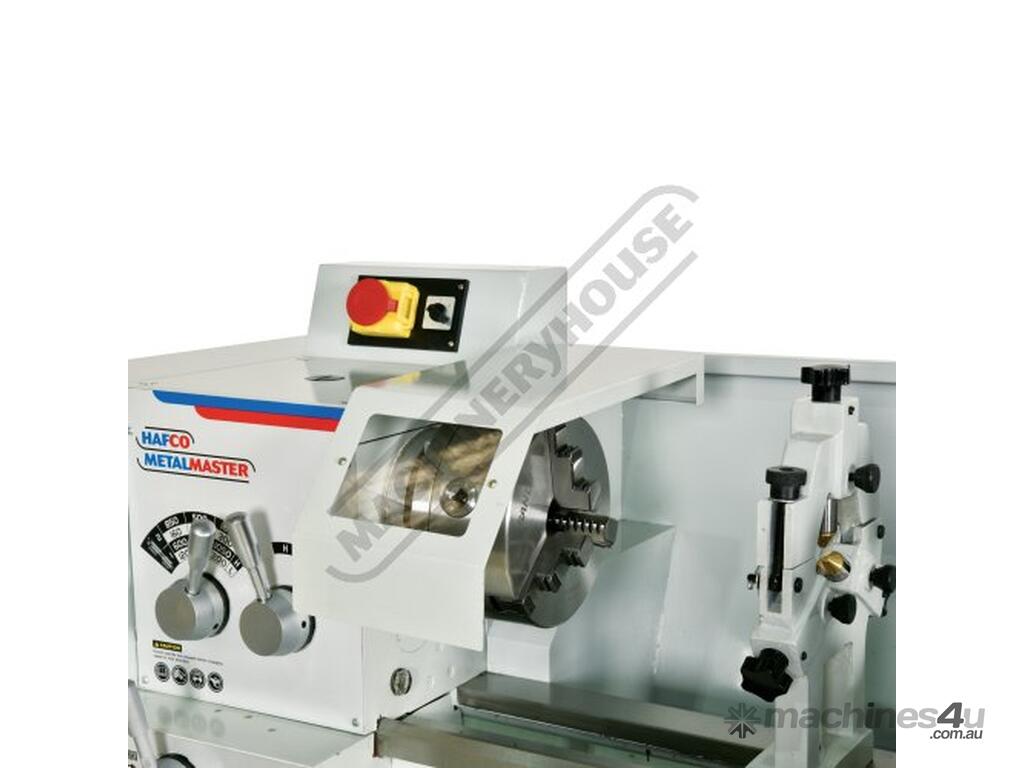

- Safety chuck guard
- Instruction booklet



Specifications:
ORDER CODE: K007A
MODEL: AL-320G Package
Swing Over Bed (mm): 320
Distance Between Centres (mm): 600
Spindle Bore (mm): 38
Swing In Gap (mm): ~
Swing Over Cross-slide (mm): 210
Digital Readout System Fitted: Optional
Quick Change Toolpost Fitted: Optional
Leadscrew Covers Fitted: ~
Taper Turning Attachment: ~
Coolant System: ~
Tool Height To Suit (mm): 12
Centre Height (mm): 160
Spindle Nose Size or Type: Fixed
Bed Width (mm): 160
Headstock Spindle Taper (MT): 5
Tailstock Taper (MT): 3
Cross Slide Travel (mm): 150
Compound Slide Travel (mm): 100
Leadscrew Type: Metric
Metric Cross Feed (X-Axis) (mm/rev): 0.022 - 0.15
Imperial Cross Feed (X-Axis) (inch/rev): ~
Metric Longitudinal Feed (Z-Axis) (mm/rev): 0.1 - 1.4
Imperial Longitudinal Feed (Z-Axis) (inch/rev): ~
Metric Thread Steps & Pitch (No. / mm): 11 (0.5 - 4)
Imperial Thread Steps & TPI (No. / TPI): 27 (9 - 48)
3 Jaw Chuck Diameter (mm): 160
4 Jaw Chuck Diameter (mm): 200
Spindle Steps / Speeds (No. / rpm): 12 (60 - 1600)
Motor Power (kW / hp): 0.75 / 1
Voltage / Amperage (V / amp): 240 / 10
Nett Weight (kg): 280
