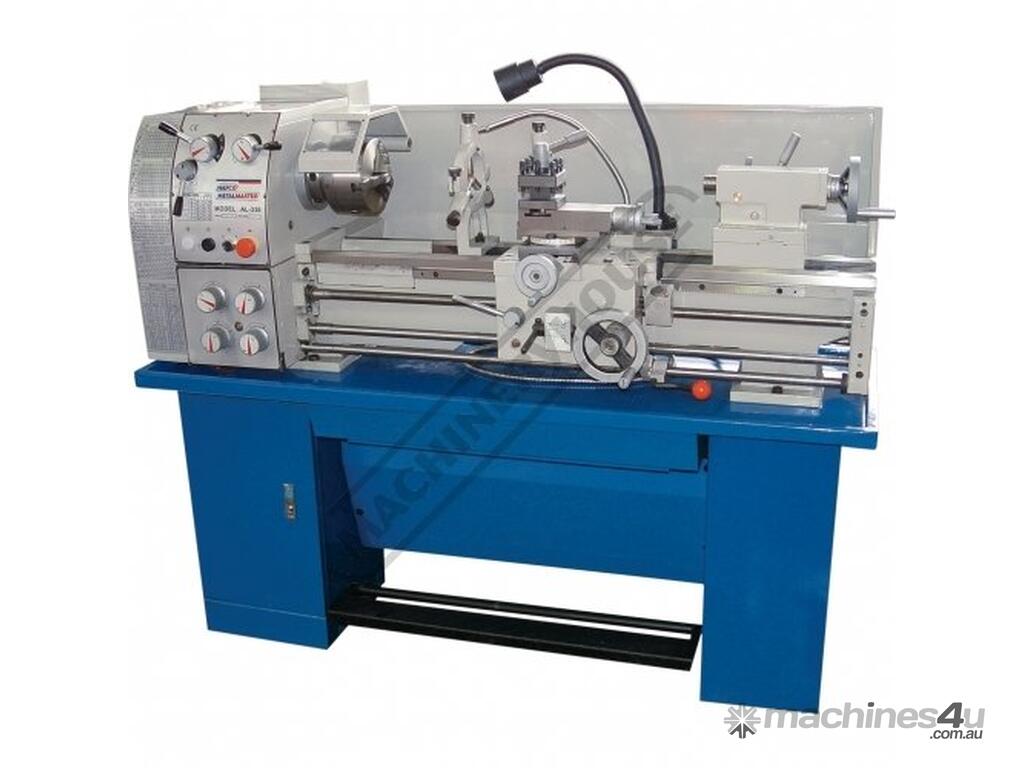

AL-336 Centre Lathe Ø300 x 900mm Turning Capacity - Ø38mm Spindle Bore 18 Geared Head Speeds 65 ~ 18

HAFCO-METALMASTER AL-336 Centre Lathe Ø300 x 900mm Turning Capacity - Ø38mm Spindle Bore 18 Geared Head Speeds 65 ~ 1810rpm, Includes Light, Foot Brake, Coolant System & Cabinet Stand
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: L682

The AL-336 high quality centre lathe with a turning capacity of Ø300 x 900mm is well known in the industry for its metal turning capabilities & is suitable for the model engineer or general maintenance workshops.

Featuring an induction hardened vee bedways are precision ground that allows the saddle to smoothly slide over it, full gear driven spindle speeds ranging from 65 - 1810rpm are selectable via the gear selector levers that are accessible from the front of headstock for your convenience & certainly makes this lathe package well sort after.

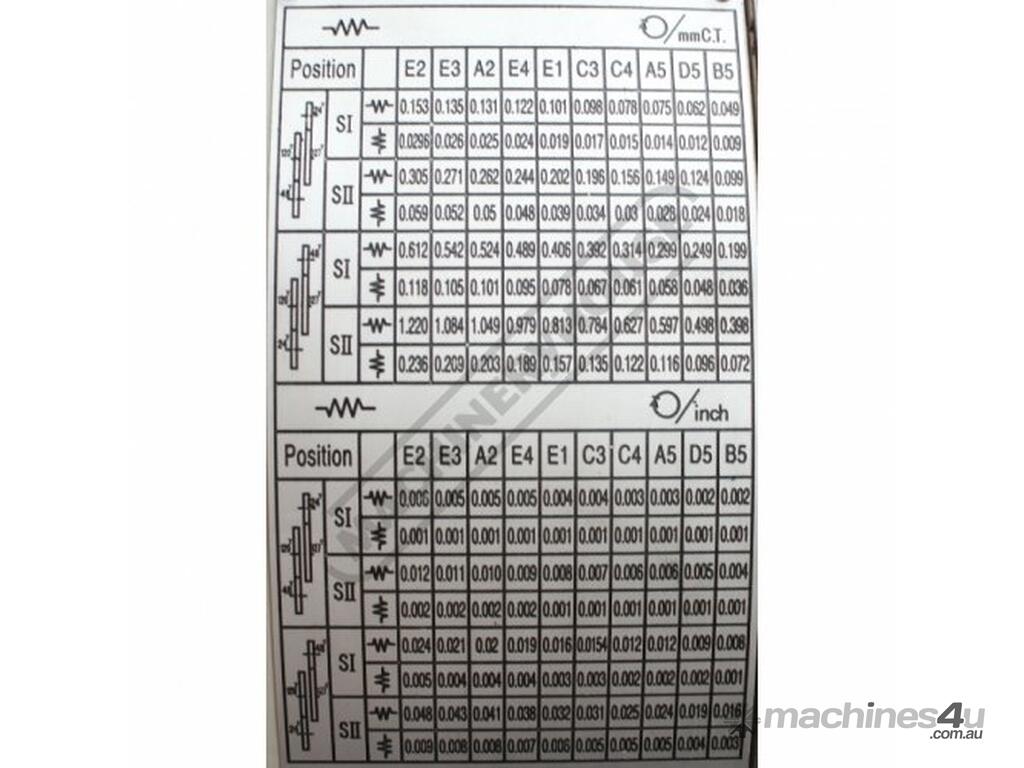

The 2hp single phase 240V motor is ample power to drive the 3 & 4 jaw chucks, auto feed & screw cutting thread system and the adjustable taper roller spindle bearings ensures accuracy & smooth operation even when under cutting load. A great range of cross, longitudinal feed speeds & metric & imperial screw cutting threads are easy accessible & selected via the separate gearbox located underneath the headstock for your convenience.

Supplied with a large range of standard accessories including a 150mm 3 jaw self centring chuck, 200mm 4 jaw independent chuck with D1-4 camlock for quick change over, face plate, spindle safety foot brake, chuck guard with safety interlock switch, thread chasing dial, rear splash guard, coolant pump system, work light, fixed & traveling steadies & that rounds up most of the great features on this fantastic centre lathe. The floor stand is equipped with a slide out swarf tray that makes it very easy to clean down and remove your waste material swarf.

Features:

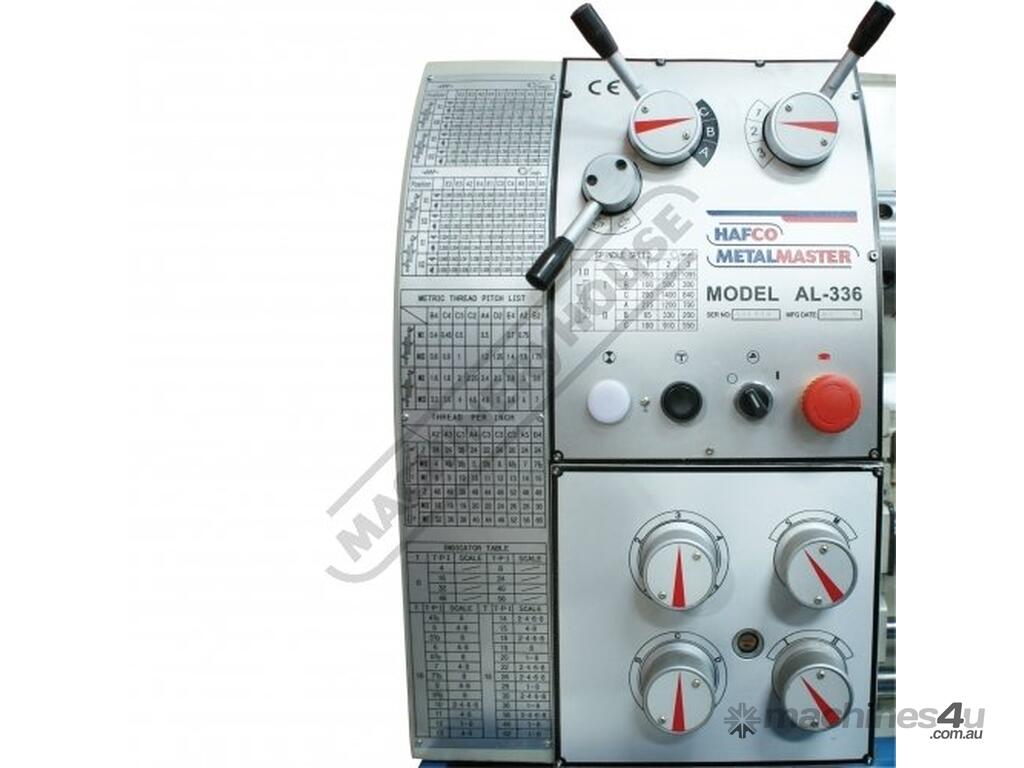

Gear drive headstock for quick change of spindle speeds
Precision 'V'-beds are hardened and ground incorporating a rigid webbed casting
Slide out swarf tray from front of machine
Low voltage work light
Foot operated spindle brake with safety cut out switch
Change gears for metric and imperial thread cutting
Oil sight glass for head stock and gearbox
Adjustable taper roller bearings support the spindle

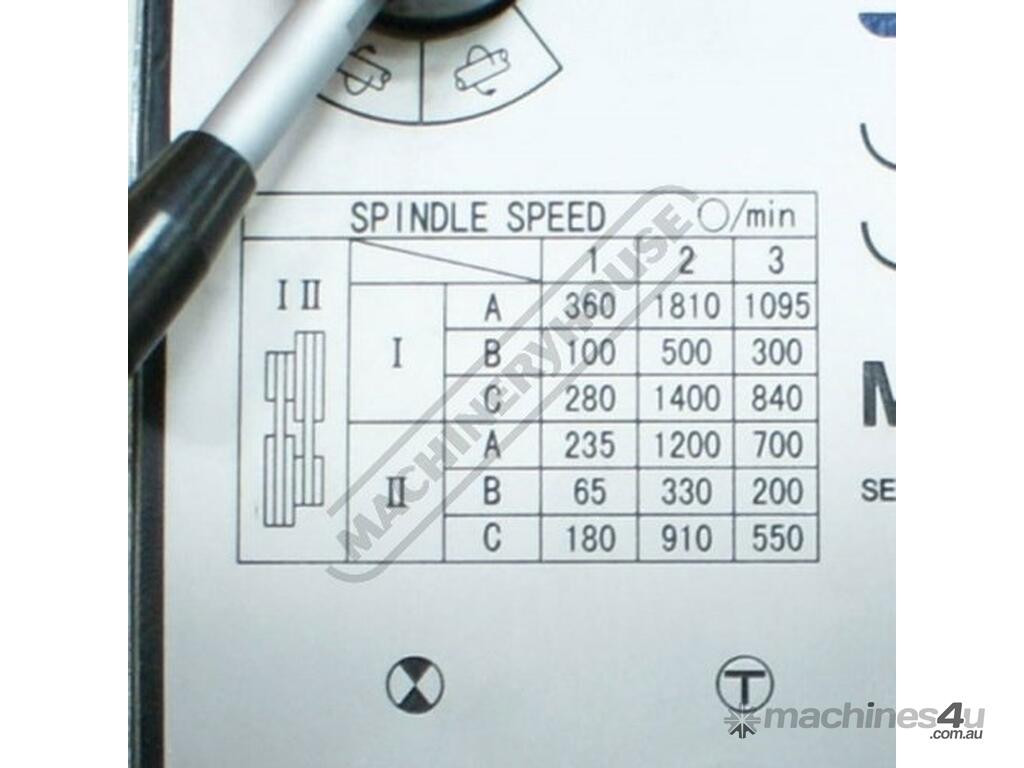

18 spindle speeds from 65 to 1810rpm
Inching button is incorporated on the control panel for convenient spindle speed selection
Enclosed quick action gearbox for thread cutting and auto feeding

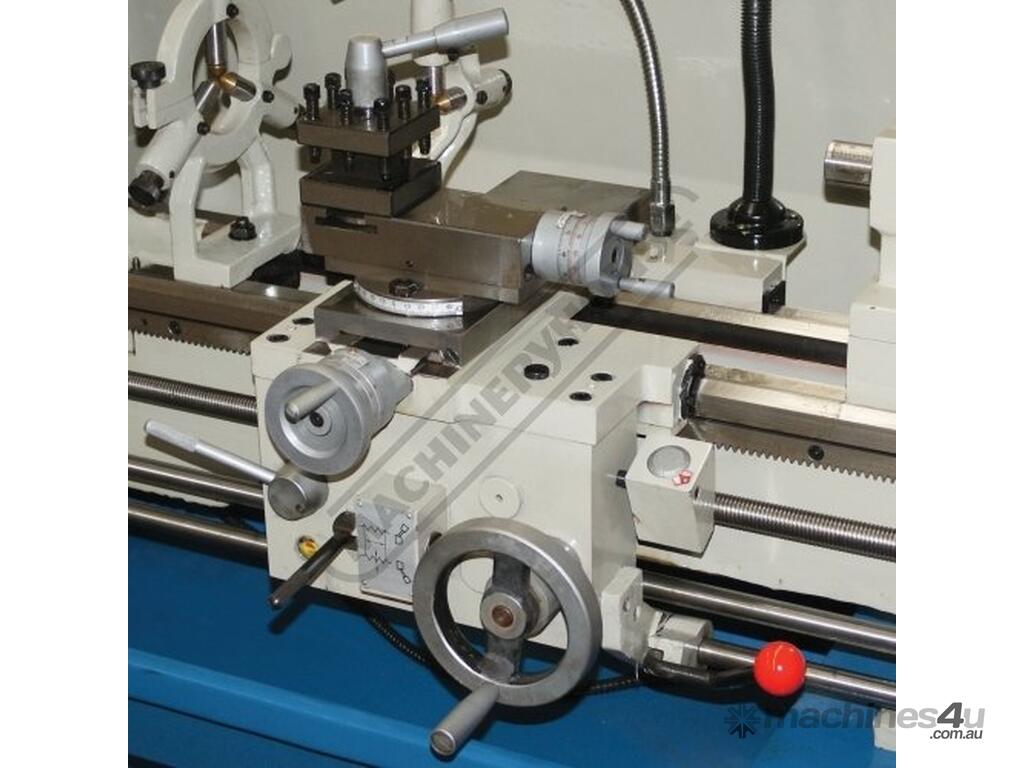

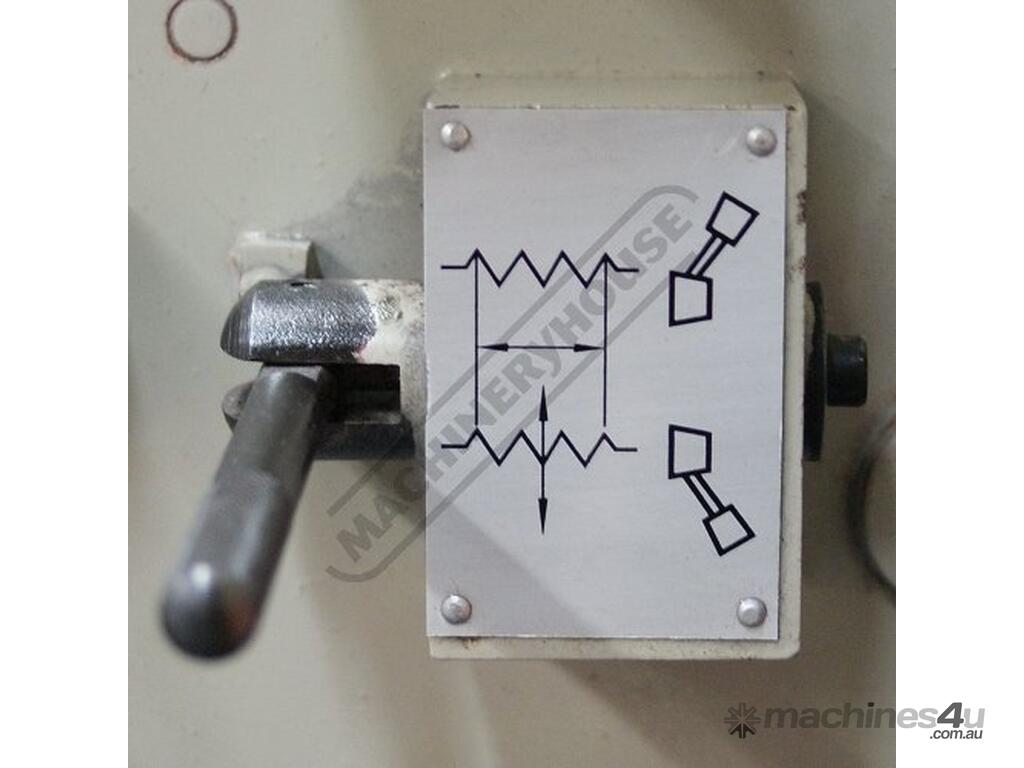

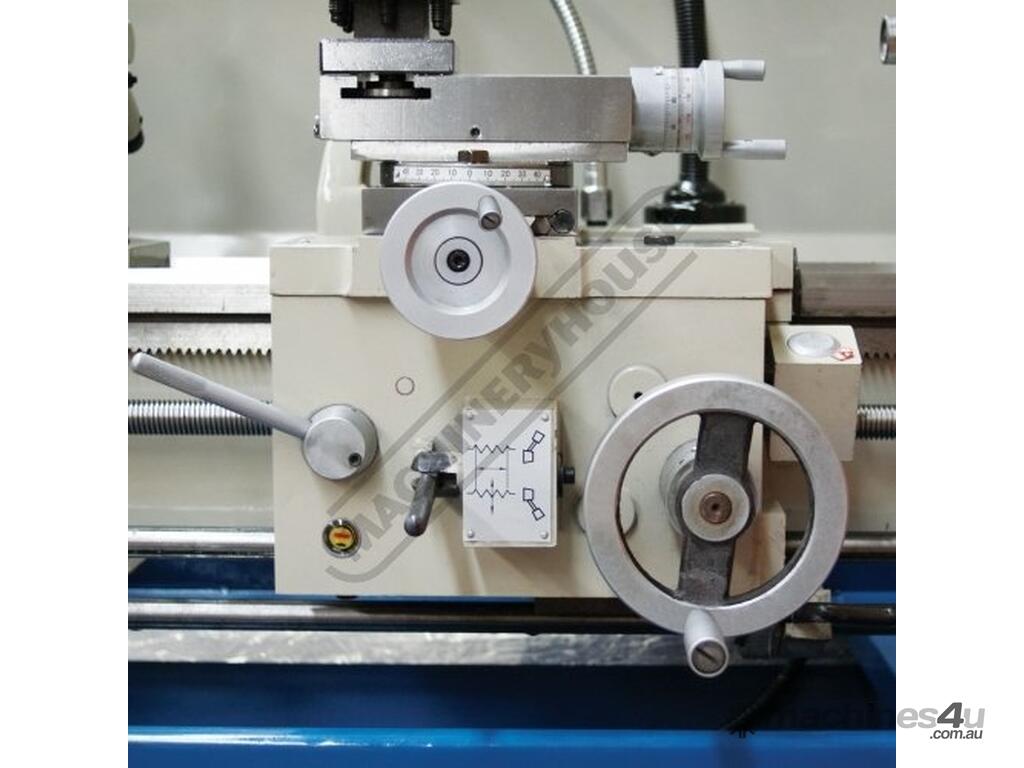

Powered longitudinal and cross feeds
D1-4 camlock spindle for quick chuck changes and safe reverse direction turning. ISO standard
Removable gap bed-way for larger diameter jobs

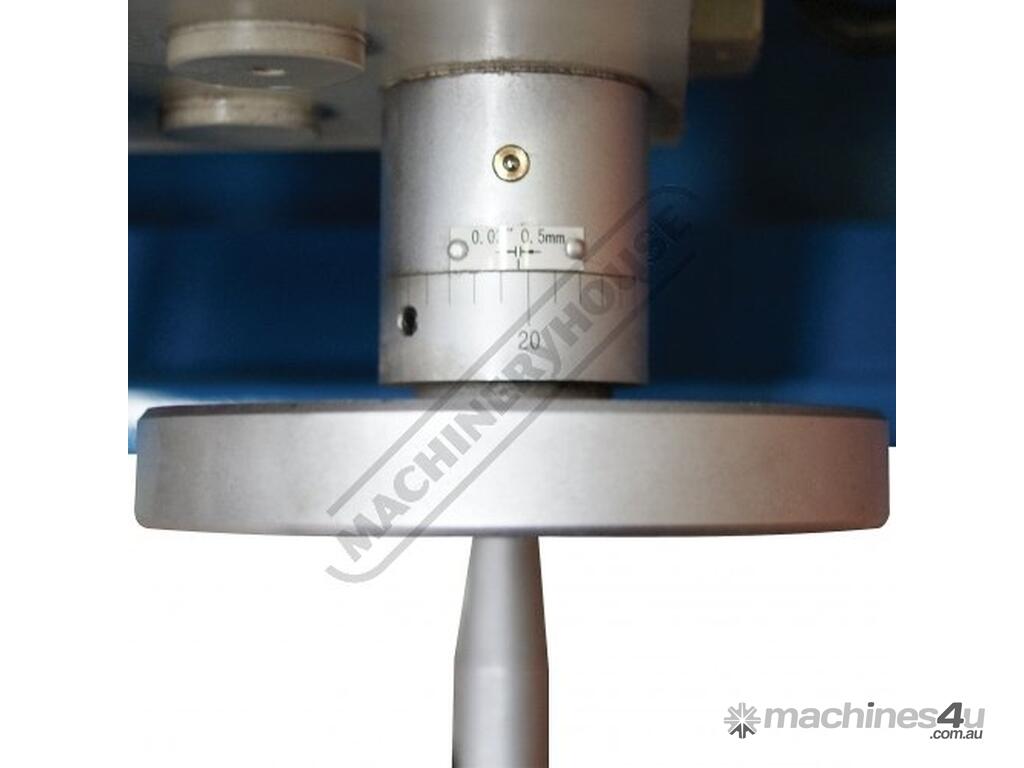

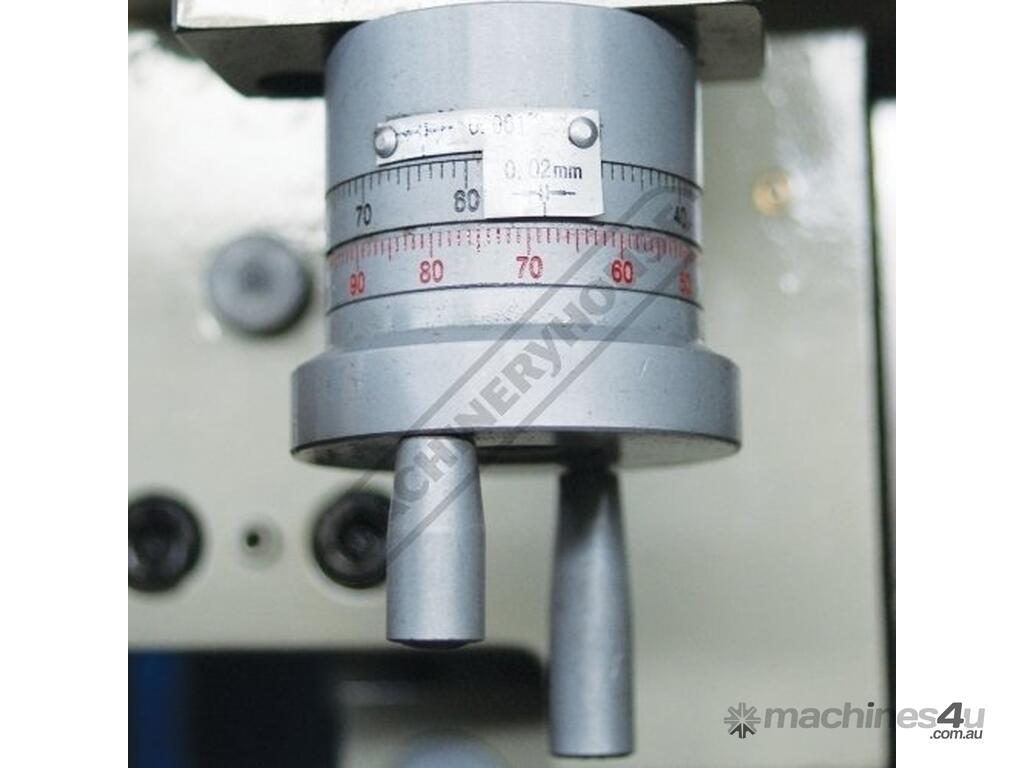

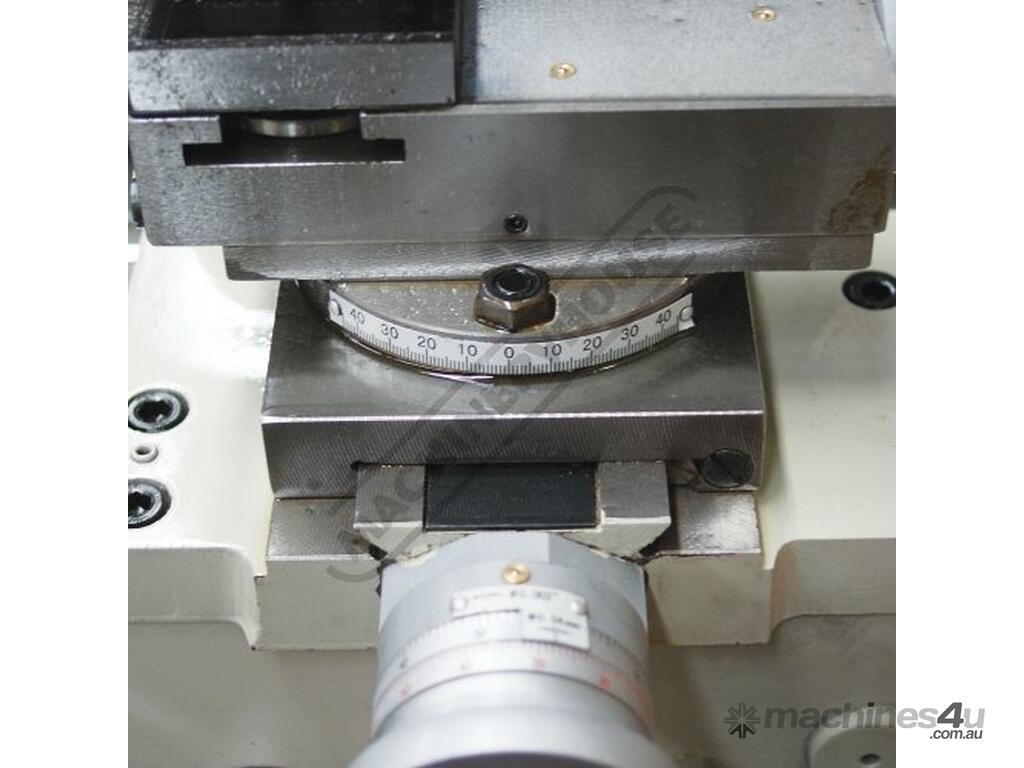

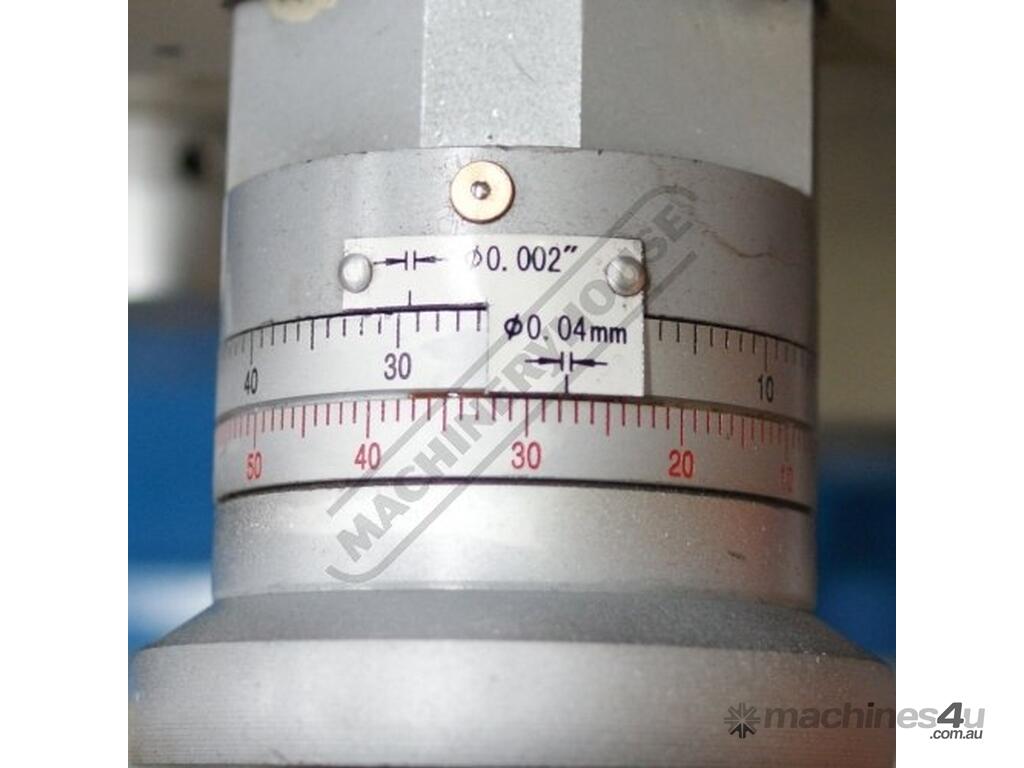

Dual calibrated dials (except for saddle hand-wheel)
Chuck & change gear guards are fitted with micro switches

Includes:
- 3-jaw chuck with reverse jaws
- 4-jaw chuck
- Face plate

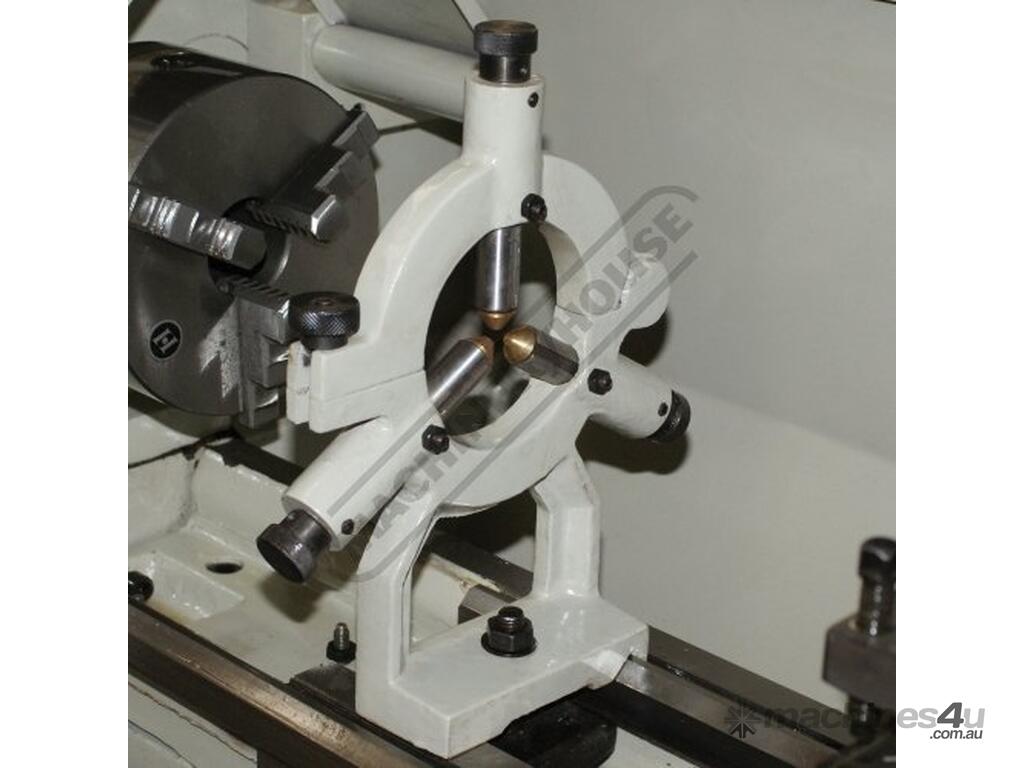

- Fixed steady
- Travelling steady
- Coolant system
- Change gears
- Dead centres

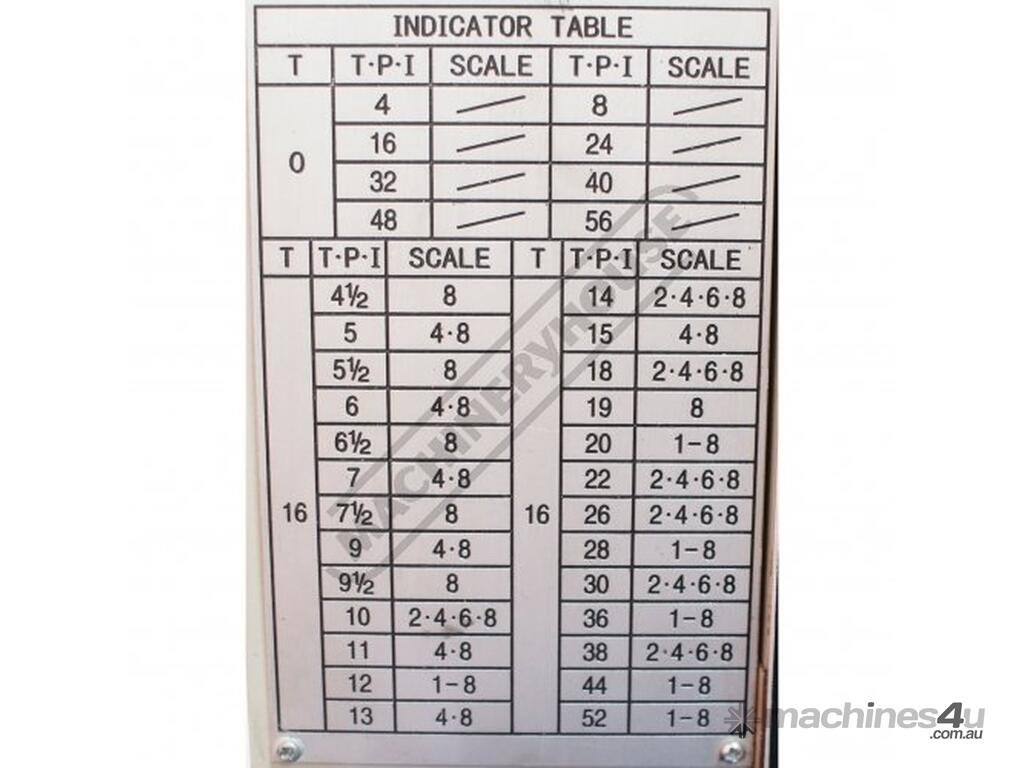

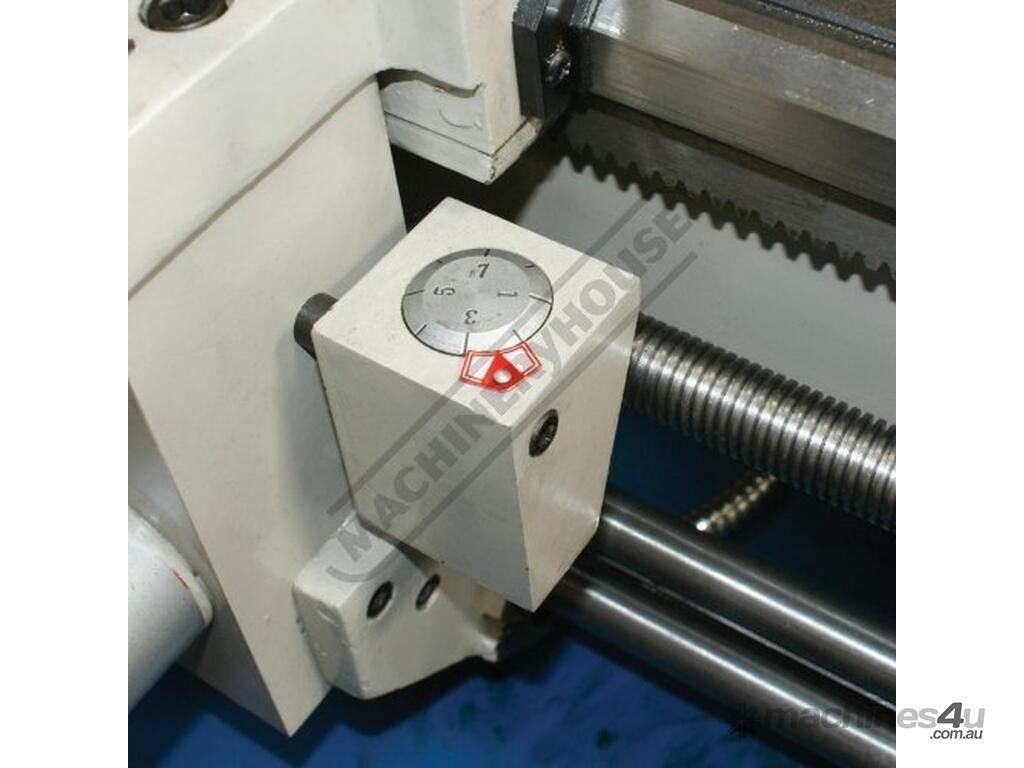

- Thread-chasing dial

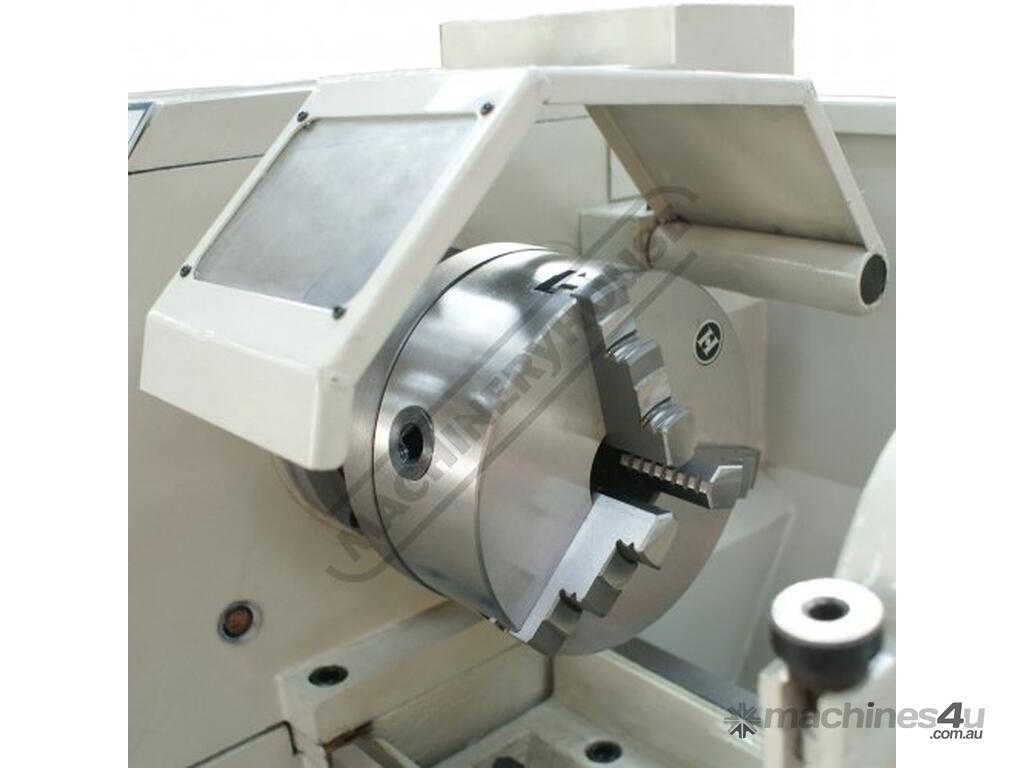

- Safety chuck guard

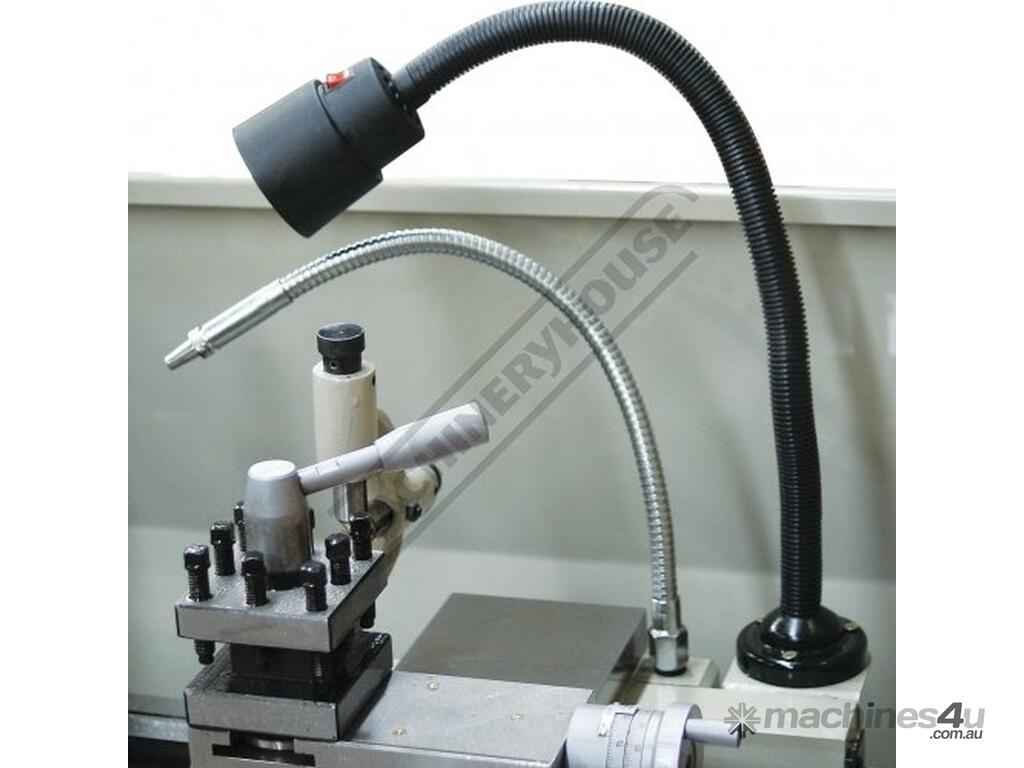

- Work light
- Stand
- Foot brake
- Rear splash guard & slide out swarf tray
- Tool box
- Instruction booklet



Specifications:
ORDER CODE: L682
MODEL: AL-336
Swing Over Bed (mm): 300
Distance Between Centres (mm): 900
Spindle Bore (mm): 38
Swing In Gap (mm): 450
Swing Over Cross-slide (mm): 180
Digital Readout System Fitted: Optional
Quick Change Toolpost Fitted: Optional
Leadscrew Covers Fitted: ~
Taper Turning Attachment: ~
Coolant System: Yes
Tool Height To Suit (mm): 12
Centre Height (mm): 150
Spindle Nose Size or Type: D1-4 Camlock
Bed Width (mm): 180
Headstock Spindle Taper (MT): 5
Tailstock Taper (MT): 3
Cross Slide Travel (mm): 170
Compound Slide Travel (mm): 75
Leadscrew Type: Imperial
Metric Cross Feed (X-Axis) (mm/rev): ~
Imperial Cross Feed (X-Axis) (inch/rev): 0.009 - 0.236
Metric Longitudinal Feed (Z-Axis) (mm/rev): ~
Imperial Longitudinal Feed (Z-Axis) (inch/rev): 0.04 - 1.22

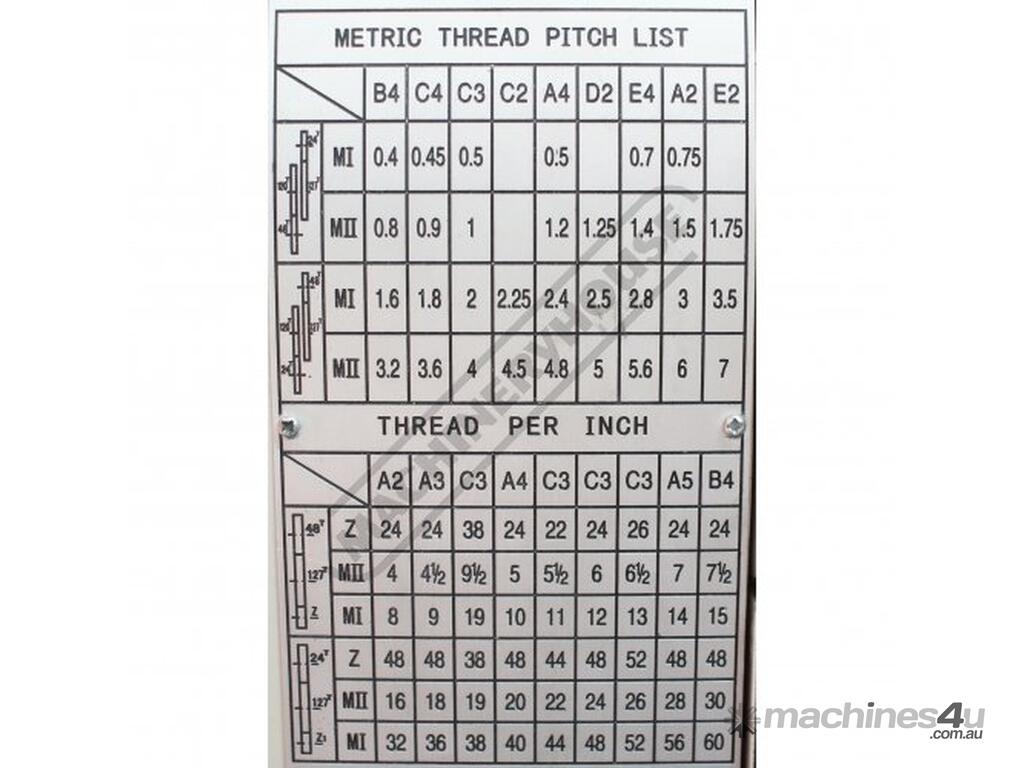

Metric Thread Steps & Pitch (No. / mm): 32 (0.4 - 7)
Imperial Thread Steps & TPI (No. / TPI): 36 (4 - 60)
3 Jaw Chuck Diameter (mm): 160
4 Jaw Chuck Diameter (mm): 200
Spindle Steps / Speeds (No. / rpm): 18 (65 - 1810)
Motor Power (kW / hp): 1.5 / 2
Voltage / Amperage (V / amp): 240 / 10
Nett Weight (kg): 595
