AL-356 Centre Lathe Ø356 x 1000mm Turning Capacity - Ø51mm Spindle Bore Includes Digital Readout Sys

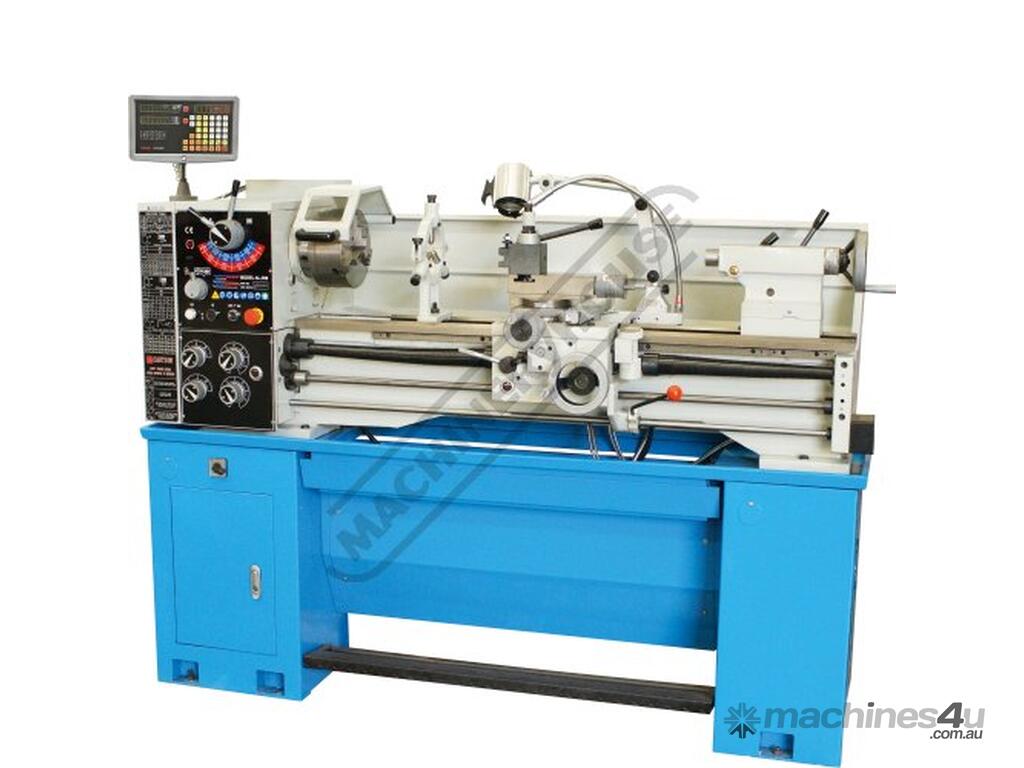

HAFCO-METALMASTER AL-356 Centre Lathe Ø356 x 1000mm Turning Capacity - Ø51mm Spindle Bore Includes Digital Readout System & Quick Change Toolpost
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: L564E

Features:

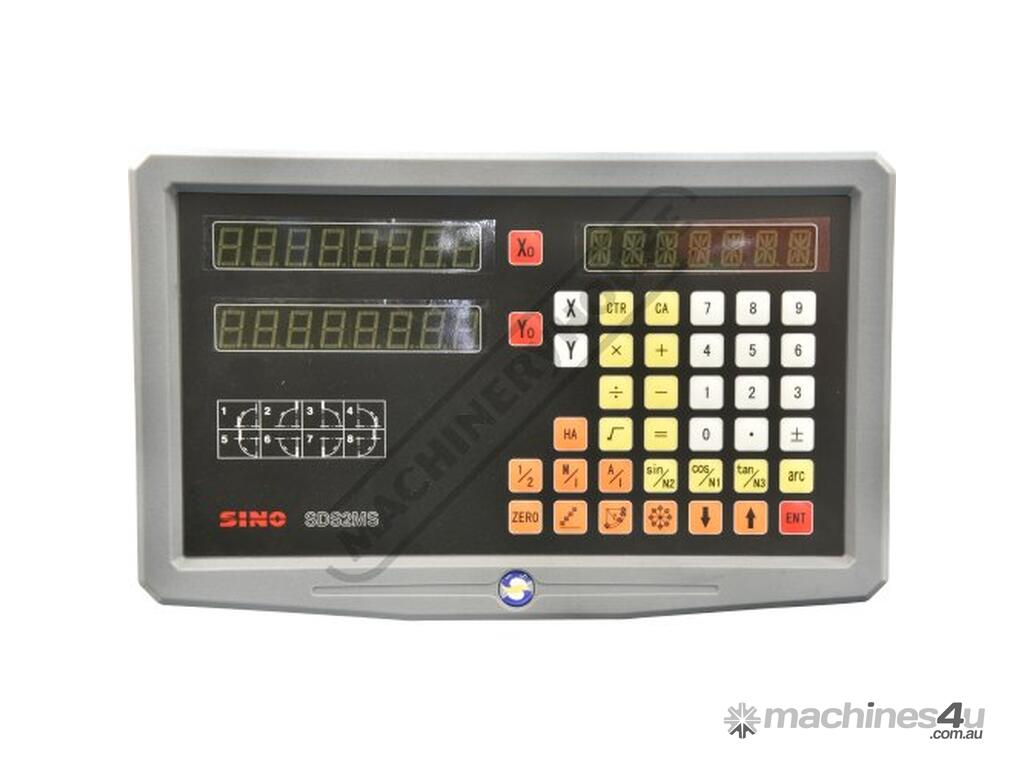

2 Axis digital readout system

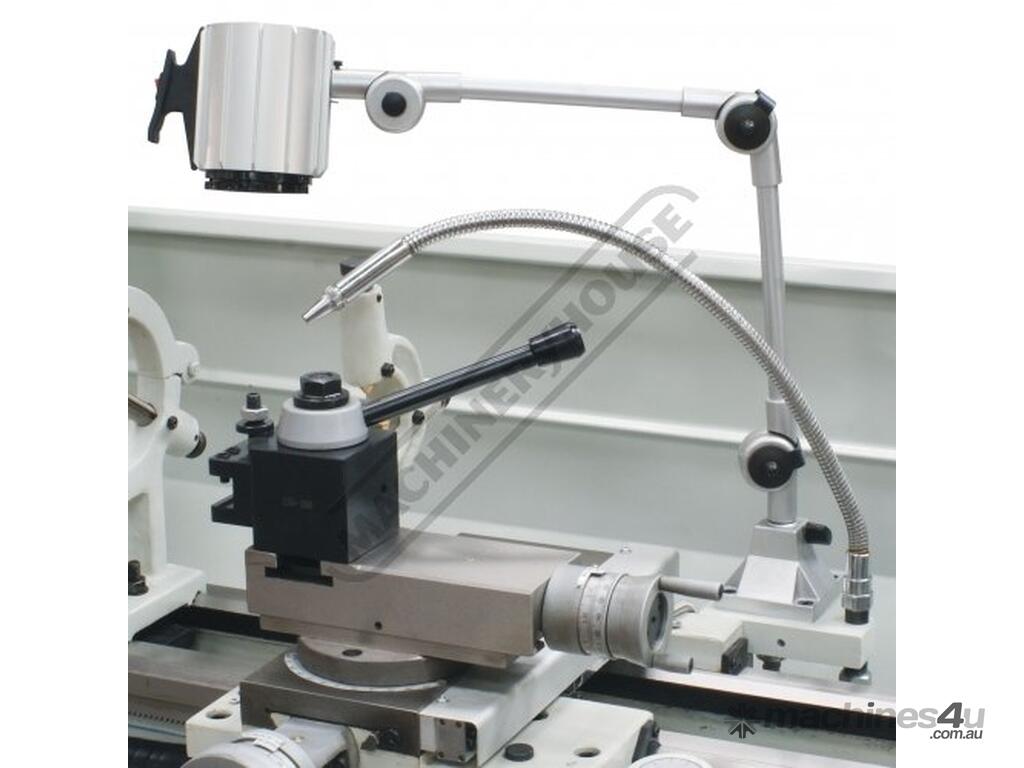

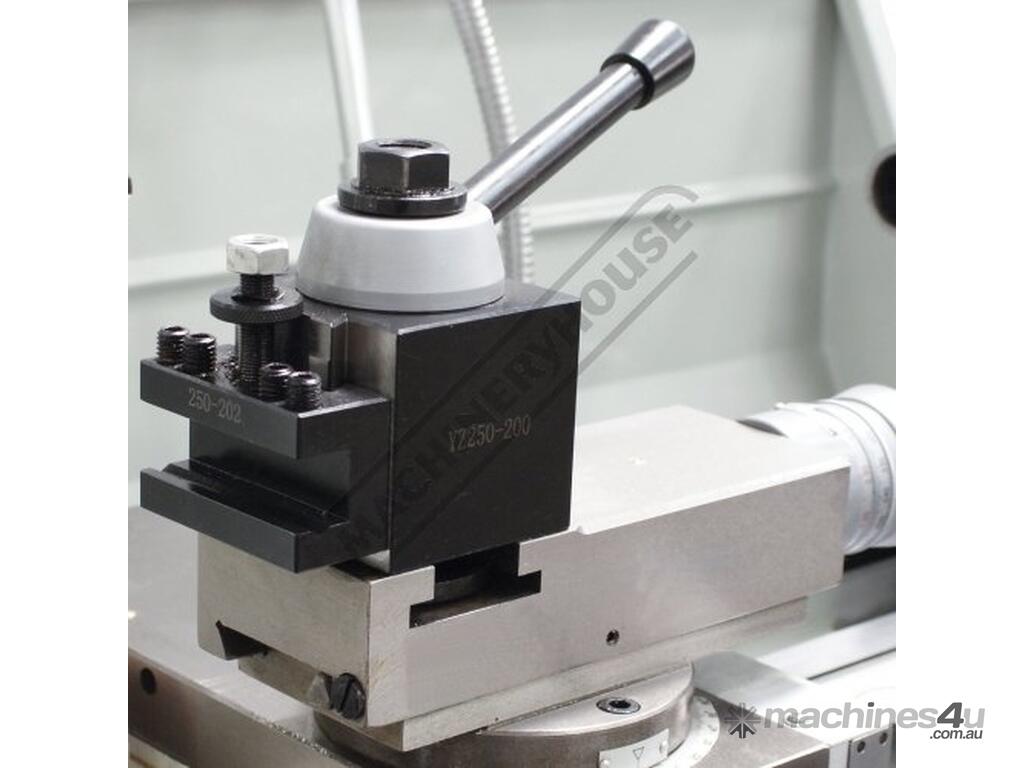

Quick change toolpost with 4 holders
Concertina leadscrew cover

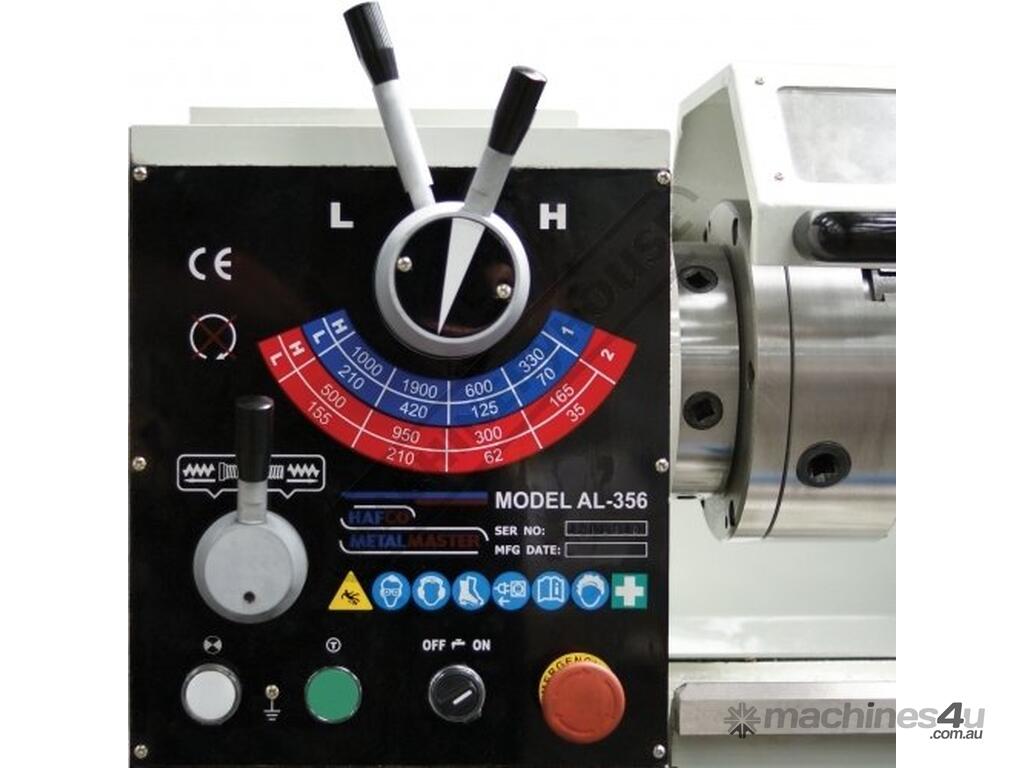

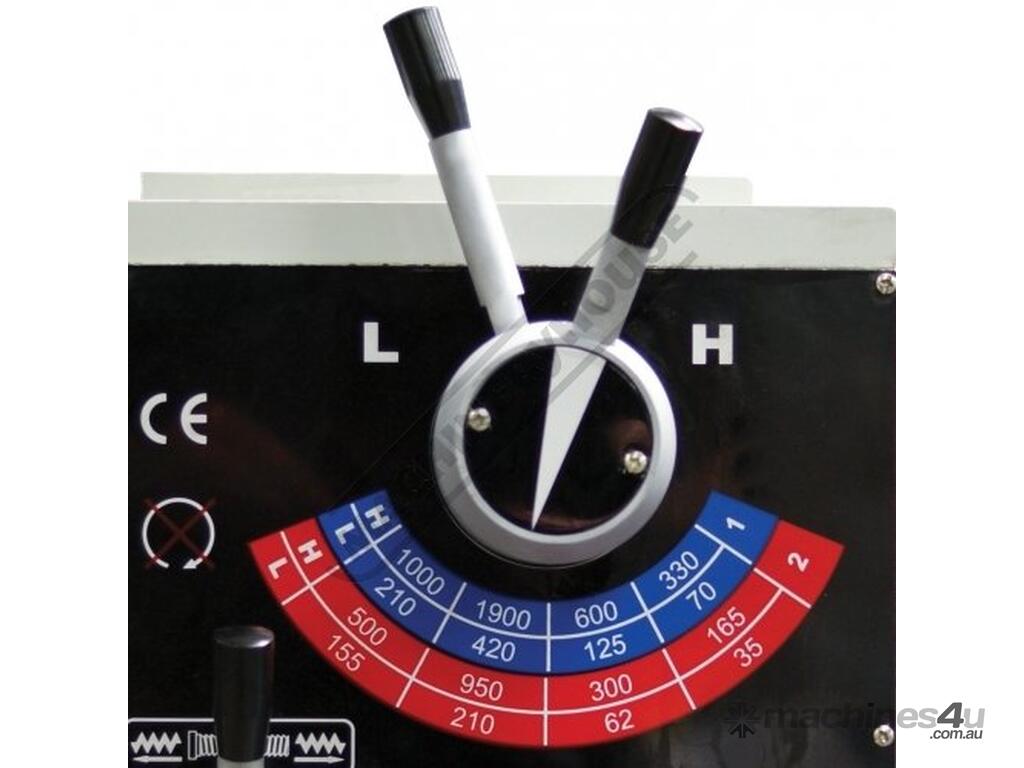

Gear drive headstock for quick change of spindle speeds
Precision 'V'-beds are hardened and ground incorporating a rigid webbed casting
Low voltage work light

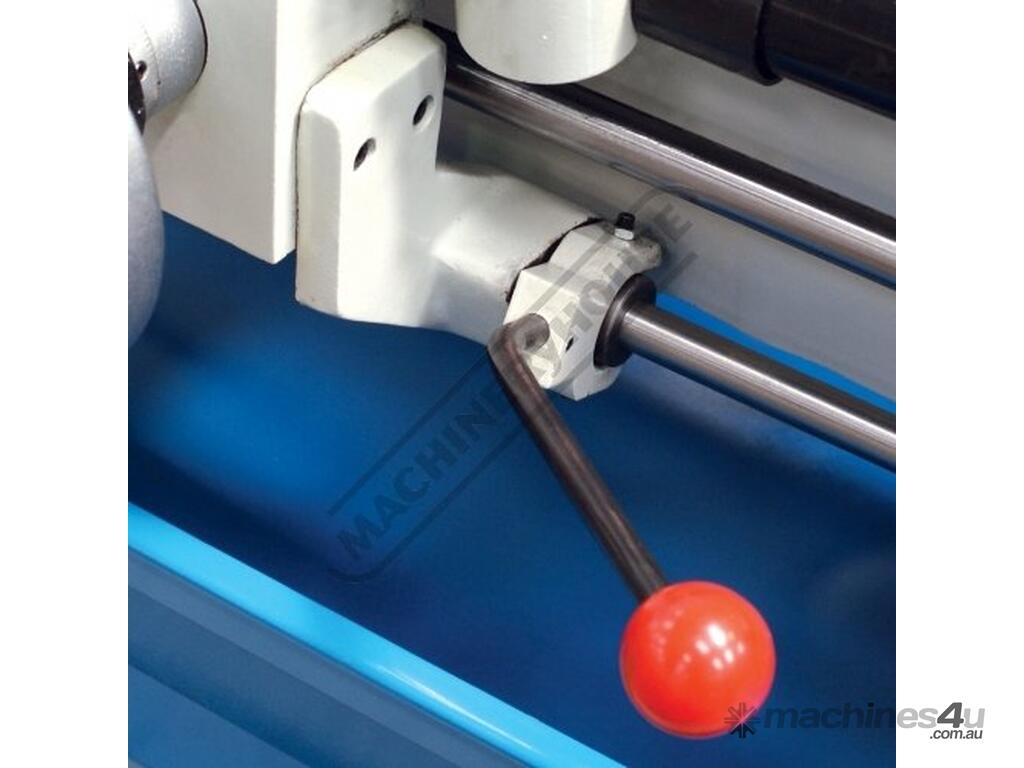

Foot operated spindle brake with safety cut out switch
Slide out front swarf tray for easy cleaning

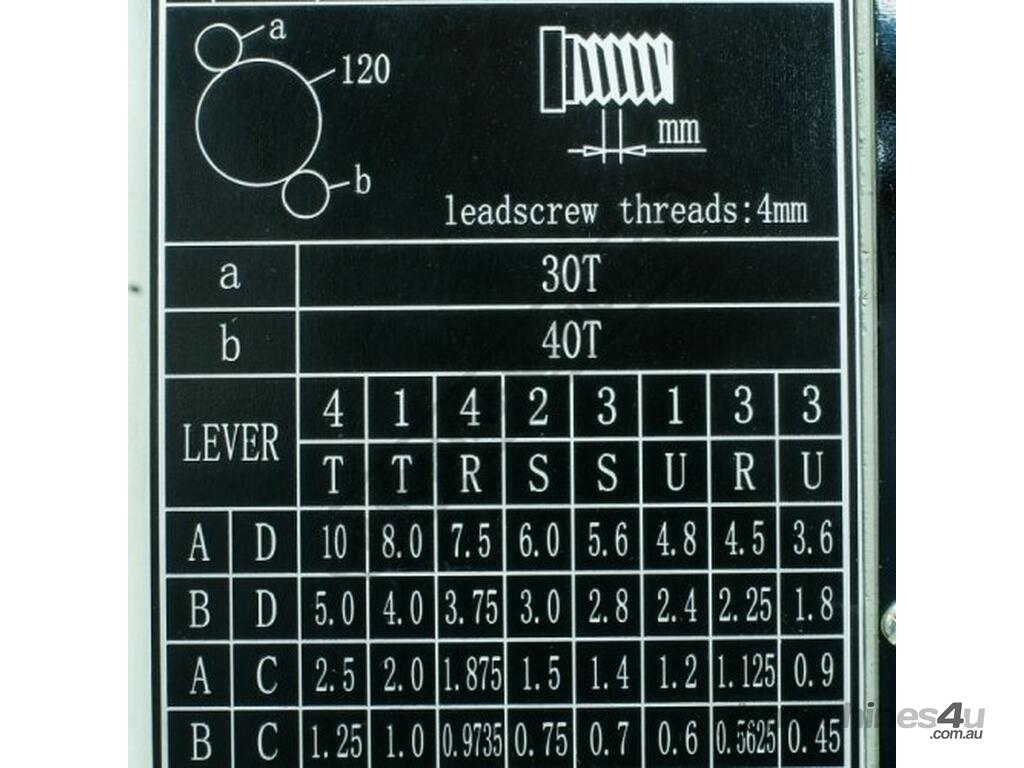

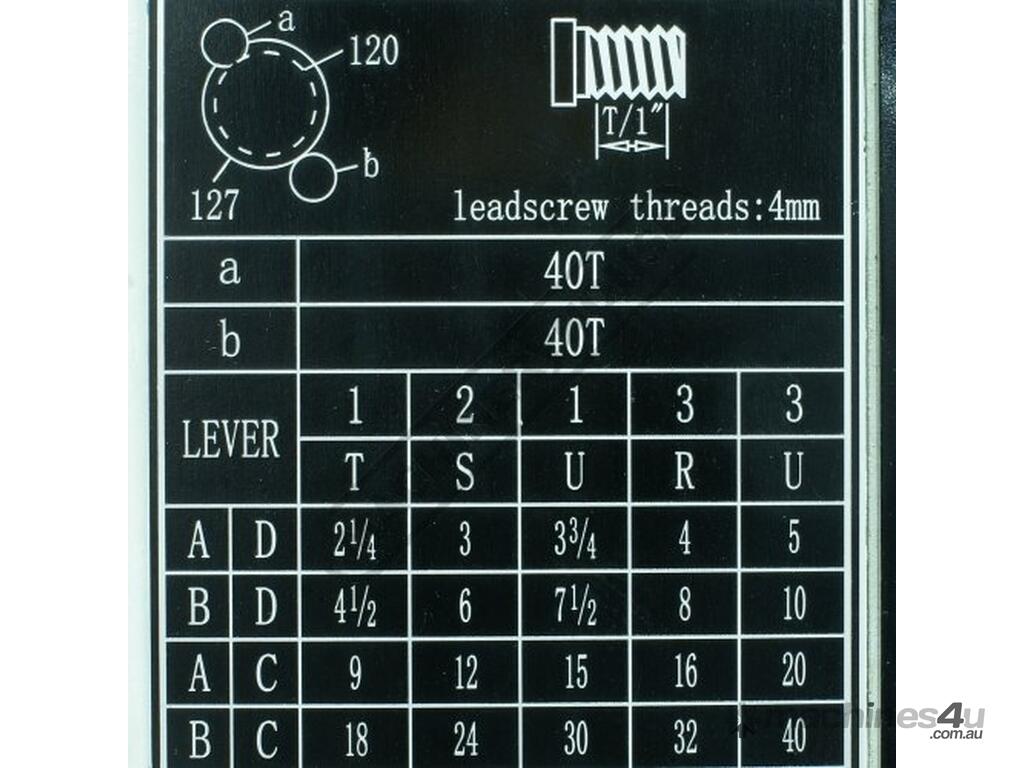

Change gears for metric and imperial thread cutting
Oil sight glass for head stock and gearbox
Adjustable taper roller bearings support the spindle
Inching button is incorporated on the control panel for convenient spindle speed selection

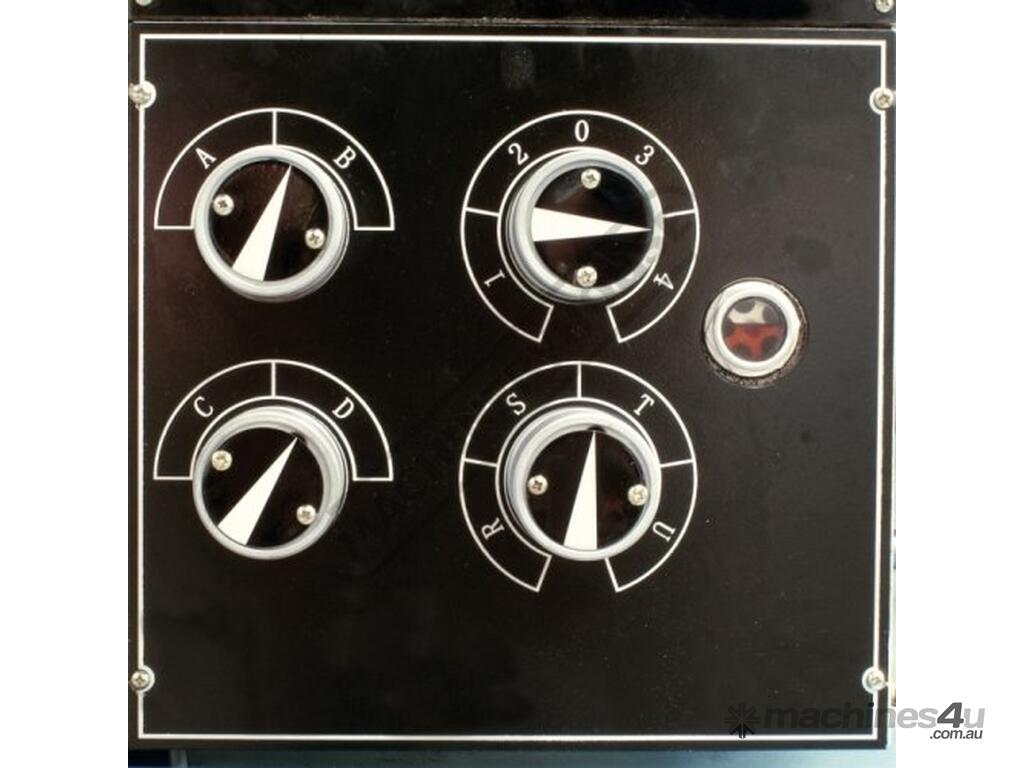

Enclosed quick action gearbox for thread cutting and auto feeding

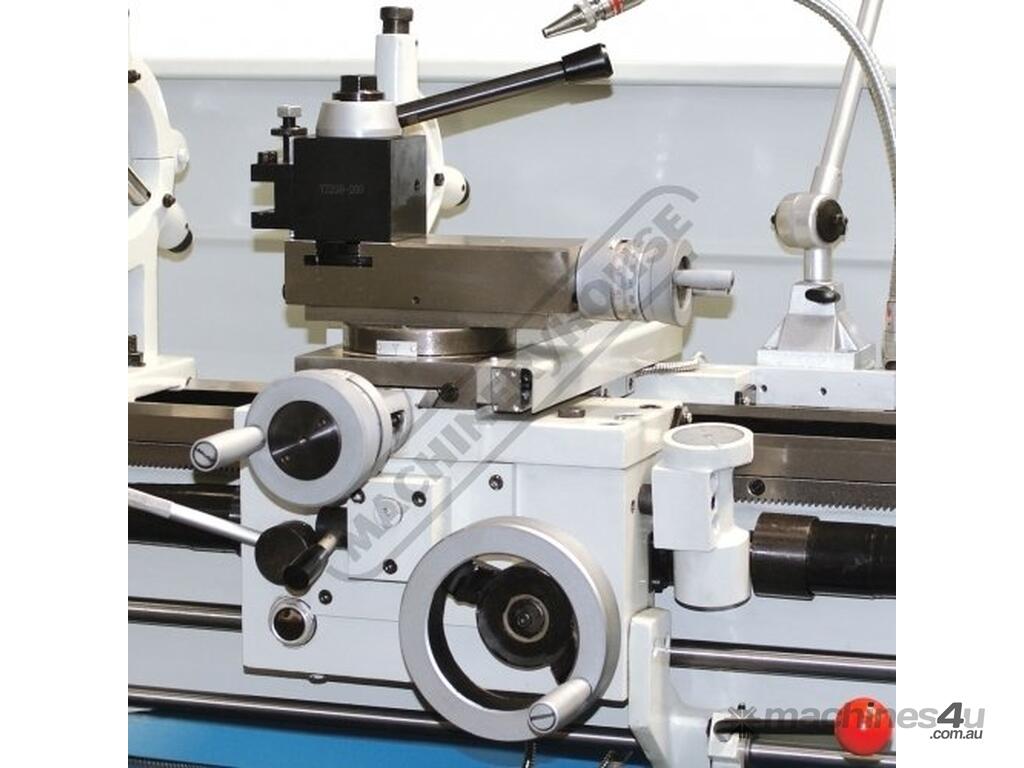

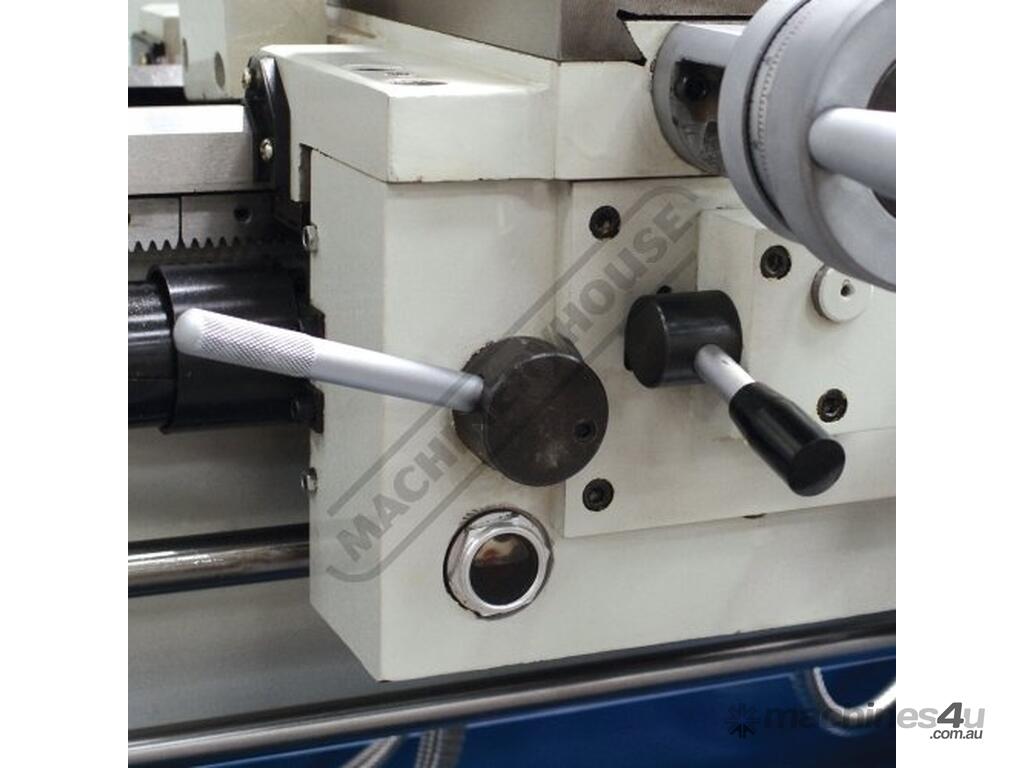

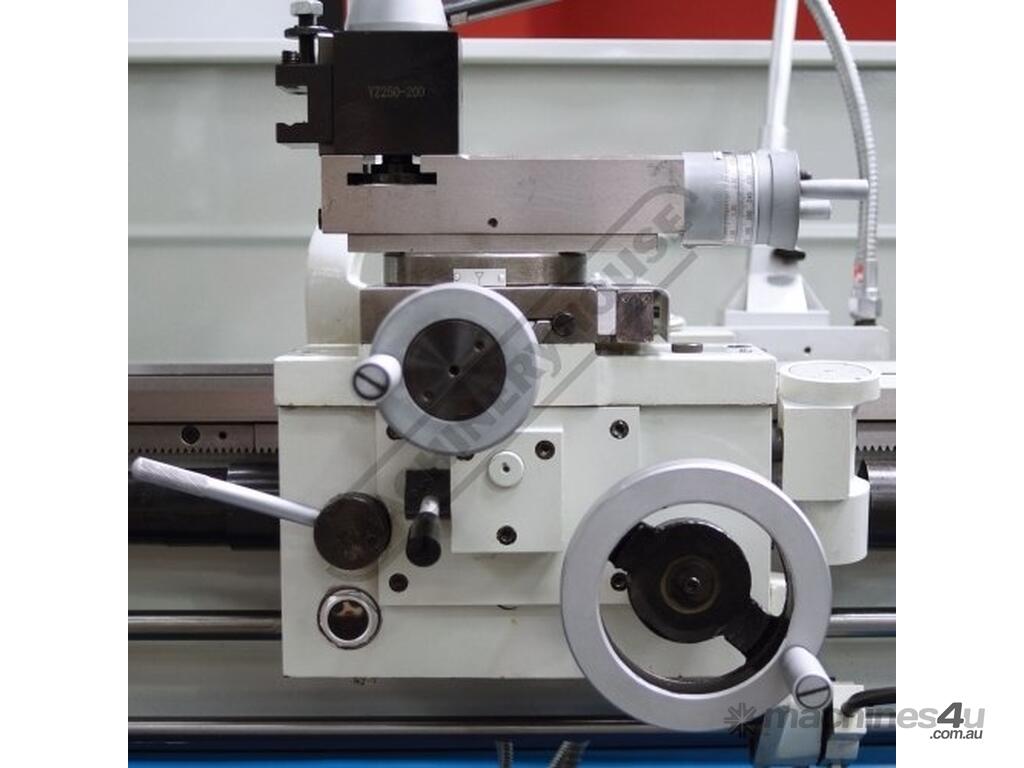

Powered longitudinal and cross feeds
D1-5 camlock spindle for quick chuck changes and safe reverse-direction turning. ISO standard
Removable gap bed-way for larger diameter jobs

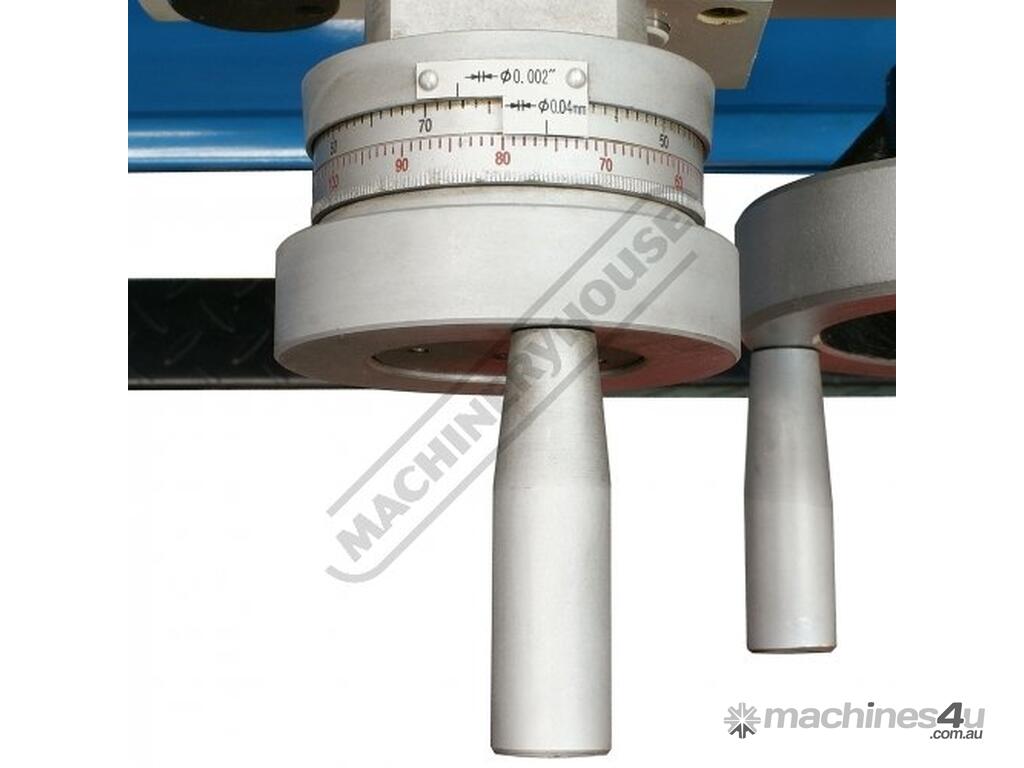

Dual calibrated dials (except for saddle hand-wheel)

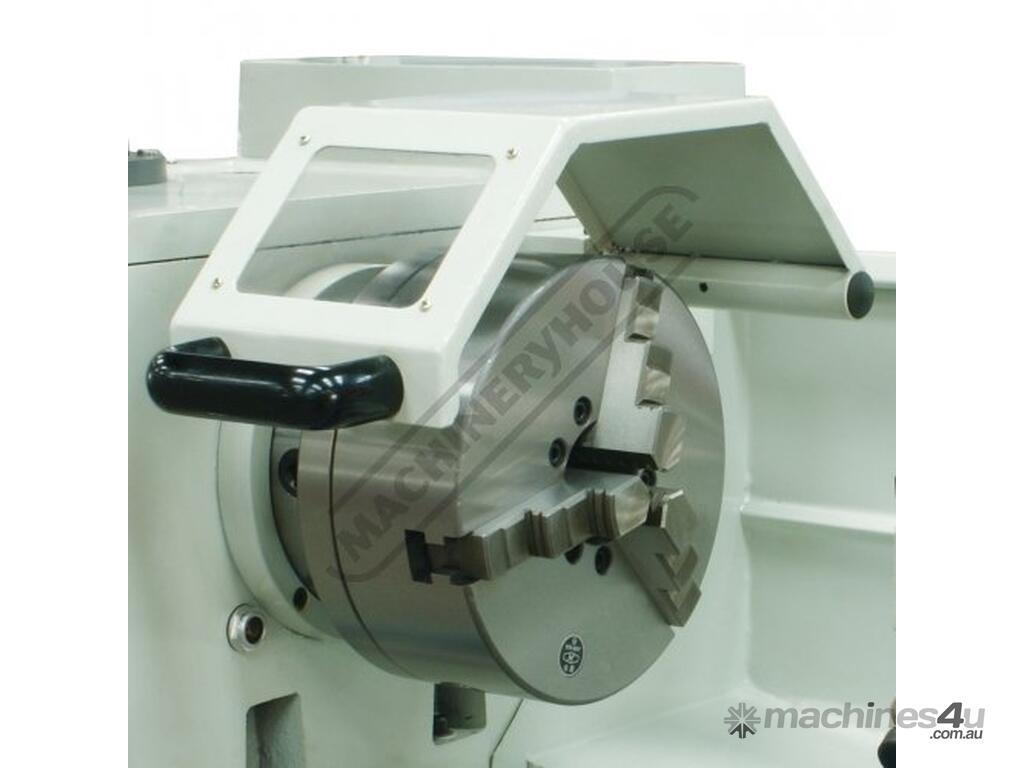

Chuck & change gear guards are fitted with micro switches
Coolant system with flexible hose
Slide out swarf tray

Includes:
- 2 Axis digital readout system
- Concertina leadscrew covers
- Slide out front swarf tray
- Quick change tool-post with 4 holders
- 200mm 3-jaw chuck with reverse jaws
- 200mm 4-jaw chuck
- Face plate

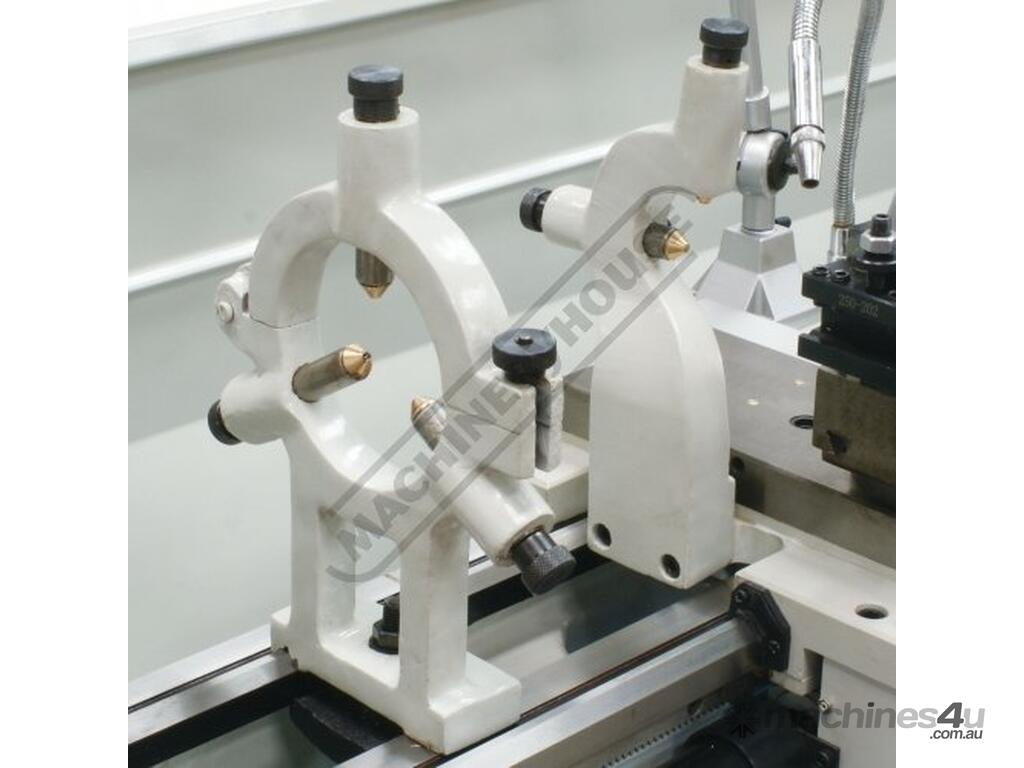

- Fixed steady
- Travelling steady
- Change gears
- Dead centres

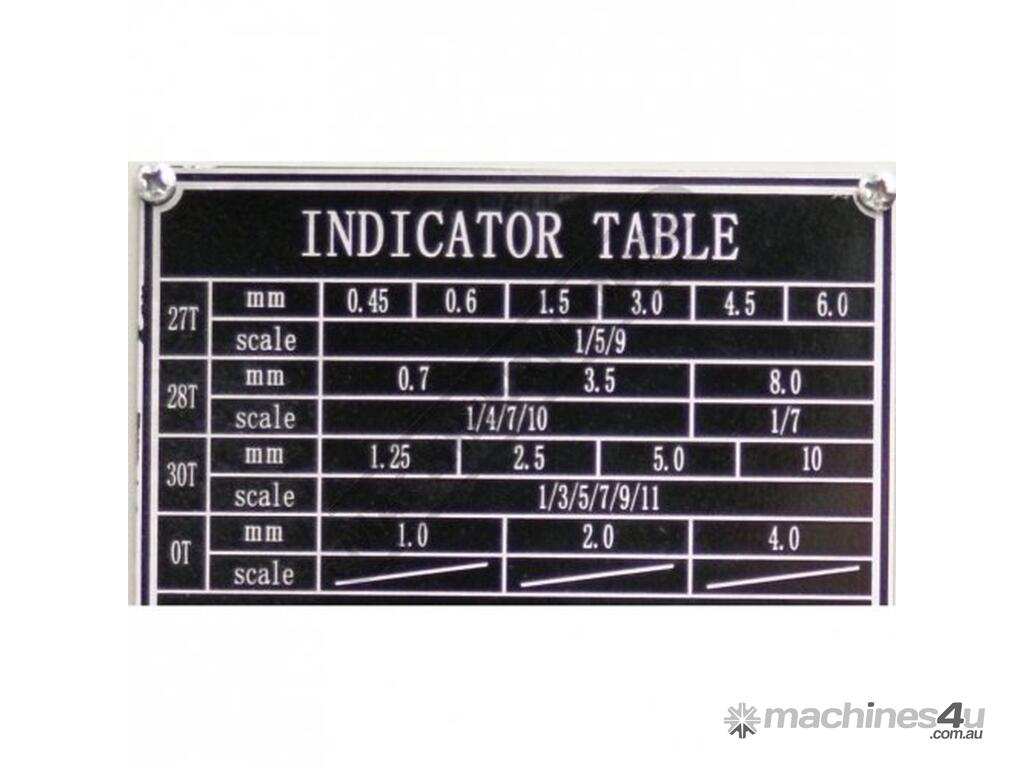

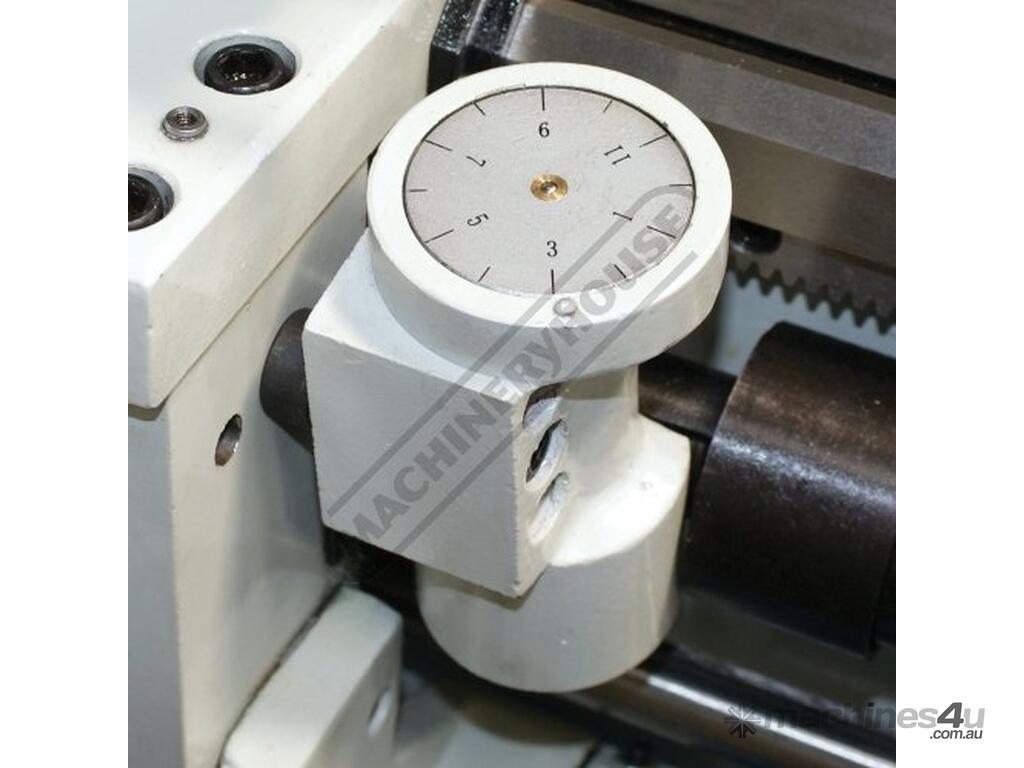

- Thread-chasing dial
- Work light
- Stand
- Rear splash guard & swarf tray
- Tool box
- Instruction booklet



Specifications:
ORDER CODE: L564E
MODEL: AL-356
Swing Over Bed (mm): 356
Distance Between Centres (mm): 1000
Spindle Bore (mm): 51
Swing In Gap (mm): 476
Swing Over Cross-slide (mm): 224
Digital Readout System Fitted: Yes
Quick Change Toolpost Fitted: Yes
Leadscrew Covers Fitted: Yes
Taper Turning Attachment: ~
Coolant System: Yes
Tool Height To Suit (mm): 16
Centre Height (mm): 178
Spindle Nose Size or Type: D1-5 Camlock
Bed Width (mm): 187
Headstock Spindle Taper (MT): 6
Tailstock Taper (MT): 4
Cross Slide Travel (mm): 160
Compound Slide Travel (mm): 68
Leadscrew Type: Metric

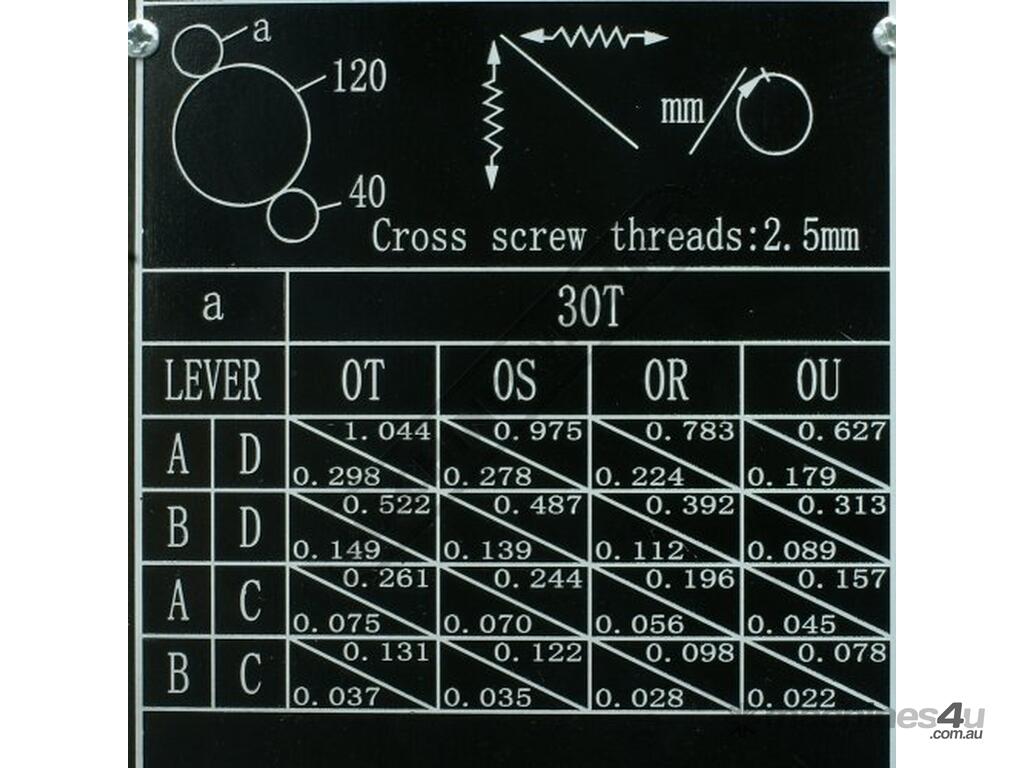

Metric Cross Feed (X-Axis) (mm/rev): 0.022 - 0.298
Imperial Cross Feed (X-Axis) (inch/rev): ~
Metric Longitudinal Feed (Z-Axis) (mm/rev): 0.078 - 1.044
Imperial Longitudinal Feed (Z-Axis) (inch/rev): ~
Metric Thread Steps & Pitch (No. / mm): 32 (0.45 - 10)
Imperial Thread Steps & TPI (No. / TPI): 20 (2-1/4 - 40)
3 Jaw Chuck Diameter (mm): 200
4 Jaw Chuck Diameter (mm): 200
Spindle Steps / Speeds (No. / rpm): 16 (35 - 1900)
Motor Power (kW / hp): 1.8 / 2.4
Voltage / Amperage (V / amp): 415
Nett Weight (kg): 650
