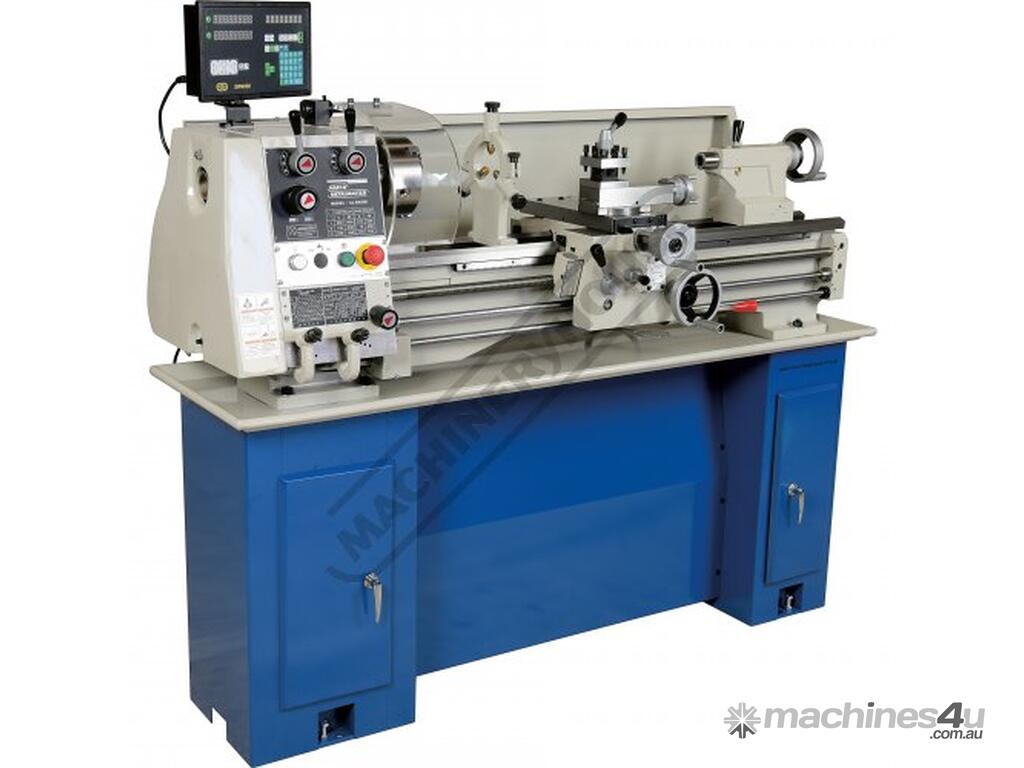

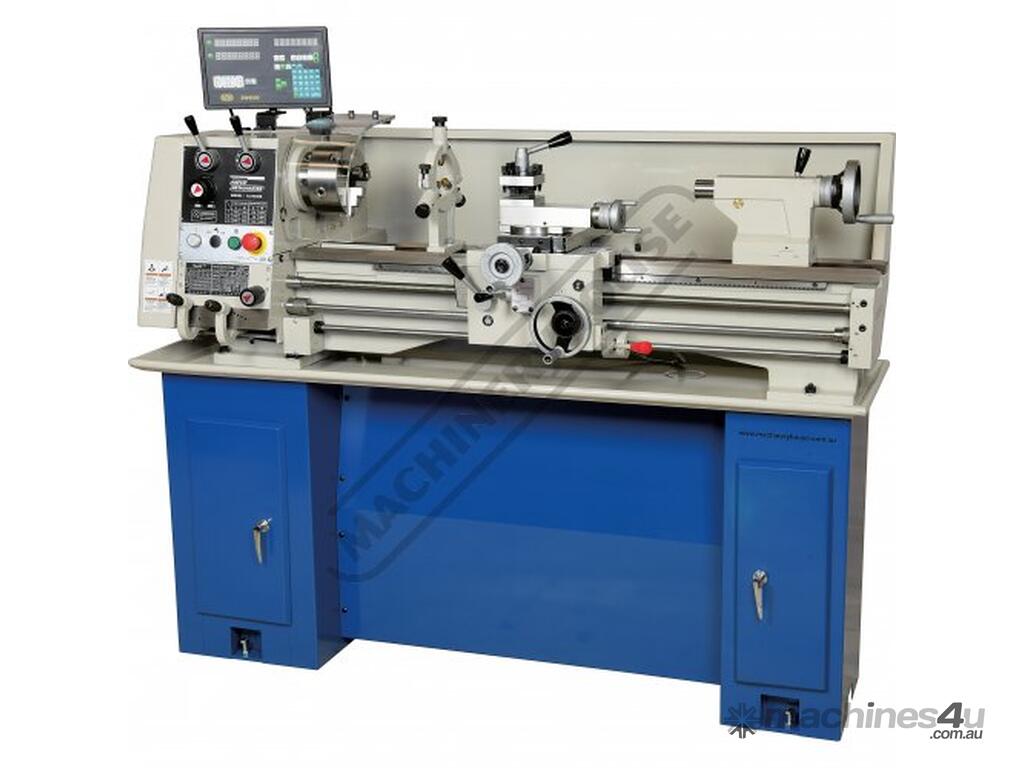

HAFCO-METALMASTER AL-960B Centre Lathe Ø305 x 925mm Turning Capacity - Ø40mm Spindle Bore 12 Geared Head Speeds 70 ~ 1400rpm, Includes Digital Readout System & Cabinet Stand
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: L237D

A superior quality Taiwanese heavy duty AL-960B metal turning lathe manufactured to precision engineering tolerance & excellence, suitable for the home enthusiastic, model engineer, gunsmith engineers and small workshops. This lathe is well known & sort after in many industries because of its user friendly capabilities and it most certainly will transform your metal turning experience to the next level of expertise.

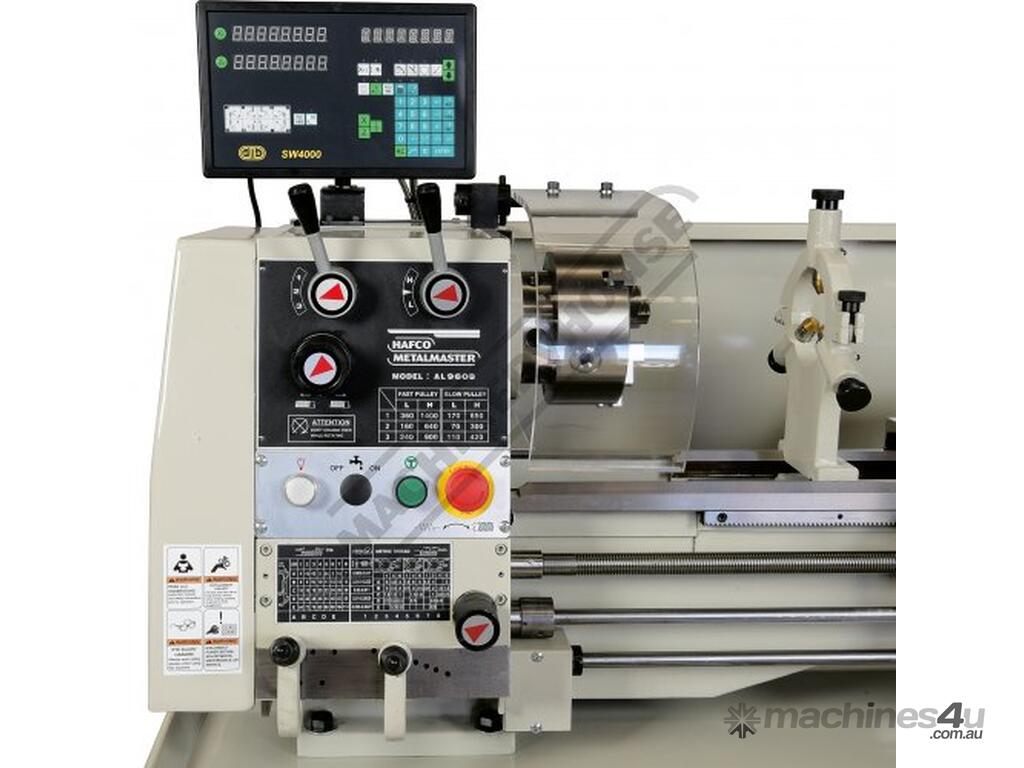

Featuring a precision ground, induction hardened bed, fully gear driven spindle with hardened and ground gears with a speed range of 70 - 1400rpm, selectable via the front of headstock mounted gear selection levers.

2hp single phase 240 volt motor is supplied on machine, taper roller spindle bearings, range of cross and longitudinal feed speeds selected on a separate gearbox, thread chasing dial, chuck guard & splash guard.

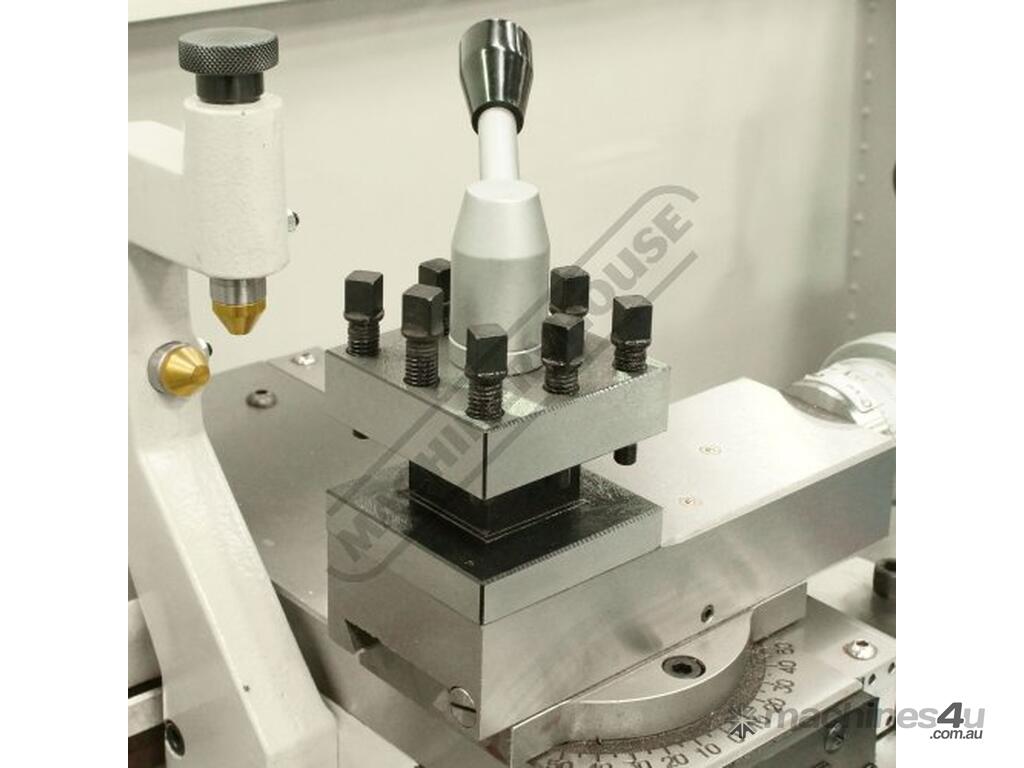

Supplied with a large range of standard accessories including a 150mm(6") 3 jaw self centring chuck, 200mm(8") 4 jaw independent chuck, face plate, dead centres, 5 to 3 MT reduction sleeve, steady rest, follow rest, standard tool post, floor stand with a swarf tray. Change gears and toolbox with maintenance tools.

Features:
Toolroom quality lathe made in Taiwan & sold for over 40 years

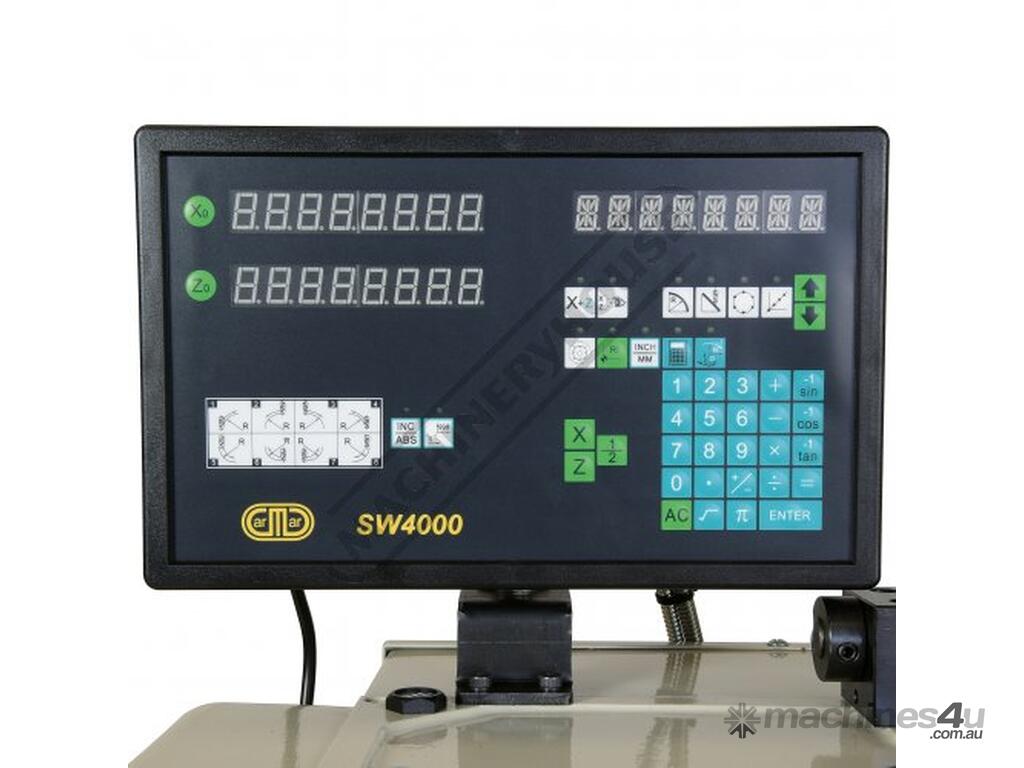

2 Axis digital readout system

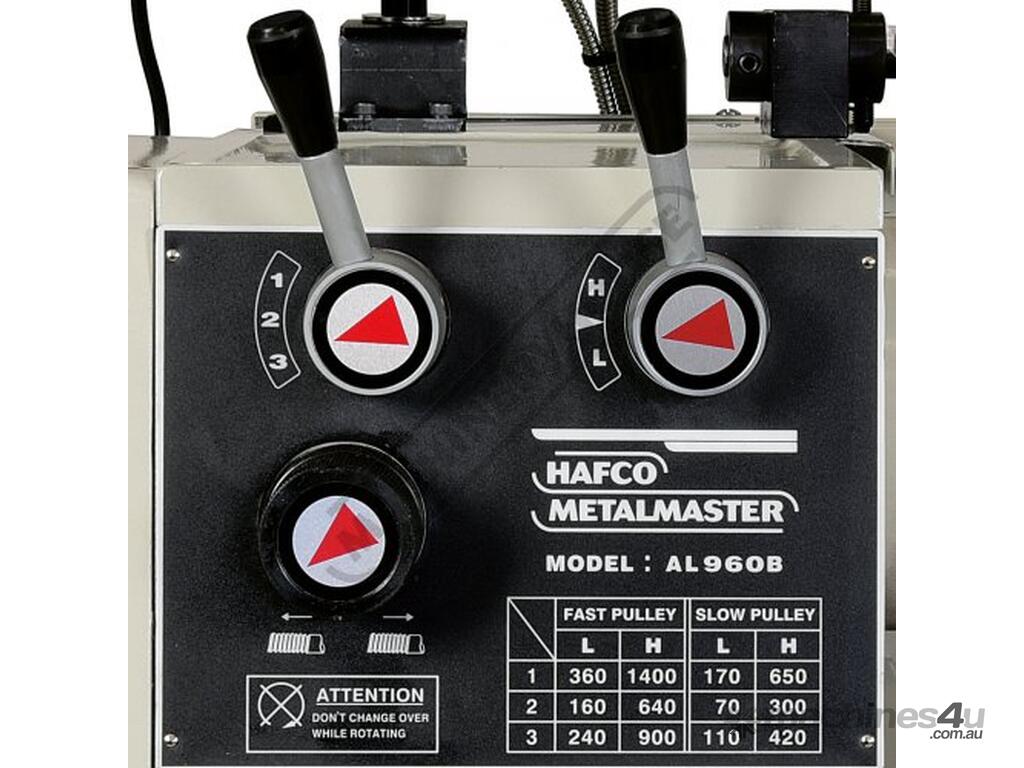

Gear driven headstock for quick change of spindle speeds
Precision 'V'- beds are hardened and ground
Adjustable taper roller bearings support the spindle
Change gears for metric and imperial thread cutting

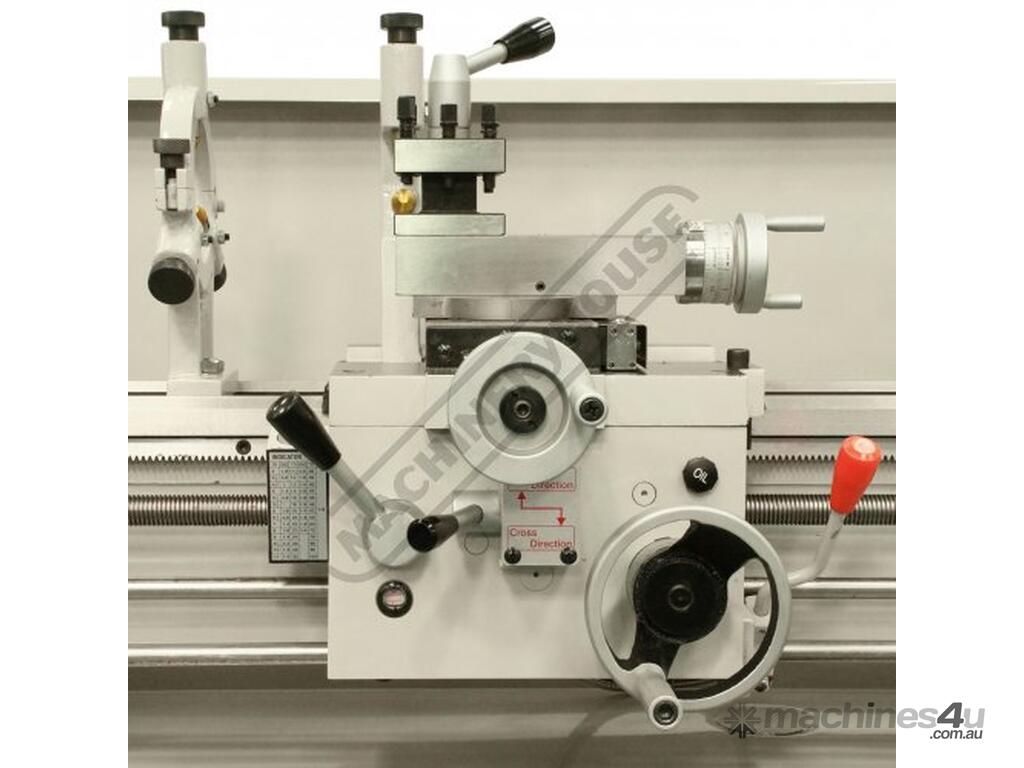

Saddle handwheel mounted on right side of apron reducing swarf contacting the hand

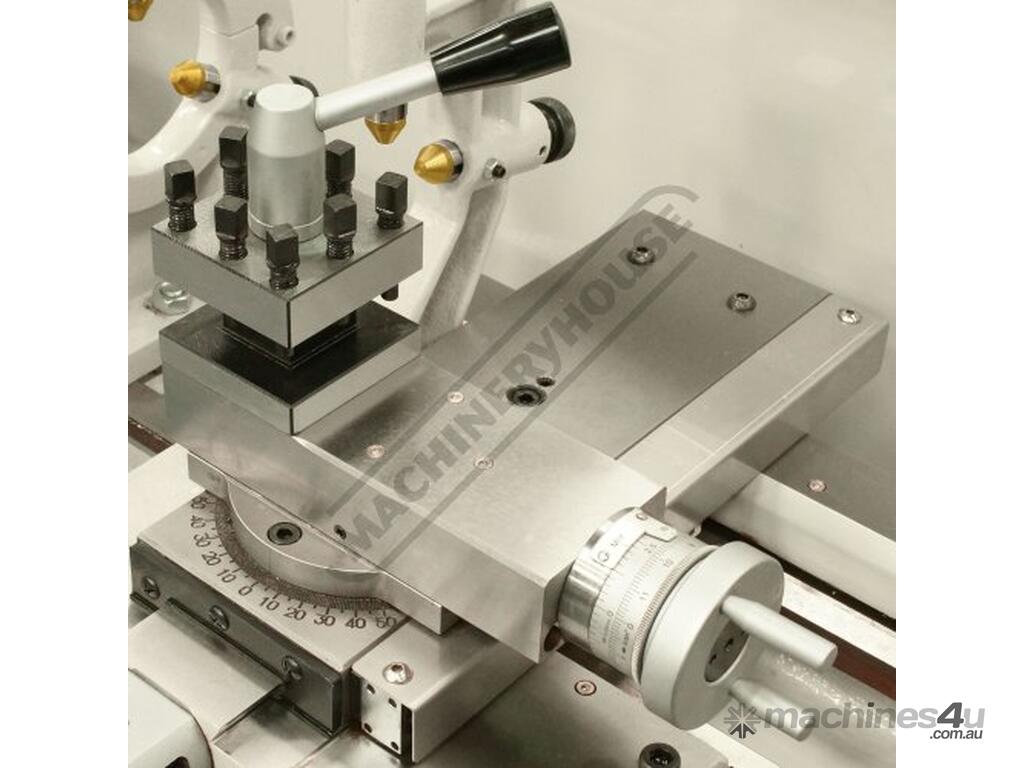

External adjustable cross feed leadscrew nut
Powered longitudinal and cross feeds
12 spindle speeds 70-1400rpm
Dual calibrated dials (except saddle hand wheel)

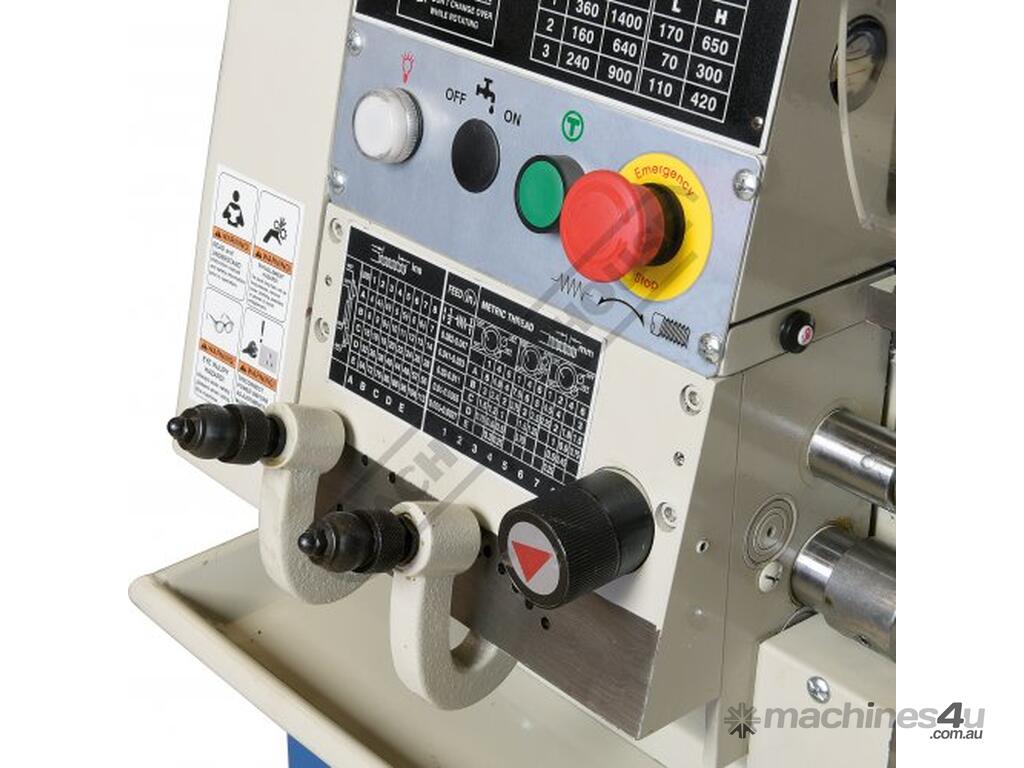

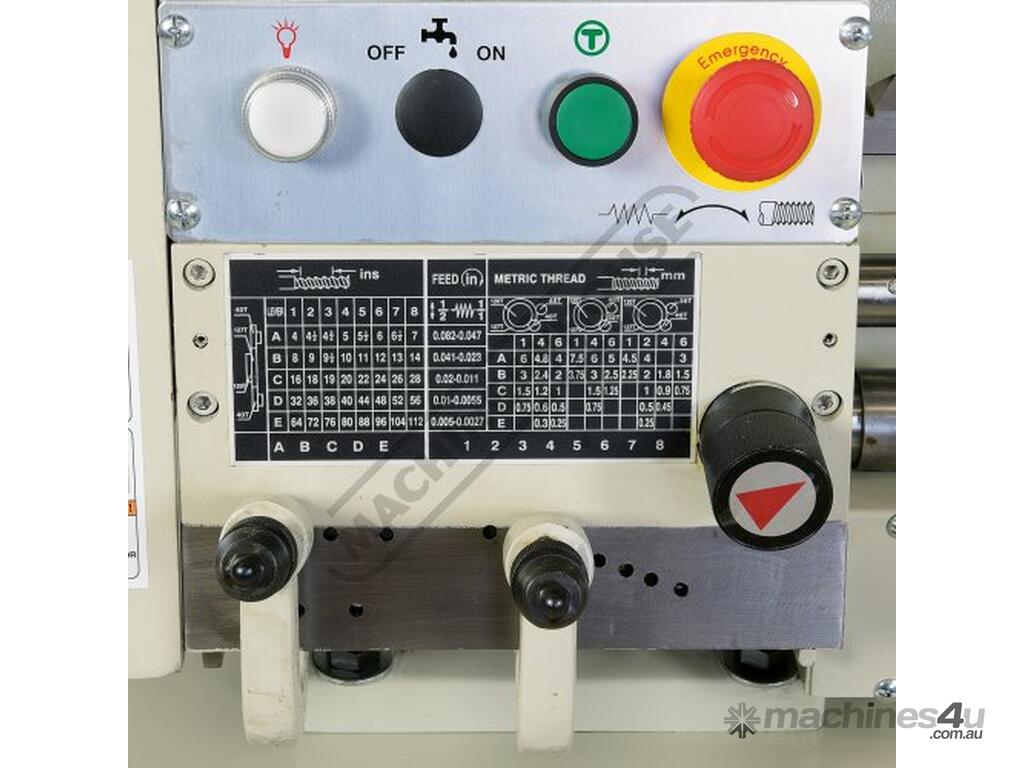

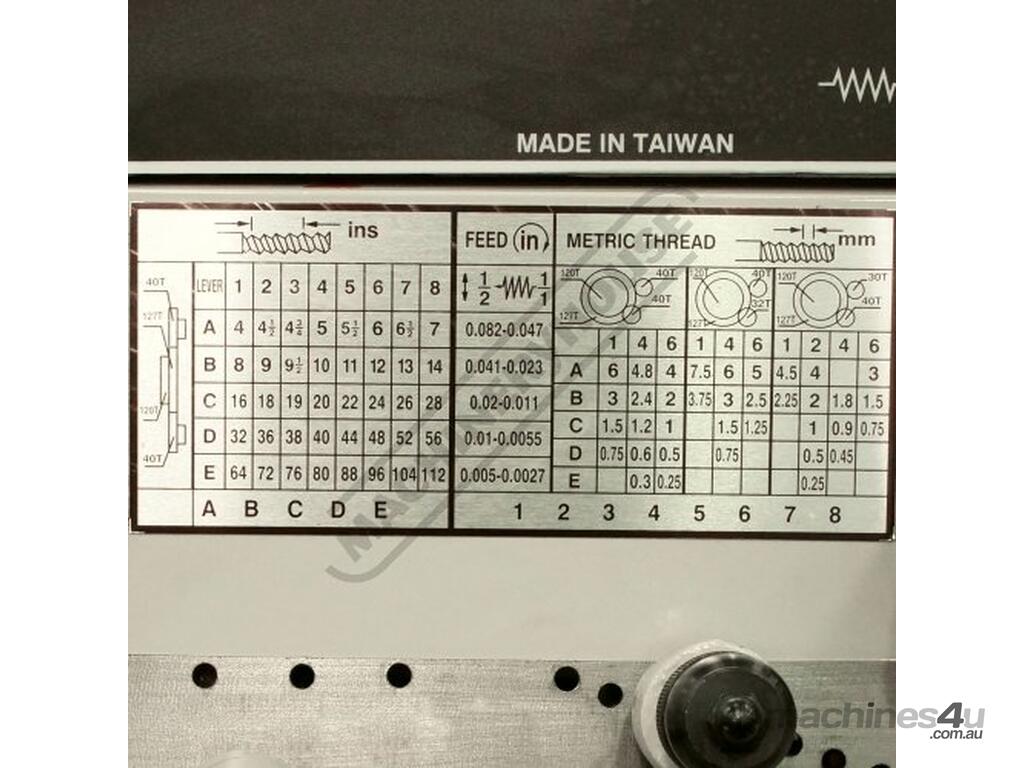

Quick-action feed gearbox for thread cutting
D1-4 camlock spindle for quick chuck changes and safe reverse direction turning

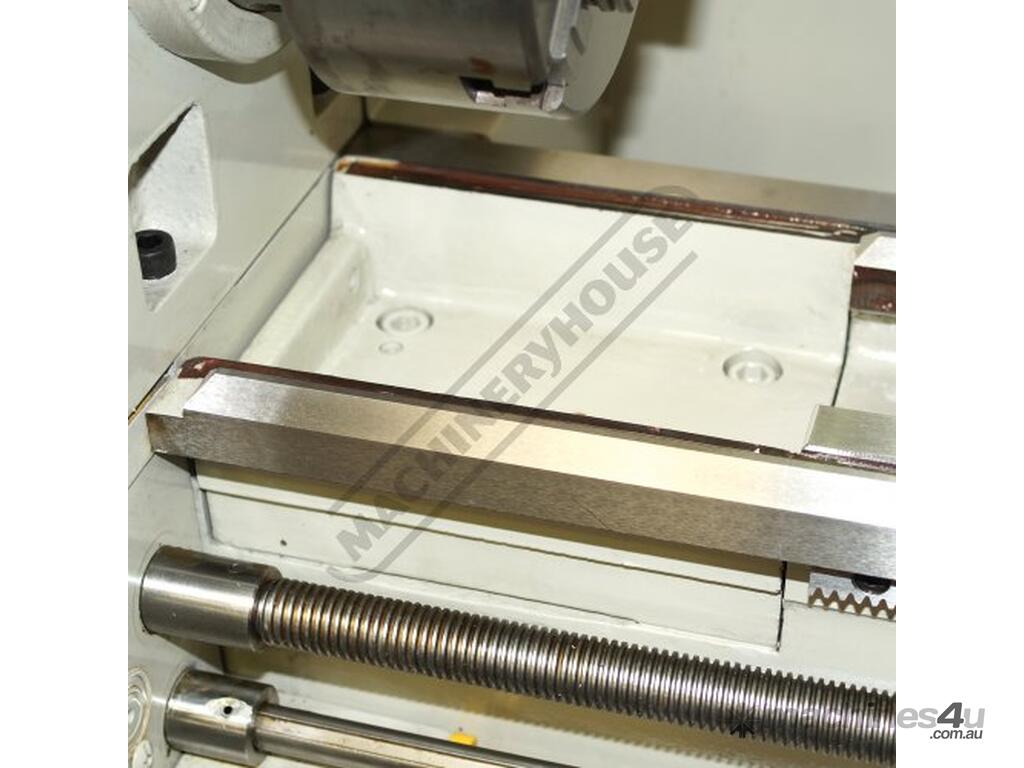

Removable gap bed way for larger diameter jobs

Includes:
- 2 Axis digital readout system

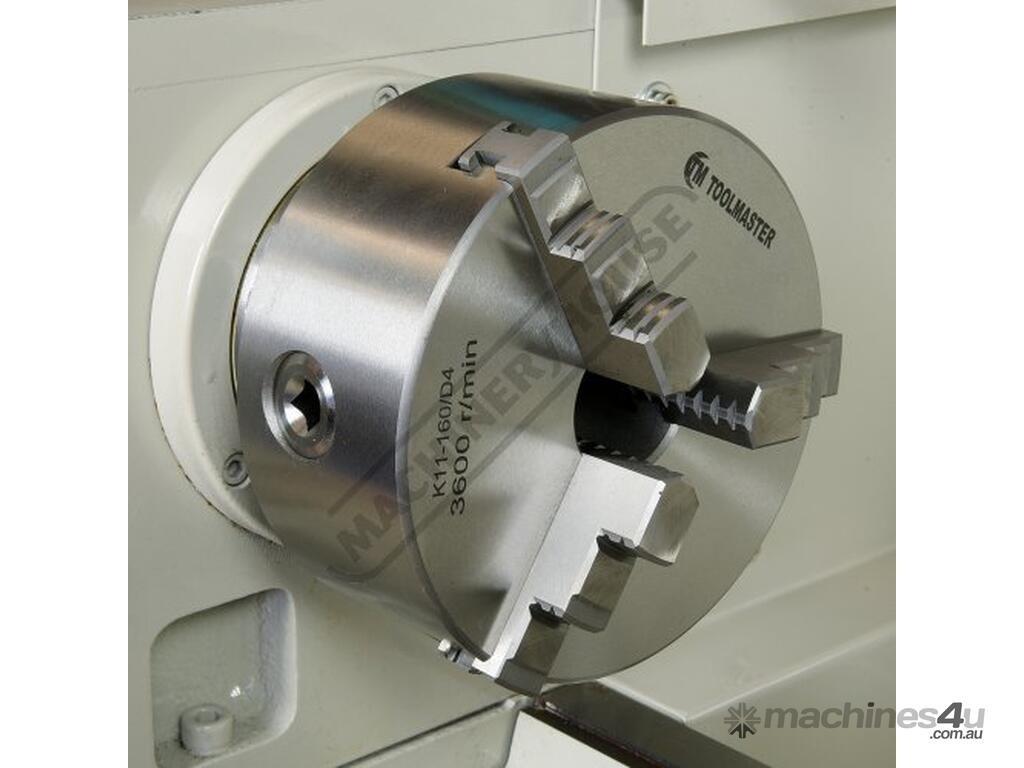

- 160mm 3-jaw chuck with reverse jaws
- 200mm 4-jaw chuck
- Face plate

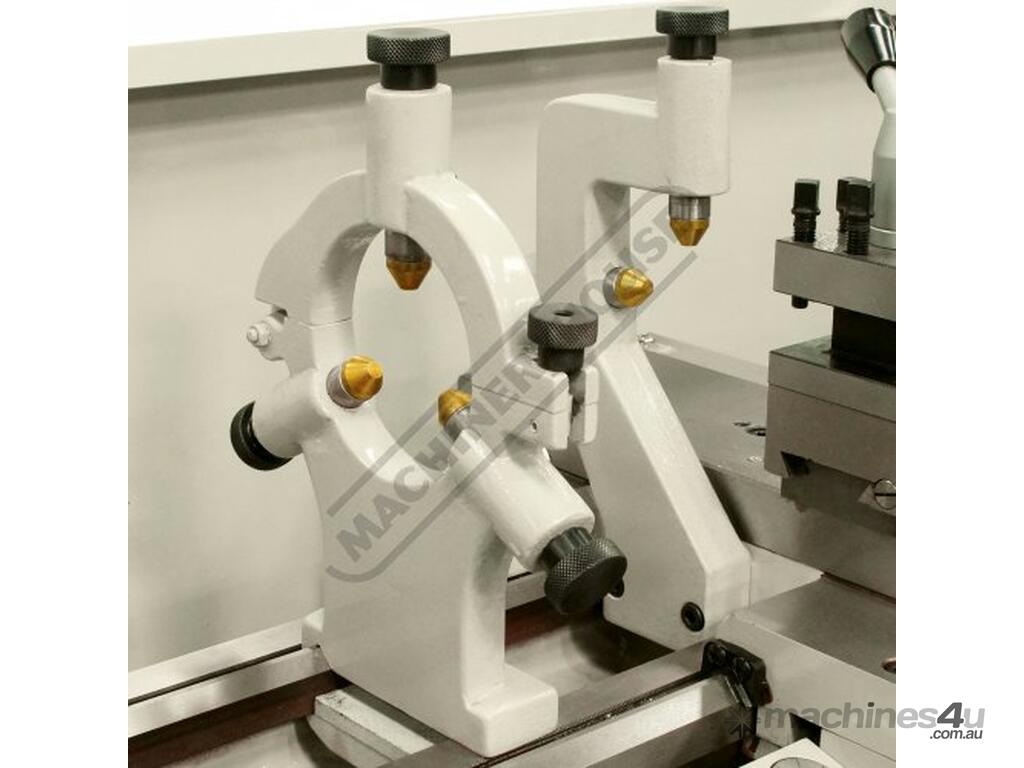

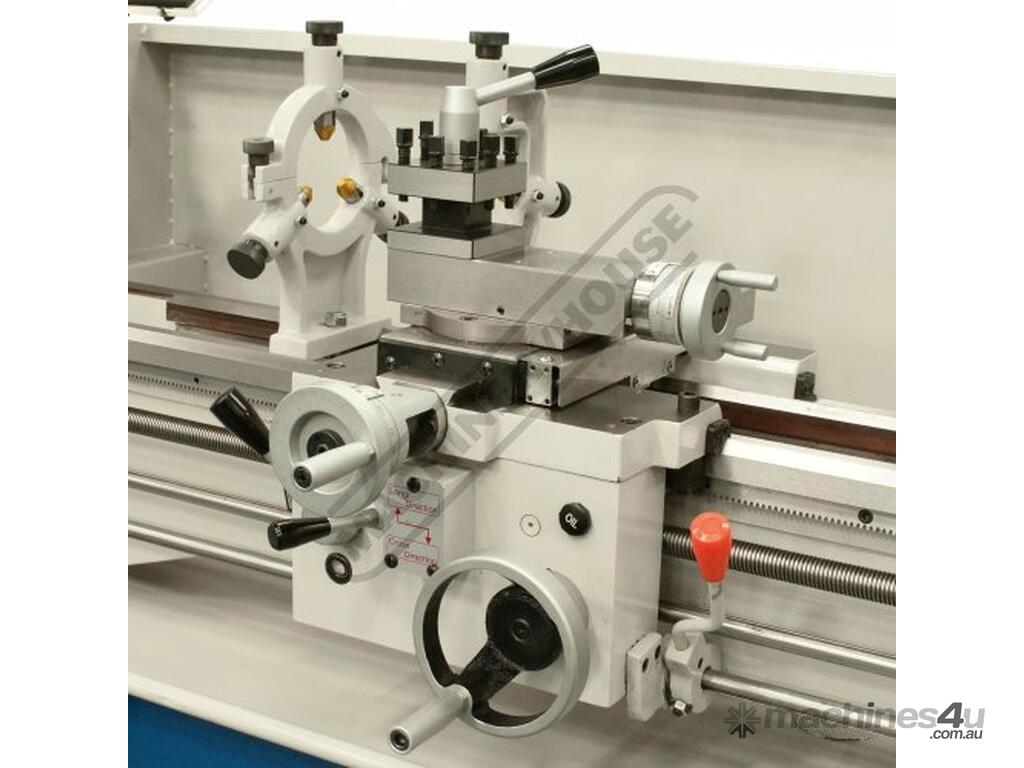

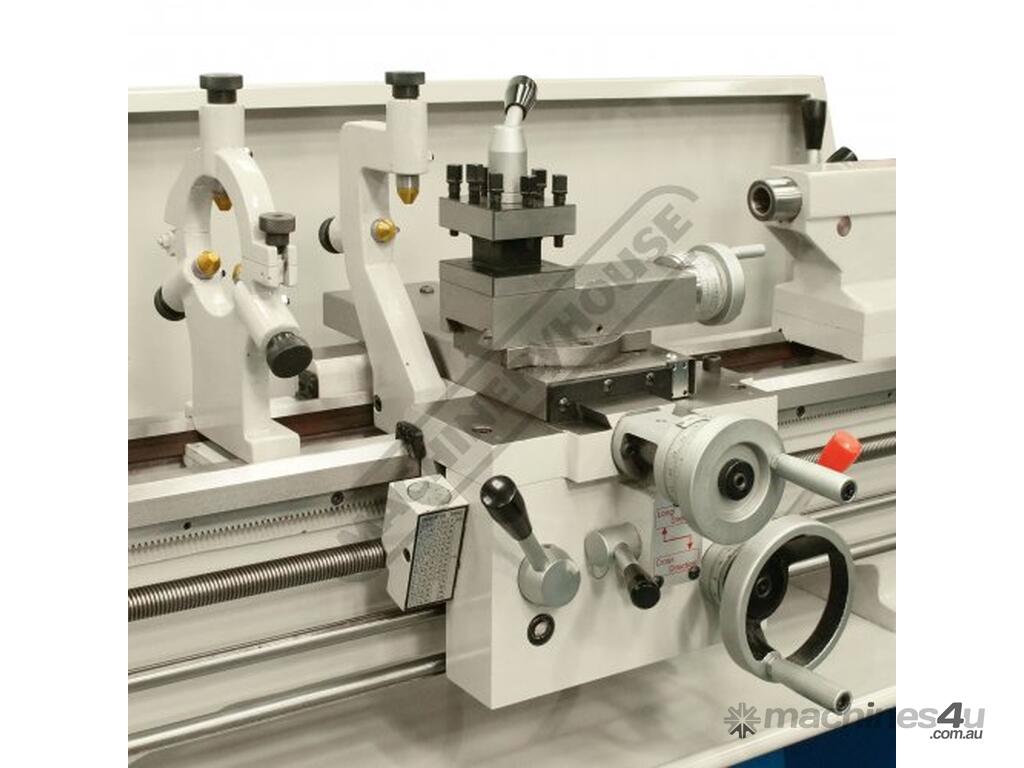

- Fixed and travelling steadies
- Change gears
- Dead centre
- Cabinet stand
- Splash tray
- Swarf tray
- Thread-chasing dial

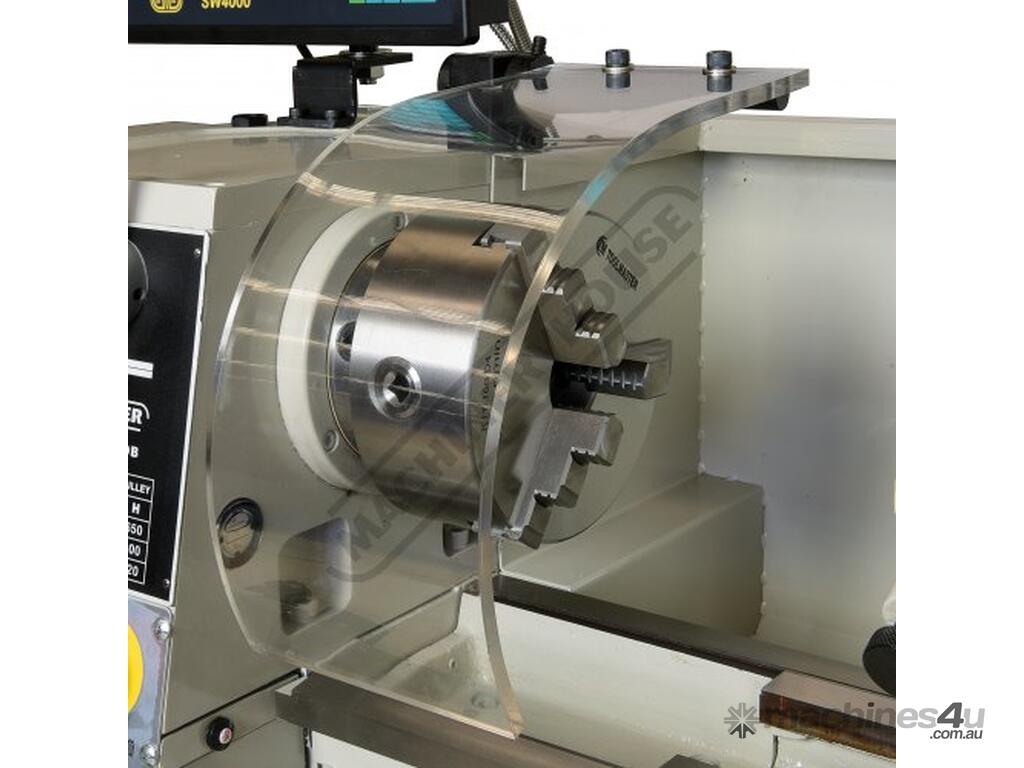

- Chuck guard
- Tool box and instruction booklet



Specifications:
ORDER CODE: L237D
MODEL: AL-960B
Swing Over Bed (mm): 305
Distance Between Centres (mm): 925
Spindle Bore (mm): 40
Swing In Gap (mm): 450
Swing Over Cross-slide (mm): 180
Digital Readout System Fitted: Yes
Quick Change Toolpost Fitted: Optional
Leadscrew Covers Fitted: ~
Taper Turning Attachment: ~
Coolant System: ~
Tool Height To Suit (mm): 12
Centre Height (mm): 152.5
Spindle Nose Size or Type: D1-4 Camlock
Bed Width (mm): 190
Headstock Spindle Taper (MT): 5
Tailstock Taper (MT): 3
Cross Slide Travel (mm): 170
Compound Slide Travel (mm): 90
Leadscrew Type: Imperial
Metric Cross Feed (X-Axis) (mm/rev): ~
Imperial Cross Feed (X-Axis) (inch/rev): 0.0013 - 0.041
Metric Longitudinal Feed (Z-Axis) (mm/rev): ~
Imperial Longitudinal Feed (Z-Axis) (inch/rev): 0.0027 - 0.082
Metric Thread Steps & Pitch (No. / mm): 26 (0.25 - 7.5)
Imperial Thread Steps & TPI (No. / TPI): 40 (4 - 112)
3 Jaw Chuck Diameter (mm): 160
4 Jaw Chuck Diameter (mm): 200

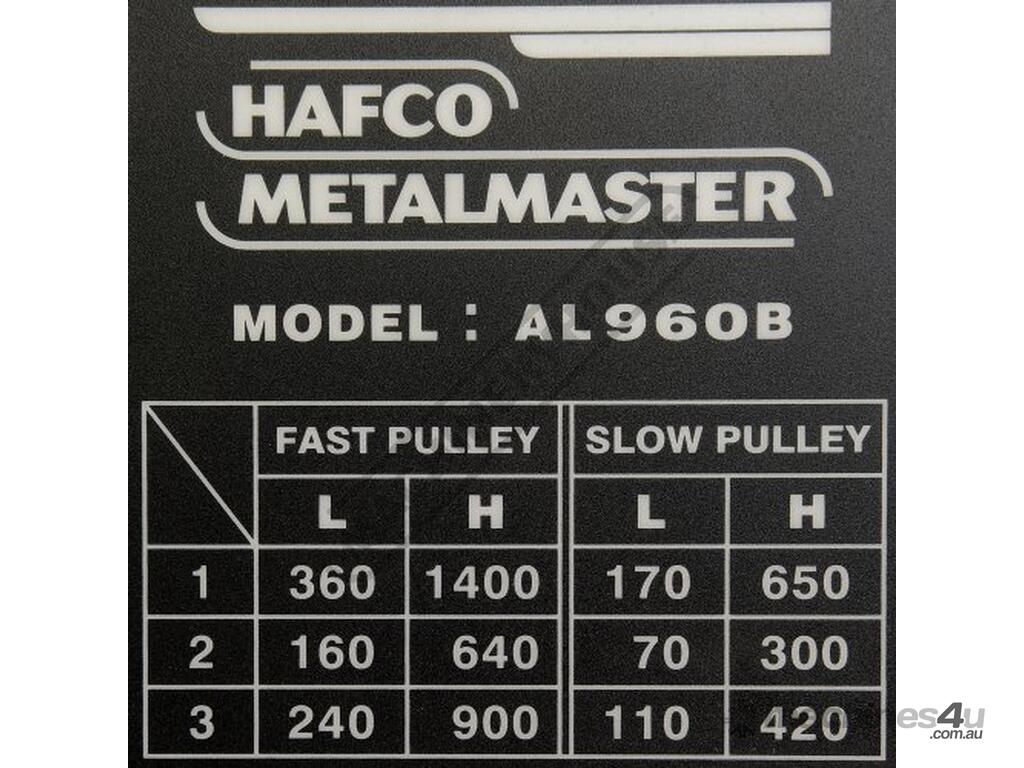

Spindle Steps / Speeds (No. / rpm): 12 (70 - 1400)
Motor Power (kW / hp): 1.5 / 2
Voltage / Amperage (V / amp): 240 / 15
Nett Weight (kg): 470
