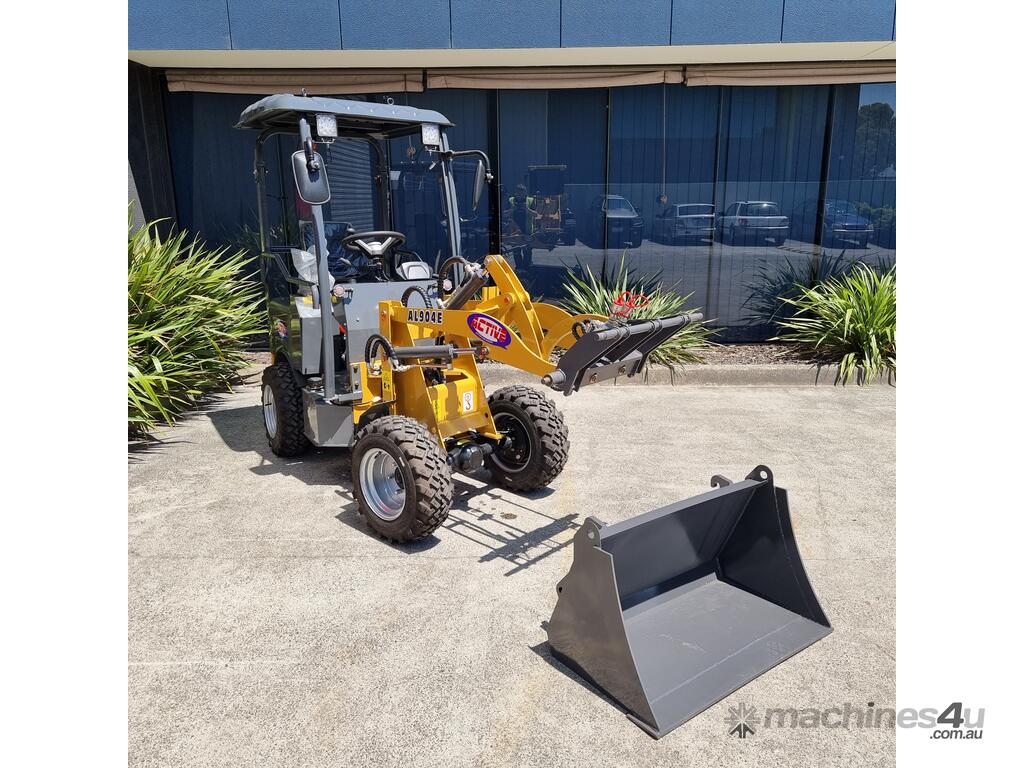

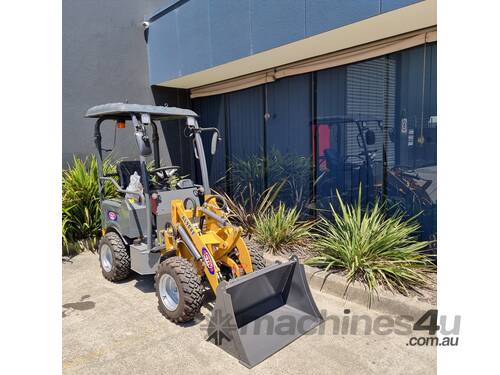

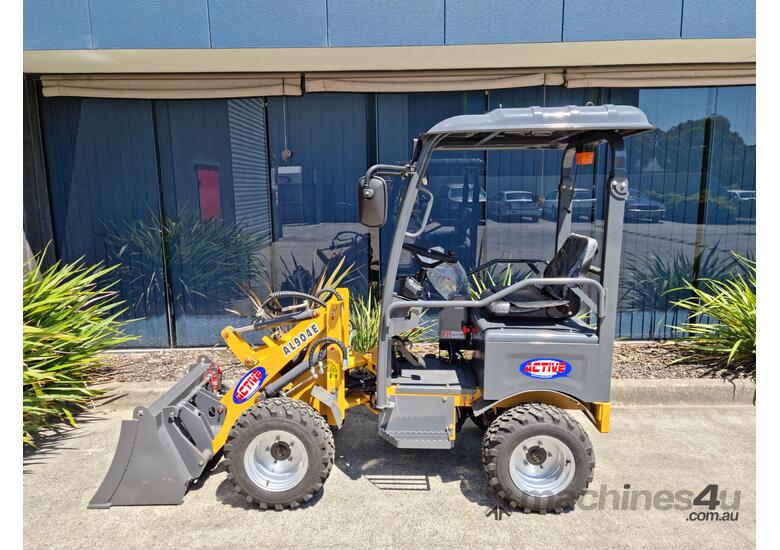

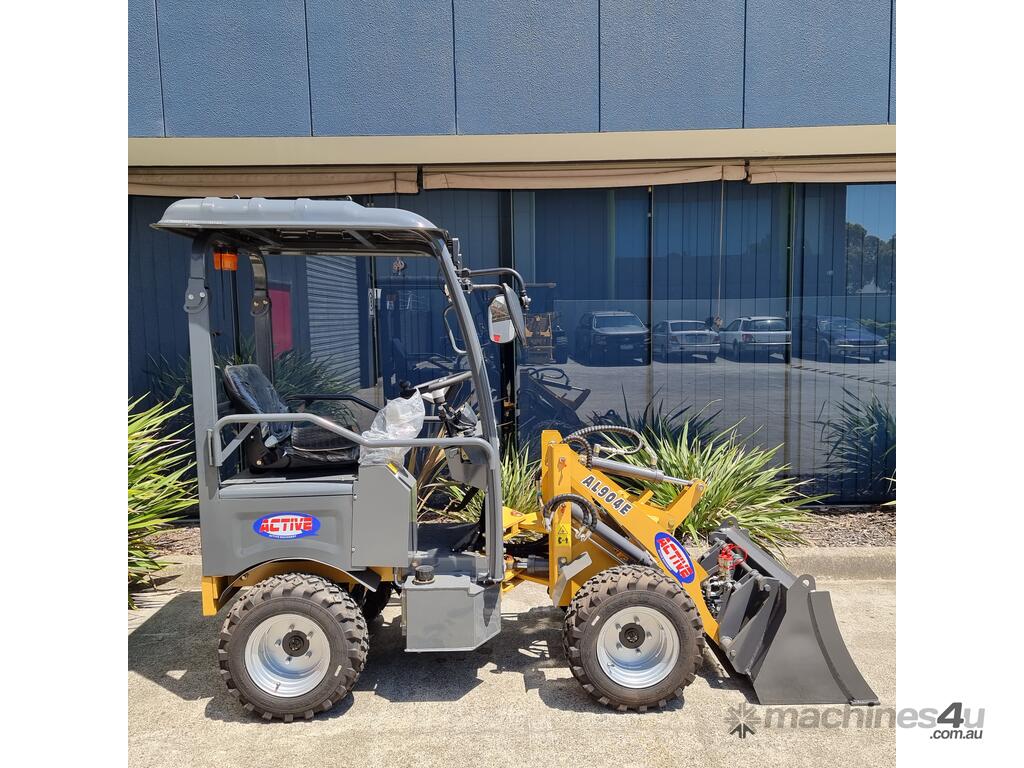

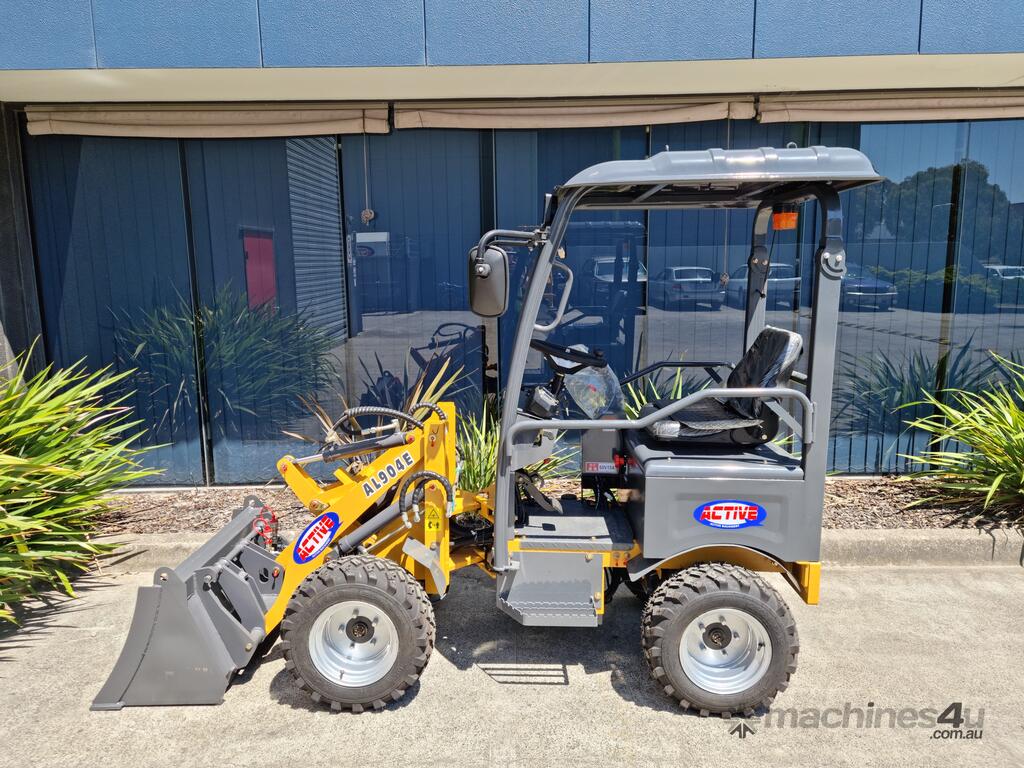

AL904E Electric Mini Wheel Loader | 900kg Gross Weight, 400kg SWL | Joystick Control, Quick Hitch

Active Machinery - When Power & Performance Matters!

BUYERS CHOICE AWARD WINNER 2022 & 2021

Australia’s One Stop Earthmoving Shop
Active Machinery consistently exceeds its competitors in price and service. As one of the longest standing manufacturers of equipment from Asia, our machinery has proven the test of time to become the most premium equipment at the most competitive price. From Excavators to Skid Steers to Forklifts; To the legendary “Active Machinery” Wheel Loaders we believe we have a product to suit your every need. If you can’t find it here, please give us a call and we will build it for you!

When buying from Active Machinery you can be assured of quality, reliability and back up service. Supplying Australian businesses with thousands of Wheel Loaders for well over a decade, designed and built in our own factory (and assembled at our state of the art facility in Dandenong, Victoria), our Wheel Loaders run the latest technology transmissions along with quality engines such as Deutz, Cummins and Caterpillar.

Electric Mini Wheel Loader AL904E Key Features:

GROSS WEIGHT 900KG
SWL400KG

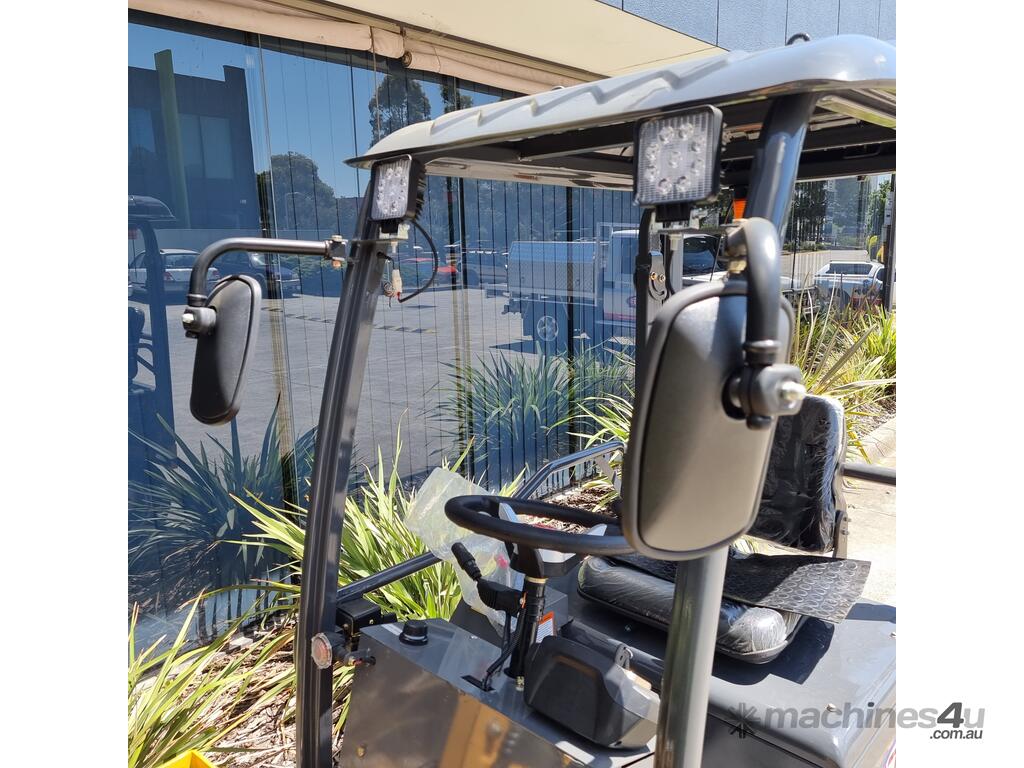

FULL WORKING LED LIGHTS
TURN SIGNALS

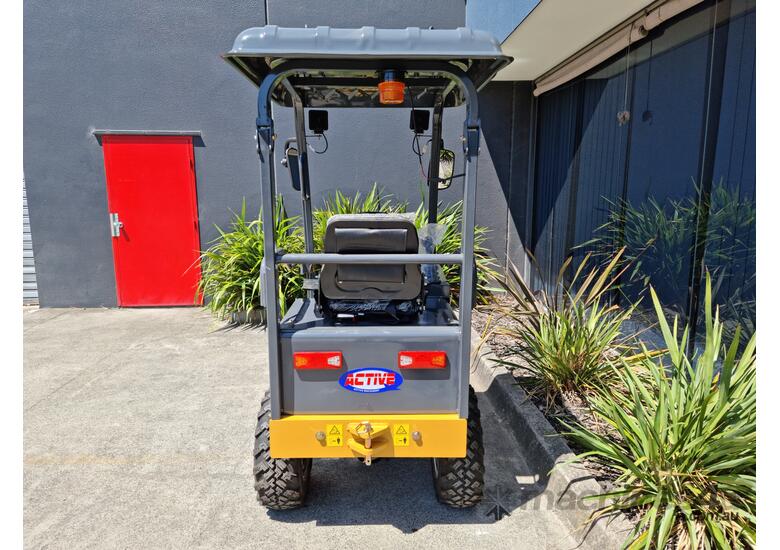

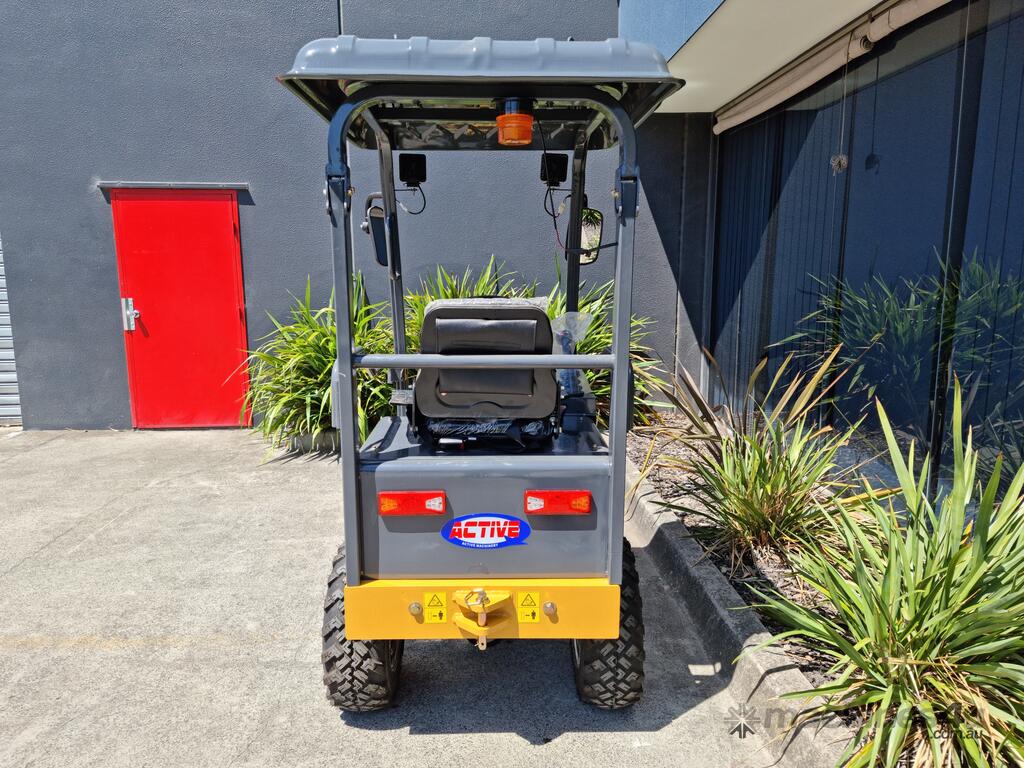

BRAKE LIGHTS
FLASHING LIGHT
HORN

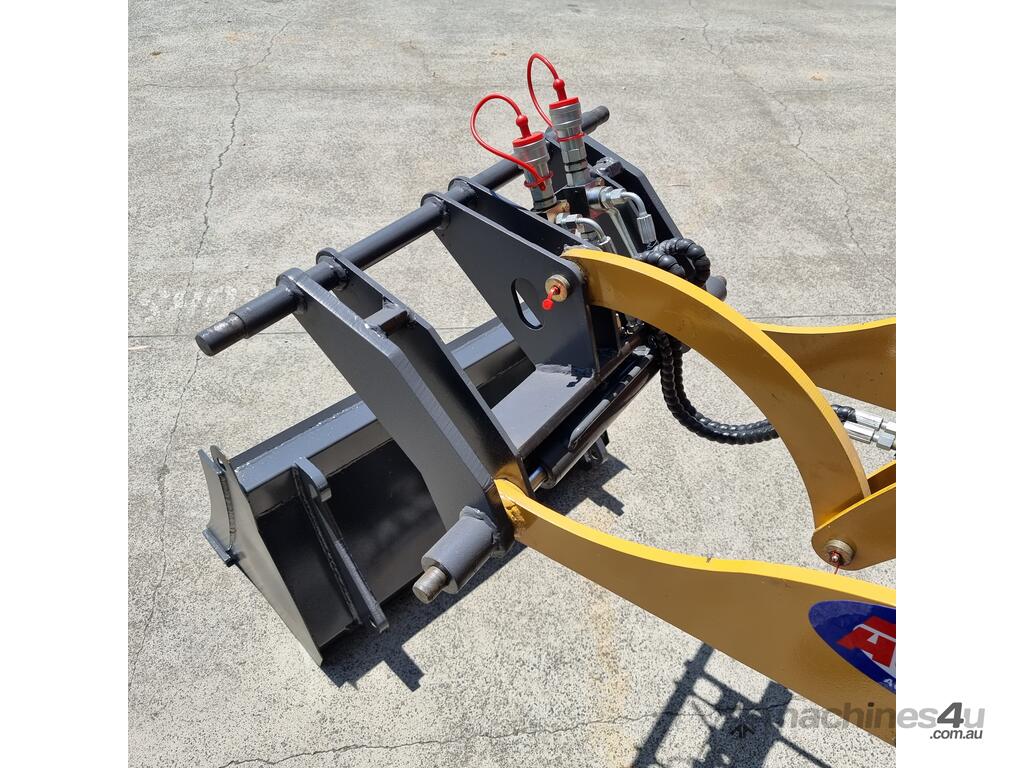

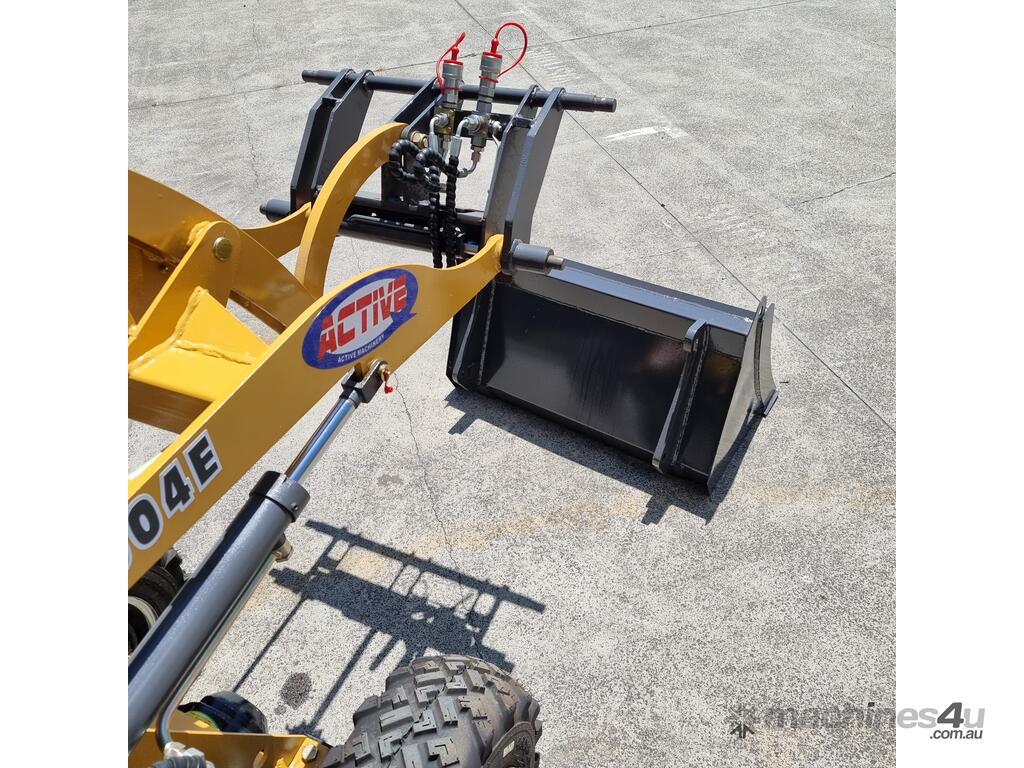

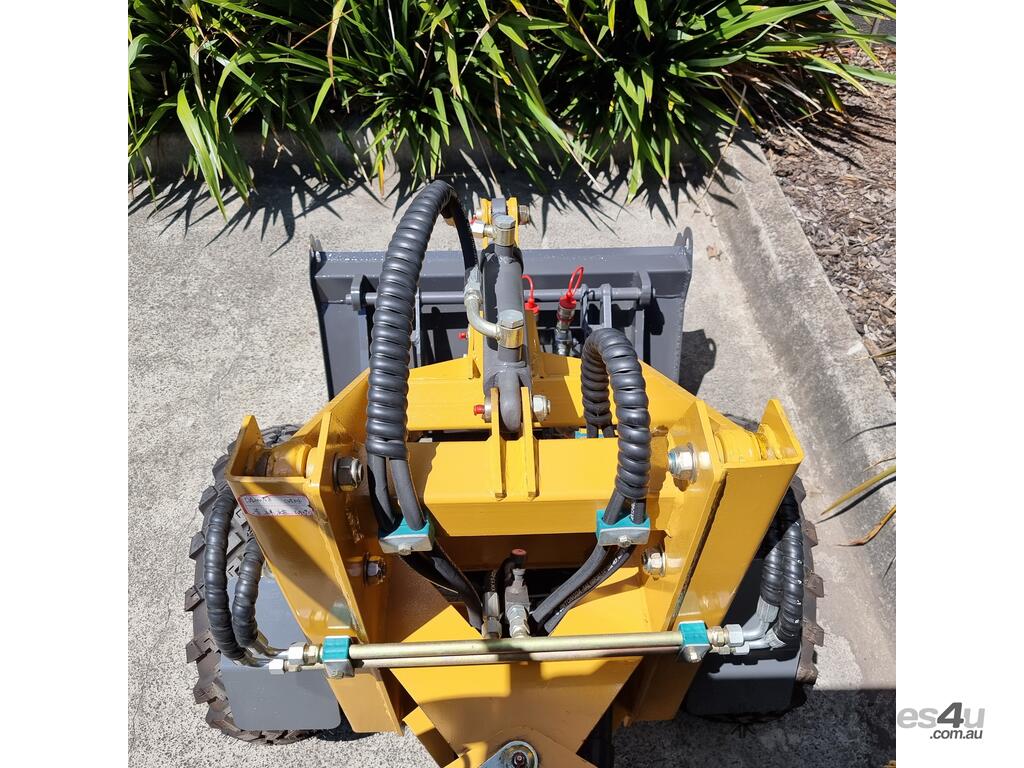

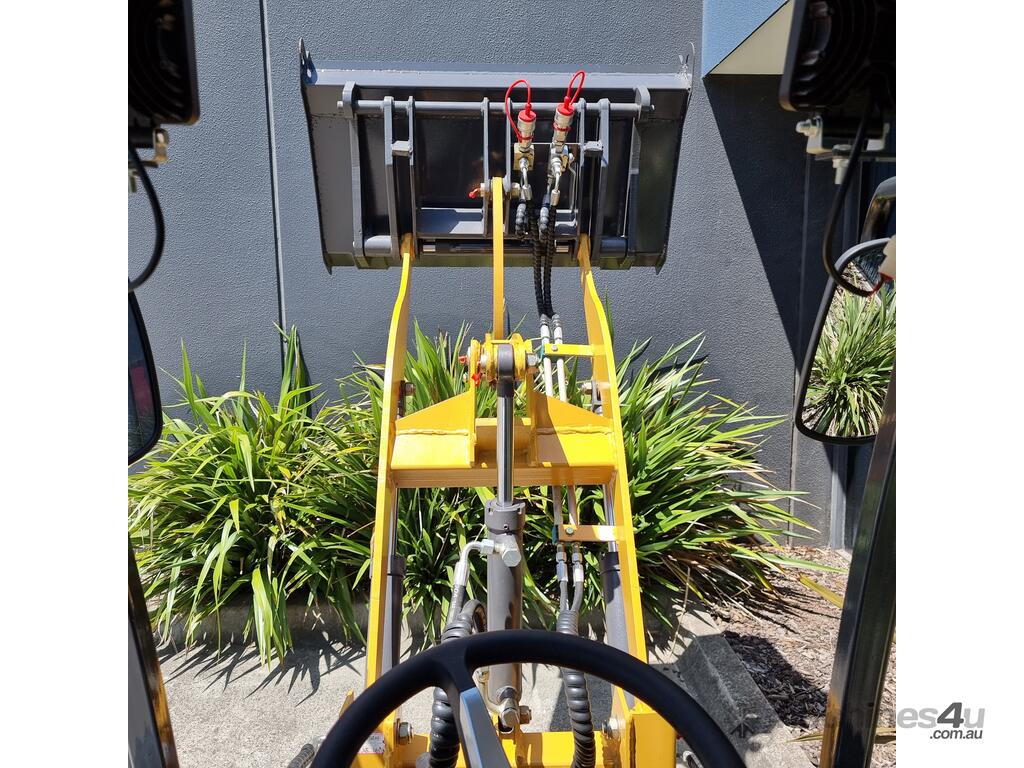

QUICK HITCH
3RD VALVE
PALLET FORKS
4 IN 1 BUCKET

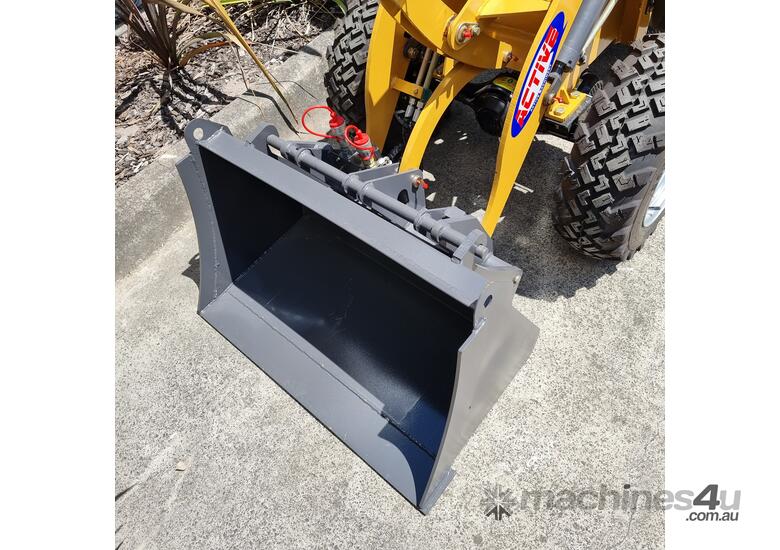

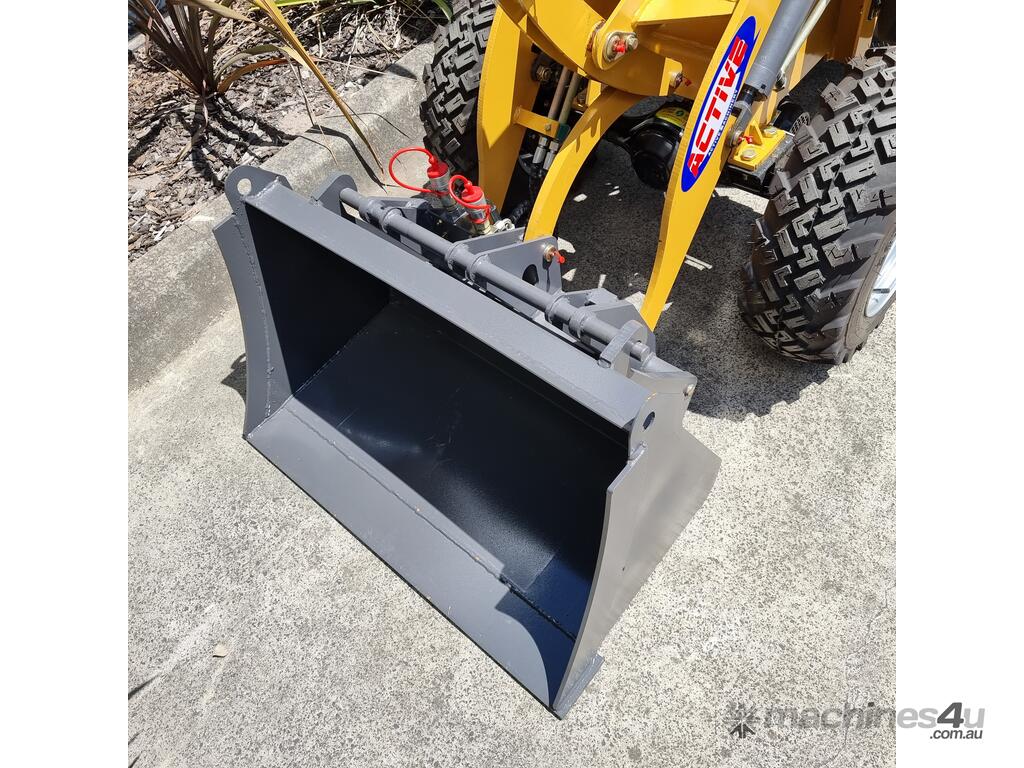

GP BUCKET

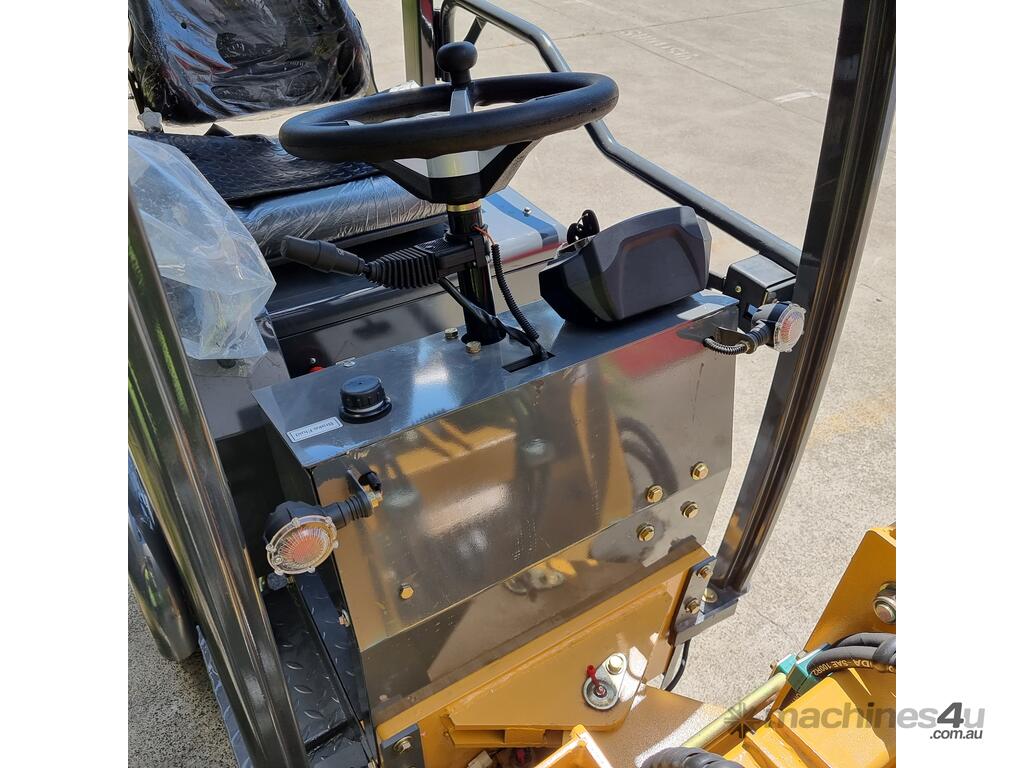

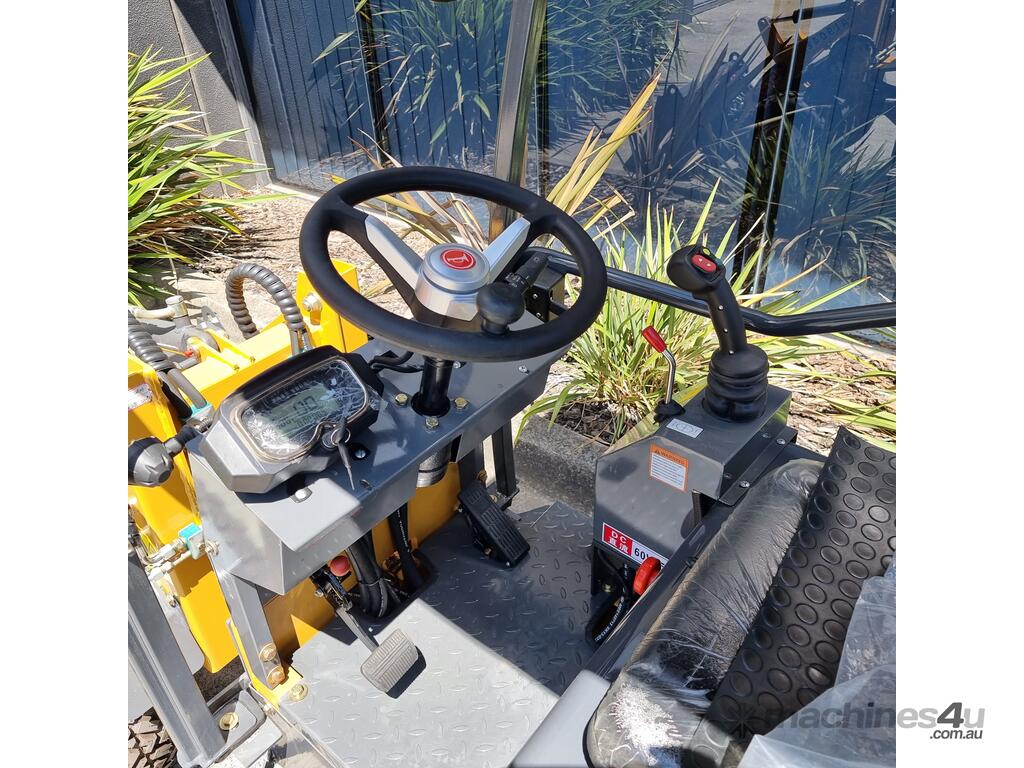

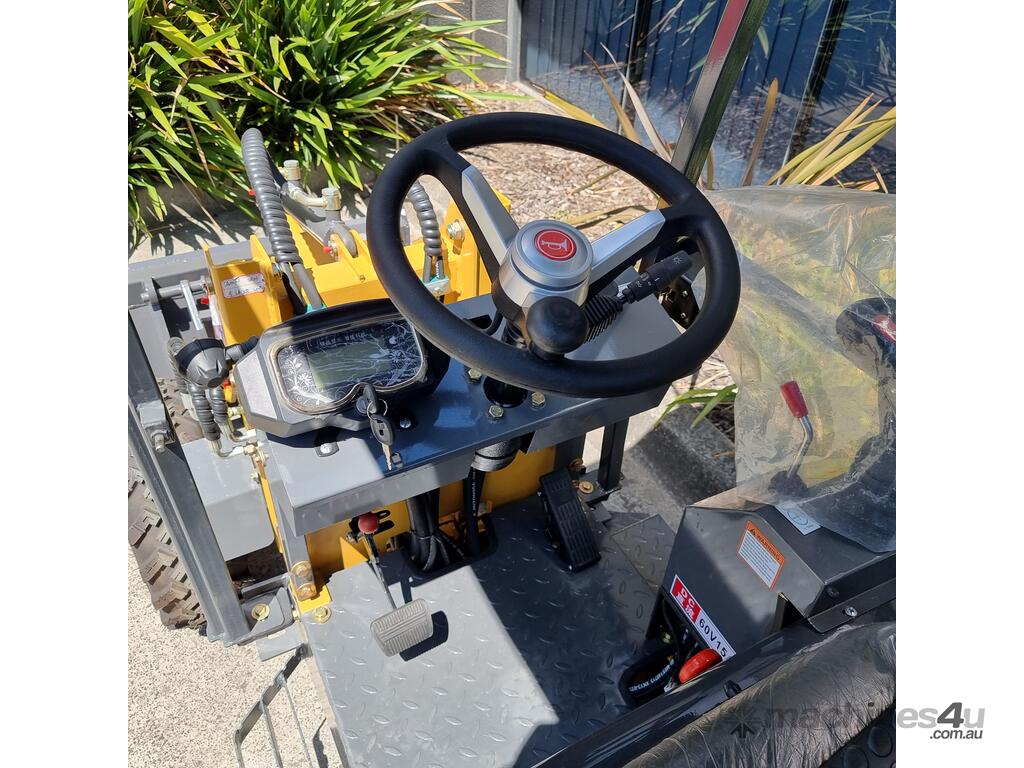

JOYSTICK CONTROL
DUMP HEIGHTS 45 DEGREES
LIFTING HEIGHT 2100MM
DUMPING REACH 450MM
MAX EXCAVATION FORCE 8KN
MAX GRADE ABILITY 15
MAX TURNING ANGLE 28*+1
SWING DEGREE OF REAR AXLE 3
OVERALL LENGTH 2800MM (BUCKET ON GROUND)
BUCKET WIDTH 900MM
OVERALL HEIGHT 2070MM
WHEEL BASE 1387MM
MIN GROUND CLEARANCE 300MM

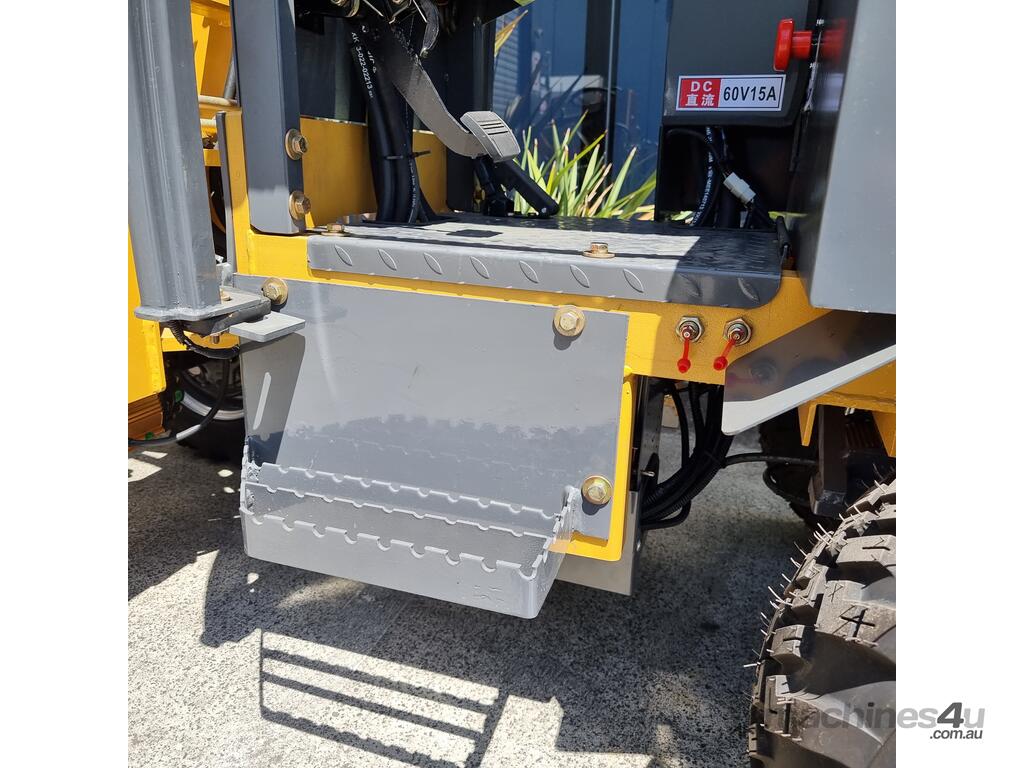

BATTERY:
BATTERY MODEL NO 6-EVF-100A
RATED CAPACITY (3HRS) 100AH
NUMBER OF BATTERYS GROUPS 5
RATED VOLTAGE 60V
WORKING HOURS 4HRS

HYDRAULIC SYSTEM:
MOTOR NO. HL-60
VOLTAGE 60V
POWER 1200W
DISPLACEMENT 14ML/R

TYRES:
TYPE 6.00-12
WORKING PRESSURES 0.25MPS
QTY 4

BRAKING SYSTEM:
SERVICE BRAKE DRUM BRAKE
BRAKE DRUM 200MM
PARKING BRAKE DRUM BRAKE
DISTRIBUTION VALVE MODEL DL10
TYPE TRIPLE VALVE STEM

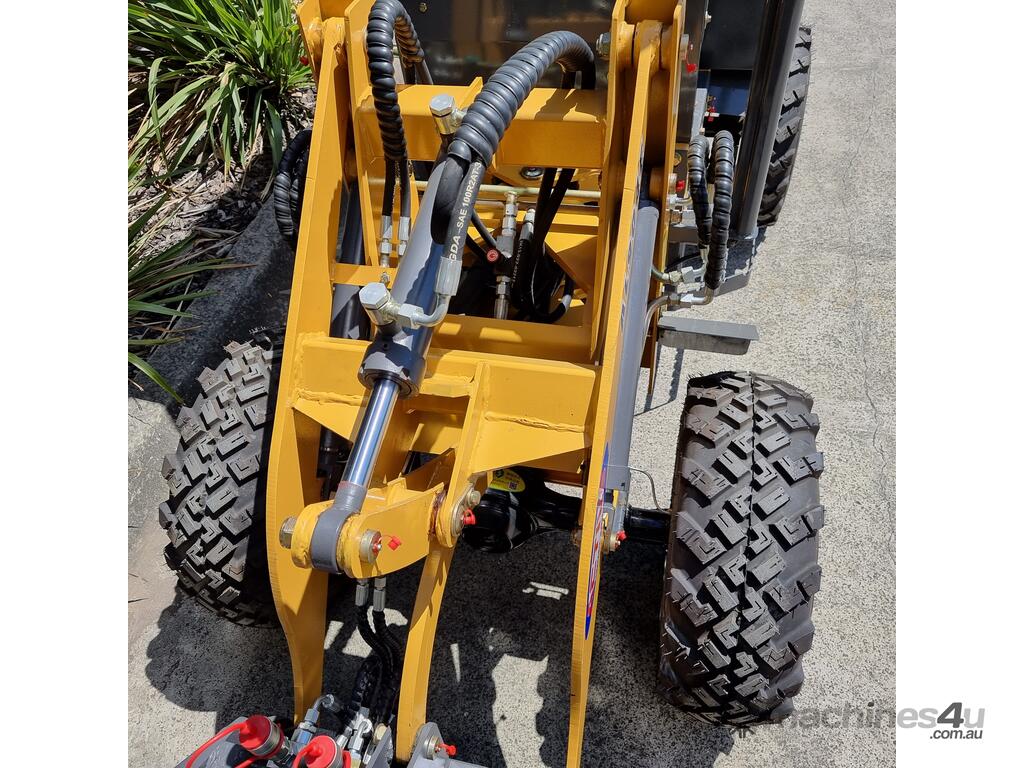

DUMPING CYLINDER BORE Ø50
LIFTING CYLINDER BORE Ø50

OIL CAPACITY:

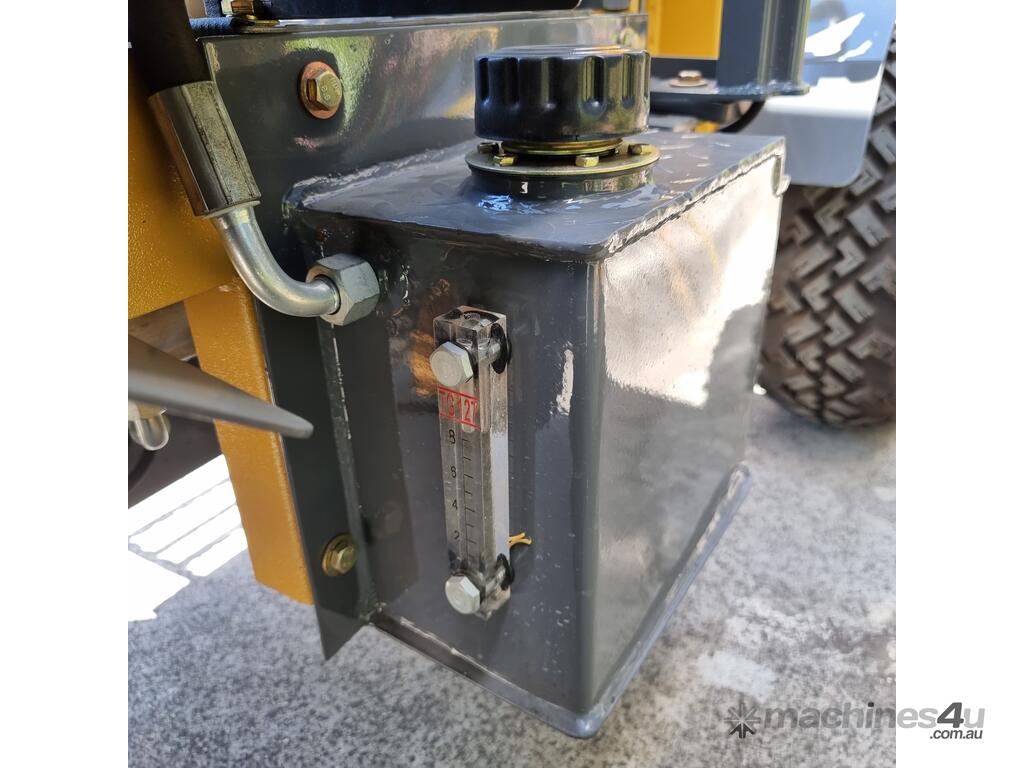

HYDRAULIC OIL TANK 11L
BRAKE FLUID 0.8L

STEERING SYSTEM:
TYPE OF STEERING PUMP - EXTERNAL GEAR PUMP QTY 1 PC
STEERING CYLINDER BORE 50MM
SYSTEM PRESSURE 16MPA
TYPE OF STEERING - FULL HYDRAULIC STEERING SYSTEM

We Stand by Our Products
We design and develop our products with Australia’s conditions in mind to serve you for the long haul.

100% Australian Owned
We are an Australian owned business with an emphasis on quality and cost effectiveness.

Focus On Earthmoving
Our fully equipped, state of the art facility located in Dandenong focuses solely on construction and earthmoving equipment with an aim to be the Australia’s best.

Focus On Value
Delivering industry leading equipment at a cost-effective price. Our company can tailor a package to suit your budget and requirements with a comprehensive range of equipment and attachments. We believe we offer the best value proposition in Wheel Loaders, Excavators, Skid Steers and Forklifts in Australia.

Customer Care, Parts & Servicing
When you purchase an Active Machinery product, you know you will be looked after with both exceptional performance and the after sales service you need.

Parts and Service - both on and off site
We stock a wide variety of spare parts and have a fully equipped workshop with repair and service facilities available, to accommodate all makes and most models of earthmoving equipment. We understand that under certain circumstances the equipment is unable to be moved from worksites, therefore, we can offer our clients on-site assistance at competitive rates, for both interval servicing and mechanical repairs.

Need Some Help Finding the Right Machinery?
The team at Active Machinery have decades of experience designing, developing & supplying machinery for all types of construction work. We can discuss your requirements and provide you with a solution that is perfect for your requirements.

NEED TO KNOW MORE OR GET A QUOTE? ENQUIRE TODAY - WE LOOK FORWARD TO HEARING FROM YOU!

T&Cs
Due to continual advancements in technology, Active Machinery are constantly improving their quality Wheel Loaders. Therefore, the information and pictures shown should be used as a guide only. Conditions apply. Offers are available while stock lasts. Freight is additional. Finance available to approved applications. Prices may be subject to change - reach out to us for current pricing. Active Machinery retains the rights to withdraw any machine from sale at any time.
