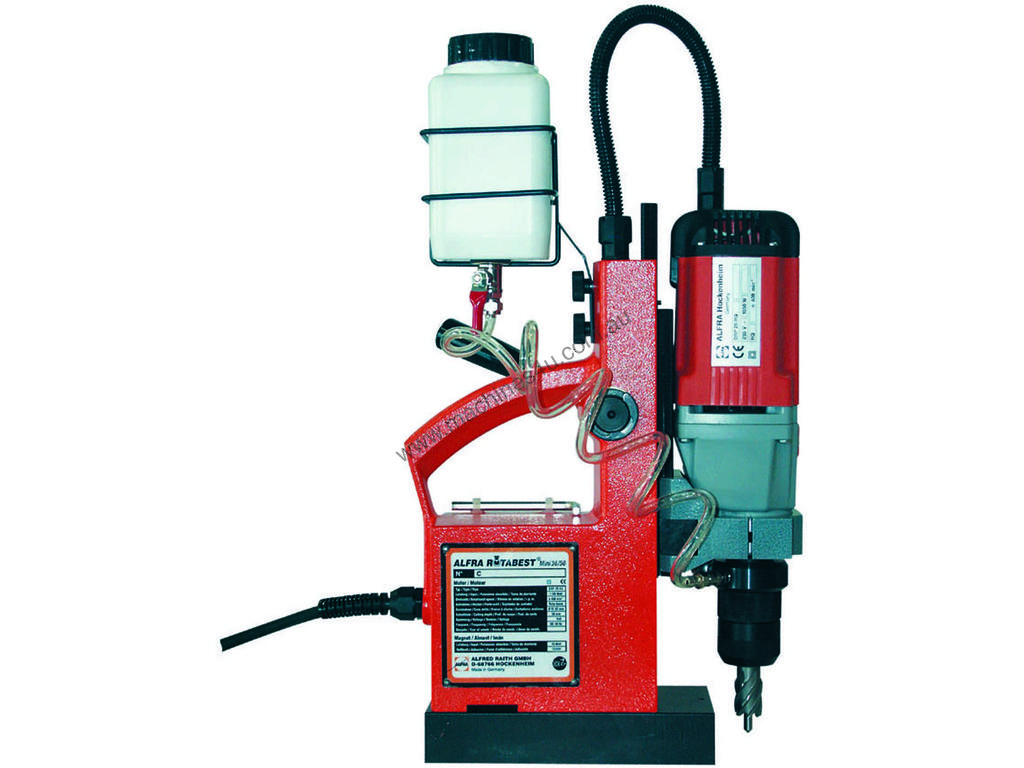

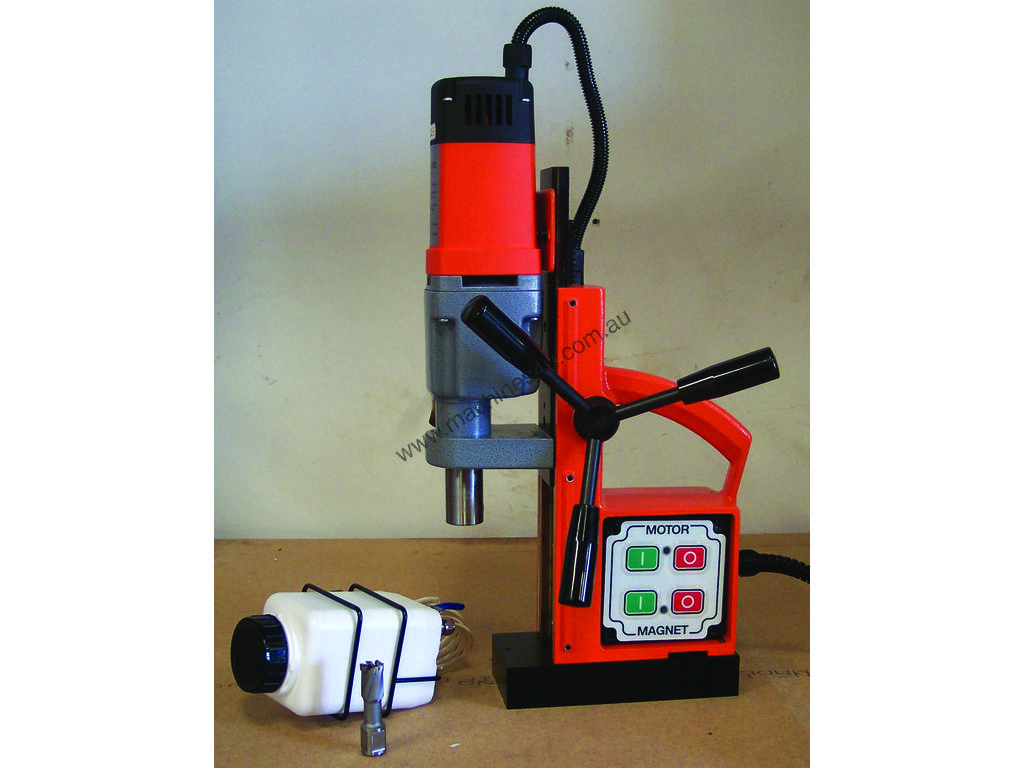

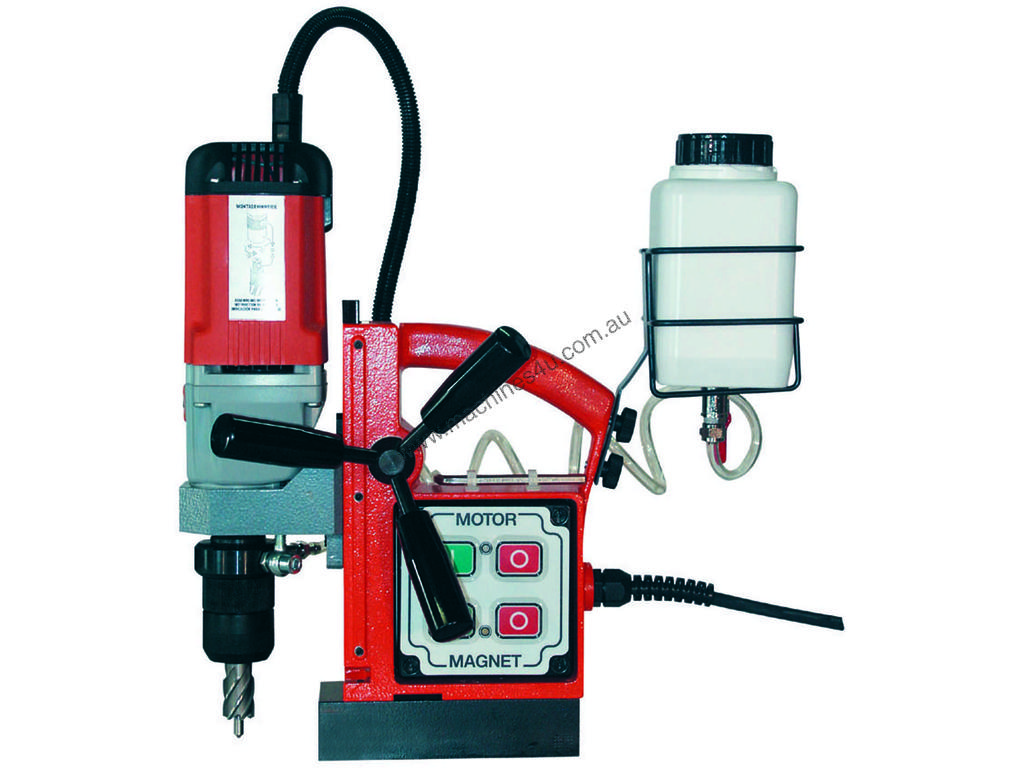

ALFRA EM 50 Magnetic Base Drill. 50mm Drilling Capacity. Made in Germany.

ALFRA EM 50 Magnetic Base Drill. 50mm Drilling Capacity. Made in Germany.
Long Stroke, Large Adjustable Height, 280/500 Rpm, Coolant, 12000 N Adhesion. 240Volt

Features
? Quality German made drilling machines
? perfect for all onsite work
? powerful motors with high torques and a range from 900 to W, ergonomic design
? new generation control boards for ease of operation and serviceability
? magnet feet with 3 instead of 2 coils and with the new m.p.i. magnet system (magnetic power increase). electronic increase of magnetic adhesion at the start of the drilling operation, when strongest adhesion is required (for an even higher protection of user and tool)
? pressed-in brass rings for an improved protection of the magnet coils
? continuously adjustable motor on the slide for a maximum stroke enlargement, when using twist drills,
drill chucks and tapping attachments.

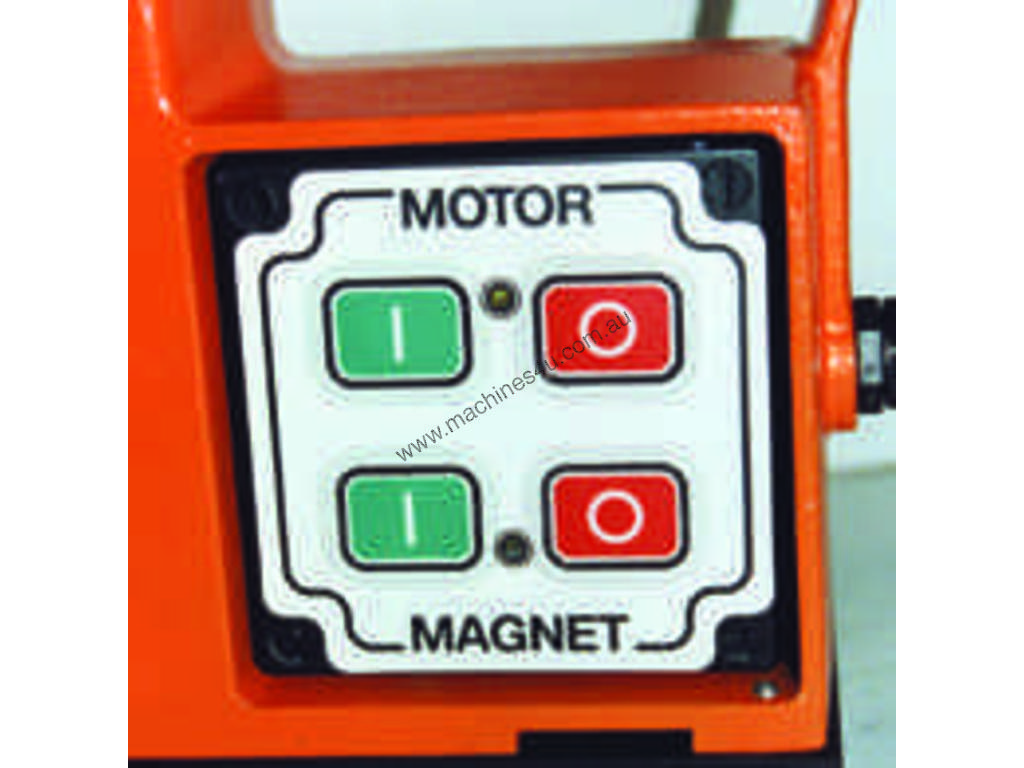

? durable keyboard with flat cable. panel angled in sight of the user. to feel for the on/off-switch has come to an end. easy reachability of keyboard, even in narrow u-beams and h-beams drilling applications
? newly designed gear-housing with integrated motor support. with built in height adjustment by means of
clamping jaws – there is no better fixing device on the market.
? trouble with ordinary dovetail or pillar guides? solid brass guide rails guarantee an optimum slide guidance.
? the heart of our magnetic drilling machines: robust electronic switch units, interchangeable with all types of the new generation. easy to approach for a quick service.
? 240 Volt operation

Introducing our ALFRA Mini Magnetic Base Metalworking Engineering Drilling Machine.
Key Features:
• 50mm Drilling Capacity.
• Heavy Duty Construction.
• 50mm Cutting Depth
• Powerful 1200 Watt Motor.
• 12000N Magnetic Adhesion.
• 2 Speed 280/500RPM
• Complete with Carry Case, Belt & Coolant.
• Available in 240Volt.

#######################################
Machines Can Be Demonstrated Under Power at 8 Capital Drive Dandenong, Vic.
Or See Videos or online
Otherwise call Us On And We Can Discuss Your Requirement
Asset Offer Full Sales Service, Parts & Accessories For Your Support!!!
#######################################

Steelmaster Metal Drilling Machines.
When looking for a quality metal drill, look no further than Steelmaster Industrial. Steelmaster Industrial metal drilling machines offer the machinist a very high-quality machine with superb features and tight tolerances at reasonable prices. Steelmaster carries over 12 models of metal drilling machines in stock at all times for quick shipments. Steelmaster Industrial's ever-growing line of metal drilling machines consists of belt drive drills, magnetic based drills, mill drills, radial arm drills, along with a large range of accessories. Depending on your needs we have the drill for you, starting with our cost-effective belt drive drills to our large radial arm drills.

Belt Drive Drills
Depending on your needs, Steelmaster has a great line of cost-effective belt drive drilling machines. With several models to choose from these models give the best ``bang for the buck`` of any of the Steelmaster drills. These metal drilling machines come standard with many of the features that are most important. Each drill comes standard with a stand, tee slotted table, adjustable height control, calibrated depth setting, generous spindle mount sizes, safety guards and interlocks are also all included.

Mill Drills
Steelmaster Industrial offer one of the best selections of milling and drilling machines around. From our belt drive SM-B32 to our fully spec's SM-MD45XL with 3 Axis DRO and Power up and down on dovetailed guides. Our Metal Milling & Drilling Machines have been fitted up to offer you the best selection of features and come standard with Perspex safety guards and all e stops to ensure all round safe operation.

Geared Head Drills
Each geared head metal drilling machine comes fully guarded with halogen lights. The castings on these machines are of good quality and will offer years of rigidity and accuracy. Coolant, power feeds, digital depth display, large tee slotted tables, large MT spindles are some of the features we offer. Some models also have power raise and lower on the tables. Our Metal Geared Head Drilling Machines come standard with Perspex safety guards and all e stops to ensure all round safe operation.

Radial Arm Drills
Our radial drilling range offered geared head drills from 1000mm in arm length up to our 2000mm heavy duty range. Hydraulic power locking on the column and power up and down for the larger models, power feeds, coolant and heavy-duty tee slotted box tables are all features. The castings on these machines are of good quality and will offer years of rigidity and accuracy. All our radial drilling machines are pre commissioned prior to delivery.

Magnetic Based Drills
Steelmaster Industrial also offer our ALFRA German Magnetic Based Drills. These machines are the perfect off-site partner. Our range covers the smaller Piccolo model up to the larger Junior Heavy Duty Model. Strong magnetic adhesion and quality German build ensure you years of magnetic based drilling.

MAKE YOUR NEXT PURCHASE AN ``ASSET`` TO YOUR COMPANY!
Please contact us for more information.
