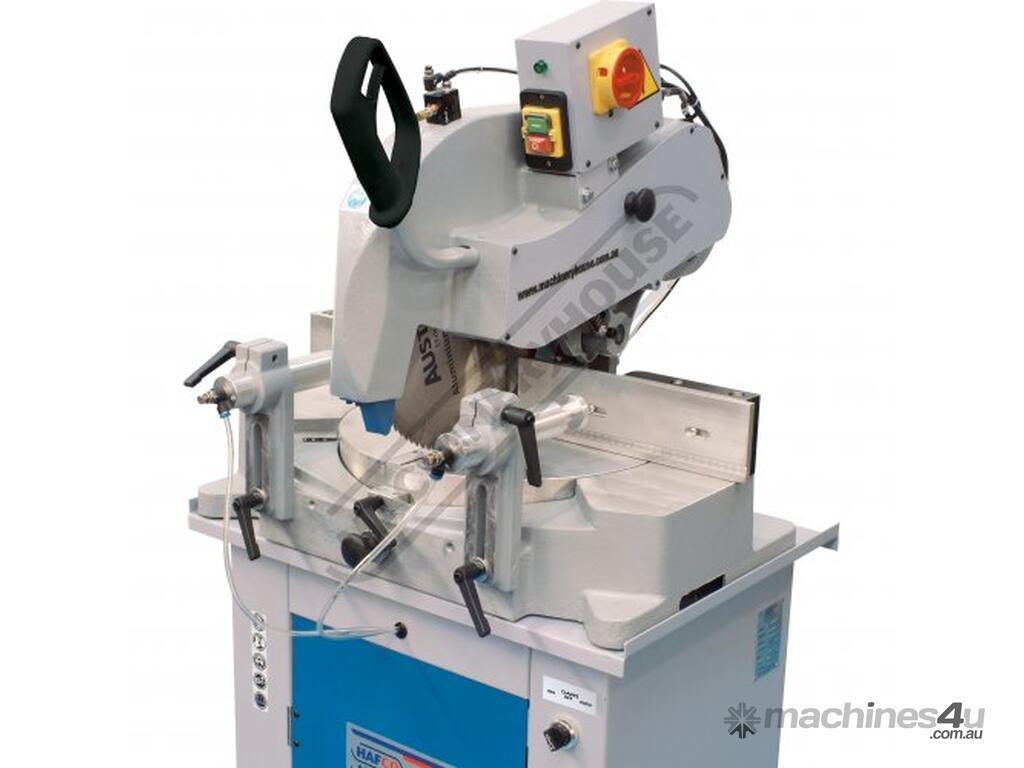

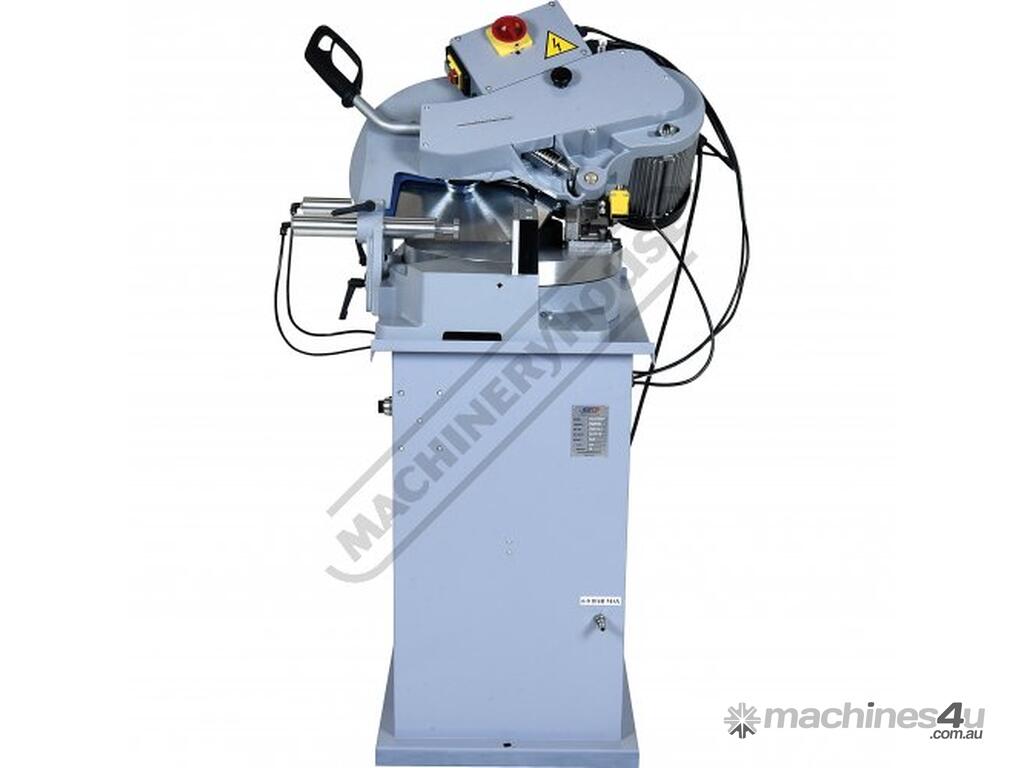

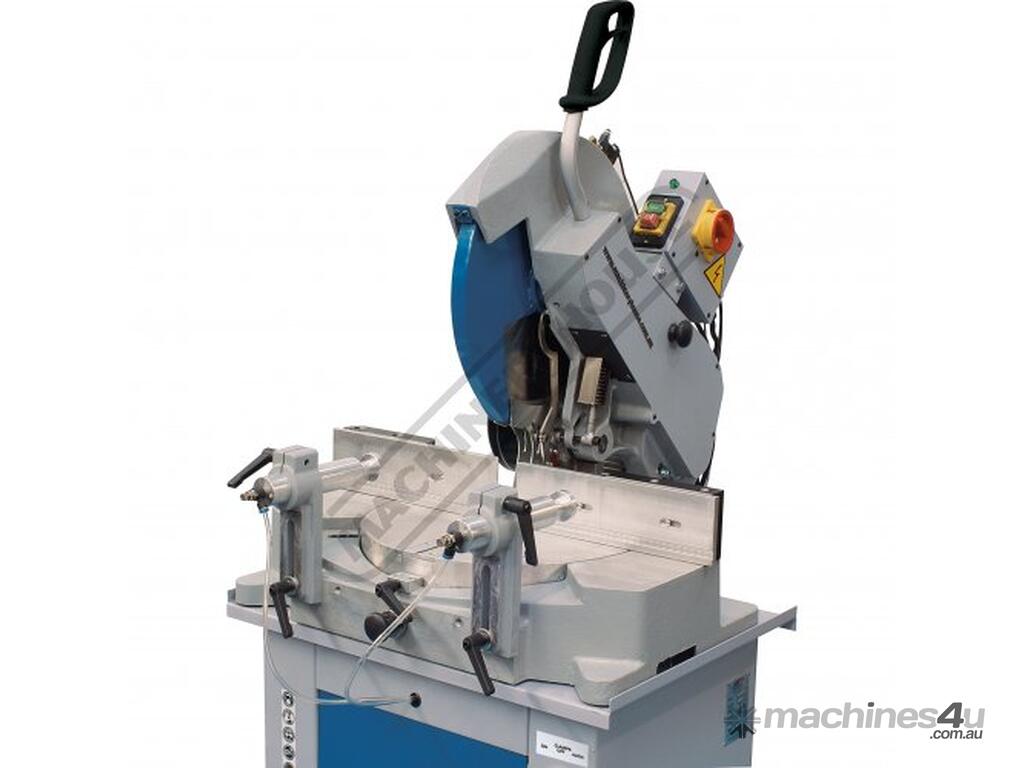

ALU-350A Non-Ferrous Semi Auto Metal Cutting Saw - Swivel & Compound Mitre Head Ø350mm Blade, 100 x

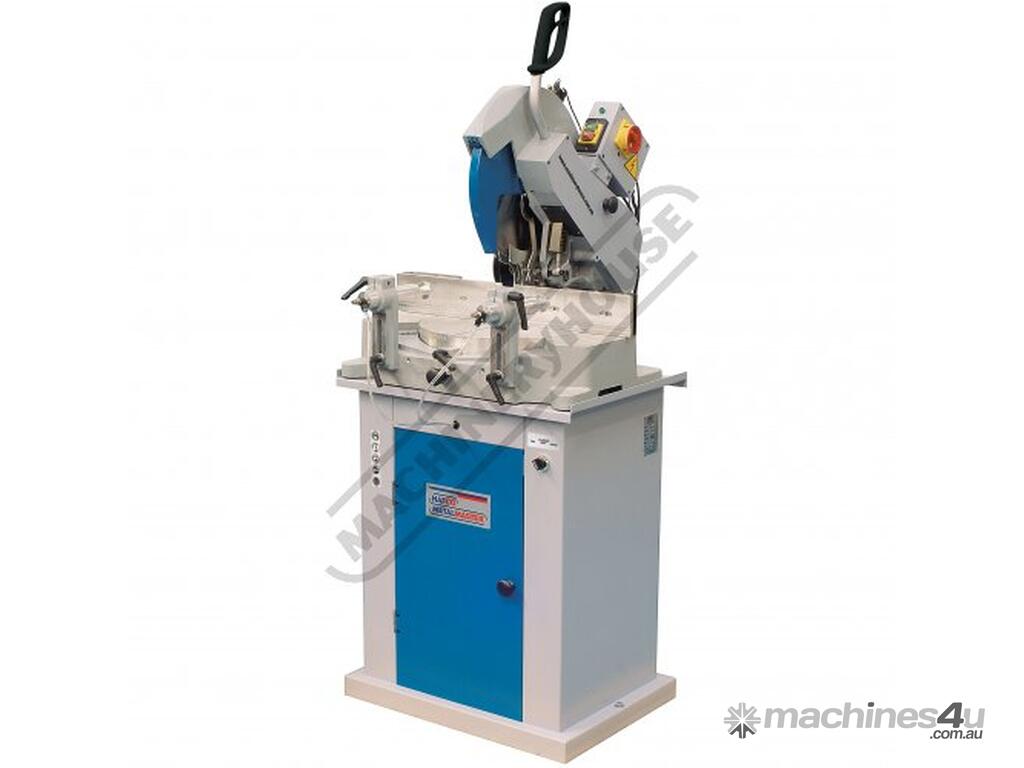

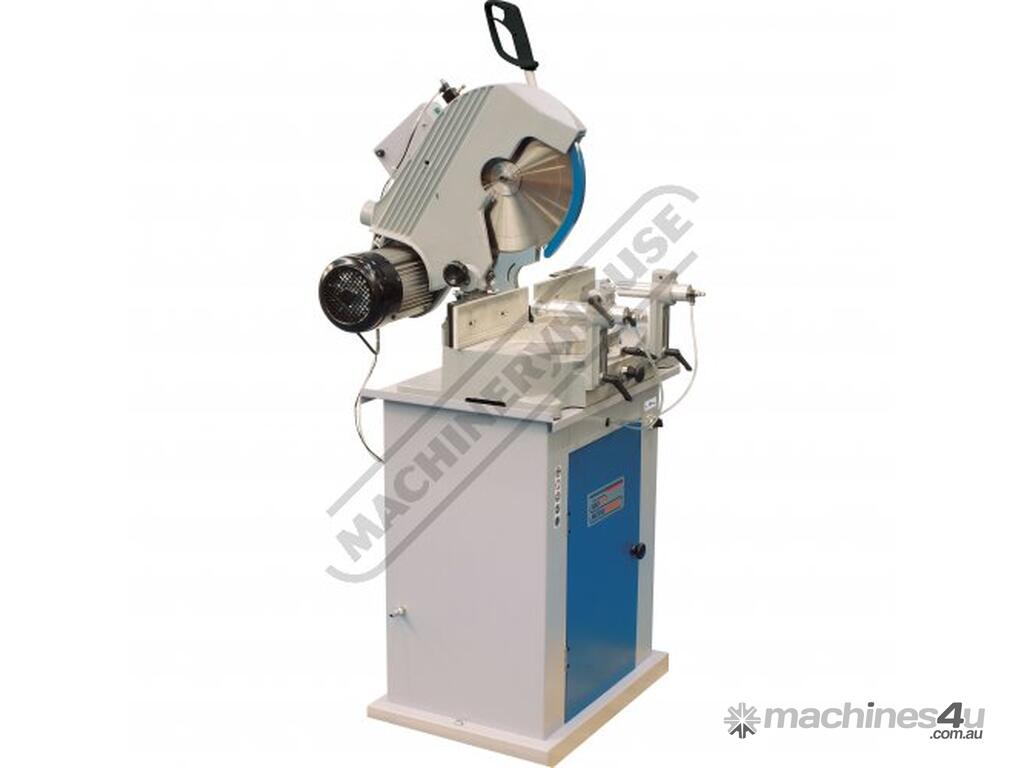

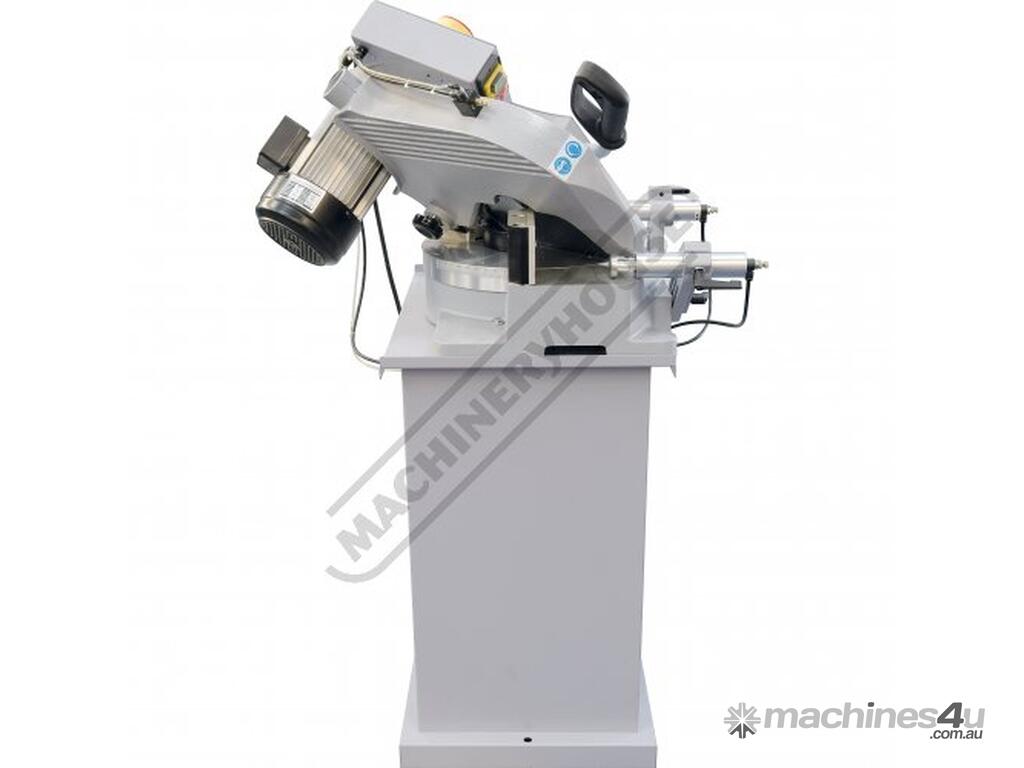

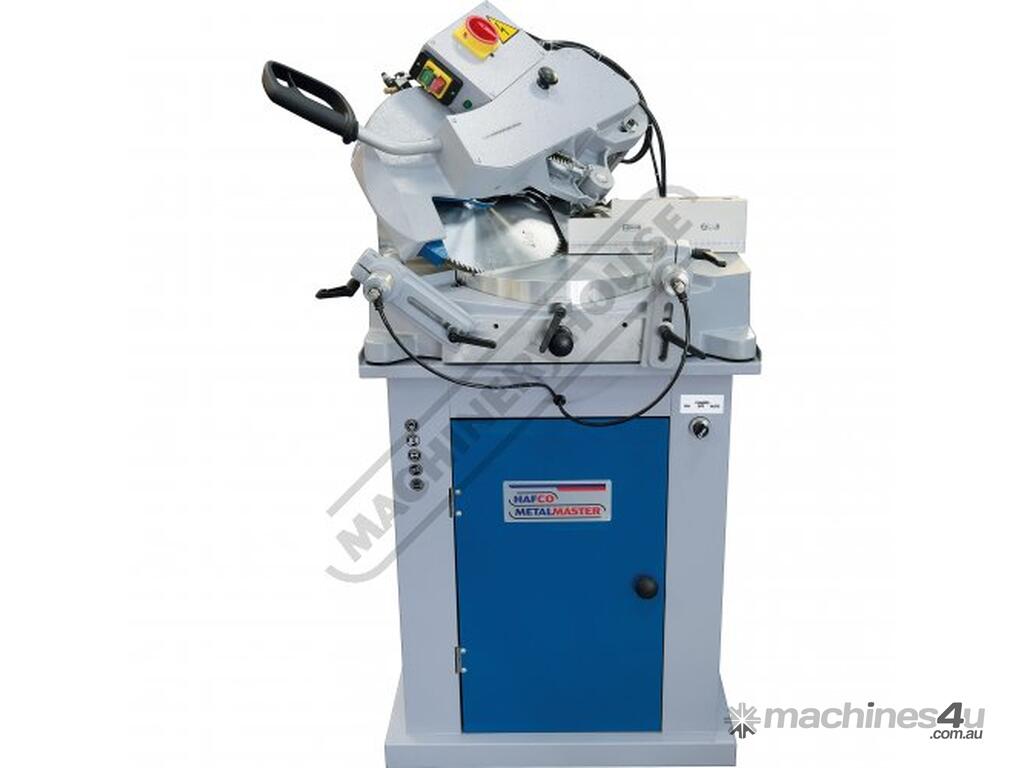

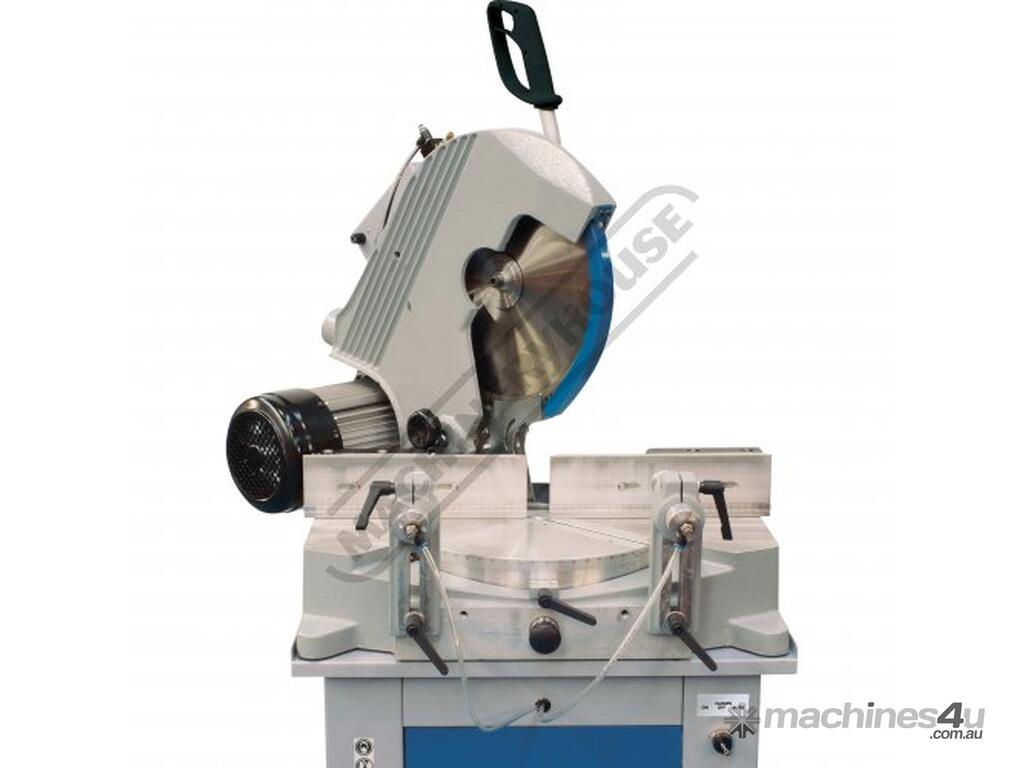

HAFCO-METALMASTER ALU-350A Non-Ferrous Semi Auto Metal Cutting Saw - Swivel & Compound Mitre Head Ø350mm Blade, 100 x 195mm Rectangle Capacity Includes Adjustable Twin Material Air Clamps with Manual & Auto Functions
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: S851

The new ALU-350A non-ferrous (aluminium or copper material) now comes with a semi auto material clamp function that will help increase production output when set in the auto mode, as the pneumatic material clamps are automatically controlled by the movement of the cutting head. The 2hp 415V high speed motor spins the blade at 3300rpm and ensures a great clean cut every time, and is perfect for cutting those soft metals known for gumming up blades when used with the correct lubricant fluid.

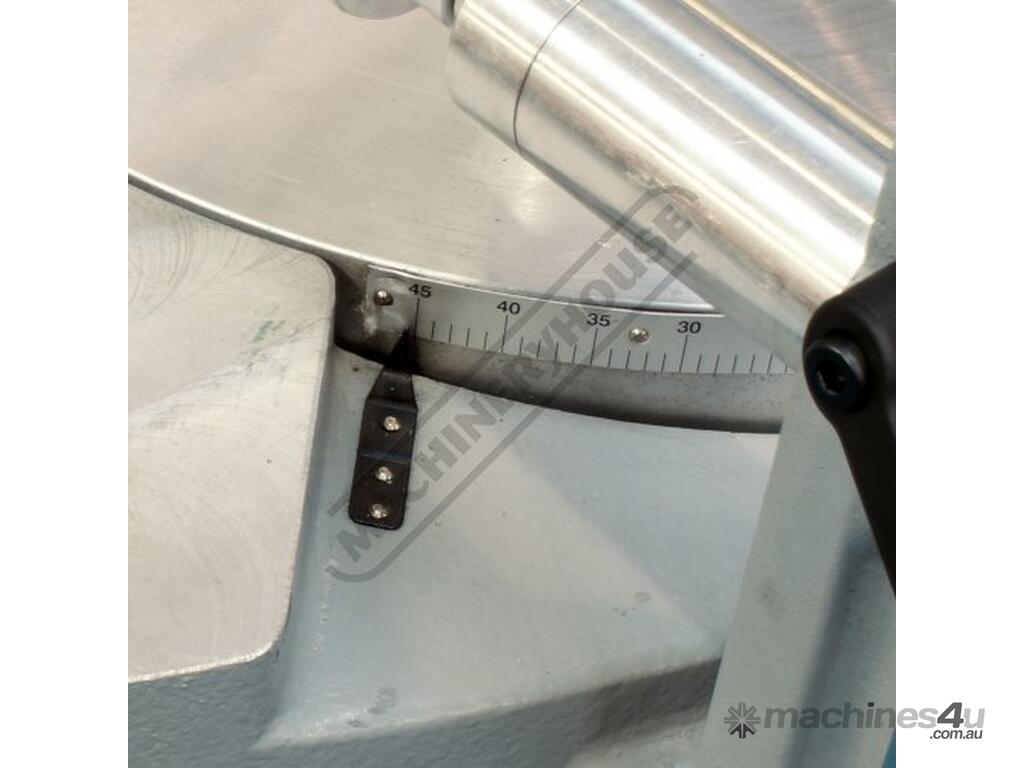

This saw has a maximum capacity of 100mm round at 90 degrees & 45 degrees, and the ability to mitre from 45 degrees left & right, and is also able to compound mitre 45 degrees to the left, making this the most versatile aluminium cutting saw on the market today.

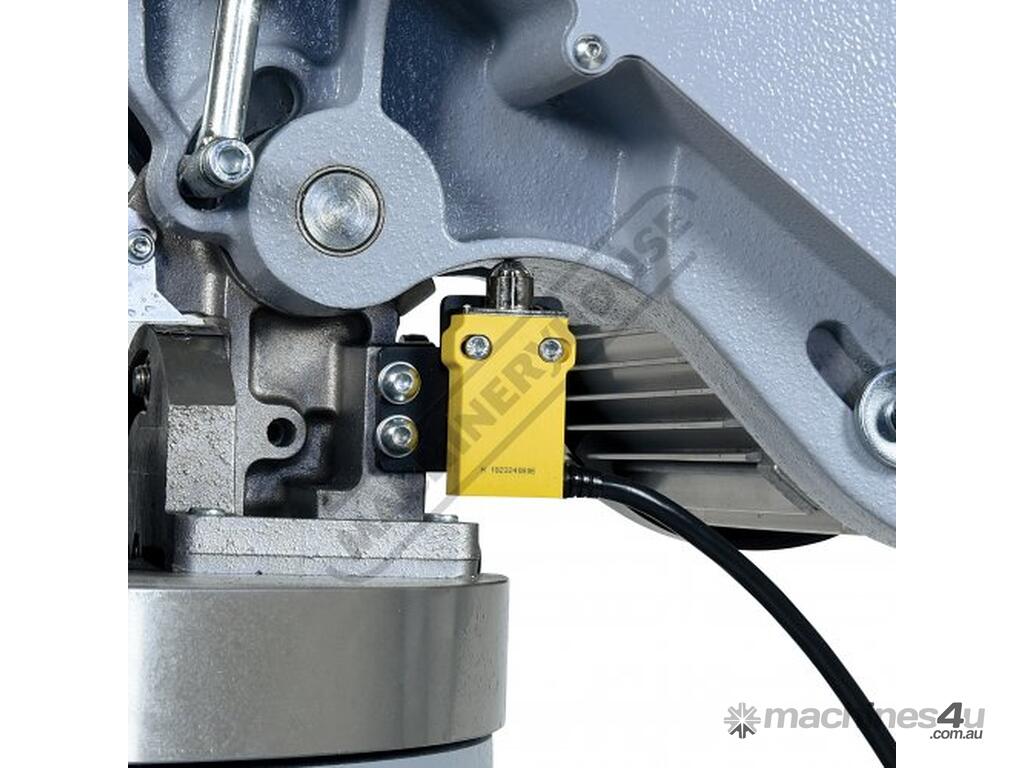

Operation of the ALU-350A saw could not be easier, with the machine powered up, simply place the material in position, flick the air clamp switch to auto mode, start the machine blade with the hand trigger switch, then manual pull the cutting head down to cut your material with ease, then simply lift the head back up to its home position to have the pneumatic air clamps automatically release material so you can cut your next piece. This machine also features a mist type coolant system to help prolong blade life and produce a clean cut.

Features:

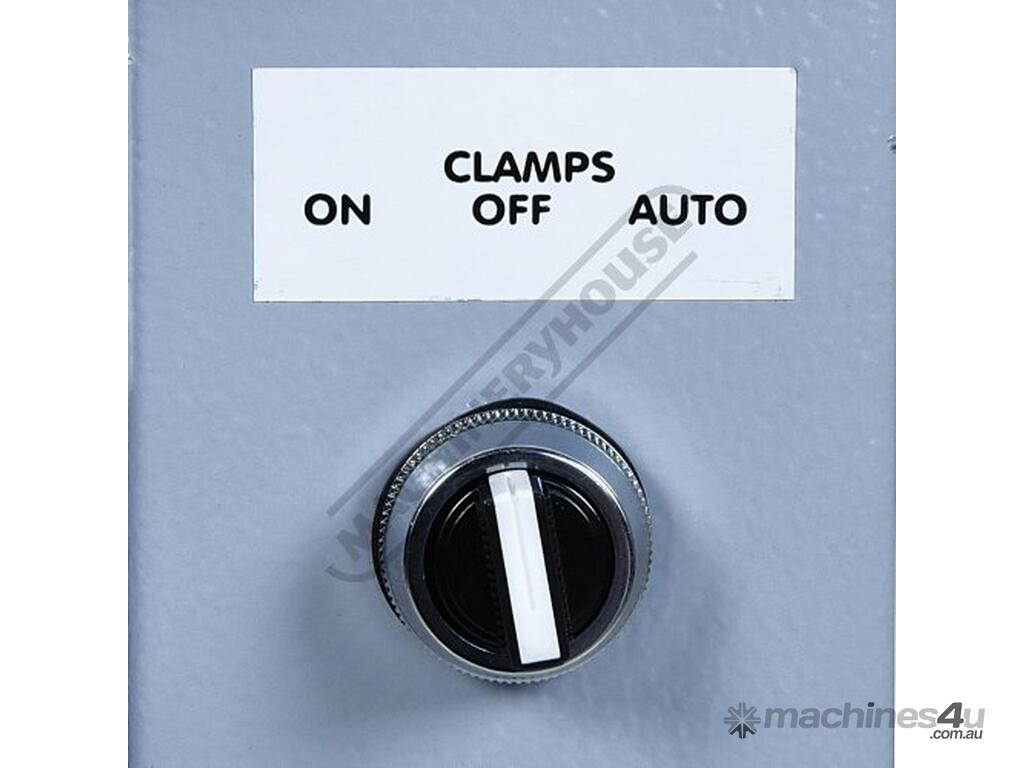

3-way material clamp switch - On & Off or Auto mode
Dual mitre 45º left & 45º right

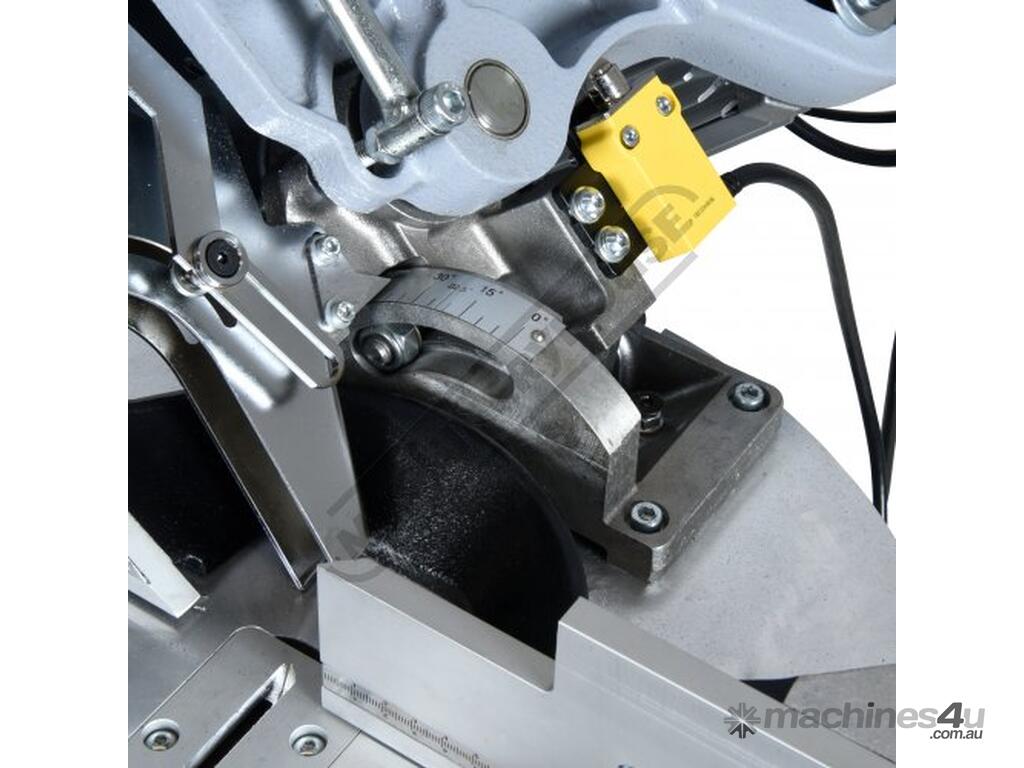

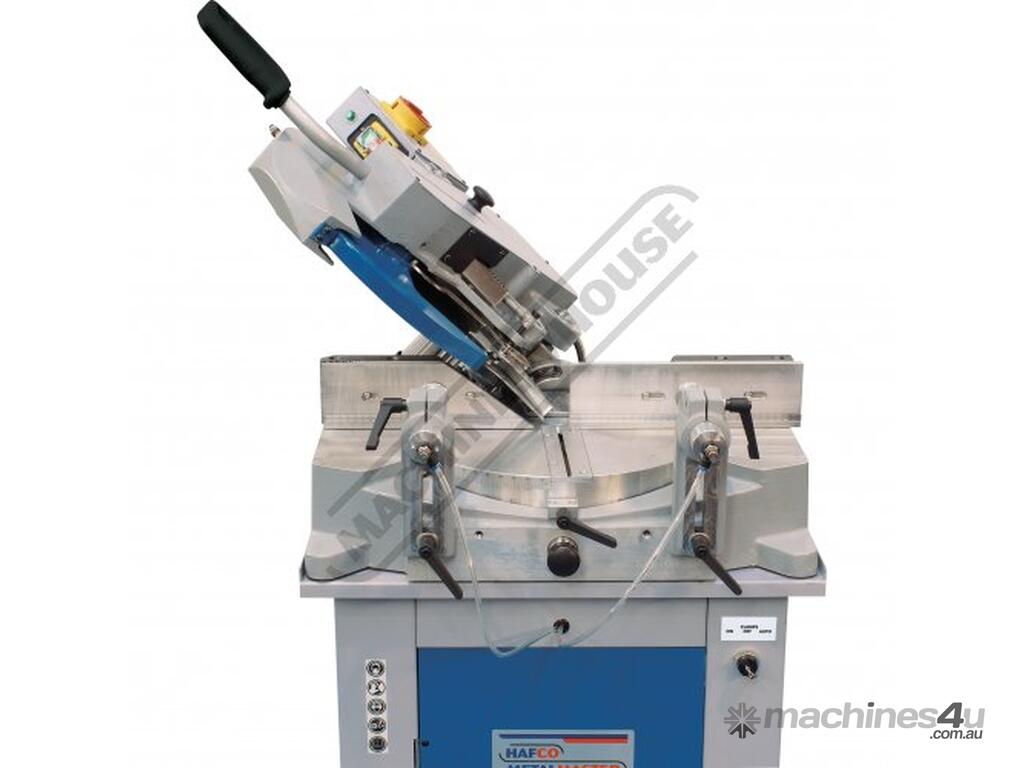

Compound mitre 45º to the left

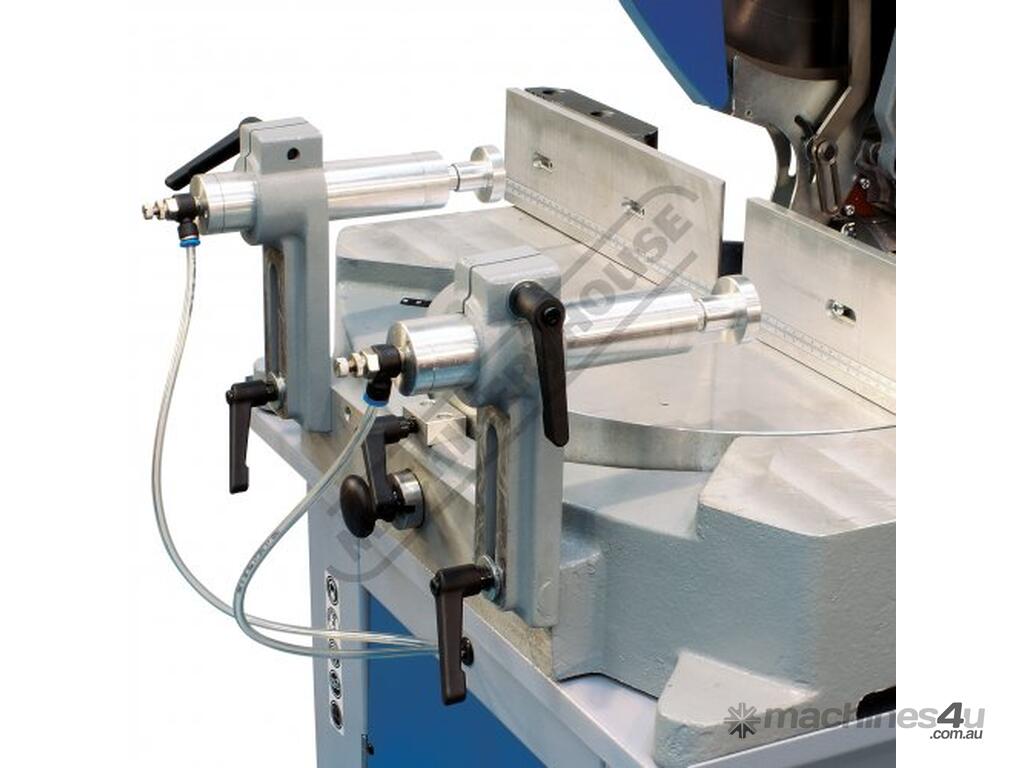

Adjustable twin material air clamps
350mm x 30mm x 120T tungsten carbide tipped blade
Quiet belt drive for smooth cutting

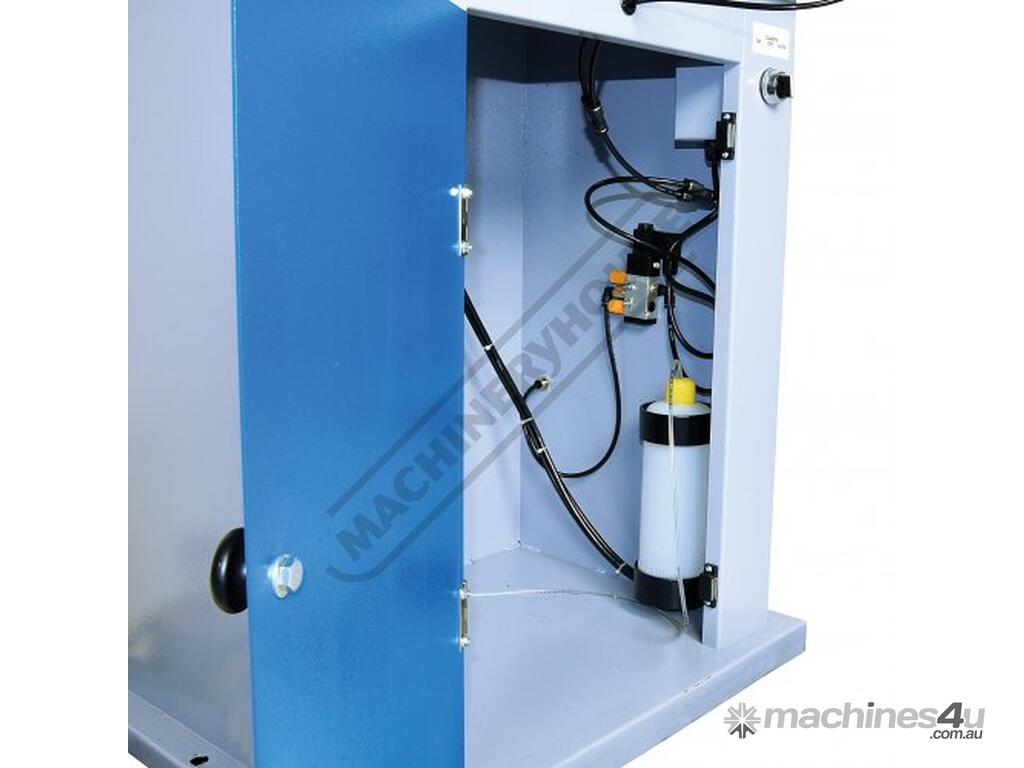

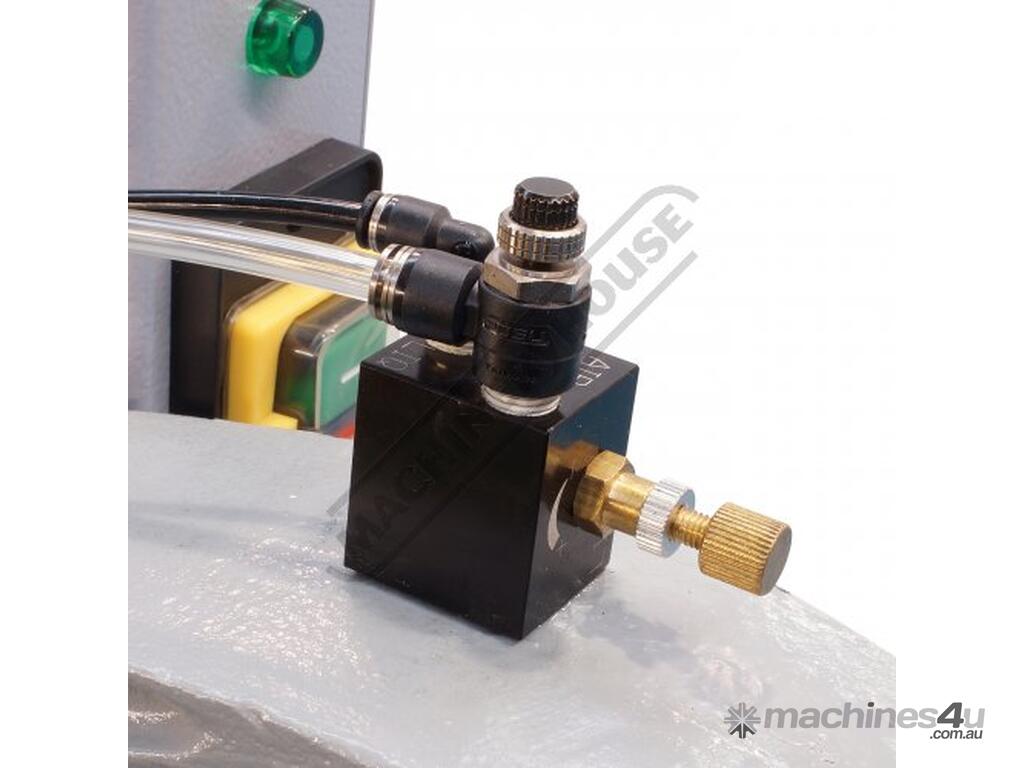

Spray mist coolant system

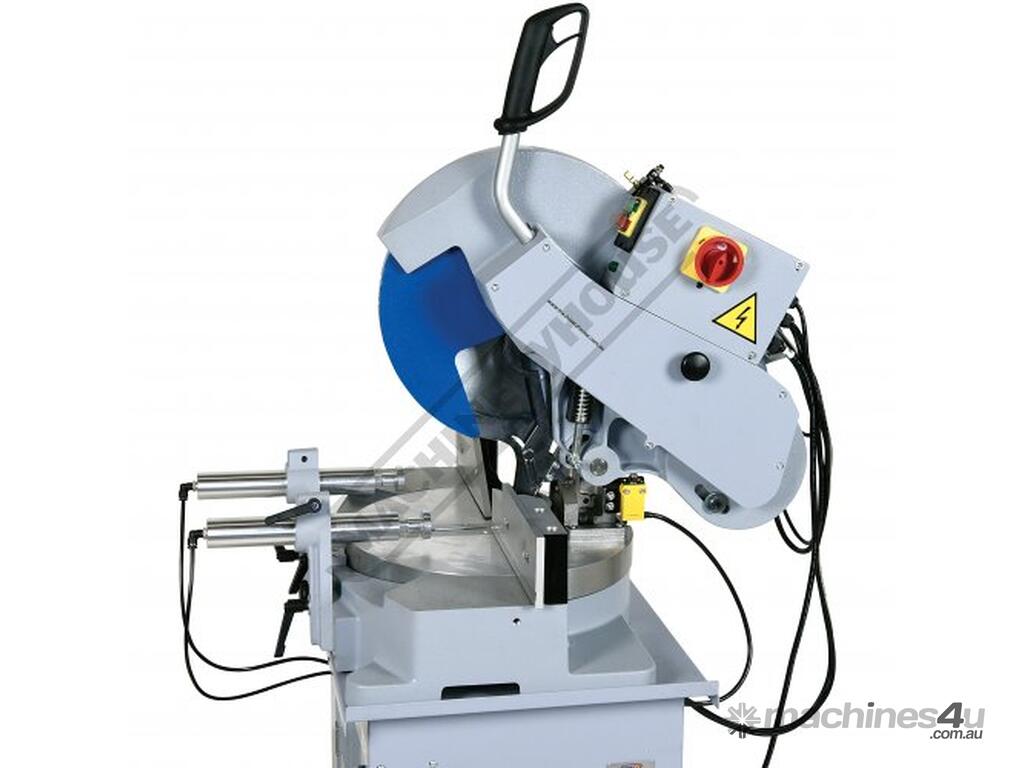

Dead man trigger hand switch

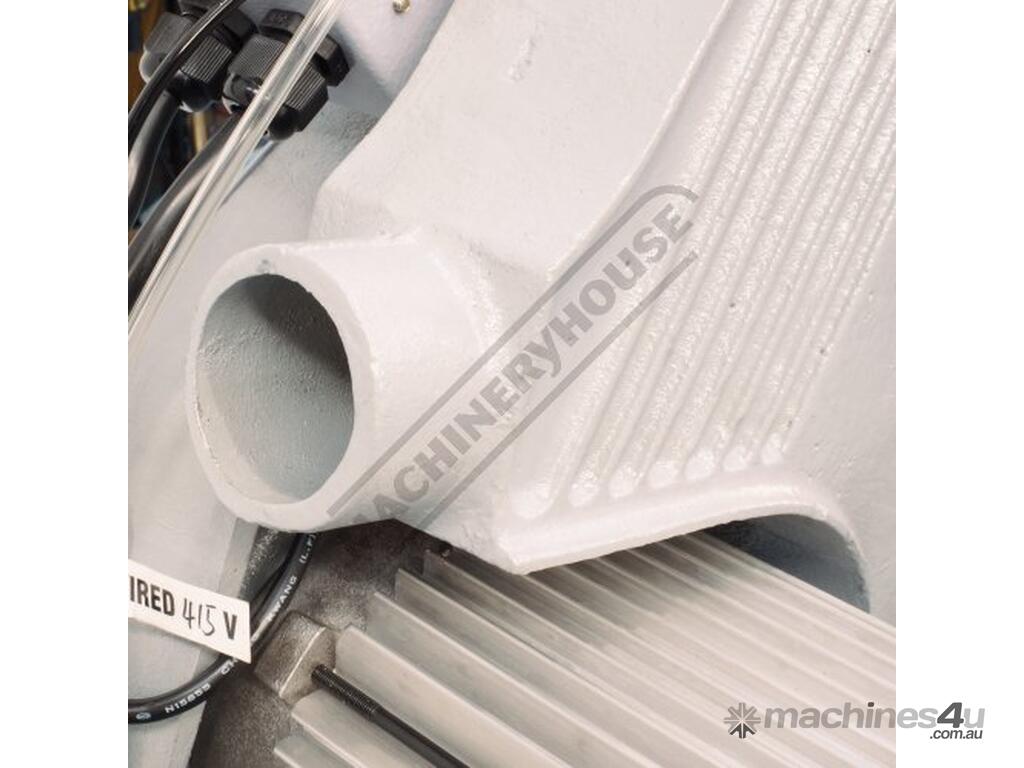

60mm rear swarf outlet port
Stand with storage cabinet
Cast aluminium base & guard
Safety magnetic switch

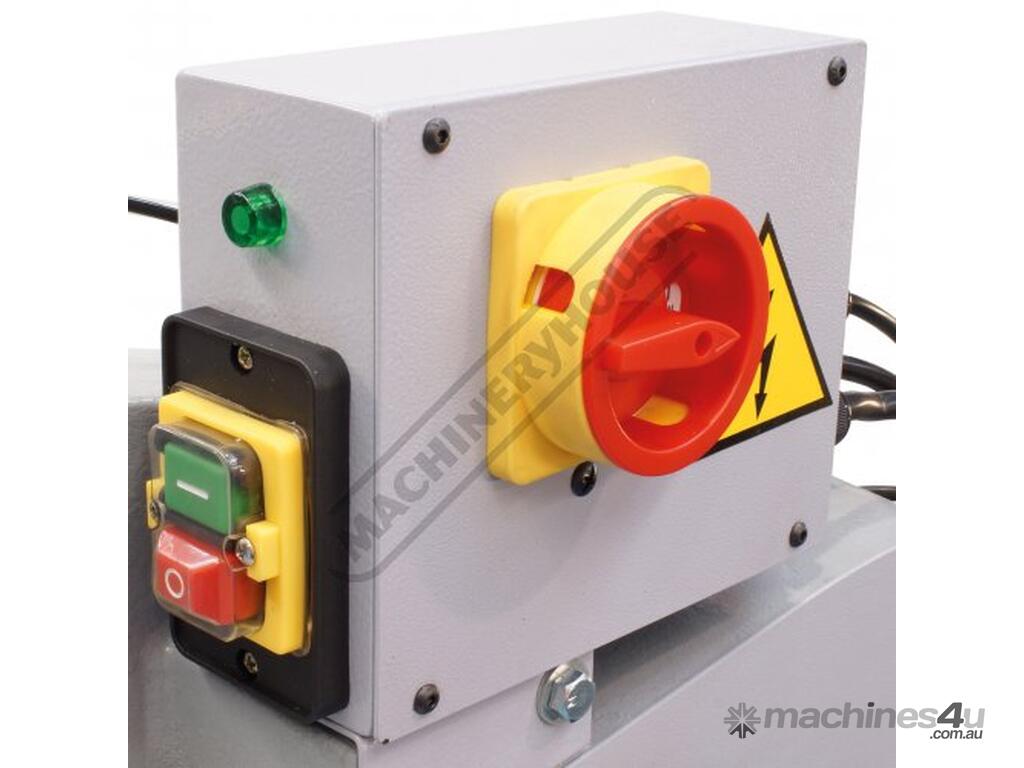

Pad-lockable isolation switch
1.5kW / 2hp 415V motor


Specifications:
ORDER CODE: S851
MODEL: ALU-350A
Cutting Head Action (Auto-Manual): Auto & Manual
Operation Type: Swivel - Dual Mitre &
Operation Type: Compound Left
Round Capacity 90º / 45º (mm): 100 / 100
Square Capacity 90º / 45º (mm): 100 / 100
Rectangle Capacity 90º / 45º (mm): 100 x 195 / 100 x 135
Compound Rectangle Capacity 45º x 45º (mm): 135 x 35
Compound Square Capacity 45º x 45º (mm): 70 x 70
Blade Size (D x B x T) (mm): Ø350 x 30 x 3
Number of Teeth (No.): 120
Vice Clamping Fixture: Pneumatic
Coolant System: Spray Mist
Table Working Height (with Stand) (mm): 885
Blade Speeds (rpm): 3300
Motor Power (kW / hp): 1.5 / 2
Voltage (V): 415
Machine Dimension (mm): 700 x 700 x 1400
Nett Weight (kg): 110
