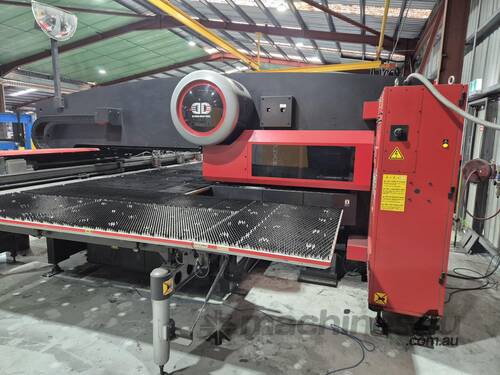

Machine in excellent condition with very low hours.
Reason for sale - upgraded to new auto loading machine.

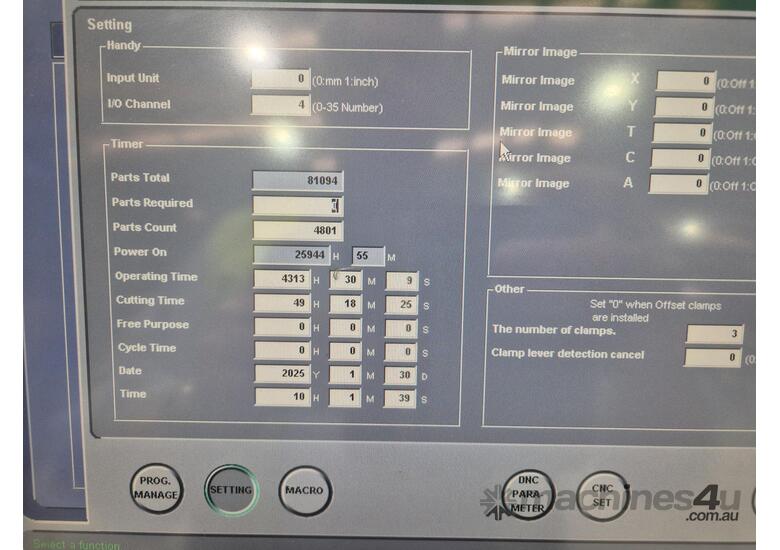

Operating hours - 4313h see pic below
Date of Manufacture: November 2013
Note - No tooling included.
Turret Capacity : 45 stn (4 Auto index) see layout in photos
Press/Force power - 30T
Press drive system: AC Servo direct twin drive
Stroke length: 37mm
Maximum material thickness: 3.2mm
Axis travel: 1525 x 2500mm
Axis speed: X100 m/min, Y80 m/min
Hit rate h/min-1: 500 - 5mm stroke, 25.4mm pitch
Hit Rate h/min-1: 780 - 5mm stroke, 1.0mm pitch
Hit Rate h/min-1: 1800 - 1.4mm stroke, 0.5mm pitch
Punching Accuracy: ± 0.1mm and in Mild mode ± 0.07mm
Maximum punch size: 114.3 dia
Weight 20T
