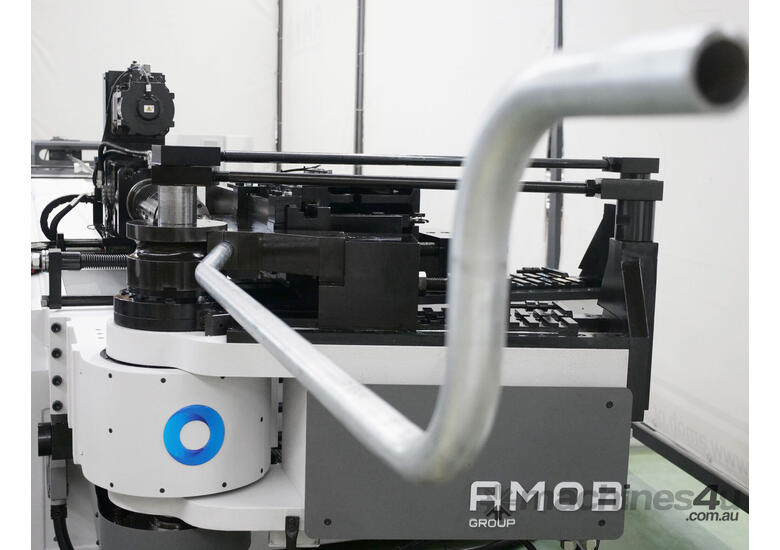

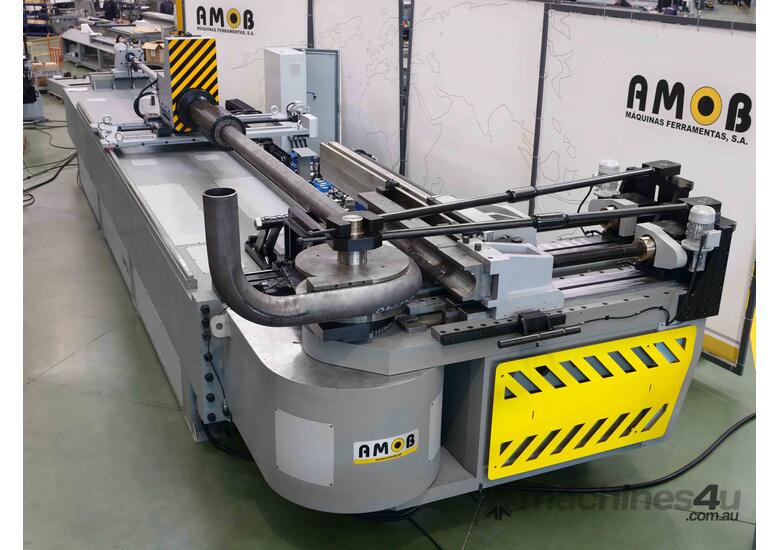

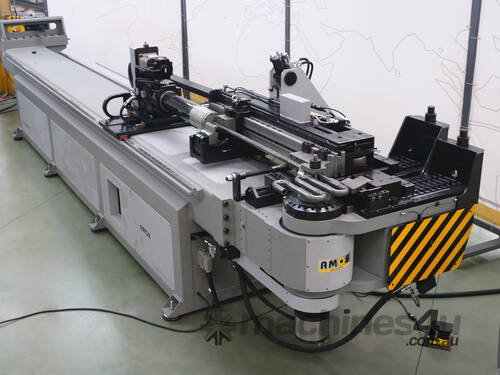

The CH-L series is the backbone of our tube and profile bending machines. Their rigidity, stability and untouchable
precision in exceptional conditions such as humidity or harsh temperatures is what makes them stand out from the
crowd.
Ranging from 10mm up to 120mm OD these machines are suited for use in a wide range of pipe manufacturing
sectors and industries. Available in different versions, there’s NC1, NC2 and fully CNC, where all three axis are automatic
in a single stack machine. There’s also the option to add welding detection, punching/cutting mechanisms and
integrated loading and unloading systems if necessary.
The CH-L series comes equipped with the AMOB NC touchscreen easy-to-operate controls, or in the CNC version, with
the latest user-friendly AMOB 3D bending software. This stores tooling configuration, allows spring-back compensation
and boasts anti-collision technology, amongst other features.
These multi-faceted models are easy to operate and suitable for almost all types of applications and industries.
3D imaging devices connection. Allows easy CAD comparison, dimensional analysis and reverse engineering.
Online diagnosis, AMOB CNC models permit online safe access for online diagnosis.
Special propose tooling. On request CH-L series may be equipped with punching unit.
Booster bending. The pressure die assist/booster cylinder is integrated into the pressure die carrier head.
Compound Tooling. Machined tube groove matching the contour of the previous bend.
Quick tool changing: In order to reduce setup times, all CH-HD machines feature quick tool changing.
Rear and front tube loading system: Integrated loading/unloading systems can also be added.
Motorized tool adjustment: CH-HD models can be equipped with motorized tool adjustment.
Specifications -
Max capacity - 114.3 dia x 8.6mm
X axis accuracy (CNC) - +/- 0.05mm
Y axis accuracy - +/- 0.1 degree
Max bending radius - 340mm
Machine useful length - 4000mm
