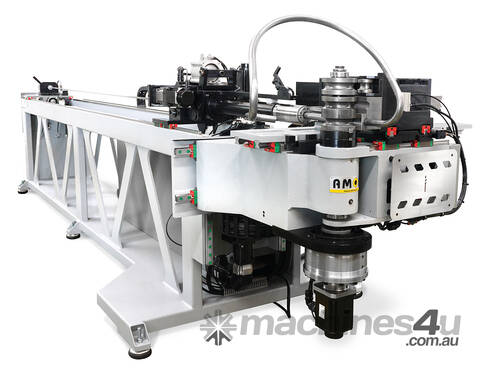

Fully Electric CNC Tube Bender – The eMOB 2BEND left / right Series

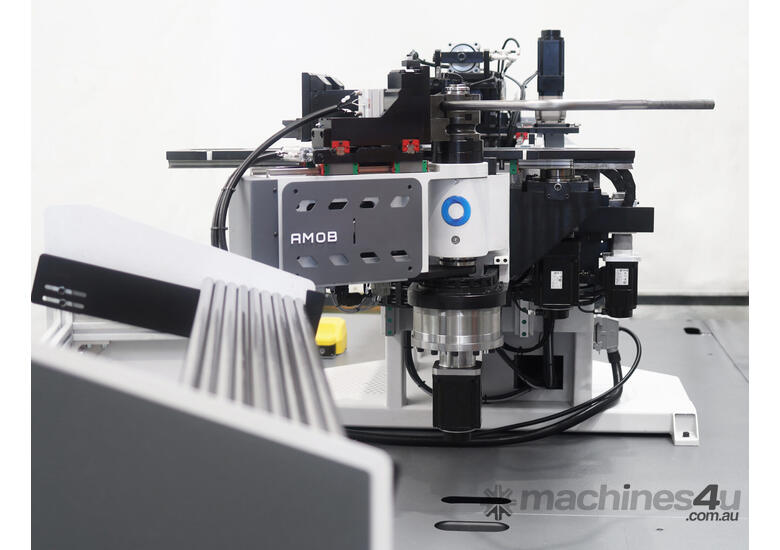

This range has, as its main feature, the change of bending direction through a
rotative head. It is capable of processing tubes from 5mm to 63mm outside diameter
(OD) and has multi-stack capability.
Our eMOB 2 Bend Series is defined as the excellence of tube bending, where quality
control, versatility and production accuracy are carefully studied and improved by our
team every day.

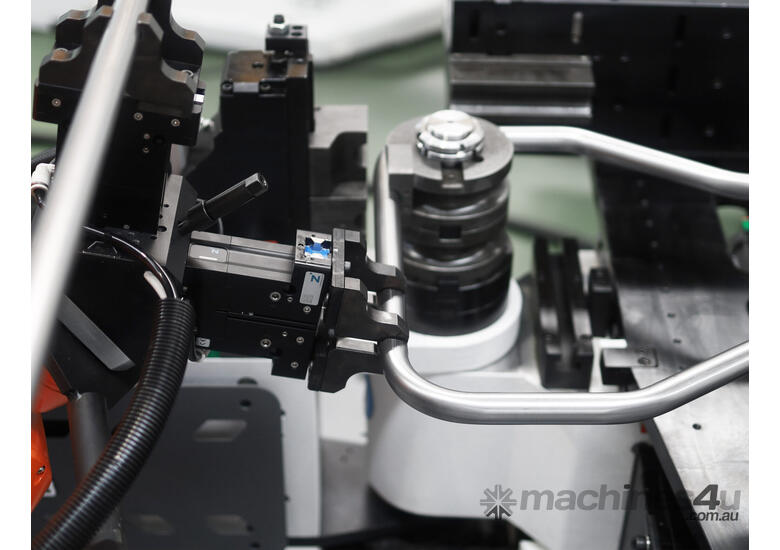

These machines, stand out for achieving a left/right bend in cycle, with wiper die
support, allowing to perform bends with quality and precision in tubes with tighter
bending radii and bigger Diameter/Thickness ratios.
The eMOB 2 Bend is the ideal solution for bending the most complex forms when
quality, reliability, and production optimisation are unnegotiable standards.

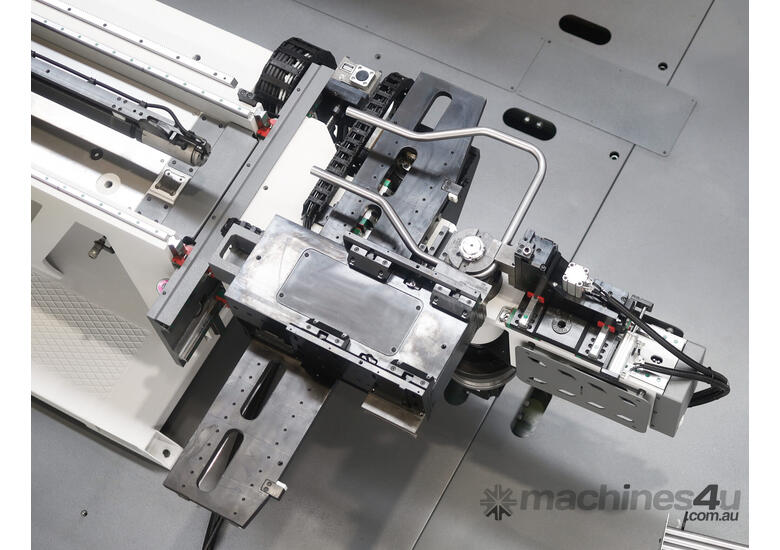

Our Right and Left in-cycle CNC tube bending machines can bend fixed and variable
radii within the same cycle and allows bend-on-bend parts.
A carriage booster allows bends with radii as tight as 1D, and reduces clamping marks.
Amongst other features it allows automatic spring-back compensation, as well as
“in-cycle” correction, stores tooling configuration and positions, runs anti-collision,
and interpolates all 11 axes.
Fully Electric
Environmentally friendly machine, you can reduce
your consumption by up to 70% and optimize your
production. Their servo motors have the highest rate of
energy efficiency and only use power when needed, with
immediate response and torque.
Speed
eMOB 2 Bend machines work at high speed with
complete control. Each and every axes are independently
controlled by absolute servo motors. These axes can be
fully synchronized and optimized to perfection.
“No matter how difficult
is the challenge we promise
that we will bend it with
eMOB 2 Bend Series!”
Waste Reduction
The in-cycle spring-back compensation prevents trial
and error operations, eliminating waste and testing
periods during the tooling change over process. Ideal for
high-accuracy sectors and small batch productions.
Service and Diagnostics
All machine activity is constantly monitored by an electronic
motion control system, which provides information on the
state of the machine, instructions, any warning messages.
Our online technicians are always available for remote
access to customer machines, and are able to diagnose
and correct issues as soon as they arise.
“The most technological,
versatile and agile machines
on the market.”
Specifications -
Max capacity - 35 dia x 2mm
Controlled axis - 11
X axis accuracy (CNC) - +/- 0.05mm
Z axis accuracy - +/- 0.05 degree
Max bending radius - 150mm
