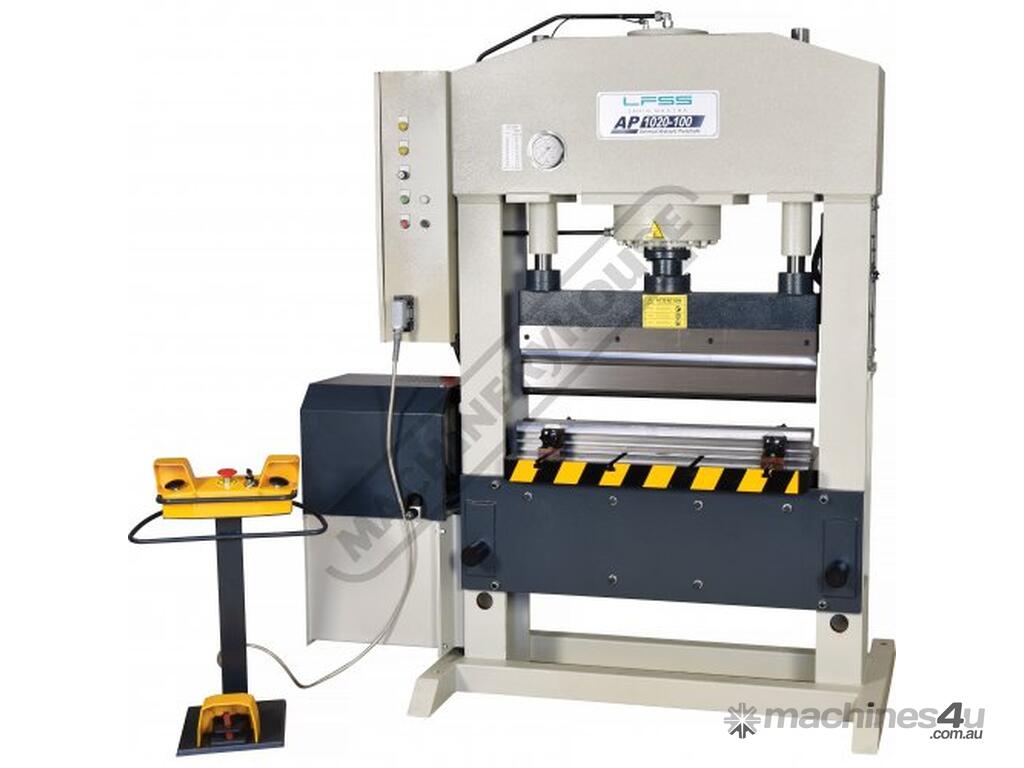

LFSS AP-1020/100 Industrial Motorised Hydraulic Press Bender - 100 Tonne 10hp 415V Motor & 300mm Ram Stroke Includes Multi Vee Pressbrake Attachment, Pressure Gauge & Foot Pedal Control
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: P136P
100 tonne Hydraulic Press Bender Includes a Pressbrake Attachment
Note: Pressbrake attachment can be removed to use as a standard shop press
Features:

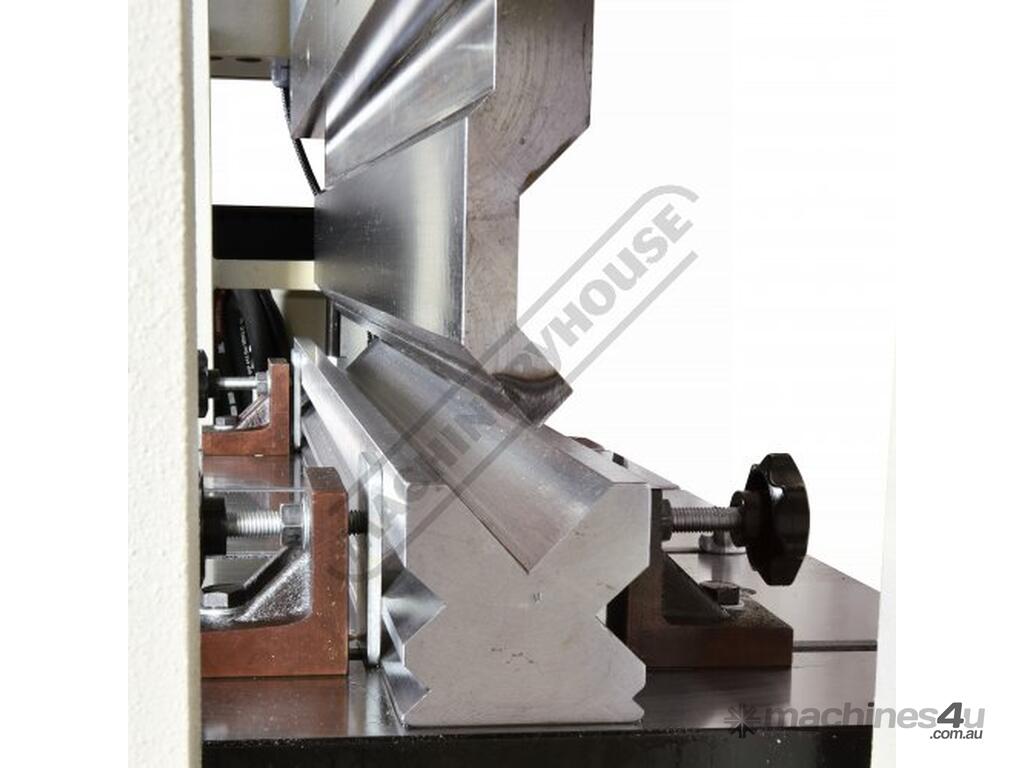

1020mm x 86° offset top punch tool

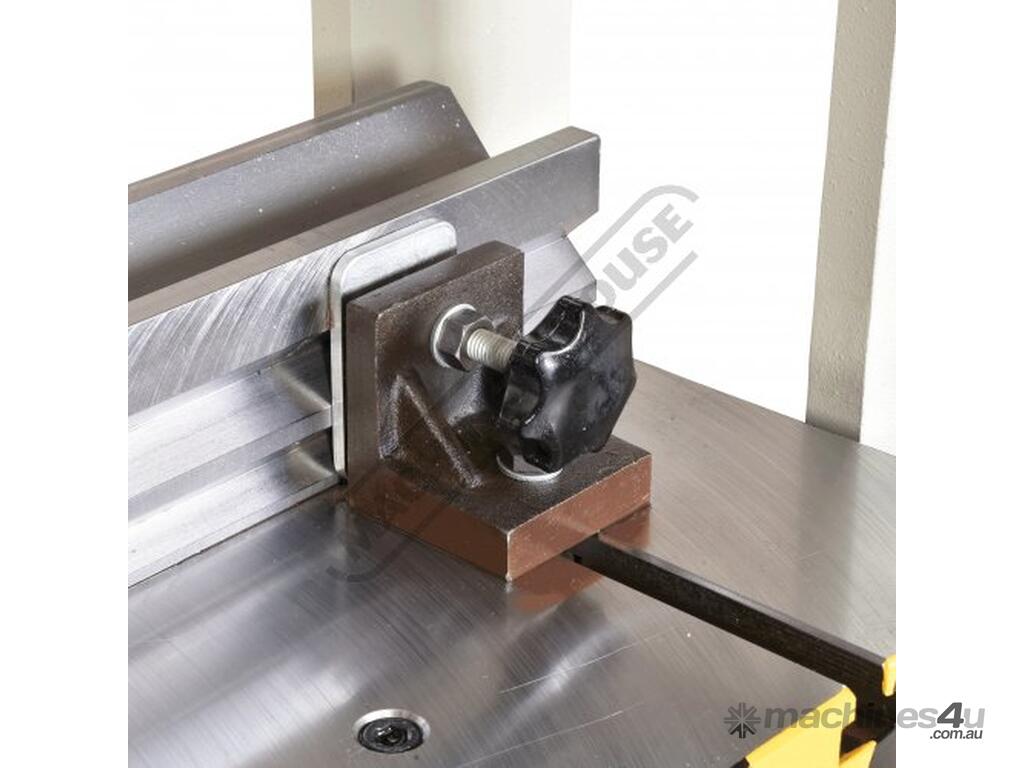

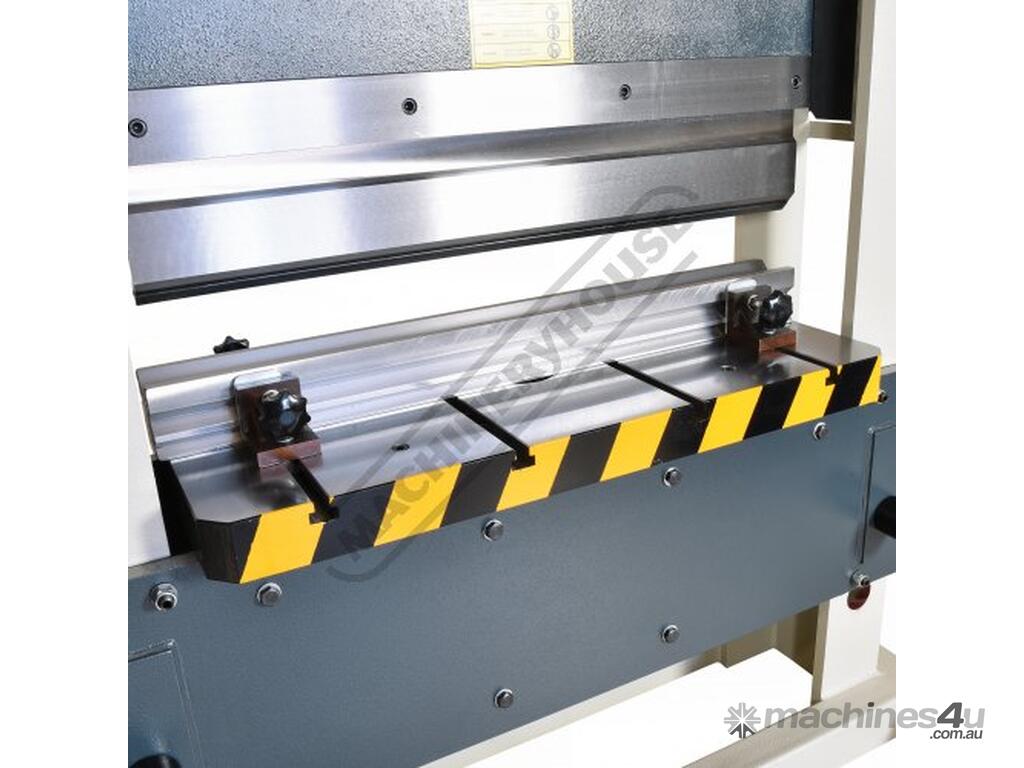

1020mm x 95mm square bottom multi-vee die block 40 & 65mm vee
8mm maximum plate bending thickness with pressbrake attachment
1020 x 500mm die table with a Ø100mm centre hole
680mm distance between tables
Fast approach slow bend

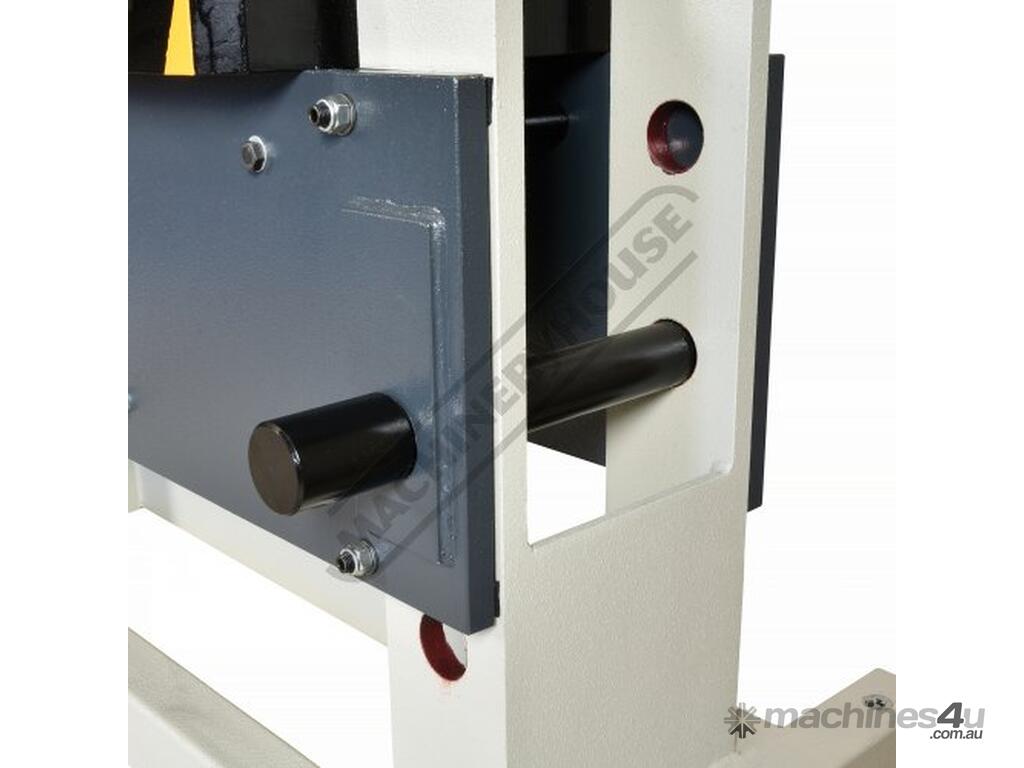

Adjustment system for taking down or up the table
Pressure adjustment

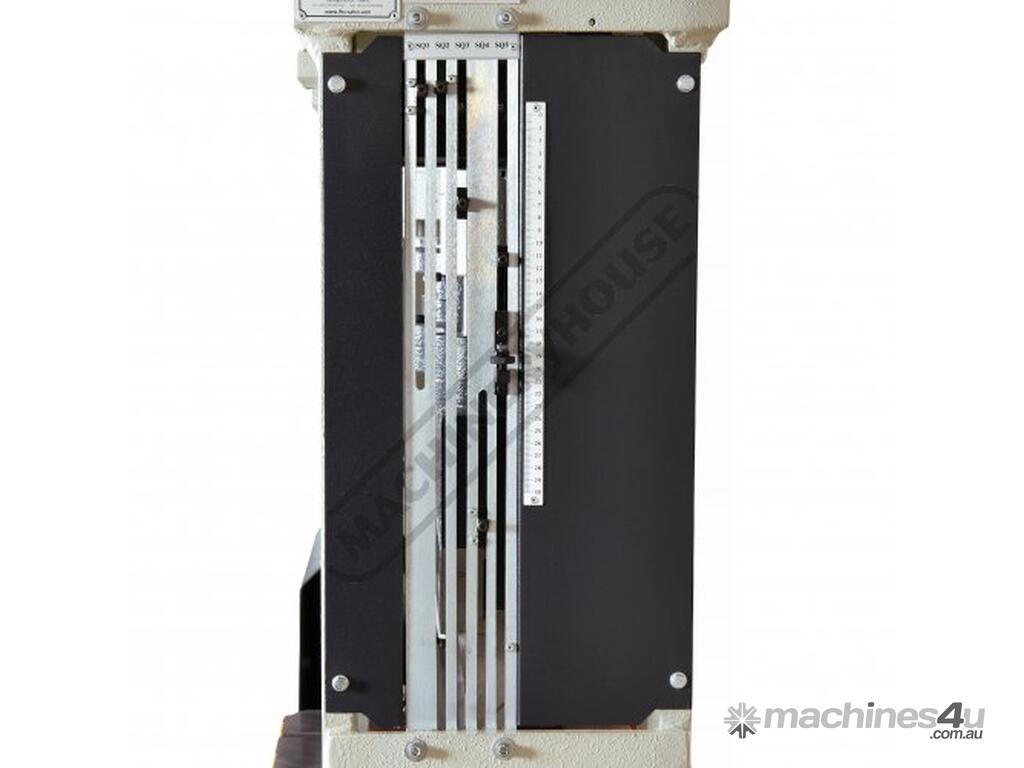

Adjustable stroke
T-slotted bottom table
High capacity workshop forming press with extra 2 guide pistons in both sides

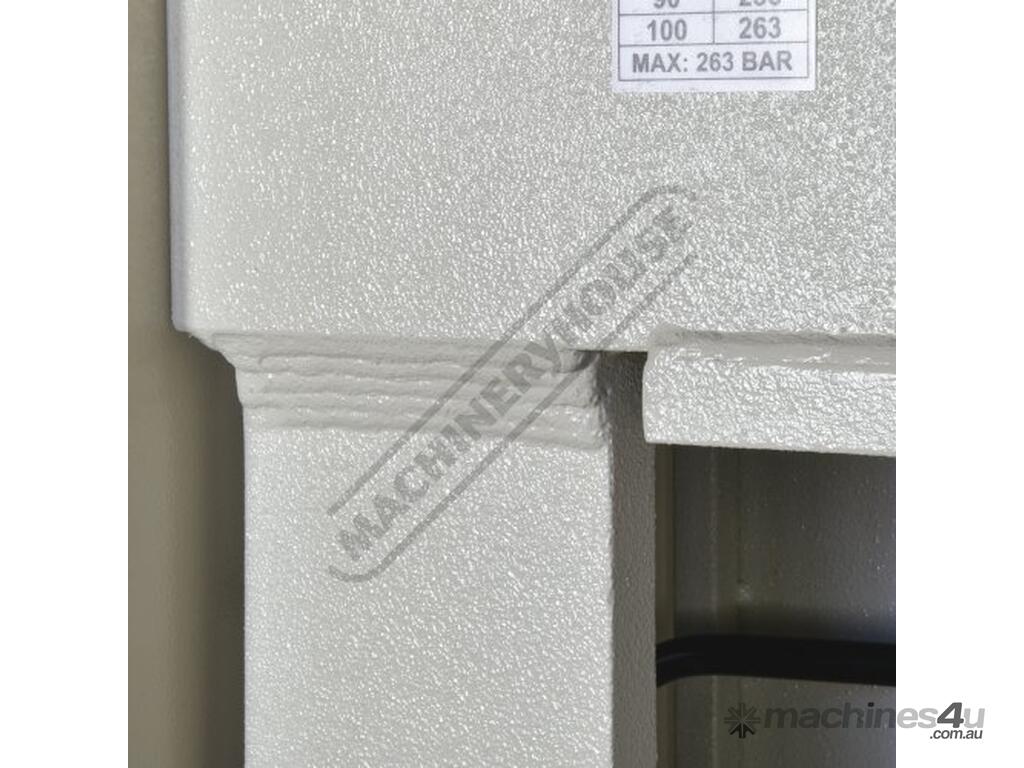

Heavy duty steel welded frame

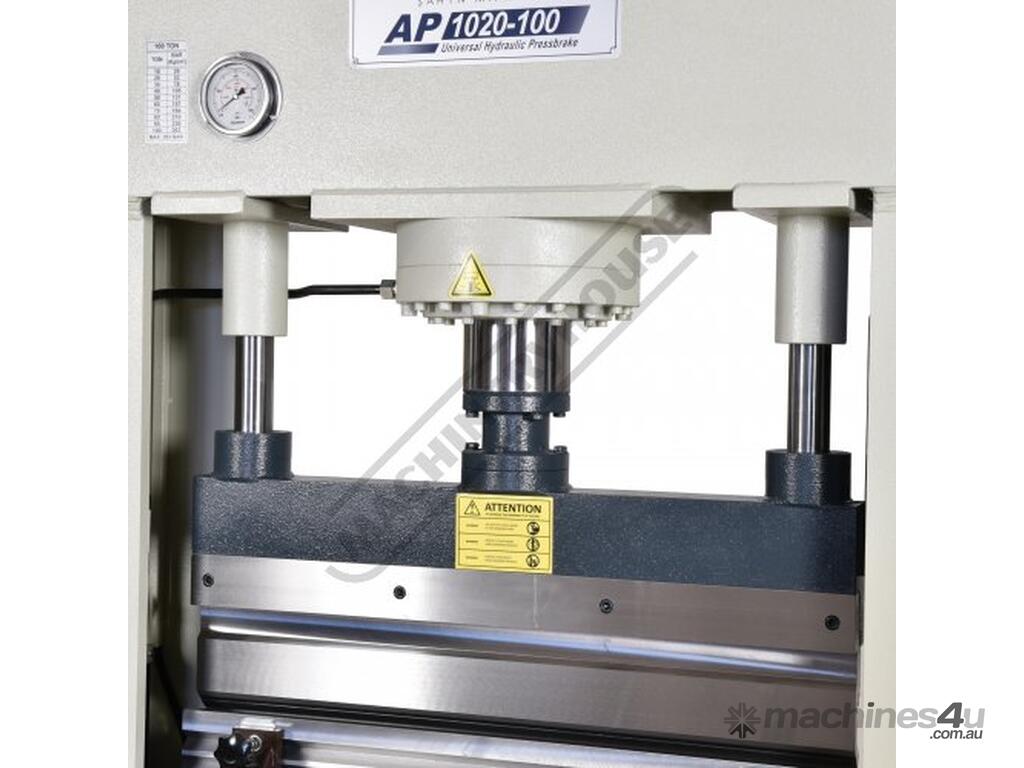

Hydraulic operated pressing ram

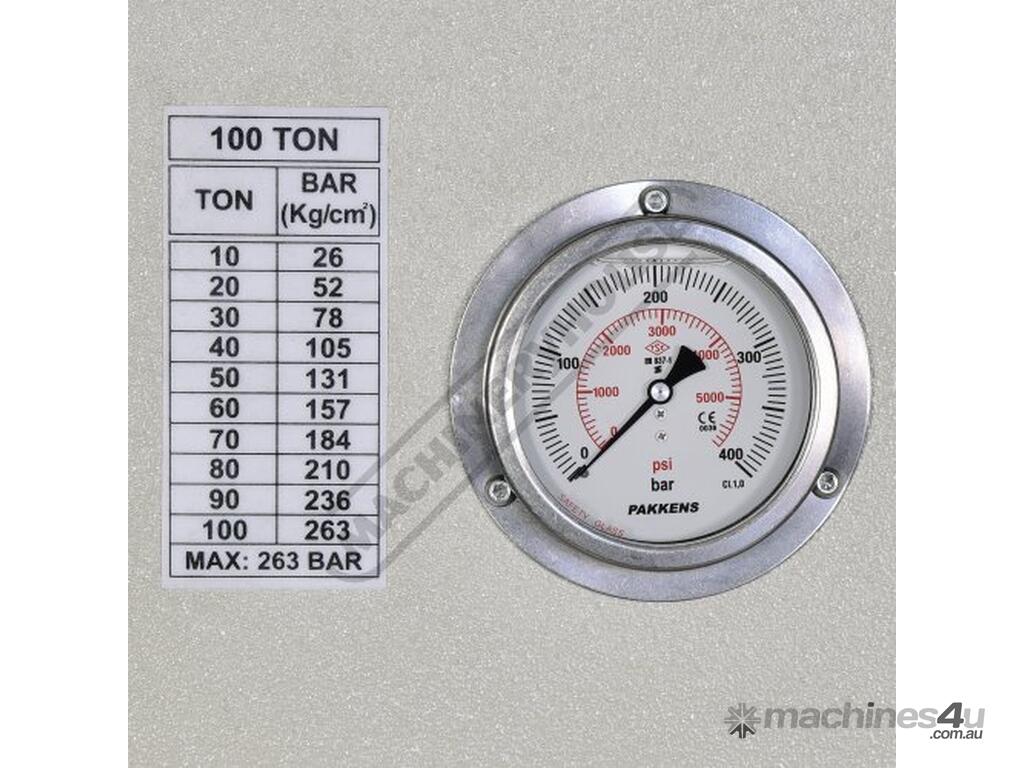

Pressure gauge fitted
Safety overload valve
Built to CE regulations

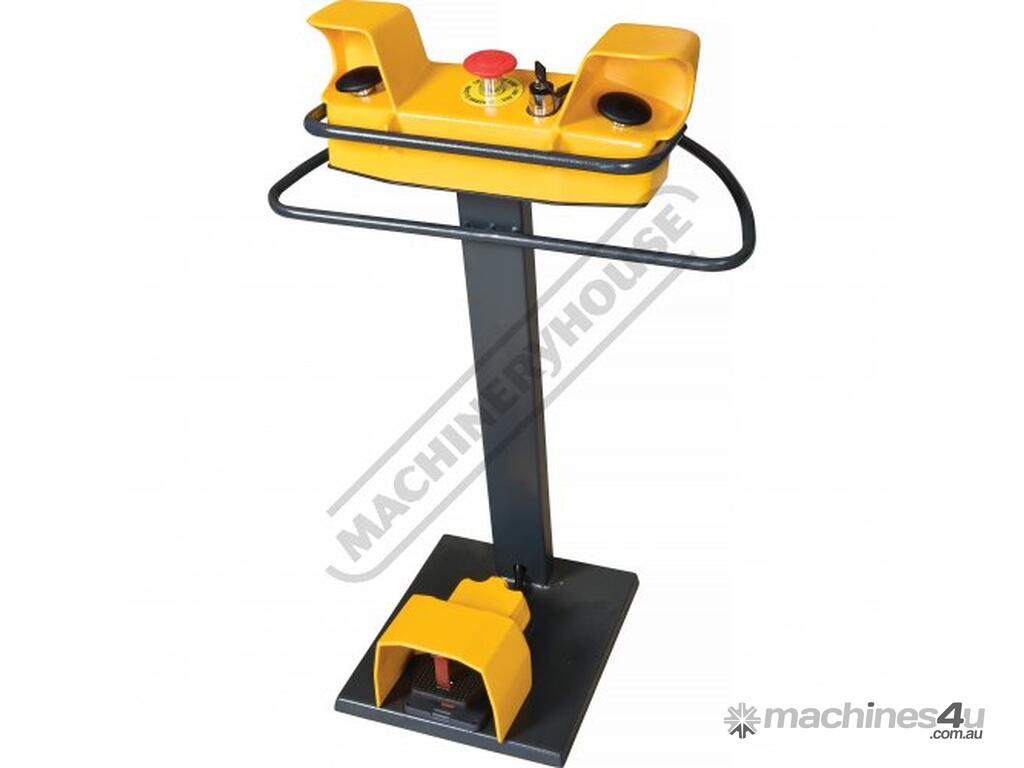

Foot Pedal control

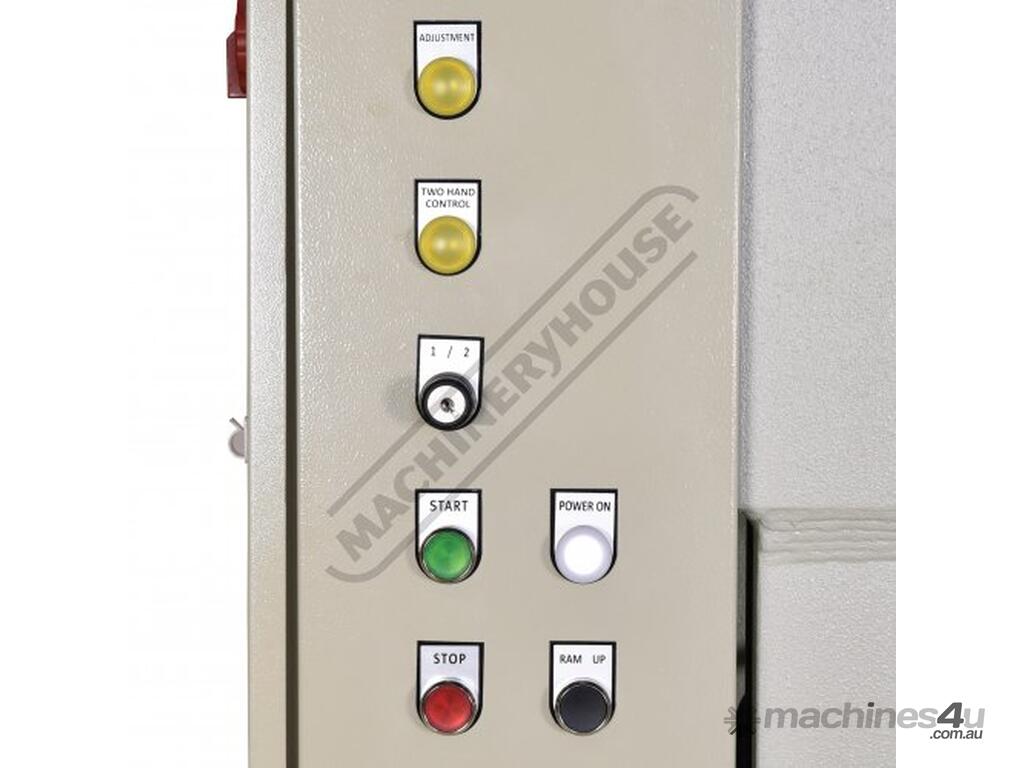

Safety contactor switch with overload protection
8mm/sec Fast Approach
5mm/sec Working Speed
10mm/sec Return Speed
Pre-Commissioning:
1. Press is run & tested prior delivery
2. Hydraulic oil is included with machine
Includes:
- Complete with Pressbrake Attachment
Specifications:
ORDER CODE: P136P
MODEL: AP-1020/100 - Pressbrake
Pressing Capacity (Tonne): 100
Hydraulic Ram Operation (Type): Motorised System
Hydraulic Ram Operation (Type): ~
Sliding Ram (left-right) (Yes / No): No
Width Between Front Posts (mm): 1020
Width Between Side Posts (mm): ~
Table Top Opening - (Front to Back) (mm): ~
Ram To Table (Max.) (mm): ~
Cylinder Stroke (mm): 300
Ram Diameter (mm): Ø220
Piston Diameter (mm): ~
Minimum Air Flow Rate required (L/Min): ~
Motor Power (kW / hp): 7.5 / 10
Voltage (V): 415
Floor Space (W x D x H) (mm): 2100 x 1050 x 2220
Nett Weight (kg): 1900
