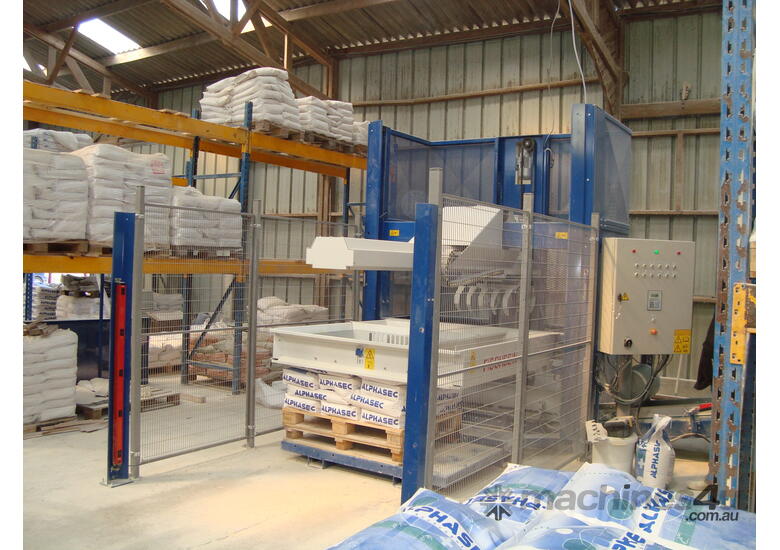

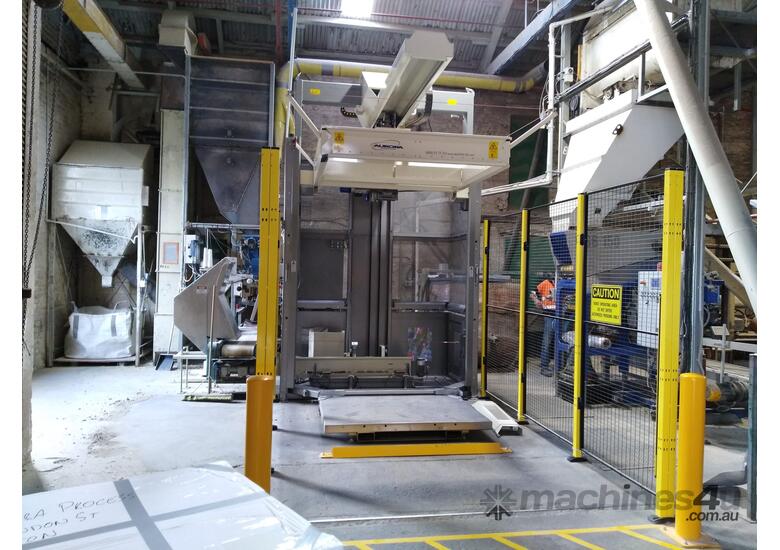

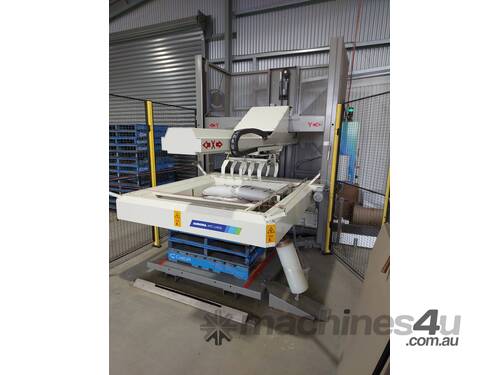

APC-L10 Conventional Palletizer

Reduce labour, downtime and health and safety risks by eliminating manual handling of bagged product. This palletizer uses what’s called a conventional style palletizing system.

These units are simple, robust, uncomplicated and very effective for applications up to 800 bags per hour. Aurora’s conventional palletizer is very economical when it comes to valuable space. The compact construction means that it can easily replace most manual operations without requiring additional floor space. Its versatile design enables you to feed empty pallets to the palletizer from three sides, increasing options for positioning in your packing area.

CAPACITY: Up to 800 bags per/hour
BAG TYPE: 5-60 kg bags
INDUSTRY: Construction Products, Fertilizer & Lime, Grain & Seed, Landscape Products, Milling, Stockfeed

Features:
Simple 5 axis mechanical conventional style action providing very reliable maintenance free operation
Able to accommodate a wide range of pallet sizes (standard unit will accommodate pallets from 0.8m² to 1.6m²)
Bags are stacked within a support frame ensuring stack uniformity
These units can stack up to 2.3m high for export palletising
Max palletising rate of 800 cycles per hour
Versatile machine that can be used for multiple bag sizes, materials and products
Allows a stack of pallets to be placed in the machine to increase efficiencies by reducing pallet handling operations
Able to be combined with full automation options such as pallet dispensers, pallet conveyors, pallet wrappers etc
Very compact space saving design
Simple intuitive PLC control for ease of use
Service scheduling and preventative maintenance
Full technical support and factory trained technicians

Options:
Pallet dispensing – optioned automation of pallet feed and discharge increases production and reduces forklift movement
Pallet Wrapping – full wrapping options from an integral wrapper included in the stacker frame to inline rotary wrapping
Top sheet applicators
Conveyors amd accumulation – powered pallet systems and accumulation options to suit varying layouts and space availability

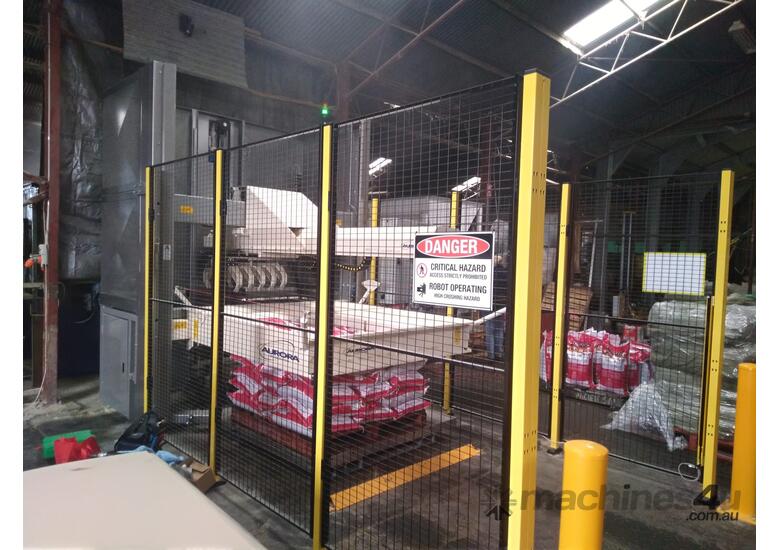

Guarding – complete hazardous area requirements for personnel safety

Get in touch with Aurora today to learn more about our range and simplify your business processes.
