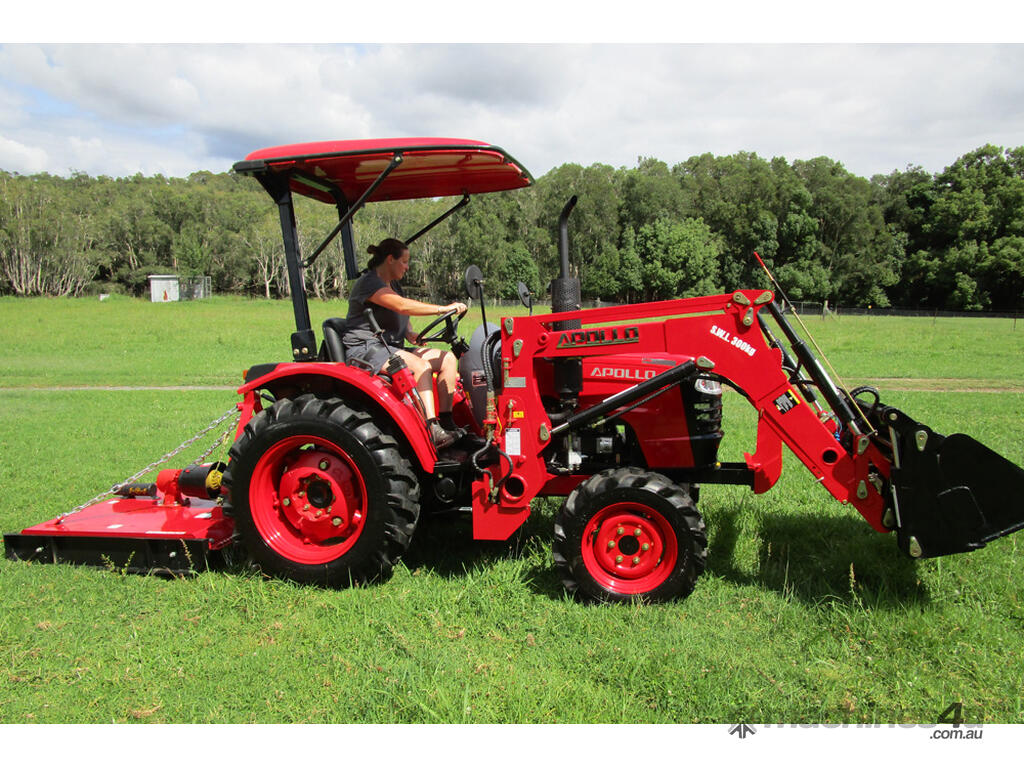

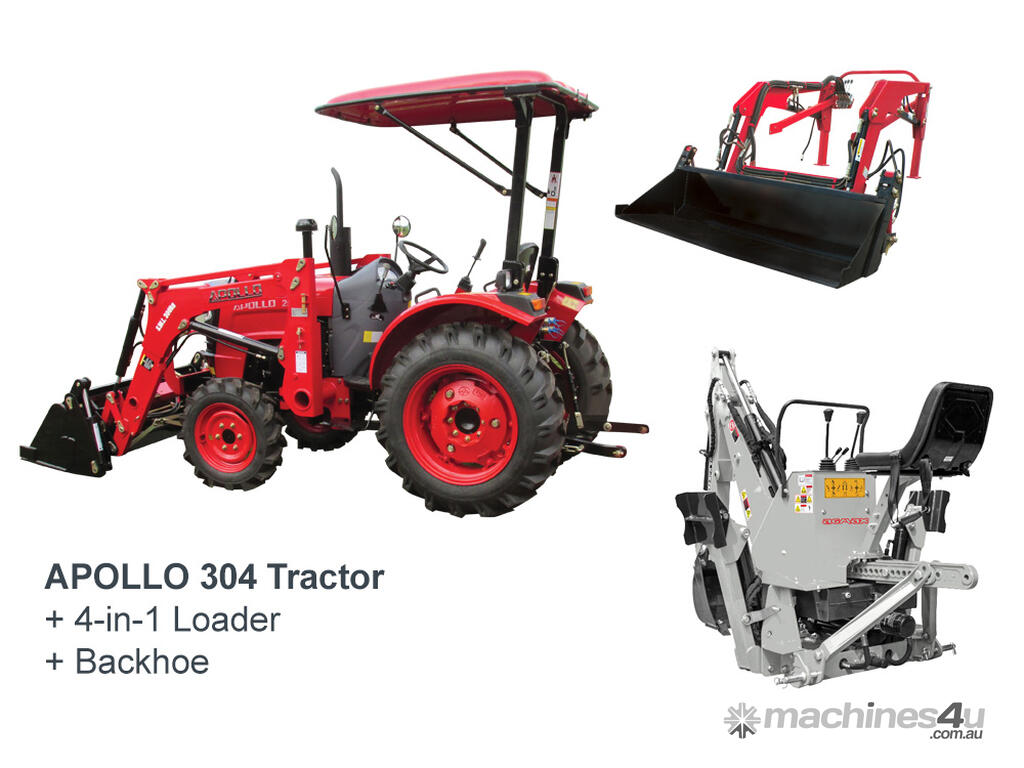

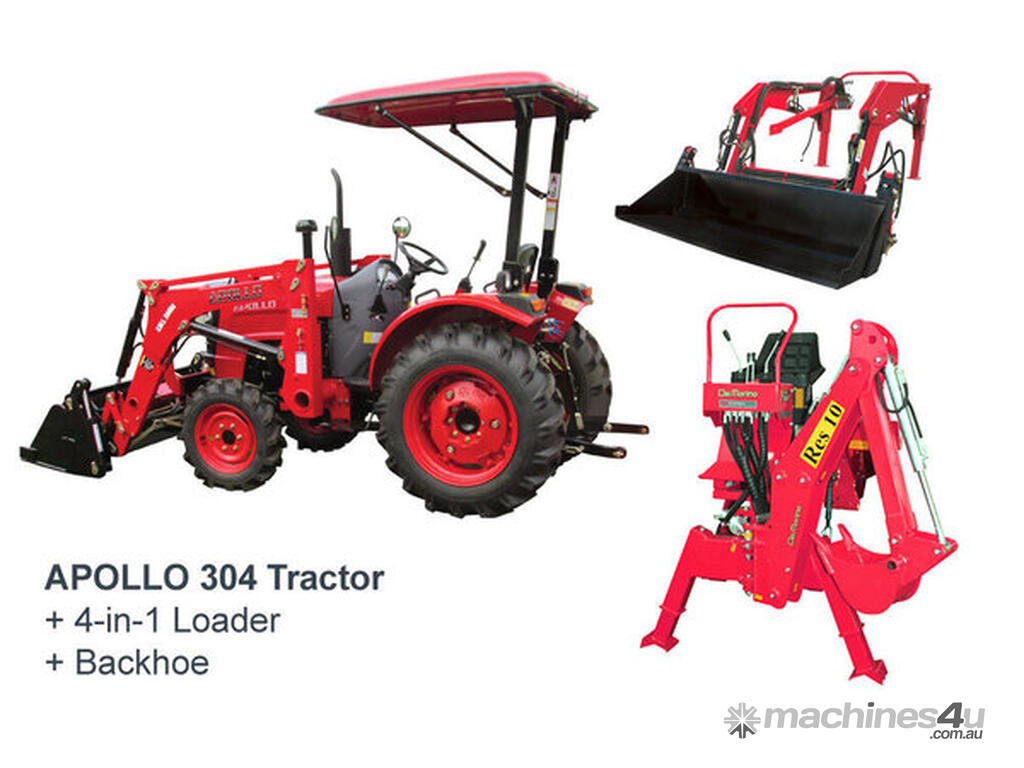

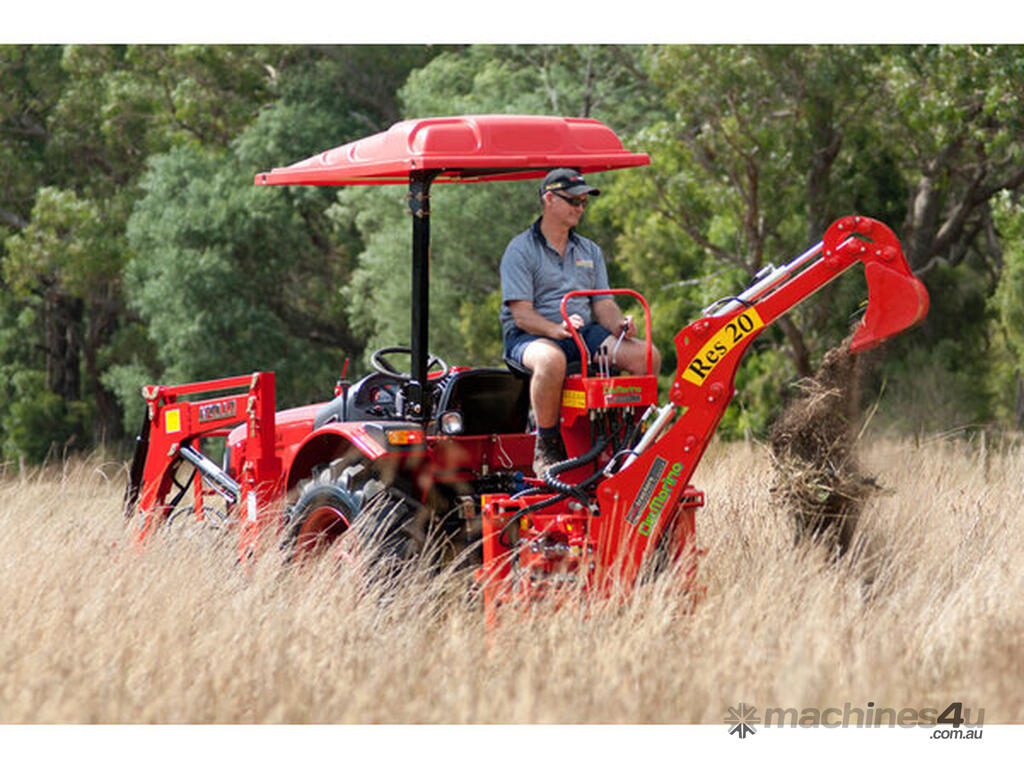

APOLLO 30hp 4WD Diesel Tractor + FEL + Backhoe

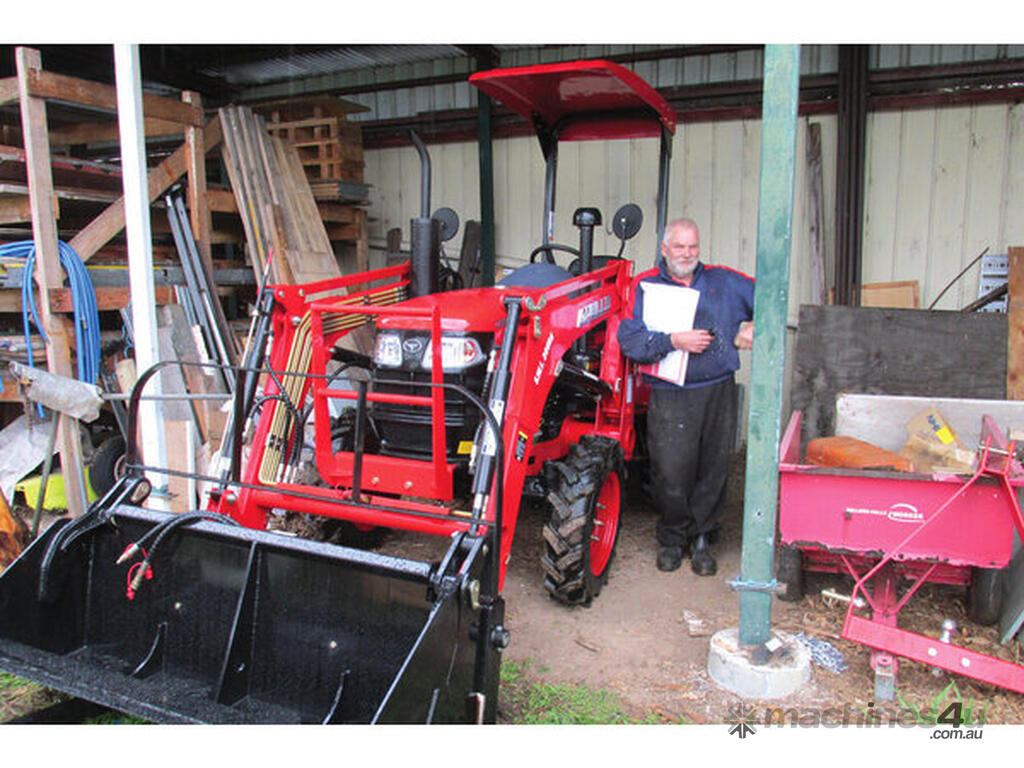

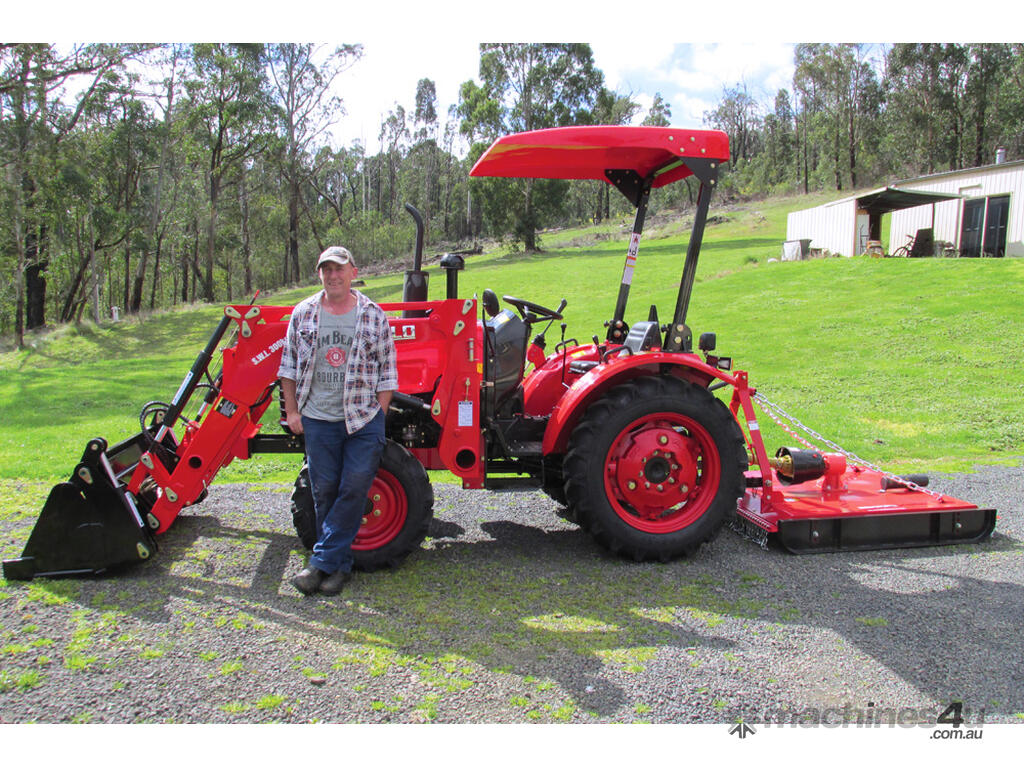

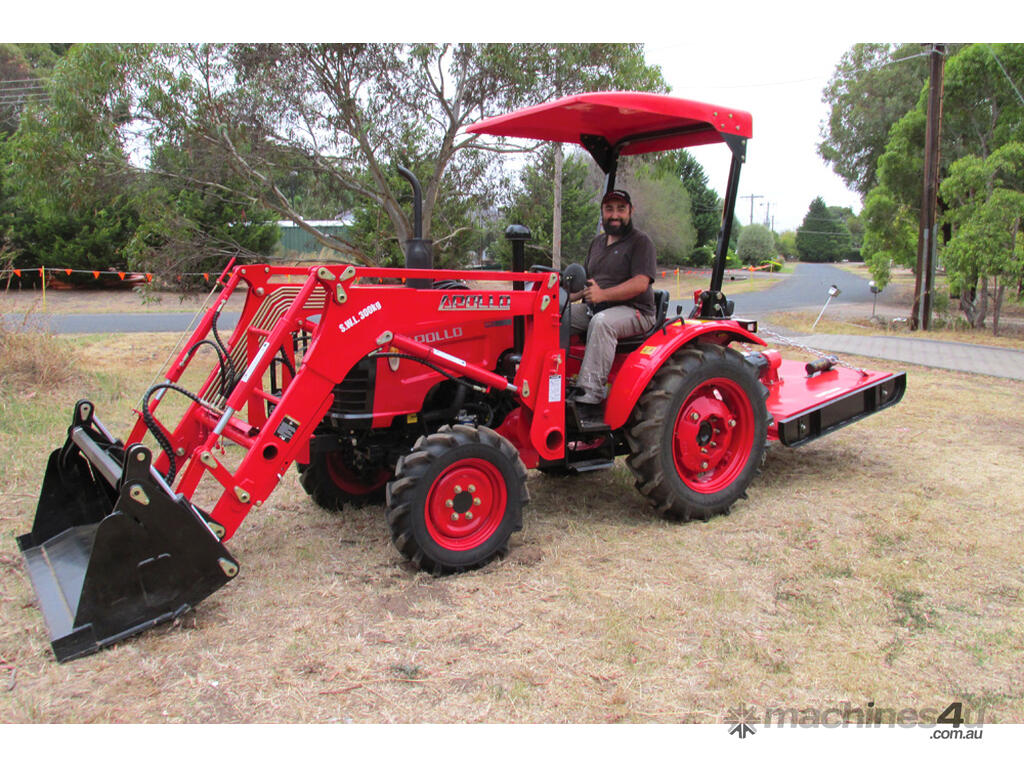

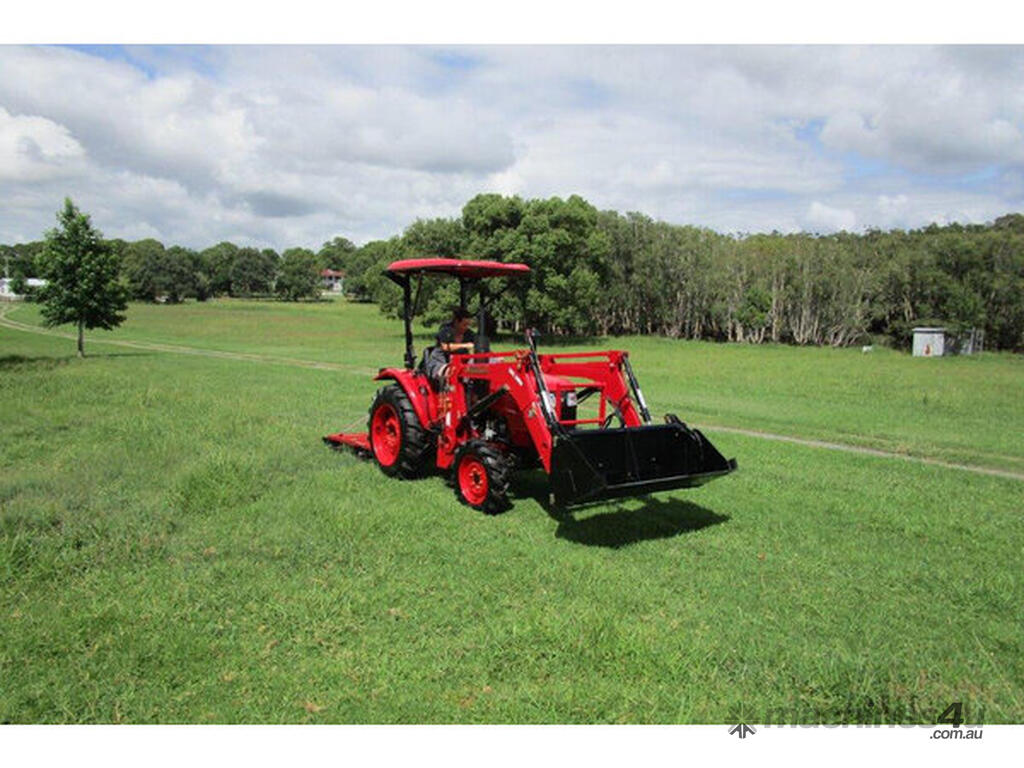

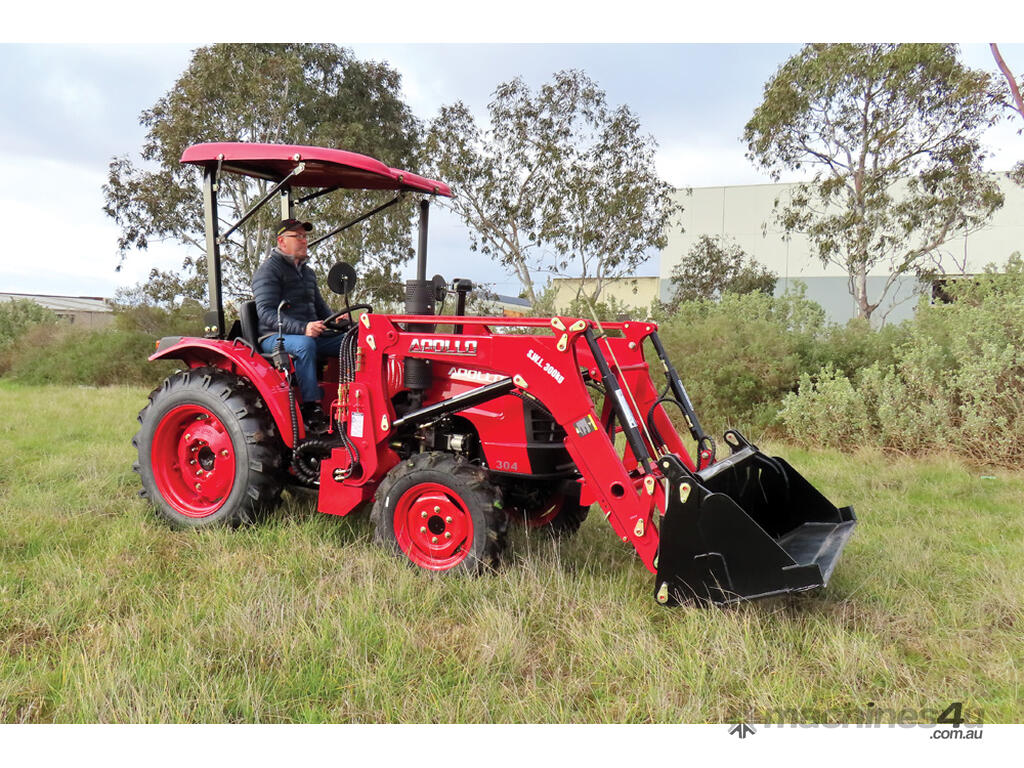

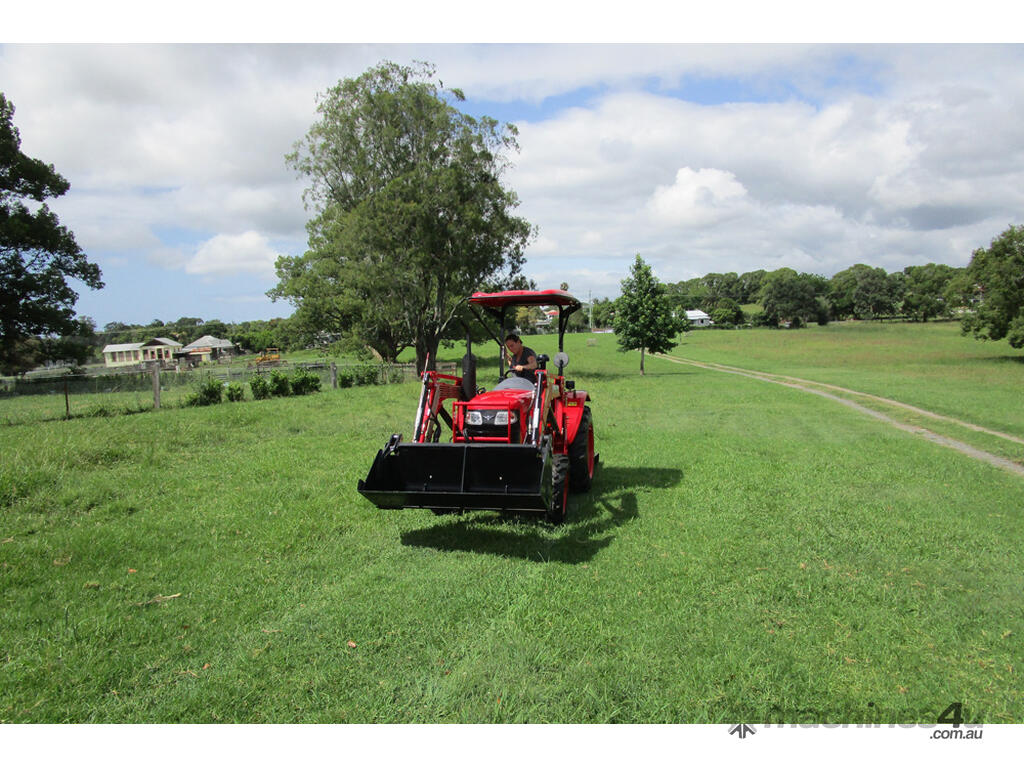

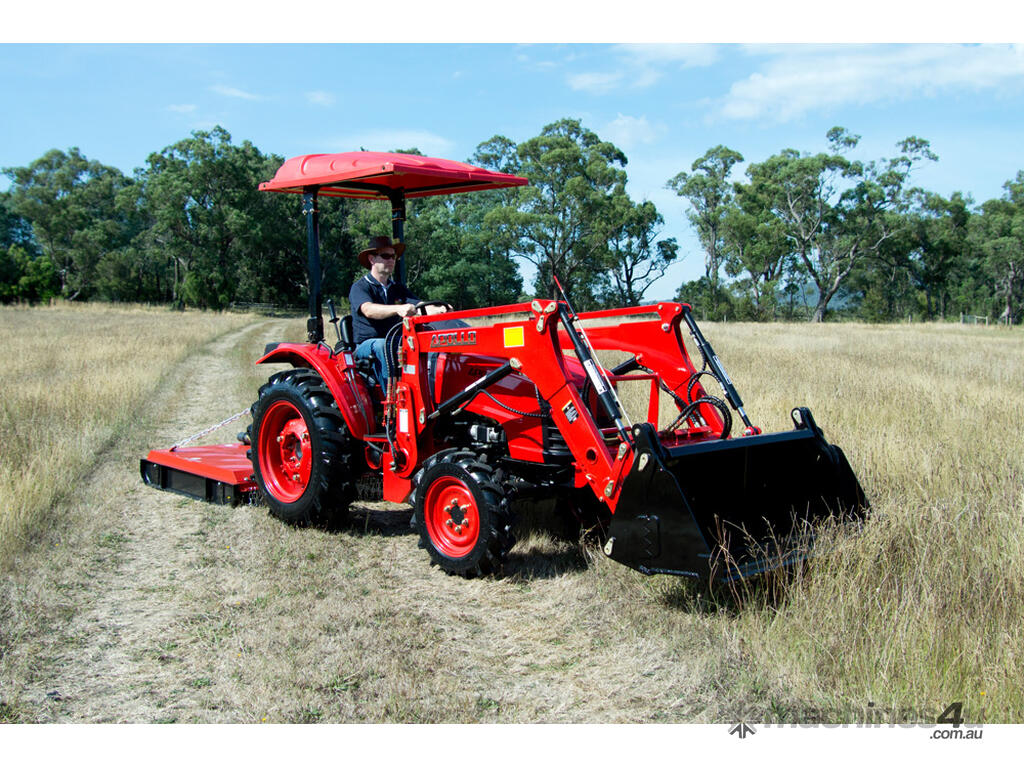

This listing is for a new APOLLO 304 tractor, with a 4-in-1 front end loader and a Del Morino RES10 backhoe.

The APOLLO 304 is a new, fifth generation tractor, manufactured in a modern plant using state of the art testing and procedures. Every tractor is Dynamometer tested before shipment to ensure the driveline is operating perfectly. Developed for the international market in collaboration with American engineers, the APOLLO 304 incorporates many modern design features and boasts higher quality and features at an ultra-competitive price.

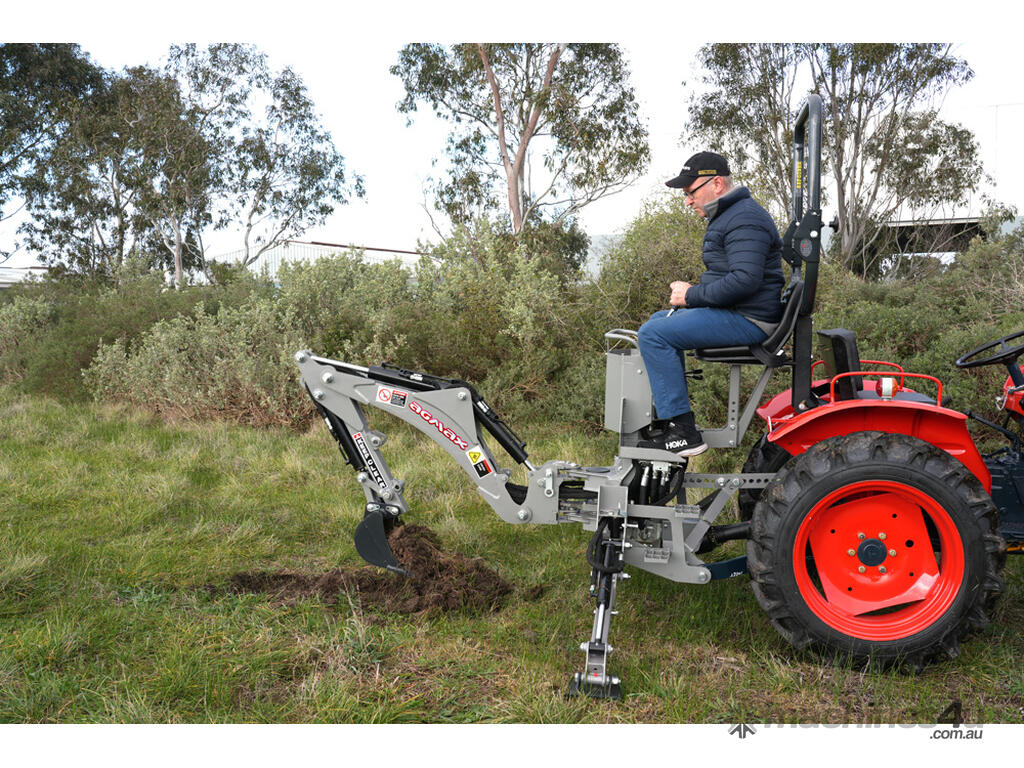

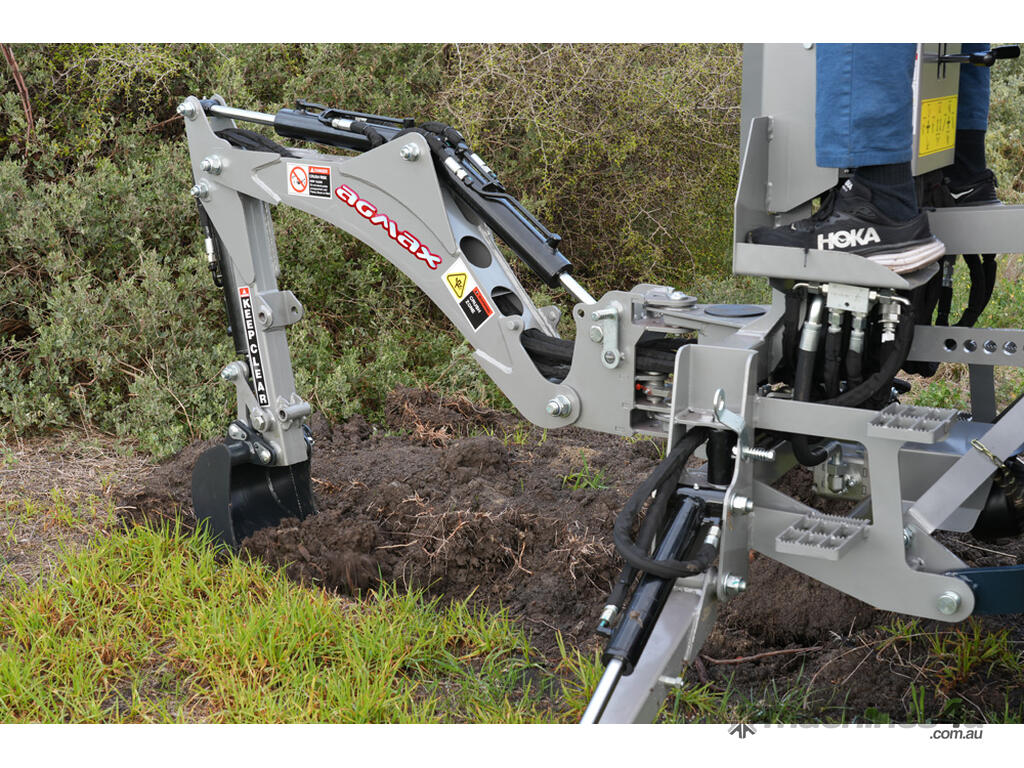

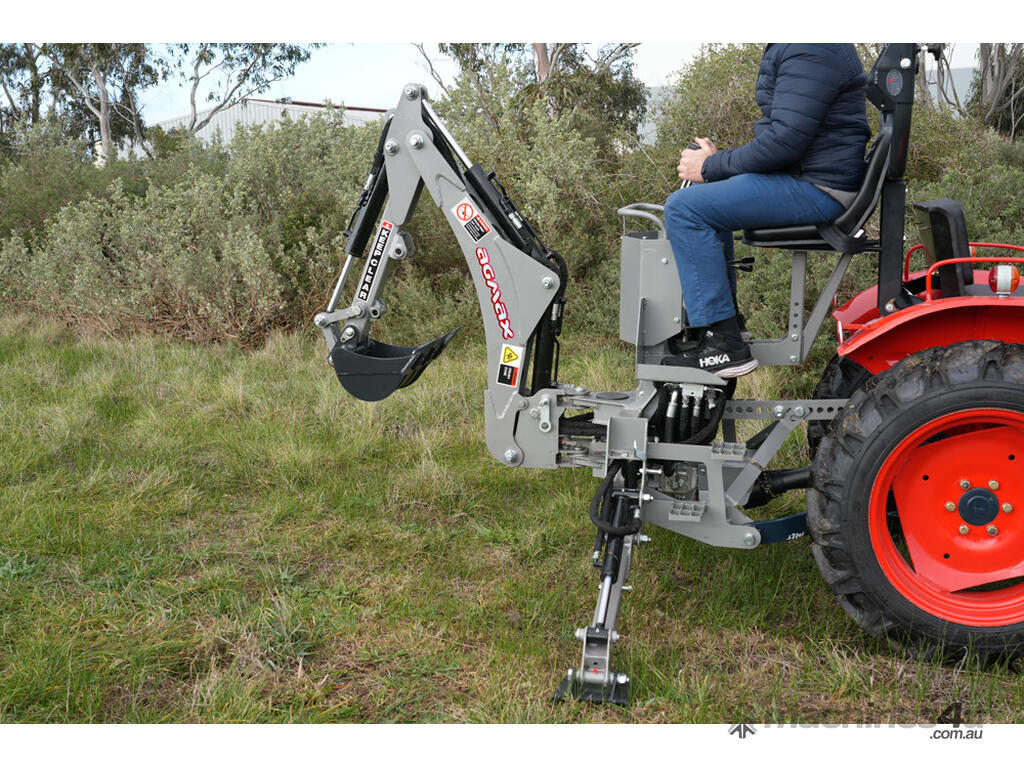

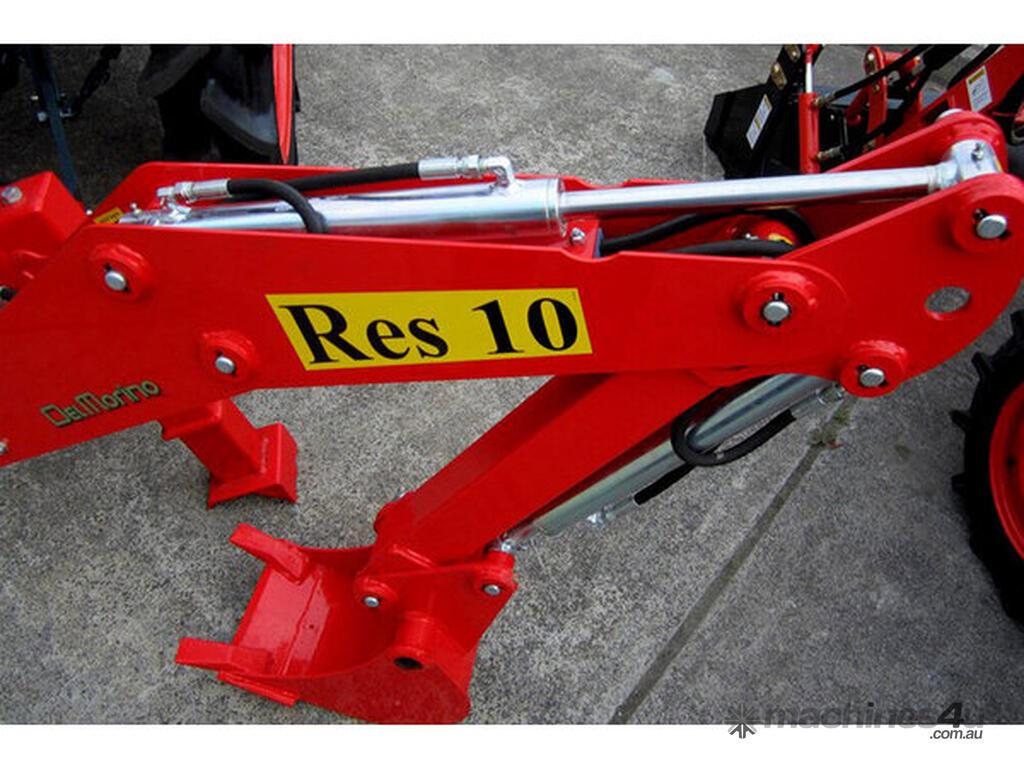

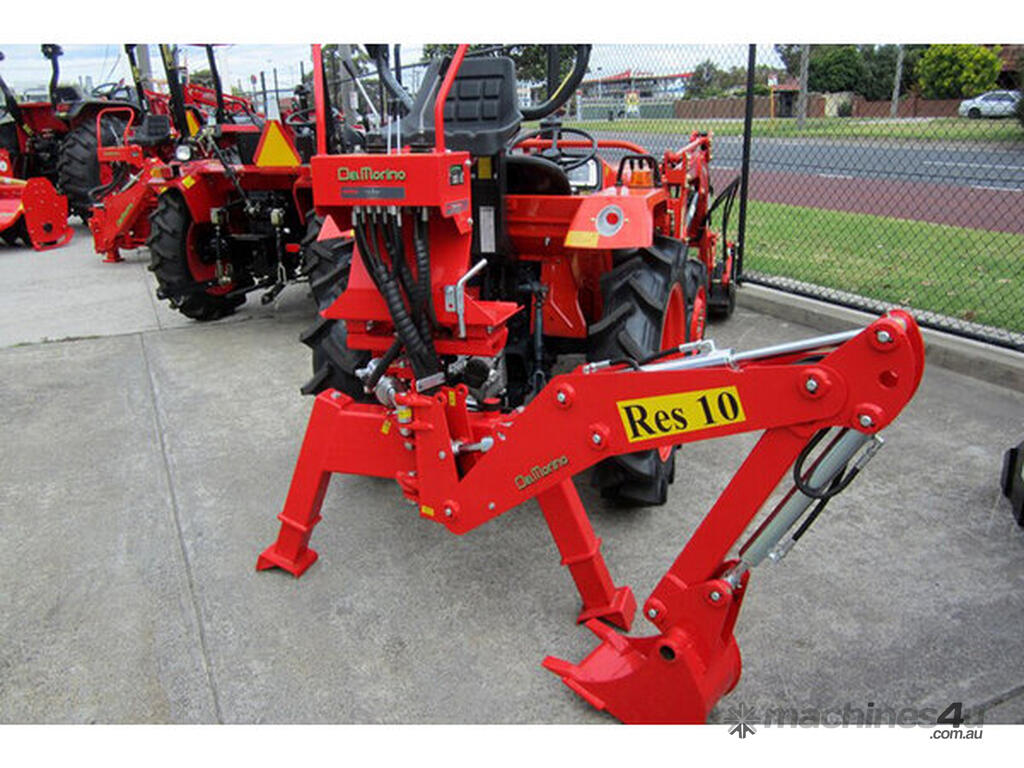

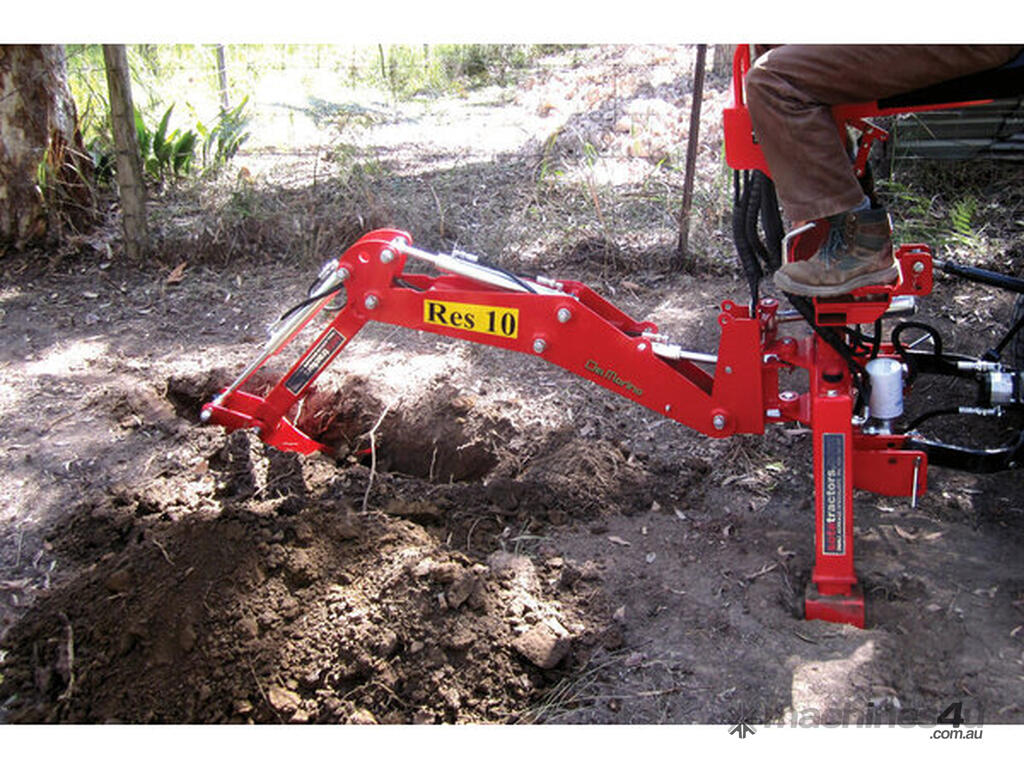

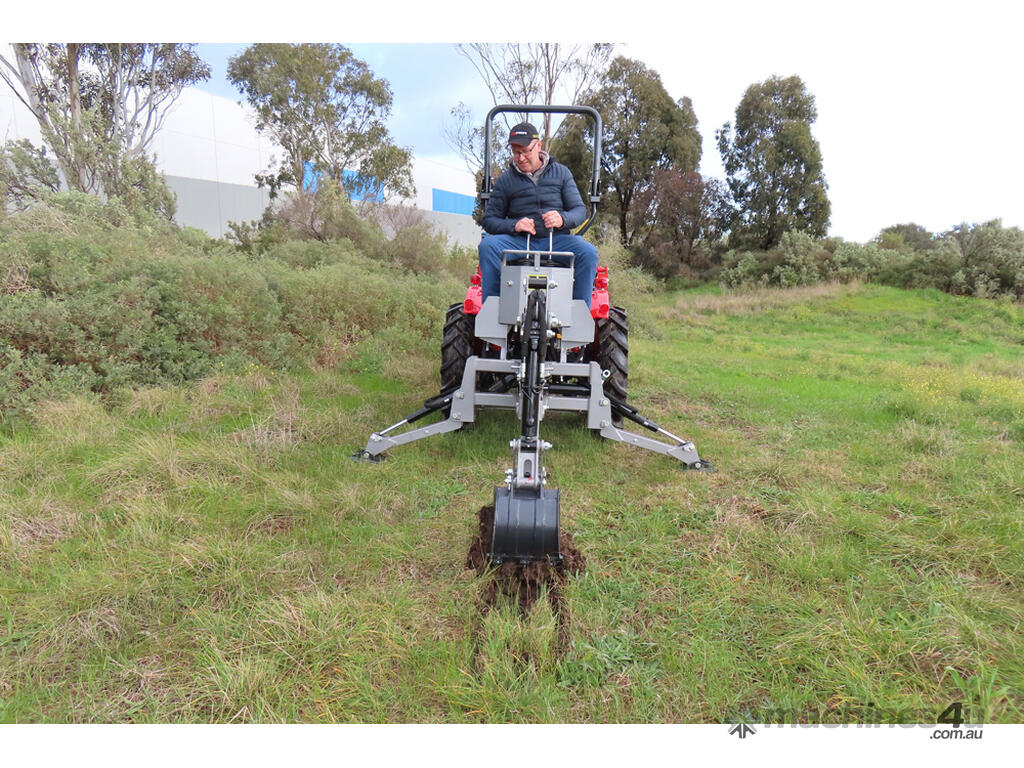

The Del Morino RES10 is the best backhoe for a sub-compact tractors in Australia. In the RES10, Del Morino have been able to engineer a very light and fully-functional backhoe that is stable and transports safely on your tractor's three point linkage. It may also be folded close to the tractor, compactly and conveniently, for storage. The Del Morino backhoe has a 2 year warranty.

***This listing is for an APOLLO 30hp tractor with a front end loader, ROPS and backhoe only. No other implements are included.

FEATURES & BENEFITS

The APOLLO 304 offers:

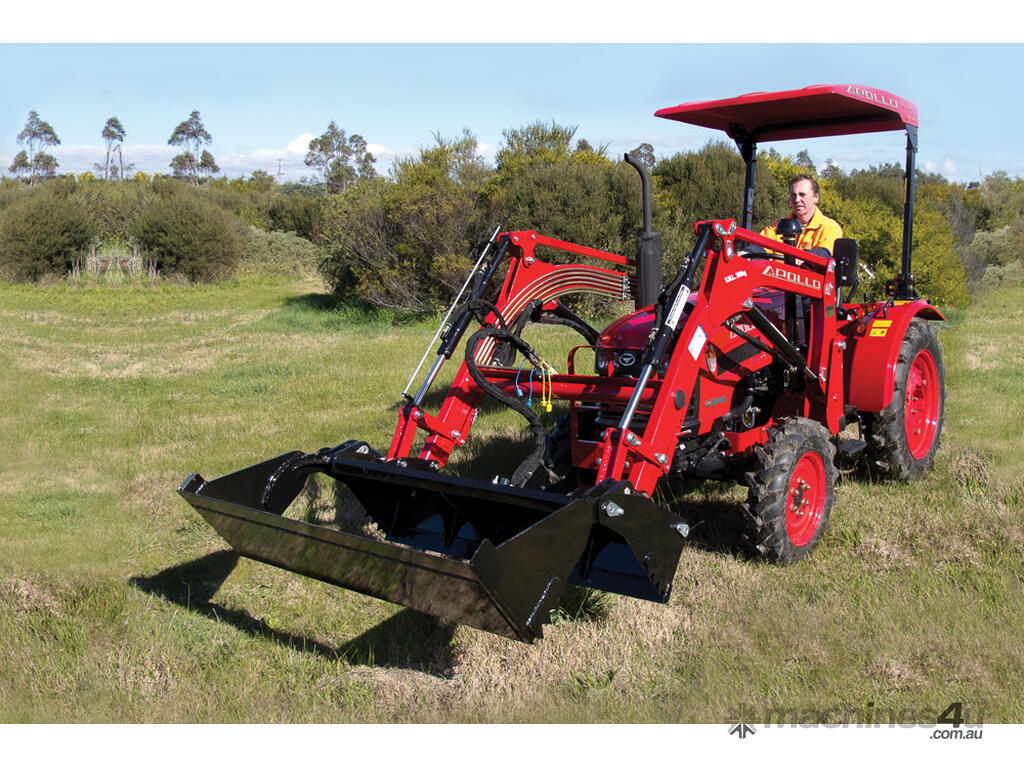

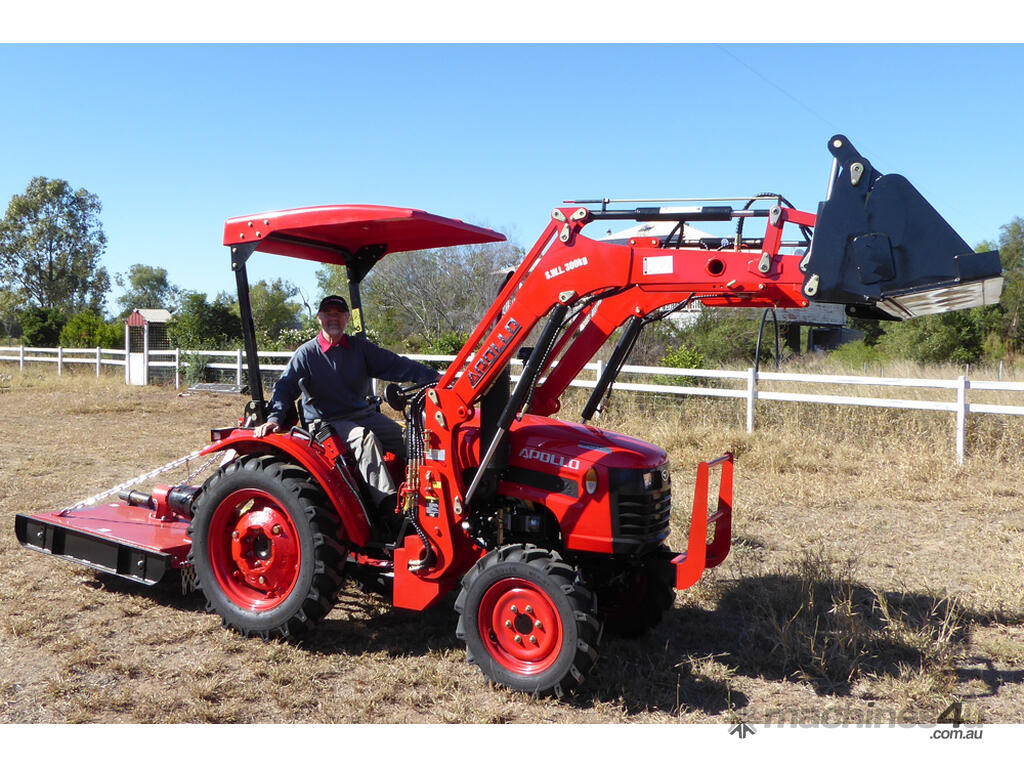

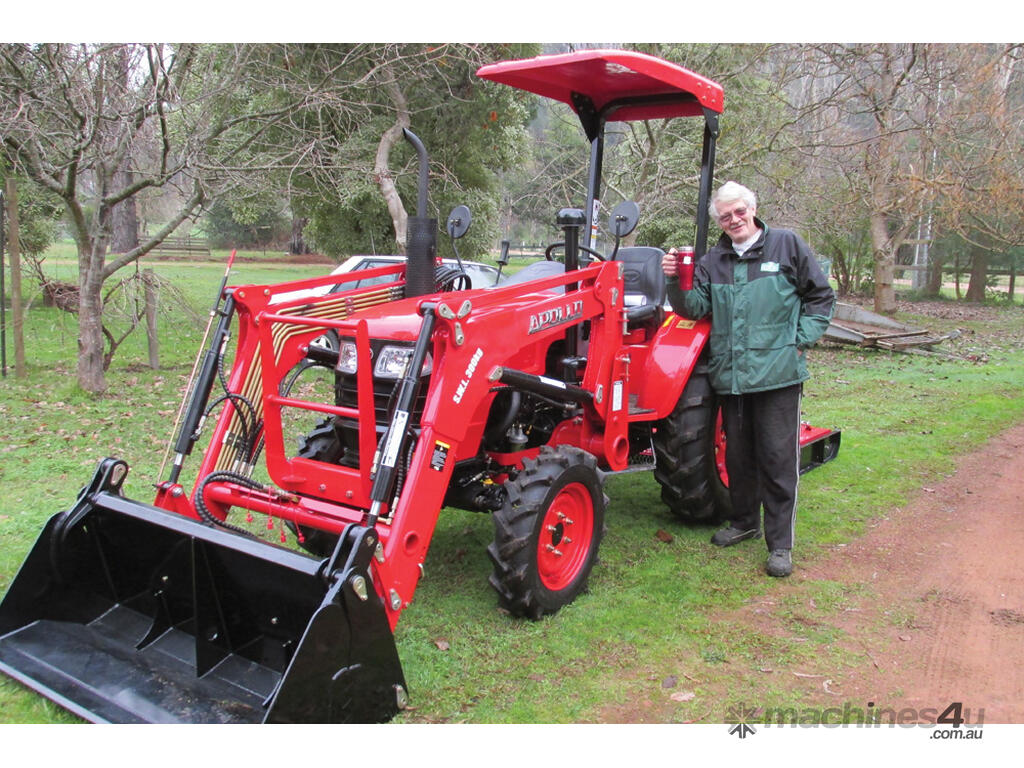

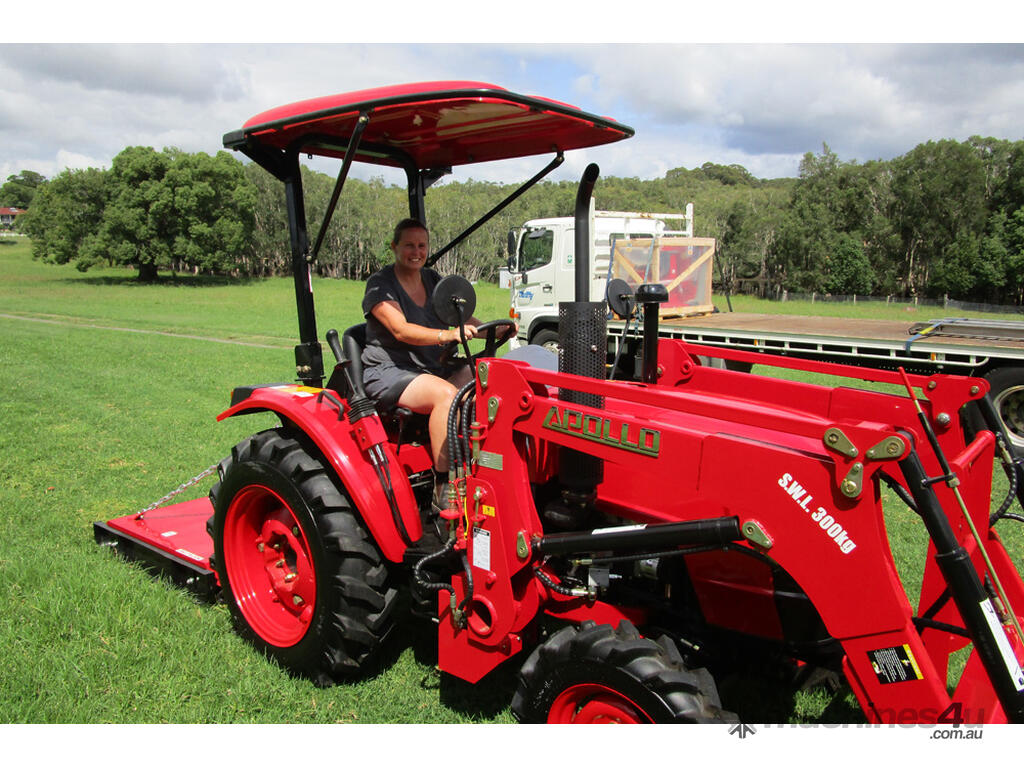

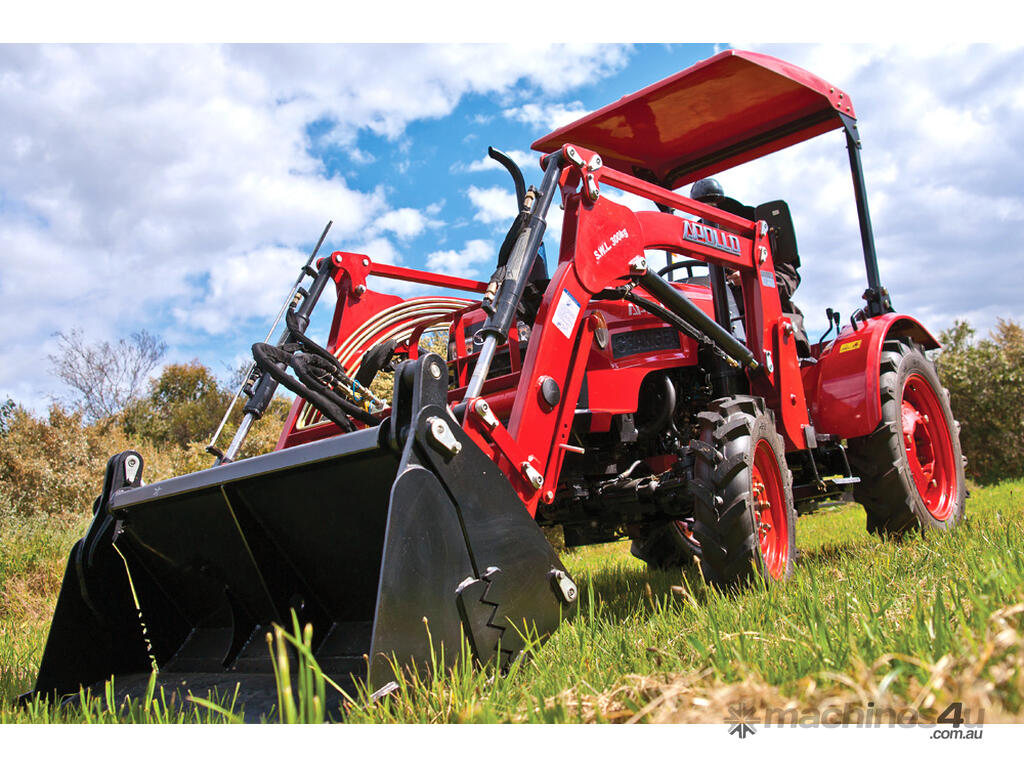

Quick-release loader with 4-in-1 bucket (SWL 300kg)
Colour matched sunroof
Cat 1 TPL
Single speed PTO
Power steering
Dual remote hydraulics
APOLLO certified folding ROPS
Seatbelt
Rear wheel weights
Full operators manual for tractor, FEL and implements
SOTAs unique safety and maintenance manual
Large wheels and a wide track for increased stability on slopes
Adjustable suspension seat for driver comfort
Double handrail for easy mounting and dismounting
Full lighting system, suitable for road registration

APOLLO 304 SPECIFICATIONS

Engine Model: Changfa CF3B30T
Engine Type: Diesel
Engine Gross Power: 30hp 22.1kW
PTO Power: 25hp 18.8kW
No of Cylinders: 3
Total Displacement: 1908cc
Rated Speed: 2400rpm
Battery: 12v 70ah
Alternator: 14v 350w
Fuel Tank Capacity: 25L
Drive: 4 x 4
Transmission: 9 Forward, 9 Reverse
Steering: Power Steering
Brake: Wet Disc Dual Plate
Clutch: Dry Clutch
Rear PTO Revolution: 540rpm

HYDRAULICS

Hydraulic Remotes: Dual
Lift Control Type: Position

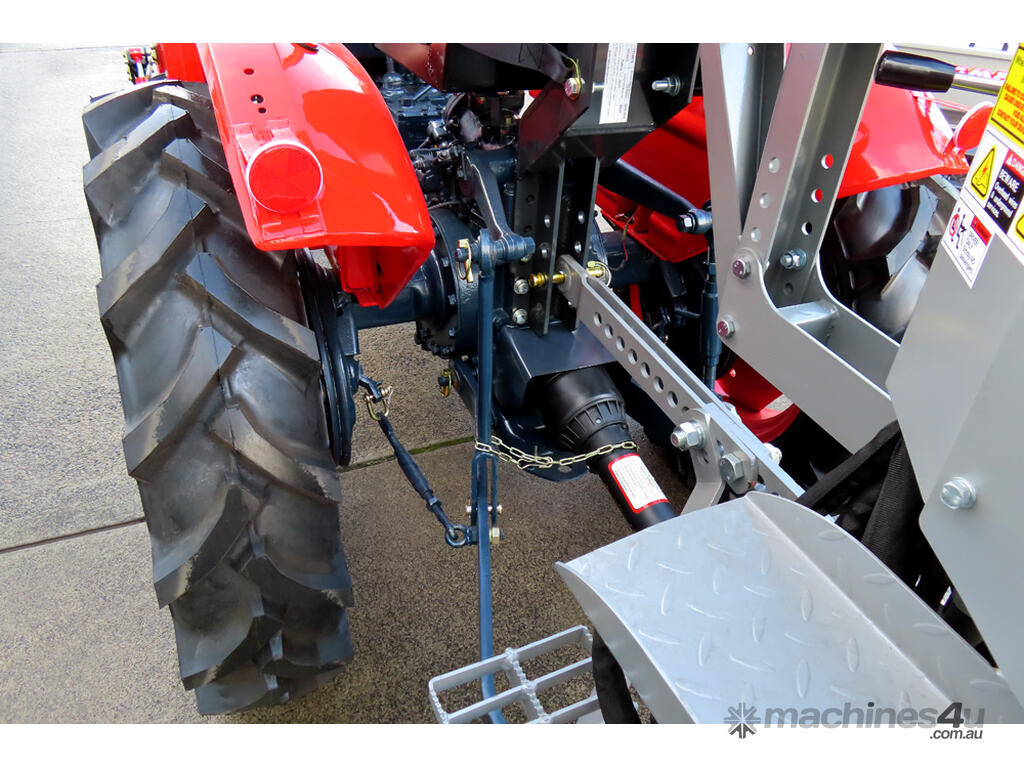

TPL: Cat 1
Lift Capacity at 610mm (behind lift point): 600kg

STANDARD TYRE SIZE

Front: 6.0 x 16
Rear: 11.2 x 24

DIMENSIONS

Overall Length: 3900mm
Overall Width: 1440mm
Overall Height (With Foldable ROPS): 2450mm
Min. Ground Clearance: 280mm
Min. Turning Radius (With Brake, Without 4WD): 2500mm
Weight With Loader: 1650kg
Ag Tyre Size: Front 6.0 x 16, Rear 11.2 x 24

A vast range of implements are available to fit the standard Cat 1 three point linkage. The compact dimensions of this small farm workhorse allow it to be easily transported by trailer; a benefit to those where shared usage or multiple properties are a consideration.

Standard kit includes: an X30 quick-release 4-in-1 loader (SWL 300kg), large wheels with a wide wheel track, UV sun canopy, adjustable suspension seat for driver comfort, dual remote hydraulics, Certified Rollover Protection System (ROPS) + seatbelt and a full lighting system, which is suitable for road registration.

FEATURES & BENEFITS

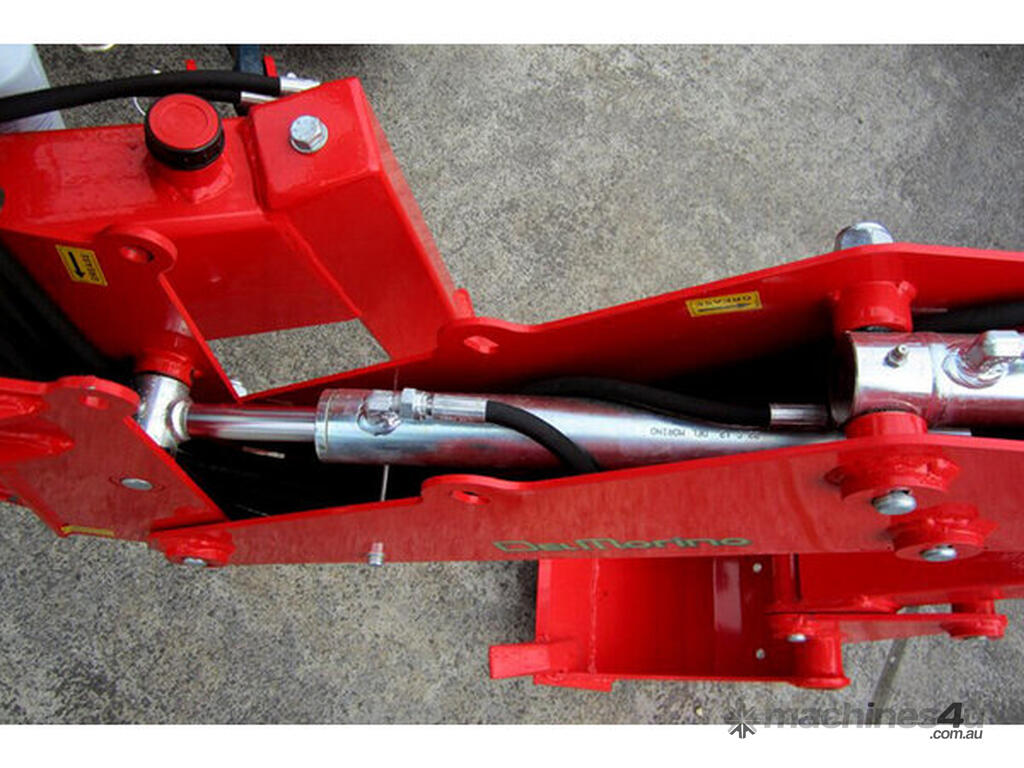

The Del Morino RES10 backhoe offers:

180 degree arm rotation (side shift lock)

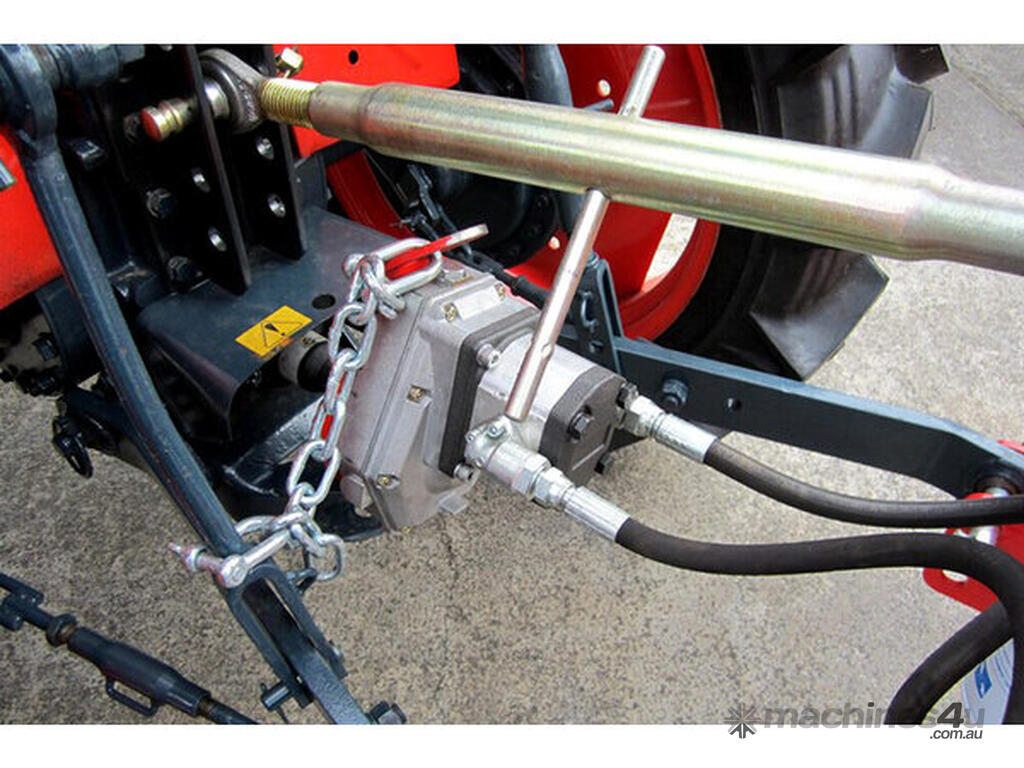

High performance, cast iron pump
Case hardened steel pins - all pivot points
Self lubricated bushes

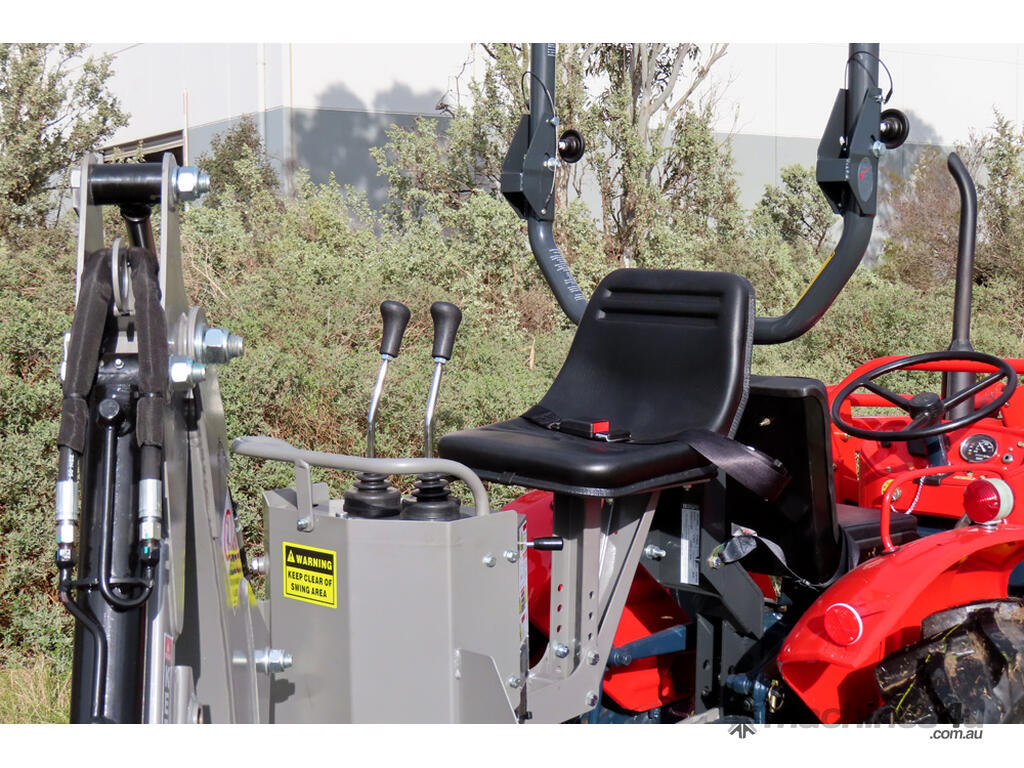

Easy access and ergonomic seat (adjustable)

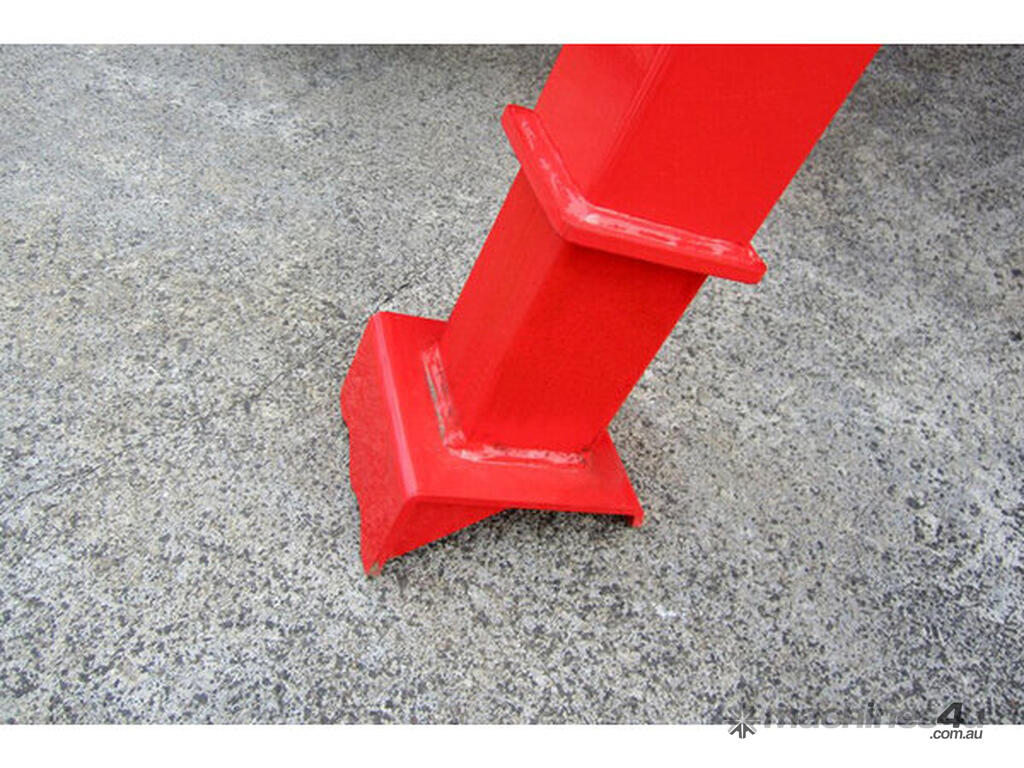

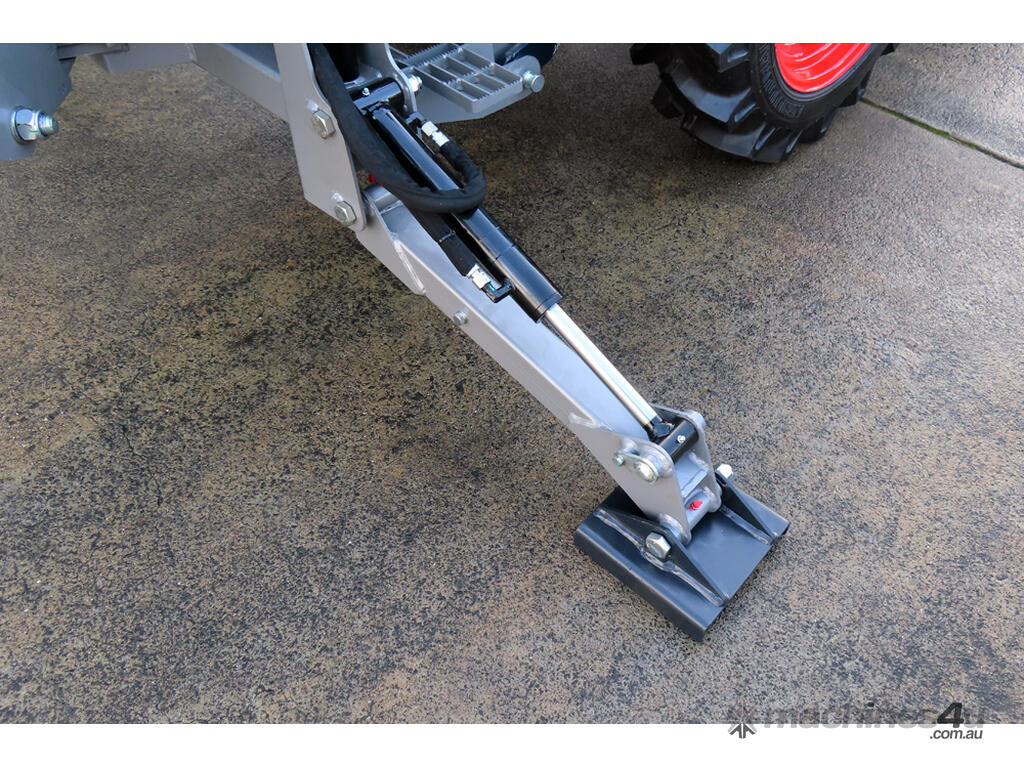

Stabiliser legs with locking valves
Italian hydraulic pumps, by META
Italian hydraulic cylinders
Italian hydraulic hoses, by TEKNO

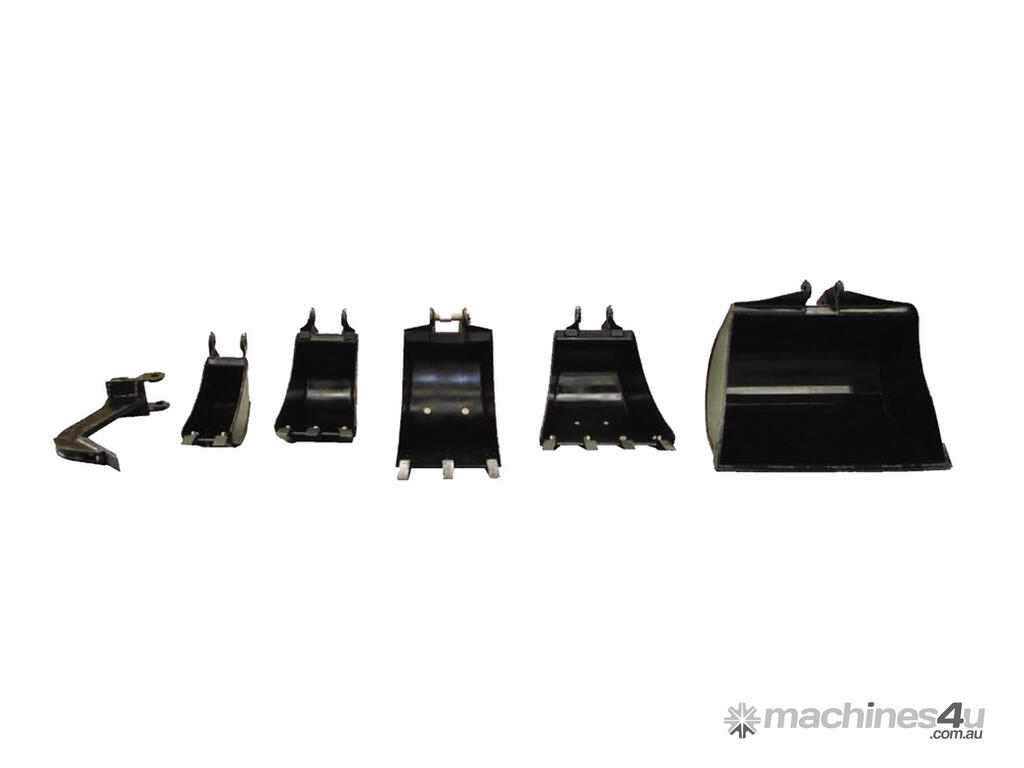

Purpose-specific buckets
Independent, hydraulic stabiliser legs

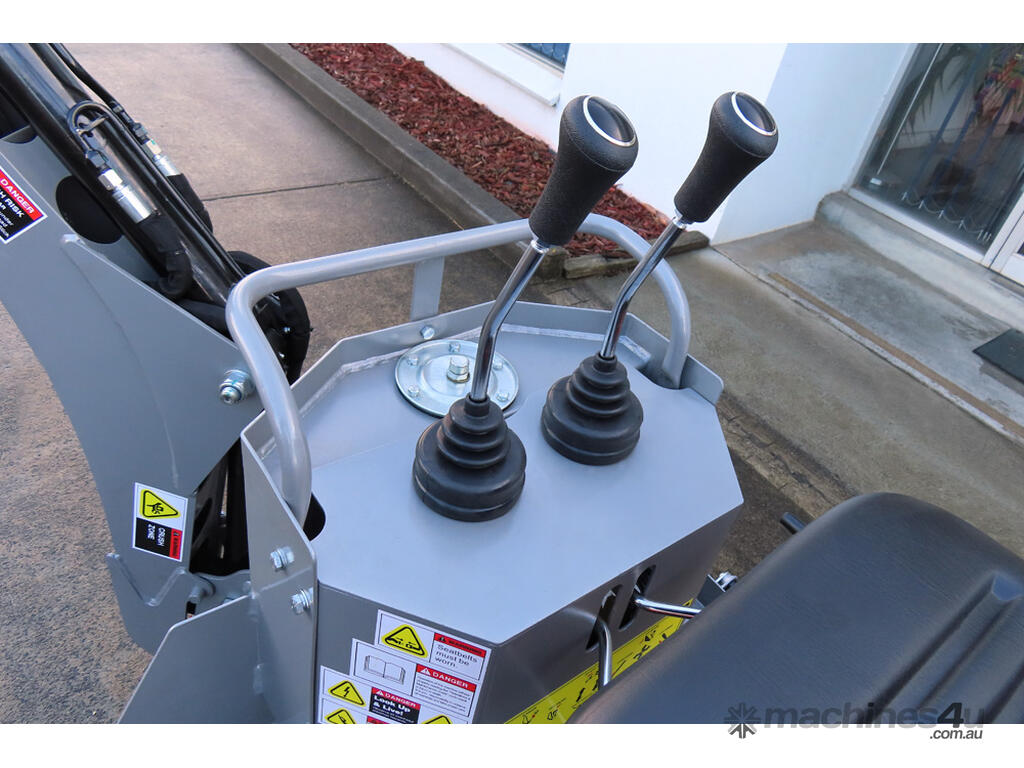

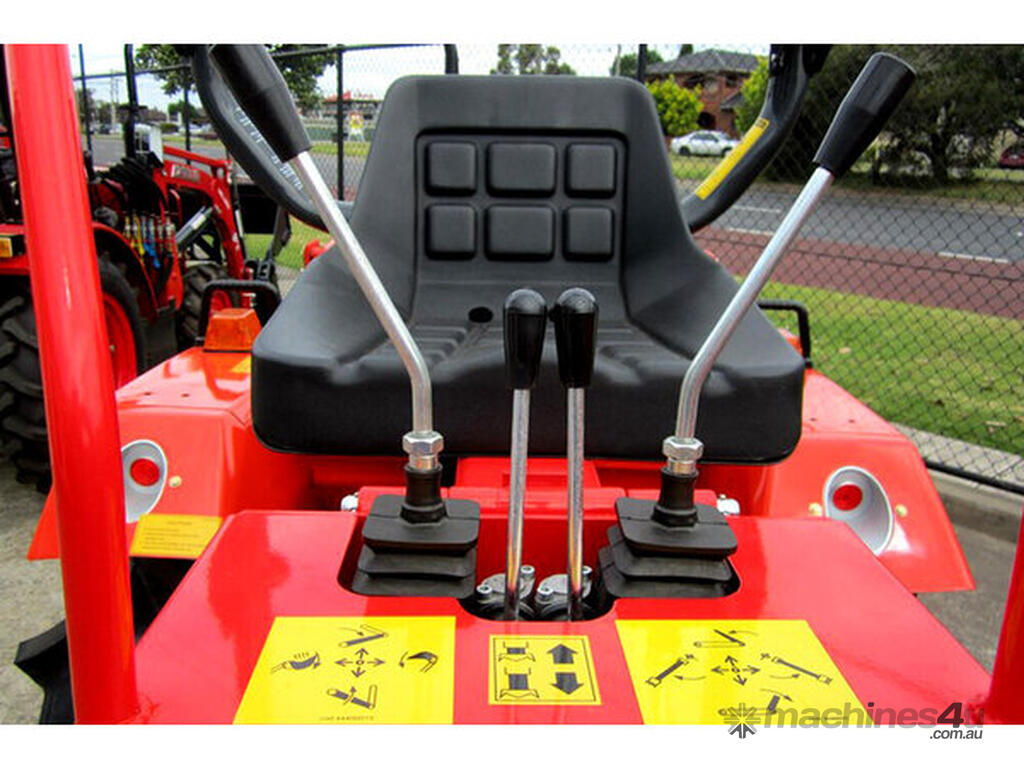

Hydraulic control unit with pressure regulator
Tilt seat with gas strut

DEL MORINO RES10 SPECIFICATIONS

Tractor HP: 18-30
TPL: Cat 1
Arm Length: 220cm
Maximum Working Height: 160cm
Maximum Digging Depth: 140cm
Digging Bucket: 25cm
Stabilising Leg Maximum Height: 30cm
Side Shift: No
Shifting Lock: N/A
Tearing Power At Tooth: 1200kg
PTO: 540rpm
Weight: 236kg

WARRANTY

The APOLLO 304 is Australias cheapest, fully supported 30hp tractor, which means it is backed by SOTAs renowned after-sales support. SOTA has a comprehensive inventory of spare parts on hand, including all consumables such as filters, belts and so on. This tractor has a 3 year written warranty, which includes:

Year 1: Comprehensive warranty, including parts, labour and all travel expenses.

Years 2 and 3: Drive train, parts only warranty.

We carry a huge range of spare parts in stock and supply to our customers. We offer full tractor servicing at each of our branches in VIC, NSW and QLD and we also offer on-site tractor servicing.

Our experienced diesel mechanics are fully equipped with onsite service trucks. They are always happy to share their expert knowledge and answer any maintenance questions you may have.

Delivery is available POA.
