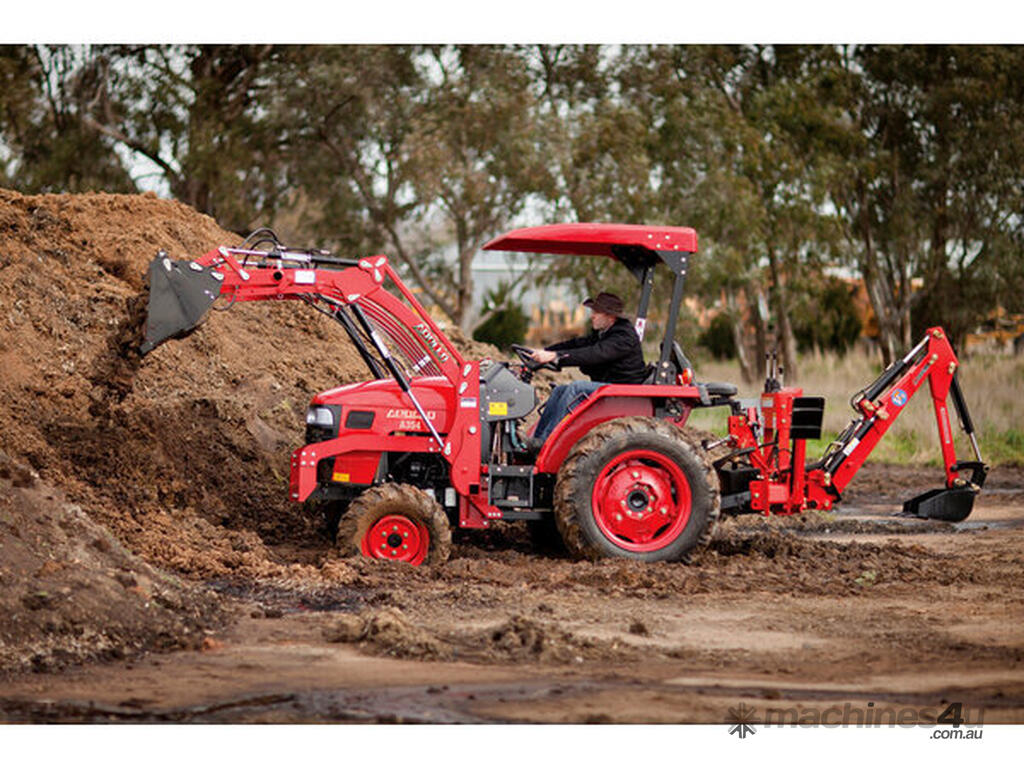

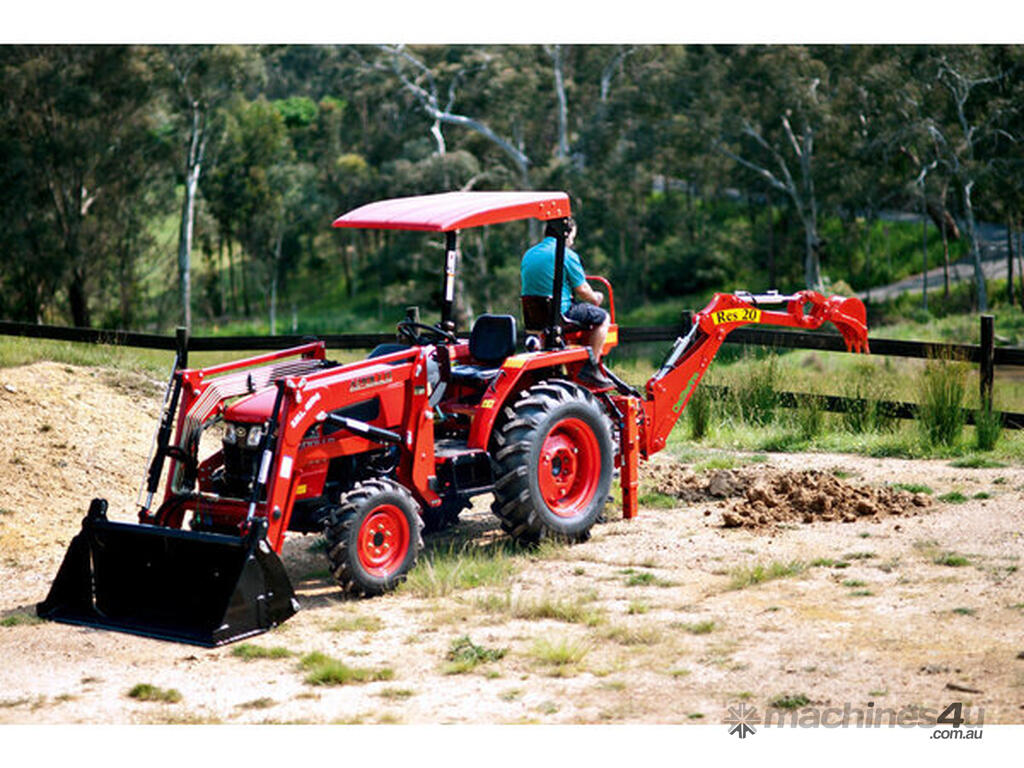

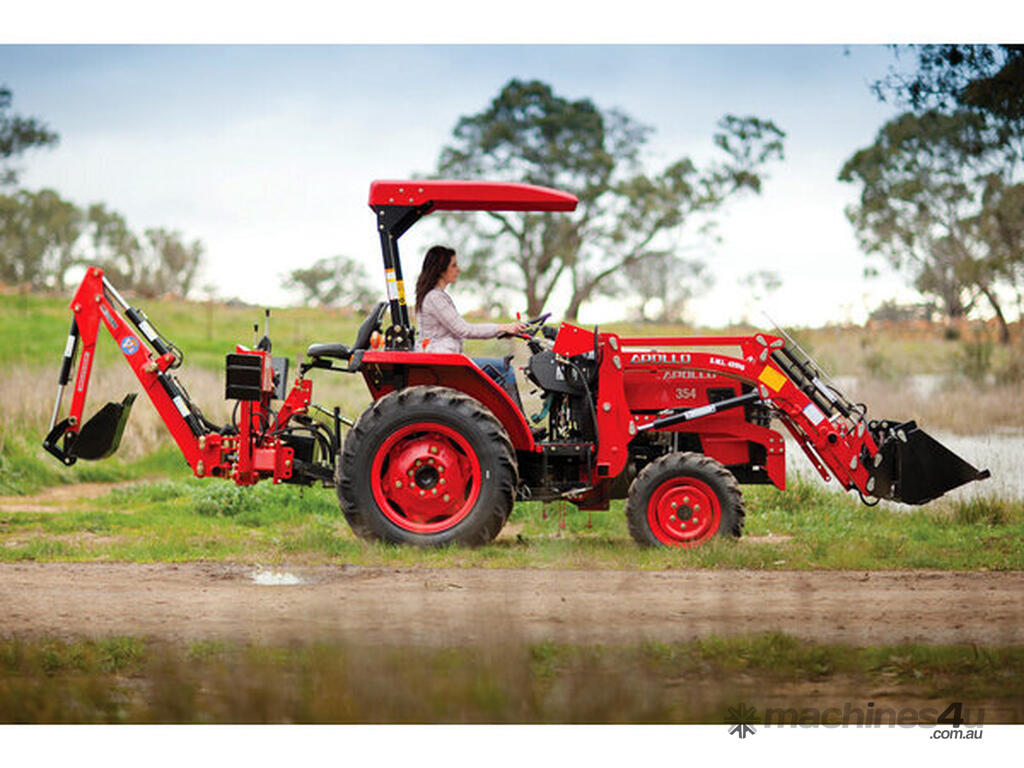

APOLLO 35hp 4WD Diesel Tractor + FEL + Backhoe

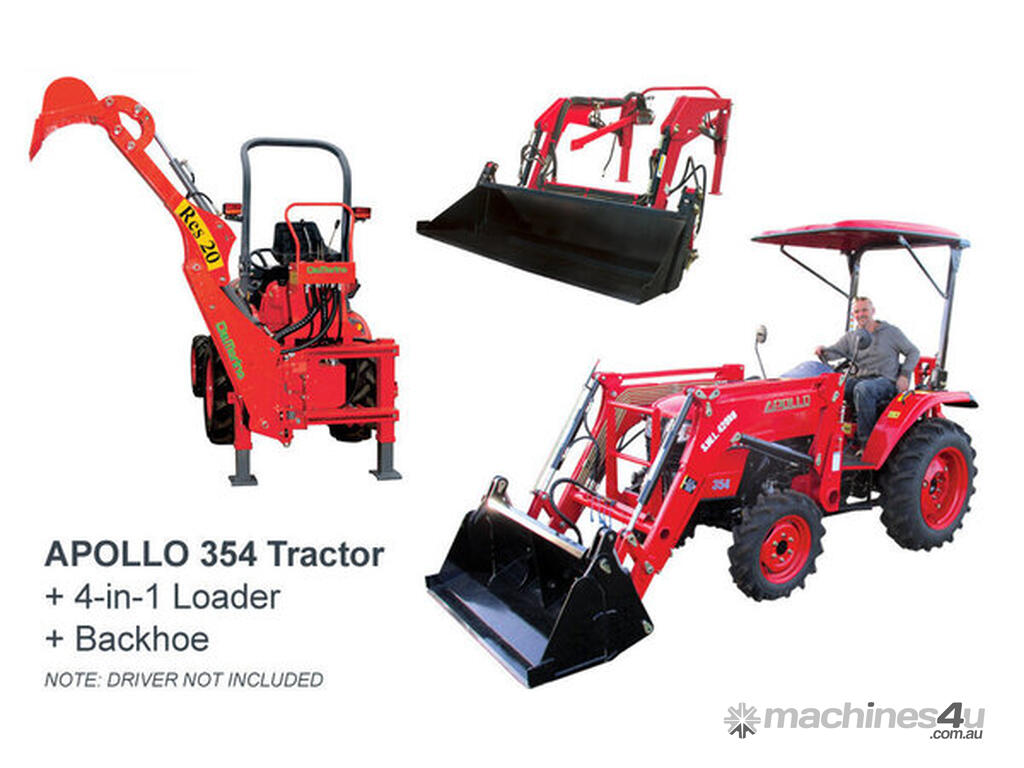

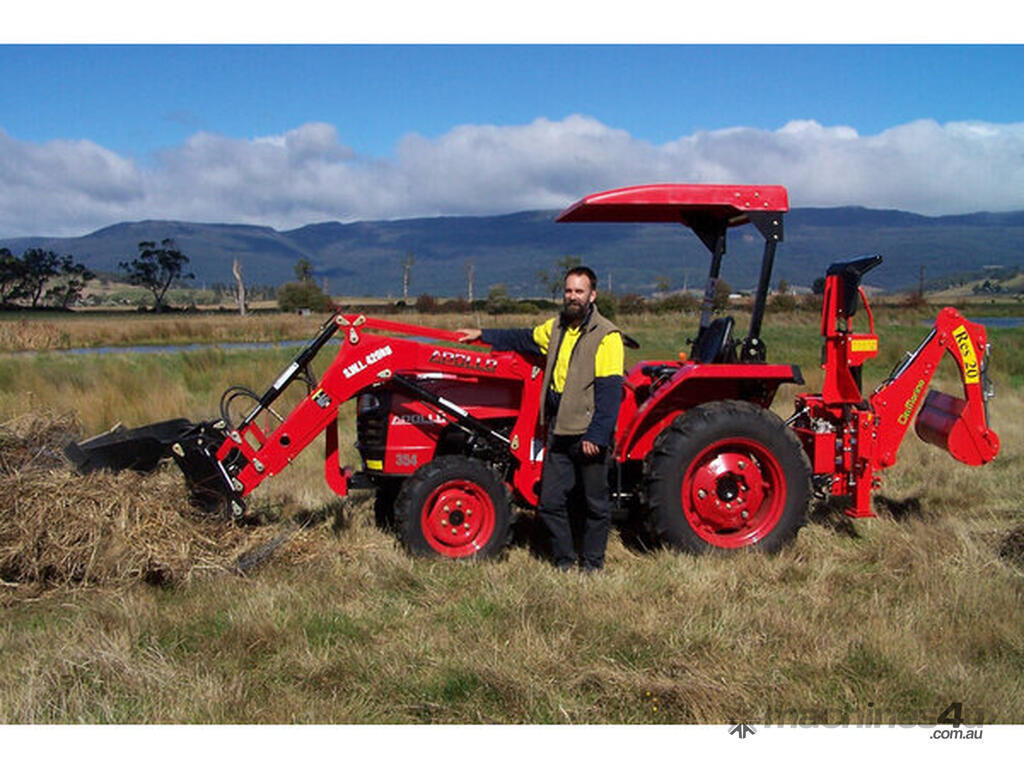

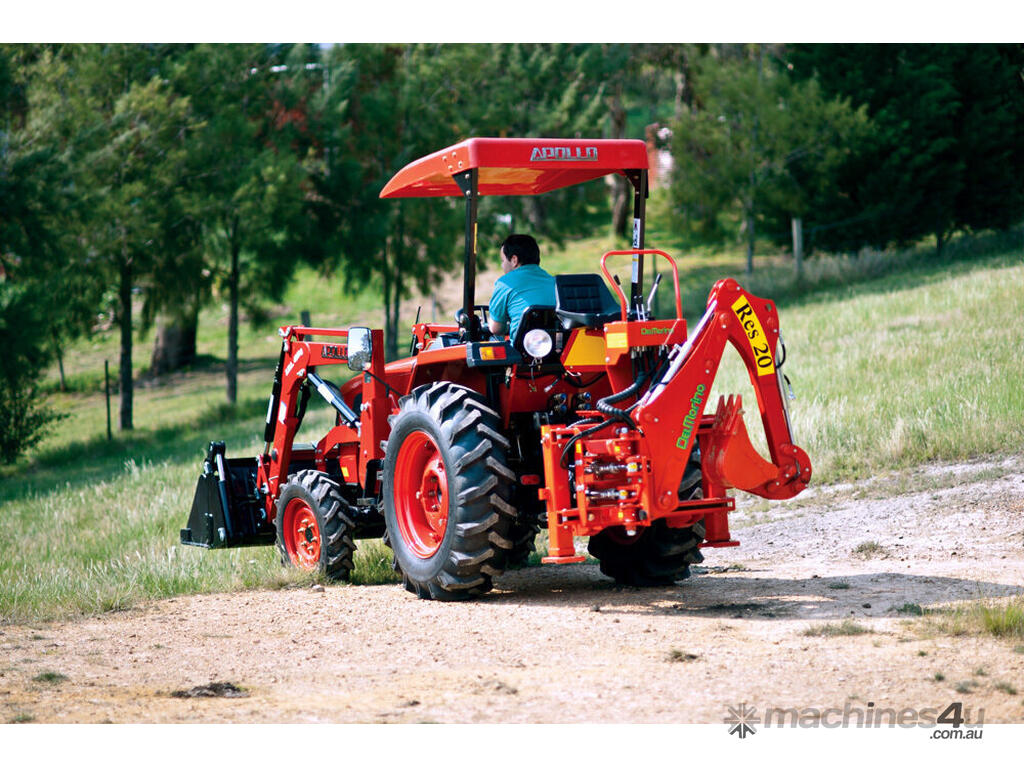

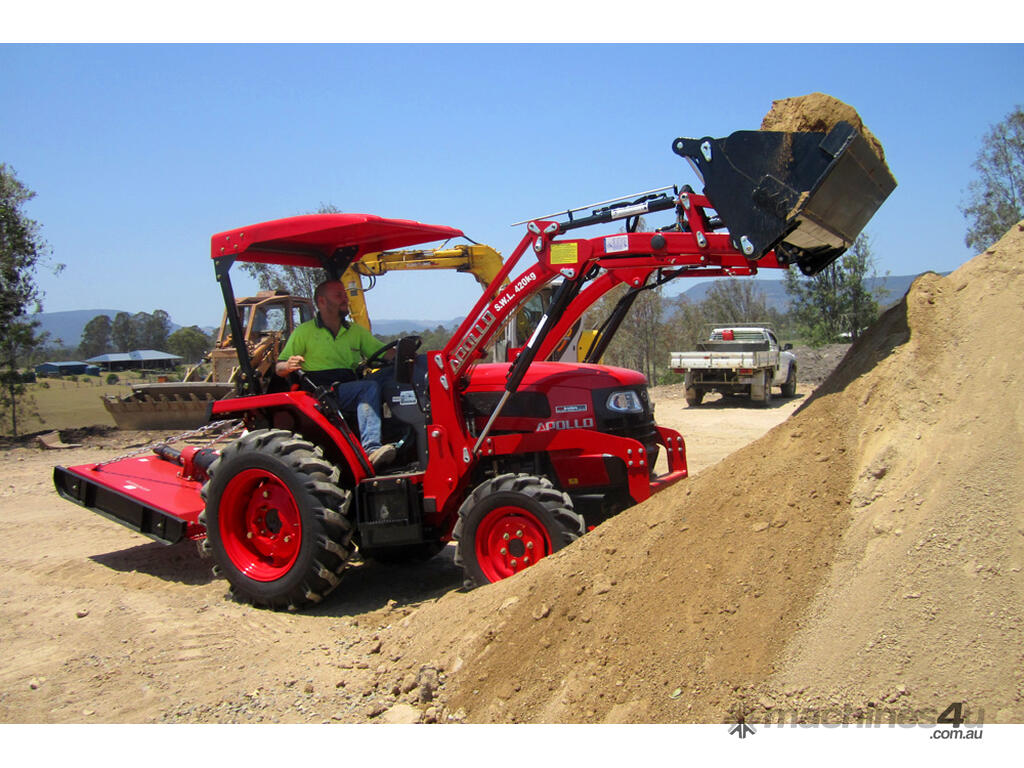

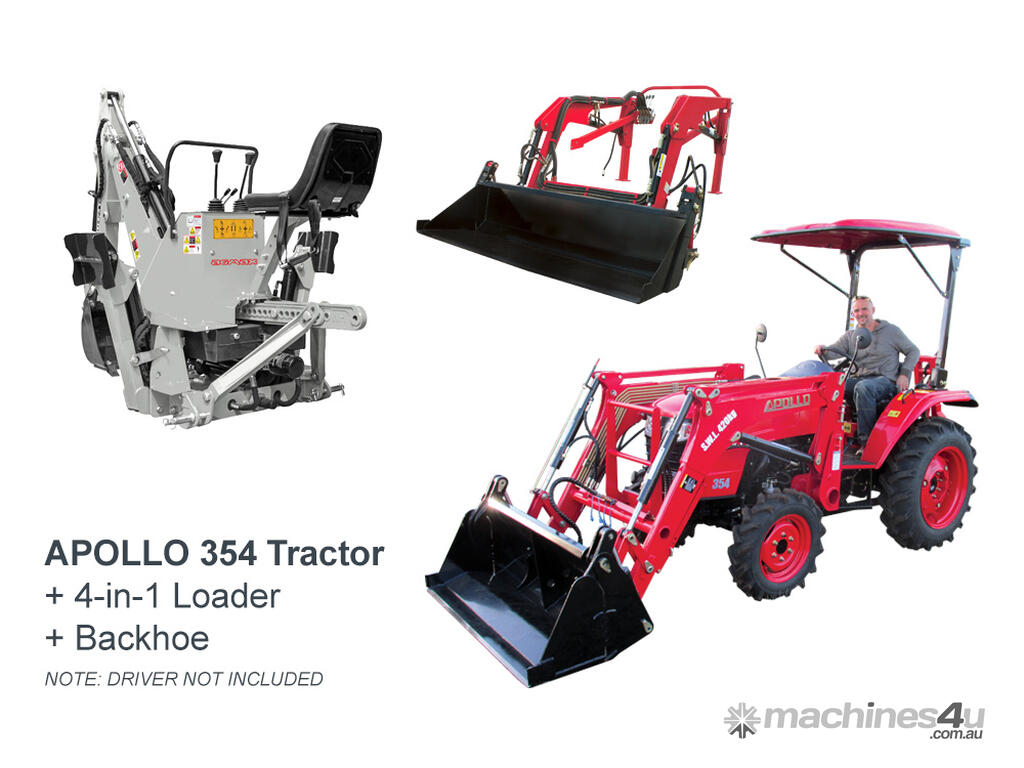

This listing is for a new APOLLO 354 tractor, with a 4-in-1 front end loader and a Del Morino RES20 backhoe.

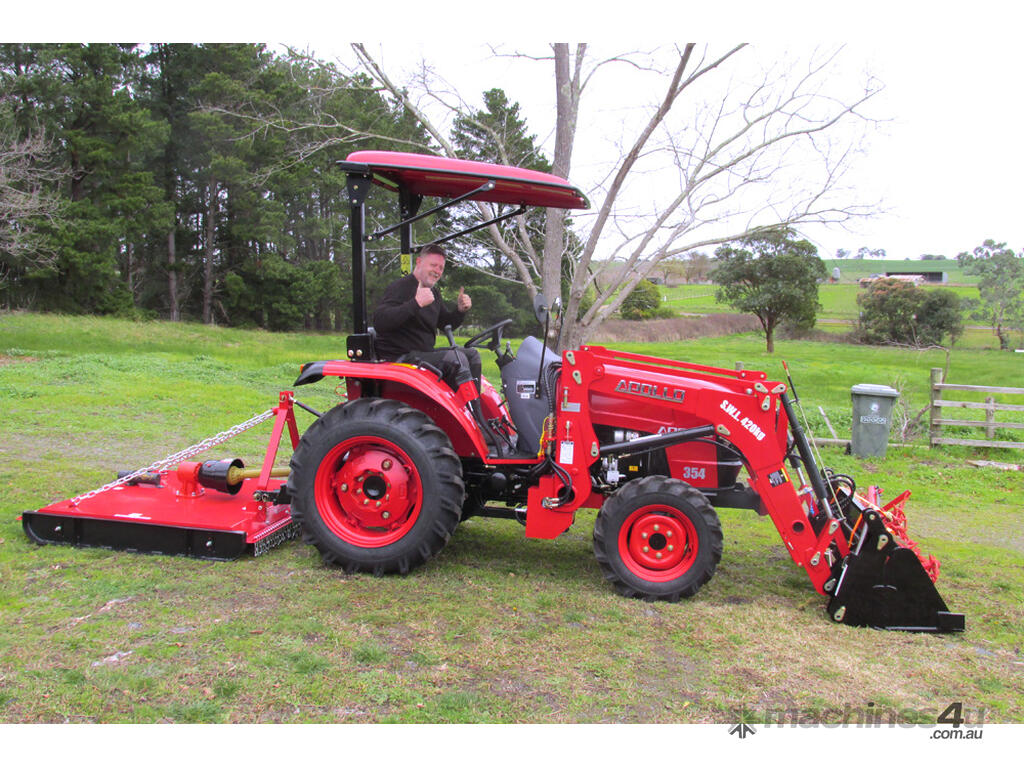

The APOLLO 354 is a new, fifth generation tractor, manufactured in a modern plant using state of the art testing and procedures. Every tractor is Dynamometer tested before shipment to ensure the driveline is operating perfectly. Developed for the international market in collaboration with American engineers, the APOLLO 354 incorporates many modern design features and boasts higher quality and features at an ultra-competitive price.

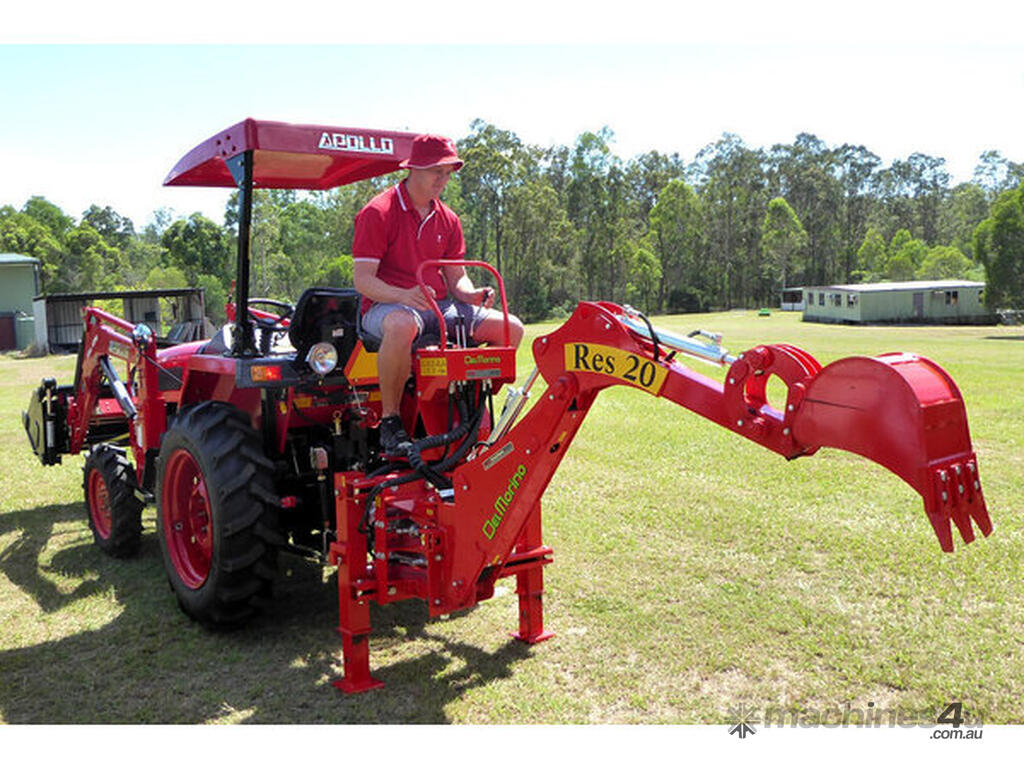

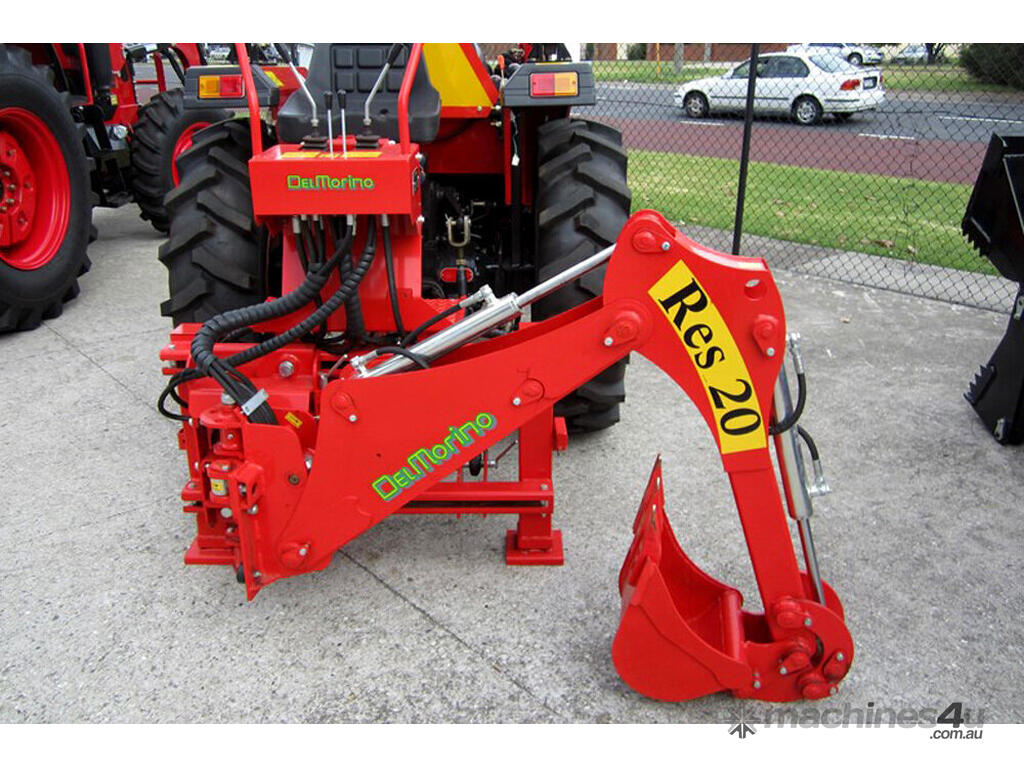

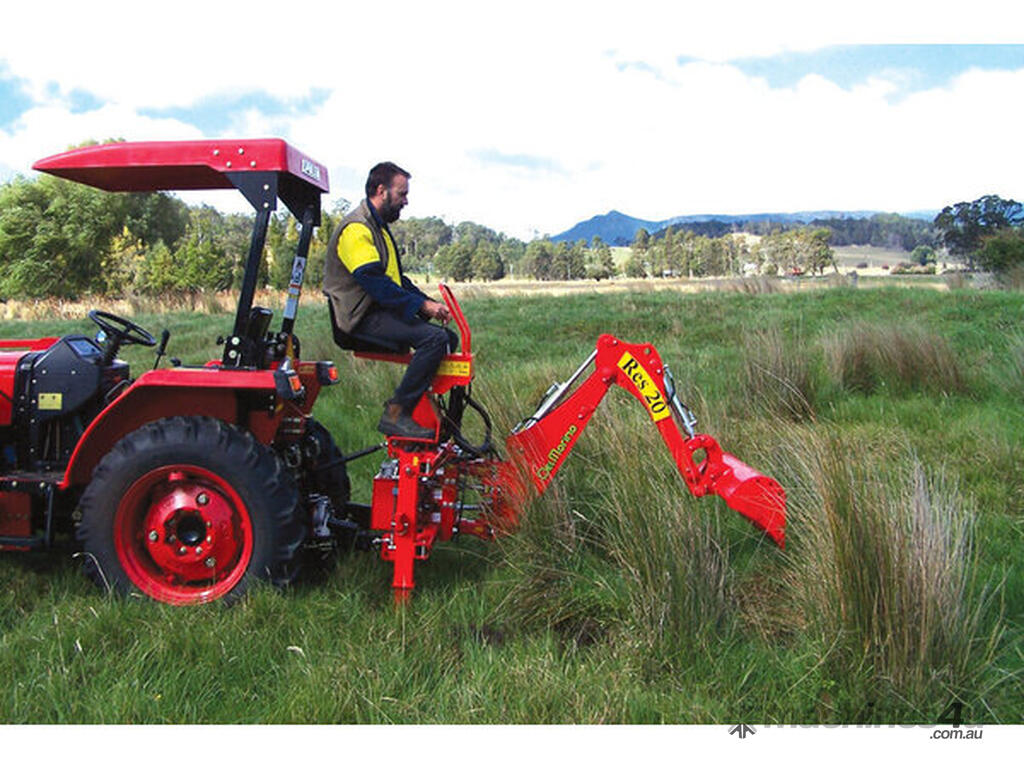

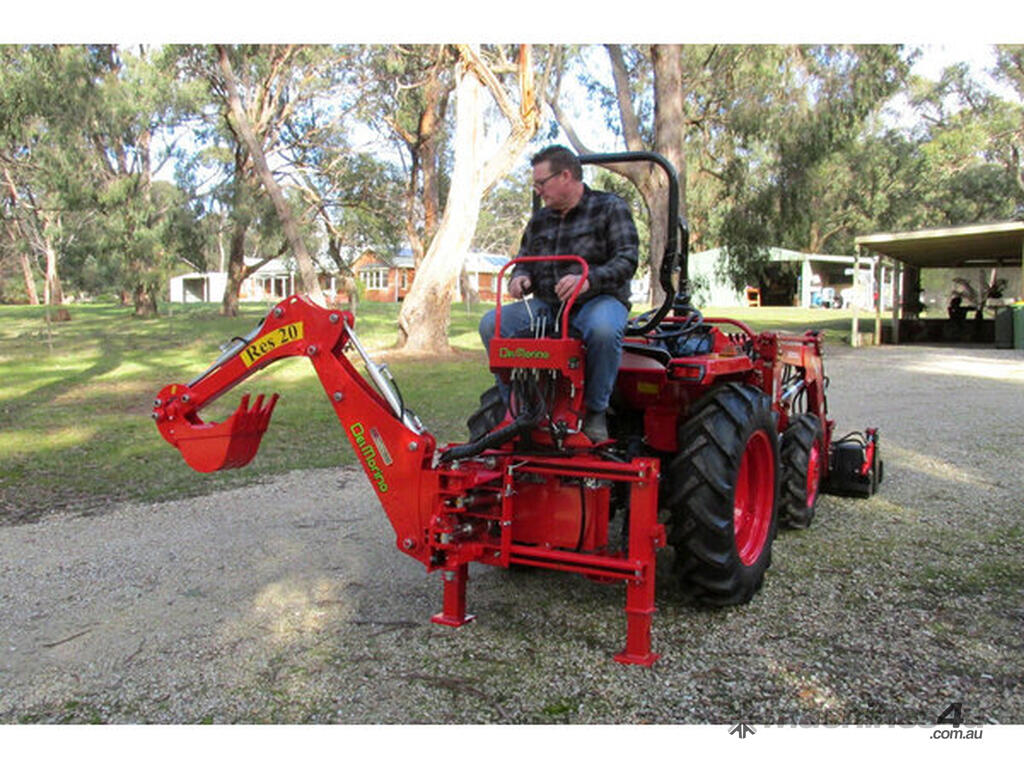

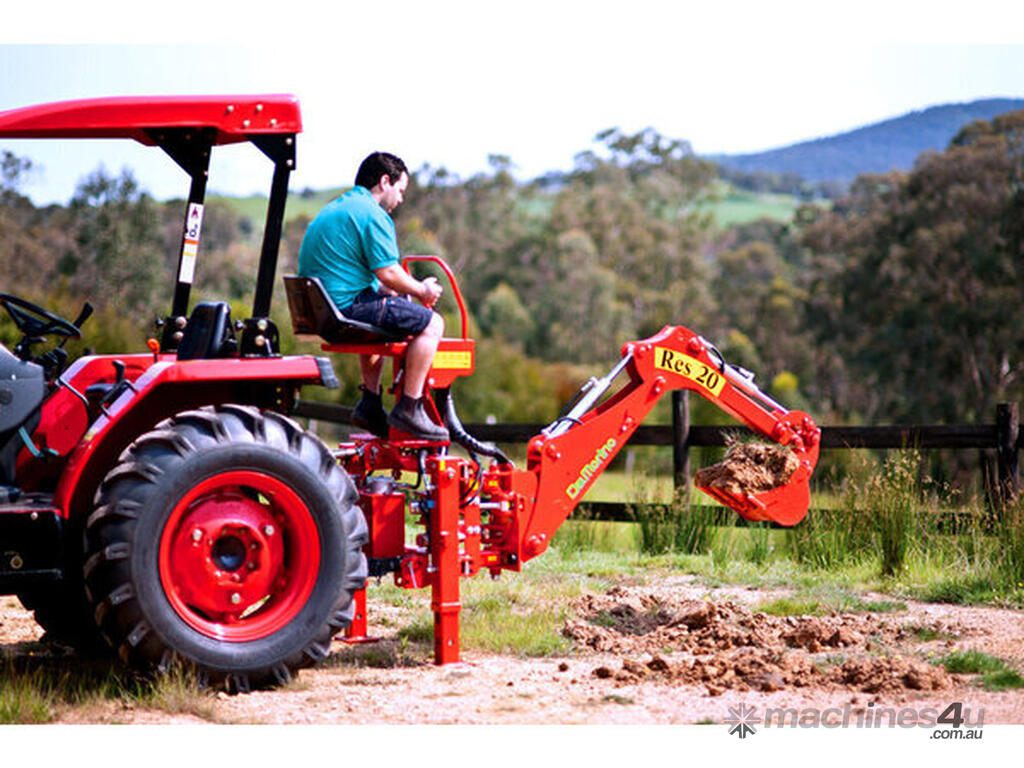

The Del Morino RES20 is engineered to be a very light and fully functional backhoe that is stable and transports safely on your tractor's three point linkage. The Del Morino backhoe has a 2 year warranty.

***This listing is for an APOLLO 35hp tractor with a front end loader, ROPS and backhoe only. No other implements are included.

FEATURES & BENEFITS

The APOLLO 354 offers:

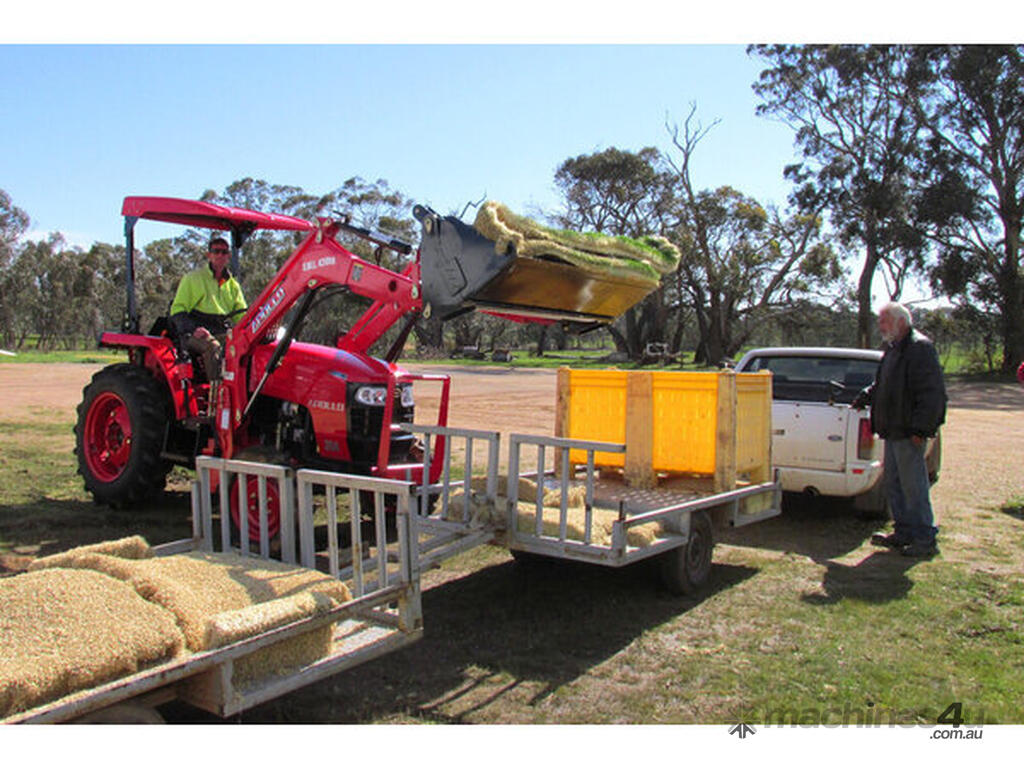

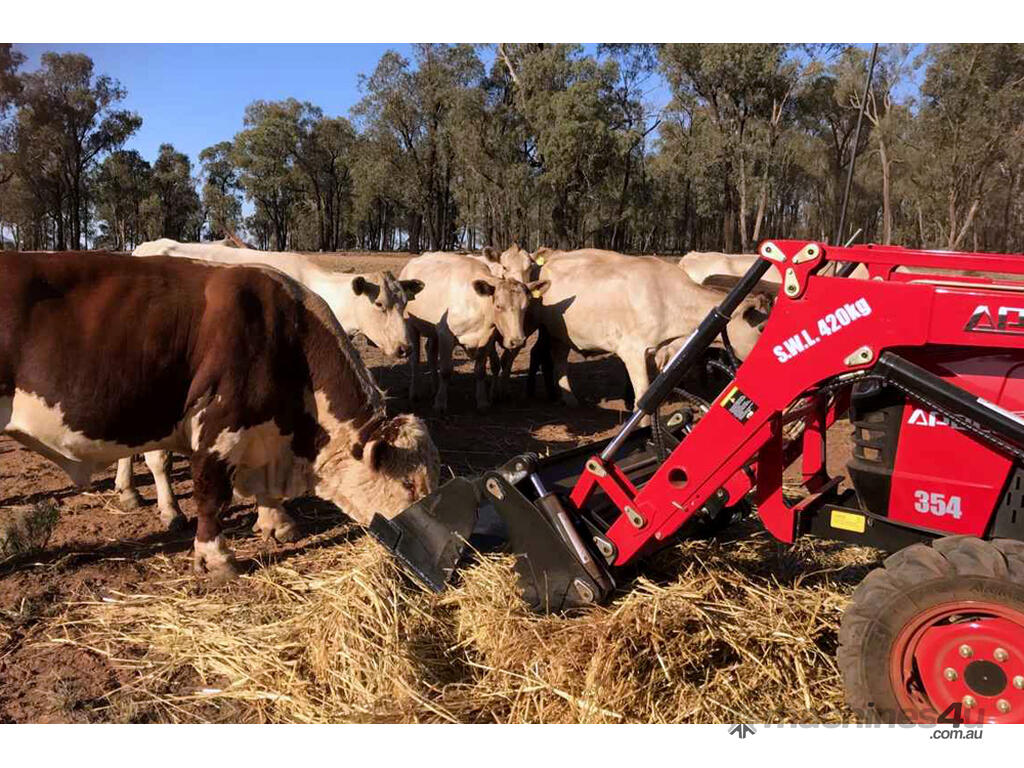

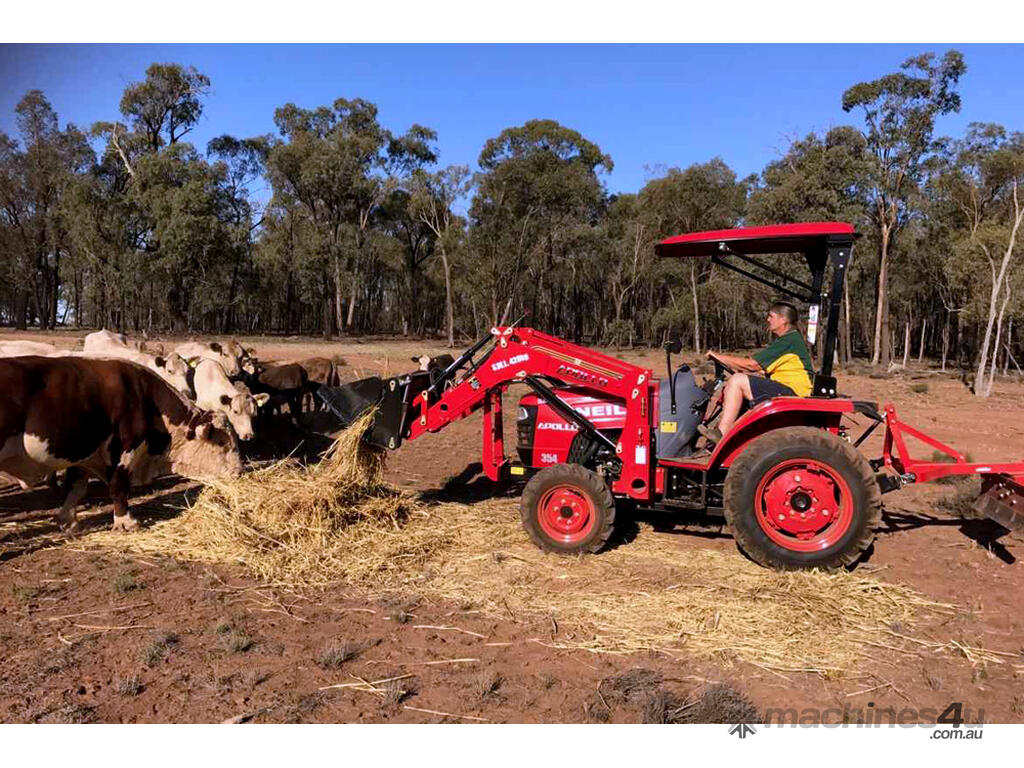

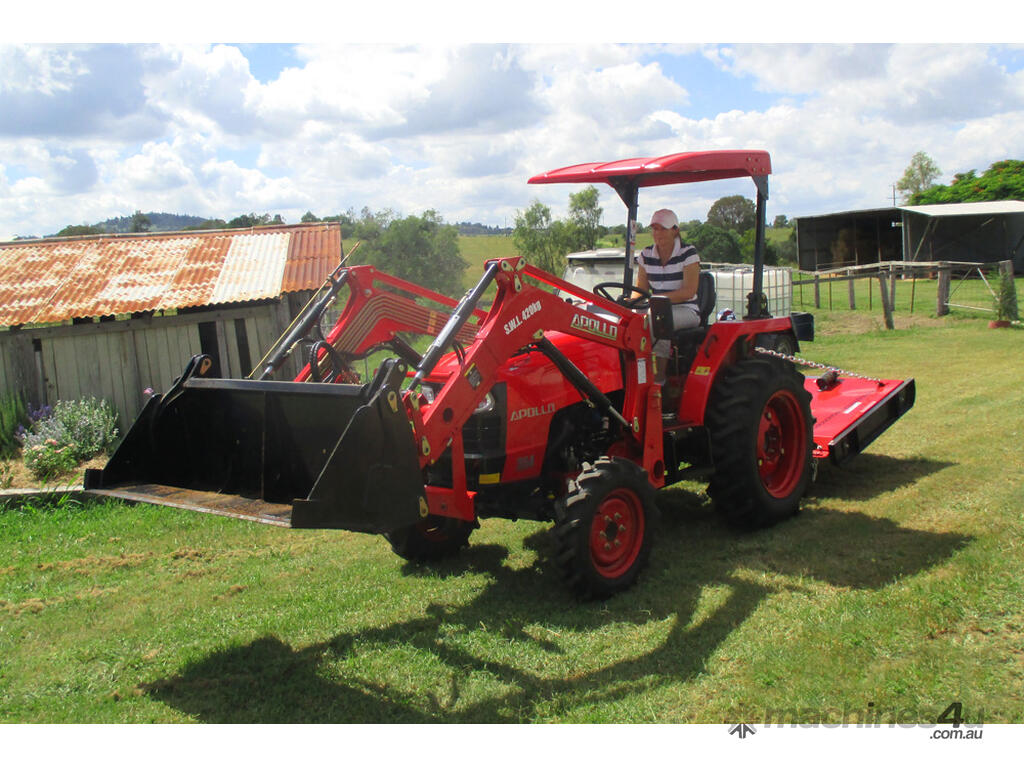

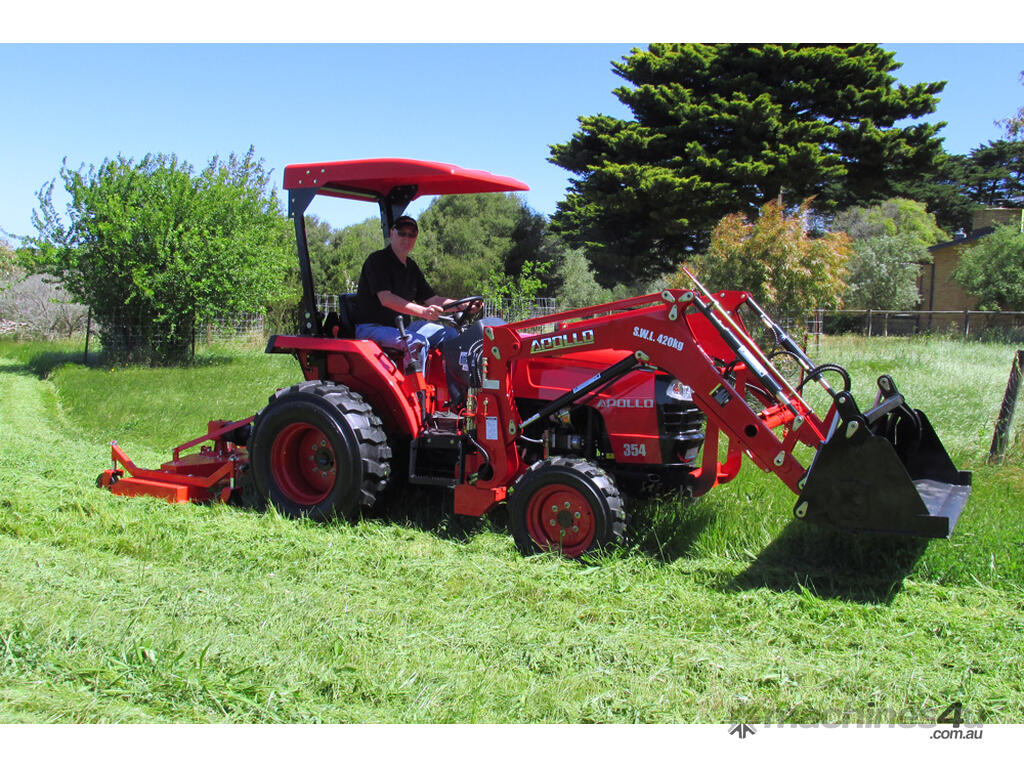

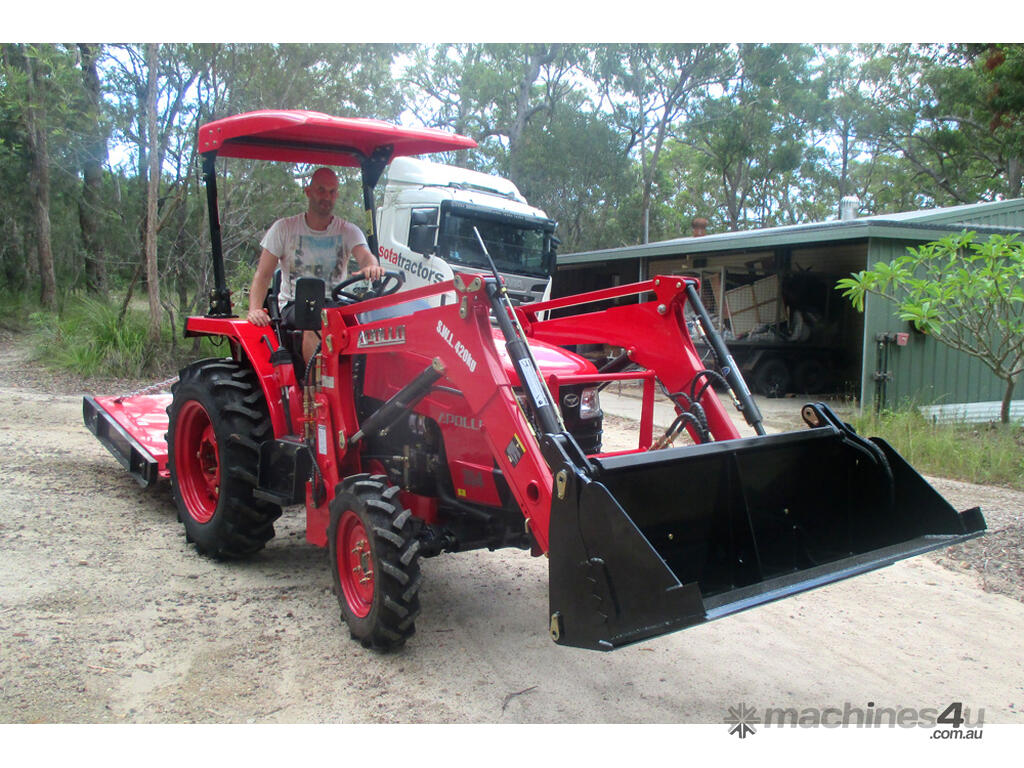

Front end loader with 4-in-1 bucket (SWL 420kg)
Colour-matched sunroof

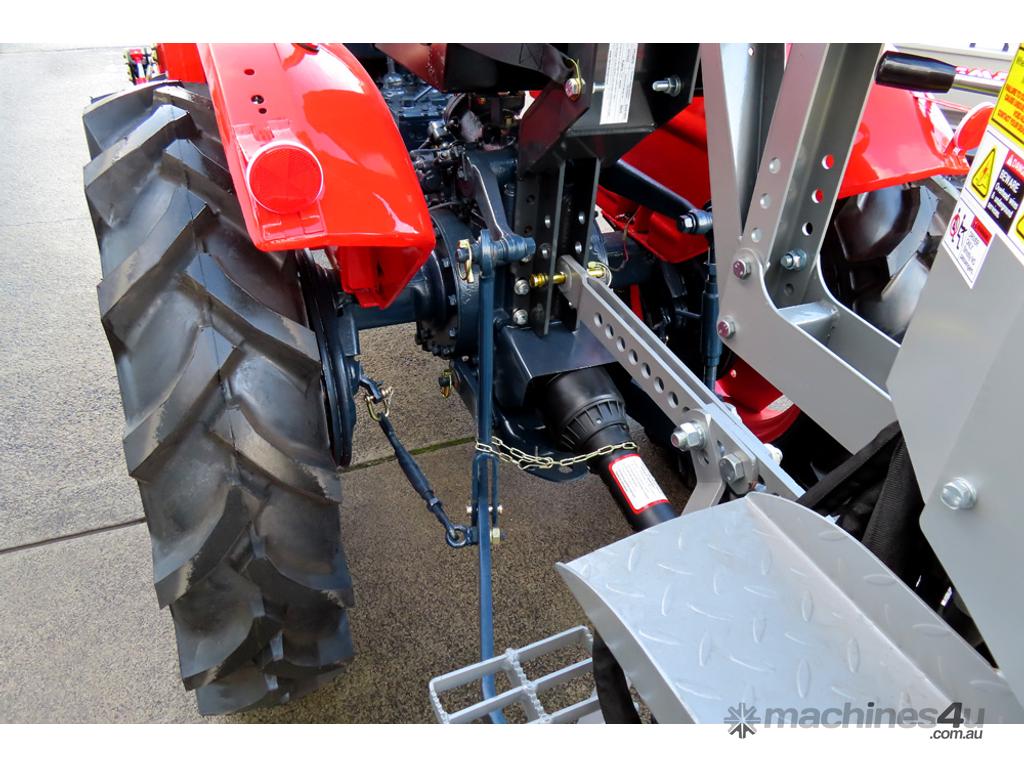

Cat 1 TPL
2 speed PTO
Power steering
Shuttle shift
Dual remote hydraulics
Large wheels and a wide track for increased stability on slopes
Adjustable suspension seat for driver comfort
Double handrail for easy mounting and dismounting
Full lighting system, suitable for road registration
APOLLO certified folding ROPS
Seatbelt
Full operators manual for tractor, FEL and implements
SOTAs unique safety and maintenance manual

APOLLO 354 SPECIFICATIONS

Engine Model: Changfa CF3B35T
Engine Type: Diesel
Engine Gross Power: 35hp 25.7kW
PTO Power: 32hp 21.9kW
No of Cylinders: 3
Total Displacement: 1908cc
Rated Speed: 2600rpm
Battery: 12v 80ah
Alternator: 14v 350w
Fuel Tank Capacity: 35L
Drive: 4 x 4
Transmission: Creeper Gears, Shuttle Shift
Steering: Power Steering
Brake: Wet Disc Dual Plate
Clutch: 9 Inch Dual Stage Dry Clutch
Rear PTO Revolution: 540/1000rpm

HYDRAULICS

Hydraulic Remotes: Dual
Lift Control Type: Position
TPL: Cat 1
Lift Capacity at 610mm (behind lift point): 754kg

STANDARD TYRE SIZE

Front: 6.0 x 16
Rear: 11.2 x 24

DIMENSIONS

Overall Length: 4000mm
Overall Width: 1440mm
Overall Height (With Foldable ROPS): 2560mm
Min. Ground Clearance: 305mm
Min. Turning Radius (With Brake, Without 4WD): 2600mm
Weight With Loader: 1855kg
Ag Tyre Size: Front 6.0 x 16, Rear 11.2 x 24

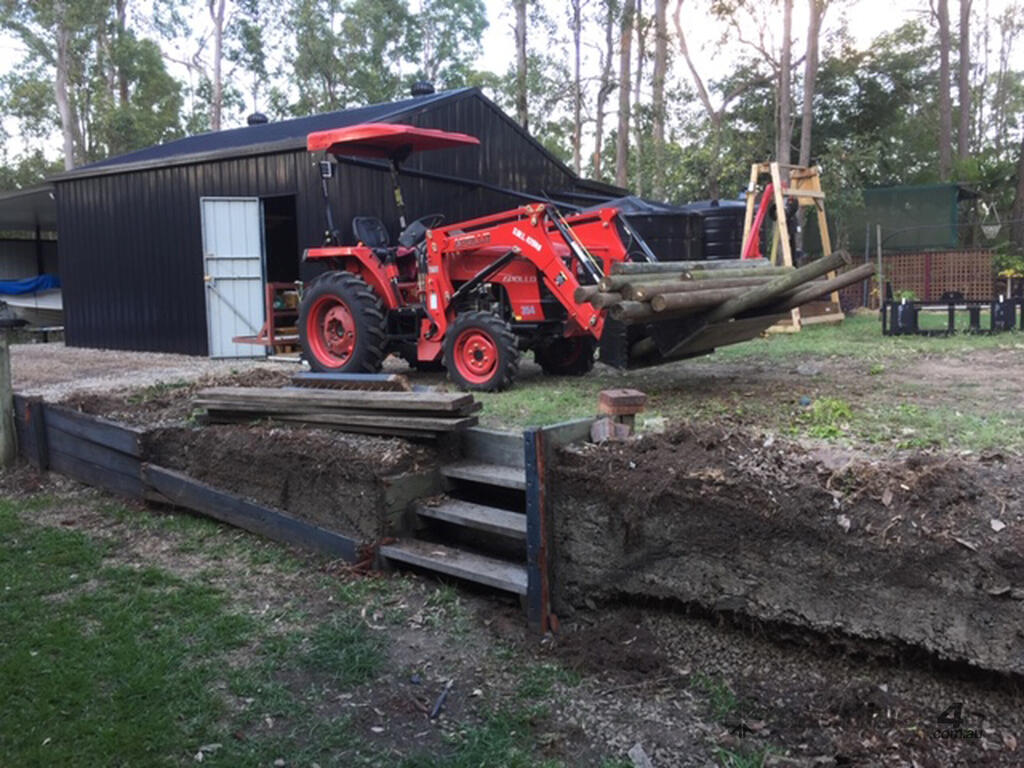

A vast range of implements are available to fit the standard Cat 1 three point linkage. Optional pallet forks and bale spikes are available to fit the front end loader and are great for cleaning up around the shed.

Standard kit includes: an X35 quick-release 4-in-1 loader (SWL 420kg), large wheels with a wide wheel track, UV sun canopy, adjustable suspension seat for driver comfort, dual remote hydraulics, Certified Rollover Protection System (ROPS) + seatbelt and a full lighting system, which is suitable for road registration.

FEATURES & BENEFITS

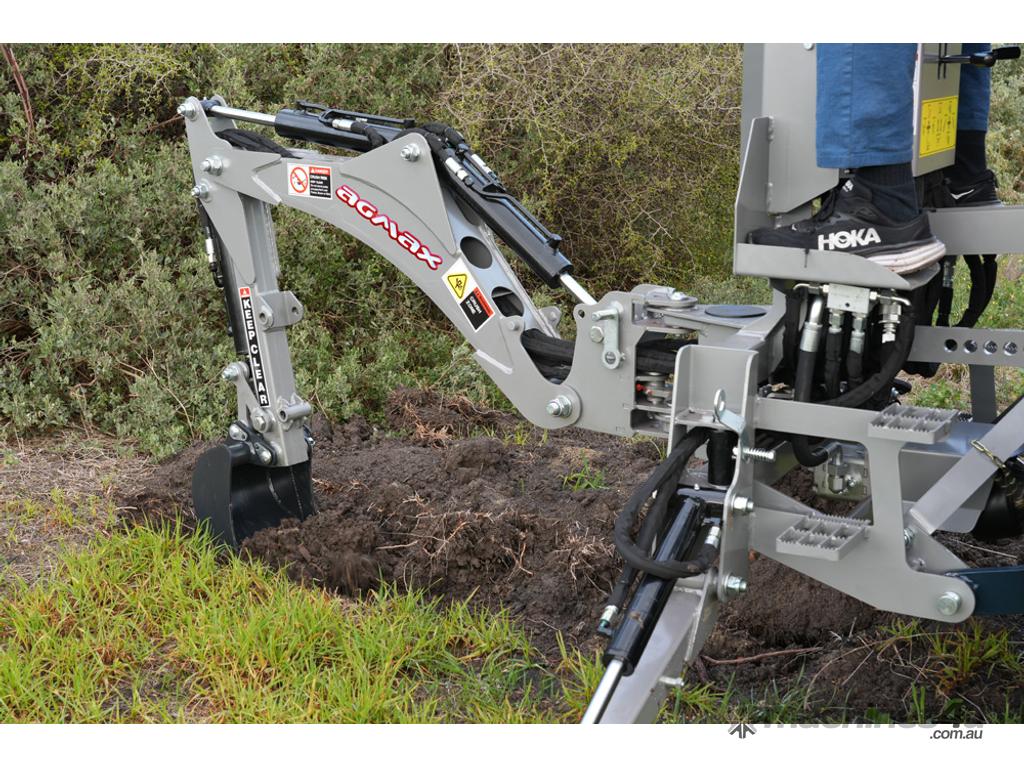

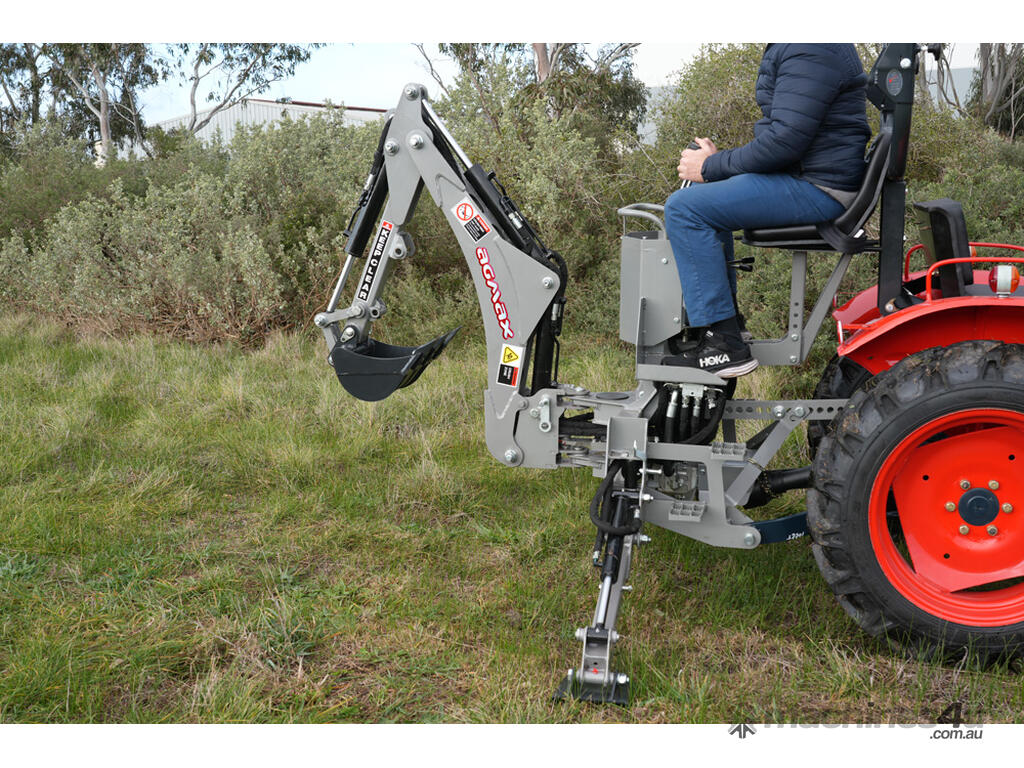

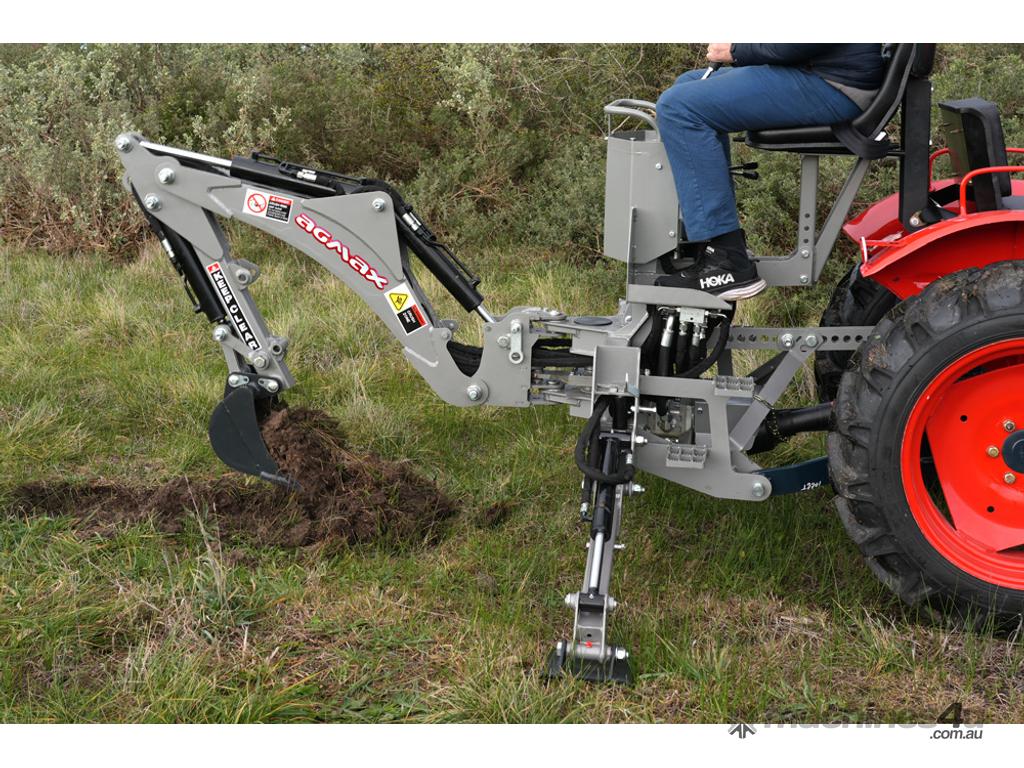

The Del Morino RES20 backhoe offers:

180 degree arm rotation (side shift lock)

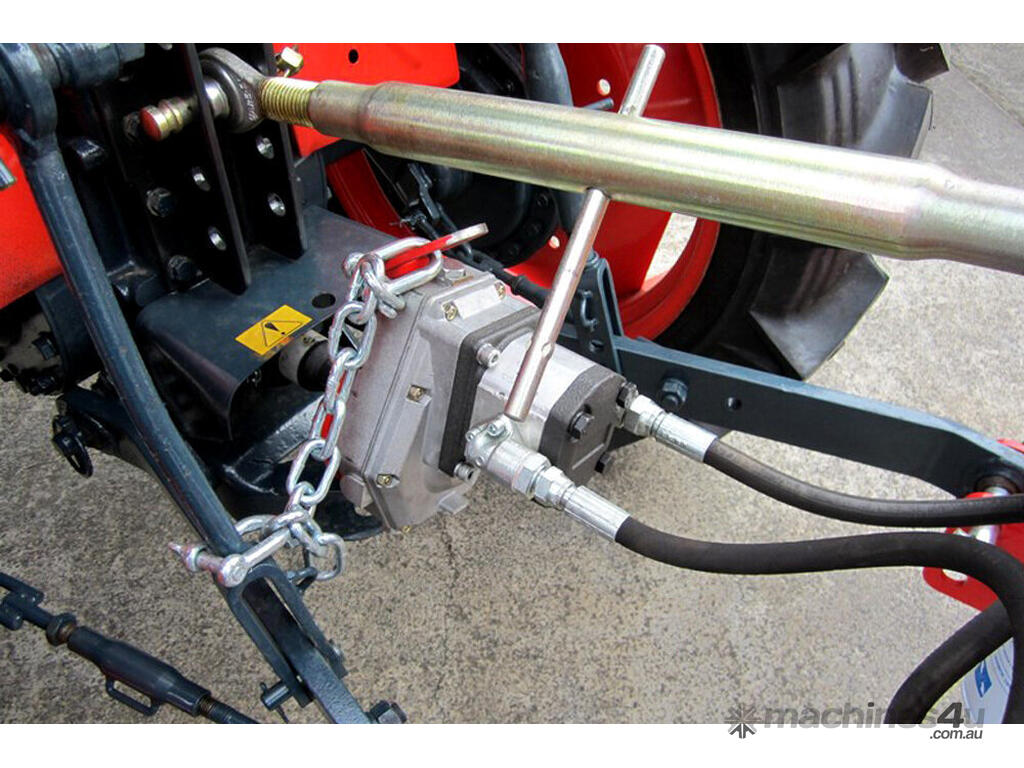

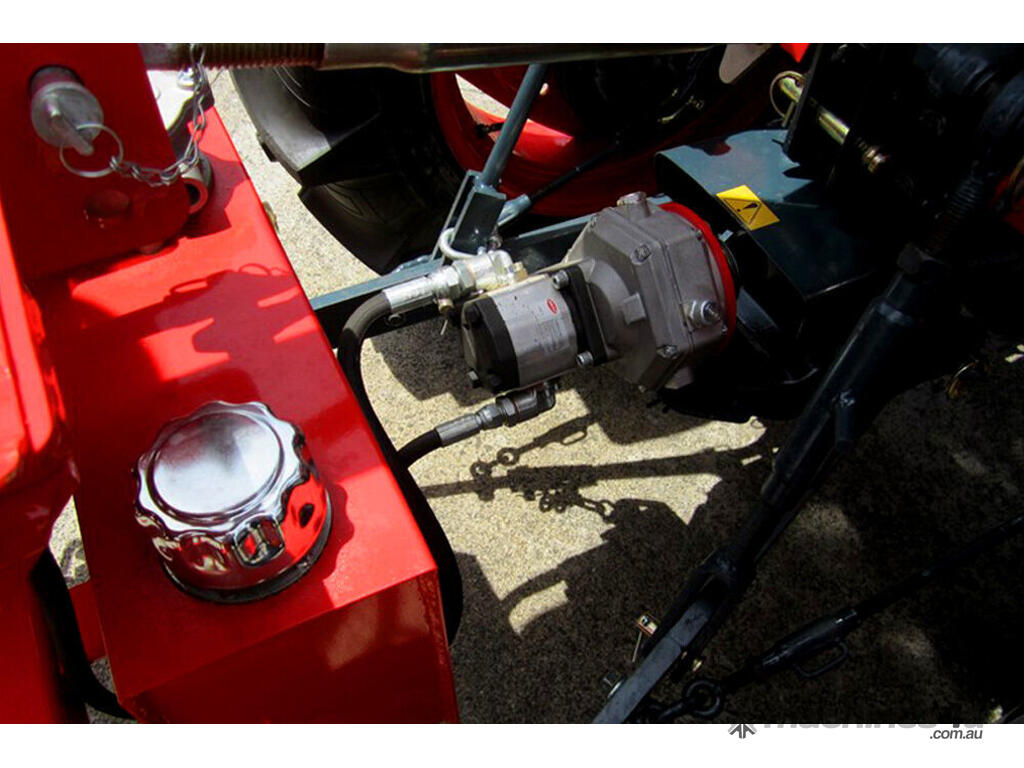

High performance, cast iron pump
Case hardened steel pins - all pivot points
Self lubricated bushes

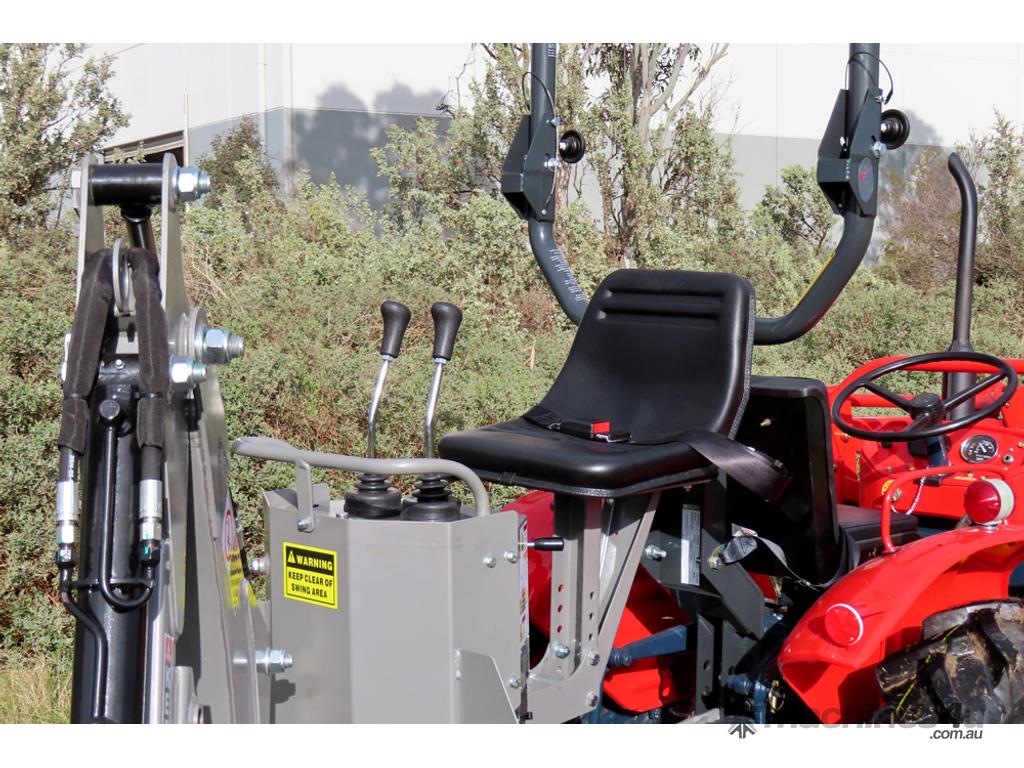

Easy access and ergonomic seat (adjustable)

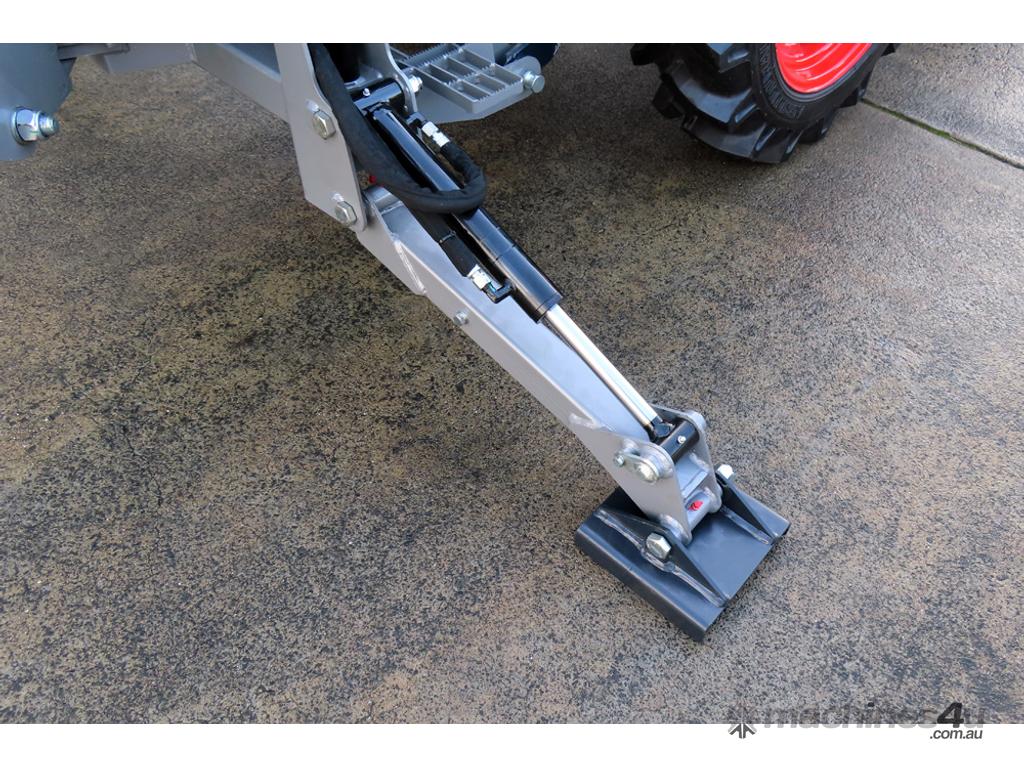

Stabiliser legs with locking valves
Italian hydraulic pumps, by META
Italian hydraulic cylinders
Italian hydraulic hoses, by TEKNO
Purpose-specific buckets
Independent, hydraulic stabiliser legs

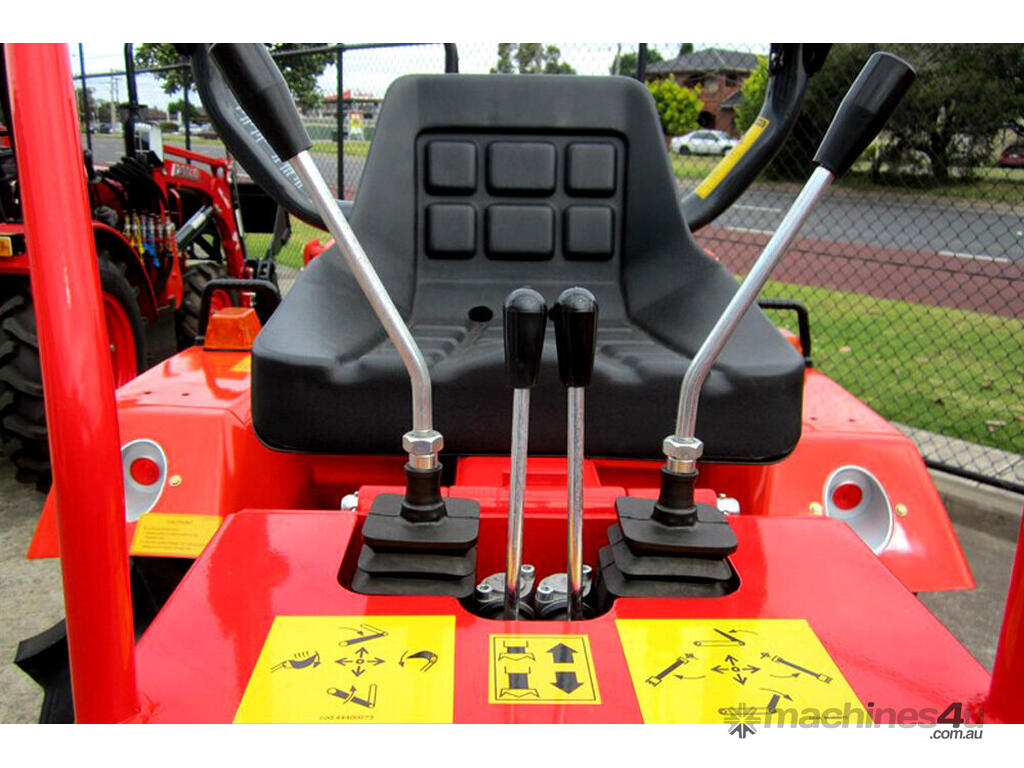

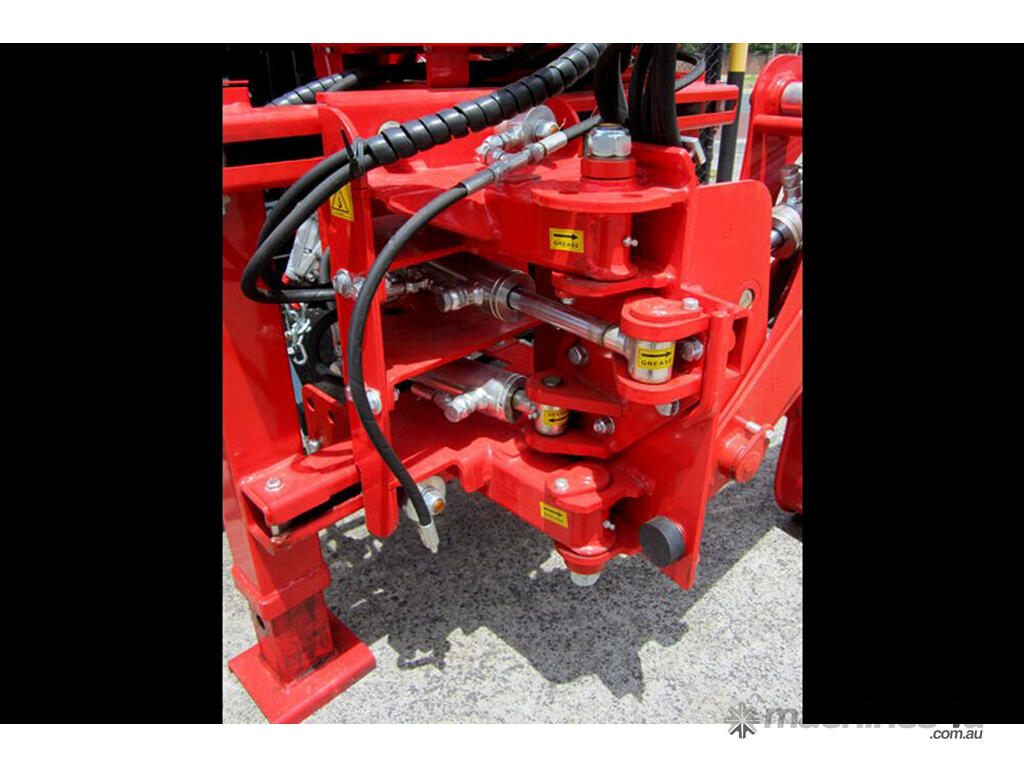

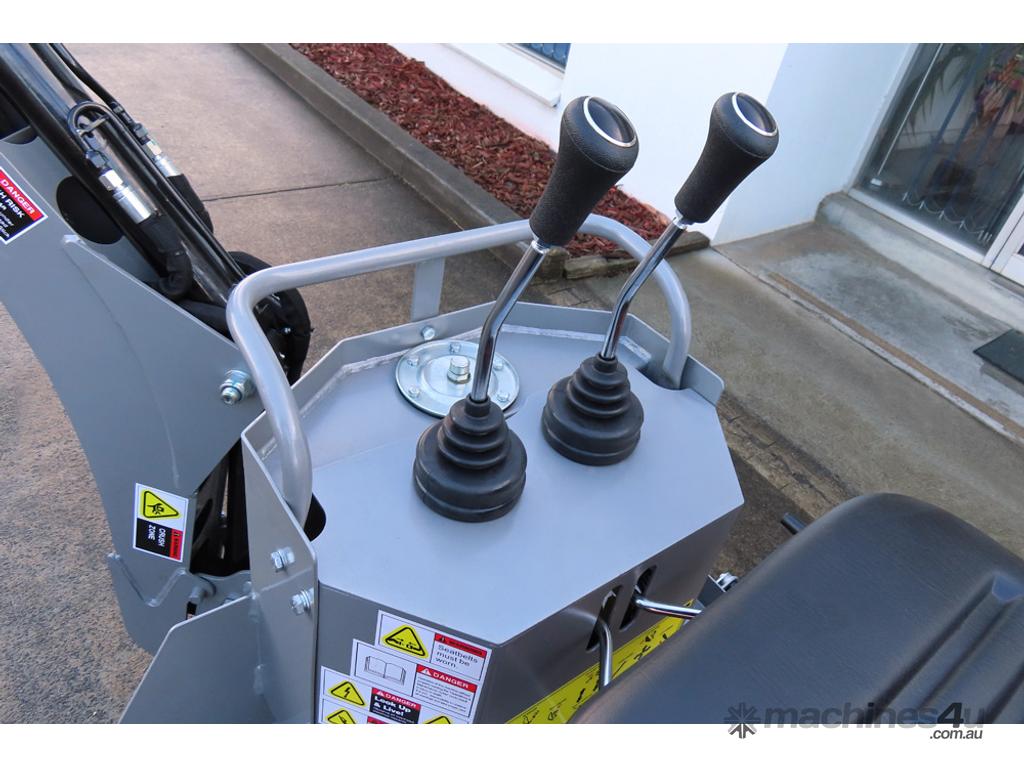

Hydraulic control unit with pressure regulator
Tilt seat with gas strut

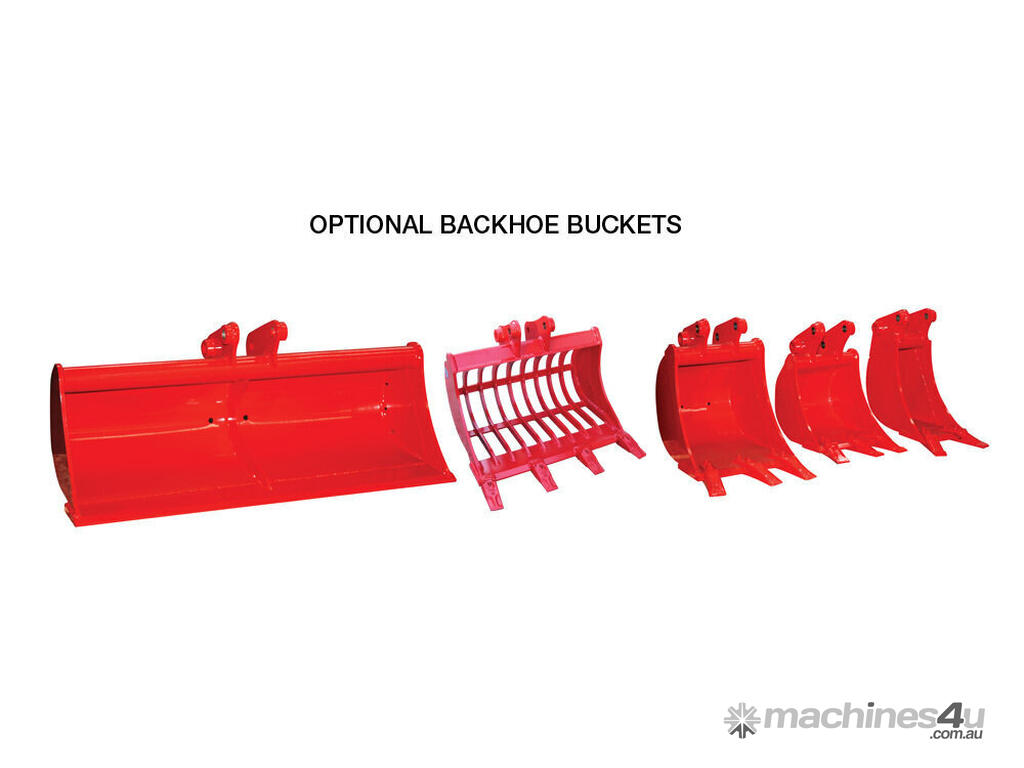

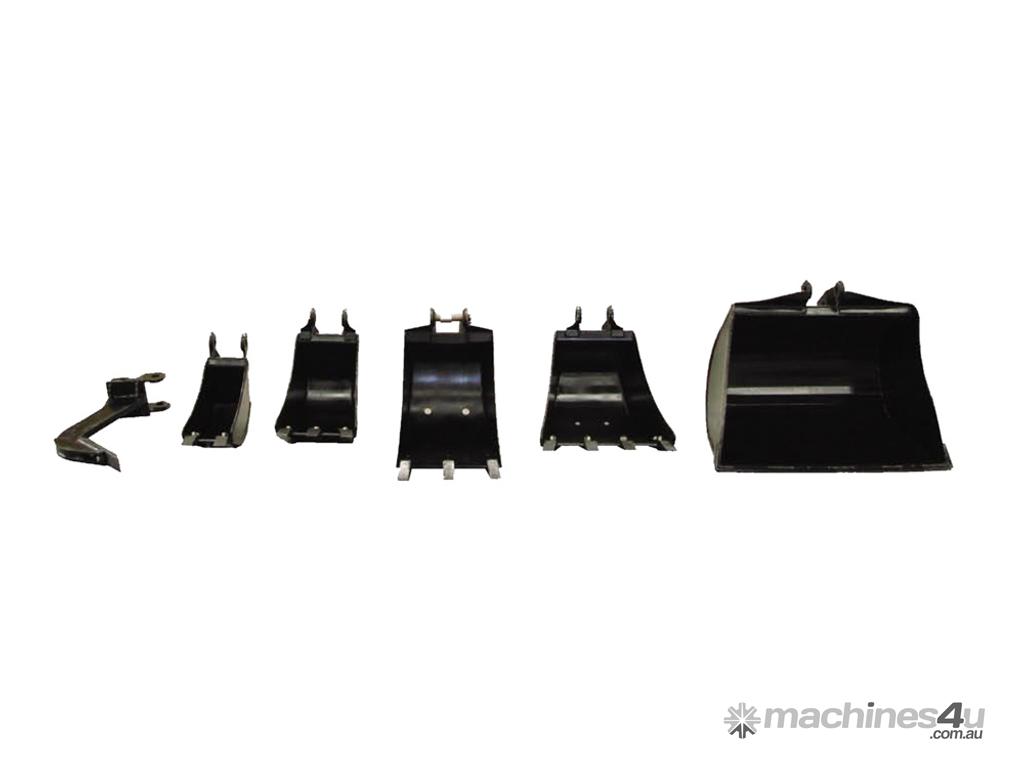

Optional bucket sizes available

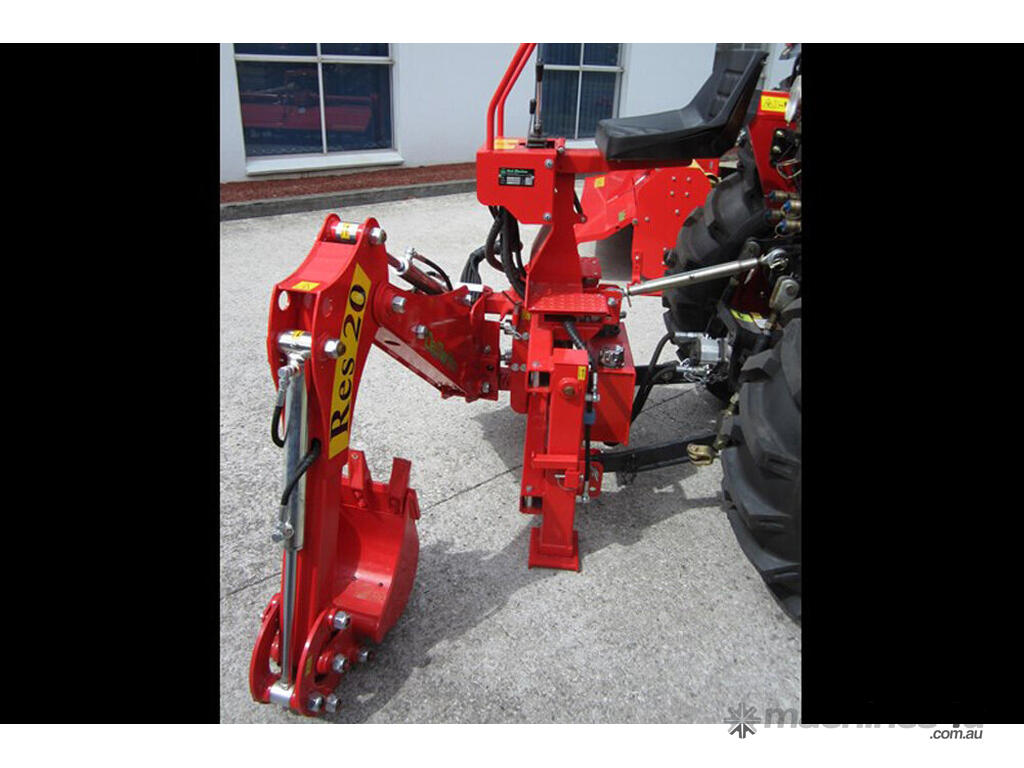

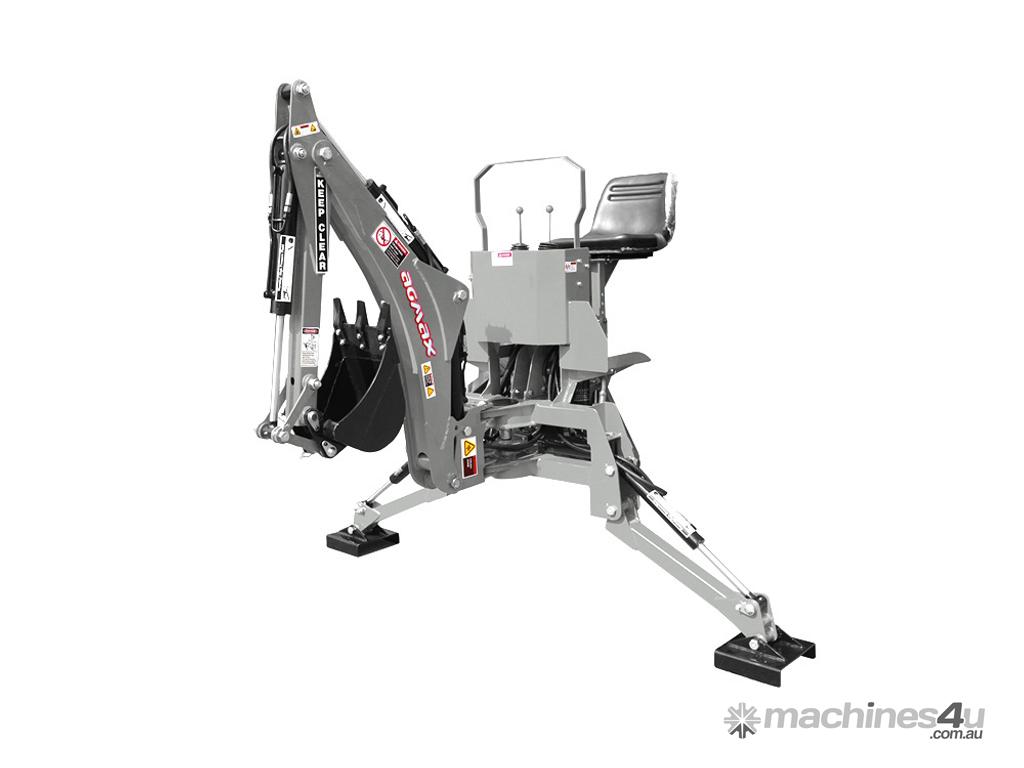

DEL MORINO RES20 SPECIFICATIONS

Tractor HP: 25-40
TPL: Cat 1

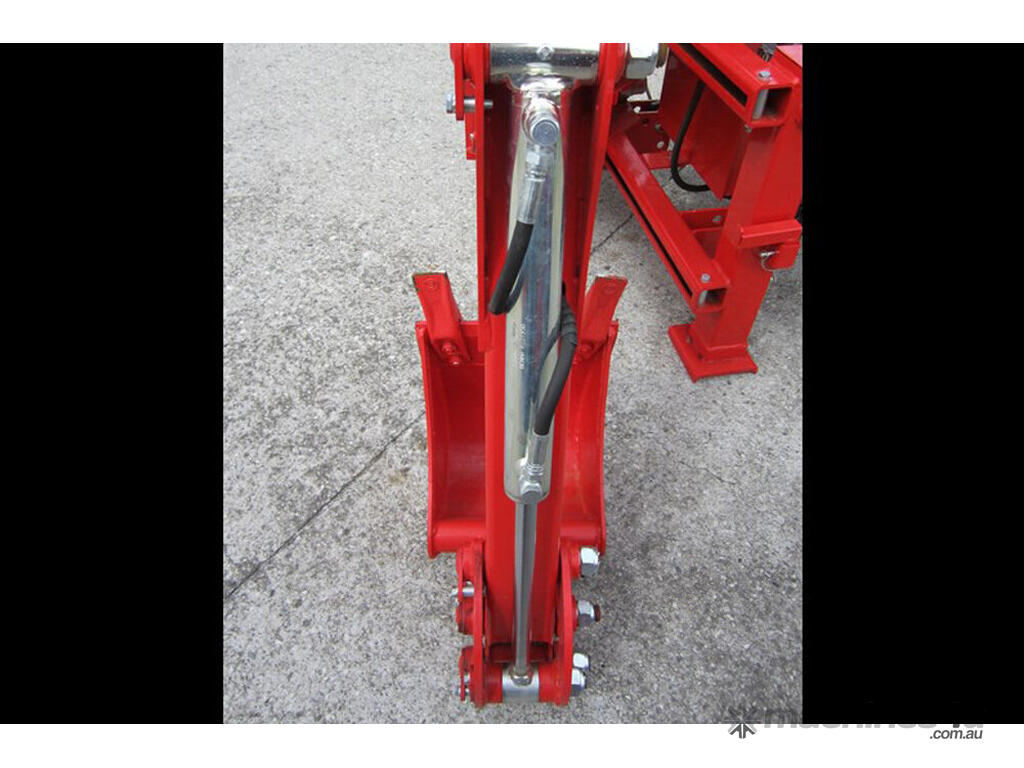

Arm Length: 234cm
Maximum Working Height: 180cm
Maximum Digging Depth: 155cm
Digging Bucket: 30cm
Stabilising Leg Maximum Height: 30cm
Side Shift: Yes
Shifting Lock: Mechanical
Tearing Power At Tooth: 1200kg
PTO: 540rpm
Weight: 385kg

WARRANTY

The APOLLO 354 is Australias cheapest, fully supported 35hp tractor, which means it is backed by SOTAs renowned after-sales support. SOTA has a comprehensive inventory of spare parts on hand, including all consumables such as filters, belts and so on. This tractor has a 3 year written warranty, which includes:

Year 1: Comprehensive warranty, including parts, labour and all travel expenses.

Years 2 and 3: Drive train, parts only warranty.

We carry a huge range of spare parts in stock and supply to our customers. We offer full tractor servicing at each of our branches in VIC, NSW and QLD and we also offer on-site tractor servicing.

Our experienced diesel mechanics are fully equipped with onsite service trucks. They are always happy to share their expert knowledge and answer any maintenance questions you may have.

Delivery is available POA.
