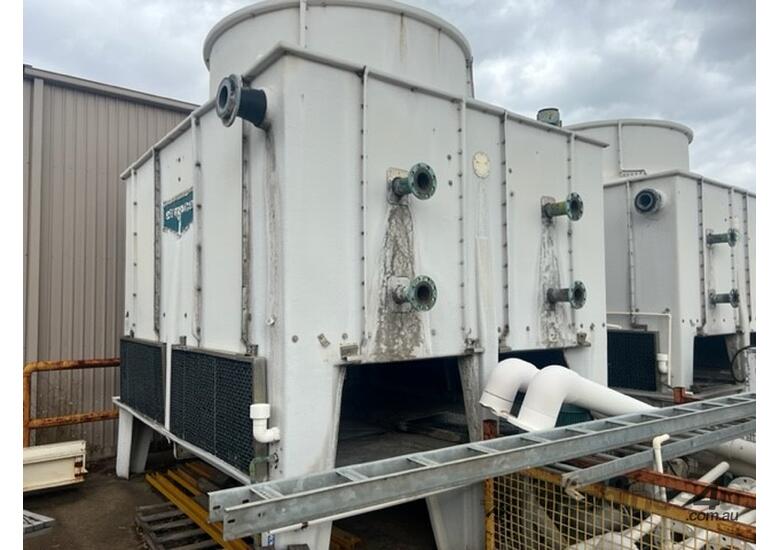

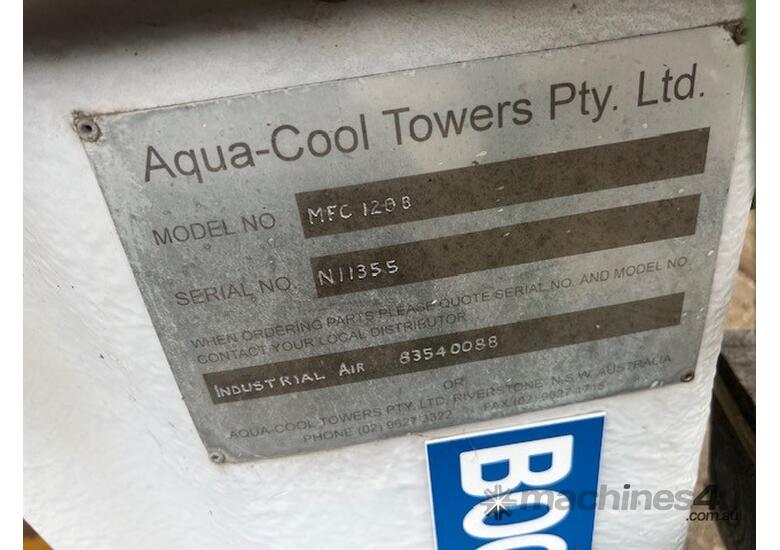

AQUA-COOL TOWERS MFC 1208 Cooling tower 22kW motor 55 LPS EVAPCO
This tower included a large copper tube and manifold "coil" system so your process liquid is not contaminated by the actual tower water , this can remove the need for secondary heat exchanges . and is good for applications like injection molding and bitcoin mining
Figures below are the original design operating point and not the towers max ratings
Flow rate- 55 LPS
No.of units – 2 units (PRICE IS FOR 1 COOLING TOWER we have 2 available )
Heat rejection – 1065 kW
Entering Water temp – 34.4 C
Leaving water temp – 29.8 C
WB temp – 22.0 C
Fan Motor – 22 KW
Water pressure drop – 64.0KPA
Material of Construction
Fan section – Galv
Basin section – SS304
Project Name- GMH Elizabeth
2 available, price is for 1.
This is a large tower base dimensions are approx. 3.3 x 3.3m and it would be about 5.5m high its going to need to be partially dismantled for transport because of the height
The price includes GST and a tax invoice will be issued if you pay by bank deposit
The price includes GST and a tax invoice will be issued if you pay by bank deposit
Call Tim Marshman with any questions
