ASSET INDUSTRIAL - 3200mm x 135Ton Ton NC Programmable Includes Laser Guards

###ON SPECIAL - Normally $40,850 - Reduced to 37,450.00 + GST - In Stock.
**Includes Laser Safety Guards.

## Laser Guards Included In This Offer ## On Special for a limited time!!

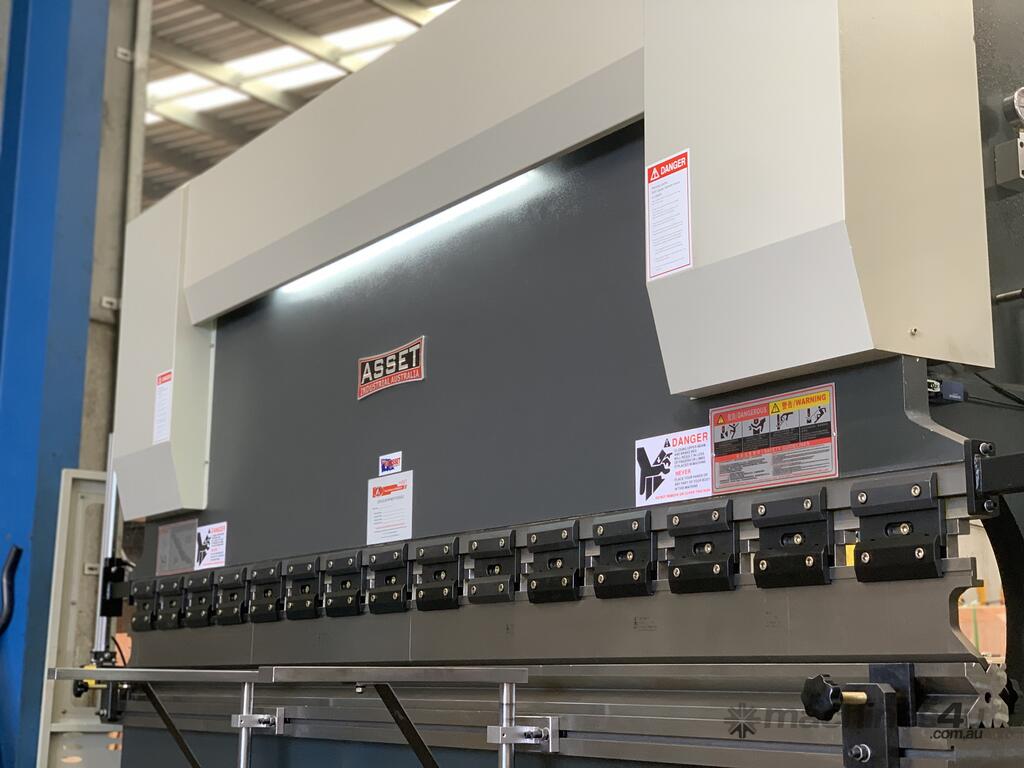

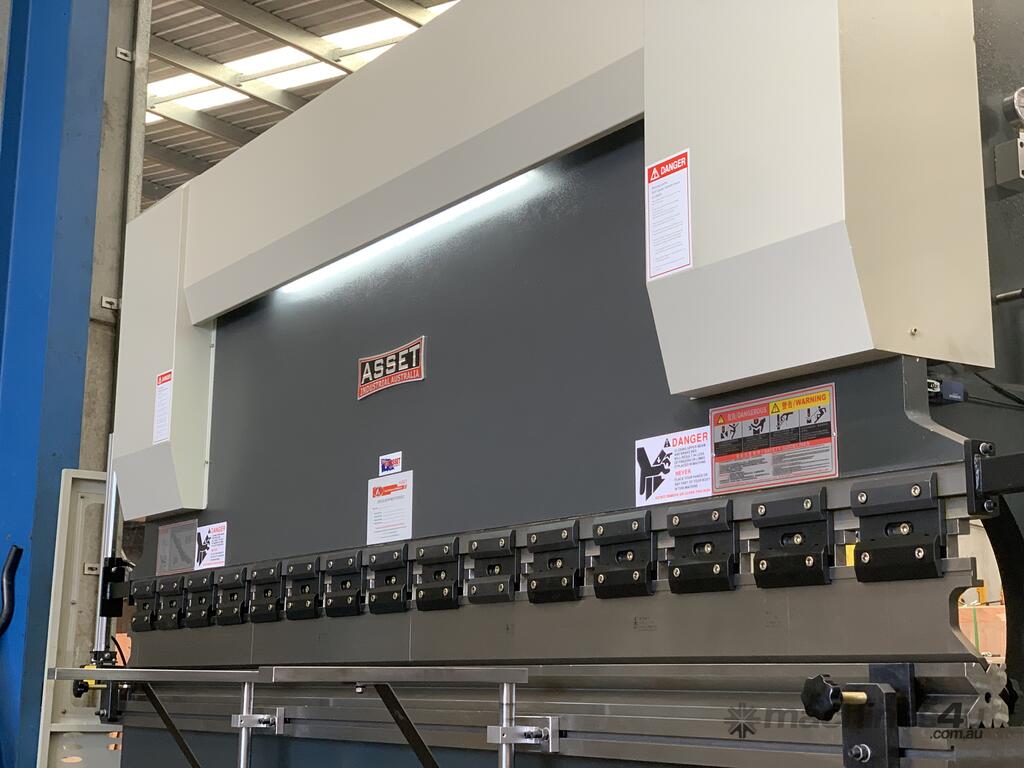

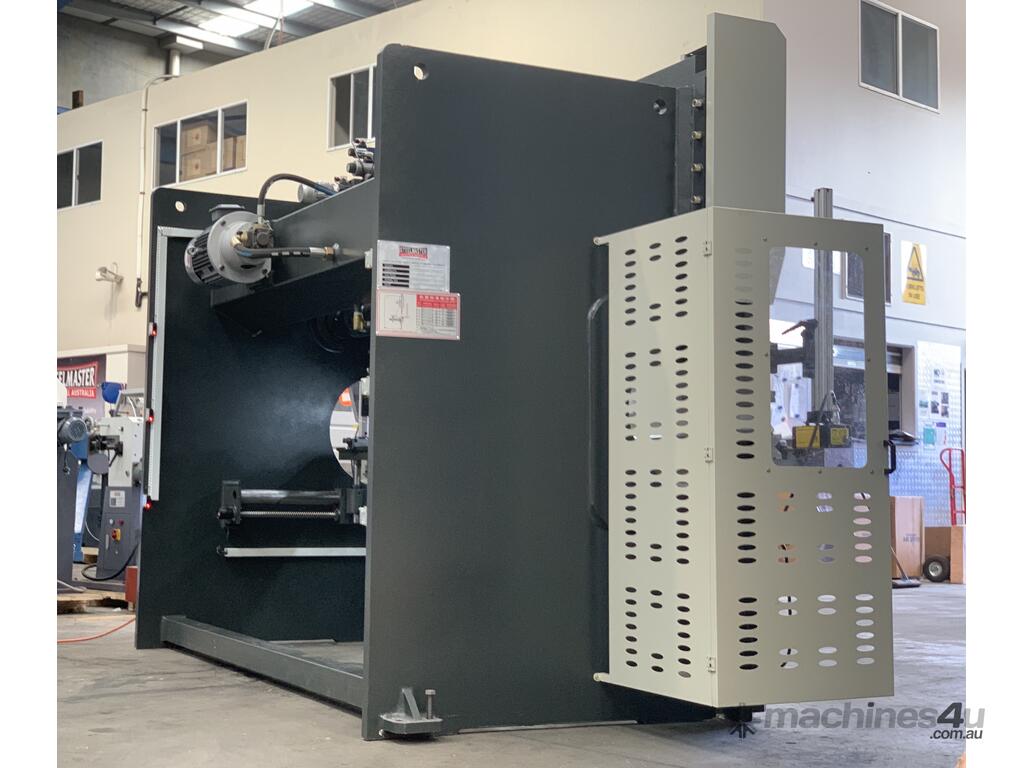

ASSET INDUSTRIAL PB135-3200NC2. Hydraulic Pressbrake. 3200mm x 135Ton. 2 Axis NC Estun E21 Control Front Laser Guards Included, Top & Bottom Tooling, 420mm Side Throat, 2650mm Between Frames. Volt

Our new ASSET Industrial Pressbrake now offers purchases a new machine, with all modern
day features at a price that you would expect to pay for a used machine.
Etsun 2 x axis E21 NC programmable controller is standard. Deep side throats, large frame widths,
this list goes on!
Offering all the features, new machine warranty, at the right price in this challenging market!

Features
?hydraulic synchronized positive stop design, electronically controlled by Estun NC programmable controller assuring accurate repeatability and ease of use.
?deep side throats and wider distances between the vertical frames offering you more application scope.

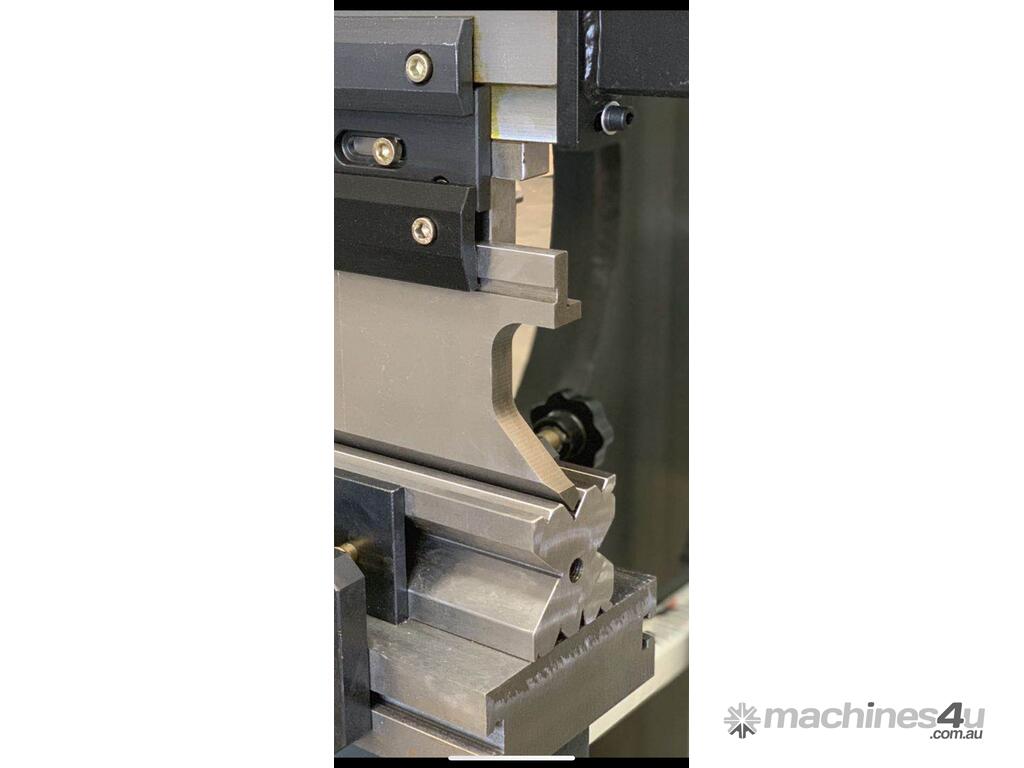

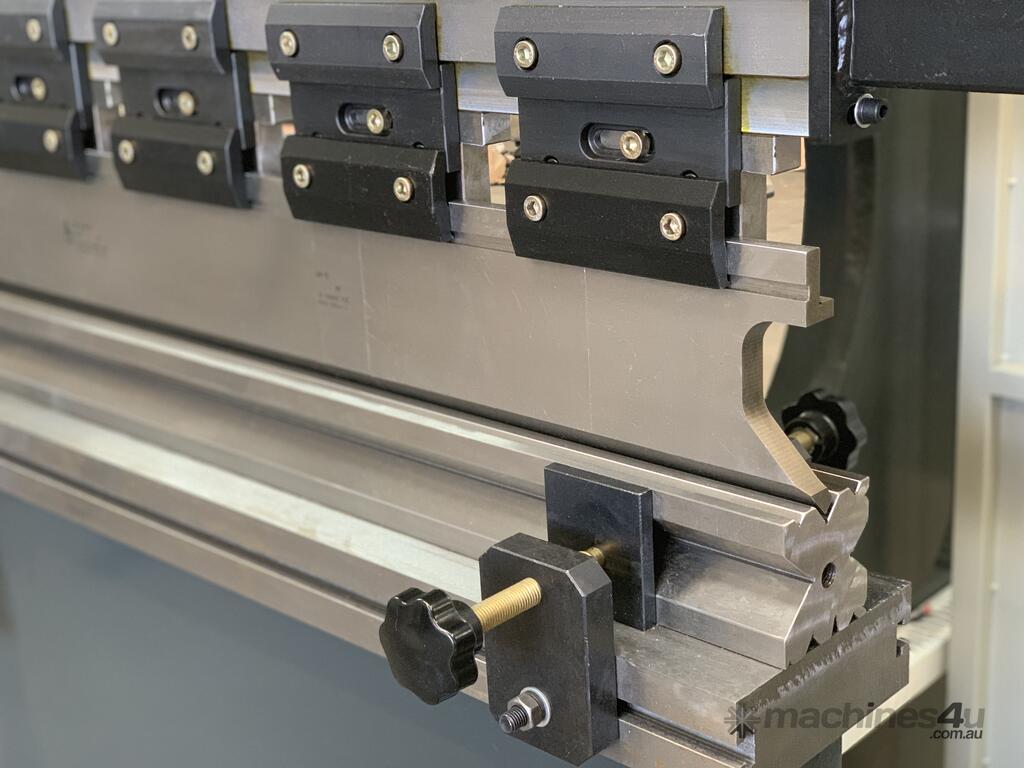

?segmented heavy duty 86° offset top tool, segmented for return bend clearance.
?full length Multi Vee bottom block with a smart selection of openings also including safety edge vee ('V') for over bending.
?power operated back gauge with quality support fingers also with vertical adjustment

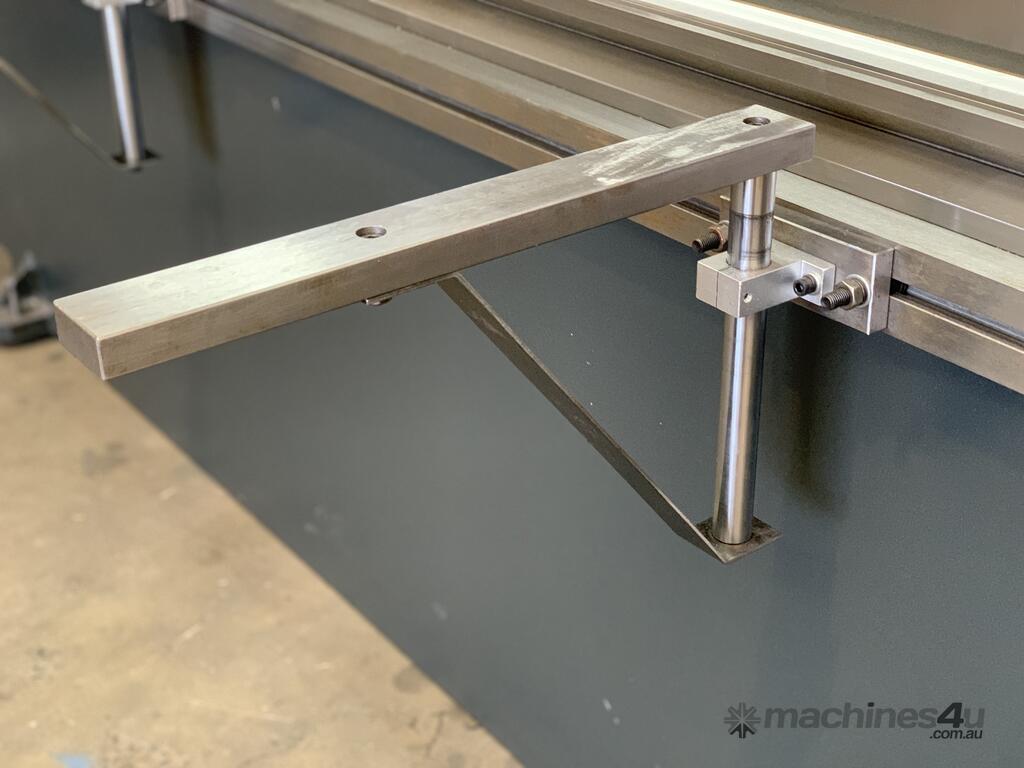

?front sheet supports enabling a wide range of material sizes to be aligned and supported at the correct required height.
?conveniently mounted control box on pendant for quick swivel and adjustments.

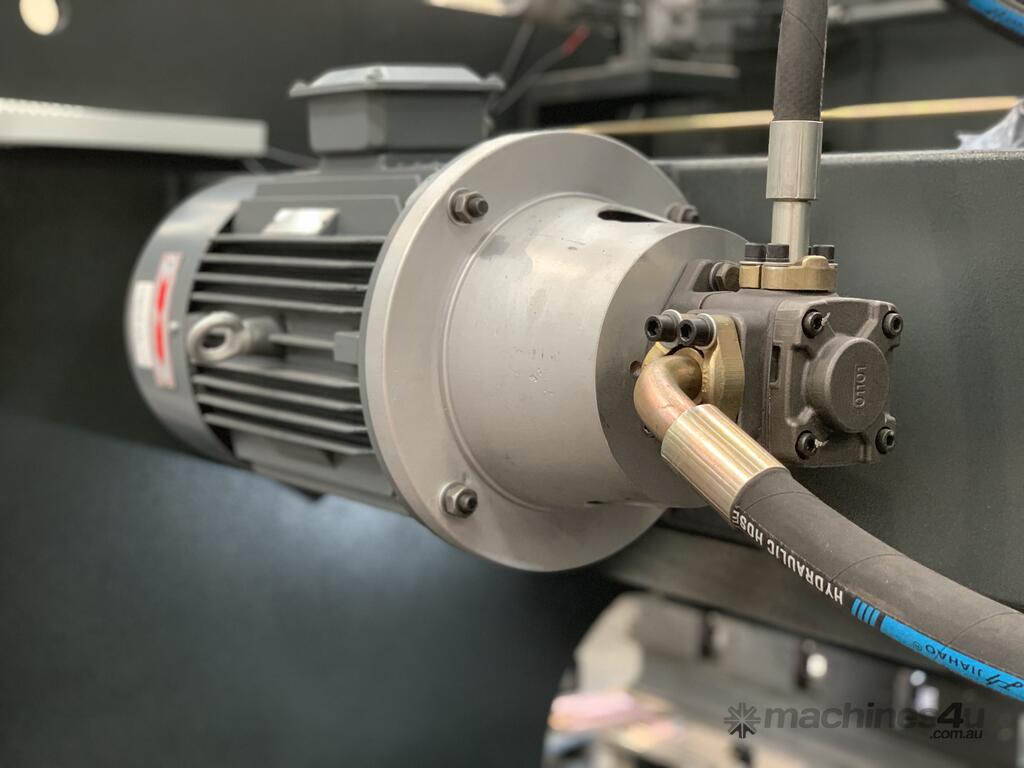

?integrated hydraulic system allowing rapid approach switching automatically to slow bend.
?modern designed pendant foot pedal operation with stainless braided cable.
?variable hydraulic pressure control valving fitted standard
?safety and material selection bending charts mounted on front beam for easy access.
?supplied pre commissioned prior to delivery
?pre commissioned prior to delivery
?CE compliant

Technical Data Snap-Shot

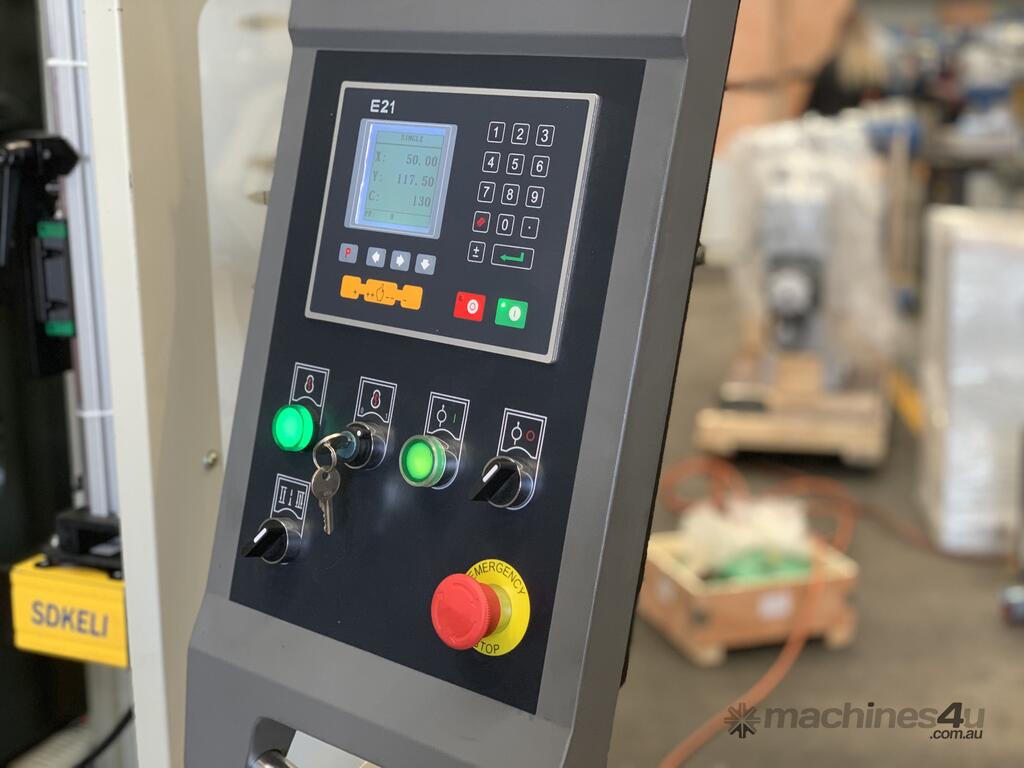

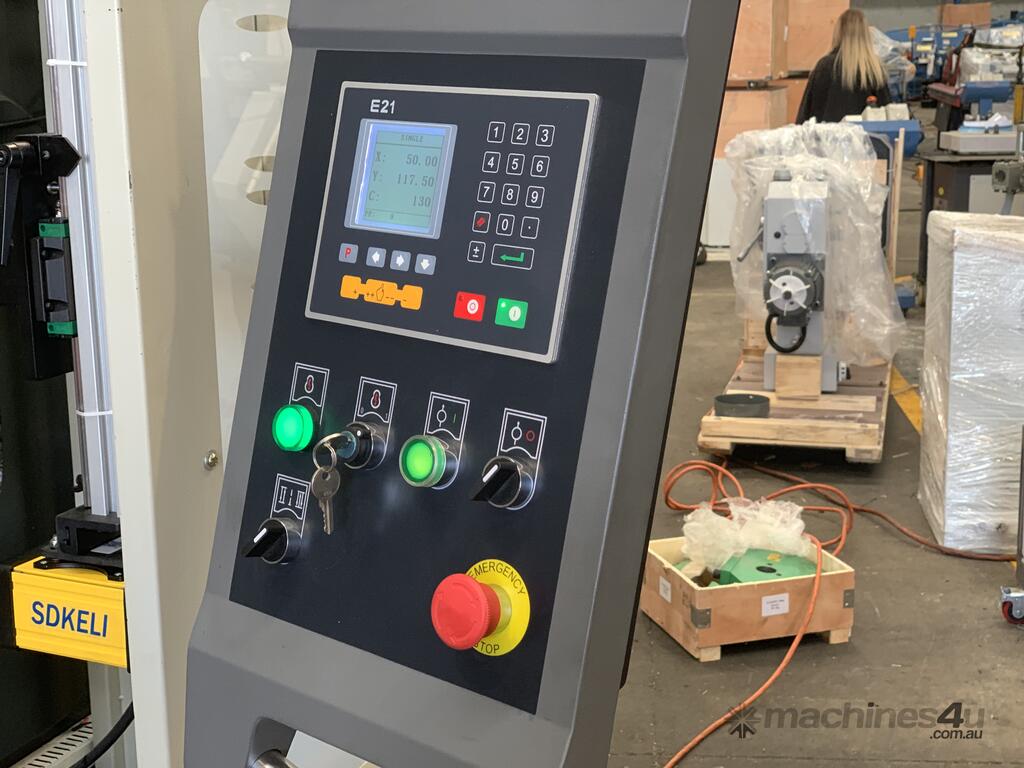

?2 x Axis Etsun E21 NC Controller for Depth & Back Gauge
?135 Ton Bending Capacity

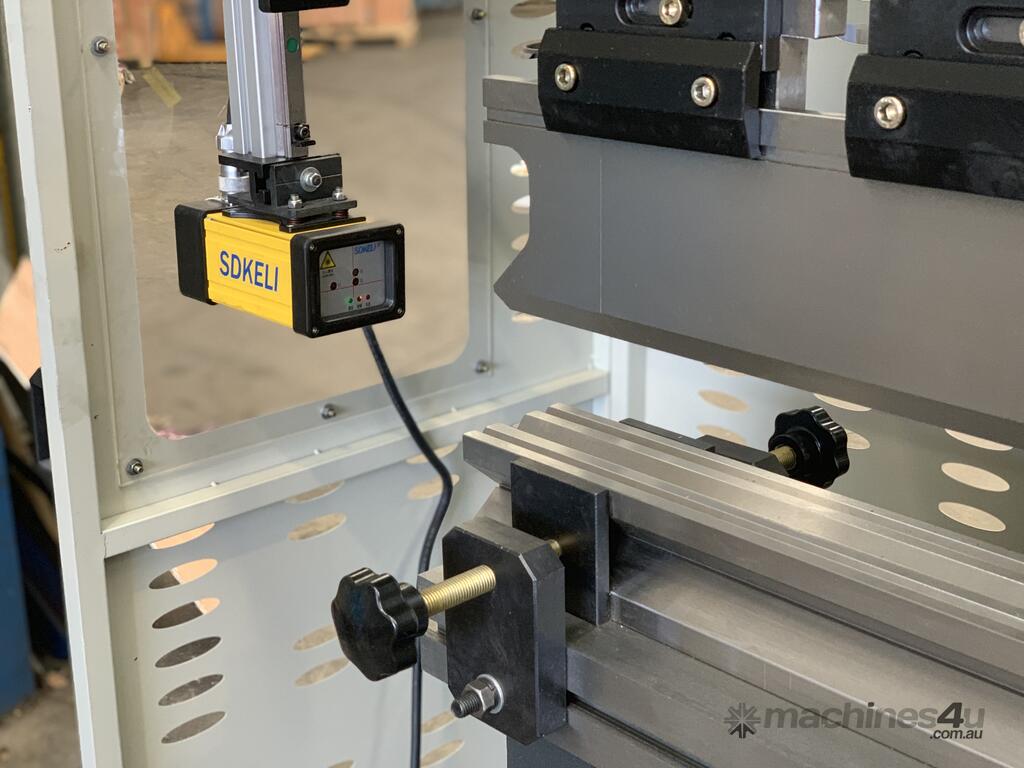

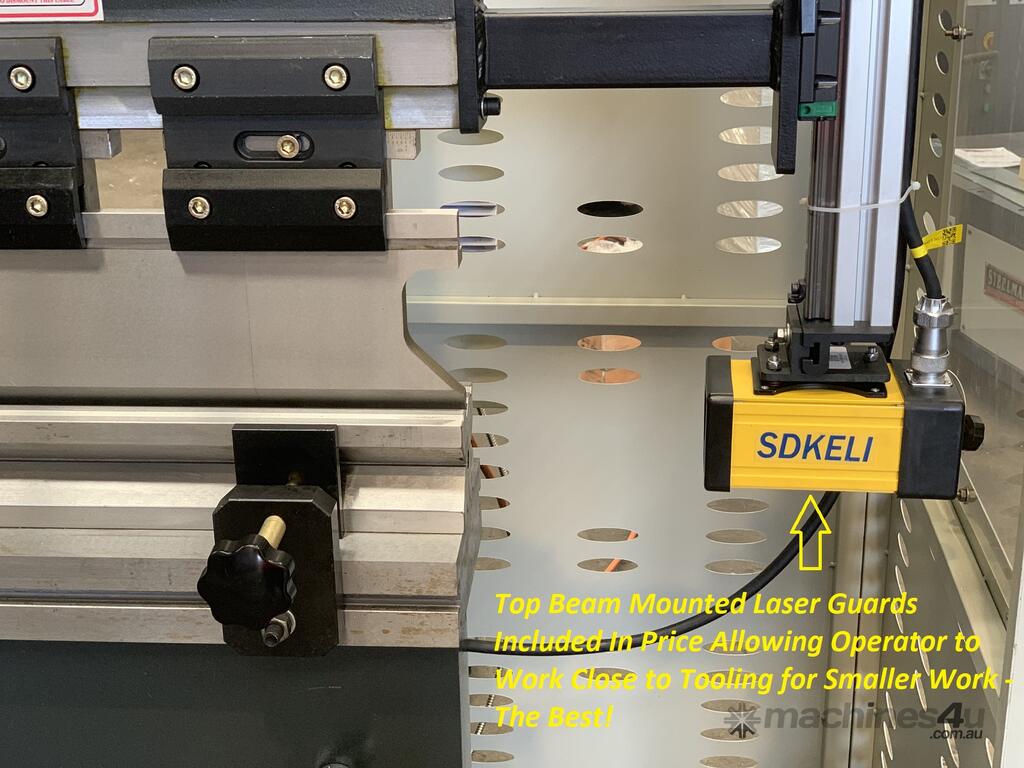

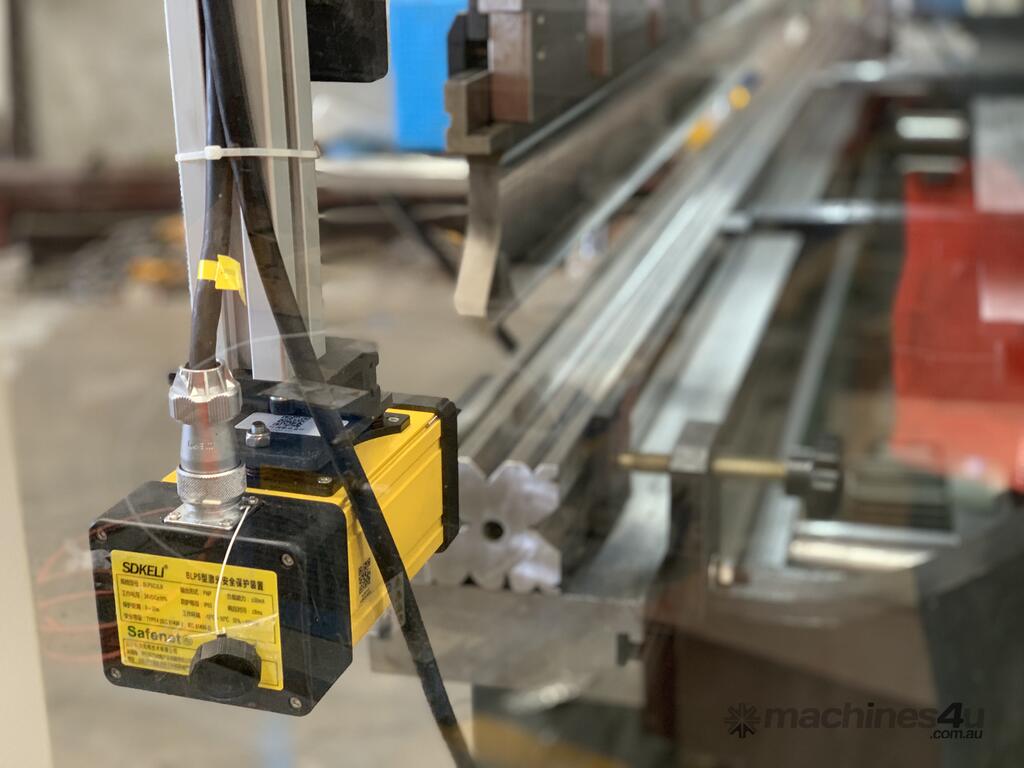

?Front OH&S Laser Guards Included in Offer

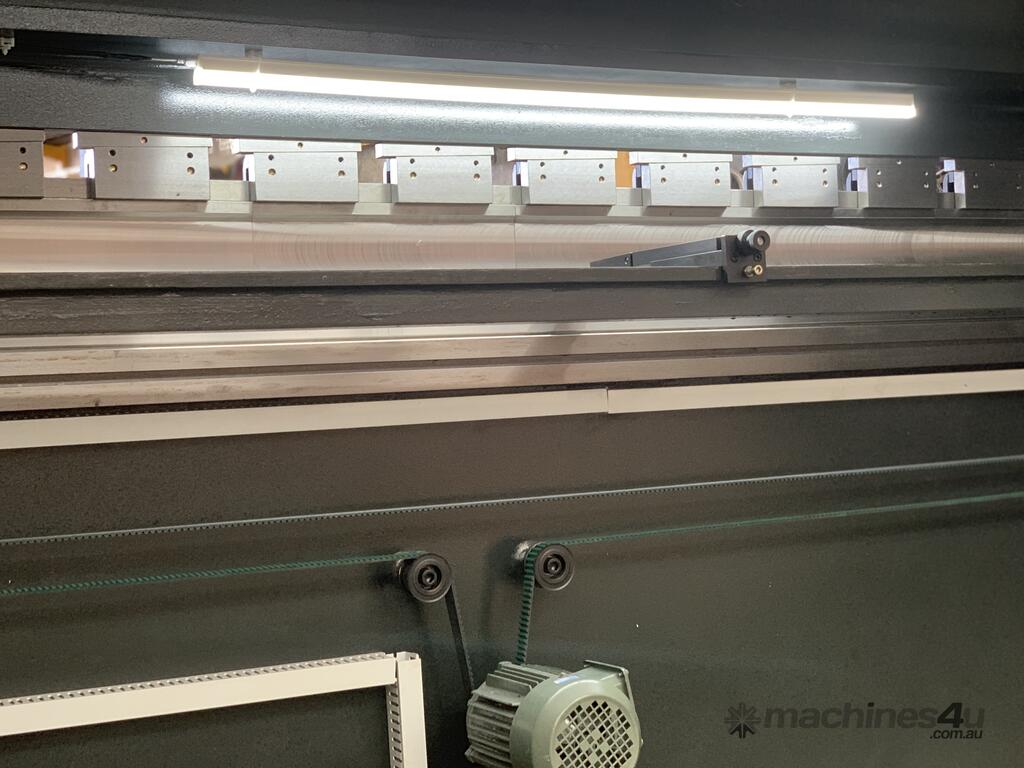

?precision ball screw Backgauge
?tee slotted front beam
?3200mm Bending Length
?2650mm Distance Between Frames
?420mm Side Throat Depth
?150mm Ram Stroke
?420mm Open Height
?600mm Back Gauge Travel
?7.5Kw / V Motor Power
?3580mm x 1850mm x 2690mm Footprint
?8800Kg Weight

Standard Tooling Supplied

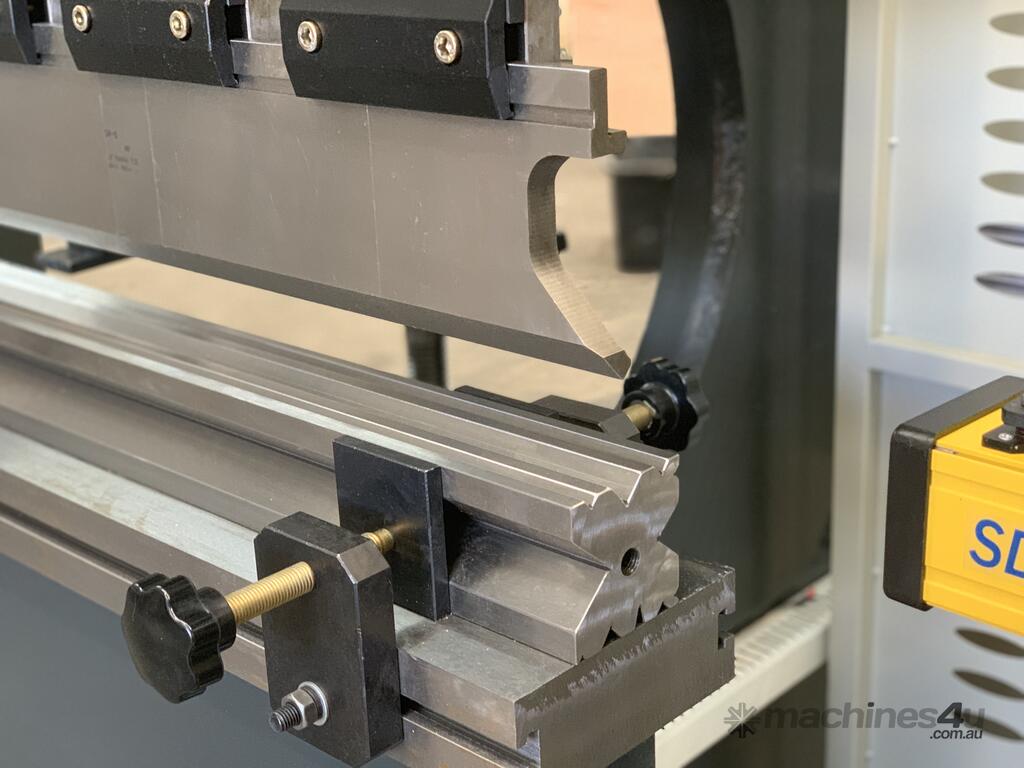

?95mm x 95mm x 3200mm Multi Vee Bottom Vee Block
?Segmented Knife Tooling

Optional Items To Be Added
?Front OH&S Laser Guards Included in Offer (Included on This Offer)
?Quick Release Tool Clamps

Recommended Add On Accessories
?19#0660 - STEELMASTER Plastic Die Cover Protective Folding Film – Sold Per Metre – Improves Bend Quality Finish
?19+0126 – Pressbrake Bottom Dieblock, Catering Profile 3200mm - Excluding Holder
?19+0240 – STEELMASTER Bottom Single 16mm Vee Tooling - US 20.416/35° V=16 R2,0 L.MM.835
?19+0268 - STEELMASTER Fold & Crush Dutch Tooling - US 300/26° V=12 R2,0 L.MM.500
?19+0113 – Single Edge Knife Top Punch - Pressbrake Tooling – 3200mm Long x 15º Profile – Type 2
?19+0138 – Double Edge Knife Top Punch - Pressbrake Tooling – 3200mm Long x 35º Profile – Type 2
?19+0238 - STEELMASTER US 152/88 Degree, Radius 0.8mm Press Brake Tooling – 835mm Long
?50+0200 - Digital Thickness Gauge - 0mm ~ 15mm
?50+0156 - Dial Protractor With Bevelled Blade - Metric Calibrations.
?50+0112 - Digital LCD Vernier Calliper - 150mm Length.
?50+0159 - Digital Micrometers - 0-25mm Range, Dual Reading, Metric & Imperial.

MAKE YOUR NEXT PURCHASE AN ``ASSET`` TO YOUR COMPANY!
Please contact us for more information.
