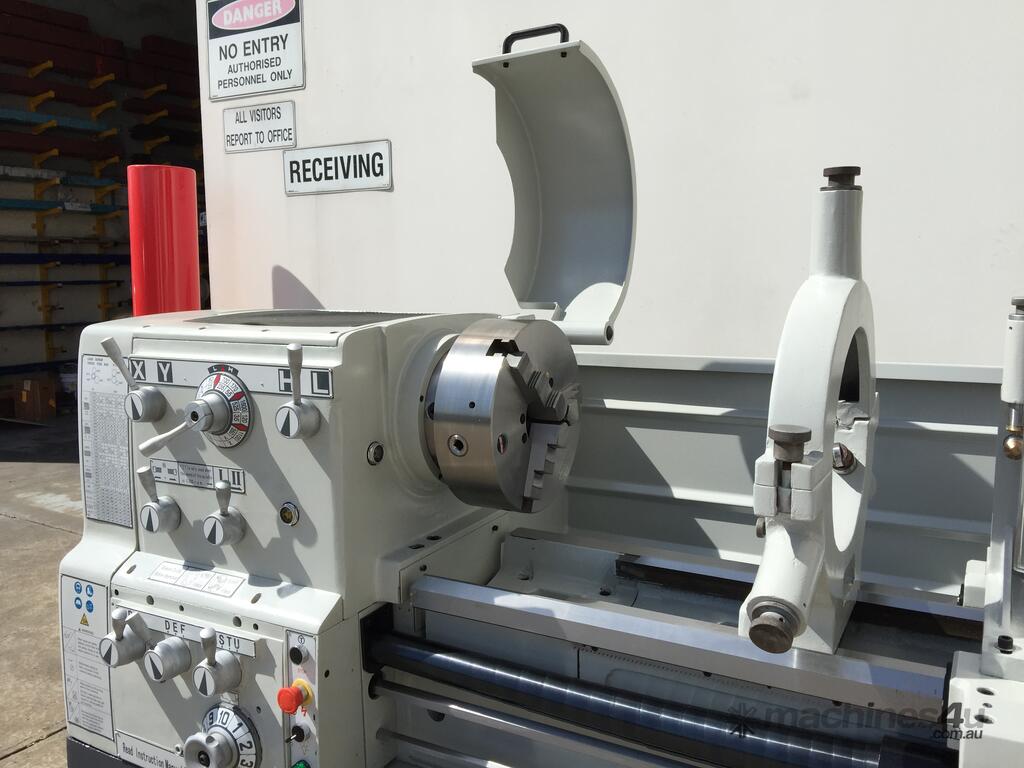

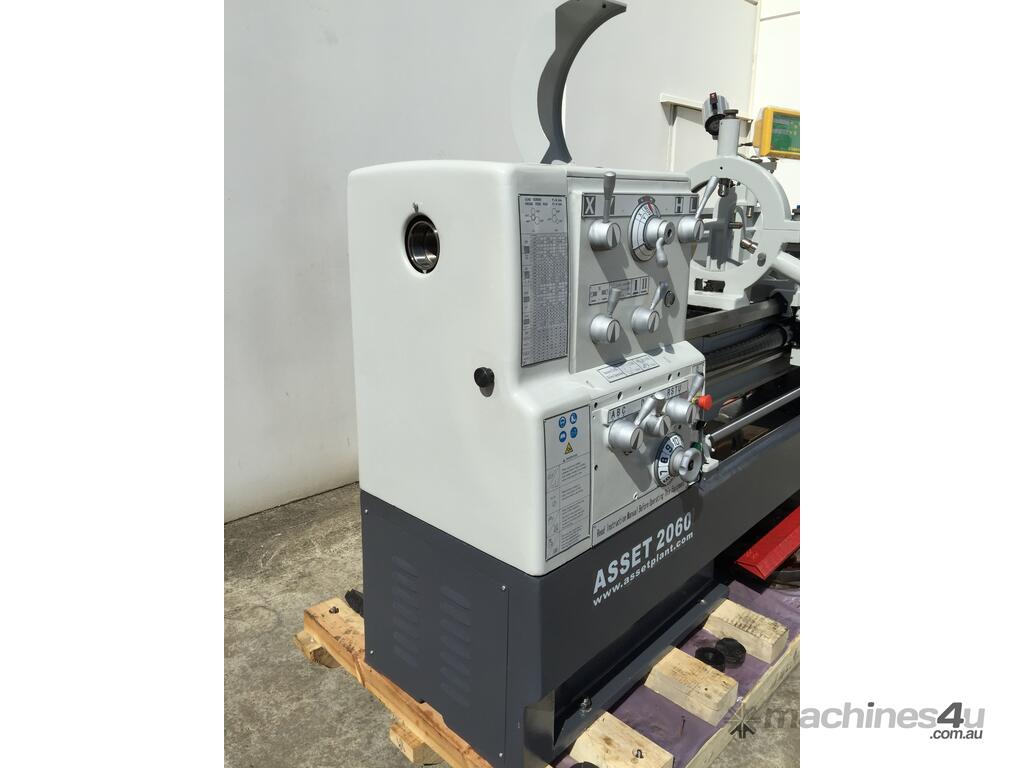

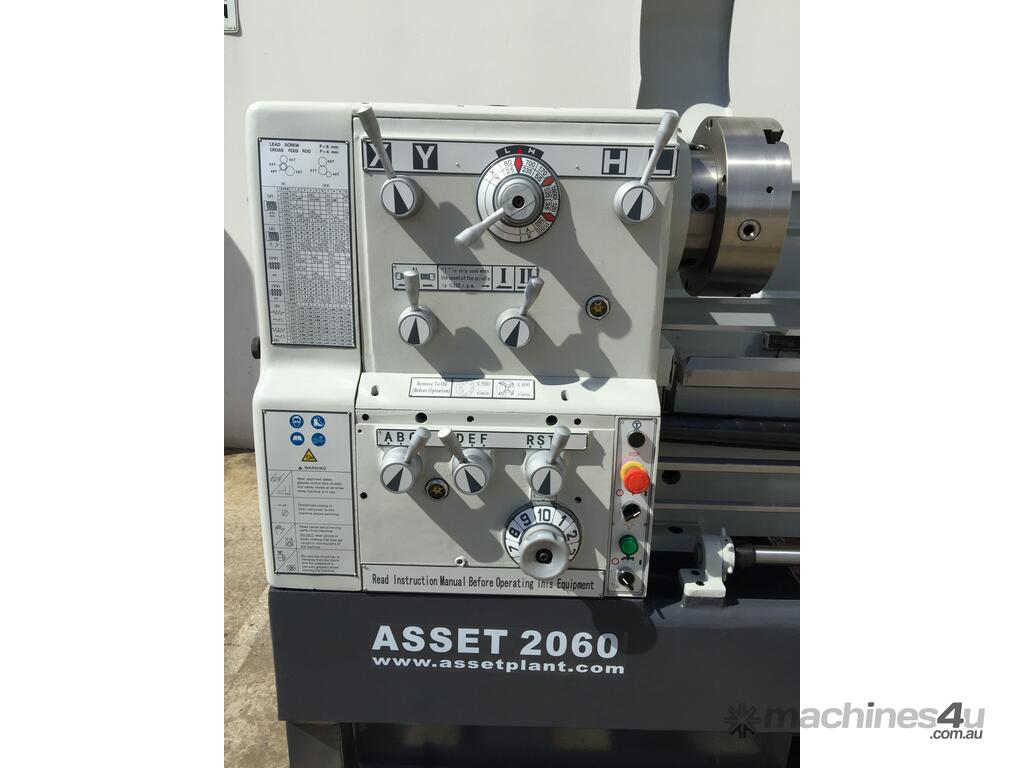

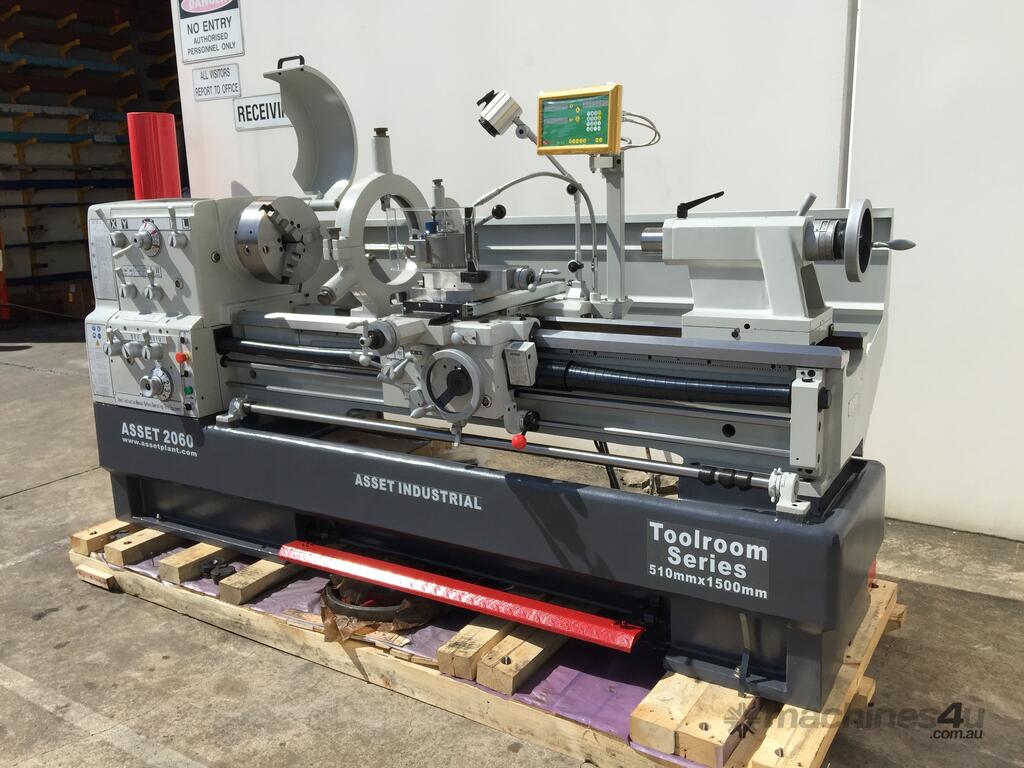

ASSET 2060. Big Bore Lathe. Steelmaster Heavy Duty, 1500mm Centres, 510mm Swing, 80mm Bore,3, 4 Jaw Chucks, Faceplate, Steadies, 2 Axis Easson DRO, Quick Change Post & More.V
Description
This feature packed lathe should be the workhorse in your shop. We've combined the mass, power and precision needed for turning tough to machine materials and extra heavy work pieces to exacting dimensions and finishes.

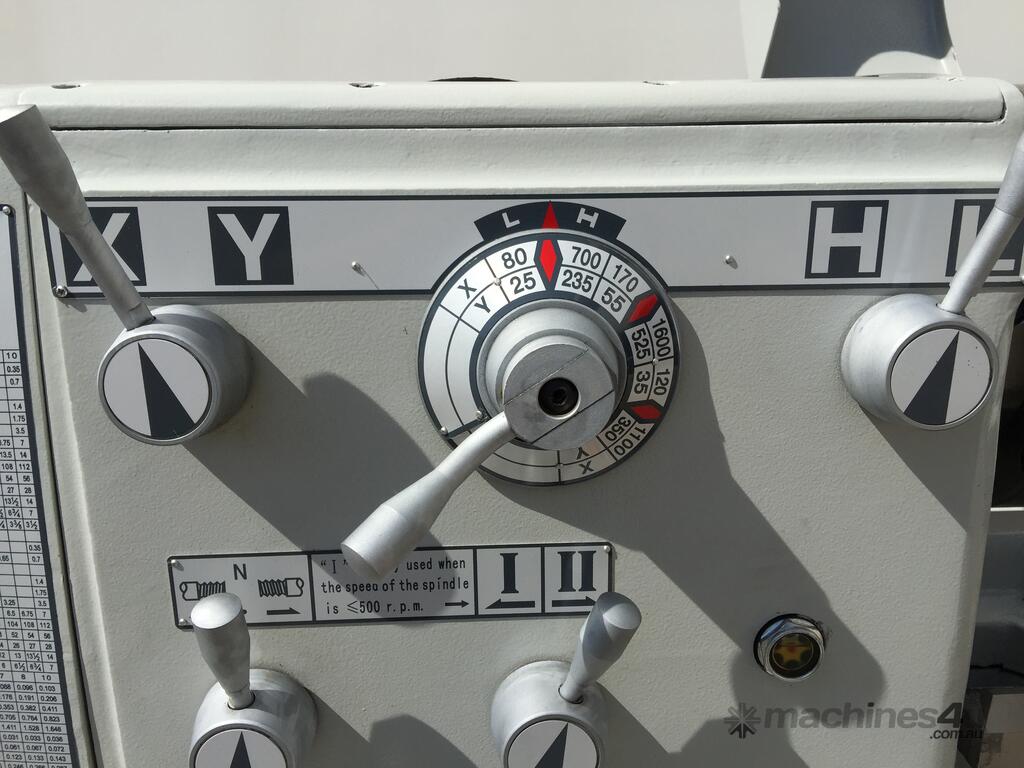

Check out this spindle speed range from 25 - 2000 RPM! You'll be able to spin that work piece up for fine finishing or slow that part down to a crawl, all the time with unparalleled power and rigidity. Aside from this we've included standard features like: auto carriage stop with indexable cams, interlocked apron controls, adjustable apron clutch, heavy-duty tailstock and more!
Take a close look at everything included with the package and you'll agree that this is one great value you won't want to miss out on.
Features
# large 80 mm spindle bore
# induction-hardened and ground cast iron bed and slide ways
# triple precision headstock bearings fitted
# spindle holding camlock system
# main spindle running in oil bath, hardened and ground with two adjustable precision taper rollerbearings ensures accuracy
# maximum accuracy and quiet operation, even at high speeds
# metric and imperial calibrations

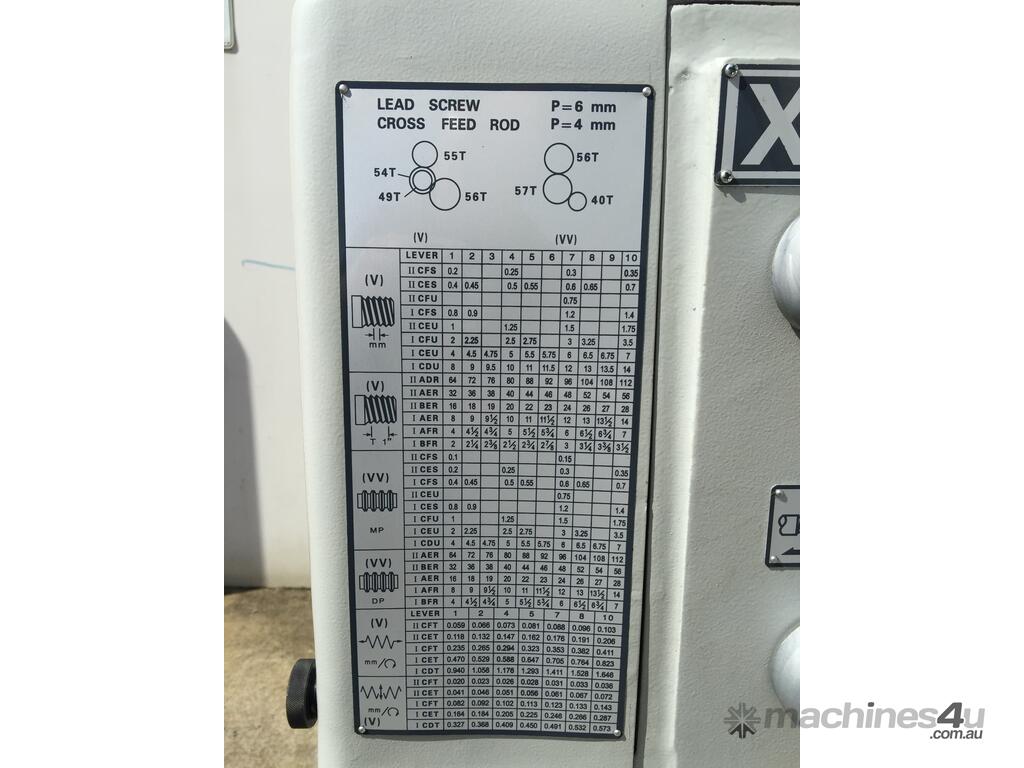

# capable of turning over 200 different types of threads with a low speed of 25 rpm
# transversal adjustment of tailstock for taper cutting applications
# quick change tool post standard
# 2 axis DRO fitted as standard

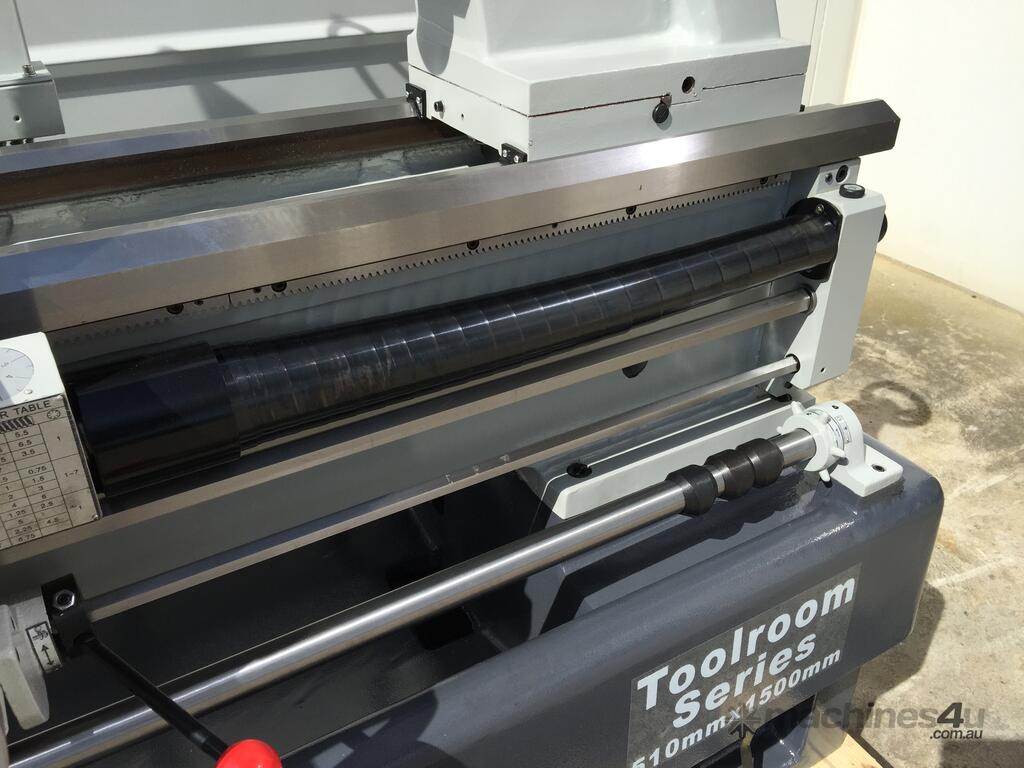

# safety covered lead screw
# safety interlocks on chuck guard, gear box and foot brake
# v 3ph, CE compliant
Technical Data Snap-Shot
510mm swing over bed
735mm swing in gap
1500mm between centres
80mm spindle bore
camlock - D1-8
headstock taper – No.7

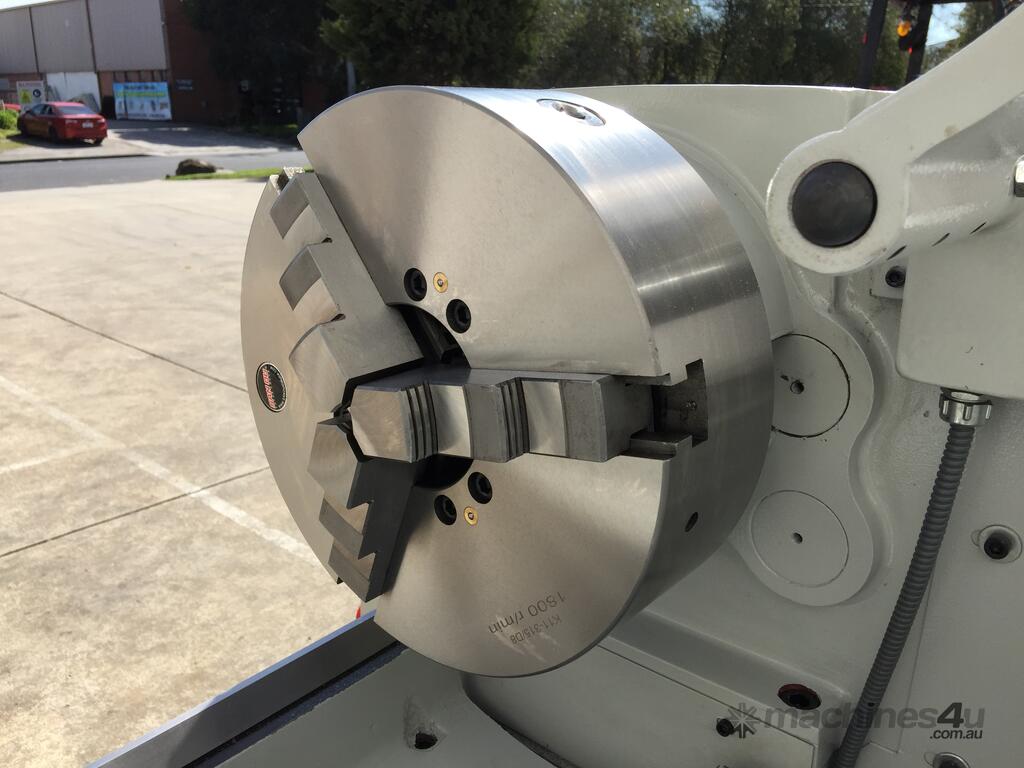

320mm 3 jaw chuck
400mm 4 jaw chuck
cross slide travel - 316mm
top slide travel - 130
metric threads - 0.2 ~ 14mm (47)
imperial threads - 2 ~ 112 tpi (60)
dp threads - 4 ~ 112dp (50)
modular threads - 0.1 ~ 7mp (34)
350mm bed width
faceplate supplied

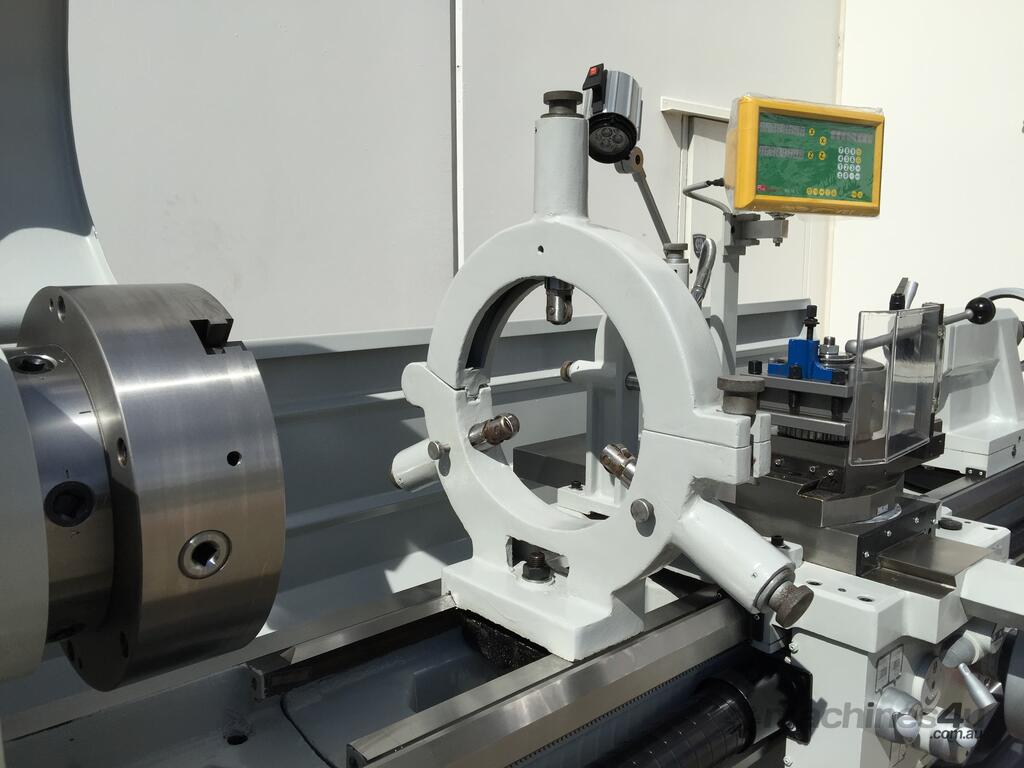

fixed & travelling steadies

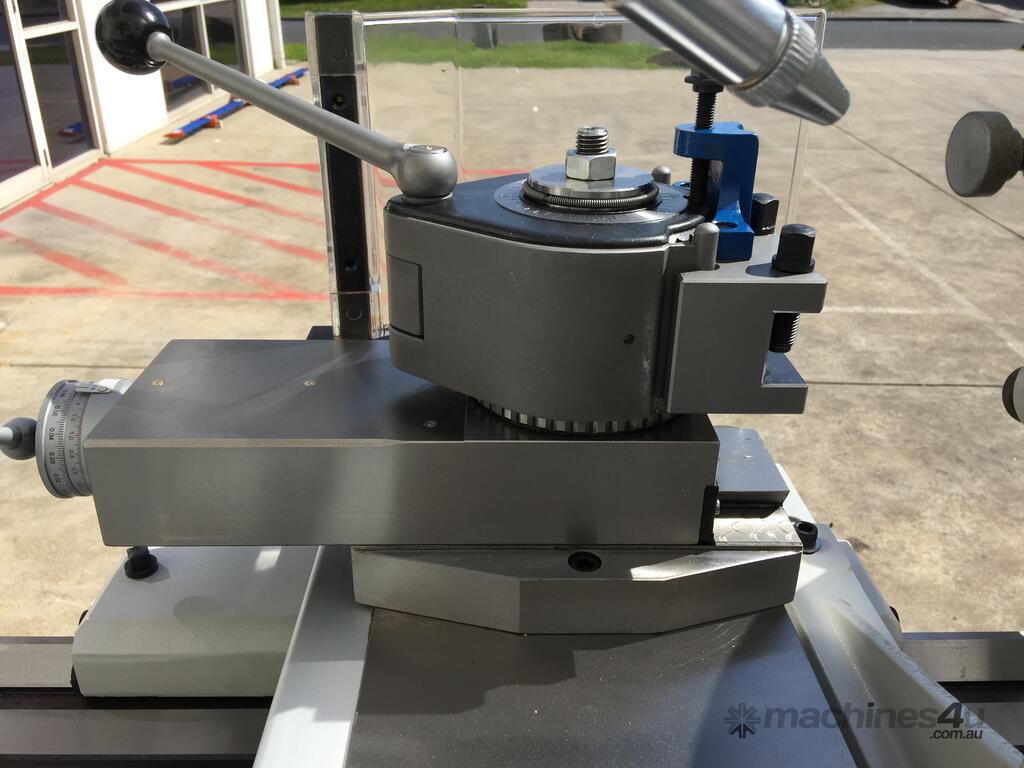

quick change post with 3 x holders
tools to suit - 25mm

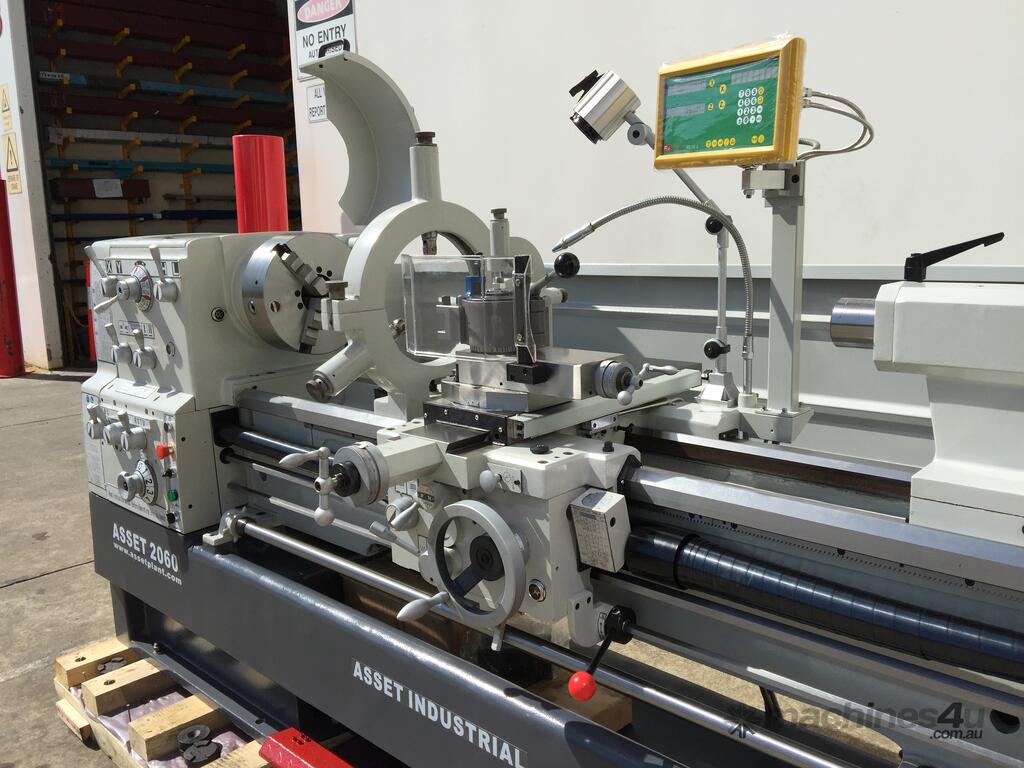

2 axis digital read out fitted

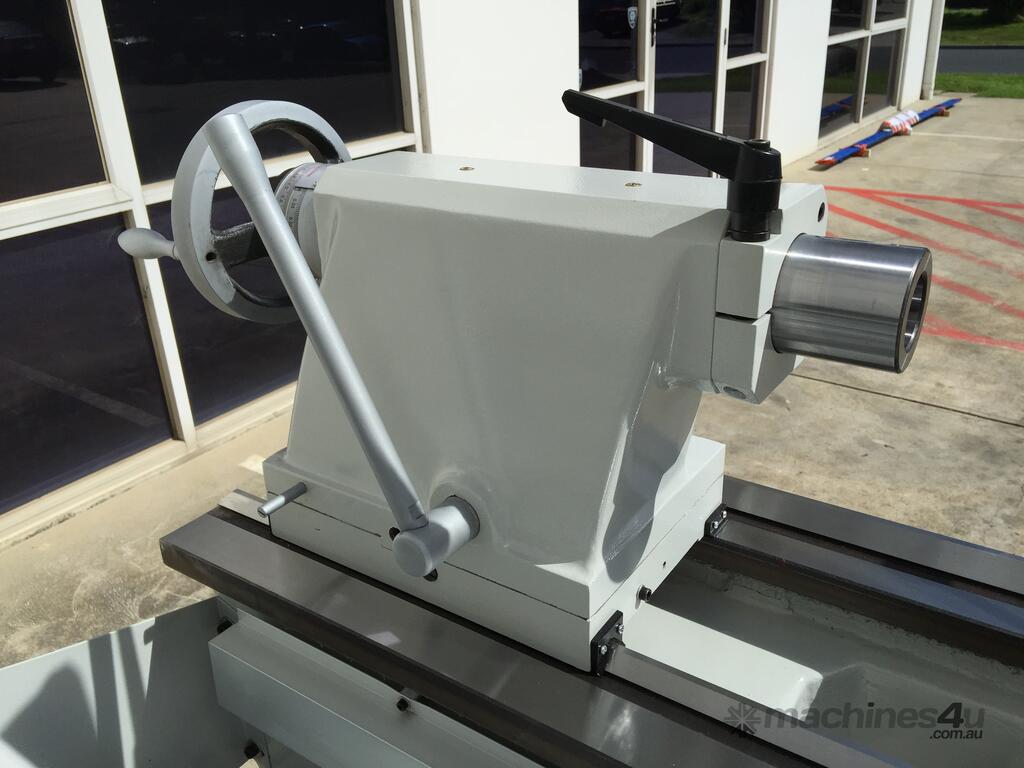

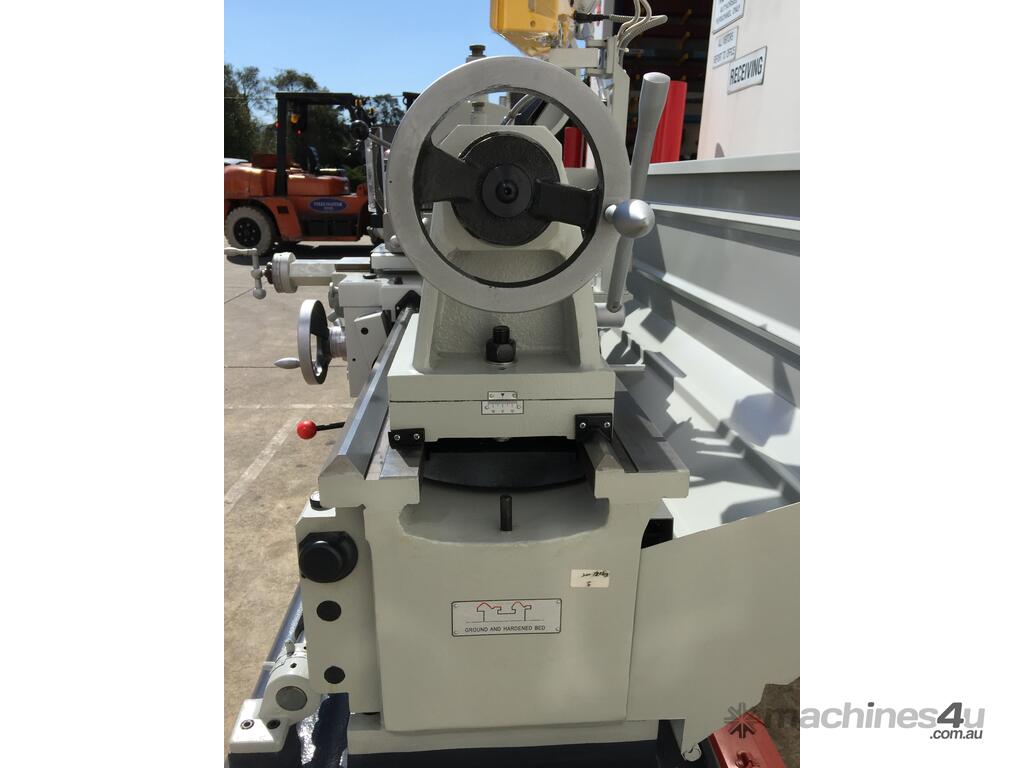

tailstock taper - 5MT
tailstock travel - 180mm
shipping dimensions - 2750mm x 1200mm x 1500mm
power - V 7.5Kw
approx weight: 2800kg
EQUIPMENT & ACCESSORIES SUPPLIED

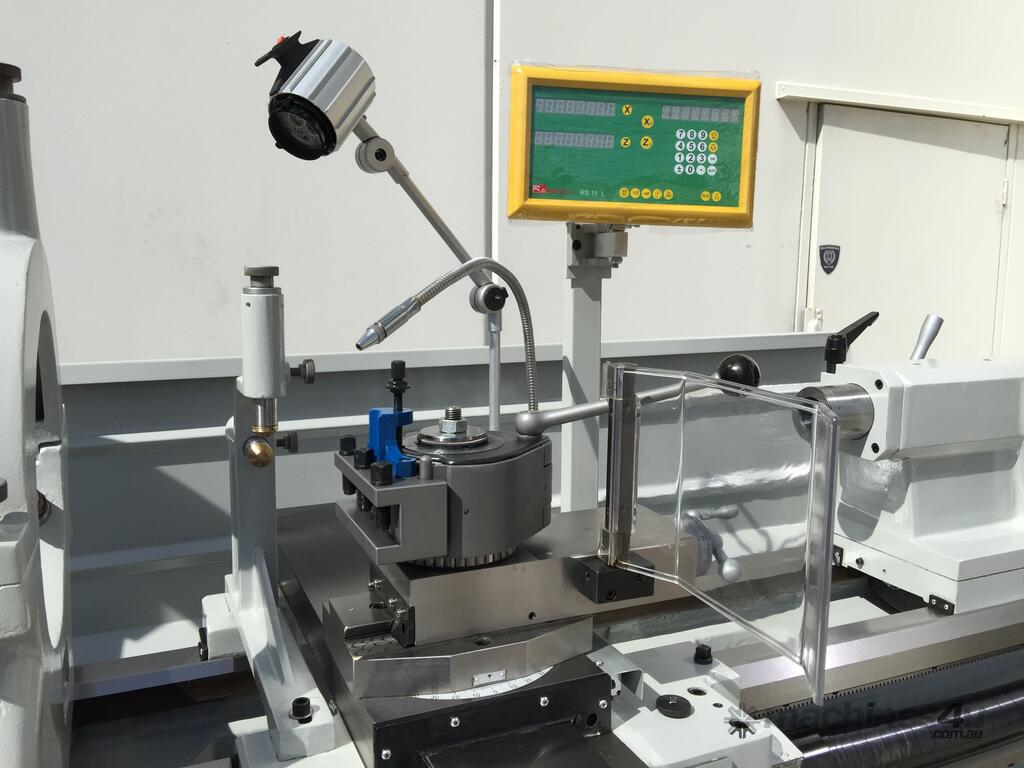

Easson 2 axis DRO, 3 & 4 jaw chuck, quick change tool
post with 3 holders, face plate & centres, fixed steadies &
1 travelling steady, full length splash guard up to 2000mm,
MAKE YOUR NEXT PURCHASE AN ``ASSET`` TO YOUR COMPANY!
Please contact us for more information.
