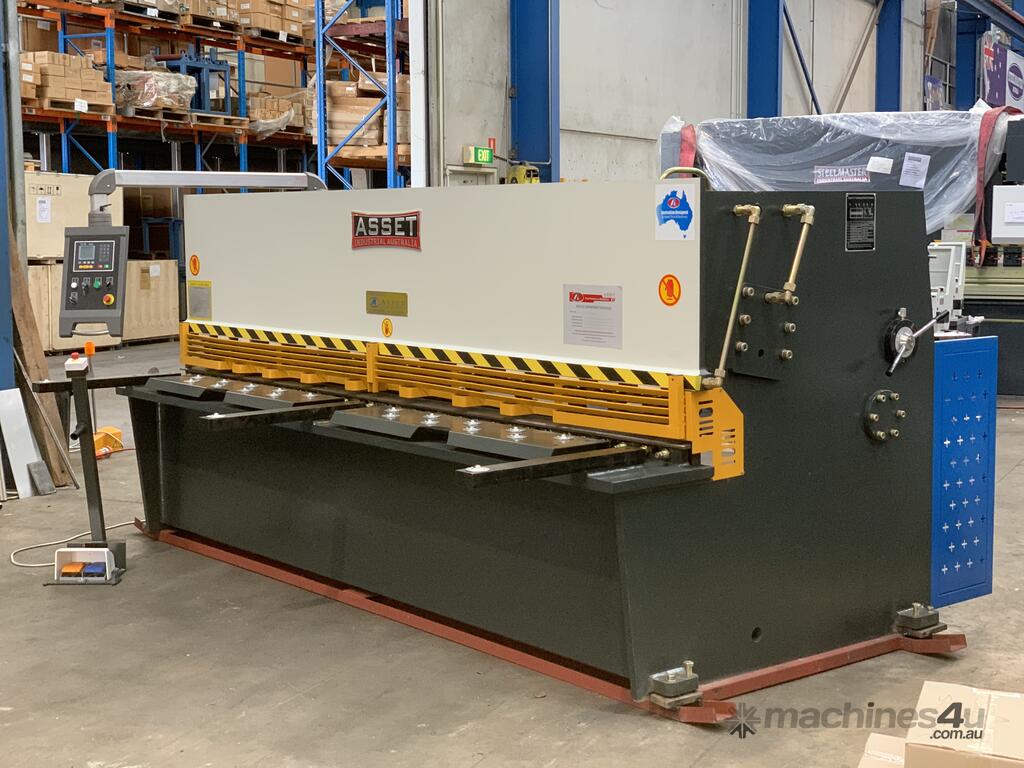

ASSET INDUSTRIAL SBHS-2506. Hydraulic Guillotine. 2500mm x 6.5mm, E21s NC Programmable Back Gauge Quality Reversible Blades, 125mm Side Throat, Quick Action Gap Setting, Squaring Arm & Supports. 3ph
Description
Our feature packed hydraulic guillotine offering all the modern day add on's so you won’t be left short.
Combining NC programmable precision ballscrew swing away back gauge, quick action blade gap setting and a very attractive price.
Features
? swing beam operation ensures clean cut of all applications

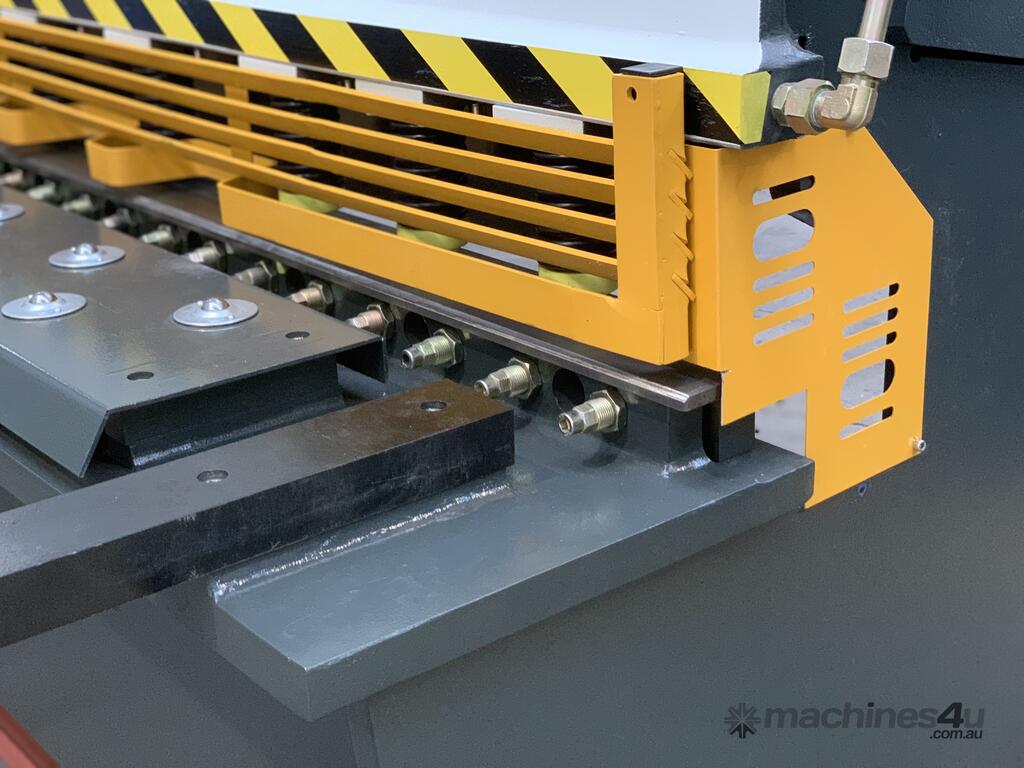

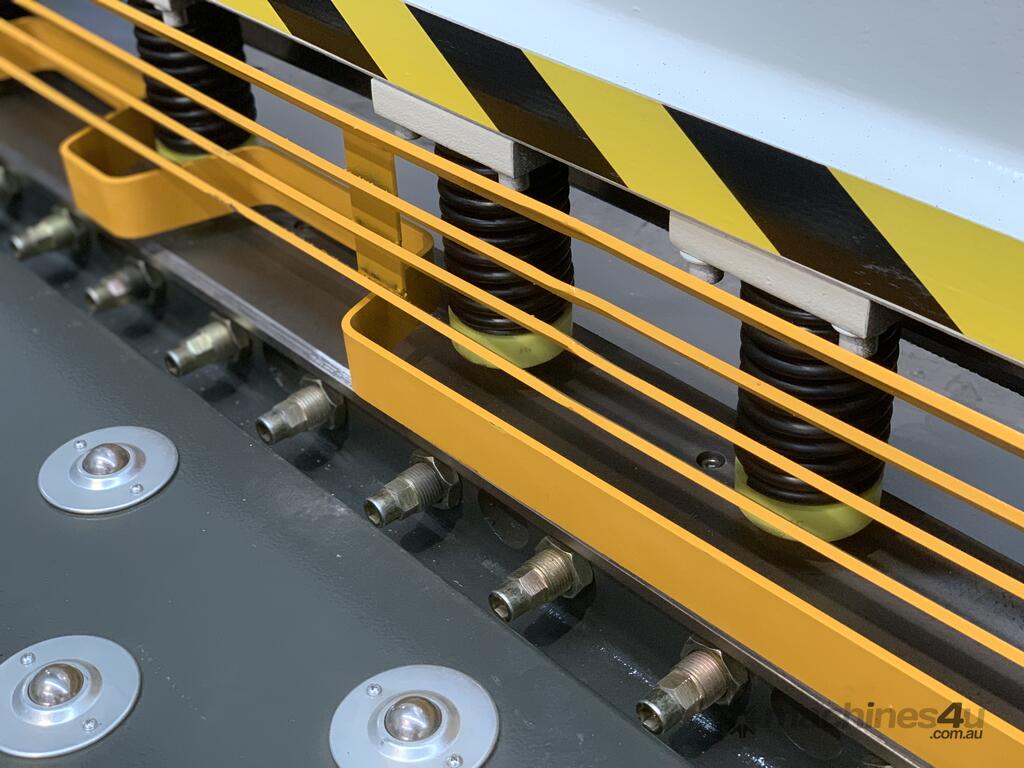

? hydraulic individual hold-downs ensure uniform distribution of down pressure across the entire cut length
? illuminated cutting area

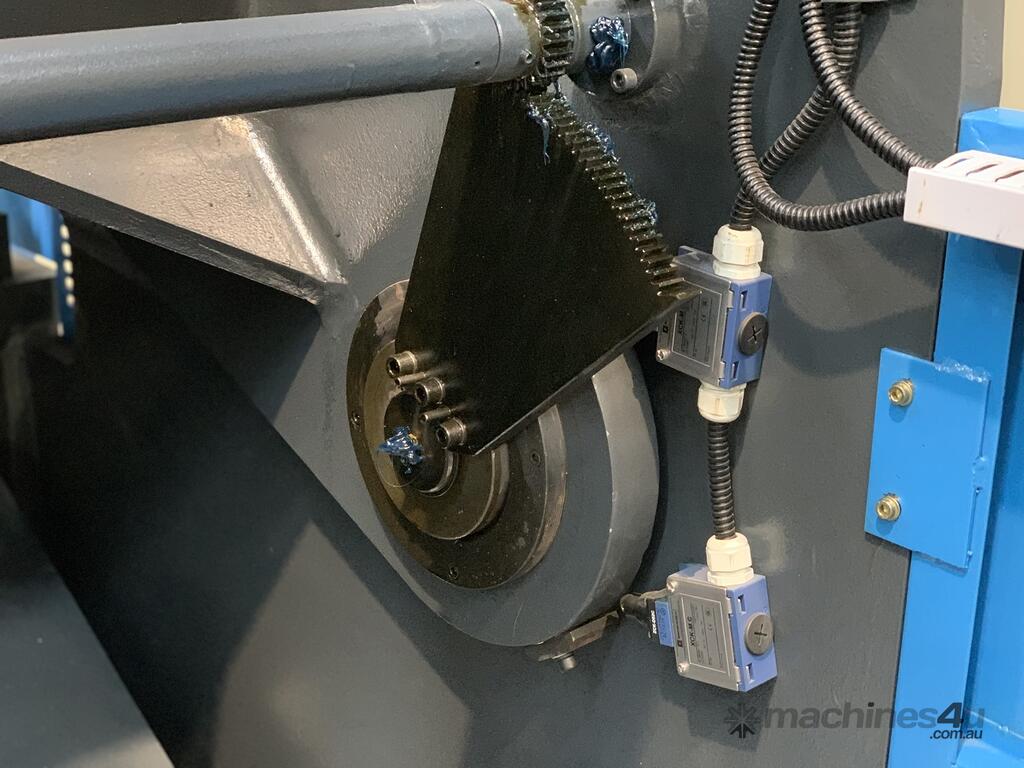

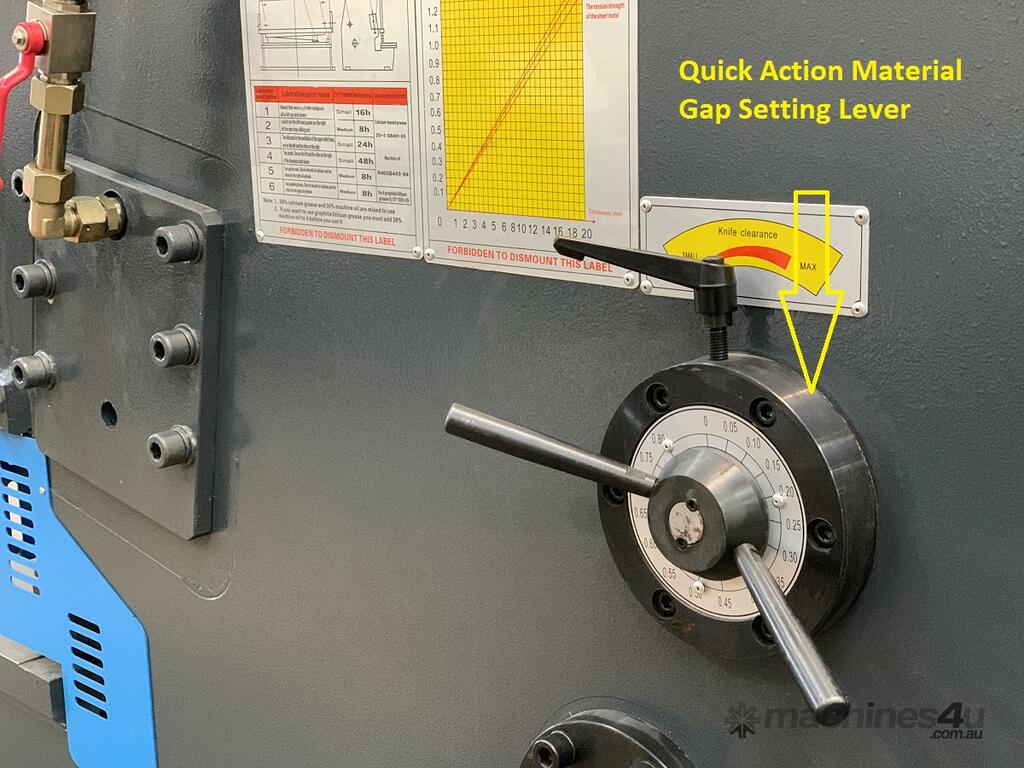

? quick-action blade gap setting ensures burr-free cutting on all materials

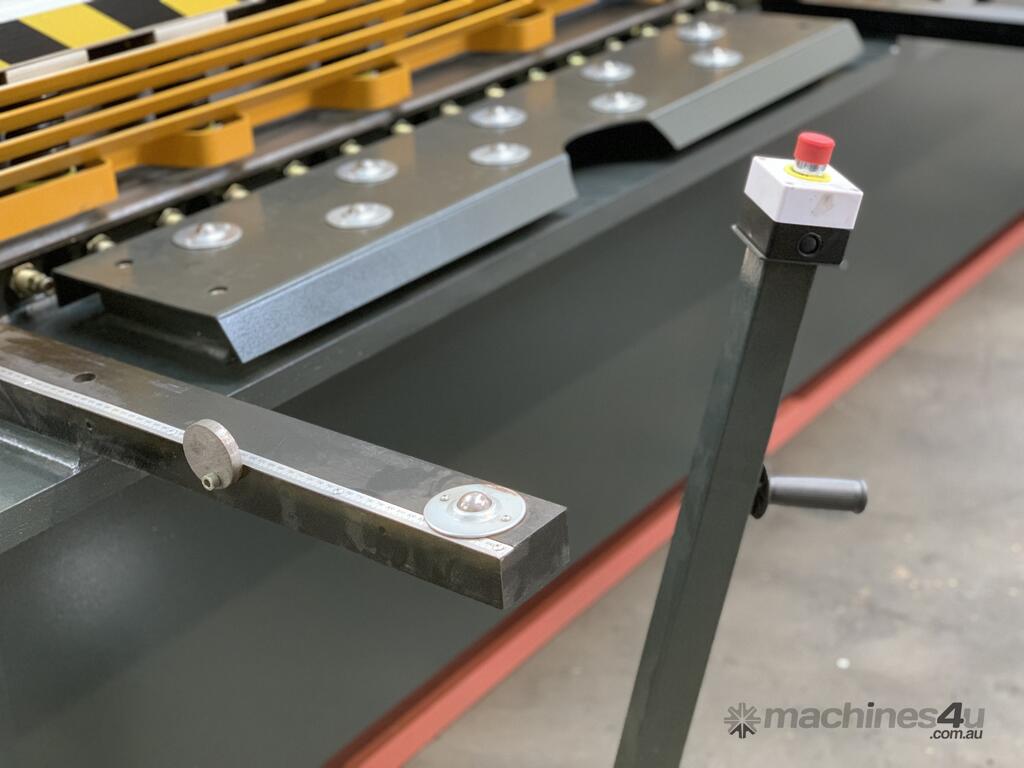

? front support table with roller-bearings for simple and smooth material in-feed
? high quality HSS top blade with 2 x cutting edges, while bottom blade has 4 x cutting edges
? control console with many operating features including digital display for power back gauge
? swing out back gauge permits longer lengths of material to be cut
? nitrogen assisted return ensures efficient cutting speeds
? variable hydraulic pressure control valving fitted standard

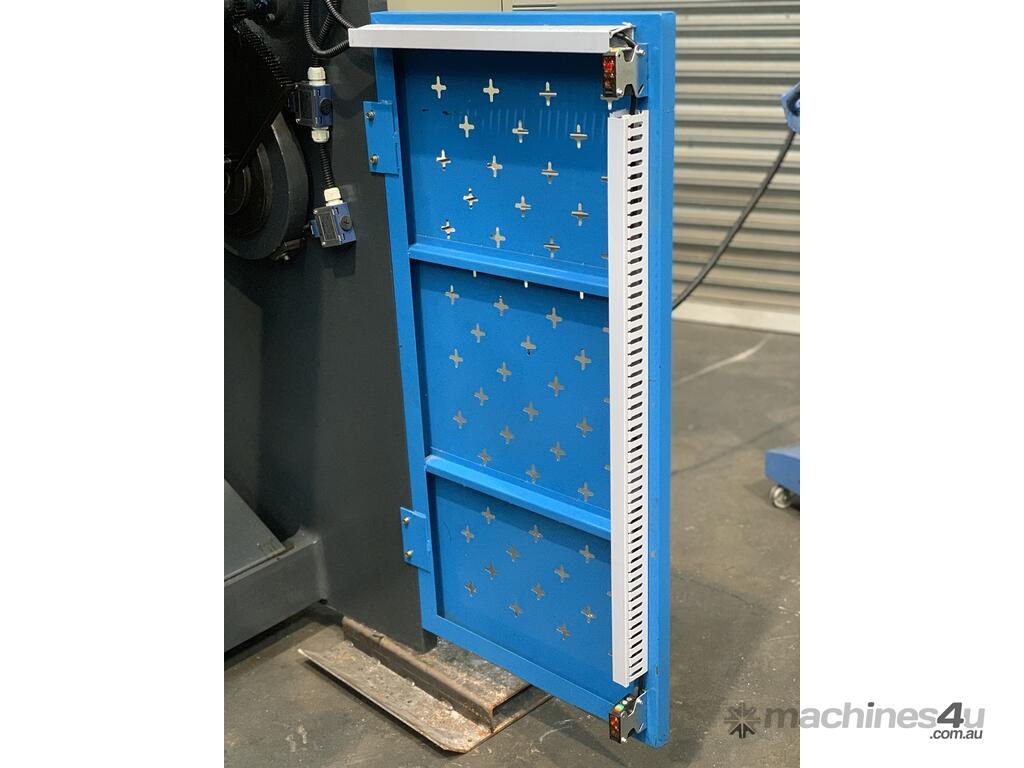

? rear mounted safety lights
? CE compliant
Technical Data Snap-Shot
?2500mm x 6.5mm cutting capacity

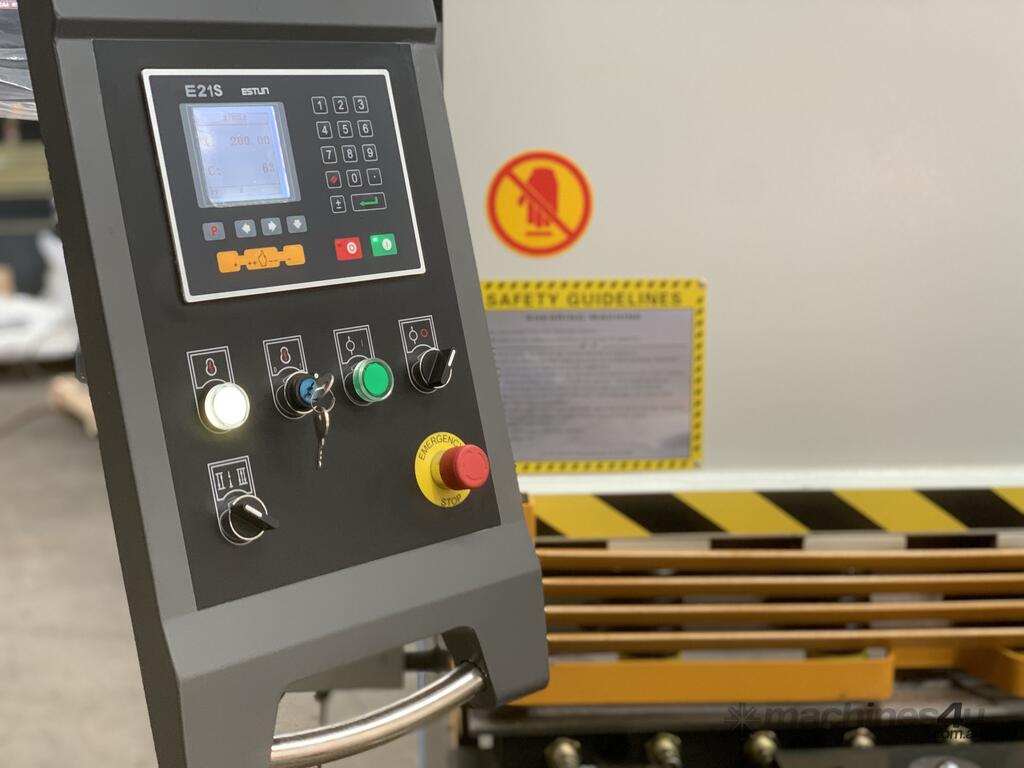

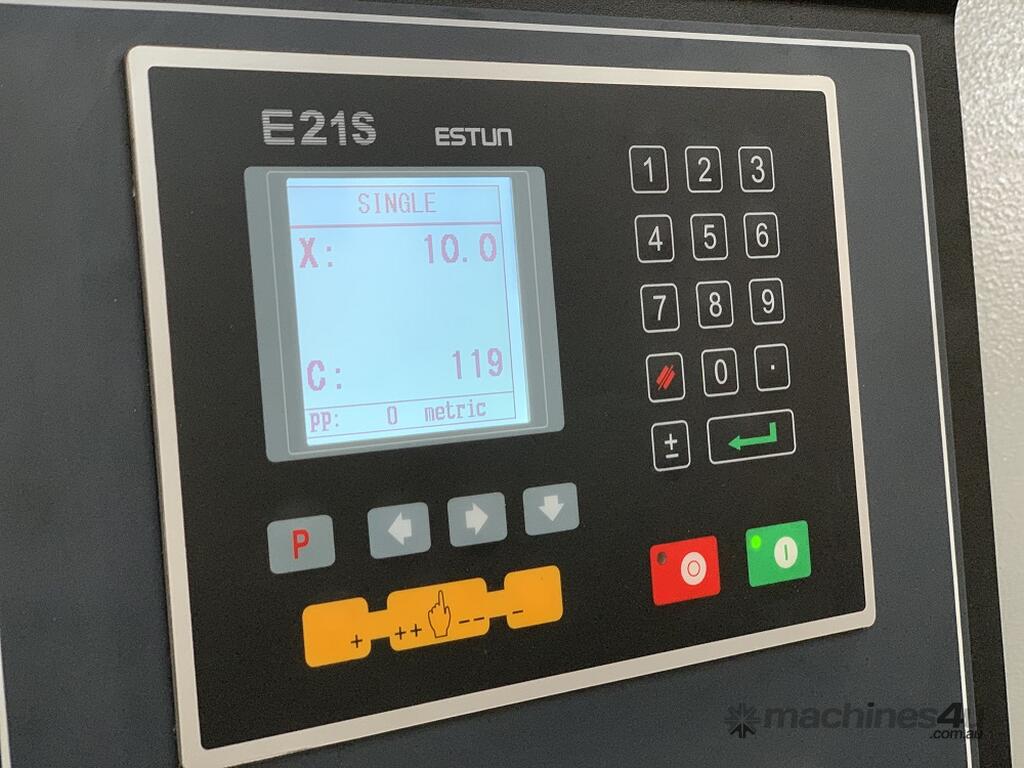

?Etsun E21s LCD Display NC Programmable backgauge

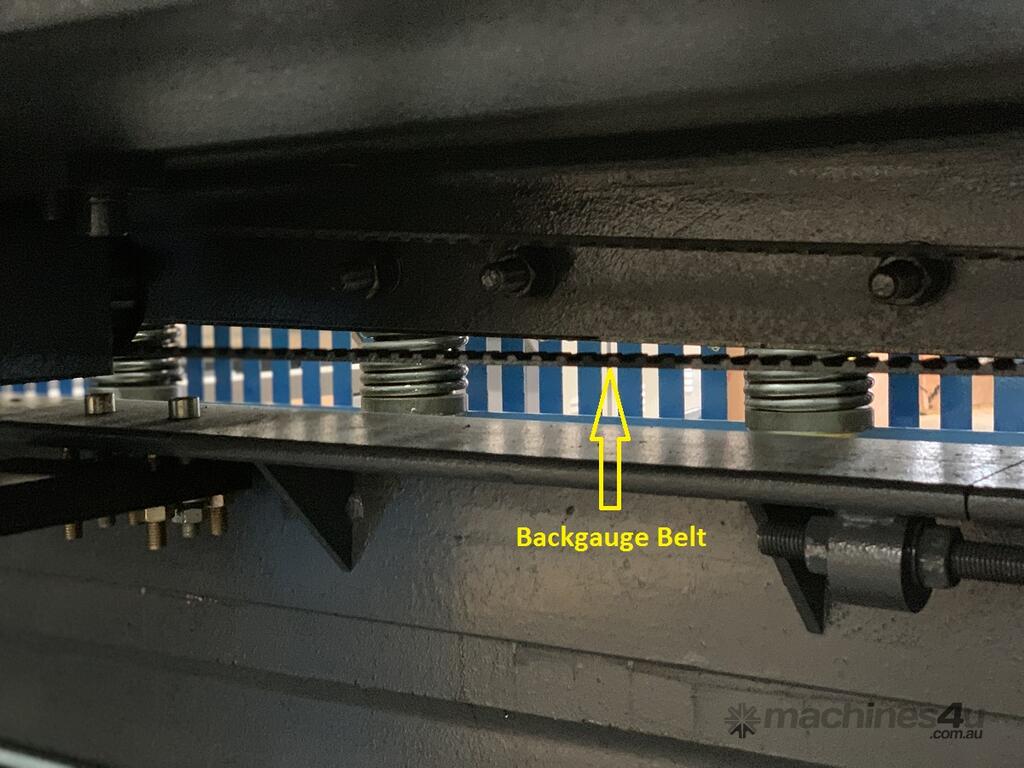

?0 ~ 795mm digital power operated ballscrew backgauge
?125mm deep side throat
?variable stroke control & stroke counter.

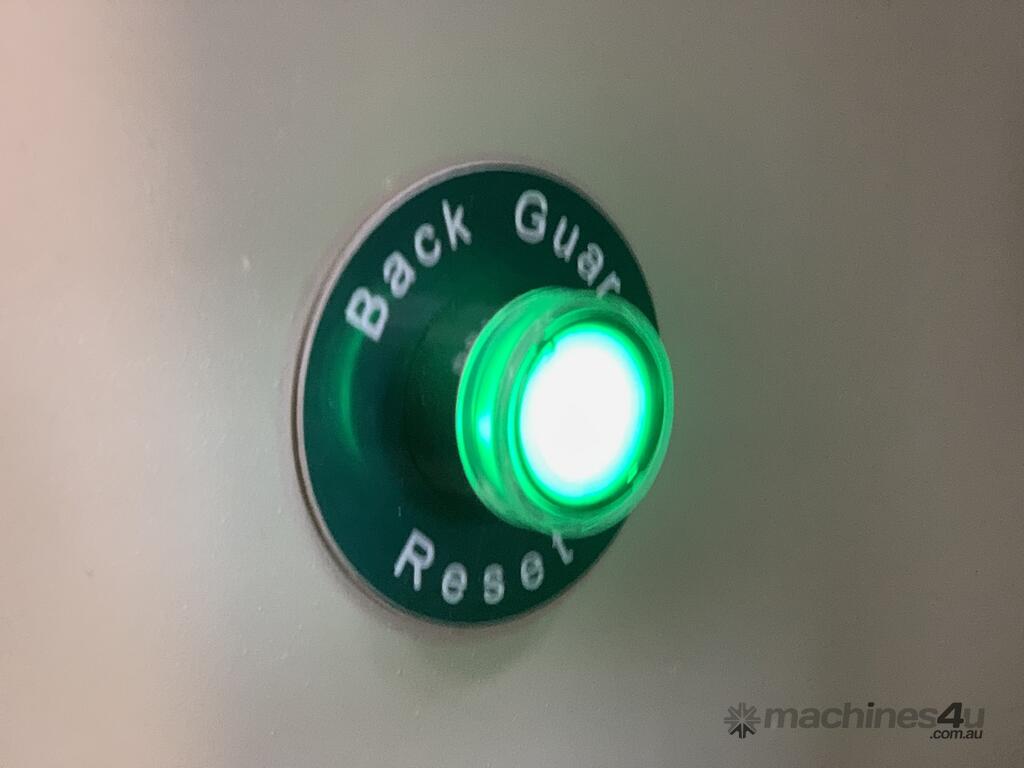

?rear safety laser guard sensors
?Rexroth valves, Siemens main motor,
?shipping dimensions - 3130mm x 1610mm x 1600mm
?weight - 5700Kg
?power - V 7.5Kw
MAKE YOUR NEXT PURCHASE AN ``ASSET`` TO YOUR COMPANY!
Please contact us for more information.
