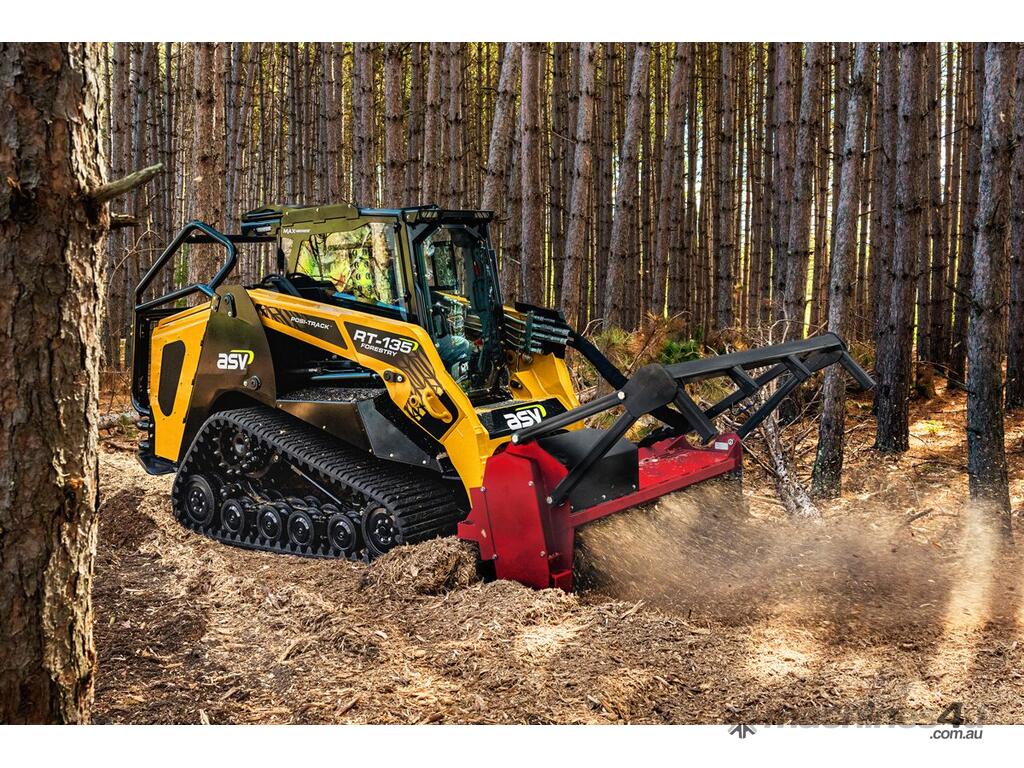

ASV RT-135 FORESTRY MAX-SERIES POSI-TRACK

Proudly representing ASV Positrack in North East Victoria and Southern NSW

Bigger. Tougher. Stronger. The largest CTL available in Australia.


Operating Weight
5892 kg

Tipping Load
5379 kg

Ground Pressure
4.6 psi

Engine Power
132 hp


BIGGER. TOUGHER. STRONGER.
The RT-135 Forestry makes impossible jobs seems ordinary. Comfortable and easy to operate, the MAX-Series premium operator experience is front and centre to getting big forestry jobs done.


POWER
A Cummins 3.8-litre turbocharged diesel engine powers the ASV RT-135 Forestry, delivering 132-horsepower and 488Nm torque. This extreme power output is transferred to the terrain through direct-drive hydraulic motors, allowing the machine to easily move through its path on even the toughest, most demanding terrain.



PERFORMANCE
The RT-135 Forestry achieves superior performance over competitive machines.

With a rated operating capacity of 2427kg and a tipping load of 5379kg, the RT-135 Forestry also features ASV’s patented Posi-Track® rubber-track suspension — well known for its smooth ride — and includes both suspended wheels and axles, allowing it to achieve faster speeds over all types of terrain.

The fully-flexible track and suspended wheels conform to the ground, ensuring maximum traction in the roughest conditions. The features, combined with the RT-135’s 381mm of ground clearance, allow the unit to work where others simply can’t.



COMFORT
With a next-generation MAX-Series cab, the RT-135F features plenty of creature comforts that let operators work more comfortably for longer periods of time: more all-around space, improved ergonomics, an upgraded HVAC system for better circulation and defrosting, an all-weather pressurised cab for a cleaner operator environment, a colour touch screen display, heating, air conditioning, standard joystick controls, and a Bluetooth radio with USB.



SERVICEABILITY

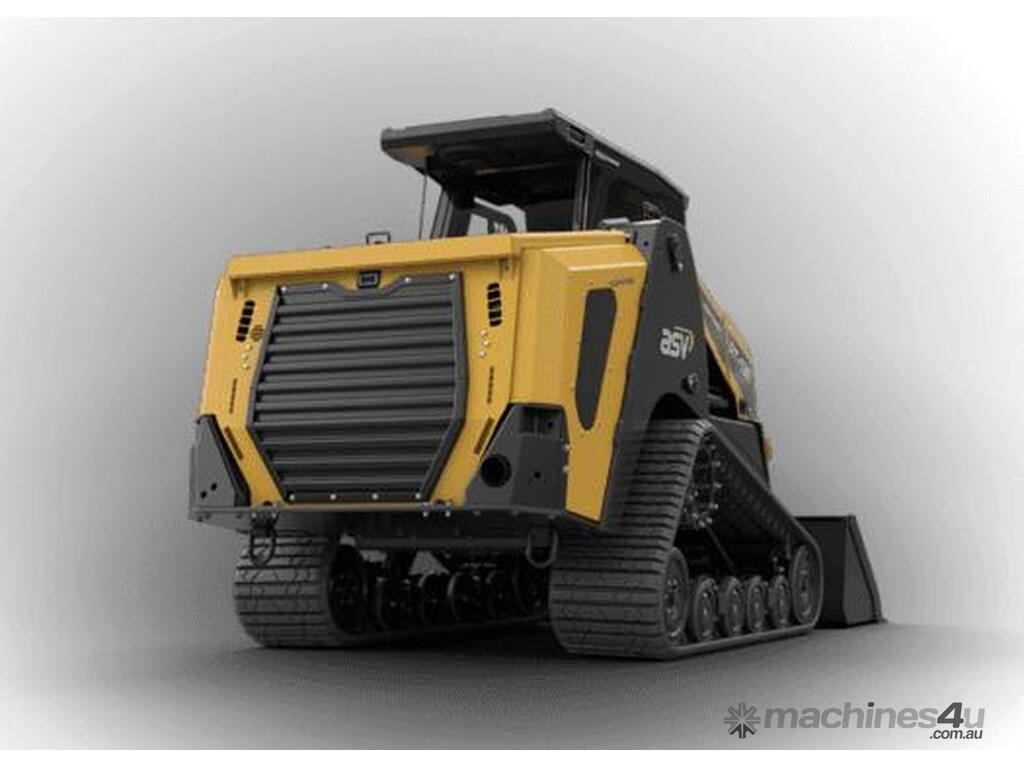

The RT-135 Forestry Posi-Track gives operators easy access to the Cummins engine through a three-panel hood and tilting cooler arrangement. This machine offers a hydraulic quick attach and a design that simplifies routine inspections of filters, oil and normal service items. The rearward tilting cab provides easy accessibility when further service is required.



OPERATIONS

Loader Arms: Radial
Operating Weight: 5892 kg
Rated Op Capacity 35%: 1882 kg
Rated Op Capacity 50%: 2683 kg
Ground Pressure: 32 kPa / 4.6 psi
Engine Power: 98.4 kW / 132 hp
Tipping Load: 5379 kg
Max Travel Speed (1st Speed): 9.7 km/h
Max Travel Speed (2nd Speed): 16 km/h


ENGINE

Features: Diesel 4-cylinder, turbo charged Cummins QSF3.8.
Engine Power: 98.4 kW / 132 hp
Cooling System: Temperature-controlled, variable speed and operator time-selectable, hydraulically-driven, auto-reversing fan and coolant/anti-freeze-filled radiator.
Intake Air Cleaner: Three-stage.
Auto Idle: Standard feature.
Emission Controls: Meets all U.S. EPA Tier 4 final standards.
Torque Peak: 488 Nm.

DRIVE TRAIN

Track Type: General purpose track constructed of rubber compound with embedded co-polymer cords and all-purpose treads.
Drive System: Two hydrostatic direct drive sprockets controlled by a single joystick.
Track Drive Sprocket: Elevated with low friction, replaceable sprocket rollers.
Undercarriage Suspension: Two independent torsion axles per undercarriage.
Roller Wheels: 24 high-density polyurethane and rubber wheels per track. Wheels include sealed bearings.
Track Width: 508 mm
Length of Track on Ground: 1803 mm
Ground Contact Area: 1.83 m2
Front & Rear Roller Wheel Diameter: 381 mm
Middle Roller Wheel Diameter: 254 mm

DIMENSIONS

Full Length: 4135 mm
Arm Up Height: 3175 mm
Machine Height: 2276 mm
Machine Width: 1981 mm
Ground Clearance: 381 mm

AUXILIARY HYDRAULICS

Controls: Intermittent via joystick button or continuous via console switch. High-flow is adjustable and loader/auxiliary sharing is adjustable via machine display.
Couplers: Push-to-connect quick couplers mounted on loader arms. Pressure relief valve on coupler block.
Cooling System: High efficiency side-by-side radiator and oil cooler.
Pump Capacity: 75.7 lpm (Low Flow) / 189 lpm (High Flow)
System Pressure Max: 22750 kPa (Low Flow) / 27993 kPa (High Flow)

ELECTRICAL SYSTEM

Features: Attachment Control kit, block heater.
Outlets: 1x 12V port inside operator station.
Wiring: Pre-wired for all factory-available accessories.
Charging System: 120 Amp Alternator
Nominal Charge: 12 V
Battery: 950 CCA

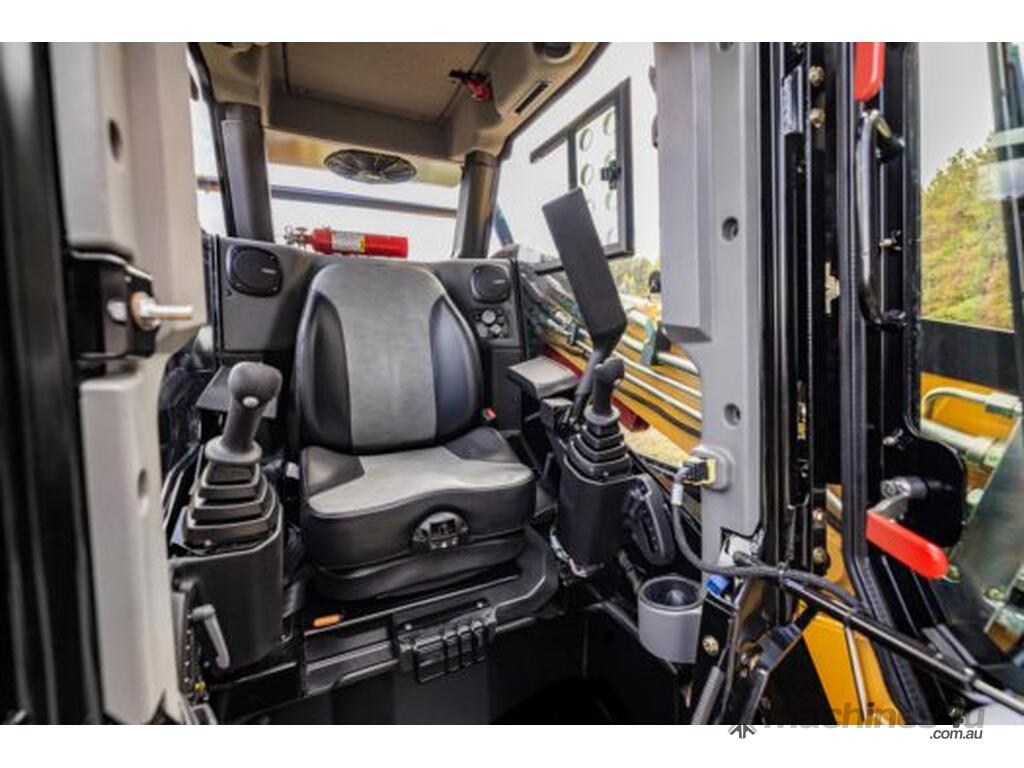

OPERATOR STATION

Seat: Adjustable contour vinyl mechanical seat with built-in operator presence switch, lap bar and 51mm wide seat belt, operator manual pouch.
Loader Control: Right-hand pilot electronic joystick controls loader lift, lower and tilt, plus intermittent control of auxiliary hydraulic. Loader speed is adjustable and selectable from ISO or H control pattern.
Drive Control: Left-hand pilot electronic joystick controls machine speed and direction. Track speed is adjustable, includes a Creep Mode and is selectable from ISO or H control pattern.
Engine Speed: Hand-operated foot throttle and foot throttle.

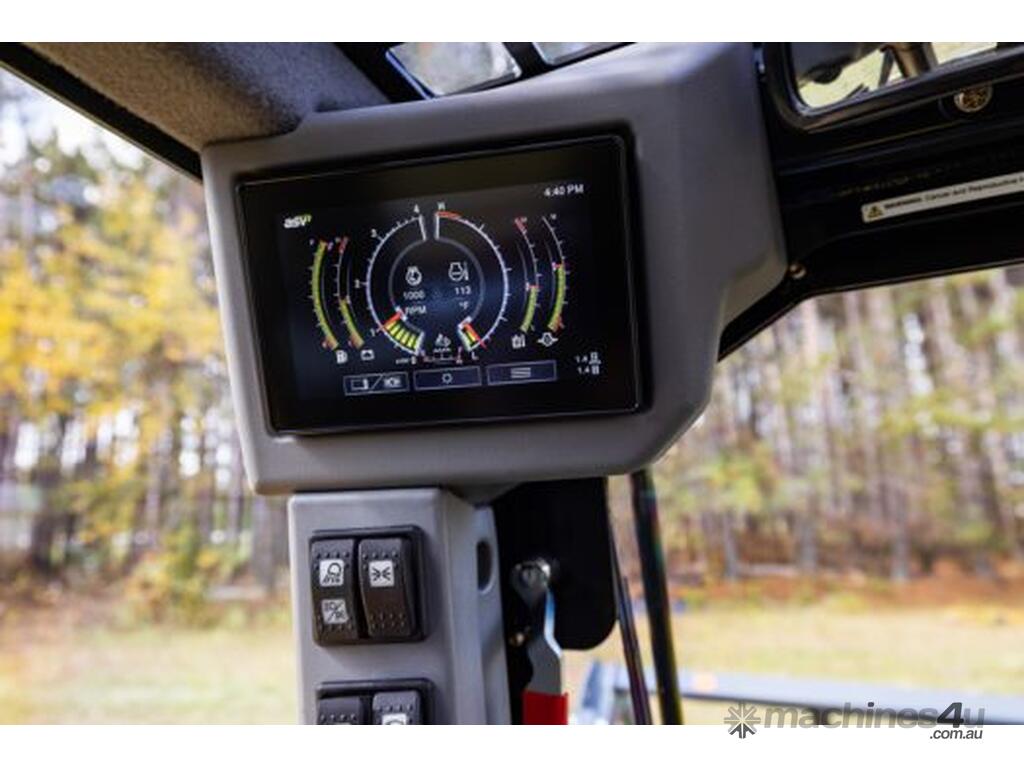

Machine Display: 7 inch colour touch screen: Fault logging, Engine RPM, engine oil pressure, hydraulic oil high temperature, engine coolant temperature, battery voltage, hourmeter, fuel level, trip meter, engine diagnostics, system monitoring, , integrated rear view camera, password protection with user profiles, job clock, maintenance schedules, DEF level.
ROPS / FOPS: ISO 8082/8083-Forestry Certified. Level 2 Guarding.
Illumination: 2 – Adjustable forward-facing LED lights 2 – Adjustable rear-facing LED lights 1 – Interior light 2 – LED side lights.
Convenience: 12 V power port.
Standard Features: Horn, backup alarm, cup holder, phone holder, behind seat storage, rear view mirror, lapbar, roof escape hatch, roof panel & rear cab windows. Adjustable joystick & arm rest positions, adjustable directional & air flow HVAC vents, radio with bluetooth & USB, frameless front door, attachment control kit, wiper/washer, beacon switch/outlet, easy-off door.


SERVICE CAPACITY

Fuel Tank: 196.8 L
Hydraulic Tank: 83.3 L
Engine Coolant: 20.8 L
Engine Oil (inc Filter): 11.4 L


WARRANTY
ASV POSI-TRACK LOADERS NOW COME WITH THE BEST WARRANTY IN THE INDUSTRY.

From concept to creation, the machines we manufacture are some of the best in the business. They offer years of reliability, hard work and productivity—and we back that promise with an industry-leading warranty. The warranty includes 2 years/2,000 hours of coverage for the full machine, plus the industry’s first no-derailment guarantee.
