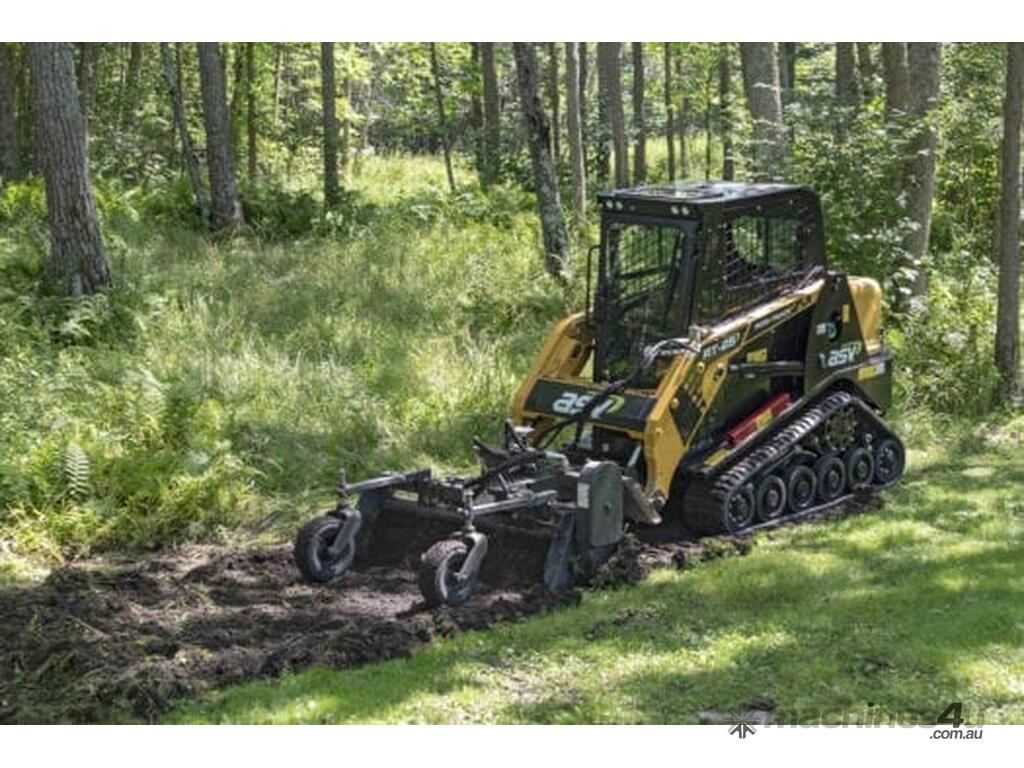

ASV RT-25 POSI-TRACK LOADER

Proudly representing ASV Positrack in North East Victoria and Southern NSW

The smallest in the fleet but massive on efficiency, accessibility and value!

Operating Weight:
1703 kg

Tipping Load:
862 kg

Ground Pressure
3.1 psi

Engine Power:
24.7 hp

BUILT SMALL TO DO BIG WORK
The RT-25 is the world’s most compact track loader. The smallest machine of its kind, the RT-25 features superior suspension, minimal ground pressure and maximum productivity.

The RT-25 Posi-Track® compact track loader is designed and created to feature the productivity and comfort that landscapers, homeowners and contractors need. Designed small, the RT-25 offers patented Posi-Track technology with the suspension, traction, and flotation you count on to shape the earth.



POWER
This versatile machine offers an industrial 25-horsepower Perkins diesel engine. Operators can use that power to achieve maximum productivity by moving around quickly (5.1 mph top speed), digging and lifting more. The engine is turbocharged so it can output its full horsepower even at high elevations.



PERFORMANCE
The RT-25 Posi-Track features a 1.3 metre machine width, a rated operating capacity of 302 kilograms, and a 2565mm lift height. ASV builds this economical machine to exert minimal ground pressure and flotation while giving operators the ability to work in tight spaces with exceptional pushing and digging power.



COMFORT
We built the RT-25 to be comfortable, practical and easy to operate. An upgrade from a stand-on or walk-behind loader, it comes with an adjustable contour vinyl seat with built-in operator presence switch, lap bar and wide seat belt, and an adjustable suspension seat is optional. You’ll also find ergonomic right and left hand pilot hydraulic joystick controls for smooth lift, tilt and control.



SERVICEABILITY
As with all models, ASV equips the RT-25 with direct drive pumps. The direct drive system eliminates labor-intensive belt servicing required with belt-driven pumps and a one-piece hood allows easy access to all components and service checkpoints.



TIGHT ACCESS MEETS POWER
Ideal for the landscaper, site cleaner, waste remover or general residential operator, the RT-25 is your perfect option for tight access use without sacrificing power or performance.

Couple this with class-leading ground clearance, stability, lift capacity and overall performance, and you have yourself a premium machine ready to tackle virtually any project.



STANDARD FEATURES:
JOYSTICK CONTROLS
ROPS / FOPS PROTECTION
TORSION AXLE SUSPENSION
SIT DOWN COMFORT


OPERATIONS

Loader Arms: Radial
Operating Weight: 1703 kg
Rated Op Capacity 35%: 302 kg
Rated Op Capacity 50%: 431 kg
Ground Pressure: 3.1 psi
Engine Power: 18.4 kW / 24.7 hp
Tipping Load: 862 kg
Max Travel Speed: 8.2 km/h
Height to Bucket Pin: 2565 mm
Max Dump Angle Full Height: 40 degrees
Rear Angle of Departure: 55 degrees
Bucket Roll Back Ground Level: 18 degrees
Ground Clearance (Unloaded): 254 mm
Overall Length with Bucket: 2897 mm
ENGINE

Features: Diesel 3-cylinder, Perkins 403J-17T, Engine-Driven Fan, Anti-Freeze Filled Radiator Cooling System, Dual Stage Intake Air Cleaner, Engine Block Heater
Engine Power: 24.7 HP / 18.4 kW
Displacement: 1.7 L
Torque Peak: 90 Nm
DRIVE TRAIN

Features: Dual Hydraulic Drive Motors, 2 Independent Torsion Axle Suspension, Duo Cone Front & Rear
Track Width: 279 mm
Length of Track on Ground: 1397 mm
Roller Wheels: 12 high density poly
Roller Wheel Diameter: 254 mm
WARRANTY

Standard: 2 Years / 2000 Hours Full Machine
Optional Extra: Available – Enquire

AUXILIARY HYDRAULICS

Features: Pilot Hydraulic Joystick Control, Manual Quick Attach
Max System Pressure: 20684 kPa
Flat Faced Couplers: 15.875 mm
Auxiliary Pump Flow: 42.8 lpm
ELECTRICAL SYSTEM

Features: Upgradeable Wiring Harness
Normal Charge: 12 V
Battery: 525 CCA
Alternator Charging System: 65 Amp
Port Outlet (Inside Cab): 1 – 12 V
OPERATOR STATION

Features: ROPS, Basic Seat w/ 2, Horn, Backup Alarm
Loader Control: Right-Hand Pilot Hydraulic Joystick Controls Loader Tilt/Lift, With Intermittent Control of Auxiliary Hydraulics
Drive Control: Left-Hand Pilot Hydraulic Joystick Controls, Hand Throttle Engine Speed Control
Gauges: Fuel, Engine Temperature, Hour Meter, Battery, Hydraulic Temperature, Engine Oil Pressure
ROPS/FOPS: Meets ISO 3471: 2008, ISO 6683: 2005, ISO 3449: 2005 Level 1
Illumination: 4 Fixed Forward Facing Lights, 1 Rear Facing Light
SERVICE CAPACITY

Fuel Tank: 37.9 L
Hydraulic Tank: 15.1 L
Engine Coolant: 6.1 L
Engine Oil (inc Filter): 5.7 L
DIMENSIONS

Full Length: 2897 mm
Arm Up Height: 2565 mm
Machine Height: 1842 mm
Machine Width: 1219 mm
Roller Wheels: 12 high density poly
Ground Clearance: 254 mm


WARRANTY
ASV POSI-TRACK LOADERS NOW COME WITH THE BEST WARRANTY IN THE INDUSTRY.

From concept to creation, the machines we manufacture are some of the best in the business. They offer years of reliability, hard work and productivity—and we back that promise with an industry-leading warranty. The warranty includes 2 years/2,000 hours of coverage for the full machine including the tracks, plus the industry’s first no-derailment guarantee.
