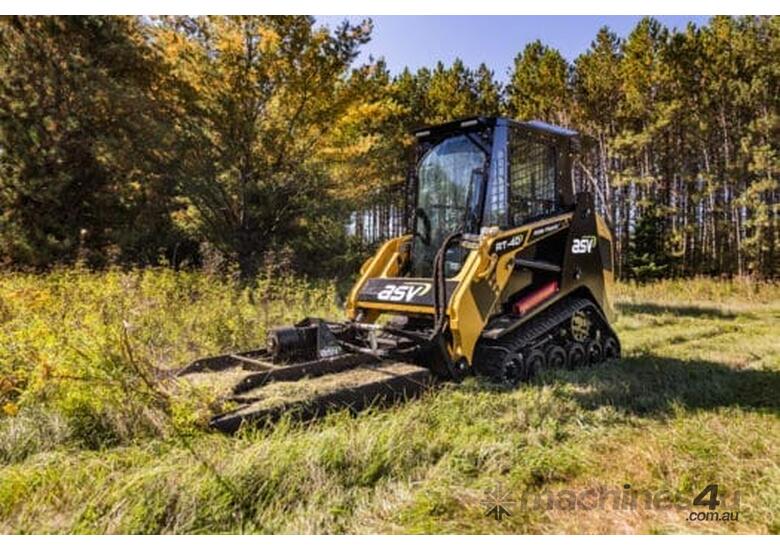

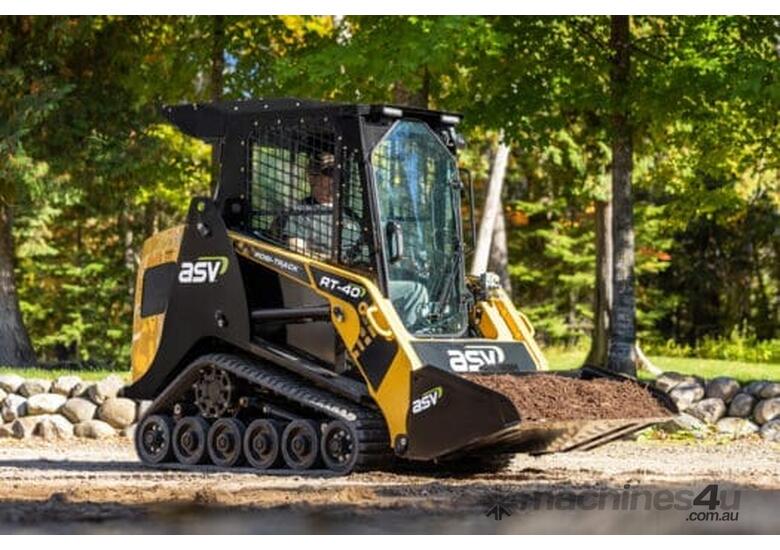

ASV RT-40 POSI-TRACK LOADER

UNMATCHED POWER & PERFORMANCE IN A SMALL PACKAGE.
ASV’s new RT-40 Posi-Track loader brings unprecedented performance and power in a compact machine. As a sit-on loader with only a 4-foot width, the RT-40 is ideal for landscaping, tight access site cleaning or other general purpose use, and it packs incredible lift capacity and speed.

Along with the machine’s reliability, serviceability and comfort, you’ll feel the difference sitting in the RT-40. This Posi-Track is available for sale and dry hire / rental Australia-wide.

POWER
This track loader is pound for pound the highest performing machine in our lineup. Perfect for landscaping, rentals and site cleaning, the RT-40 wins with muscle and hustle.

PERFORMANCE
The ASV RT-40 compact track loader is engineered to deliver minimal ground pressure while topping out at 11.4KPH and reaching an impressive 2.56 metre lift height. The machine’s frame allows for a 10.8-inch ground clearance thoroughly outperforming any walk-behind or stand-on loader when it comes to traveling obstructed terrain.

COMFORT
To give operators peace of mind, we designed the RT-40 with premium safety, comfort, and visibility features. The seated cab eliminates the fatigue from standing all day and offers protection from the elements. It’s built to provide ample headroom for taller operators and it’s pressurized for a clean, comfortable environment. Large windows also make it easy for operators to be aware of their surroundings.

SERVICEABILITY

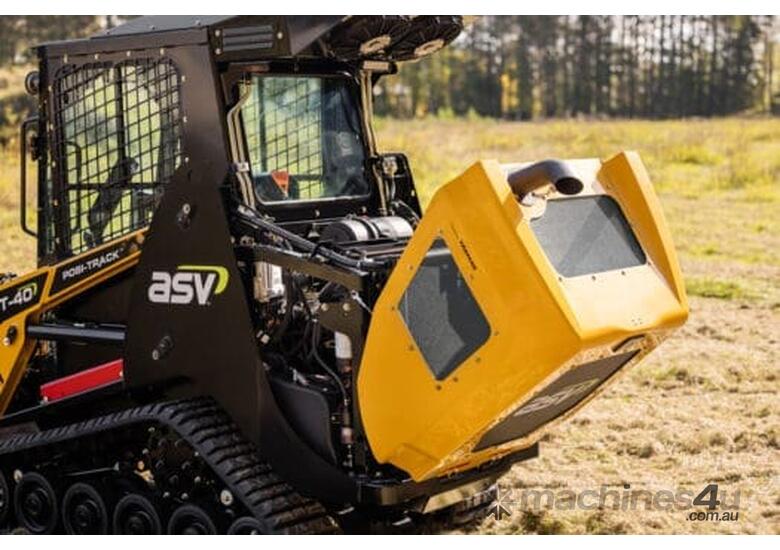

For maximum serviceability, the RT-40 is designed with a large rear-tilting hood to provide easy access to all maintenance points, including filters, oil and fuel tanks, reservoirs, hydraulic and water separator drains, and the battery. Servicing improvements within the cab include placing the fuse panel there for fast access, as well as making the seat removable with just two bolts. All of these features mean less downtime spent servicing the machine and

more time operating it.

TIGHT ACCESS MEETS POWER
Ideal for the landscaper, site cleaner, waste remover or general residential operator, the RT-40 is your perfect option for tight access use without sacrificing power and comfort.

Couple this with class-leading ground clearance, stability, lift capacity and overall performance, and you have yourself a premium machine ready to tackle virtually any project.

MACHINE SPECIFICATIONS
OPERATIONS

Loader Arms: Radial
Operating Weight: 1817 kg
Rated Op Capacity 35%: 422 kg
Ground Pressure: 22.7 kPa / 3.3 psi
Engine Power: 28.5 kW / 38.2 hp
Tipping Load: 1207 kg
Max Travel Speed: 11.4 km/h
Height to Bucket Pin: 2565 mm
Max Dump Angle Full Height: 43 degrees
Rear Angle of Departure: 44 degrees
Bucket Roll Back Ground Level: 18.2 degrees
Ground Clearance (Unloaded): 273 mm
Overall Length with Bucket: 2866 mm
ENGINE

Features: Yanmar 3TNV 86 CT Diesel 3-cylinder, Engine-Driven Fan, Anti-Freeze Filled Radiator Cooling System, Dual Stage Intake Air Cleaner, Engine Block Heater
Engine Power: 28.5 kW / 38.2 hp
Displacement: 1.6 L
Torque Peak: 126.9 Nm
DRIVE TRAIN

Features: Dual Hydraulic Drive Motors, 2 Independent Torsion Axle Suspension, Duo Cone Front & Rear.
Track Width: 279 mm
Length of Track on Ground: 1397 mm
Roller Wheels: 12 high density poly per track
Roller Wheel Diameter: 254 mm
AUXILIARY HYDRAULICS

Features: Pilot Hydraulic Joystick Control, Manual Quick Attach, Attachment Control Kit, Variable Auxiliary Flow.
Max System Pressure: 20684 kPa
Flat Faced Couplers: 15.875 mm
Auxiliary Pump Flow: 50.35 lpm
ELECTRICAL SYSTEM

Features: Upgradeable Wiring Harness, Battery Disconnect.
Normal Charge: 12 V
Battery: 525 CCA
Alternator Charging System: 60 Amp
Port Outlet (Inside Cab): 1 – 12 V
OPERATOR STATION

Features: ROPS, Suspension Seat w/ 2
Loader Control: Right-hand pilot hydraulic joystick controls, loader lift/tilt, with intermittent control of auxiliary hydraulics.
Drive Control: Left-hand pilot hydraulic joystick controls.
Multifunction Display / Indicator: Fuel level, Engine Oil Pressure, Hour Meter, Battery Voltage, Hydraulic Oil Temperature, Trip Meter, Tachometer, Engine Coolant Temperature, Multiple Languages.
ROPS/FOPS: Meets ISO 3471: 2008, ISO 6683:2005, ISO 3449:2005 Level 1.
Illumination: 2 Fixed Forward Facing Lights, 1 Rear Facing Light.
SERVICE CAPACITY

Fuel Tank: 49.2 L
Hydraulic Tank: 13.2 L
Engine Coolant: 6.8 L
Engine Oil (inc Filter): 7 L
DIMENSIONS

Full Length: 2866 mm
Arm Up Height: 2565 mm
Machine Height: 1920 mm
Machine Width: 1225 mm
Roller Wheels: 12 high density poly
Ground Clearance: 273 mm
