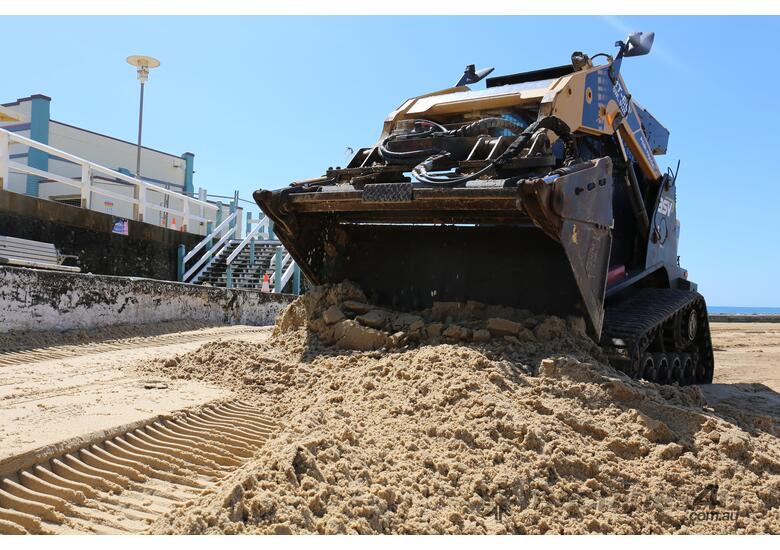

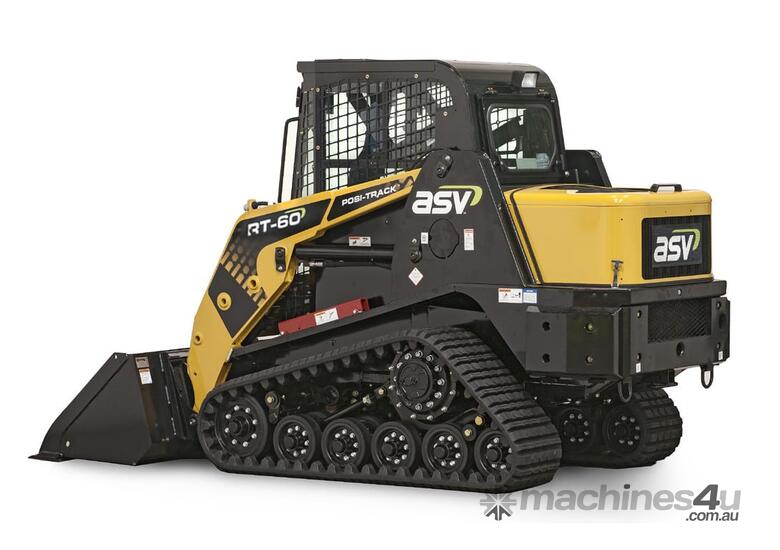

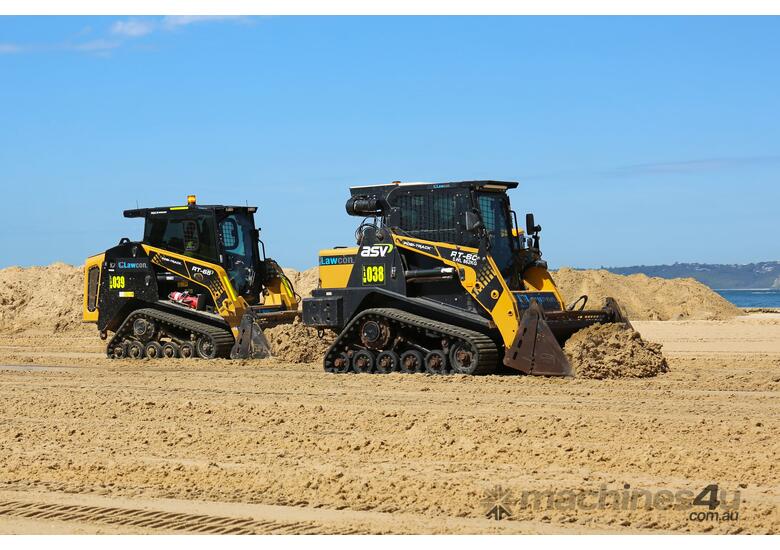

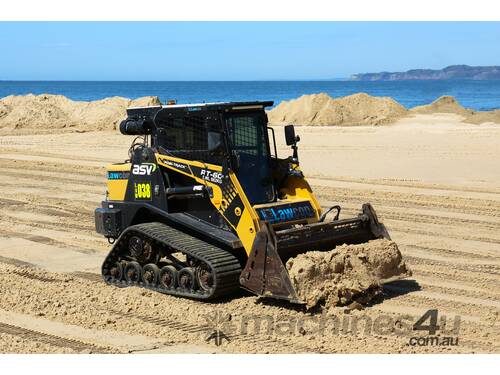

ASV RT-60 POSI-TRACK LOADER

EXCEPTIONAL BALANCE AND VERSATILITY
Formerly known as the RT-50 Turbo, ASV’s mid-sized RT-60 Posi-Track Compact Track Loader is your best bet when you need power and performance for a wide range of jobs and ground conditions.

You can dig, carry and load more because of the RT-60 has optimal tipping load and low-effort operation. The smooth-running turbocharged diesel engine gives you plenty of power when you need it.

POWER
The ASV RT-60 offers exceptional 190Nm torque and push power from its 60-horsepower Perkins engine and high efficiency Posi-Track undercarriage. This 4-cylinder turbocharged diesel engine gives you the power you need, when you need it. And attachments are a breeze thanks to its efficient and robust hydraulic system with 3,000 psi of auxiliary pressure and 61 LPM flow. So you’ll get the job done faster and easier than ever before.

PERFORMANCE
Soft ground conditions are no problem for the RT-60, thanks to its light weight and low ground pressure of only 3.7 psi, you can get to work sooner after wet weather. With 15-inch-wide tracks and even weight distribution on the patented Posi-Track undercarriage, handling virtually any terrain is comfortable and effective. With a 13km/h top-speed to get around quickly, you’ll get the job done faster and more efficiently with the famous ASV RT-60.

COMFORT
Not only does ASV’s Posi-Track technology improve traction, it also improves operator comfort with a smoother ride for less fatigue during a long day in the cab. For more comfort, there’s the optional air conditioned cab, and because of an exceptional 305mm of ground clearance, nearly double that of comparable models, you can use the RT-60 to ride over logs, rocks or mud, for all-weather productivity.

MACHINE SPECIFICATIONS
OPERATIONS

Loader Arms: Radial
Operating Weight: 2957 kg
Rated Op Capacity 35%: 725 kg
Ground Pressure: 25.5 kPa / 3.7 psi
Engine Power: 44.7 kW / 60 hp
Tipping Load: 2072 kg
Max Travel Speed: 13 km/h
ENGINE

Features: Diesel, 4-cylinder, turbocharged.
Cooling System: Engine-driven fan and coolant / anti-freeze-filled radiator.
Intake Air Cleaner: Dual Stage
Engine Power: 44.7 kW / 60 hp
Torque Peak: 190 Nm
Displacement: 2.2 L
DRIVE TRAIN

Track Type: General purpose track constructed of rubber compound with embedded co-polymer cords and all-purpose treads. Tracks have a single row of track drive lugs molded in.
Drive System: Two hydrostatic direct-drive sprockets controlled by a single joystick.
Track Drive Sprocket: Elevated, with low-friction and replaceable roller sprockets.
Undercarriage Suspension: Two independent torsion axles per undercarriage (side).
Roller Wheels: 12 high-density polyurethane and rubber wheels per track. Wheels include sealed roller bearings.
Front and Rear Wheels: 365 mm
Middle Wheels: 254 mm
Track Width: 381 mm
Length of Track on Ground: 1499 mm
DIMENSIONS

Full Length: 3251 mm
Arm Up Height: 2921 mm
Machine Height: 1956 mm
Machine Width: 1524 mm
Ground Clearance: 305 mm
AUXILIARY HYDRAULICS

Controls: Intermittent via button on loader control joystick, or continuous via dash-mounted switch.
Max System Pressure: 20670 kPa / 3000 psi
Couplers: Push-to-connect quick-couplers are mounted on loader arms. Pressure relief valve is mounted to coupler block.
Cooling System: High-efficiency side-by-side radiator and oil cooler.
Auxiliary Pump Flow: 61.7 lpm
ELECTRICAL SYSTEM

Features: Pre-wired for all factory-available accessories.
Normal Charge: 12 V
Battery: 770 CCA
Alternator Charging System: 65 Amp
Port Outlet (Inside Cab): 1 – 12 V
OPERATOR STATION

Features: Adjustable contour vinyl seat with built-in operator-presence switch, lap bar and 51 mm wide seat belt.
Loader Control: Right-hand pilot-operated hydraulic joystick controls loader lift, lower and tilt, plus intermittent control of aux hydraulic system.
Drive Control: Left-hand pilot-operated hydraulic joystick controls machine speed and direction.
Engine Speed: Foot pedal and hand-operated throttle lever.
Multifunction Display / Indicator: Engine oil low-pressure light; Hydraulic oil high-temperature light; Engine high-temperature light; Battery low-voltage light; Hourmeter; Fuel gauge.
ROPS/FOPS: Meets SAE J1040 MAY94 and ISO 3471 / Meets SAE J1043 SEPT87 and ISO 3449.
Illumination: Four fixed forward-facing halogen lights; One adjustable rear-facing light; One interior light.
Standard Features: Horn, Backup alarm.
SERVICE CAPACITY

Fuel Tank: 51.9 L
Hydraulic Tank: 30.3 L
Engine Coolant: 7.5 L
Engine Oil (inc Filter): 10.6 L
