ASV RT-65 MAX-SERIES POSI-TRACK LOADER

Proudly representing ASV Positrack in North East Victoria and Southern NSW

The benchmark in next-gen Posi-Track technology.

Operating Weight
3393 kg

Tipping Load
2495 kg

Ground Pressure
4.2 psi

Engine Power
67 hp

LESS DOWNTIME. MORE GO TIME.

The RT-65 MAX-Series Posi-Track is designed to deliver maximum serviceability, reliability and productivity.

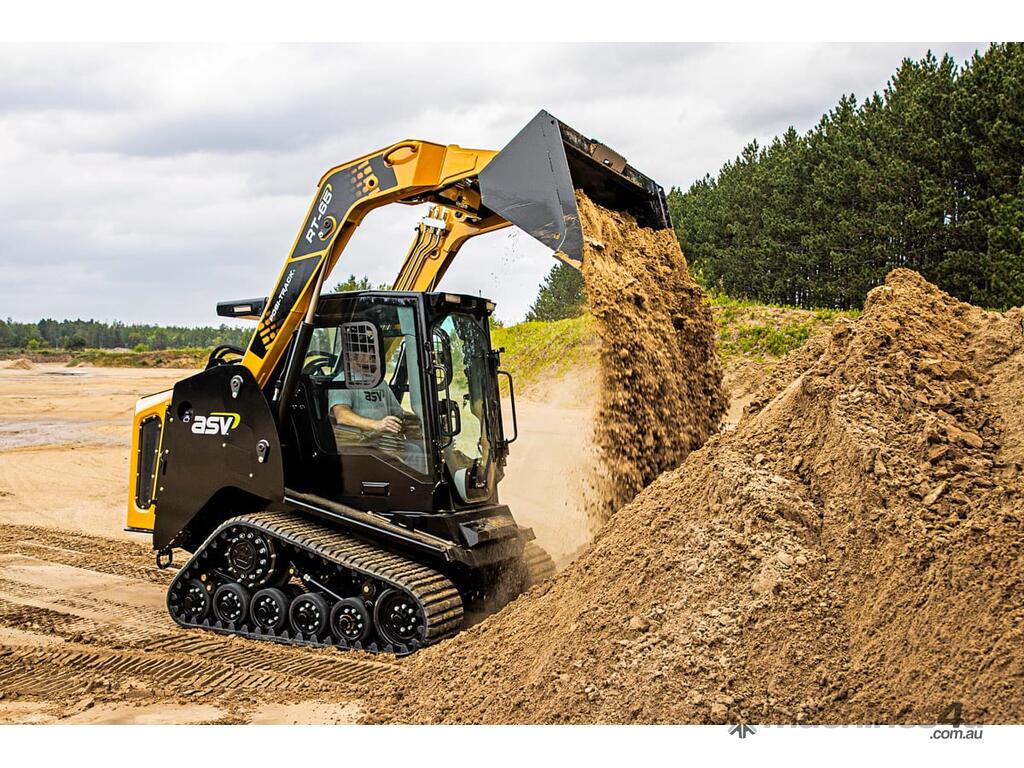

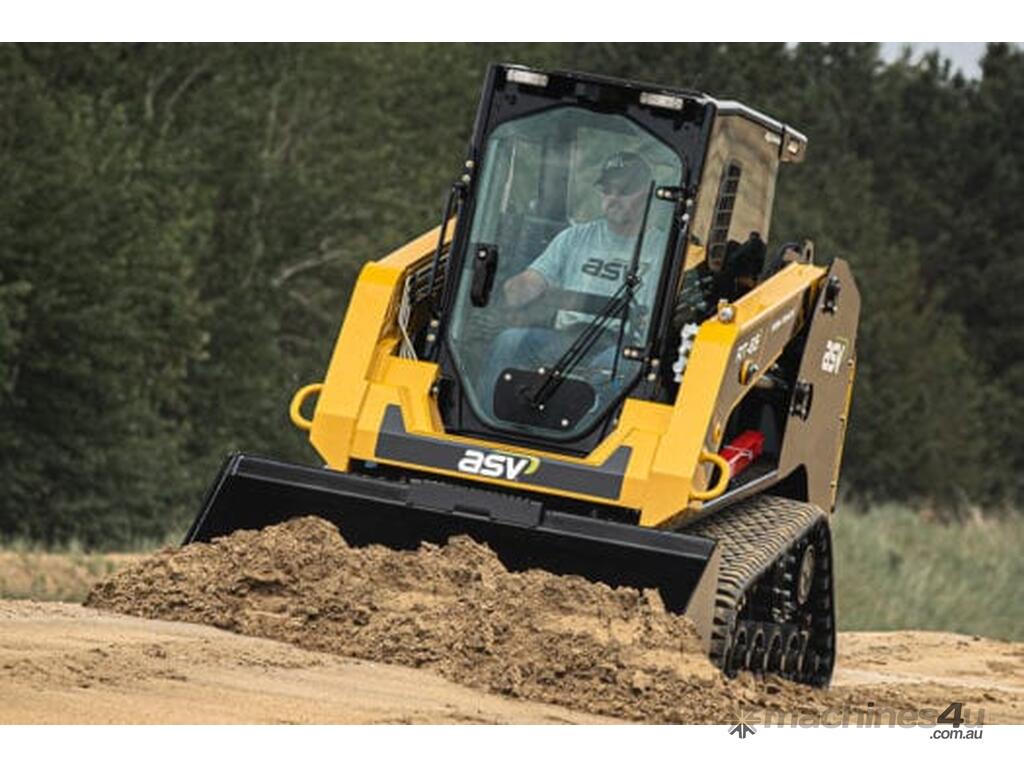

With ASV’s patented Posi-Track® undercarriage, this machine is built for digging and ground engagement work in construction, excavation, landscaping and land-clearing applications.


MAX-Series-Positrack-Logo-White

While ASV MAX-Series machines are purpose-built with the same technology as our full lineup of compact track loaders, they also feature a brand-new, next-generation cab and other features for a premium operator experience like never before.

POWER
Its turbocharged 67-horsepower Deutz TCD 2.2 T4 diesel engine produces 250Nm of torque that the drive motors transfer to ASV’s patented internal-drive sprockets. Internal rollers reduce friction loss in the undercarriage, resulting in maximum power being transferred to the track regardless of drive speed. The RT-65 tops out at a speed of 17.1 km/h.

PERFORMANCE
The RT-65 features a rated operating capacity of 1247 kilograms and a tipping load of 2495 kilograms. The machine is 1676mm wide, provides excellent manoeuvrability and has a 2959mm lift height. The innovative Posi-Track system featured on the RT-65 allows customers to use it as an all-terrain, all-season machine with maximum control, flotation, traction and pushing power in steep, wet, muddy and slippery conditions.

COMFORT
The RT-65 features ASV’s unique and patented suspension system made up of two independent torsion axles per undercarriage and a suspended air ride seat so operators experience a smooth ride over every type of terrain on a variety of job sites. And with next-generation MAX-Series features, the RT-65 offers plenty of creature comforts that let operators work more comfortably for longer periods of time: more all-around space, improved ergonomics, an upgraded HVAC system for better circulation and defrosting, and an optional all-weather pressurized cab for a cleaner operator environment.

SERVICEABILITY
The RT-65 boasts industry-leading serviceability. We do this so operators can spend less time maintaining the machine and more time on the job. The features that keep operators moving include a swing-out radiator, top hood and side doors that allow access to all sides of the engine compartment—including filters and other daily checkpoints.


OPERATIONS

Loader Arms: Radial
Operating Weight: 3393 kg
Rated Op Capacity 35%: 873 kg
Rated Op Capacity 50%: 1247 kg
Ground Pressure: 29.0 kPa / 4.2 psi
Engine Power: 50 kW / 67 hp
Tipping Load: 2495 kg
Max Travel Speed: 17.1 km/h

ENGINE

Features: Diesel 3-cylinder, Turbo Charged, After Cooled Deutz TCD 2.2 T4, Hydraulically Driven Fan, Dual Stage Intake Air Cleaner.
Cooling System: Anti-Freeze Filled Radiator Cooling System.
Engine Power: 50 kW / 67 hp
Displacement: 2.2 L
Torque Peak: 250 Nm

DRIVE TRAIN

Features: Dual Hydraulic Drive Motors, 2 Independent Torsion Axle Suspension.
Roller Wheels: 24 High Density Polyurethane.
Front and Rear Wheels: 355.6 mm
Middle Wheels: 254 mm
Track Width: 381 mm
Length of Track on Ground: 1499 mm

DIMENSIONS

Full Length: 3594 mm
Arm Up Height: 2959 mm
Machine Height: 2068 mm
Machine Width: 1676 mm
Ground Clearance: 330 mm

AUXILIARY HYDRAULICS

Features: Pilot Hydraulic Joystick Control, Work Port Relief.
Max System Pressure: 22753 kPa
Couplers: Manual Quick Attach (Standard Models) or Hydraulic Quick Attach (Premium Model).
Auxiliary Pump Flow: 84.0 lpm (Low Flow) / 103.7 lpm (High Flow)

ELECTRICAL SYSTEM

Features: Upgradeable Wiring Harness, Attachment Control Kit.
Normal Charge: 12 V
Battery: 800 CCA
Alternator Charging System: 120 Amp
Port Outlet (Inside Cab): 1 – 12 V

OPERATOR STATION

Features: ROPS, Suspension Seat w/ 2 in. Seatbelt, Roof Panel, Rear Window, Sound Insulation, Horn, Backup Alarm, Lap Bar.
Loader Control: Right-hand pilot hydraulic joystick controls loader lift/tilt, with variable control of auxiliary hydraulics.
Drive Control: Left-hand pilot hydraulic joystick controls machine speed and direction.
Multifunction Display / Indicator: Fuel, Tachometer, Engine Temperature, Hour Meter, Battery, Trip Meter, Hydraulic Temperature, Water Temperature, Multiple Languages.
ROPS: Restraint-ISO 6683, SAE J2292, Cal OSHA 1596,ISO 3471.
FOPS: Meets ISO 3449: Level I and II (Optional).
Illumination: 2 Forward Facing Lights / 2 Rear Facing Lights.


SERVICE CAPACITY

Fuel Tank: 87.8 L
Hydraulic Tank: 12.5 L
Engine Coolant: 9.5 L
Engine Oil (inc Filter): 8 L


WARRANTY
ASV POSI-TRACK LOADERS NOW COME WITH THE BEST WARRANTY IN THE INDUSTRY.

From concept to creation, the machines we manufacture are some of the best in the business. They offer years of reliability, hard work and productivity—and we back that promise with an industry-leading warranty. The warranty includes 2 years/2,000 hours of coverage for the full machine including the tracks, plus the industry’s first no-derailment guarantee.
