ASV RT-75 MAX-SERIES POSI-TRACK LOADER

Proudly representing ASV Positrack in North East Victoria and Southern NSW

Revolutionising the CTL industry with next-gen MAX-Series features, patented Posi-Track® technology, longer run time and less maintenance

Operating Weight
4110 kg

Tipping Load
3564 kg

Ground Pressure
3.5 psi

Engine Power
74 hp

MORE MACHINE WHEN YOU NEED IT.

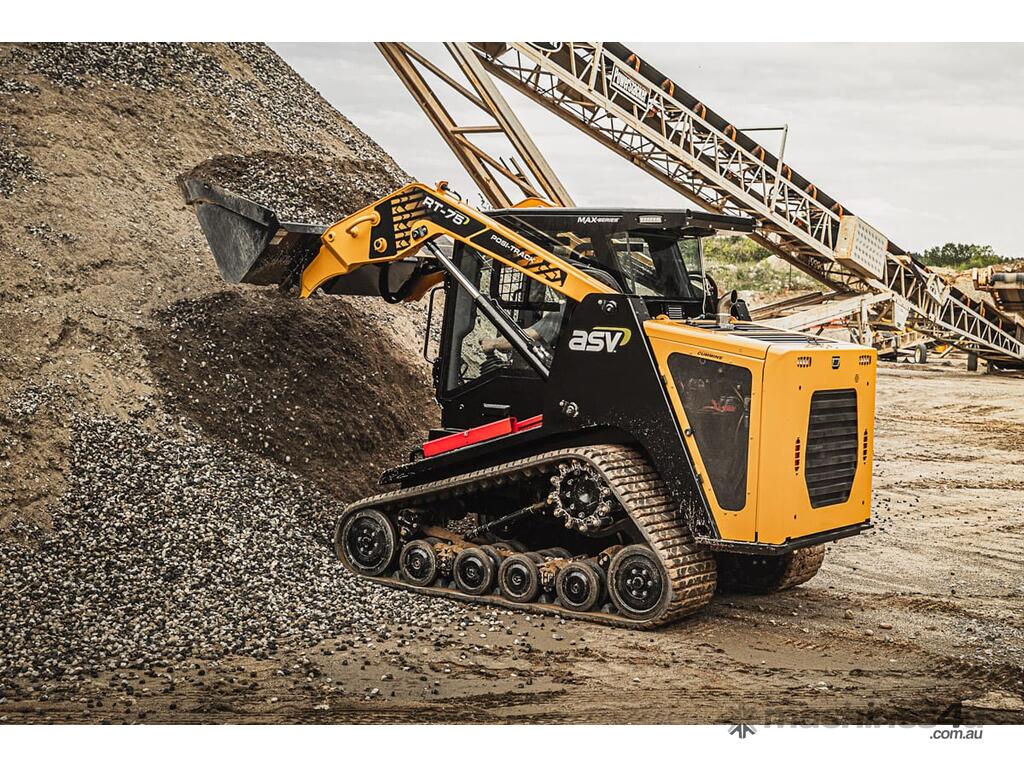

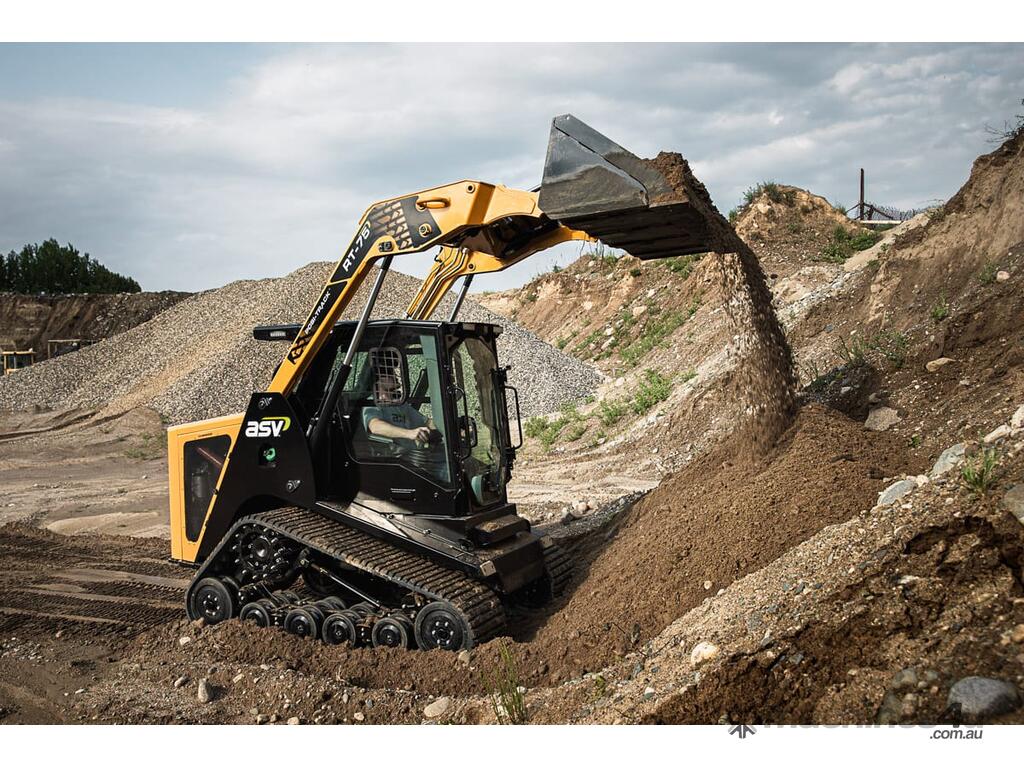

ASV’s RT-75 is revolutionising the compact track loader industry with next-generation features, patented Posi-Track® technology, longer run time and less maintenance.

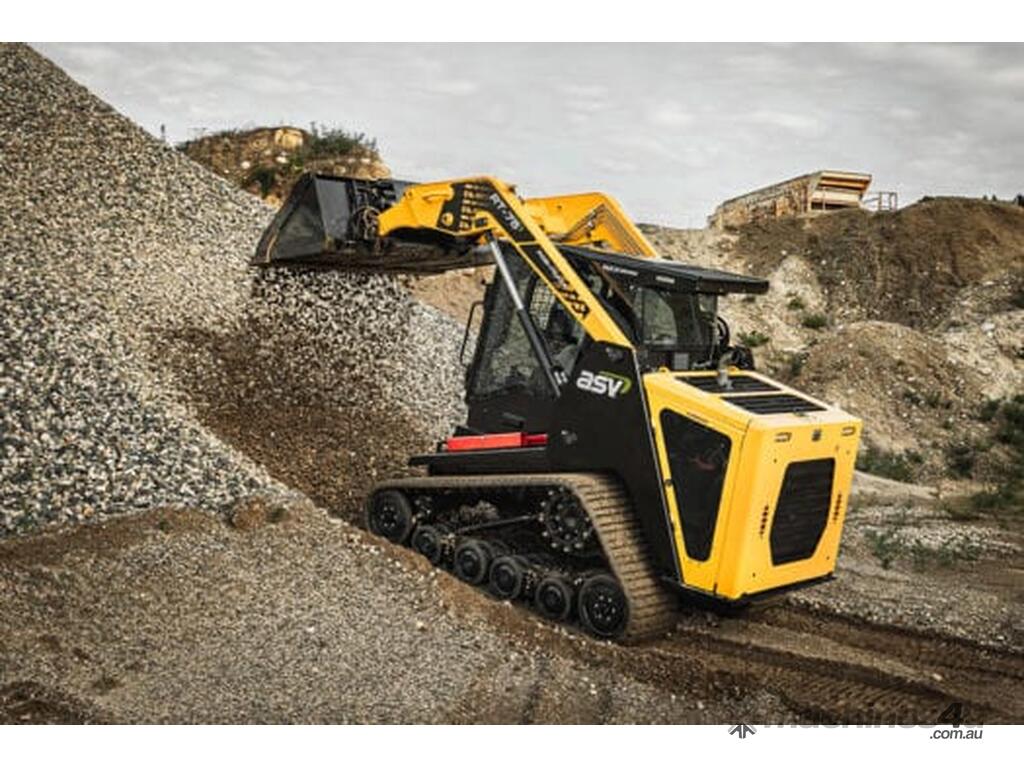

The RT-75 provides the industry’s highest ground clearance, lowest ground pressure, longest track life and best traction over all types of surfaces, from brush and mud to slush and ice.

While ASV MAX-Series machines are purpose-built with the same technology as our full lineup of compact track loaders, they also feature a brand-new, next-generation cab and other features for a premium operator experience like never before.

RT-75 MAX – KEY FEATURES

POWER
The ASV RT-75 Posi-Track Loader features a Cummins 2.8-litre turbocharged diesel engine, producing 300Nm torque — 13 percent more than the machine’s 80-horsepower Terex predecessor. The torque is transferred to the ground through direct-drive hydraulic motors. And there’s also a Heavy-Duty version of the RT-75 that delivers maximum power, without compromise, during high intensity jobs.



PERFORMANCE
ASV built the RT-75’s auxiliary hydraulic system to be highly efficient, including 135 lpm high flow and 3,300 psi. Because the machine includes larger line sizes, hydraulic coolers and direct-drive pumps—rather than belt-driven pumps, preventing power loss—more flow and pressure is transferred to the attachment.



COMFORT

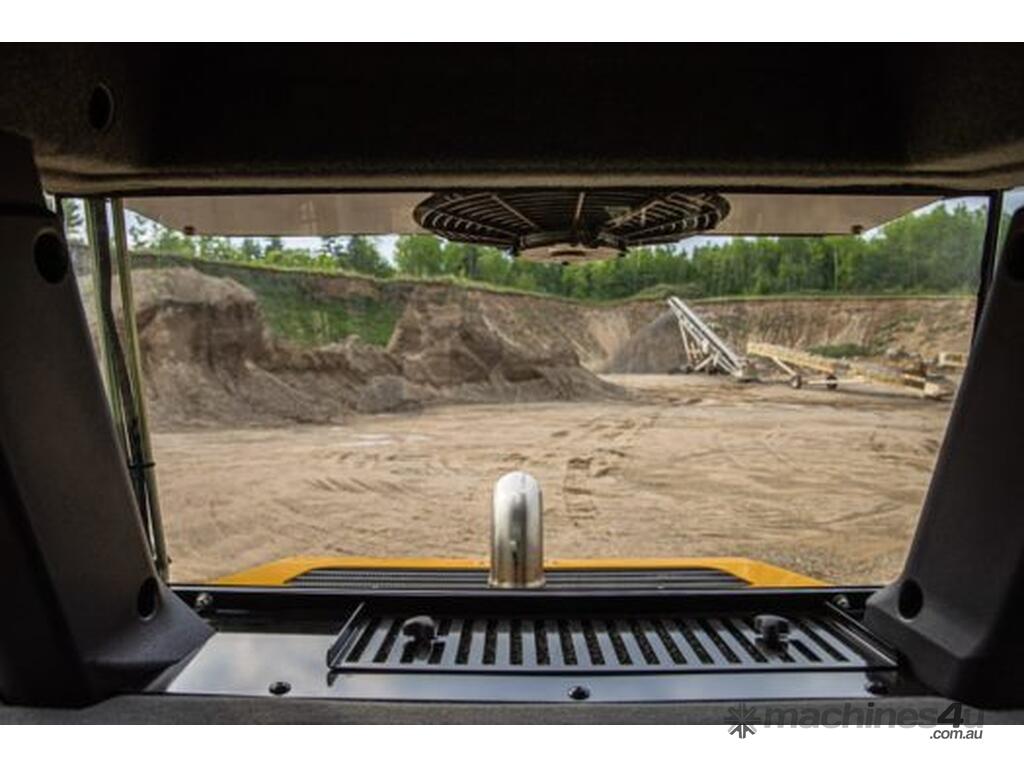

With a next-generation MAX-Series cab, the RT-75 features plenty of creature comforts that let operators work more comfortably for longer periods of time: more all-around space, improved ergonomics, an upgraded HVAC system for better circulation and defrosting, standard joystick controls and an optional all-weather pressurized cab for a cleaner operator environment.



SERVICEABILITY

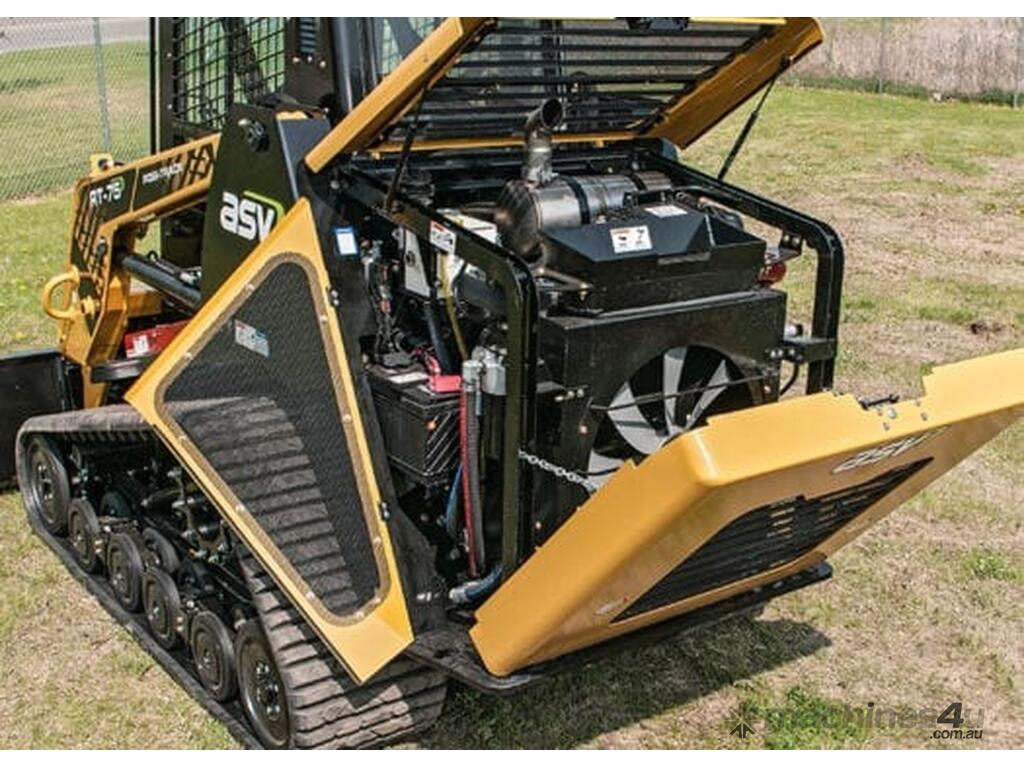

ASV designed the machine with serviceability in mind, giving operators easy access to the reliable Cummins engine through a three-panel hood and tilting cooler arrangement. The design, paired with sight gauges for both hydraulic oil and coolant, simplify routine inspections of filters, oil and normal service items. The rearward tilting cab provides easy accessibility when further service is required and the RT-75 can be paired with all standard attachments, such as backhoes, buckets, brush cutters and pallet forks.



OPERATIONS

Loader Arms: Radial
Operating Weight: 4110 kg
Rated Op Capacity 35%: 1247 kg
Rated Op Capacity 50%: 1782 kg
Ground Pressure: 24.1 kPa / 3.5 psi
Engine Power: 55 kW / 74.0 hp
Tipping Load: 3564 kg
Max Travel Speed: 15 km/h

ENGINE

Features: Diesel 4-cylinder, Intercooled Turbo, Cummins QSF2.8, Hydraulically Driven Fan, Anti-Freeze Filled Radiator Cooling System, Dual Stage Intake Air Cleaner.
Engine Power: 55 kW / 74.0 hp
Displacement: 2.8 L
Torque Peak: 300 Nm

DRIVE TRAIN

Features: Dual Hydraulic Drive Motors, 2 Independent Torsion Axle Suspension.
Undercarriage Suspension: Two Independent Torsion Axles per Undercarriage, Bogey Wheel Suspension.
Roller Wheels: 48 High Density Polyurethane.
Front and Rear Wheels: 381 mm
Middle Wheels: 254 mm
Track Width: 457 mm
Length of Track on Ground: 1803 mm

DIMENSIONS

Full Length: 3759 mm
Arm Up Height: 3188 mm
Machine Height: 2210 mm
Machine Width: 1778 mm
Ground Clearance: 366 mm

AUXILIARY HYDRAULICS

Features: Pilot Hydraulic Joystick Control, Manual Quick Attach.
Max System Pressure: 22750 kPa
Auxiliary Pump Flow: 85.5 lpm (Low Flow) / 135 lpm (High Flow)

ELECTRICAL SYSTEM

Features: Upgradeable Wiring Harness, Attachment Control Kit.
Normal Charge: 12 V
Battery: 950 CCA
Alternator Charging System: 120 Amp
Port Outlet (Inside Cab): 1 – 12 V

OPERATOR STATION

Features: ROPS, Mechanical Suspension Seat w/ 2.

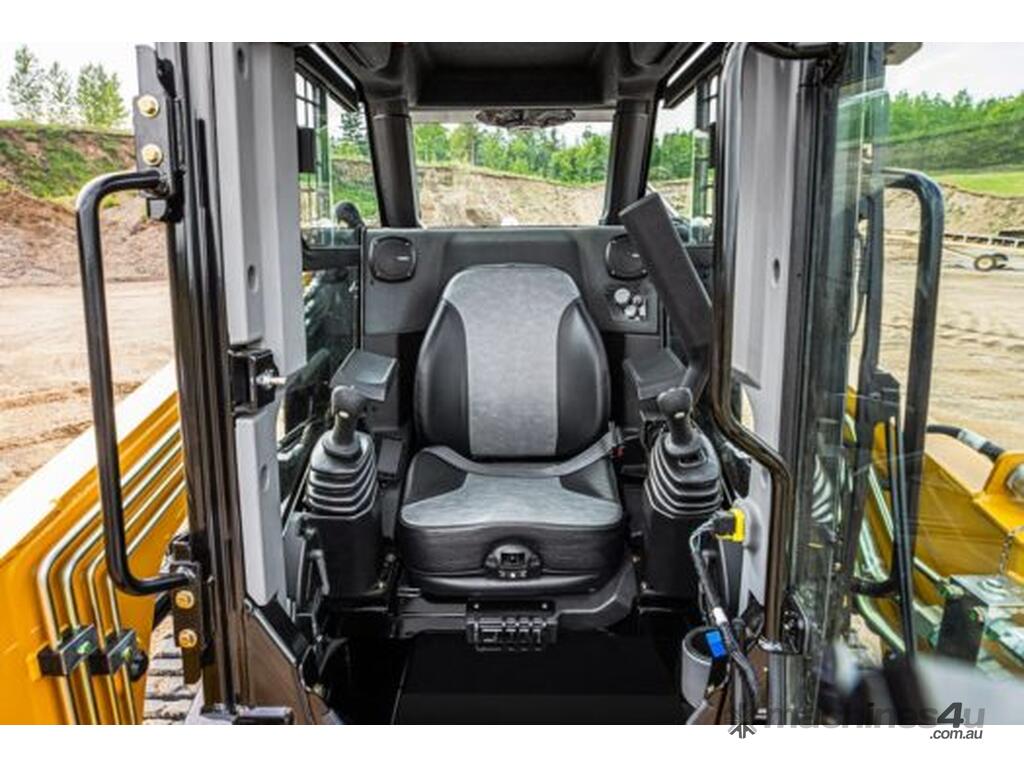

Loader Control: Right-hand pilot hydraulic joystick controls, loader lift/tilt, with variable control of auxiliary hydraulics.
Drive Control: Left-hand pilot hydraulic joystick controls, machine speed and direction.

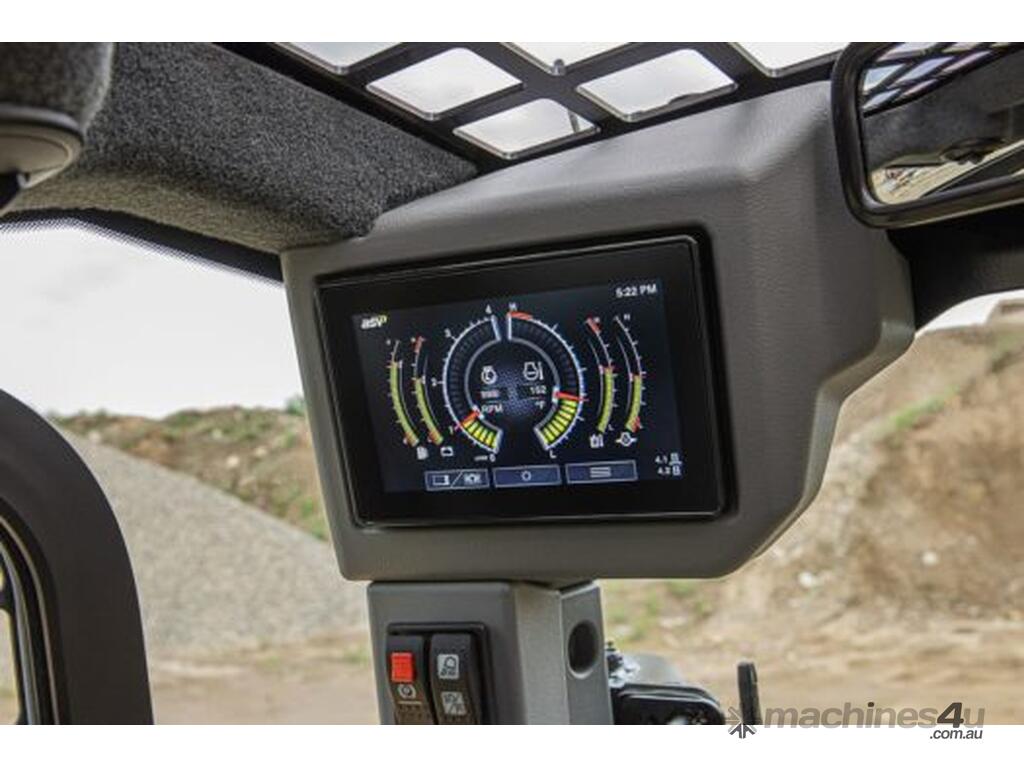

Multifunction Display / Indicator: Fuel, Tachometer, Engine Temperature, Hour Meter, Battery, Trip Meter, Hydraulic Temperature, Water Temperature, Multiple Languages.
ROPS: Restraint-ISO 6683, SAE J2292, Cal OSHA 1596, ISO 3471.
FOPS: Meets ISO 3449: Level I and II (Optional).
Illumination: 2 Forward Facing Lights, 2 Rear Facing Lights.

SERVICE CAPACITY

Fuel Tank: 67.9 L
Hydraulic Tank: 30.3 L
Engine Coolant: 20.8 L
Engine Oil (inc Filter): 8.5 L

WARRANTY
ASV POSI-TRACK LOADERS NOW COME WITH THE BEST WARRANTY IN THE INDUSTRY.

From concept to creation, the machines we manufacture are some of the best in the business. They offer years of reliability, hard work and productivity—and we back that promise with an industry-leading warranty. The warranty includes 2 years/2,000 hours of coverage for the full machine including the tracks, plus the industry’s first no-derailment guarantee.
