ASV VT-70 HO MAX-SERIES POSI-TRACK LOADER

Proudly representing ASV Positrack in North East Victoria and Southern NSW

HIGH OUTPUT IN EVERY WAY.

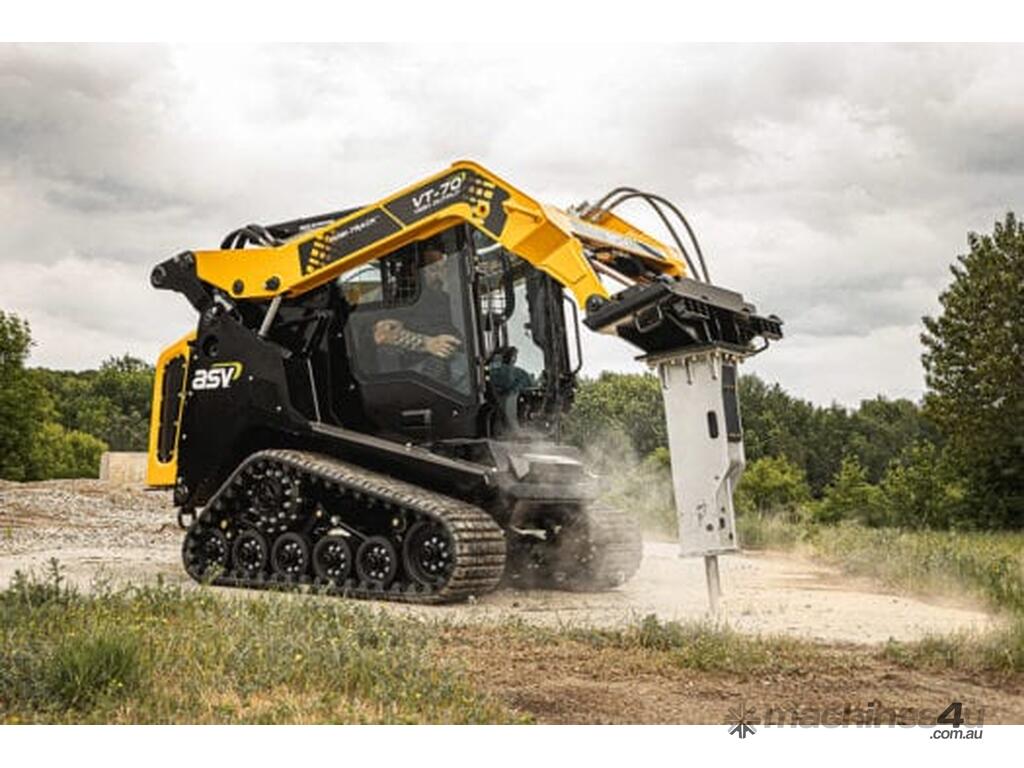

The VT-70 High Output option is the best choice for lift-and-carry tasks—especially in construction, landscaping, and excavation applications.

Operators will experience a lift in productivity too. With the extended reach of the vertical lift and a high output hydraulic system, even big jobs seem small to the VT70.



While ASV MAX-Series machines are purpose-built with the same technology as our full lineup of compact track loaders, they also feature a brand-new, next-generation cab and other features for a premium operator experience like never before.

POWER
The ASV VT-70 High Output features a turbocharged 74.3-horsepower Deutz diesel engine. The machine’s direct-drive pumps optimize performance (compared to belt-driven pump systems) allowing the machine to run attachments more efficiently than even higher-horsepower competitive units. Internal rollers prevent friction loss in the undercarriage, and since the undercarriage is separate from the chassis, you get greater pushing power, traction and efficiency.

PERFORMANCE
This machine’s robust hydraulic system allows for optimal performance and efficiency. Large line sizes, hydraulic coolers and direct-drive pumps enable operators to run a variety of demanding attachments more easily. Comparatively, the VT-70 High Output’s auxiliary hydraulic system optimizes power flow, while competing units can lose as much as 30 percent of their horsepower doing the same tasks.



COMFORT

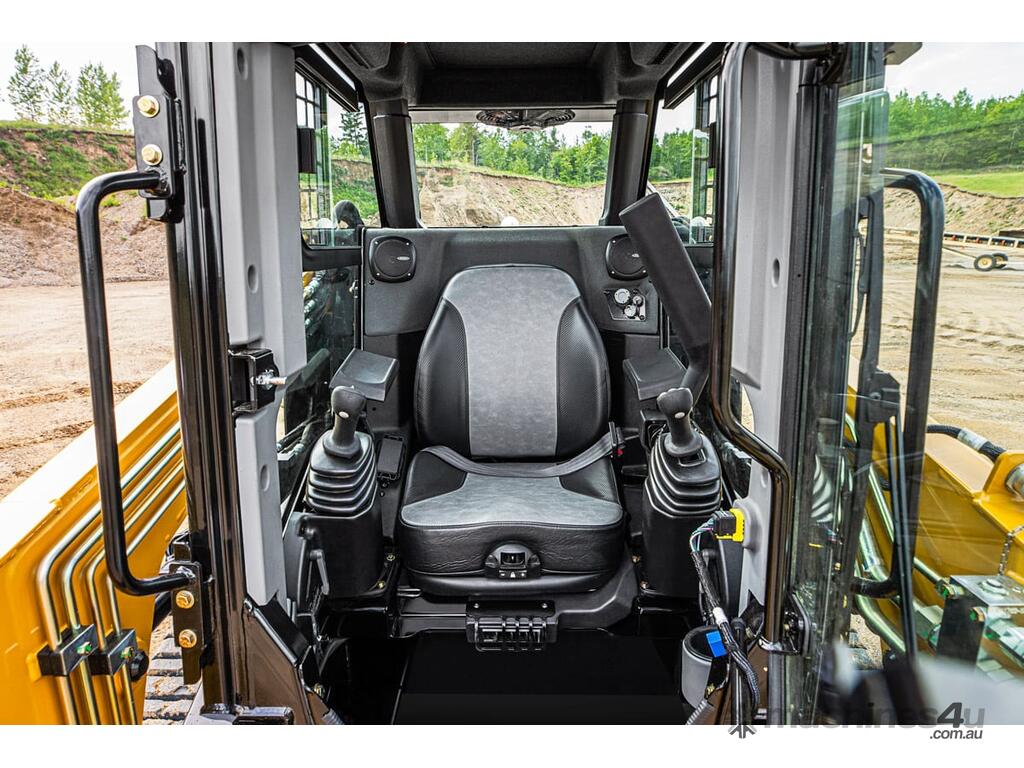

The VT-70 High Output features next-generation MAX-Series features. Along with the smooth ride from our patented Posi-Track system, the sealed, pressurised cabin comes standard with more all-around space, improved ergonomics, air conditioning, heat and a Bluetooth radio. The operator seat is adjustable, suspended and loaded with features to provide maximum comfort. Plus, an optional air ride seat is available for additional comfort and a rearview camera and monitor boost safety and visibility.



SERVICEABILITY

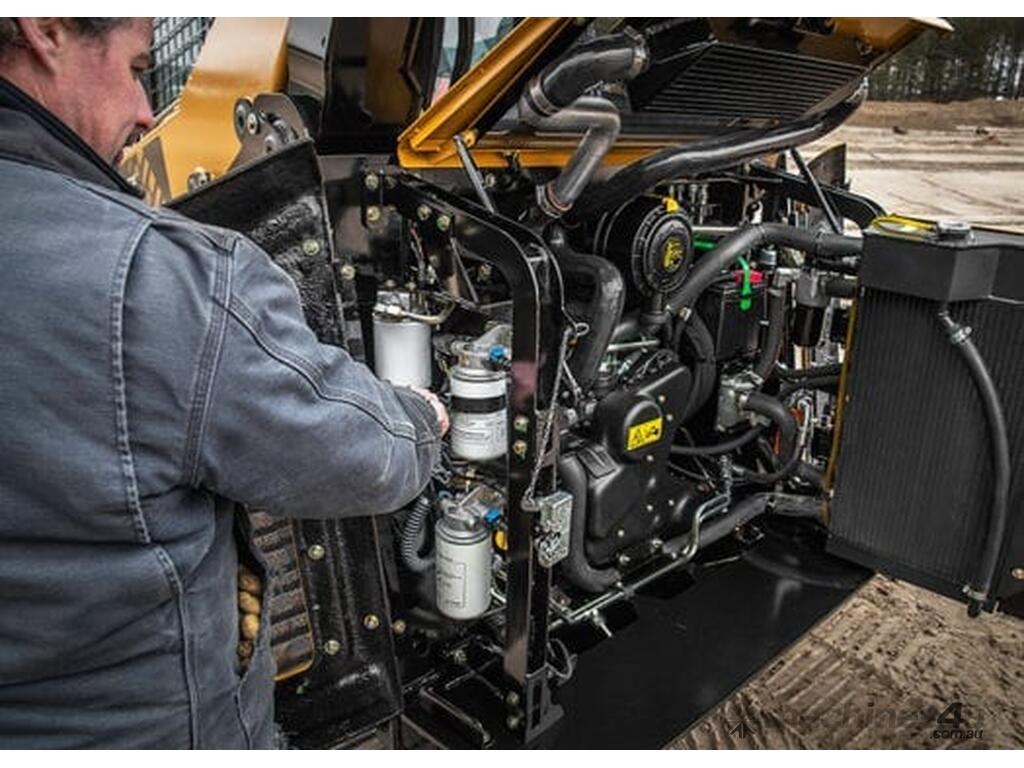

Because your time is valuable, we built the VT-70 High Output with serviceability in mind. This machine is built with a three-panel hood arrangement that has two fold down side doors and a swing out radiator. You get easy access to your daily service points including the air filter, battery, and oil filter. The VT-70 High Output has a direct drive pump and boasts an industry-leading cooling package, so you can run hard without overheating day after day.



OPERATIONS

Loader Arms: Vertical
Operating Weight: 3645 kg
Rated Op Capacity 35%: 1061 kg
Rated Op Capacity 50%: 1515 kg
Ground Pressure: 31.0 kPa / 4.5 psi
Engine Power: 55.4 kW / 74.3 hp
Tipping Load: 3030 kg
Max Travel Speed: 17.1 km/h


ENGINE

Features: Deutz TCD 2.2 T4 Diesel, 3-Cylinder, Aftercooled, Turbocharged.
Cooling System: Temperature-Controlled Variable Speed Hydraulically-Driven Fan and Coolant/Anti-Freeze-Filled Radiator.
Engine Power: 55.4 kW / 74.3 hp
Displacement: 2.2 L
Torque Peak: 280 Nm
Intake Air Cleaner: Dual Stage


DRIVE TRAIN

Track Type: General Purpose Track Constructed of Rubber Compound with Embedded Co-Polymer Cords and All-Purpose Treads.
Drive System: Two Hydrostatic Direct Drive Sprockets Controlled by a Single Joystick.
Track Drive Sprockets: Elevated with Low-Friction, Replaceable Sprocket Rollers.
Undercarriage Suspension: Two Independent Torsion Axles per Undercarriage.
Roller Wheels: 24 High-Density Polyurethane and Rubber Wheels per Track, Wheels Include Sealed Bearings.
Front and Rear Wheels: 355.6 mm
Middle Wheels: 254 mm
Track Width: 381 mm
Length of Track on Ground: 1499 mm


DIMENSIONS

Full Length: 3594 mm
Arm Up Height: 3213 mm
Machine Height: 2068 mm
Machine Width: 1666 mm
Ground Clearance: 330 mm

AUXILIARY HYDRAULICS

Controls: Variable Flow via Joystick Rocker Switch, or Continuous via Console Switch.
Couplers: Push-To-Connect Quick Couplers Mounted on Loader Arms, Pressure Relief Valve Mounted to Coupler Block.
Cooling System: High Efficiency Side-By-Side Radiator and Oil Cooler.
Max System Pressure: 22753 kPa
Auxiliary Pump Flow: 86.7 lpm (Low Flow) / 105.6 lpm (High Flow)


ELECTRICAL SYSTEM

Wiring: Pre-Wired for All Factory-Available Accessories.
Normal Charge: 12 V
Battery: 800 CCA
Alternator Charging System: 120 Amp

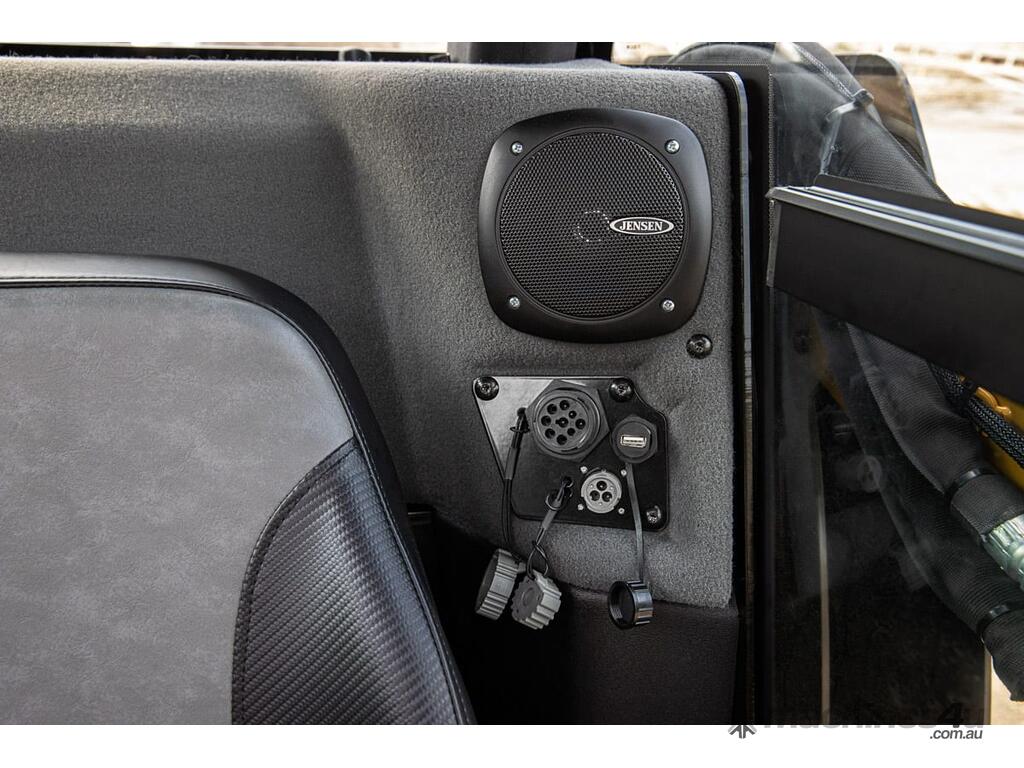

Port Outlet (Inside Cab): 1 – 12 V


OPERATOR STATION

Features: Horn, Backup Alarm.
Loader Control: Right-Hand Pilot Hydraulic Joystick Controls Loader Lift, Lower and Tilt, Plus Variable Control of Auxiliary Hydraulic.
Drive Control: Left-Hand Pilot Hydraulic Joystick Controls Machine Speed and Direction.
Engine Speed: Hand-operated Dial.

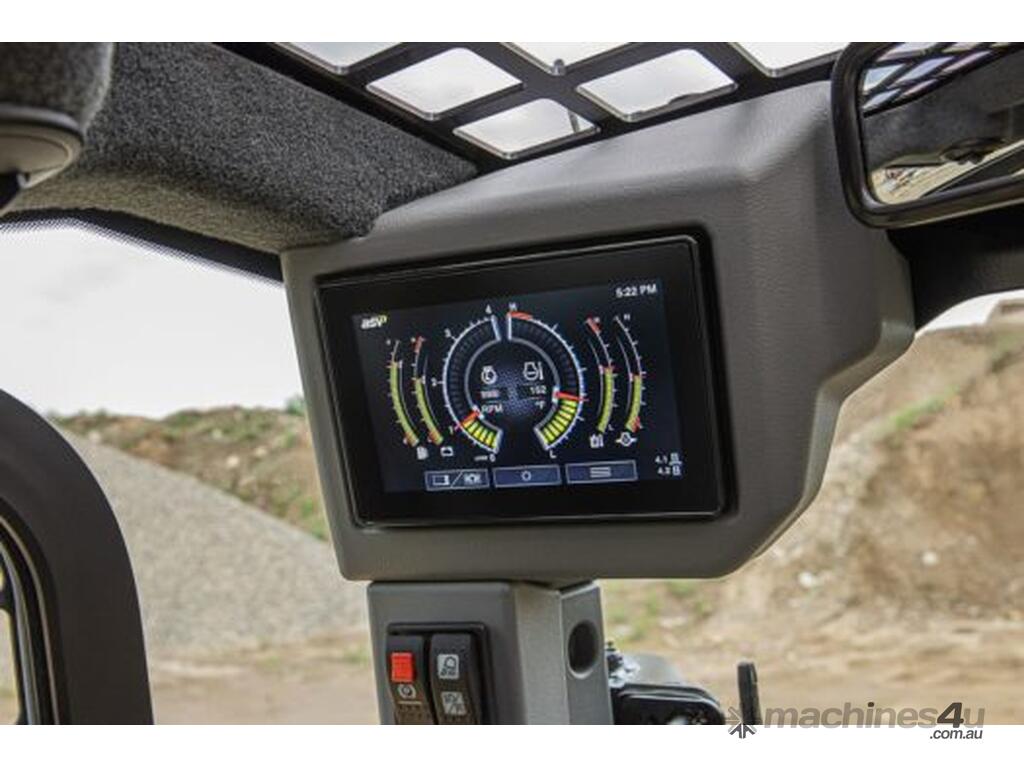

Multifunction Display / Indicator: Engine RPM, Engine Coolant Temperature, Engine Oil Pressure, Hydraulic Oil Temperature, Battery Voltage, Hour Meter, Fuel Level, Trip Meter, Engine Diagnostics, System Monitoring, Fault Logging and More.
ROPS: Restraint-ISO 6683, SAE J2292, Cal OSHA 1596, ISO 3471.
FOPS: Meets ISO 3449: Level I and II (Optional).
Illumination: 2 Adjustable Forward-Facing Halogen Lights, 2 Adjustable Rear-Facing Halogen Lights, 1 Interior Light.

SERVICE CAPACITY

Fuel Tank: 87.8 L
Hydraulic Tank: 12.5 L
Engine Coolant: 12.5 L
Engine Oil (inc Filter): 8 L
