ATC Automatic Tank Cleaner CIP Pit Cleaning System - Hire

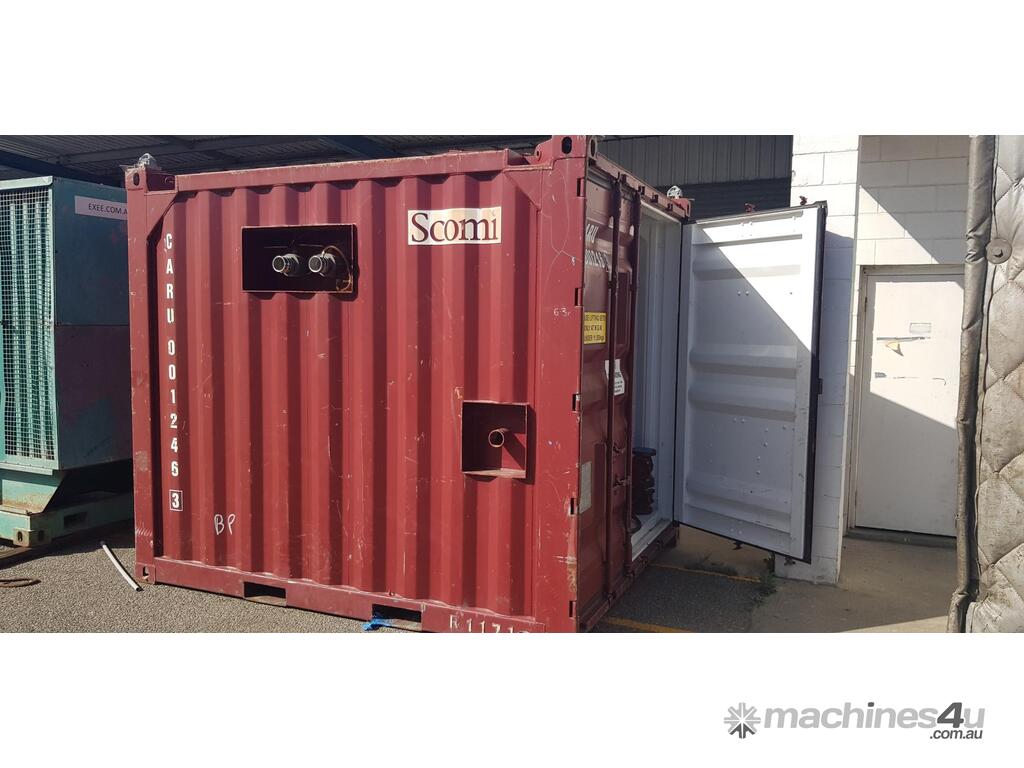

PORTABLE PUMP SKID

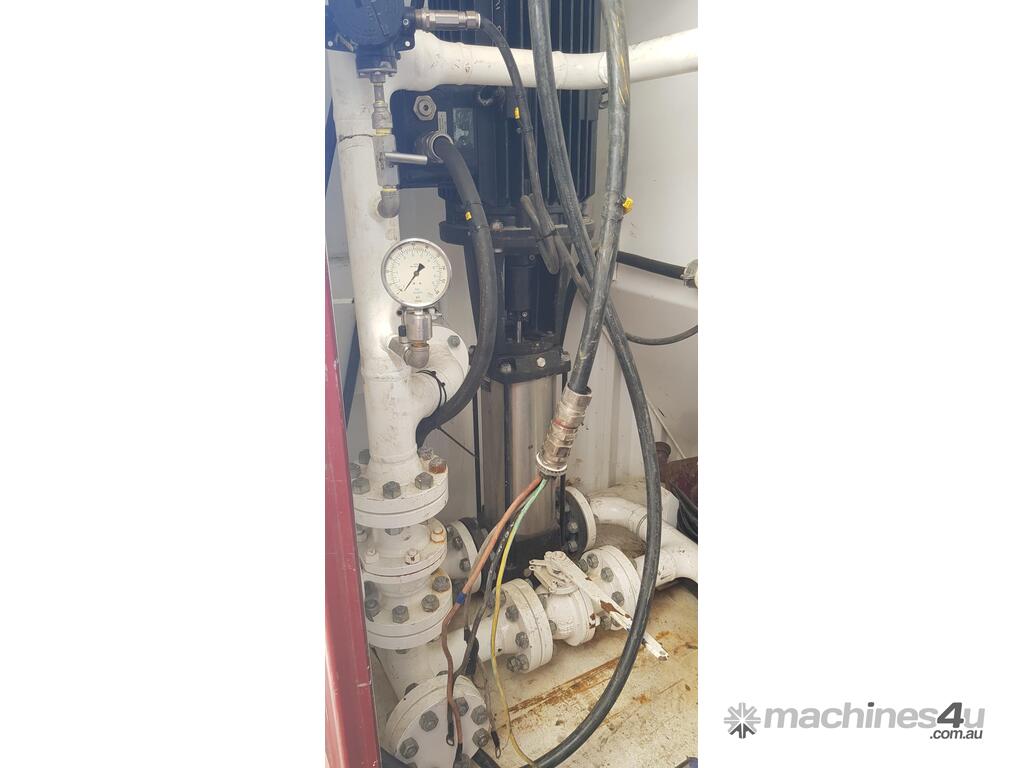

The portable pump skid incorporates a 50 HP
multiphase centrifugal pump, 50 bbls tank spilt into 2
compartments and a control system to operate the
system. The 50 HP pump is designed to provide 250
gpm of wash fluid at up to 250 psi which is enough fluid
and pressure to efficiently power 2 tank cleaning
nozzles as described below.
The Scomi Equipment Inc pump skid is a major step
forward in tank cleaning and allows the wash nozzles to
operate at full capacity and greatly improve the
cleaning performance of the tank cleaning system.
Many systems use undersized pumps or diaphragm
pumps that pulse and this results in non uniform flow to
the wash nozzles and increases the wash time and
reduces the performance of the nozzles.
The 50 bbl tank is used to mix micro emulsion cleaning
fluid and will act as storage of the soap between washes
and as a circulation system greatly reducing the volume
of slop created. The 2 compartments act as a separation
devise to remove any solids carried over from the
cleaning system.
