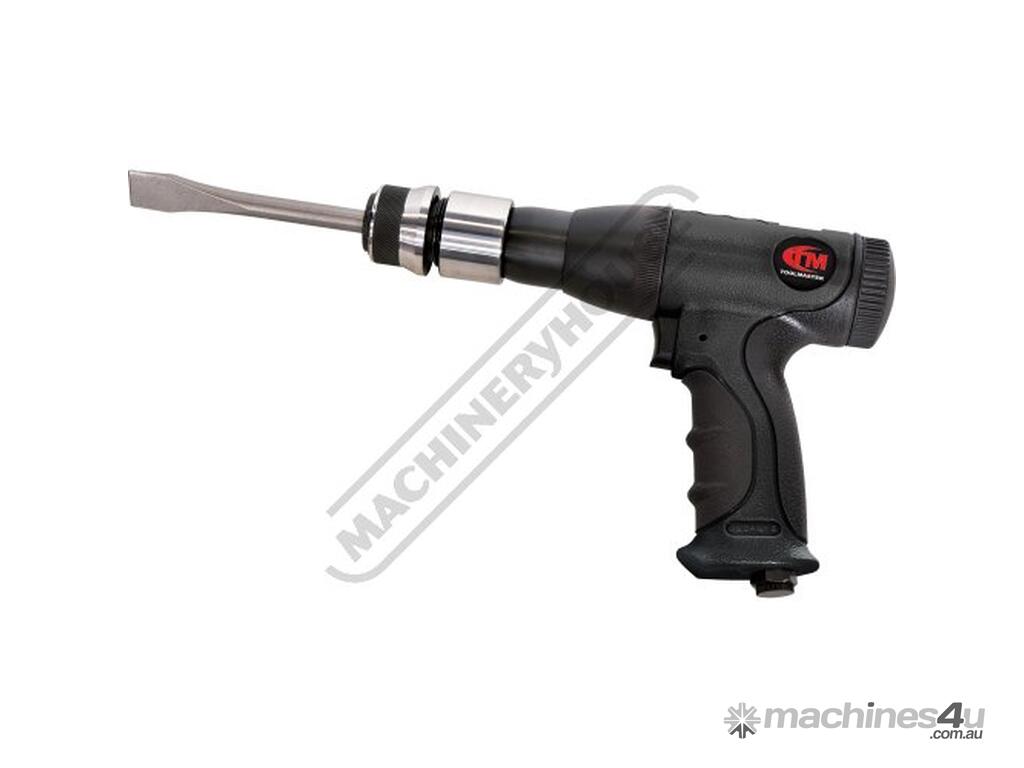

TOOLMASTER ATH-216H Air Hammer Chisel - Vibration Damped 3000 Blows per Minute 5 x 10.2mm Hex Shank 175mm Long Chisels
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: A039
The Toolmaster Vibration Damped Air Hammer is built to industrial standards for the professional user. It features a low weight housing with a rubberised comfort grip. The unique isolated cylinder design reduces vibration by 50% while the extra length in the cylinder provides harder hitting power. The tool accepts standard 10mm hex shank chisels which stop the chisels from freely rotating whilst in operation. Designed for cutting metals, shearing bolts and rivets and driving out pins used on cars, trucks, recreational vehicles and structural maintenance and repair.
Features:
Extra length cylinder for harder hitting power
Lightweight robust aluminium alloy casing with composite body
Front exhaust designed to clear chips & debris
Quick action retainer chuck allows user to change chisels quickly
10mm Hex shank to stop chisels from spinning whilst in operation
70 degree handle grip designed for user comfort
High power to weight ratio

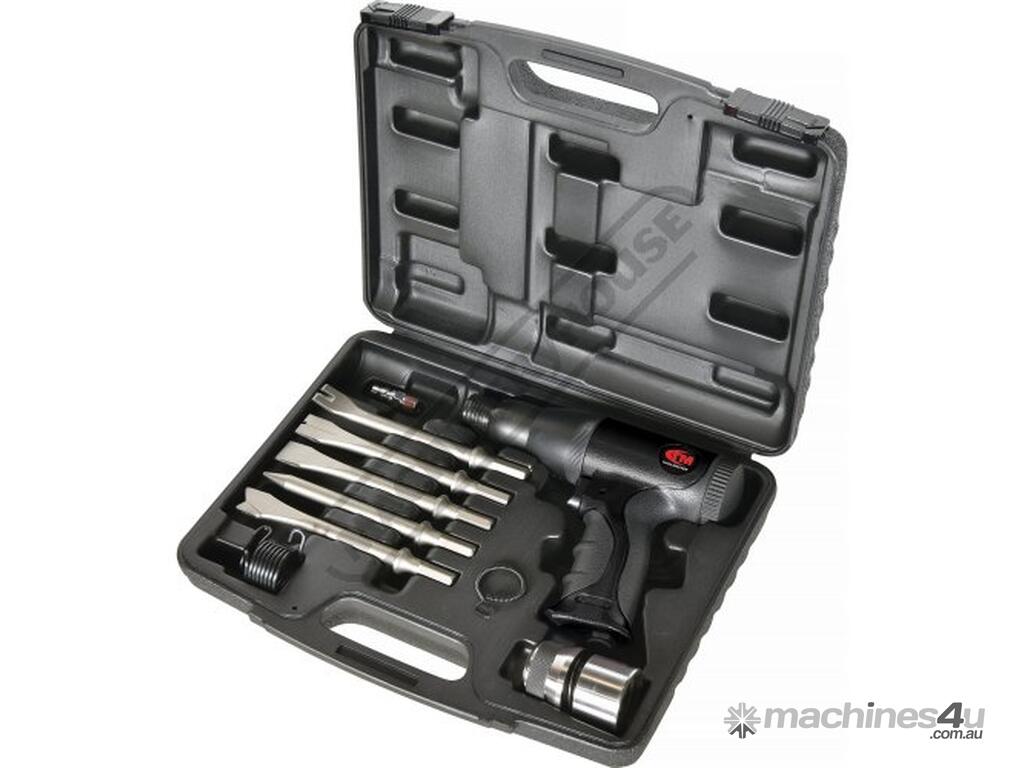

Includes:
- 1 x Quick action retainer chuck
- 1 x Spring retainer

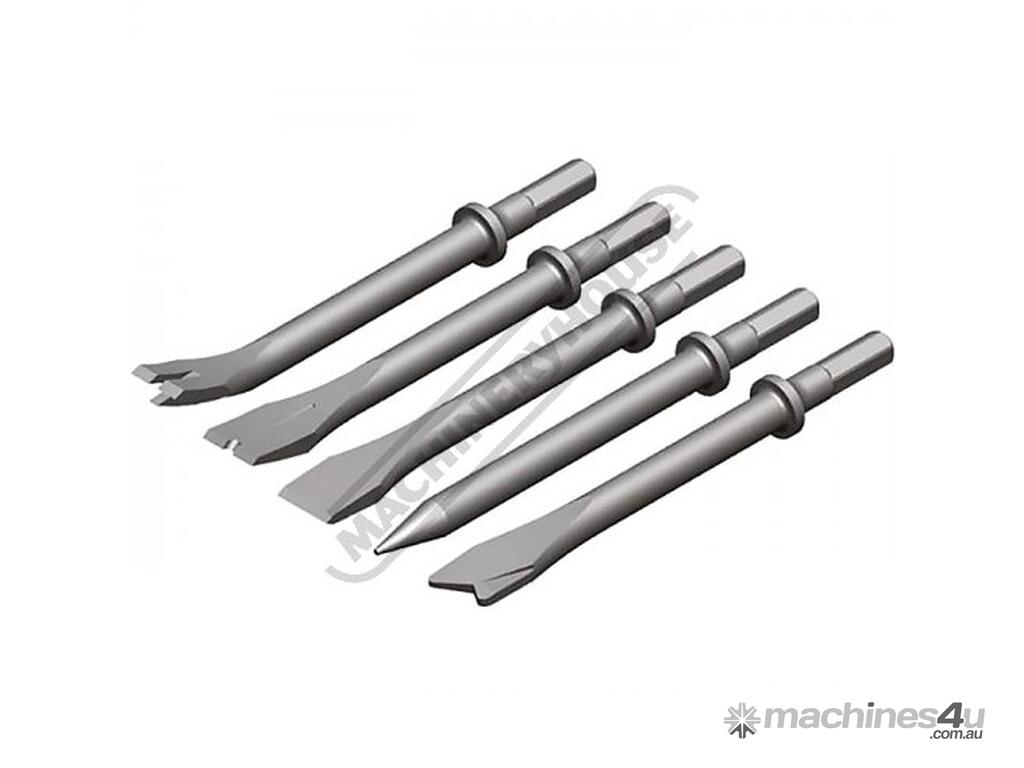

- 5 x Hex shank 175mm long chisels
- - Claw ripper & panel cutter
- - 20mm flat
- - Spot weld cutter
- - Tapered point
- - Single blade panel cutter
- High-Flow 1/4” BSPT air fitting
- Blow mould case
Specifications:
ORDER CODE: A039
MODEL: ATH-216H
Type: Air Hammer
Type: Chisel
Capacity: 10.2mm Hex Shank
Max Torque (ft-lb / Nm): ~
Clutch Type: ~
Punch Hole Diameter (mm): ~
Flange Capacity: ~
Piston Stroke (mm): 62.5
Stroke Length (mm): ~
Free Speed (rpm): ~
Speed Range (rpm): ~
No Load Speed (rpm): ~
Blows Per Minute (BPM): 3000
Air Consumption (CFM/ L/min): 7.8 / 221
Vibration Level (m/s²): 8.49
Sound Pressure Level (dBA): 112
Sound Power Level (dBA): ~
Rated Power (HP): ~
Traction Power (kg/cm): ~
Air Pressure (psi): 90
Air inlet (inch): 1/4" BSPT
Length (mm): 216
Weight (Kg): 1.6
