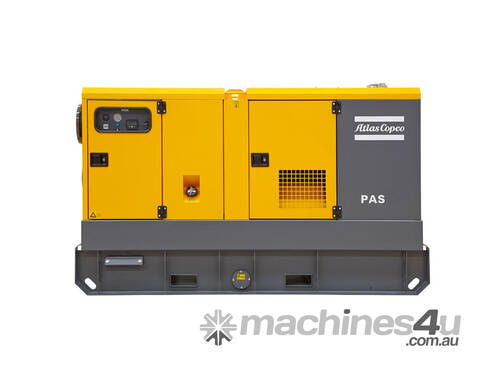

Suitable for a wide range of applications, the PAS range is best suited for transporting or lifting water with abrasive solids in suspension. This includes applications such as: construction and mine site dewatering, floodwater, stream diversions and municipal applications. Delivering fast dewatering solutions to sites where a power source is not available.
The dry prime units offer high performance and efficiency to ensure predictable and timely job completion with minimal operating expenses. The pump’s superior duty points allow more flow and higher pressure delivery with lower power consumption.
Features
Pump System

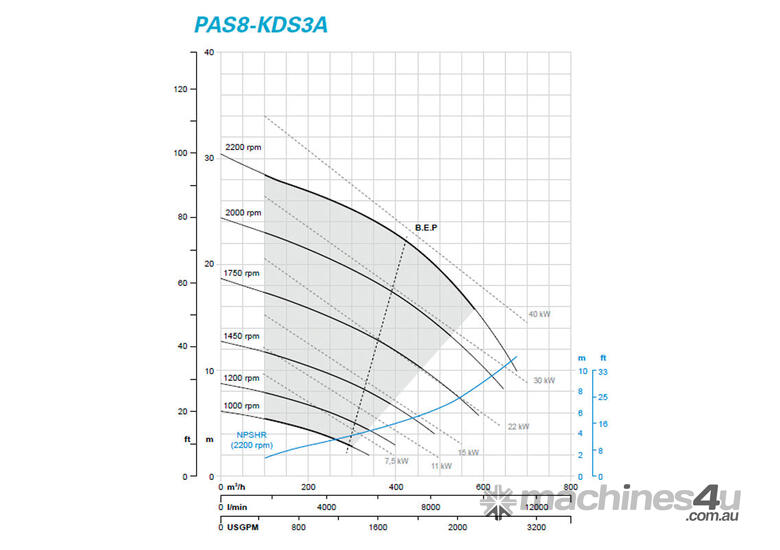

High performance pump with superior BEP’s ? best efficiency points
High abrasion-resistant ductile cast iron impeller ? excellent compromise between impact resistance and surface hardness
Semi-open impeller allowing free passage of large diameter solids
Removable front cover for direct access to the wear plates and impeller for easy servicing
Mechanical seal with oil bath reservoir for dry running capabilities
Automatic priming with oil free diaphragm vacuum pump that draws significant quantities of air allowing drainage
Engine System
Durable power with broad range of operating speed to set optimal performance and efficiency
High capacity cooler guarantees continuous operation even at high ambient conditions enabling longer servicing at 500 hours
Frame and Enclosure
Sound-attenuated & rugged galvasteel enclosure
Big doors & service panels for superior accessibility
Spillage free frame (integrated forklift pockets, 110% containment)
Rigid lifting beam with eye in the centre of gravity
Control System Control Functions
Start/stop • Auto mode (float switch regulation)
Emergency stop
Manual speed regulation Indications
Running hours
Engine speed
Battery charge voltage
Fault icons (warnings & shutdowns)
Vacuum pressure gauge
Fuel level gauge
