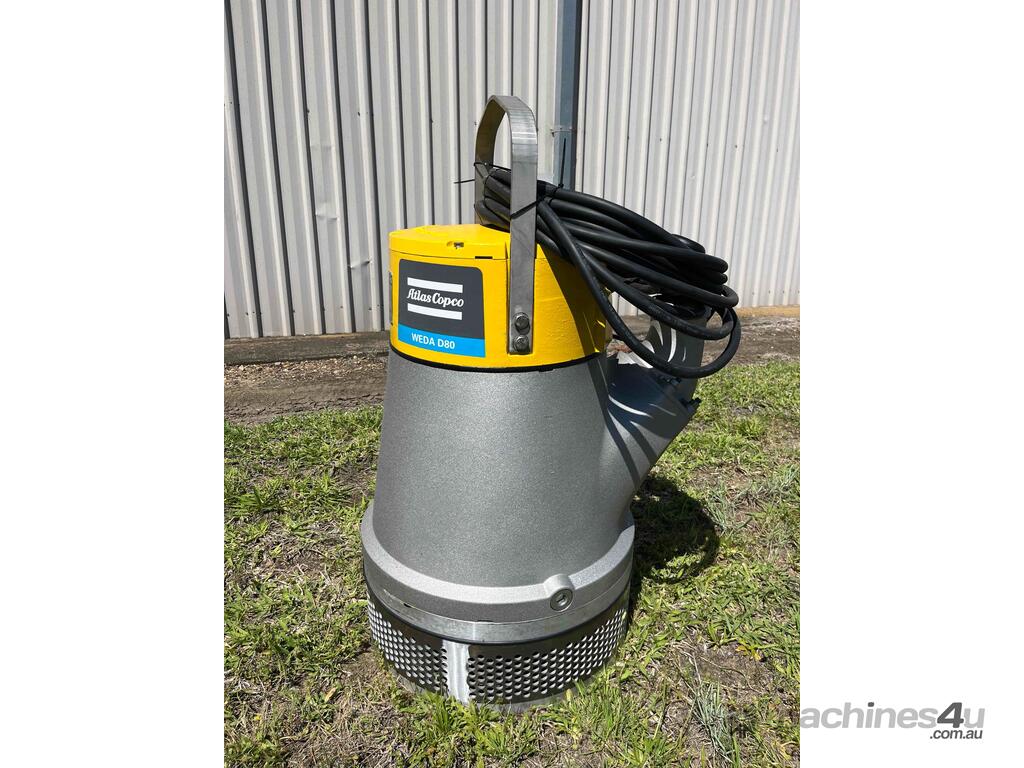

ATLAS COPCO WEDA D80N / D80H Pump

The WEDA drainage pumps handle clean as well as dirty water, with small solids with the best performance and efficiency.
Built in starter & protection features rotation control, phase failure protection, thermal switches, direct-on-line or reduced start current with Softstarter and eliminates the need for external starter.

Used for:
- General dewatering
- Ground water
- raw water
- construction sites

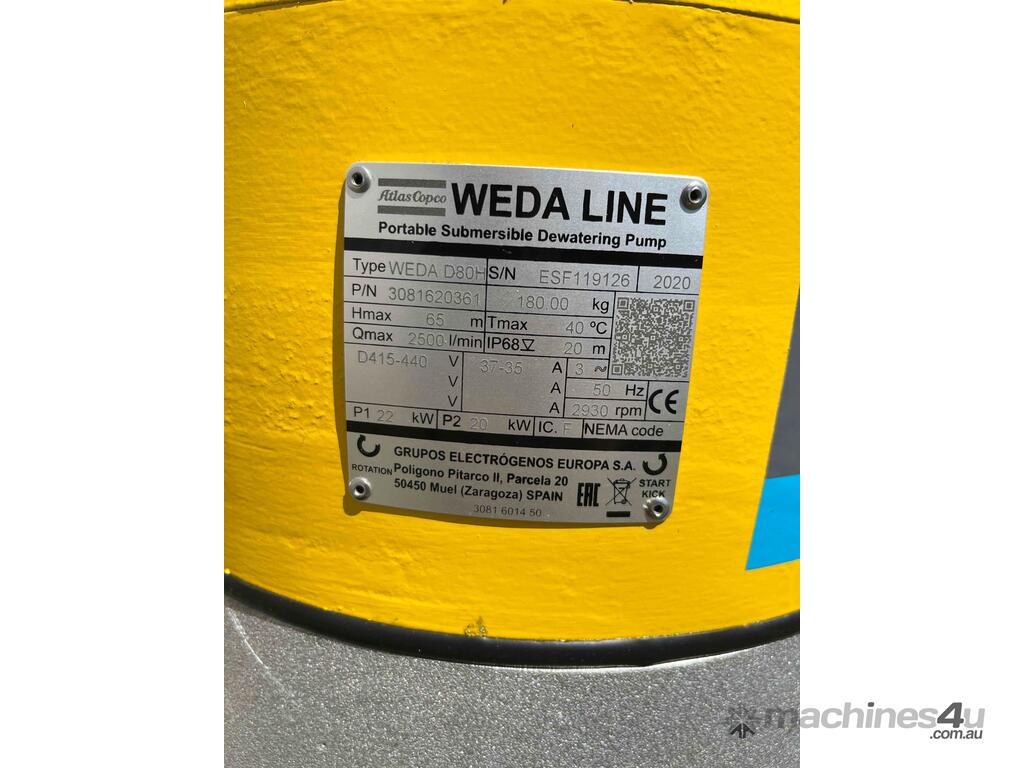

Specifications D80N (D80H):
* Max. head - 40m (65m)
* Max. flow - 6000 l/min (2500 l/min)
* Shaft speed - 2900 r.p.m (2900 r.p.m)
* Rated output - 20 kW (20 kW)
* Max. power input - 22 kW (22 kW)

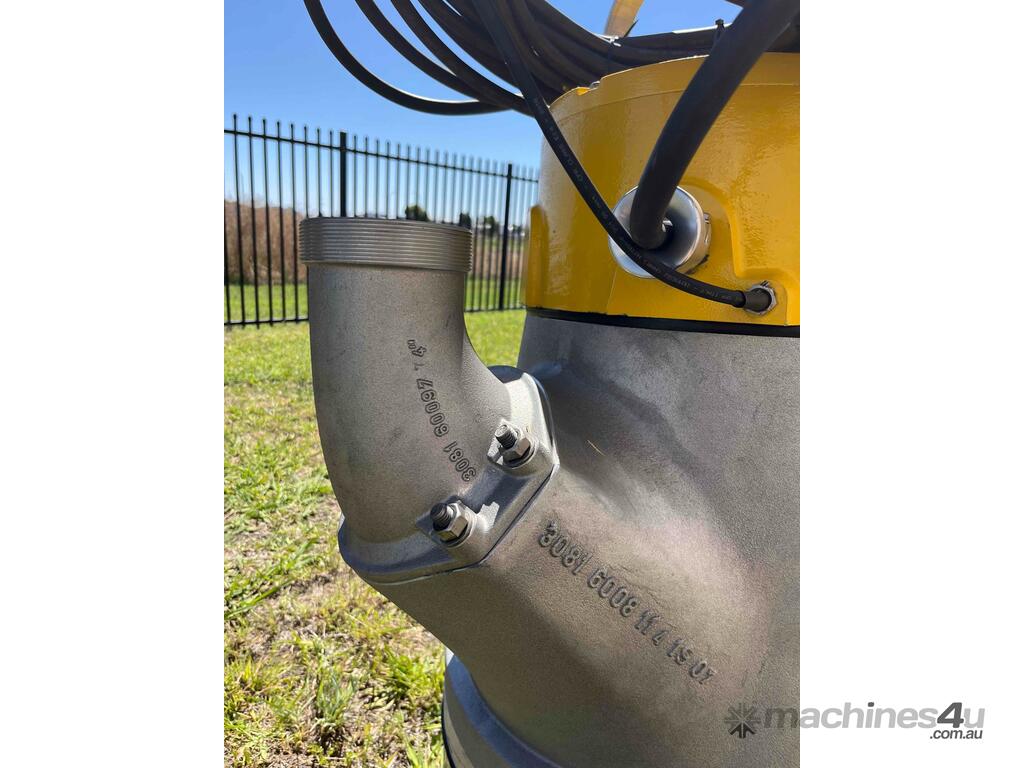

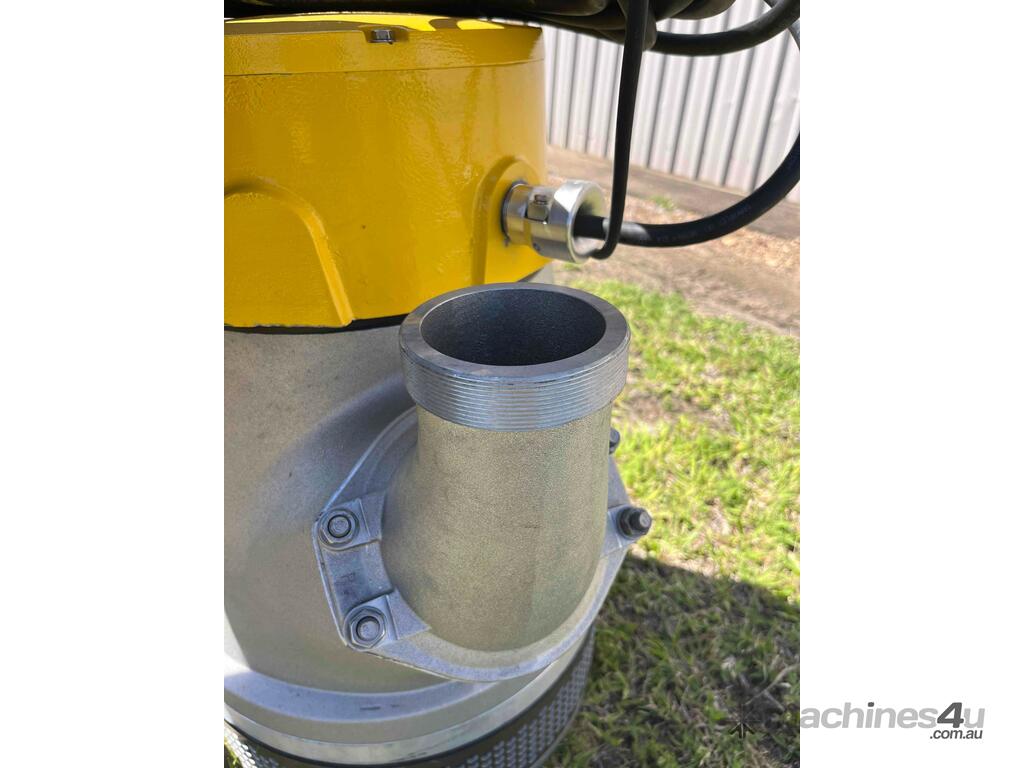

* Discharge connection - 6" (4")
* Max. solids handling size - 12mm (12mm)

Atlas Copco pump sizing – WEDA
.atlascopco/en-au/construction-equipment/resources/toolkit/pump-size-calculator

Optional 60Hz available
