ATP-50 Air Punch & Flange 1.2mm Steel Capacity

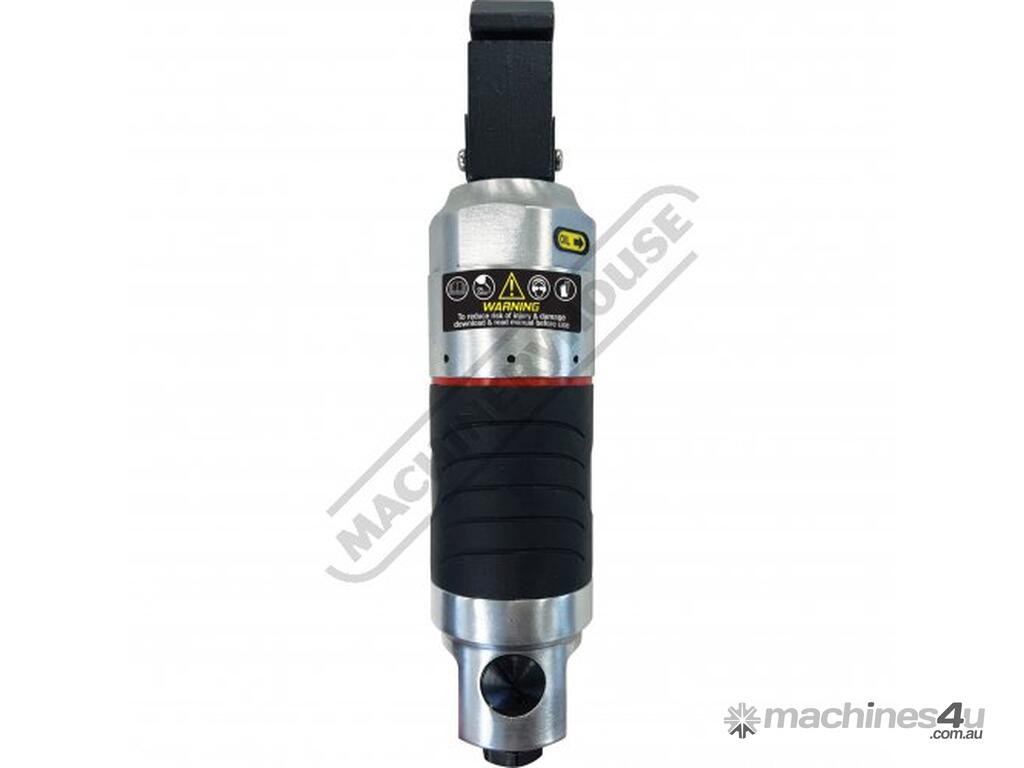

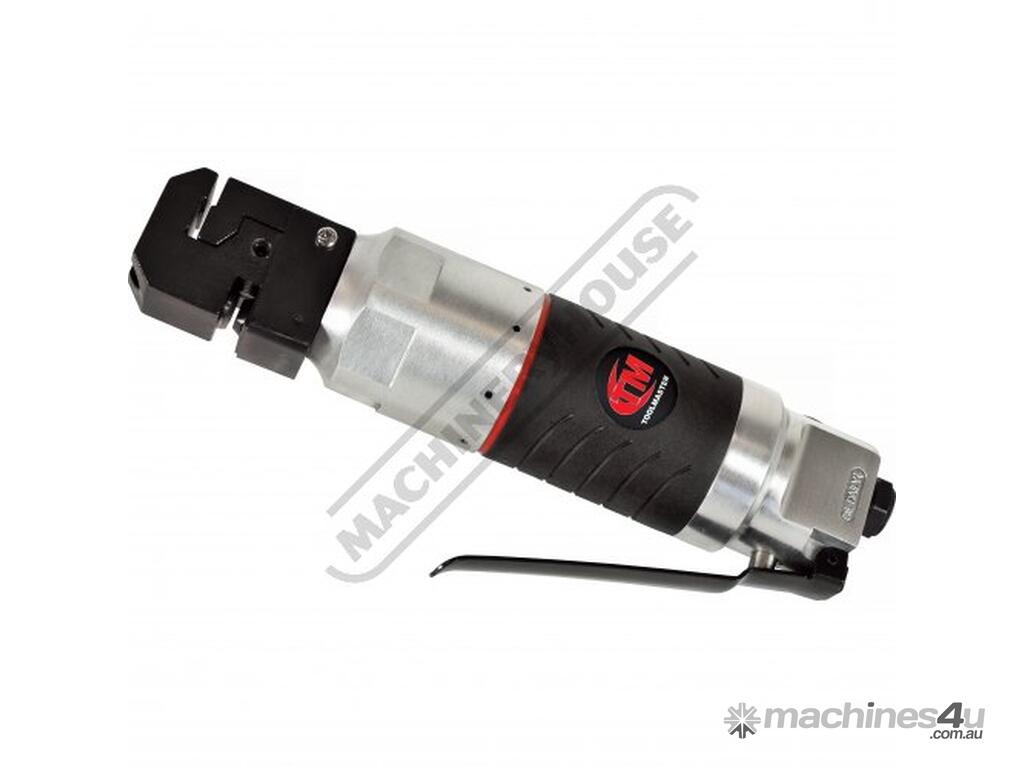

TOOLMASTER ATP-50 Air Punch & Flange 1.2mm Steel Capacity
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: A088

The Toolmaster Air punch & flange tool is a 2 in 1 air tool designed for flanging up to 1.2mm sheet metal for overlapping panels and punching a 5mm hole for welding through. Light weight and easy to operate making it the ideal tool for every automotive body repair shop.

Features:
2 in 1 pneumatic tool for punching holes and flanging edges in sheet metal
1.2mm steel & aluminium thickness capacity
Ø5mm hole punch
12mm x 25mm flange capacity (D x W)
Lightweight aluminium diecast body with rubberised grip handle for comfort
Easy to operate every press of the lever delivers a single punch or flange crimp with precision control
Essential tool for automotive repair shops for creating and installing patch panels replacement panels or custom sheet metal work


Specifications:
ORDER CODE: A088
MODEL: ATP-50
Type: Air Punch & Flange
Type: ~
Capacity: 1.2mm Steel
Max Torque (ft-lb / Nm): ~
Clutch Type: ~
Punch Hole Diameter (mm): 5
Flange Capacity: ~
Piston Stroke (mm): ~
Stroke Length (mm): ~
Free Speed (rpm): ~
Speed Range (rpm): ~
No Load Speed (rpm): ~
Blows Per Minute (BPM): ~
Air Consumption (CFM/ L/min): 4 / 113
Vibration Level (m/s²): 0.1
Sound Pressure Level (dBA): ~
Sound Power Level (dBA): ~
Rated Power (HP): ~
Traction Power (kg/cm): ~
Air Pressure (psi): 90
Air inlet (inch): 1/4" BSPT
Length (mm): 245
Weight (Kg): 1.3


To Purchase Online Please Visit The Machineryhouse & Search For 'A088'
