ATR-48 Air Pop Rivet Kit 2.4 - 4.8mm (3/32 - 3/16")

TOOLMASTER ATR-48 Air Pop Rivet Kit 2.4 - 4.8mm (3/32 - 3/16")
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: A046

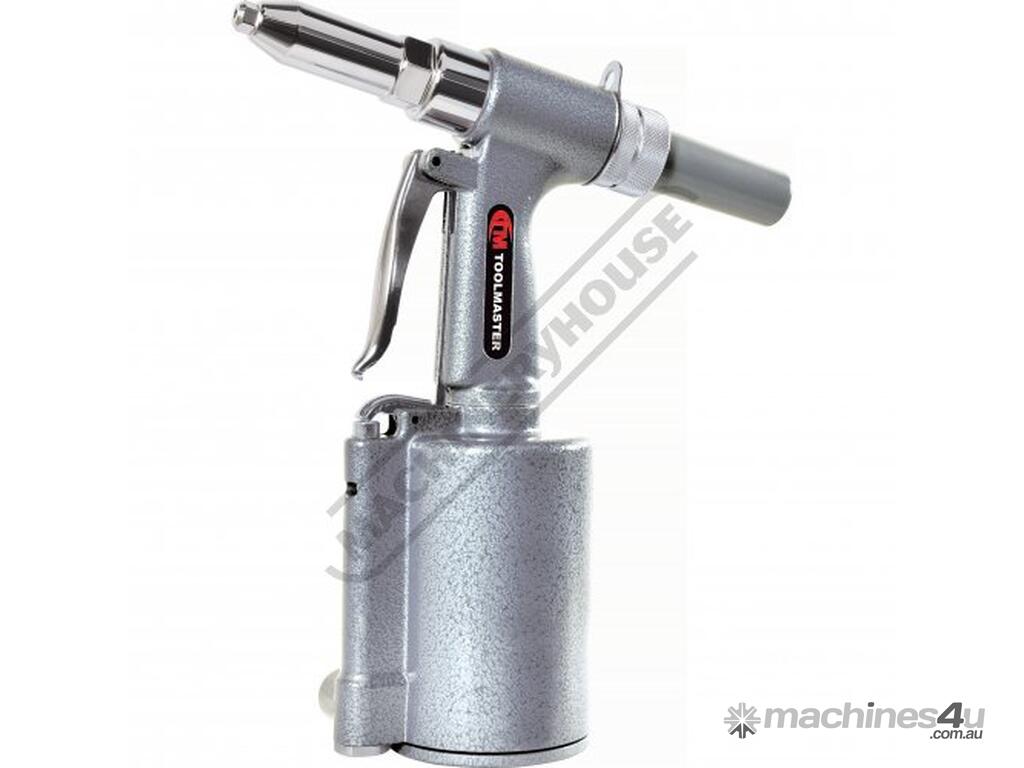

This Toolmaster Air Riveter has been sold for over 20 years and takes the hard work out of pop riveting. The complete kit includes the Air Riveter, 4 mandrels, 40 rivets, spare parts and servicing kit all stored in a blow mould carry case.

Features:
Rivet Range Capacity: 2.4 - 4.8mm (3/32 - 3/16")
Aluminium rivets max: 4.8mm
Steel rivets max: 4.8mm
Stainless rivets max: 4.0mm

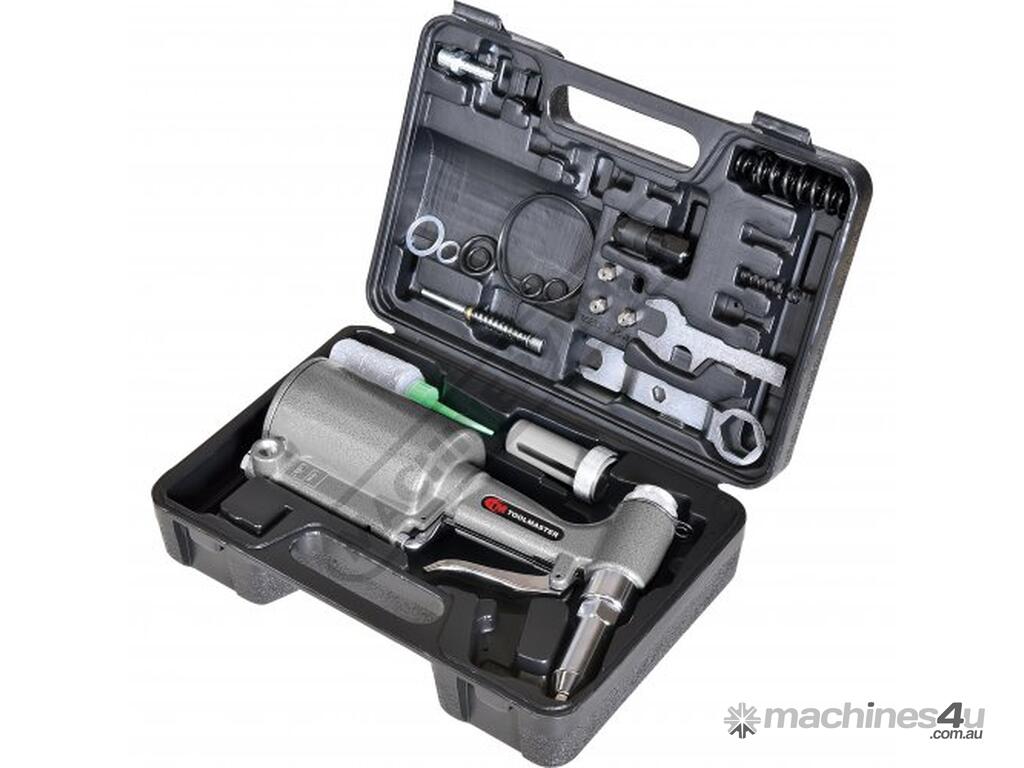

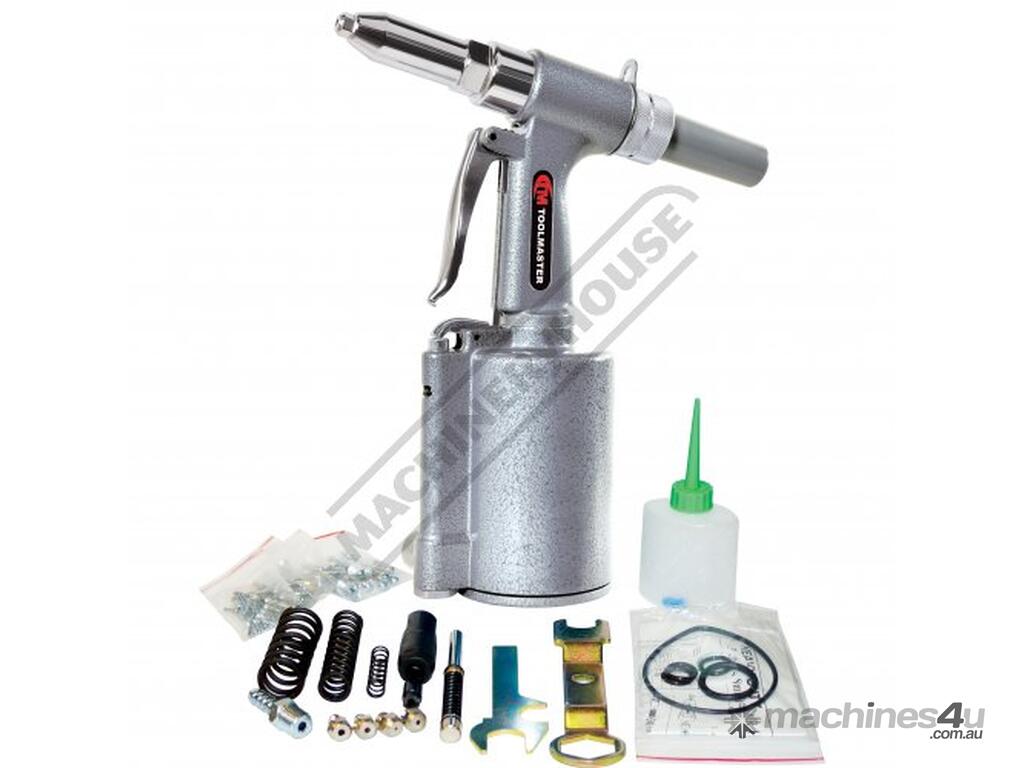

Includes:
- Air riveter gun
- 4 x rivet mandrels 2.4 3.2 4.0 & 4.8mm
- 40 x blind rivets - 10 of each size 2.4 3.2 4.0 & 4.8mm
- Blow mould storage carry case

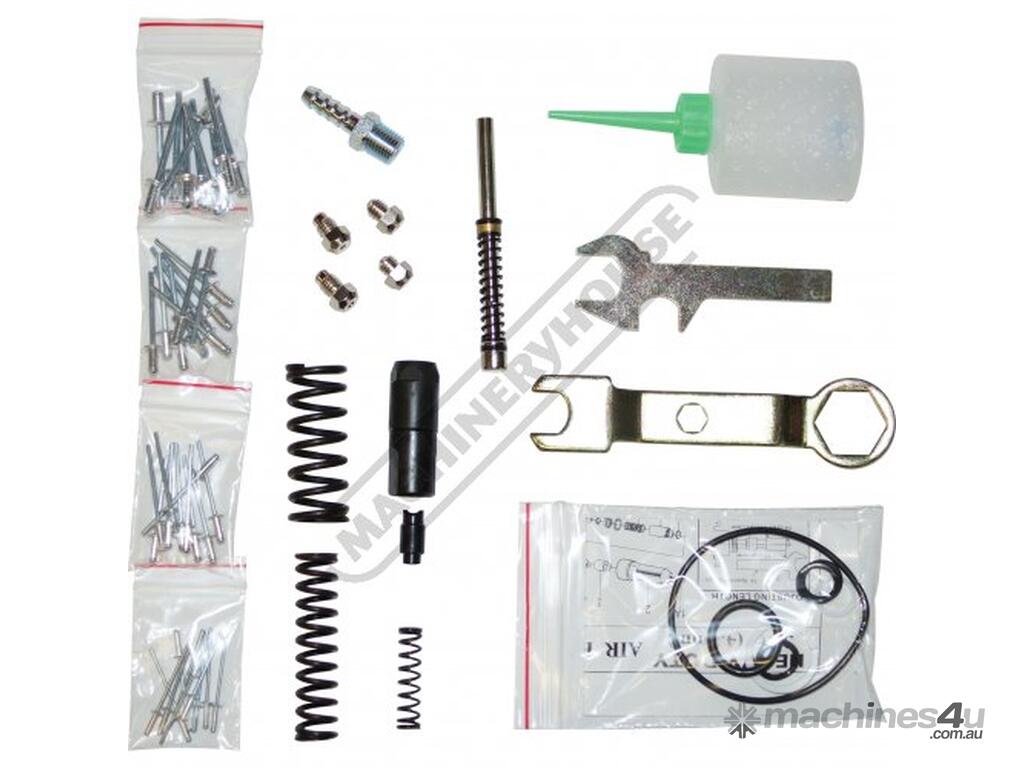

- Service kit including replacement O-rings mandrel spanners keys various springs & oil bottle.



Specifications:
ORDER CODE: A046
MODEL: ATR-48
Type: Air Pop Rivet Kit
Type: ~
Capacity: 2.4 - 4.8mm (3/32 - 3/16")
Max Torque (ft-lb / Nm): ~
Clutch Type: ~
Punch Hole Diameter (mm): ~
Flange Capacity: ~
Piston Stroke (mm): ~
Stroke Length (mm): 16
Free Speed (rpm): ~
Speed Range (rpm): ~
No Load Speed (rpm): ~
Blows Per Minute (BPM): ~
Air Consumption (CFM/ L/min): 1.48
Vibration Level (m/s²): 0.3
Sound Pressure Level (dBA): 79.7
Sound Power Level (dBA): ~
Rated Power (HP): ~
Traction Power (kg/cm): 6
Air Pressure (psi): 78-85
Air inlet (inch): 1/4" BSPT
Length (mm): ~
Weight (Kg): 1.5
