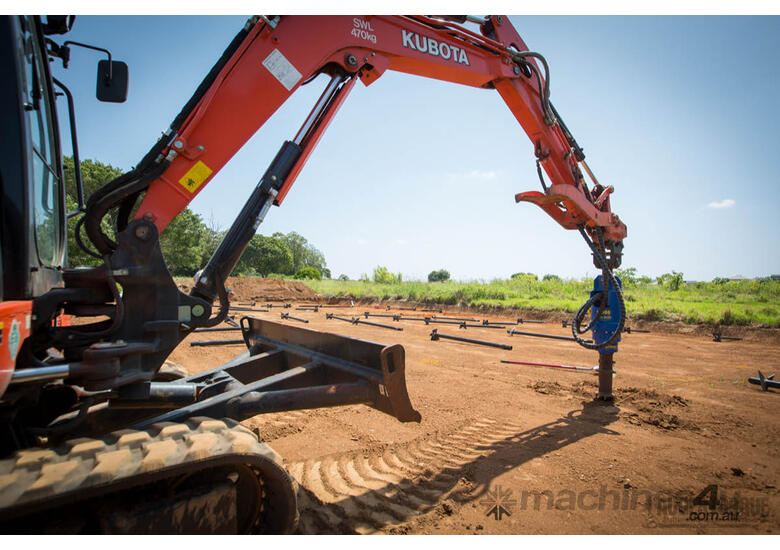

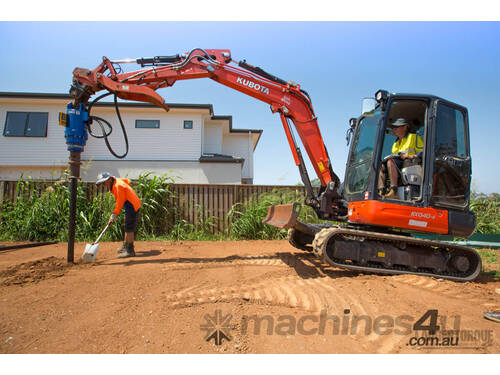

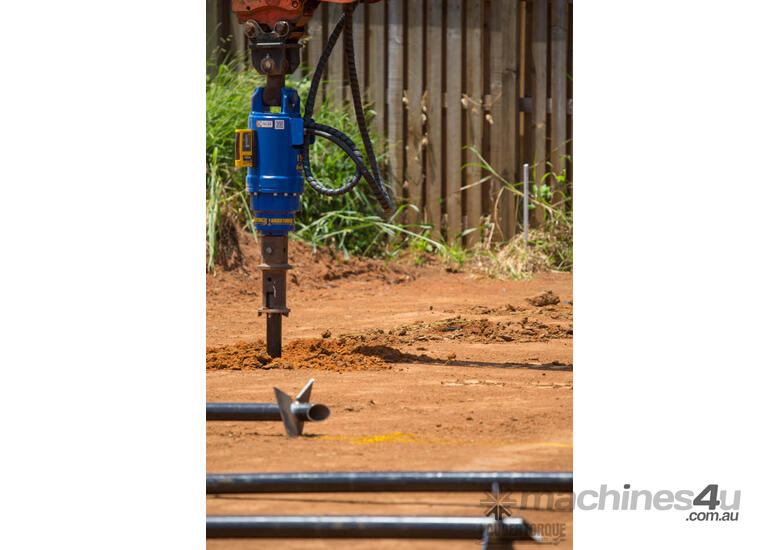

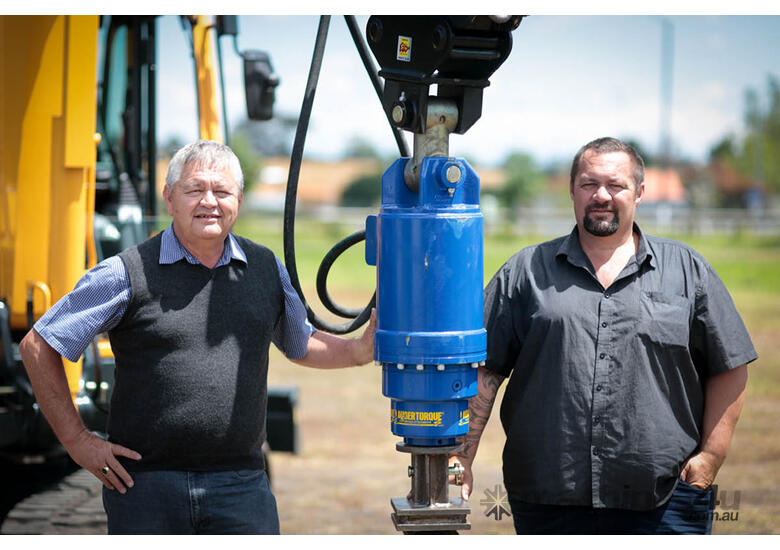

AUGER TORQUE 12000 MAX Earth Drill for Excavator

The Earth Drills 10,000, 12,000MAX and 15,000MAX are the perfect choice for excavators between 8T-15T.

Over engineered and built to last these products give you the versatility, peace of mind and quality you expect from Auger Torque products. A 2-Way Valve is an optional extra on this series of Earth Drills and enables you to convert a single acting hammer circuit into 2-way auxiliary flow. For the Earth Drill 12,000MAX and 15,000MAX an optional Pressure Relief Valve is also available. Safeguard your investment by protecting the hydraulic motor from backpressure and hydraulic pressure spikes. High quality hoses and couplers are standard with this series of Earth Drills (12,000MAX-15,000MAX do not include couplers), type and size need to be specified at the time of purchase.


FEATURES
Auger Torque’s Earth Drills are built to the most exacting standards using only high quality materials and the latest manufacturing techniques available.

FORGED HOOD EARS
Standard with all Earth Drills in areas that we know will take a lot of strain. All hood pins are locked for extra safety making it impossible for the hood to detach from your hitch.

EPICYCLIC GEARBOX
Torque is amplified by using the unique Auger Torque planetary gearbox. This system allows the motors output torque to be multiplied with extreme efficiency as well as ensuring the durability and reliability you need.

NON-DISLODGEMENT SHAFT
Unique to Auger Torque, the Non-Dislodgement Shaft is a single piece drive shaft assembled top down and locked into the Earth Drill housing. This design guarantees that the shaft will never fall out, making for a safer work environment, not only for the operator but also any surrounding workers, a MUST-HAVE FEATURE for any safety conscious company.

HIGH QUALITY HYDRAULIC MOTORS
Auger Torque’s huge buying power means we work closely with high quality suppliers to develop the most reliable attachments available on the market today.

HOSES AND ADAPTORS
All Earth Drills come standard with high quality hoses and adaptors (excludes larger units. QRC’s not included).


12000 MAX SPECIFICATIONS
Carrier Weight: 8-13t
Oil Pressure Range: 80 - 240 Bar
Torque Range: 3998 - 11995 Nm
Oil Flow Range: 80 - 170 lpm *
Speed Range: 25 - 54 rpm
Hub Options: 75mm Square
Height: 930 mm
Width: 290 mm
Weight: 172kg
Hitch Options: Single Pin Hitch, Double Pin Hitch, Cradle Hitch
Auger Range: S6
Rec. Drilling Diameter Range: 150 - 1000 mm
*Flow rates quoted are continuous, intermittent flow rates up to 225 lpm allowed.
