AUGER TORQUE 150000 MAX Screw Pile Torque Head for Excavator

Earth Drill 100,000 MAX and 150,000 MAX are part of the heavy duty range in the Auger Torque product line up – suitable for excavators between 21T- 50T.

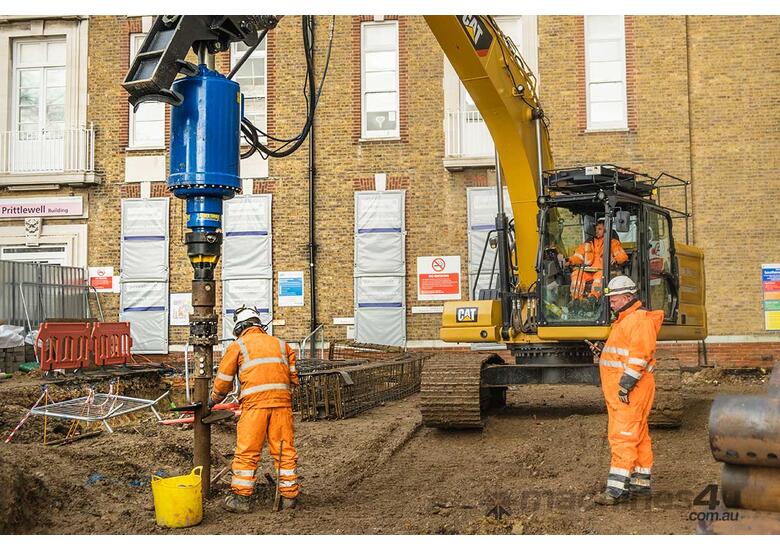

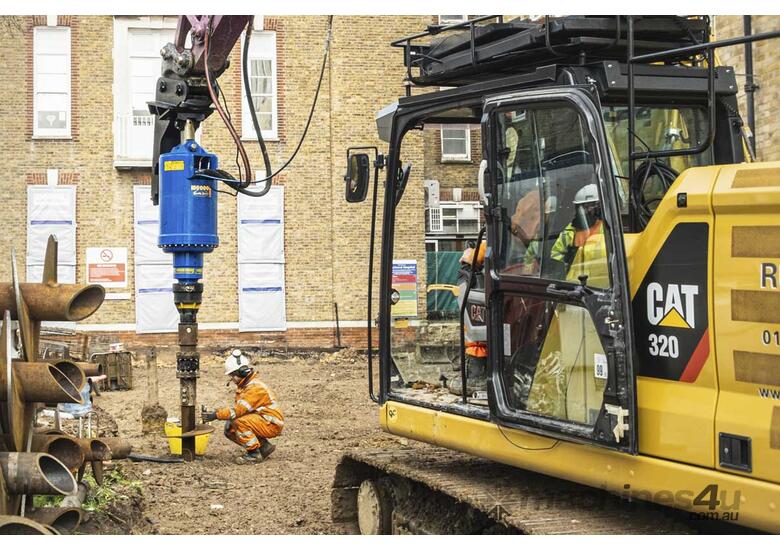

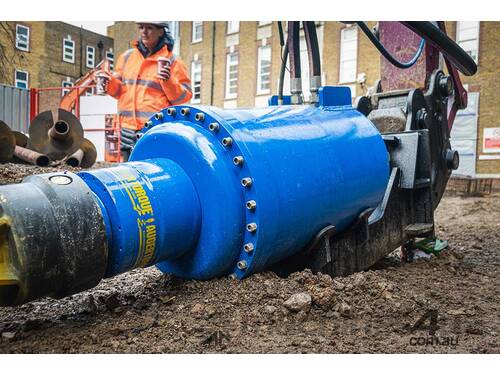

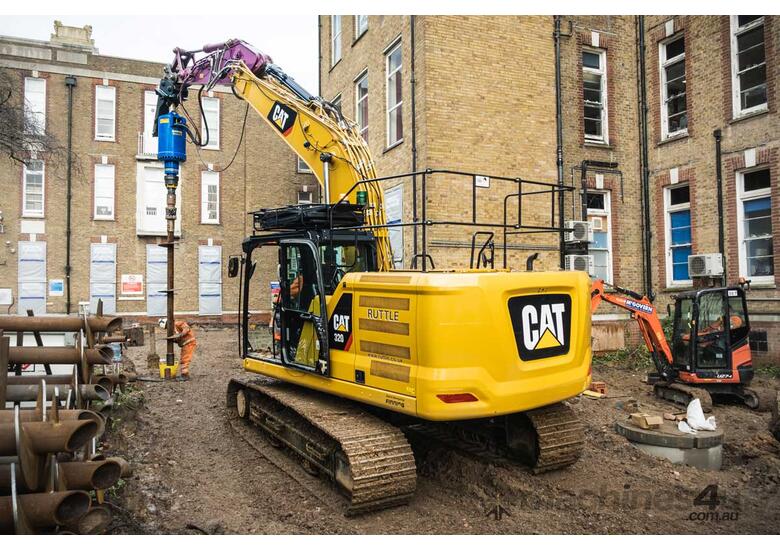

Having surveyed the market & through our frequent and direct collaboration with operators specialising in large screw pile and hard rock drilling These drills are being used across the globe – from Scotland, to Australia, Thailand to Germany With a weight of just over 1T (1.5T for 150MAX) it offers maximum versatility whilst not sacrificing any of the robustness our drives are renowned for. Click to watch the video above and see the images below to see how these units are being put through their paces used and don’t hesitate to contact us to discuss how we can be your solution provider!


FEATURES
Auger Torque’s Earth Drills are built to the most exacting standards using only high quality materials and the latest manufacturing techniques available.

150MM HEX SHAFT
The driveshaft is crucial for reliability and it goes without saying that the bigger the better applies here. A shaft is always stronger when machined as a hex and the 150mm diameter is the largest in the industry, especially when looking at compatibility on machine as small as 21T.

AXIAL PISTON MOTOR
Axial Piston Motors allow us to run a single speed motor. By using an axial piston motor with our drive we can have a high speed motor but still achieve high torques through the gearbox multiplication. At maximum flow we achieve 15 rpm.

SINGLE PIECE NON-DISLODGEMENT SHAFT
As standard with all of our auger & screw pile drives, our patented single-piece non-dislodgement shaft is of course a standard feature. We are so confident in this must have safety feature that we are covering it with a lifetime warranty.

EPICYCLIC GEARBOX
Torque is amplified by using the unique Auger Torque planetary gearbox. This system allows the motors output torque to be multiplied with extreme efficiency as well as ensuring the durability and reliability you need.

Up to 152,319 Nm of Torque
Up to 15 rpm rotational speed
Massive 150mm Hex Shaft
Large main shaft bearings
Non-Dislodgement Shaft
Life time non-dislodgement guarantee
Low-weight at just over 1T
Single-piece driveshaft
Compatible with AT Alignment Monitors
Covered by Auger Torque’s industry leading warranty

APPLICATIONS
Large diameter & deep auger drilling
Hard Rock Auger drilling
Core barrel drilling
Pole and mast installations
Foundation piles
Large diameter screw pile installations
Rail applications
Exploration & research
Compatible with excavators from 21T onwards allowing for low impact and reasonably tight access application where typically larger machines would have to be used.


150000 MAX SPECIFICATIONS
Suitable for Excavators: 21-50t
Oil Pressure Range: 160 - 350 Bar (2,321 - 4,931 psi)
Torque Range: 71,680 - 152,319 Nm (52,868 - 112,344 ft-lb)
Oil Flow Range: 100 - 340 lpm (26.4 - 89.8 gpm)
Speed Range: 4 - 12 rpm
Hub Options: 150mm Hex
Height: 1,863 mm (73.35in)
Diameter: 766 mm (30.16in)
Weight: 1,491kg (3,287 lbs)
Hitch Options: Double Pin Cradle Hitch
Valve Options: 2 Way Valve - Converts single acting hammer into a 2 way auxiliary flow


WARRANTY
LIFETIME WARRANTY*
*Lifetime Warranty against Shaft Dislodgement
Planetary Gearbox Components - 72 months
Hydraulic Motors - 36 months
All other Products – 24 months
All Other Parts / Products - 24 months
