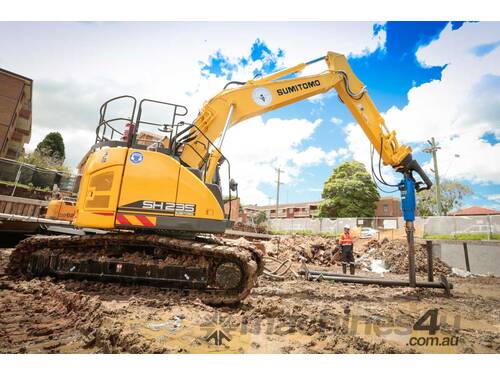

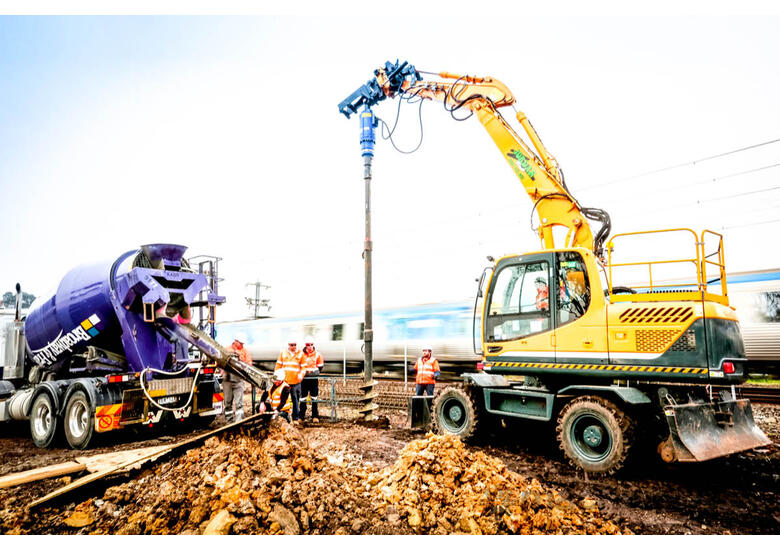

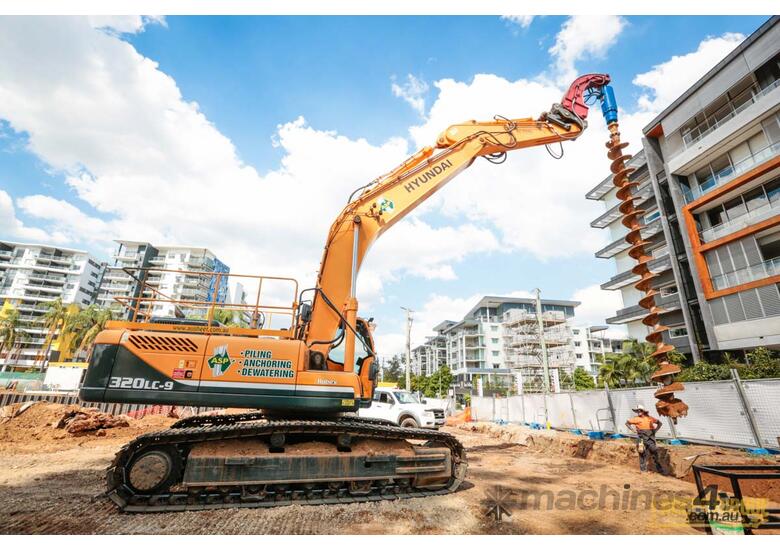

AUGER TORQUE 35000 MAX Earth Drill for Excavator

The Earth Drill 35,000 MAX, 42,000 MAX and 65,000 MAX are the perfect choice for excavators between 20T- 45T.

High quality hydraulic motors, output shaft bearings which are 50% larger than our competitors, the use of only high-grade materials and the latest manufacturing techniques mean that these earth drills will give you the reliable service life you need. A 2-Way Valve is an optional extra on this series and enables you to convert a single acting hammer circuit into 2-way auxiliary flow. An optional Pressure Relief Valve is available, to safeguard your investment by protecting the hydraulic motor from backpressure and hydraulic pressure spikes. High quality hoses come as standard. Hydraulic quick couplers are not included as we recommend direct plumbing to avoid flow restriction and to ensure optimal performance.


FEATURES
Auger Torque’s Earth Drills are built to the most exacting standards using only high quality materials and the latest manufacturing techniques available.

FORGED HOOD EARS
Standard with all Earth Drills in areas that we know will take a lot of strain. All hood pins are locked for extra safety making it impossible for the hood to detach from your hitch.

EPICYCLIC GEARBOX
Torque is amplified by using the unique Auger Torque planetary gearbox. This system allows the motors output torque to be multiplied with extreme efficiency as well as ensuring the durability and reliability you need.

NON-DISLODGEMENT SHAFT
Unique to Auger Torque, the Non-Dislodgement Shaft is a single piece drive shaft assembled top down and locked into the Earth Drill housing. This design guarantees that the shaft will never fall out, making for a safer work environment, not only for the operator but also any surrounding workers, a MUST-HAVE FEATURE for any safety conscious company.

HIGH QUALITY HYDRAULIC MOTORS
Auger Torque’s huge buying power means we work closely with high quality suppliers to develop the most reliable attachments available on the market today.

HOSES AND ADAPTORS
All Earth Drills come standard with high quality hoses and adaptors (excludes larger units. QRC’s not included).


35000 MAX SPECIFICATIONS
Carrier Weight: 20-45t
Oil Pressure Range: 180 - 310 Bar
Torque Range: 20510 - 35323 Nm
Oil Flow Range: 80 - 225 lpm *
Speed Range: 11 - 31 rpm
Hub Options: 110mm Square
Height: 1411 mm
Width: 406 mm
Weight: 442kg
Hitch Options: Single Pin Hitch, Double Pin Cradle Hitch
Auger Range: PA
Rec. Drilling Diameter Range: 300 - 1500 mm
*Flow rates quoted are continuous, intermittent flow rates up to 225 lpm allowed.
