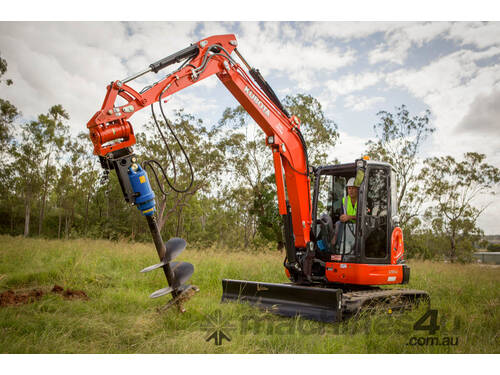

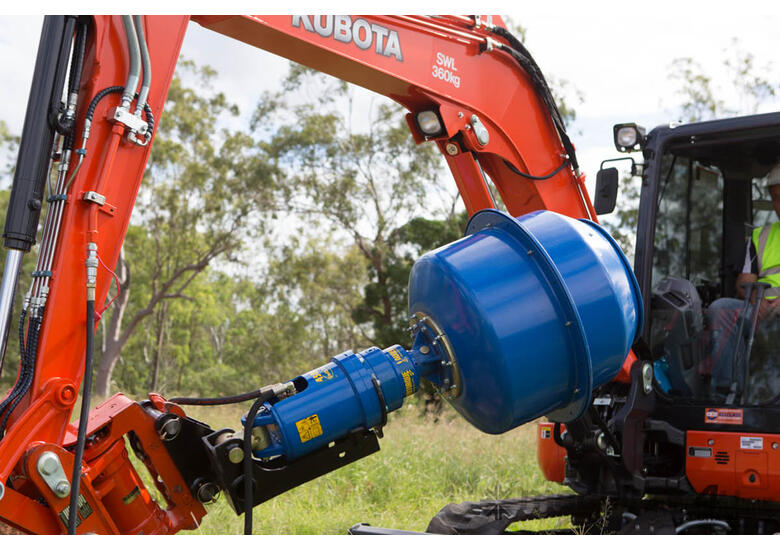

AUGER TORQUE 4500 MAX Earth Drill for Mini Excavator

The Earth Drills 3000 MAX, 3500 MAX and 4500 MAX are the perfect choice for small excavators between 2T-5T.

Like all planetary drives in our line-up they are over engineered and built to last, giving you the same versatility, peace of mind and product quality you’d expect from all Auger Torque products. Developed to work with all makes and models of parent machine, and complemented with a range of attachments, you will find an earth drill and attachment for your every need. With the versatility to easily switch between attachments depending on the job at hand, you can be sure that your Auger Torque Earth Drill will deliver, time and again.


FEATURES
Auger Torque’s Earth Drills are built to the most exacting standards using only high quality materials and the latest manufacturing techniques available.

FORGED HOOD EARS
Standard with all Earth Drills in areas that we know will take a lot of strain. All hood pins are locked for extra safety making it impossible for the hood to detach from your hitch.

EPICYCLIC GEARBOX
Torque is amplified by using the unique Auger Torque planetary gearbox. This system allows the motors output torque to be multiplied with extreme efficiency as well as ensuring the durability and reliability you need.

NON-DISLODGEMENT SHAFT
Unique to Auger Torque, the Non-Dislodgement Shaft is a single piece drive shaft assembled top down and locked into the Earth Drill housing. This design guarantees that the shaft will never fall out, making for a safer work environment, not only for the operator but also any surrounding workers, a MUST-HAVE FEATURE for any safety conscious company.

HIGH QUALITY HYDRAULIC MOTORS
Auger Torque’s huge buying power means we work closely with high quality suppliers to develop the most reliable attachments available on the market today.

HOSES AND ADAPTORS
All Earth Drills come standard with high quality hoses and adaptors (excludes larger units. QRC’s not included).


4500 MAX SPECIFICATIONS
Carrier Weight Excavator: 3-5t
Skidsteer: 80hp
Truck Crane: -
Oil Pressure Range: 80 - 240 Bar
Torque Range: 1500 - 4499 Nm
Oil Flow Range: 50 - 95 lpm
Speed Range: 43 - 81 rpm
Hub Options: 65mm Round
Height: 665 mm
Width: 244 mm
Weight: 75kg
Hitch Options: Single Pin Hitch, Double Pin Hitch, Cradle Hitch
Auger Range: S4
Rec. Drilling Diameter Range: 100 - 900 mm


WARRANTY
LIFETIME WARRANTY*
*Lifetime Warranty against Shaft Dislodgement
Planetary Gearbox Components - 72 months
Hydraulic Motors - 36 months
All other Products – 24 months
All Other Parts / Products - 24 months
