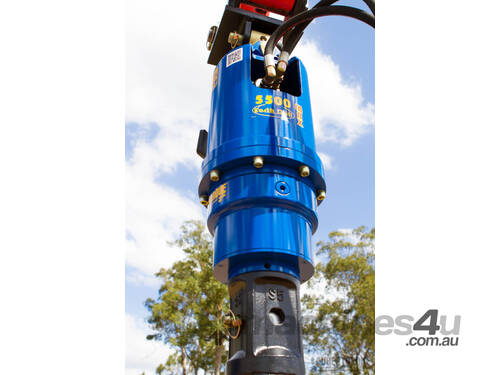

AUGER TORQUE 5500 MAX Earth Drill for Excavator

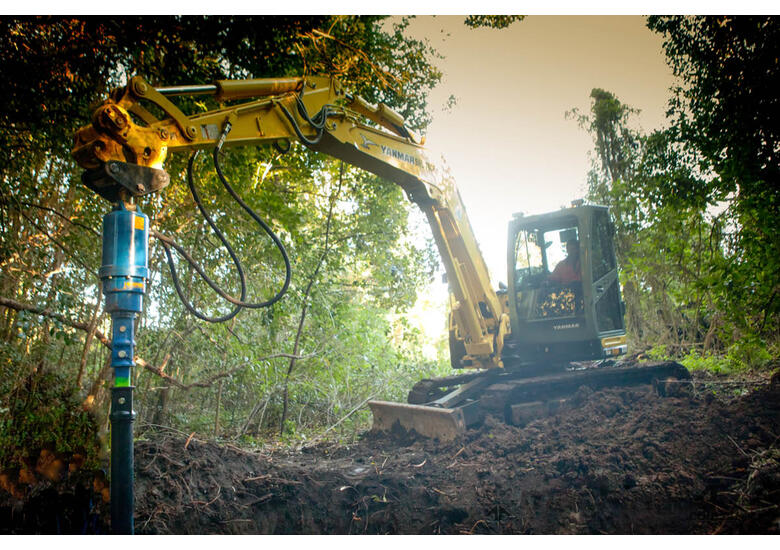

The Earth Drills 5,500 MAX, 7,000 MAX and 8,000 MAX are the perfect choice for small excavators between 4.5T-8T.

Like all planetary drives in our line-up they are over engineered and built to last, giving you the same versatility, peace of mind and product quality you’d expect from all Auger Torque products. Developed to work with all makes and models of parent machine, and complemented with a range of attachments, you will find an earth drill and attachment for your every need. With the versatility to easily switch between attachments depending on the job at hand, you can be sure that your Auger Torque Earth Drill will deliver, time and again. The Auger Torque 2-Way Valve is an optional extra on this series of Earth Drills and will enable you to convert a single acting hammer circuit into 2-way auxiliary flow.


FEATURES
Auger Torque’s Earth Drills are built to the most exacting standards using only high quality materials and the latest manufacturing techniques available.

FORGED HOOD EARS
Standard with all Earth Drills in areas that we know will take a lot of strain. All hood pins are locked for extra safety making it impossible for the hood to detach from your hitch.

EPICYCLIC GEARBOX
Torque is amplified by using the unique Auger Torque planetary gearbox. This system allows the motors output torque to be multiplied with extreme efficiency as well as ensuring the durability and reliability you need.

NON-DISLODGEMENT SHAFT
Unique to Auger Torque, the Non-Dislodgement Shaft is a single piece drive shaft assembled top down and locked into the Earth Drill housing. This design guarantees that the shaft will never fall out, making for a safer work environment, not only for the operator but also any surrounding workers, a MUST-HAVE FEATURE for any safety conscious company.

HIGH QUALITY HYDRAULIC MOTORS
Auger Torque’s huge buying power means we work closely with high quality suppliers to develop the most reliable attachments available on the market today.

HOSES AND ADAPTORS
All Earth Drills come standard with high quality hoses and adaptors (excludes larger units. QRC’s not included).


5500 MAX SPECIFICATIONS
Carrier Weight Excavator: 4.5-6t
Skidsteer: 100hp
Backhoe: -
Telehandler: 4.5-7t
Truck Crane: -
Oil Pressure Range: 80 - 260 Bar
Torque Range: 1685 - 5477 Nm
Oil Flow Range: 40 - 115 lpm
Speed Range: 30 - 87 rpm
Hub Options: 75mm Square
Height: 780 mm
Width: 269 mm
Weight: 108kg
Hitch Options: Single Pin Hitch, Double Pin Hitch, Cradle Hitch
Auger Range: S5
Rec. Drilling Diameter Range: 150 - 750 mm
