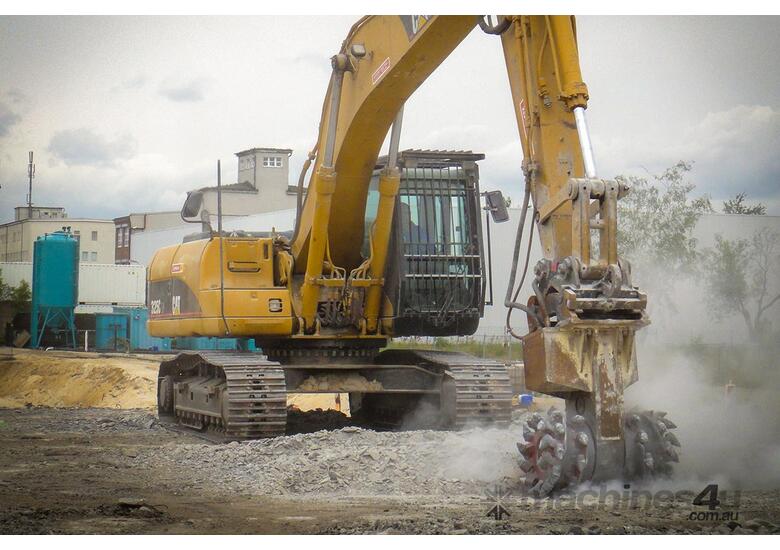

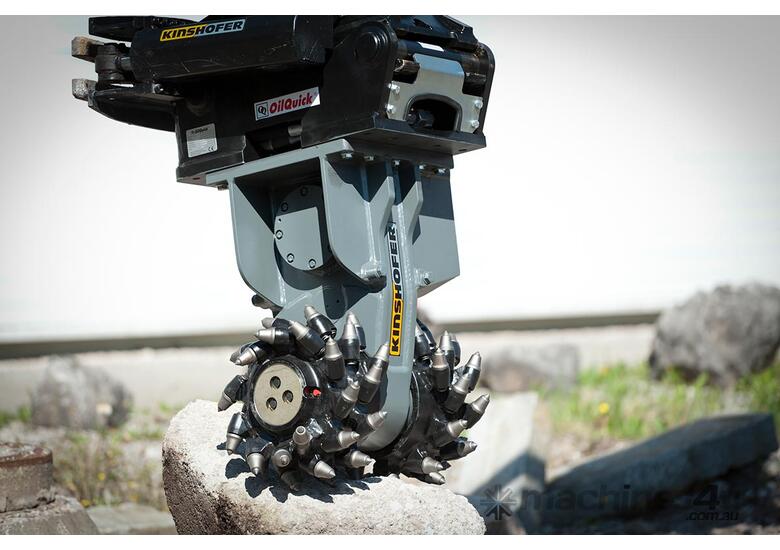

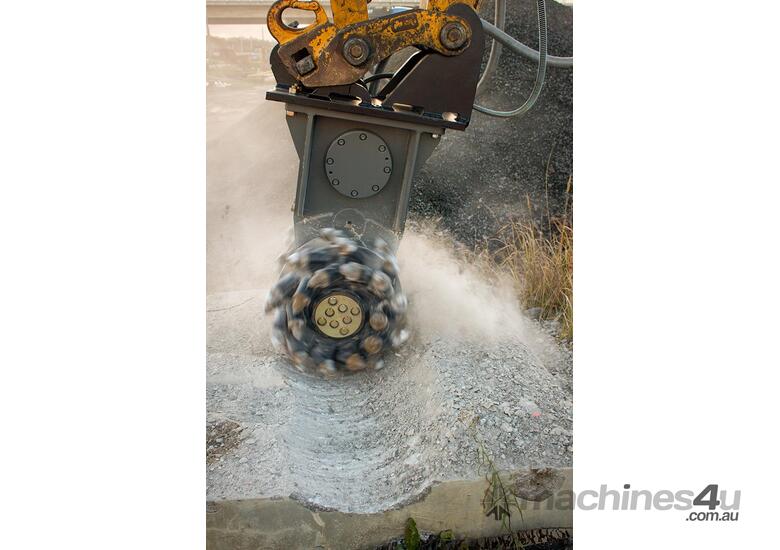

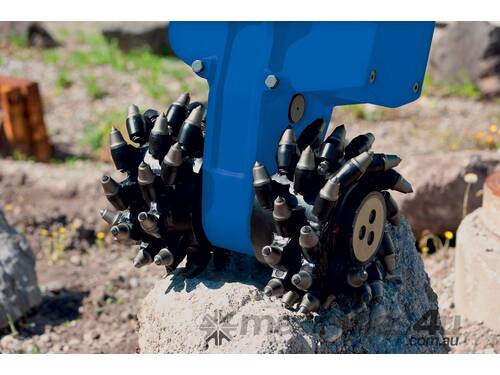

AUGER TORQUE DC08 Drum Cutter

The transverse drum cutter range is designed to work on a wide range of excavators (2-60T).

They are an ideal attachment for rocky terrain excavation trenching and surface scaling in the most adverse terrain conditions. Coupled with multiple drum configurations, our drum cutters ensure high performance, maximum productivity and value add to our customers.

Applications
Scaling of rock and concrete walls
Tunnel Excavation
Trenching in extreme grounds
Loosen hard rock ground effectively
Under water trenching up to 25m
Tunnel excavation
Mining operations


FEATURES
Auger Torque’s Drum Cutters are built to the most exacting standards using only high quality materials and the latest manufacturing techniques available.

HIGH QUALITY CONSTRUCTION & DESIGN
Low noise and vibration levels guarantee low-fatigue working conditions and less wear on your machine’s components.

ROBUST SPUR GEAR
Extreme torque amplification due to our robust spur gear, to achieve best in class pick force where it matters most. No nonsense workhorse.

LARGE DRUM AND PICK ASSORTMENT
Fast, easy exchange of wear parts reduces downtime and enables your drum cutter to be ready for any task.

WATERPROOF TO 25M DEPTH
Our drum cutter range is completely waterproof up to a depth of 25m. This feature allows trenching in the most inaccessible locations.

ADJUSTABLE HYDRAULIC MOTORS
Hydraulic motor can be adjusted in accordance with hydraulic output of excavator to maximise throughput and make sure your machine & attachment work at their highest level of efficiency & performance.

LOW MAINTENANCE OPERATION
Durable, low-maintenance operation due to large-scale drive shaft bearing, heavy-duty sealing system and robust housing structure. Suitable for hard continuous running!


DC08 SPECIFICATIONS
Carrier Weight: 6 - 8 t
Product Length: 700 mm*
Drum Dimensions (Width x Diameter): 500x325 mm*
Connecting Plate (Width x Length): 320x310 mm
Weight Approx.: 250 kg
Nominal Power: 22 kW
Max. Torque: 4750 Nm
Oil Flow: 60 lpm
Operating Pressure: 215/180 bar
Pic Force: 16-26.6 kN
Cutting Width: 500 mm
*Excavating & demolition drum
