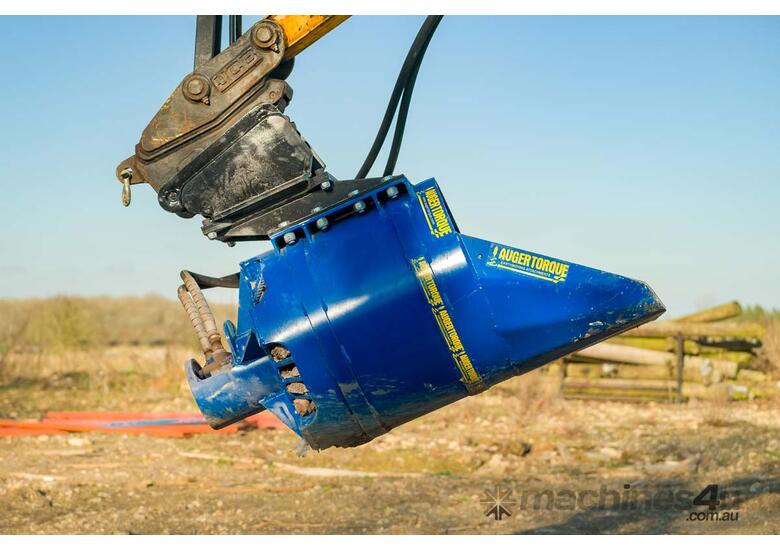

The new Auger Torque Cone Crusher Bucket provides a simple, efficient, and cost-effective way to reprocess and/or recycle small volume construction rubble and debris, into usable aggregate/hardcore.
Whether it’s general clay construction brick, light concrete walling blocks, hollow concrete ‘breeze blocks’, concrete pavers, asphalt and more, the Auger Torque Cone Crusher is highly effective at crushing to an output produced material size of around 40-70mm. Ideal for use in applications including: foundation laying, track and yard surfacing, landscaping, roadways or using as a base layer below poured concrete or filling a disposal skip most efficiently.
The Auger Torque Cone Crusher Bucket ensures you:
Save on transport costs of removing onsite waste.
Save on material costs of hardcore imported to site.
Minimise site traffic, delays and hassle.
Turn your rubble into re-usable aggregate and start saving today!
Contact us today for more information.
FEATURES
Easy to use and compact for small working sites - compatible with excavator, backhoe and skidsteer
Bucket mouth allows for effective scooping and sorting

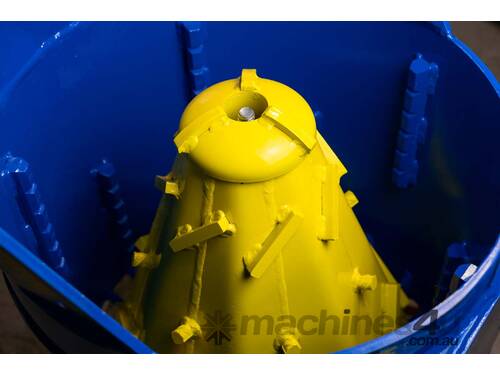

Seven sided rotating cone inside a cylindrical drum
Grinding faces made in steel and tungsten carbide
Built around a series 3.5 sub gearbox
Auger Torque’s industry leading warranty
APPLICATIONS
Rubble crushing
Hardcore creation
Recycling and repurposing waste
Can be used on clay house bricks, breeze
blocks, concrete pavers, asphalt, natural limestone, poured concrete and more
SPECIFICATIONS
Carrier Weight: 3-10t Excavator, Backhoe, Skidsteer
Torque Range: 6320-10112 Nm (4661-7458 ft-lb)
Oil Pressure Range: 150-240 Bar (2175-3480 psi)
Oil Flow Range: 70-150 lpm (18-39 gpm)
Speed Range: 36-100 rpm
Unit Length: 1300mm (51 inch)
Unit Width: 885mm (35 inch)
Unit Height: 637mm (25 inch)
Drum Diameter: 600mm (23 inch)
Unit Weight: 380 kg (838 lb)
THROUGHPUT
Mixed Material Throughput = up to 5 tonne per hour.
Brick throughput = up to 9 tonne per hour.
Output material = up to 60mm.
WARRANTY
The warranty for the Auger Torque Cone Crusher Bucket has a different warranty which is detailed below:
Auger Torque provide a LIFETIME parts replacement warranty on the dislodgement of the Cone
Crusher Bucket drive unit shaft.
All Auger Torque products are warranted to be free from defects in materials or workmanship for
the periods summarised below:
Planetary Gearbox Components - 18 months
Hydraulic Motors - 18 months
All Other Parts / Products- 12 months
