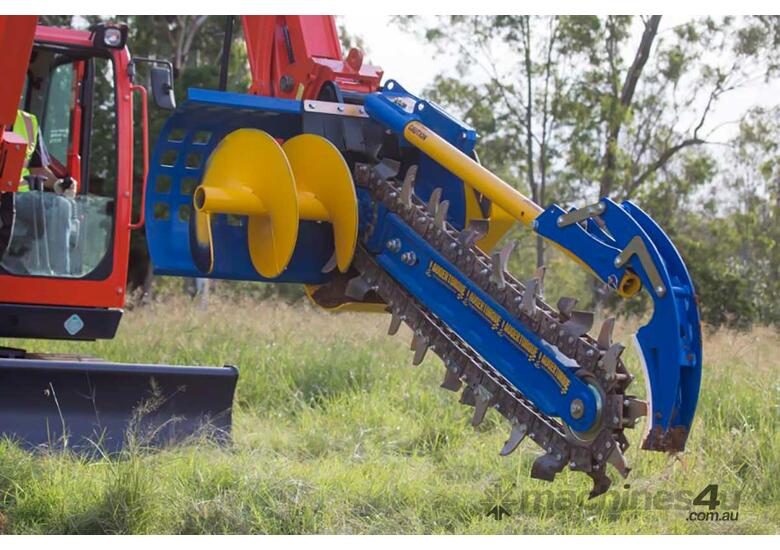

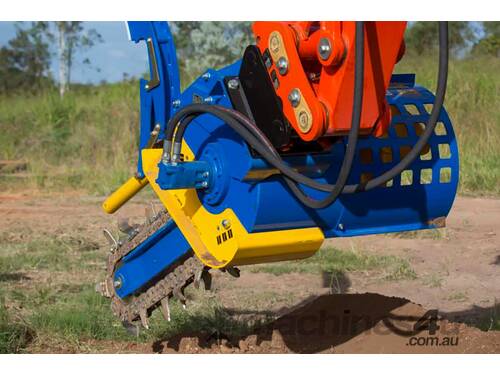

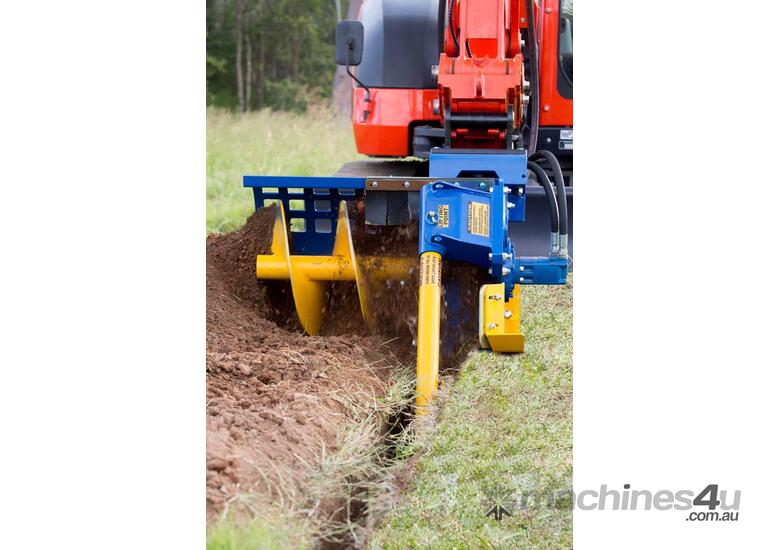

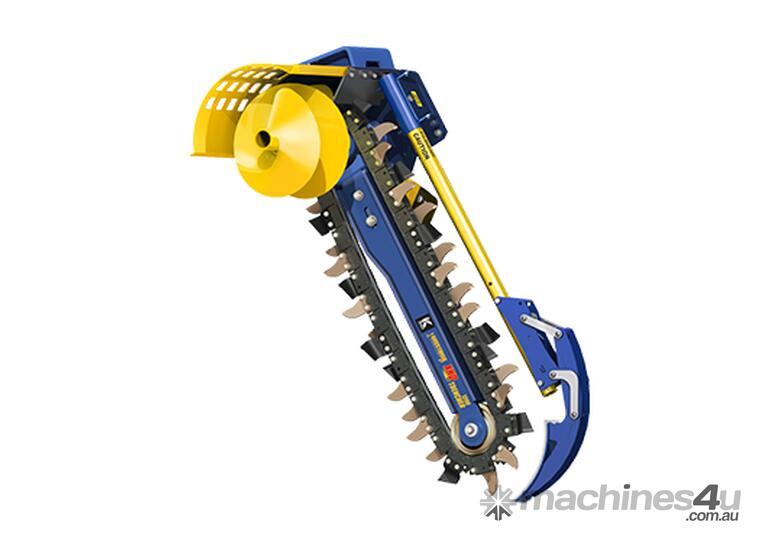

AUGER TORQUE XHD 1200 Trencher for Excavator, High Flow Skid Steer Loader & Backhoe

The Auger Torque XHD Range of Trenchers is designed for Excavators between 5T-10T, High Flow Skid Steer Loaders and Backhoes.

With only the highest quality hydraulic motors and using Auger Torque’s own planetary gearbox, our trenchers have the reliability and power to ensure your trenching is carried out with ease. Chains are available in several different tooth configurations, whether you’re trenching in soft ground, mixed grounds or even permafrost allowing you to get the job done no matter what environment you are in. With the precision depth control skid the operator can accurately set the desired trench depth and be sure of accuracy for the entire length.


FEATURES
HIGH QUALITY MOTOR AND GEARBOX
Using only the highest quality hydraulic motors that allow flow rates of up to 150LPM and then amplified by Auger Torque’s own ‘bullet-proof’ planetary gearbox means that our trenchers have the reliability you need and the power to ensure your trenching is carried out with ease.

EPICYCLIC GEARBOX
Torque is amplified by using the unique Auger Torque planetary gearbox. This system allows the motors output torque to be multiplied with extreme efficiency as well as ensuring the durability and reliability you need.

HOSE & ADAPTOR OPTIONS
All Trenchers are supplied as standard with high quality hoses and adaptors.

MULTIPLE TEETH COMBINATIONS
Chains are available in a number of different teeth configurations for trenching in soft ground, mixed grounds and even permafrost, allowing you to get the job done quickly.

ADJUSTABLE DEPTH SKID
A great feature that will make your job much easier is the precision depth control skid, which enables the operator to set the machine at up to three different trench depths.

RAPID CHAIN ADJUSTMENT
The length of the chain can be quickly adjusted with the removal of a screw to move the boom.


XHD 1200 SPECIFICATIONS
Suitable for: Excavators 5 - 7.5T & Skidsteer Loaders, For Trenches 150-300mm Width
Oil Pressure Range: 180-240 Bar
Oil Flow Range: 70-115 lpm
Unit Width: 1018mm
Unit Height: 808mm
Unit Length: 2262mm
Cutting Width Range: 150-300mm


TRENCH DEPTH CAPABILITY
DEPTH A: 800mm
DEPTH B: 1000mm
DEPTH C: 1200mm


CHAIN OPTIONS
Earth Chain 150mm wide
Combination Chain 150mm wide
Tungsten Chain 150mm wide


WARRANTY
LIFETIME WARRANTY*
*Lifetime Warranty against Shaft Dislodgement
Planetary Gearbox Components - 72 months
Hydraulic Motors - 36 months
All other Products – 24 months
All Other Parts / Products - 24 months
