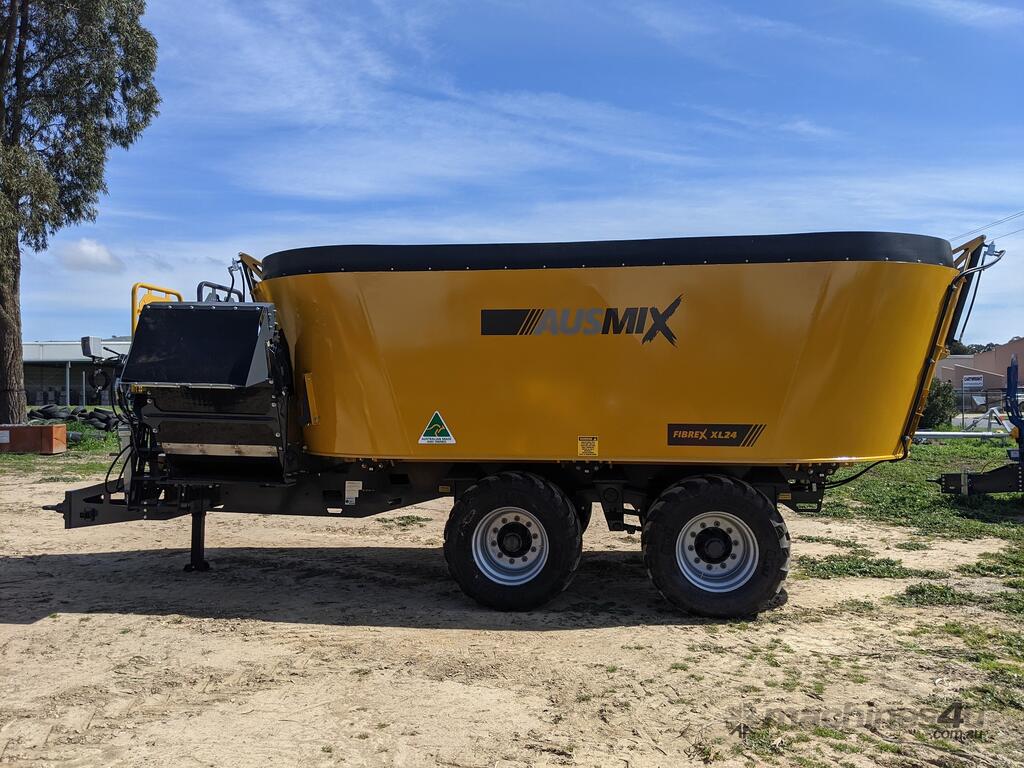

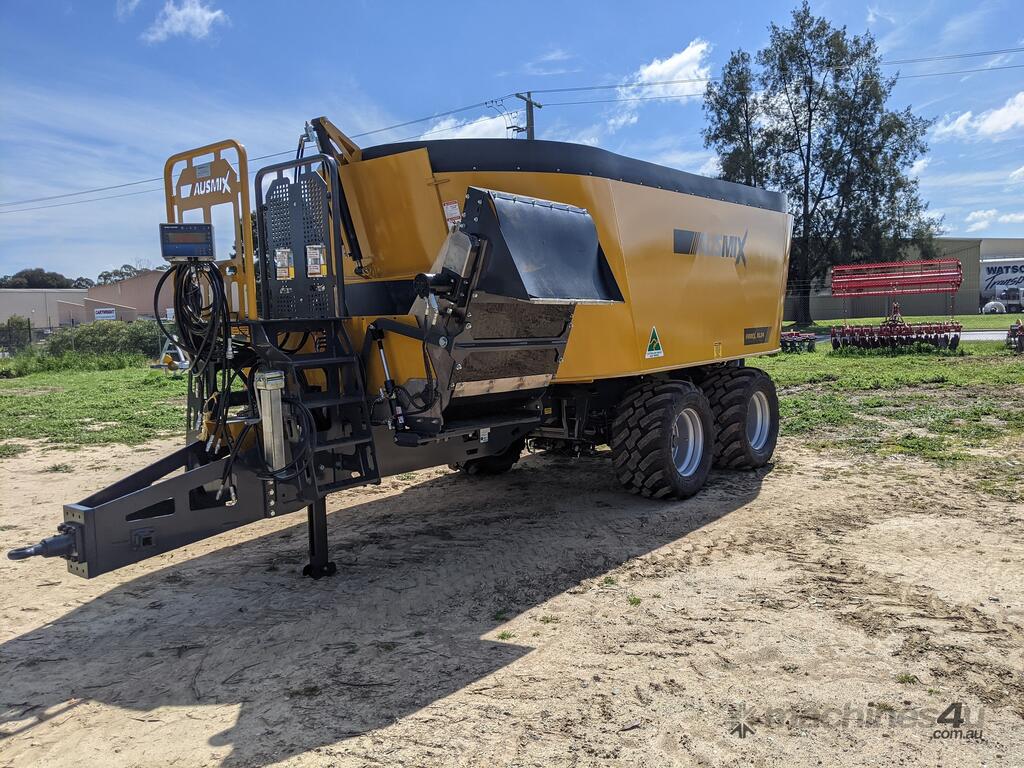

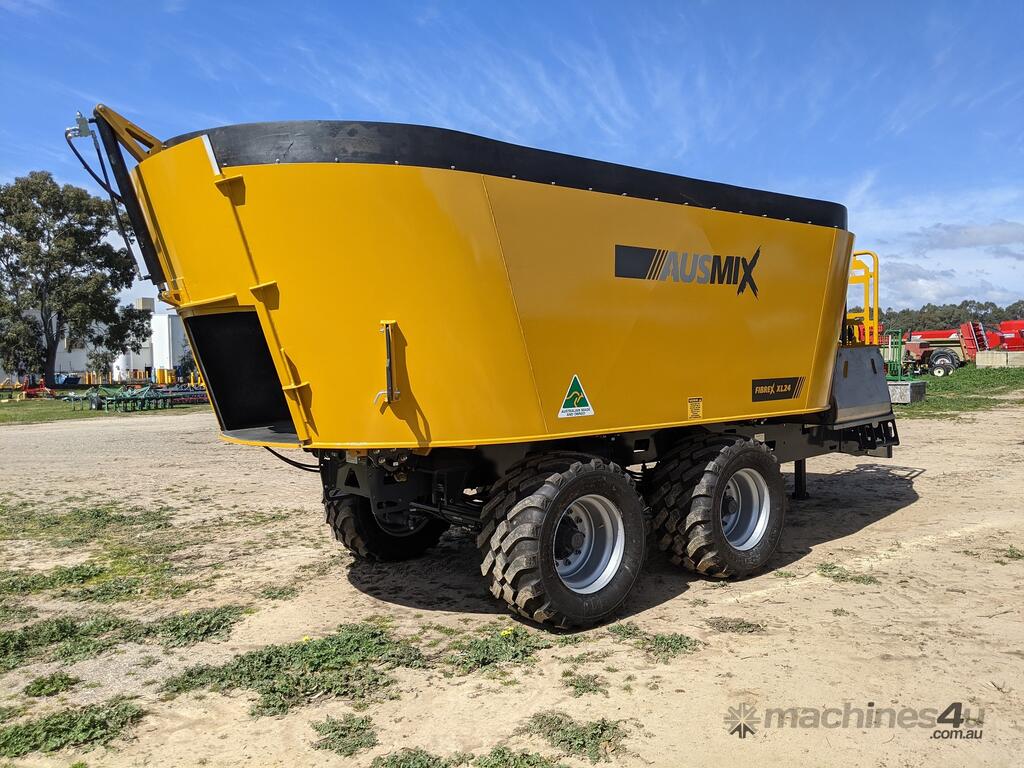

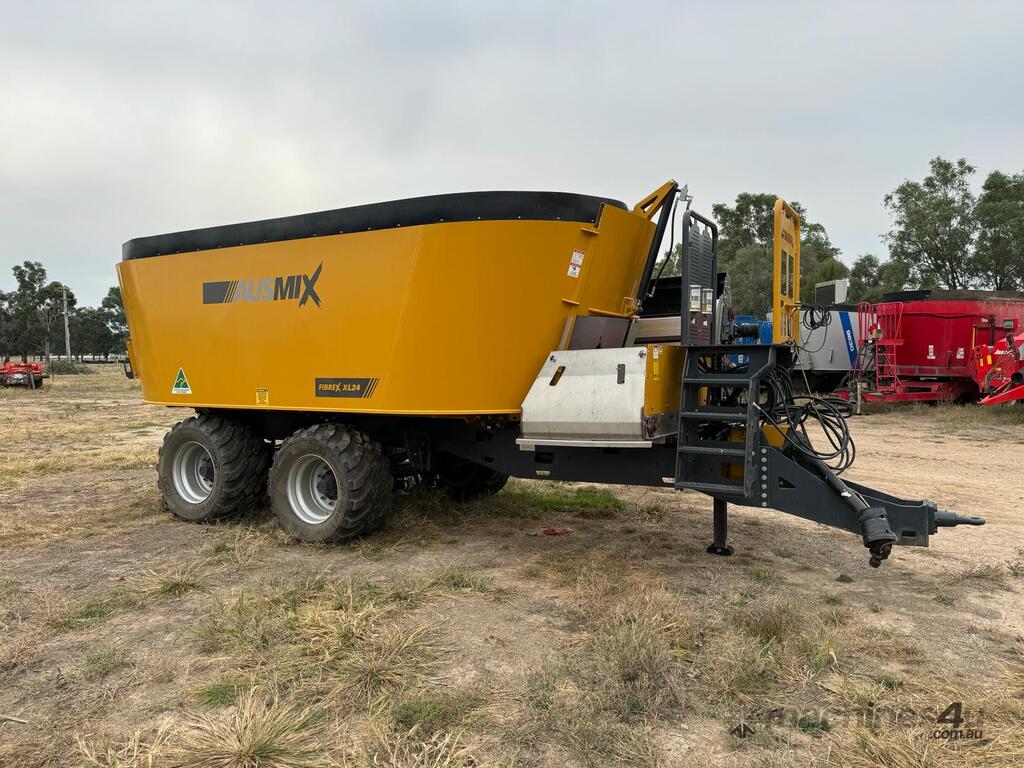

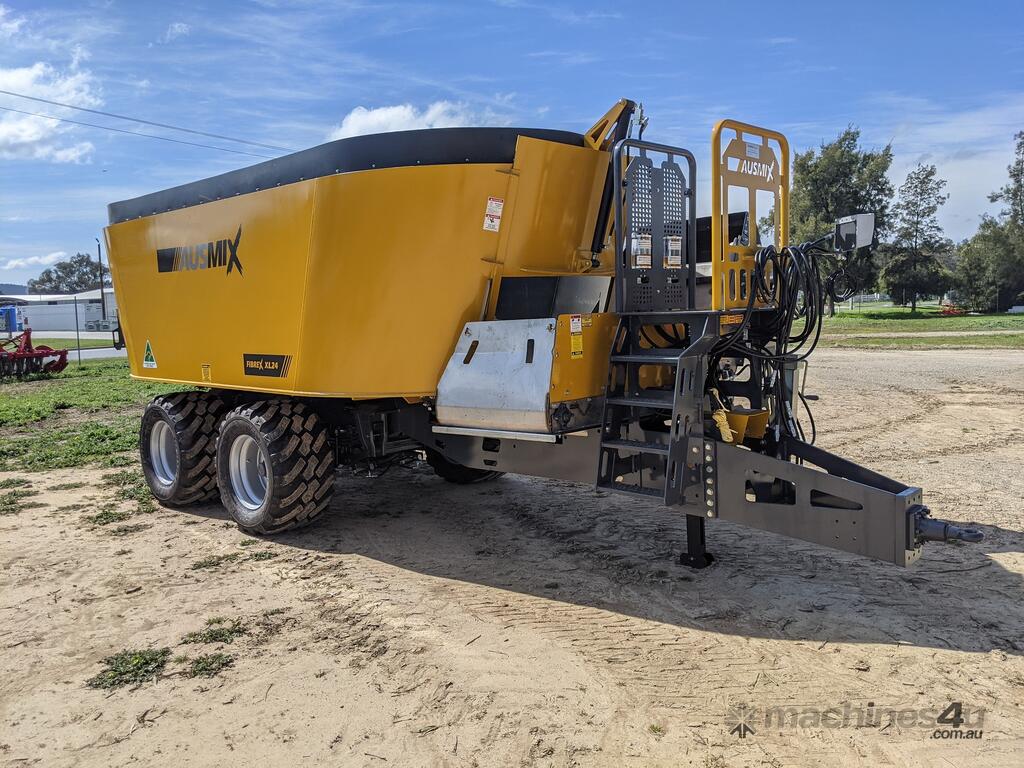

AUSMIX FT-XL24 HD VERTICAL FEED MIXER + 1.0M ELEVATOR (24.0M3)

AUSTRALIAN MADE 24.0M3 VERTICAL FEED MIXER - Designed and manufactured by Australians for the harshest Australian conditions.

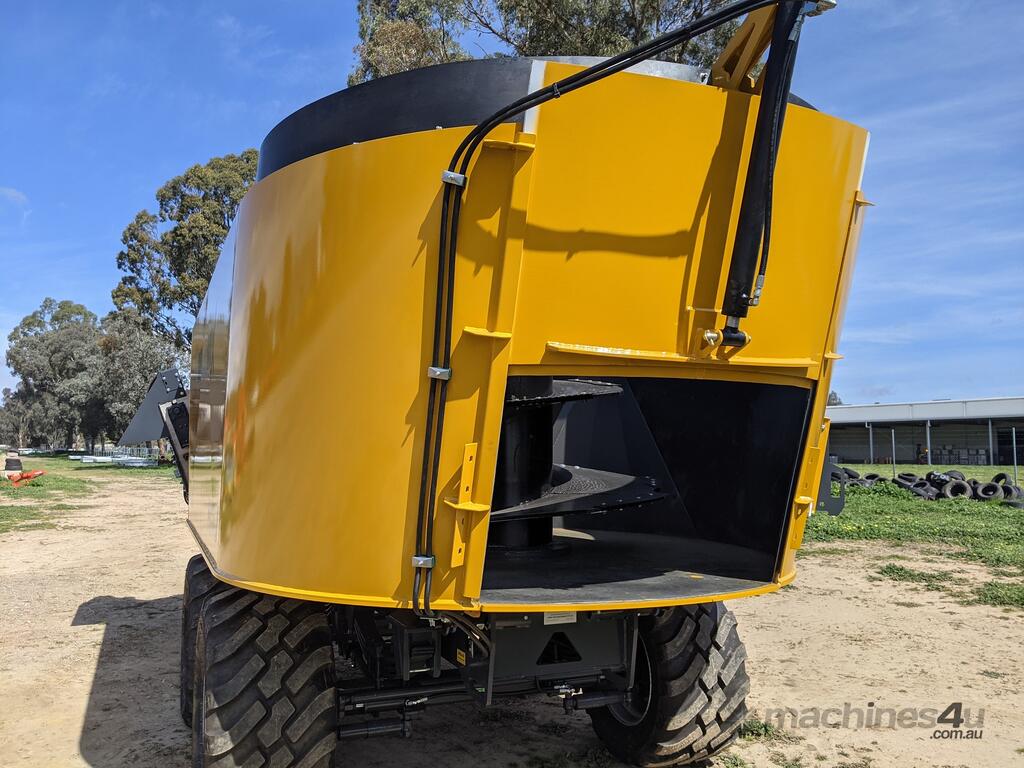

BOWL

WIDE BOWL MIXING TUB
The Ausmix tub comes in both standard wide body (2.5m) or our XL body (2.65m) to better suit large, high density bales. The extra wide body gives large bales more space to be pulled into the mixer, reducing any material being thrown out. This greatly improves time efficiency and chop down. In addition, the extra wide body allows for a lower profile design making it more suitable to smaller loaders like tractors and skid steers.

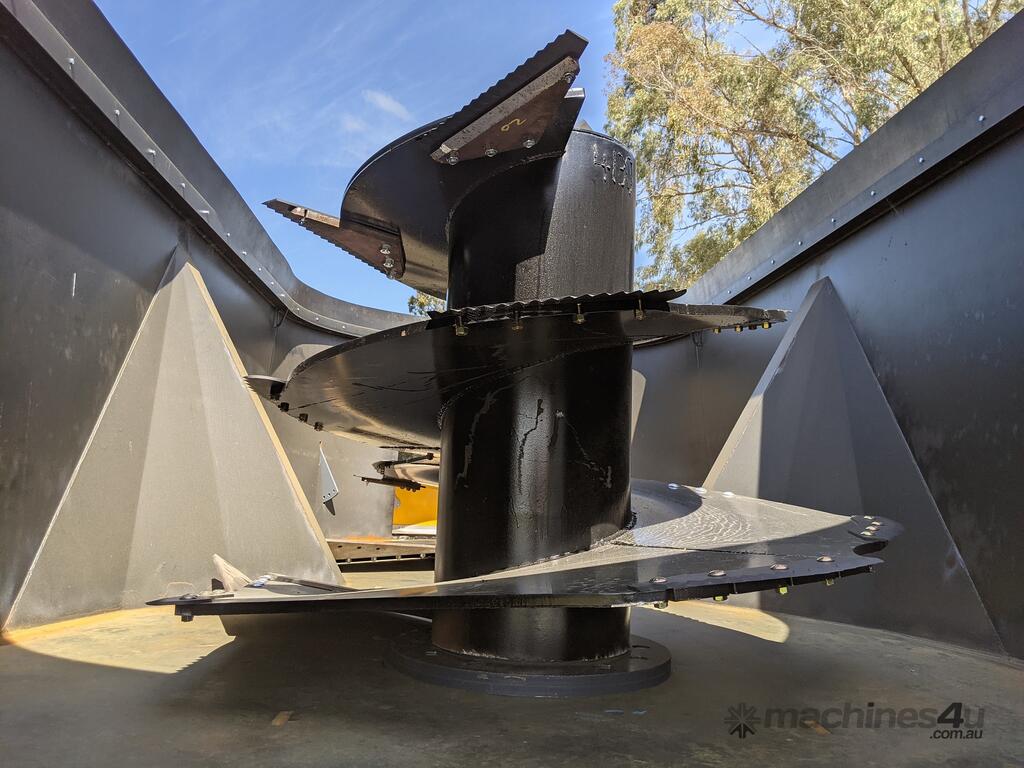

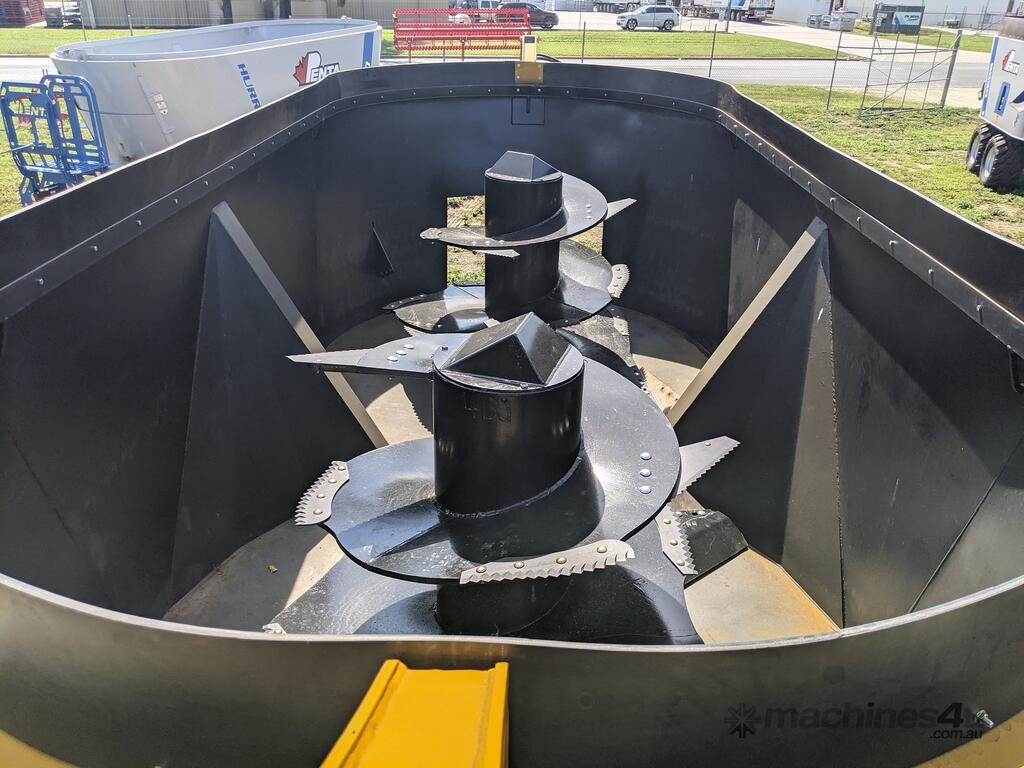

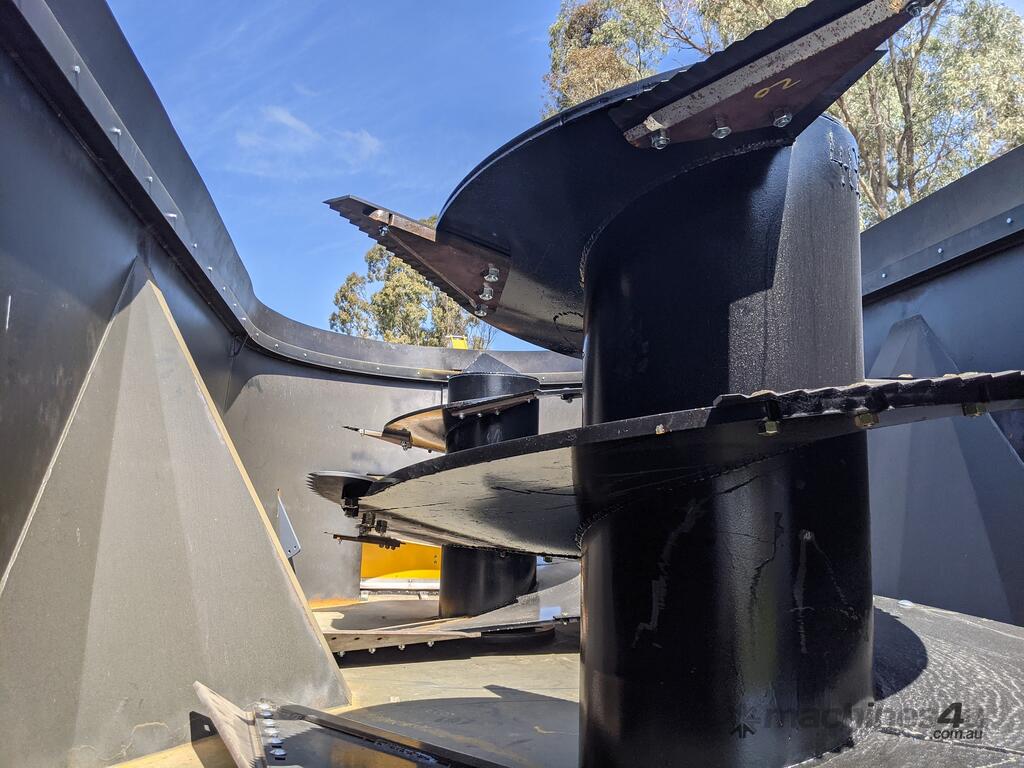

FIBRE-X AUGER
At the heart of every Ausmix is the Fibre-X Auger. Developed for Australian feeding programs, the Fibre-X Auger will correctly process fibre to give your animals the nutritional edge in terms of productivity and herd health.
* Consistent ration/mix from start to finish; substantiated by the Penn State separator test.
* Razor sharp knives chopping fibre with sharp edges for improved dietary scratch factor.
* Auger design suitable for high fibre, forage, grain or heavy wet rations.
* Reduce mixing time with fast chop down of hay and silage bales.
* Leading the way with heavy duty, long life materials 20mm auger and floor plate with 10mm tub walls and tungsten carbide cutting knives.

KNIVES
Fibre-X system leads the way with its ability to process fibre efficiently and effectively. The Ausmix auger features 3 different types of heat-treated tungsten carbides knifes.

CONVEYOR & ELEVATORS
From side shift conveyors with left and right sided feeding to 4.2m elevators to reach the tallest self-feeders, Ausmix offers a full range of delivery systems to match any feeding situation.


FRAME / CHASSIS

HEAVY DUTY CHASSIS FRAME
Our extreme duty frame boasts 20mm steel thickness to improve rigidity and overall strength. Our design eliminates twisting and body roll and can handle any accessories with ease. Our frames are independent to the tub and are secured using 6-point load cells for precision weighing.

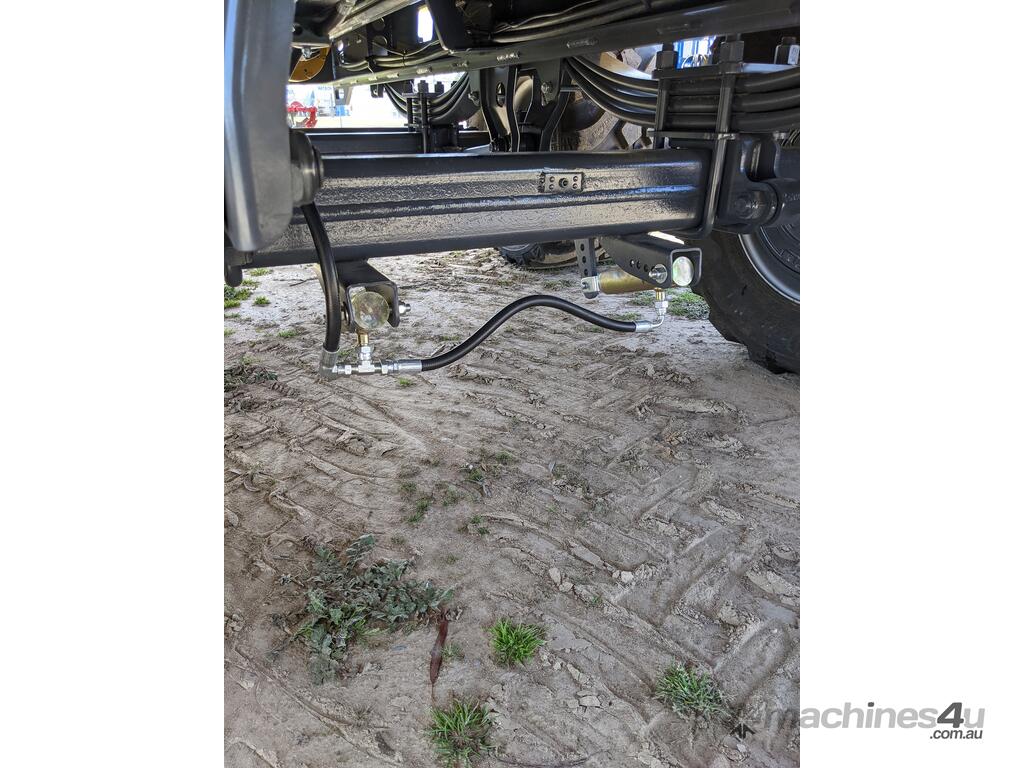

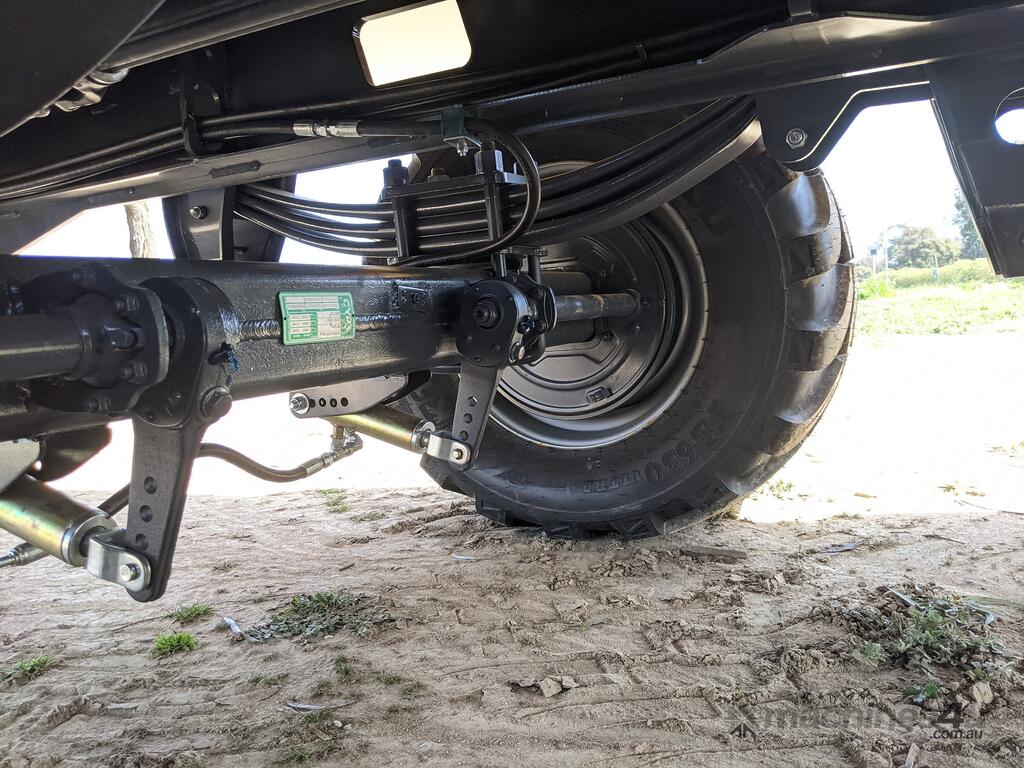

OFF-ROAD SUSPENSION
Our ridge frames are complimented with extreme rated, off-road suspension. Ausmix has chosen top of the line CYR suspension, axles and brakes to complete the under carriage of our range of feed mixers.

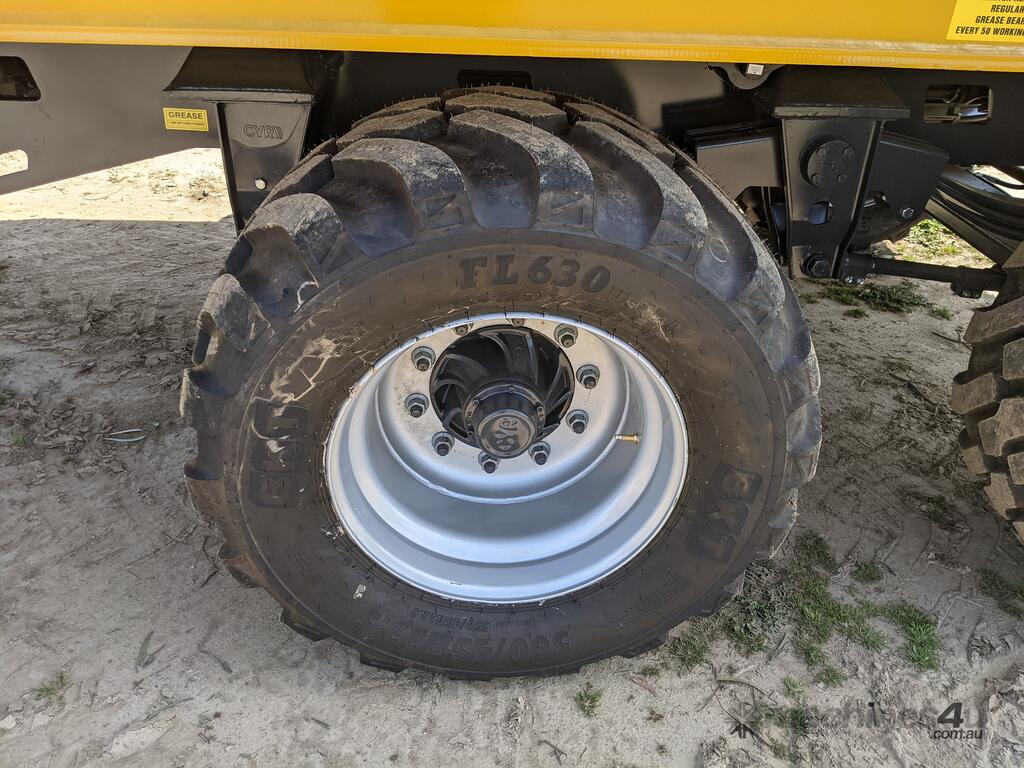

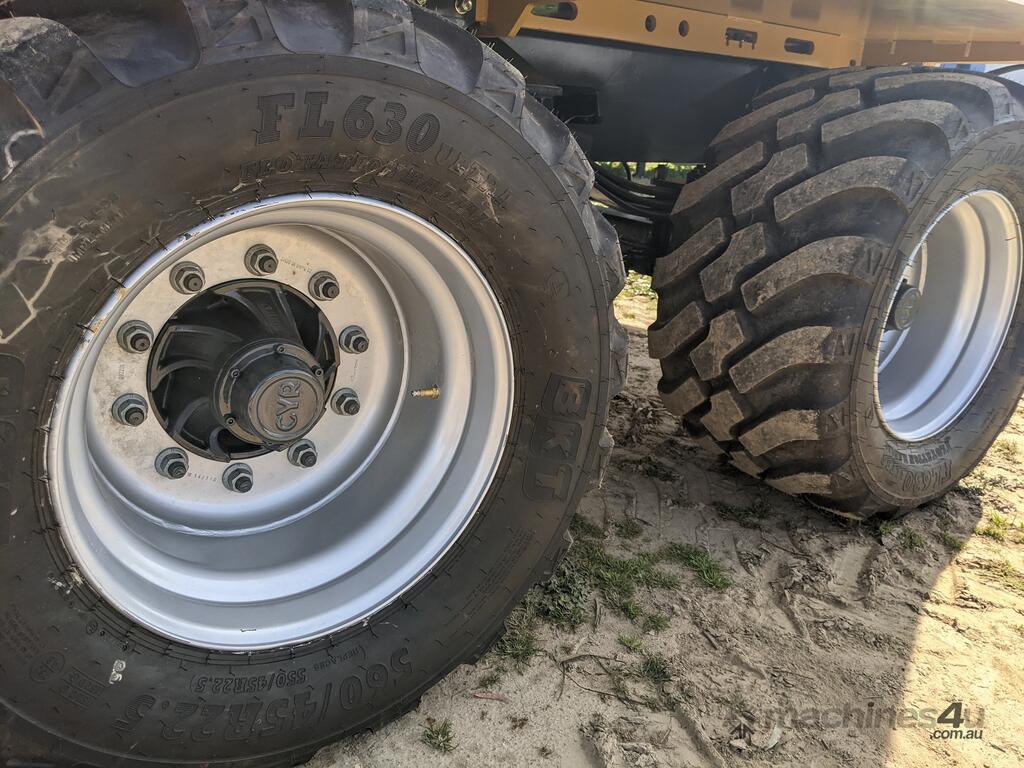

TYRES
Choice of floatation or road tyres to suite your needs.

SWIVEL HITCH
Standardising a heavy-duty swivel hitch on our Ausmix feed mixers gives reliability and peace of mind to operators that are working in harsh conditions. Whether it is tight turns in a feedlot or uneven, undulating paddocks, the investment you have made in your tractor, mixer and fodder will be better protected with our swivel hitch.

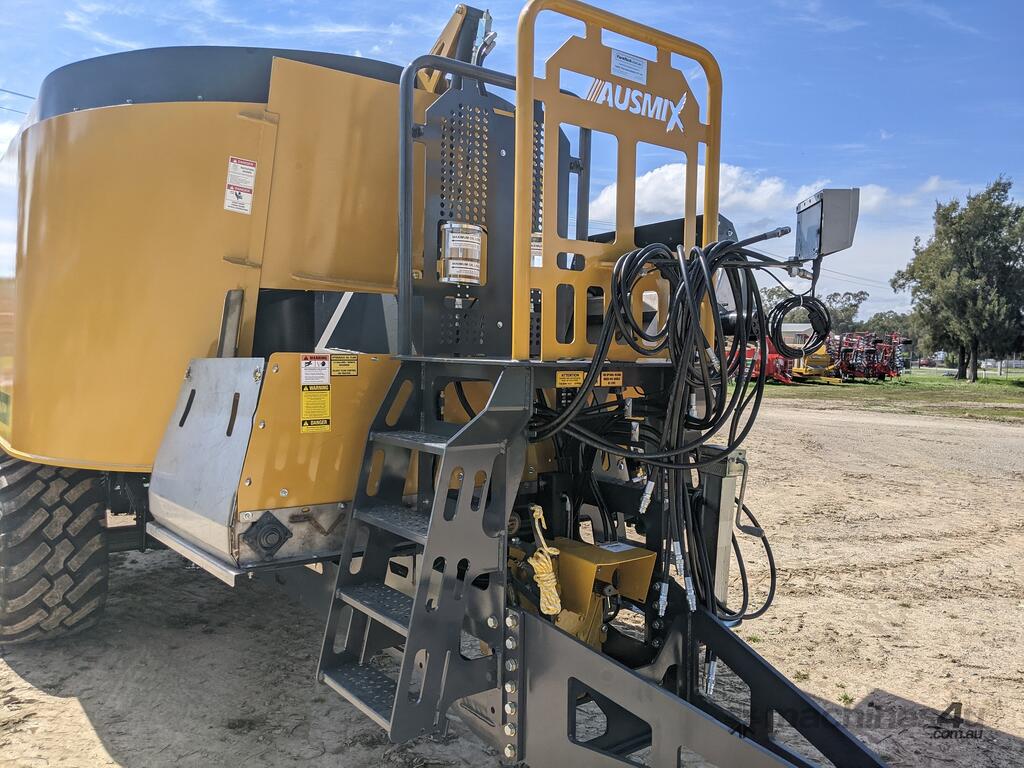

OBERVATION PLATFORM
Connect with your Mix and watch how everything comes together. Non-slip floor, steps and handrails allow you to ascend and traverse the platform safely.

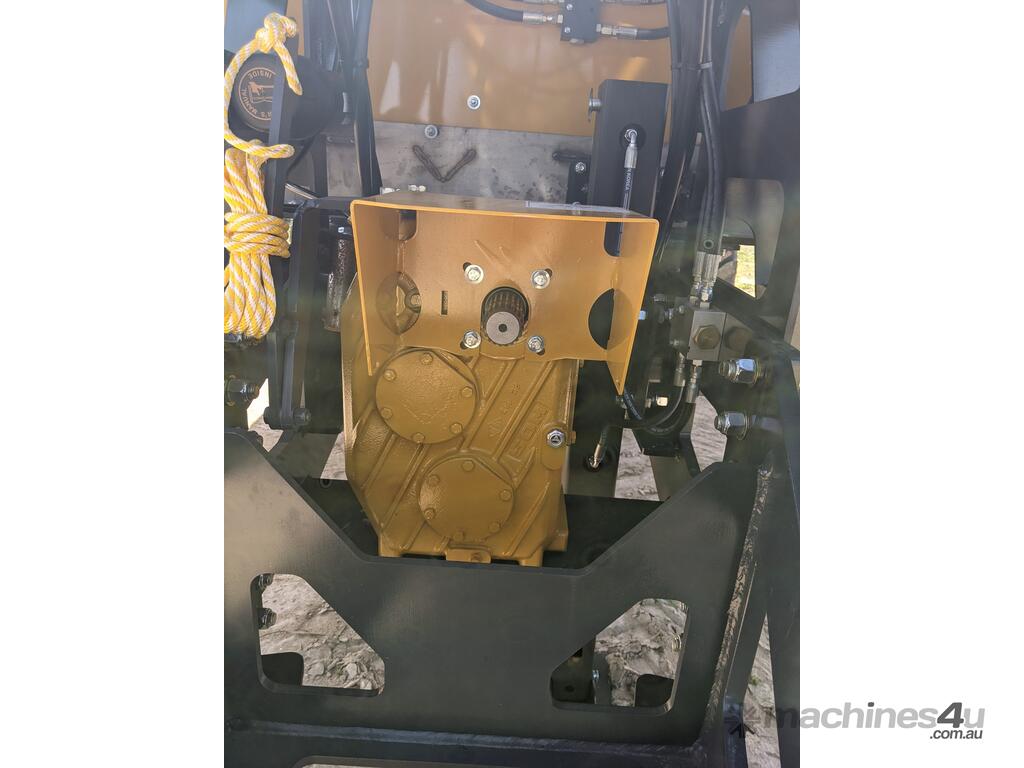

DRIVE TRAIN - PREMIUM OVER SPEC GEARBOXES

TWO SPEED GEARBOX
Low Range:Soft start, consistent mix, even feedout
High Range: Easy clean out

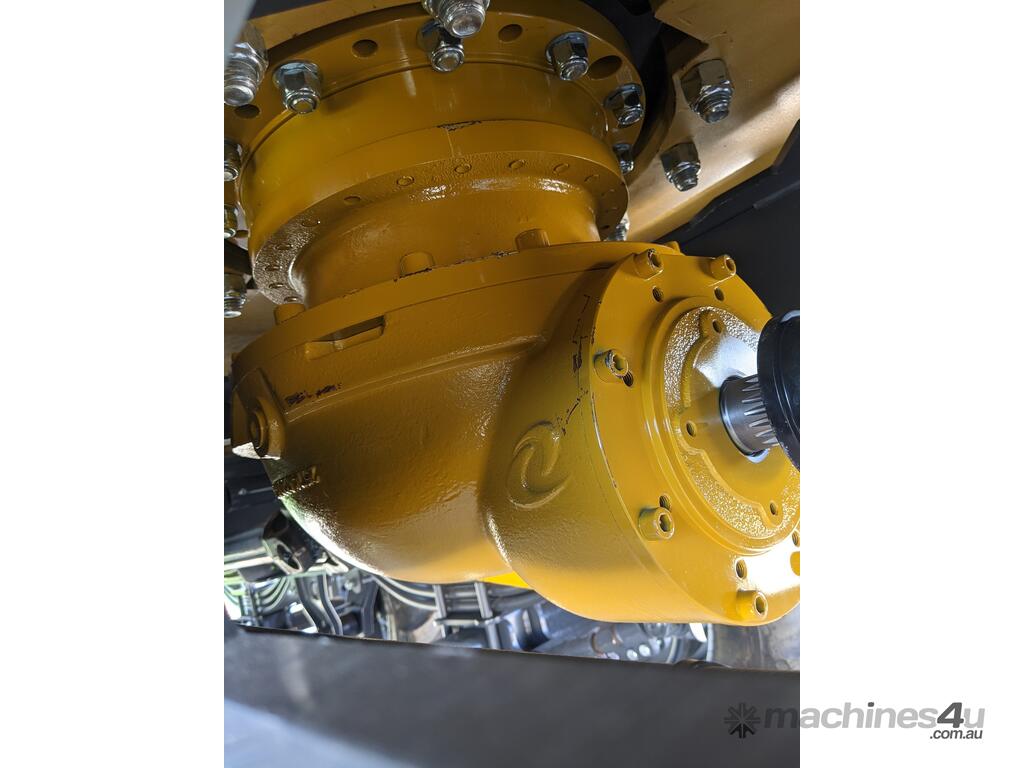

PLANETARY GEARBOXES
Designed for consistent heavy load that you get when mixing a high forage/ fiber ration.
Our heavy-duty gearboxes process big bales with ease.

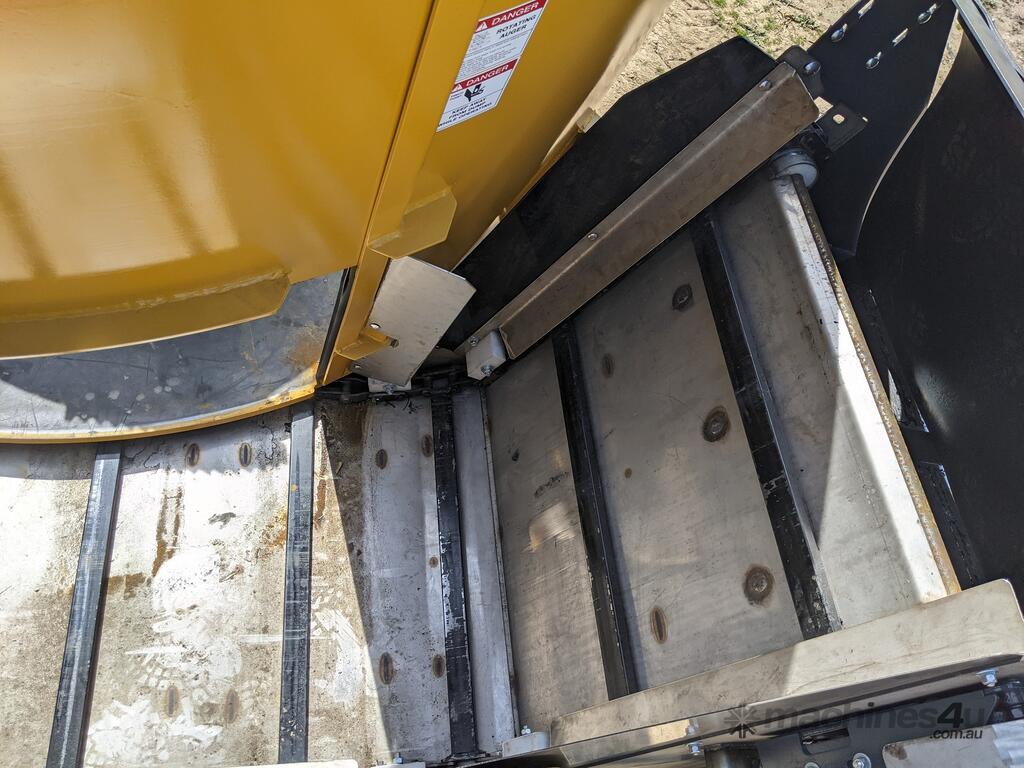

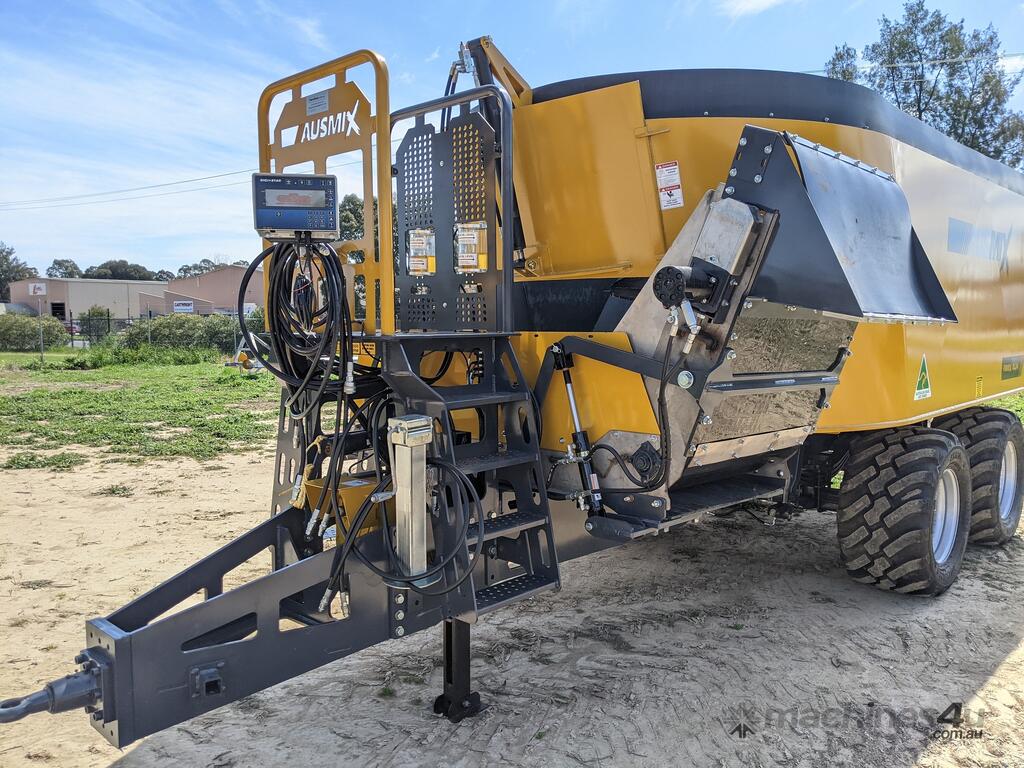

CONVEYOR OPTIONS
Dual shift front feed conveyor 250mm, choice of chain with stainless steel pan or rubber belt.
Flip up feed conveyor, built to order, 1.1m - 4.0m, end tray, rubber flap, magnet. Choice of chain with stainless steel pamn or rubber belt.

Specifcations - XL 24
Capacity With 230mm Rubber: 24.0m3
Minimum HP: 140
Total Width: 2.65m
Total Height: 2.90m
Total Length: 8.3m
Empty Weight: 10,195kg

Machine/Equipment base price only, additional price for optional extras.

We can deliver this machine Australia wide, just ask us for a delivered price.

Prefer to buy this machine through your local dealer? You can do that too, just ask!

Contact FarmTech today for sales or more information.
